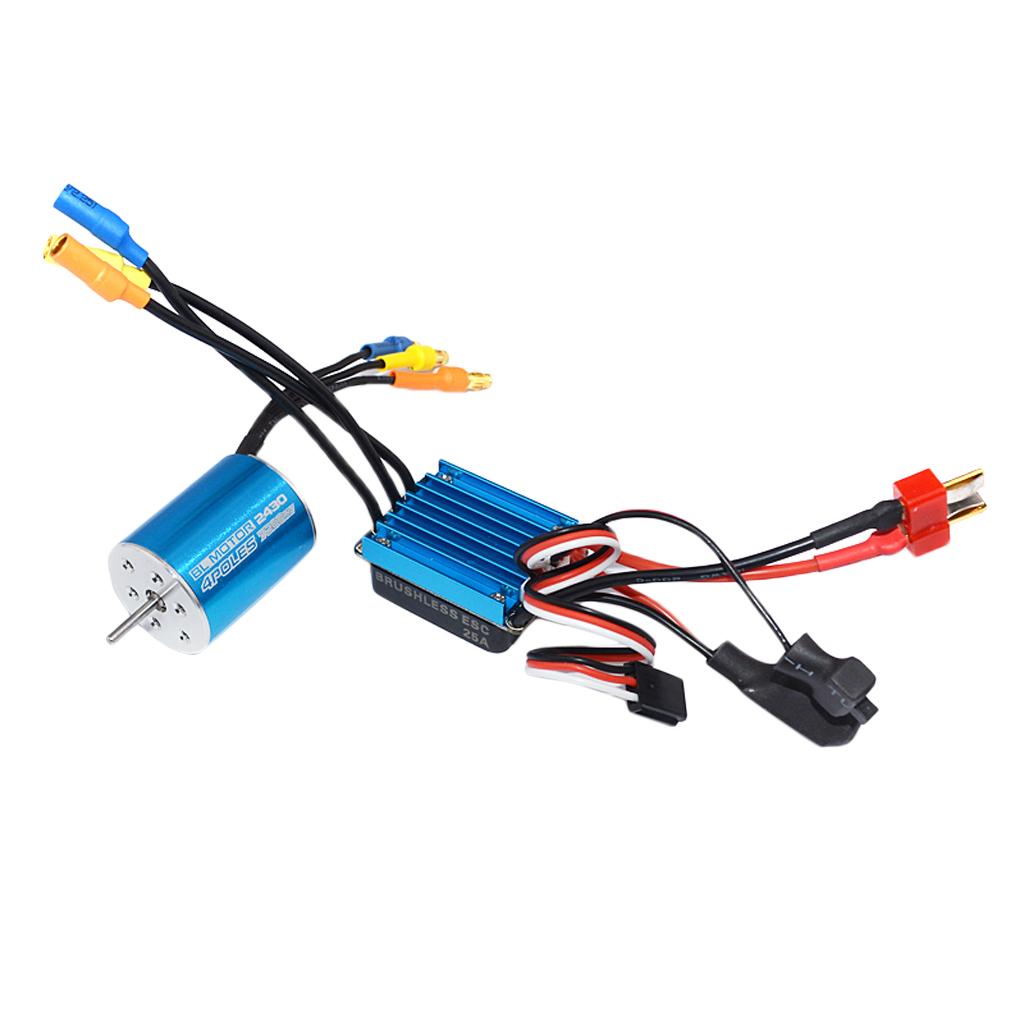

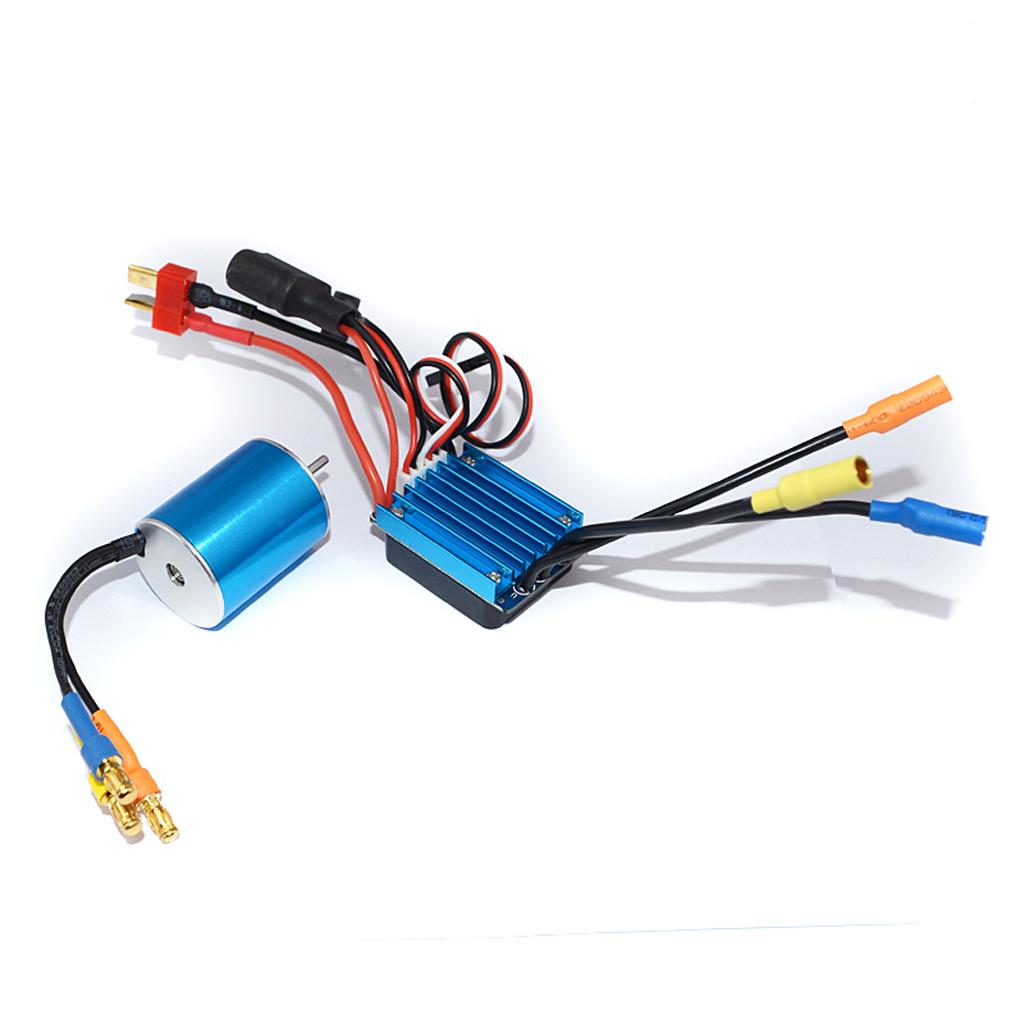

2430 Sensorless Brushless Motor with 25A ESC for 1/16, 1/18 RC Off-Road Car

Regular price
Rs. 4,004.36
Regular price
Sale price
Rs. 4,004.36
Earn 2002 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 61000458
  • Brand: SFC
  • Type: Toys & Hobbies
  • Availability: In Stock
Description

Description:

  • Motor
  • Features:
  • 4 poles Hi-torque motor design.
  • CNC machined 6061 T6 billet alumium heatsink can.
  • High purity copper windings maximizes efficiency.
  • High RPM ABEC5 oversized bearings.
  • Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
  • Precision balanced rotor, smoothness for best reliability and maximum RPM.
  • Stator - Super Thin (0.35mm) laminations.
  • Removable/replaceable.
  • Precision engineered for maximum energy conversion.



  • Specification:
  • RPM: 7200KV
  • Max Current: 24A
  • Max Watts: 200W
  • Can Size: 2430
  • Sensored: No
  • Can Diameter: 24mm
  • Can Length: 30mm
  • Shaft Diameter: 2mm
  • Shaft Length: 12mm
  • Bullet Connector: 3.5mm
  • Weight: 45.5g/1.6oz
  • Max voltage: 7.4V(2S)



  • Note: there's some little error from human measuring.



  • Electric Speed Controller
  • Features:
  • Compatible with sensorless brushless motors.
  • High anti-interference capability.
  • Using advanced software interface to set up or update the software.
  • Super smooth and accurate throttle linearity.
  • Fast response to throttle input.
  • Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
  •
  • Specifications:
  • Cont. Current: 25A
  • Burst Current: 90A/10sec
  • Battery: 2 Cell Lipo / 4-6 Cell NiMh
  • BEC: Yes
  • BEC Output: 5V/1A
  • Power Supply Plugs: T Male
  • Motor Plugs: Female 3.5mm Bullet Connector
  • Size: 40*27*15mm
  • Weight: 29g /1oz

Package Includes:

  • 1 x 2430 7200KV 4P Sensorless Brushless Motor
  • 1 x 25A Brushless Electric Speed Controller

Note:

  • Size for manual measurement, there may be a 0 to 1 cm error, belongs to the normal phenomenon.
  • Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you!
