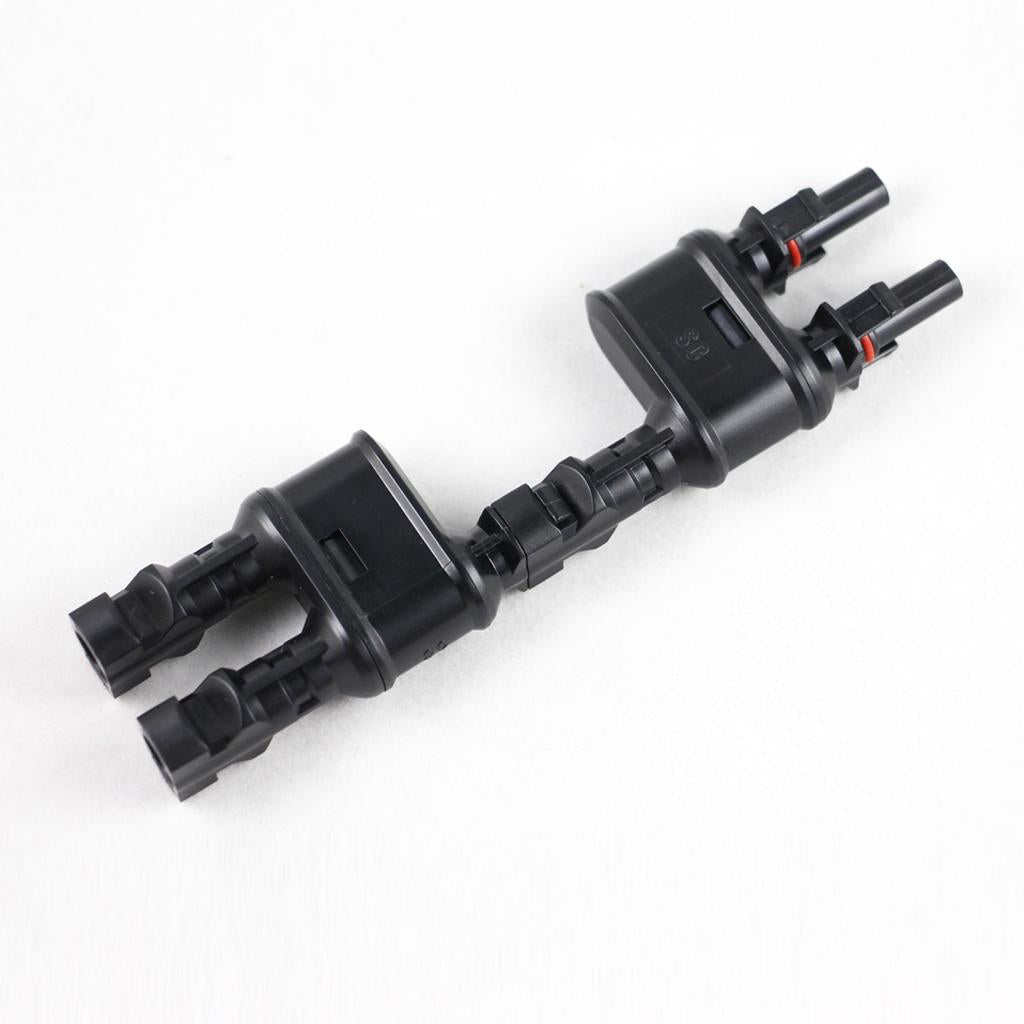

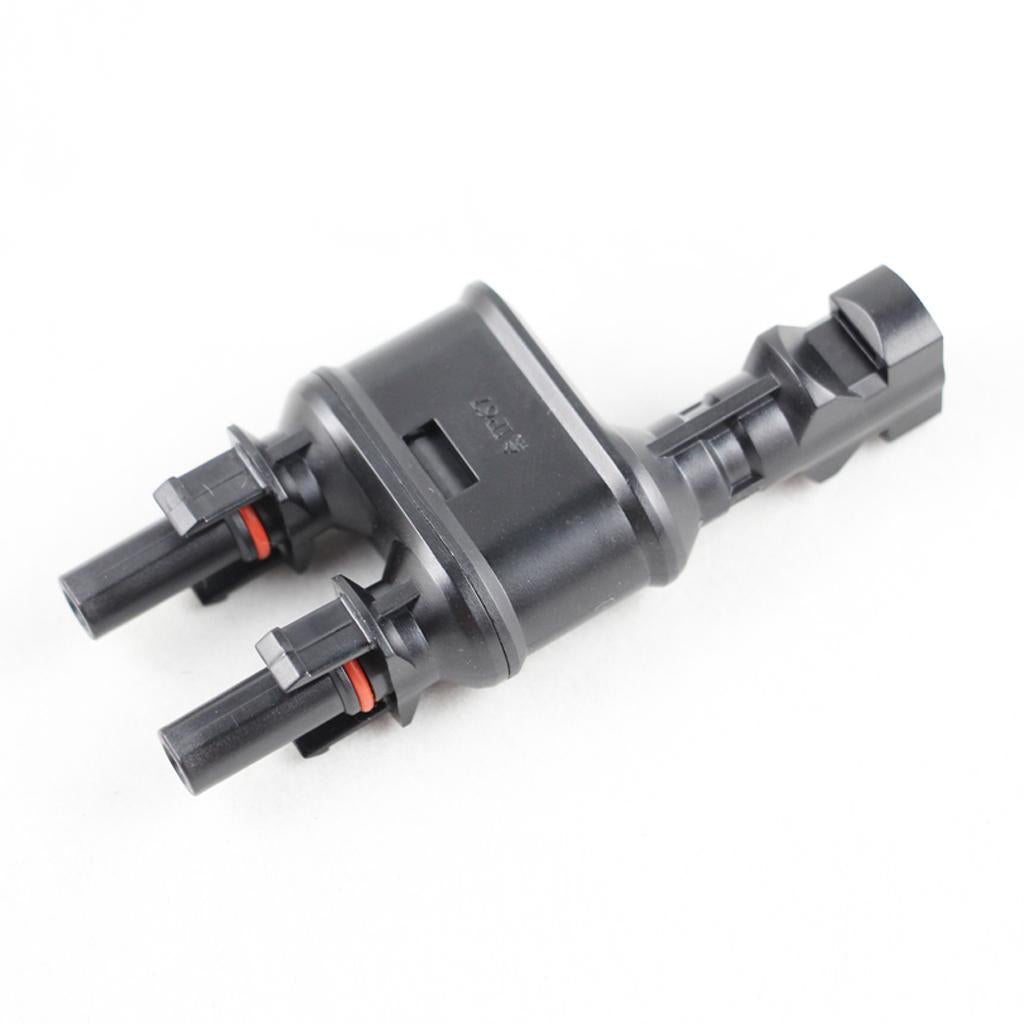

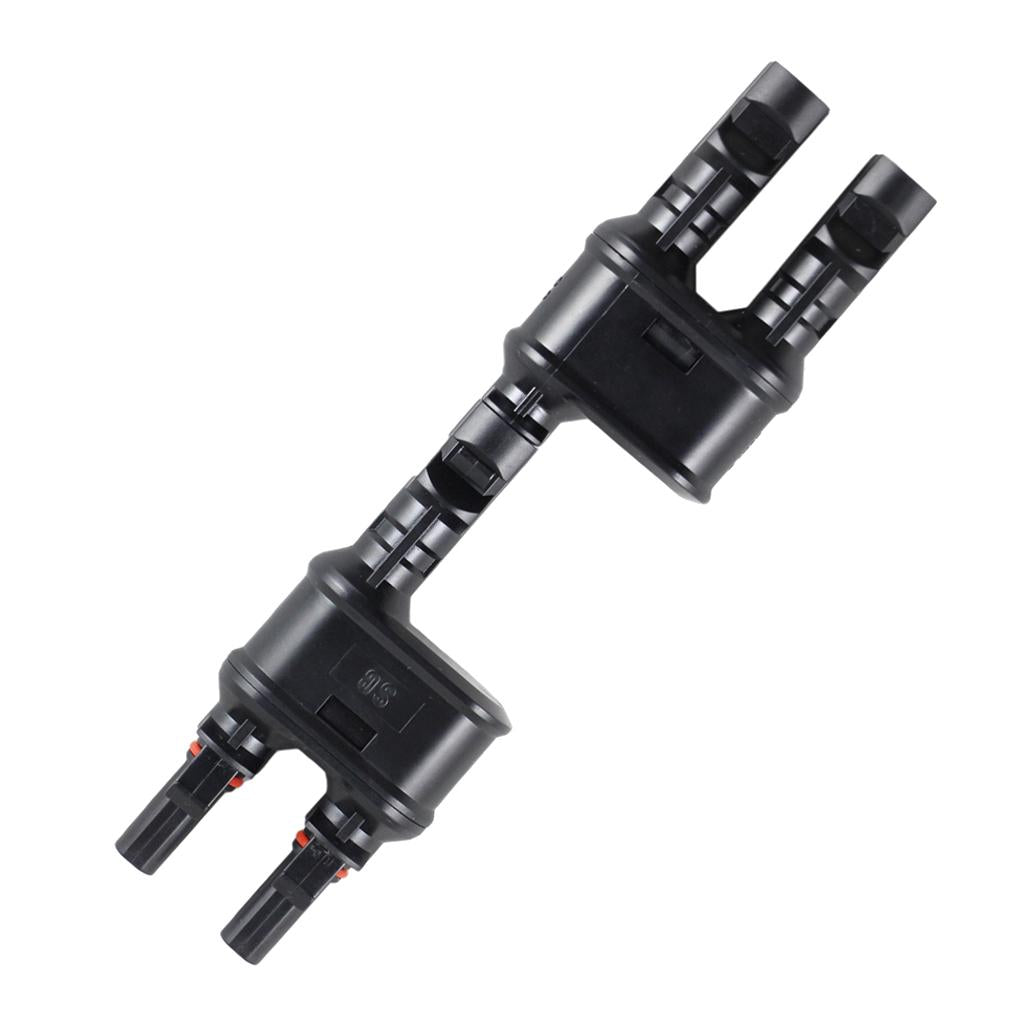

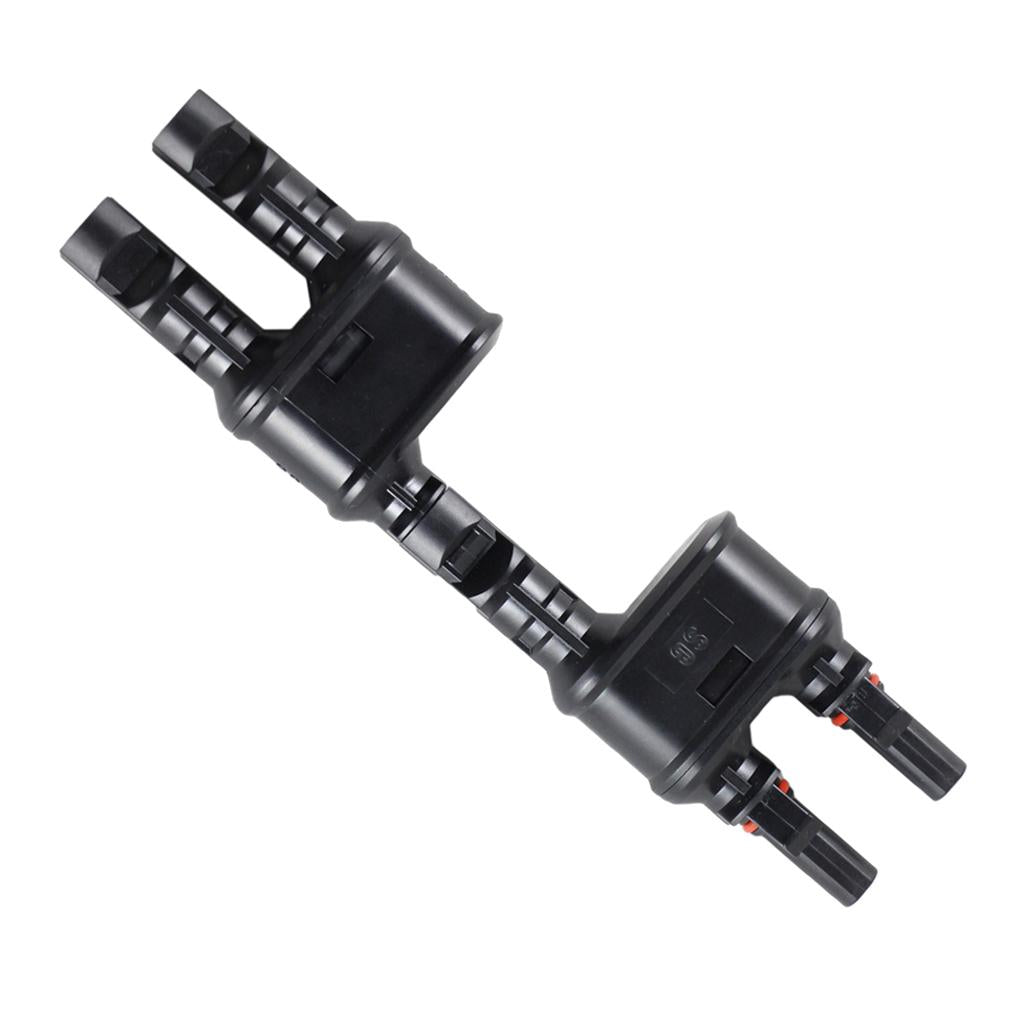

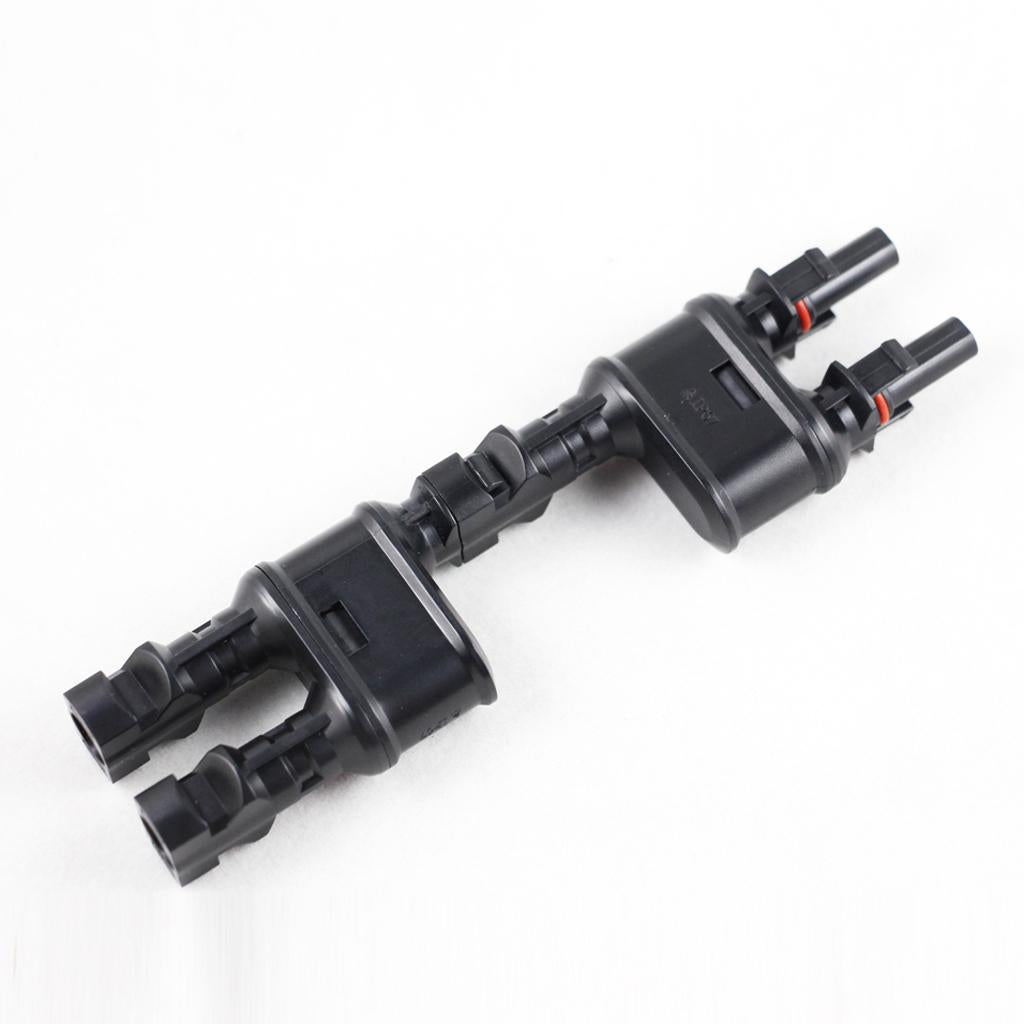

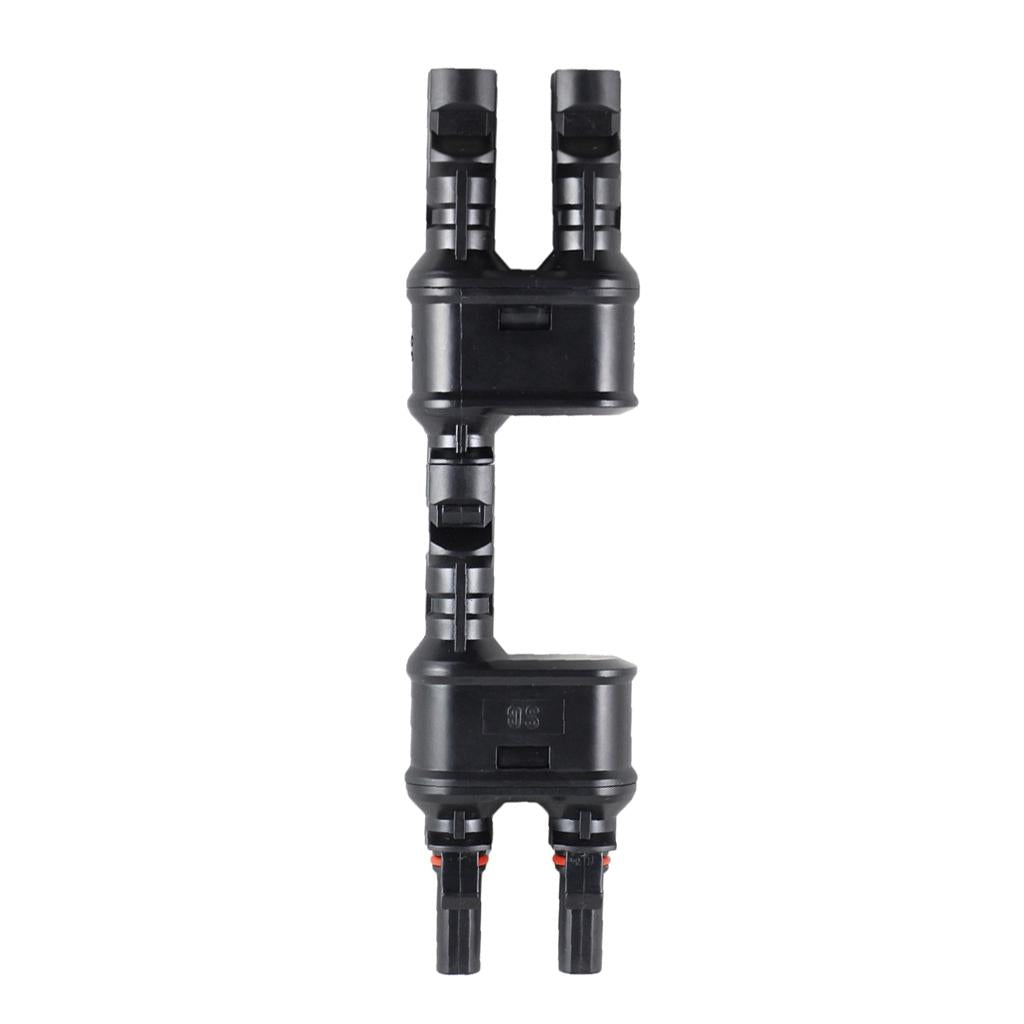

1 pair M/FM 2 to 1 MC4 T Branch Solar Panel Connector Cable Coupler Combiner

Regular price
Rs. 526.54
Regular price
Sale price
Rs. 526.54
Earn 263 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 53016459
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

Description:

Low power loss
Solar connector for solar power system
All the connection made by double fixed connection
With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover
With convenient installation, strong commonality
To meet the using requirement under bad outdoor condition

Specification:

Product No. MC4T-A1
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A~ 30A
Suitable cable cross sections 2.5mm2~ 6.0mm2 / 14AWG~10AWG
Pin dimension 4.0mm
Proof voltage DC 8KV(1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin-plated
Contact Resistance 5mW
Connector Material PPO
Degree of Protection IP IP67(IEC 60529)
Withdrawal Force 3 50N
Insertion Force 50N
Temperature Range -40oc~ +85oc
Flame Class UL94V - 0
Material: plastic
size: Approx.17x8x1.8cm/ 6.69x3.14x0.7"


Package Includes:

1 Pair MC4 Solar Connector
