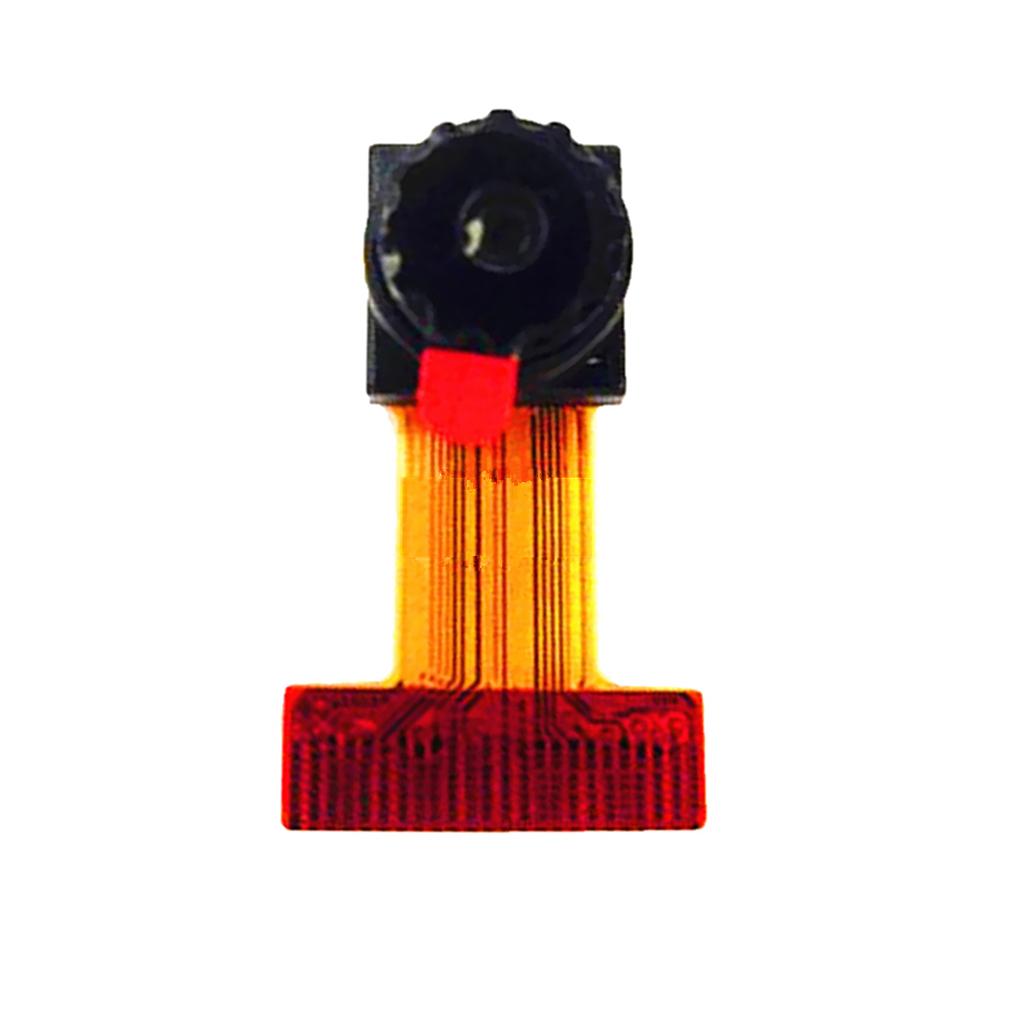

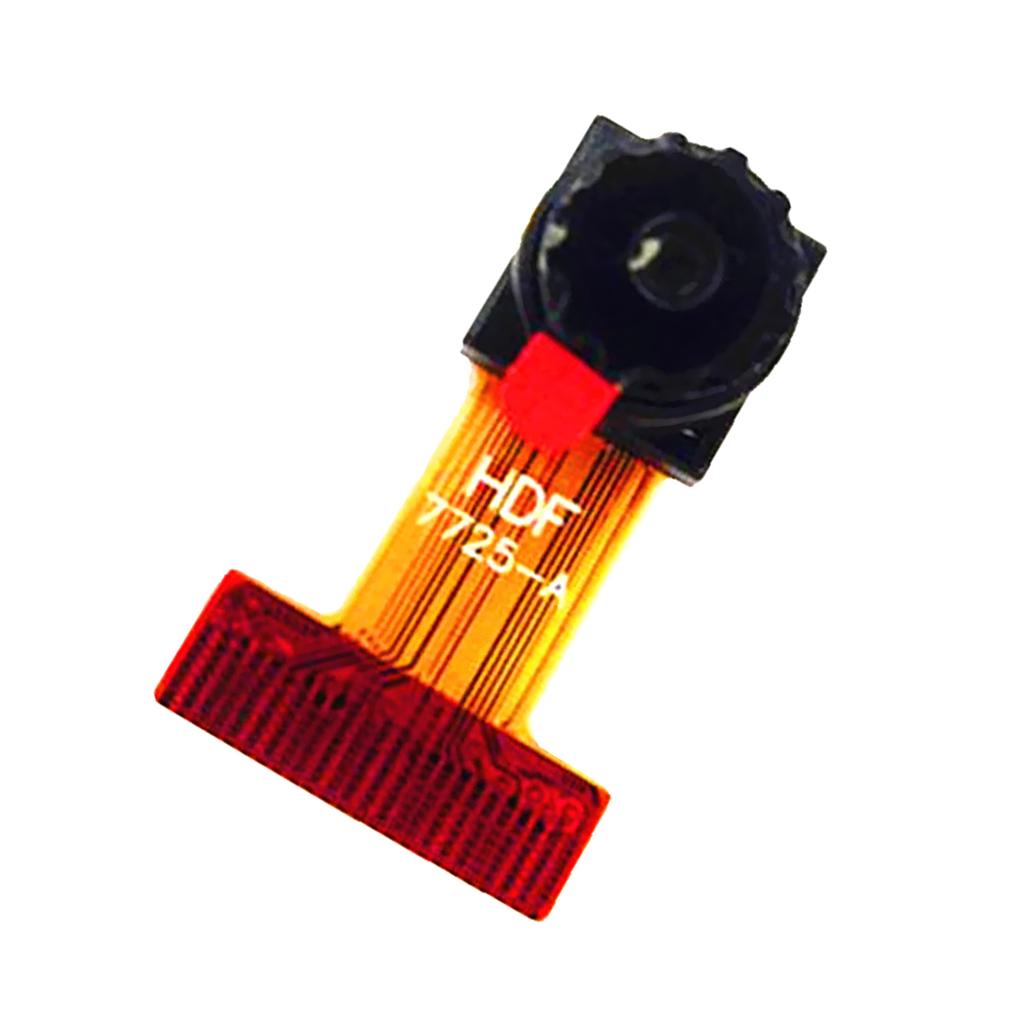

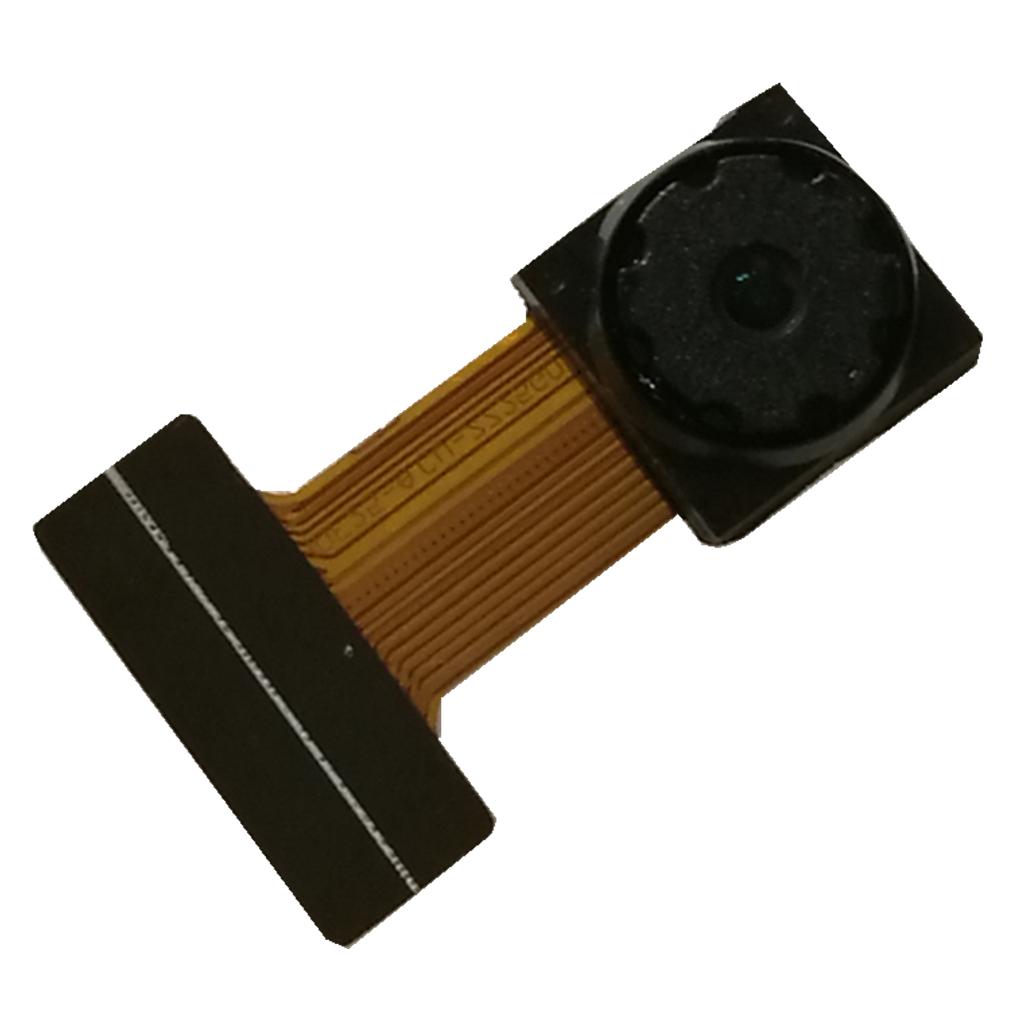

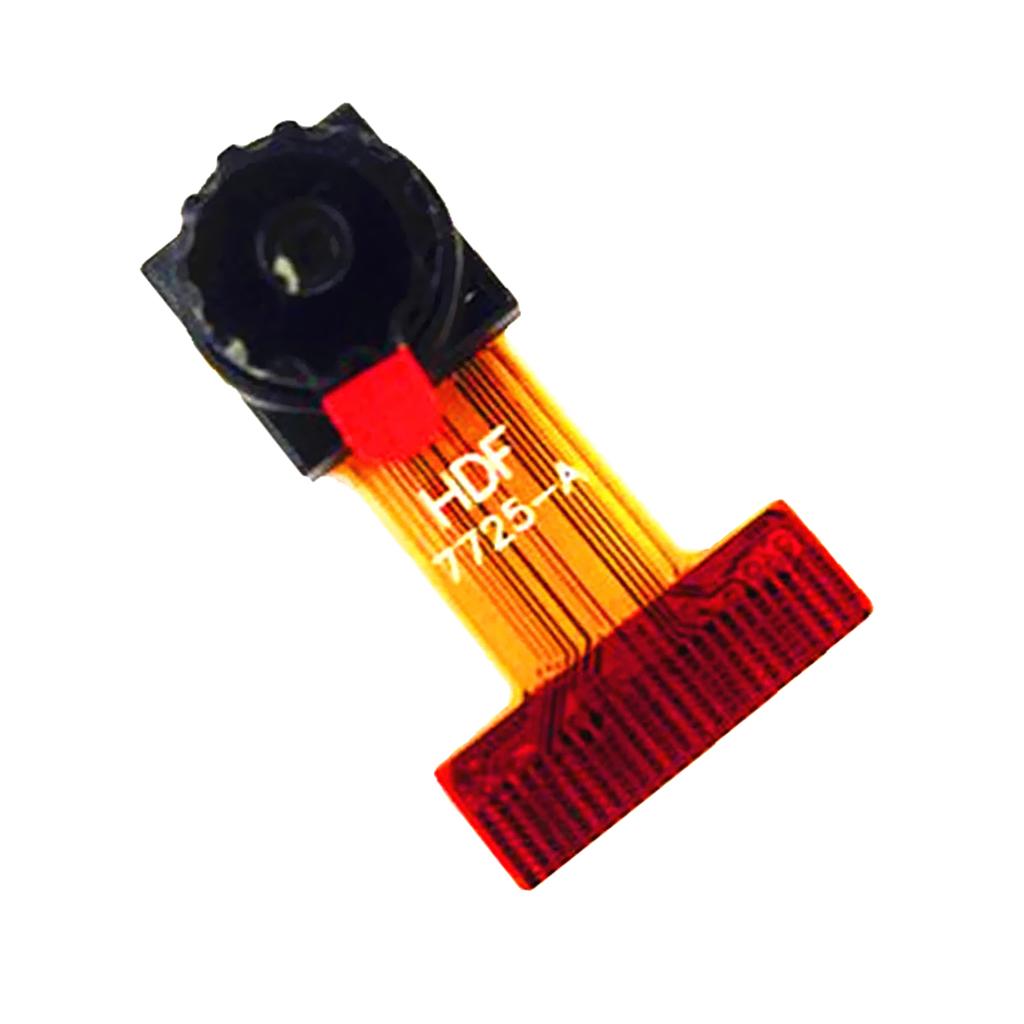

0.3MP HD Electronic Equipment OV7725 Camera Module SCCB Compatiable for I2C

Regular price
Rs. 875.44
Regular price
Sale price
Rs. 875.44
Earn 437 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60008621
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: Out stock
Description

Description:

The OV7725 HD image sensor features 30 megapixel(640x480 pixels), its small size, low operating voltage, and provides all the features of a monolithic VGA camera and image processor.

Through the SCCB bus control, you can output the entire frame, sub-sampling, take the window, etc. various resolution 8/10 bit sampling data.

The product VGA image up to 60 frames / sec. The user can fully control the image quality, data format and transmission mode.

All image processing functions include gamma curve, white balance, saturation, chroma, etc. can be programmed via the SCCB interface.

OmmiVision image sensor application of unique sensor technology, by reducing or eliminating optical or electronic defects such as fixed pattern noise, tail, floating, etc., to improve image quality, get a clear and stable color images.

Specification:

Material: Plastic
Color: As picture show

Size: Approx. 22x12.5x6mm/0.87x0.49x0.24inch

Sensing array 640X480 maximum format VGA

IO voltage 1.7V-3.3V analog voltage 3.0-3.3v (internal LDO to nuclear power supply 1.8V)

Power Consumption TBD Sleep<20μA

Output format (8 bits) YUV / YCbCr4: 2: 2 RGB565 / 555/444 GRB4: 2: 2 Raw RGB Data

Optical size 1/4 "

Field angle 25 °

Maximum rate of 15fps SXGA

Sensitivity 1.3V / (Lux-sec)

Signal to noise ratio 40 dB

Dynamic range 50 dB

Pixel area of 6μm x 6μm

Dark current 15mV / s at 60 ℃

Package Includes:

1 piece OV7725 Camera Module

Note:

Pls allow an error of 1-3mm due to the difference of manual measurement.
