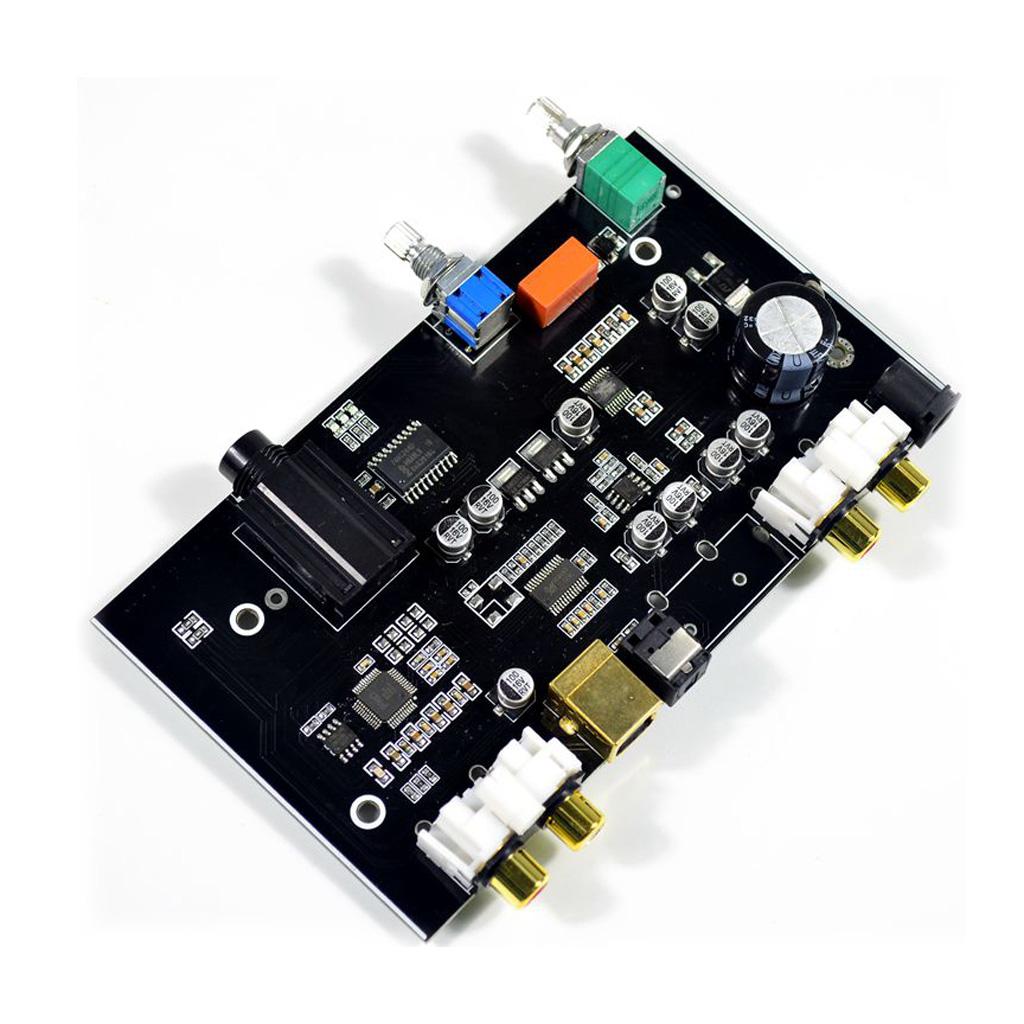

HiFi Audio Decoder, DC 12V Optical Coaxial USB Input Decoder HiFi Audio Amplifier Board Module

Regular price
Rs. 2,033.52
Regular price
Sale price
Rs. 2,033.52
Earn 1016 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63022868
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Description:

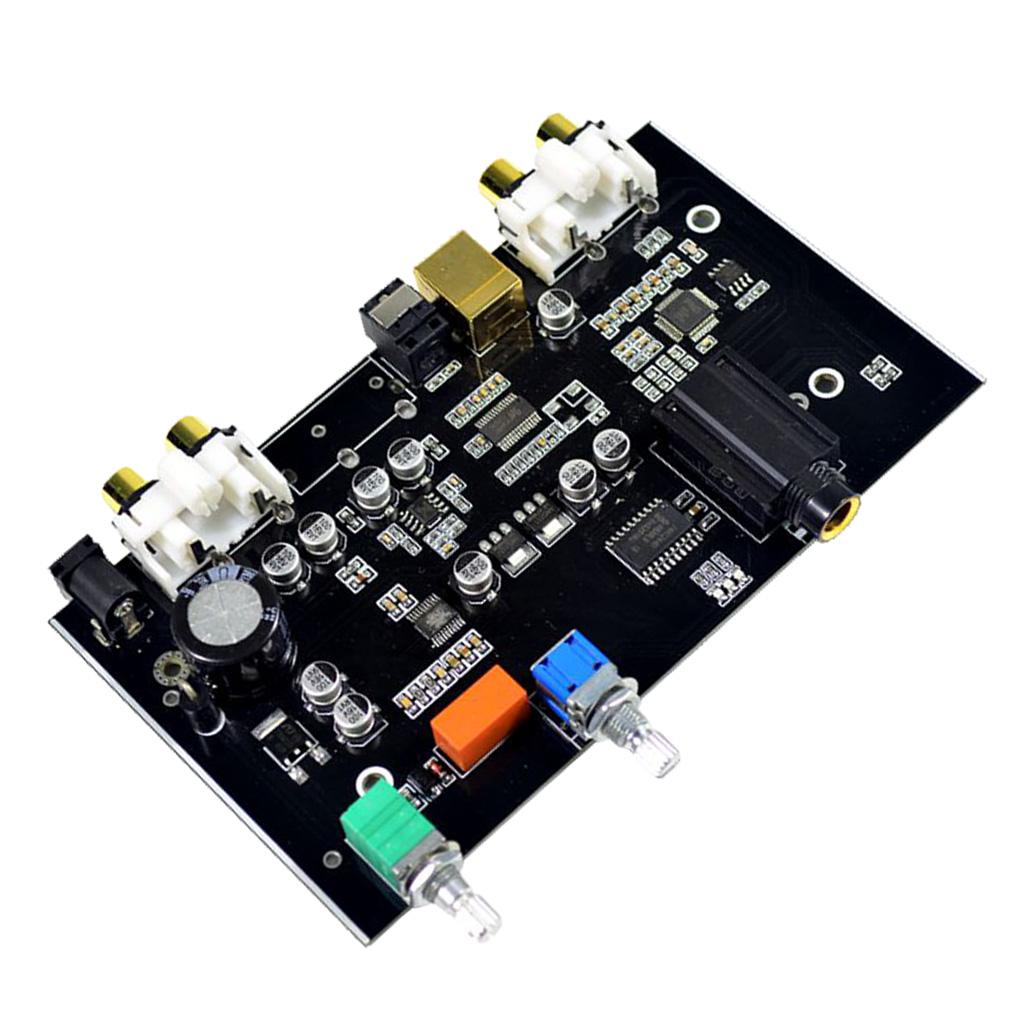

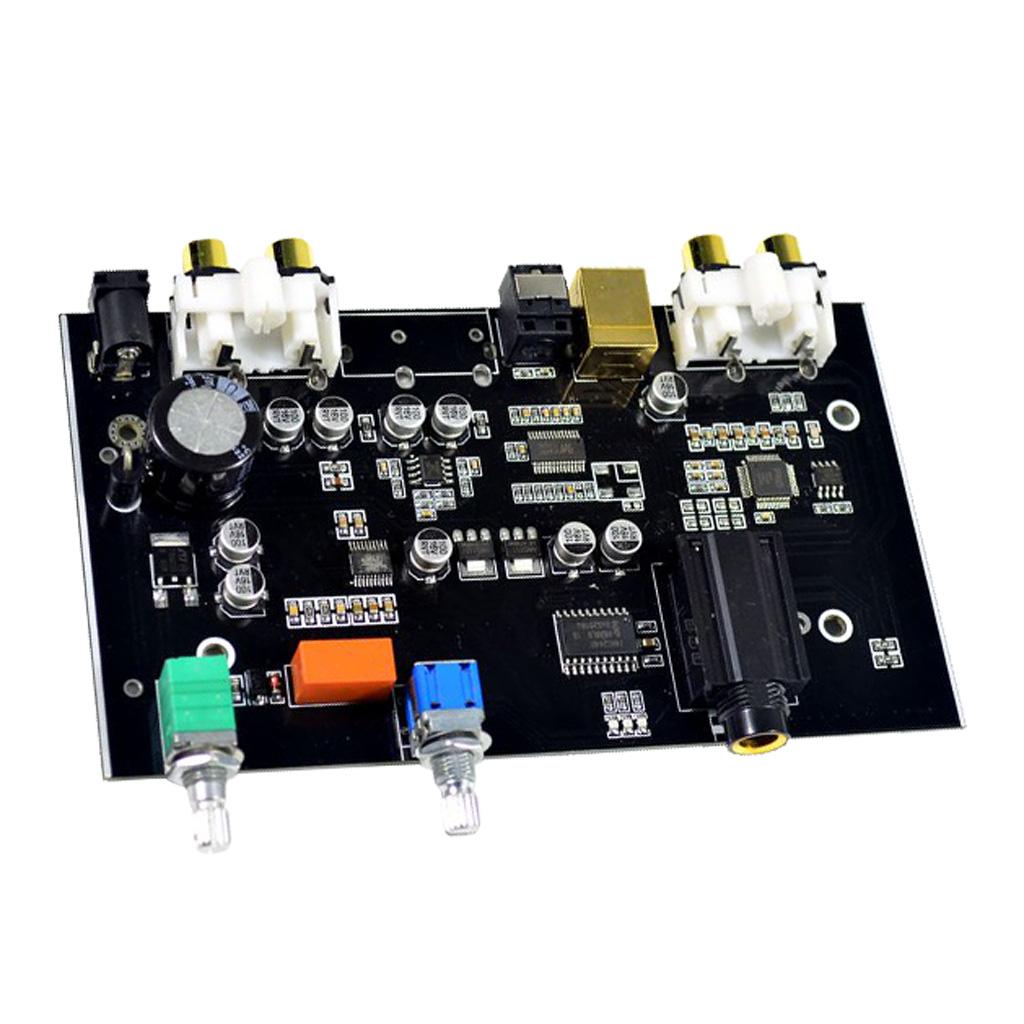

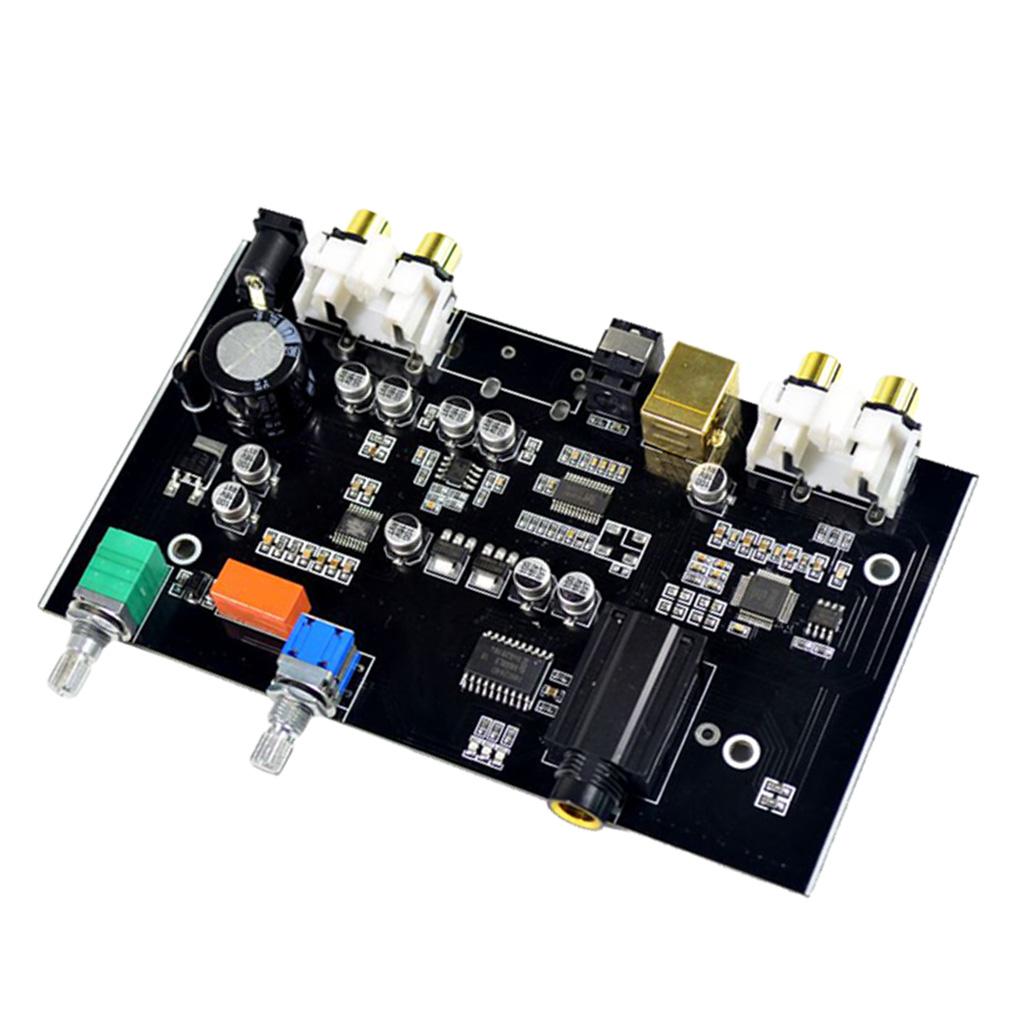

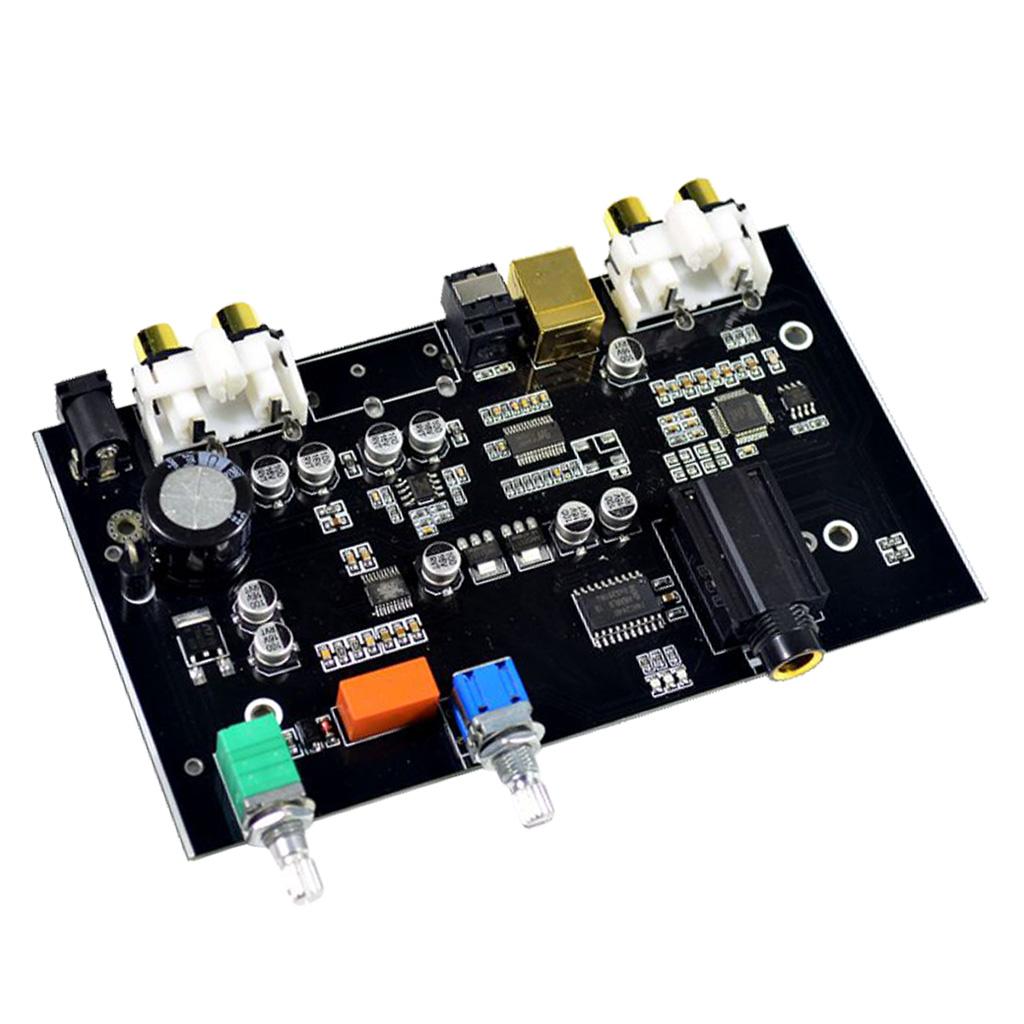

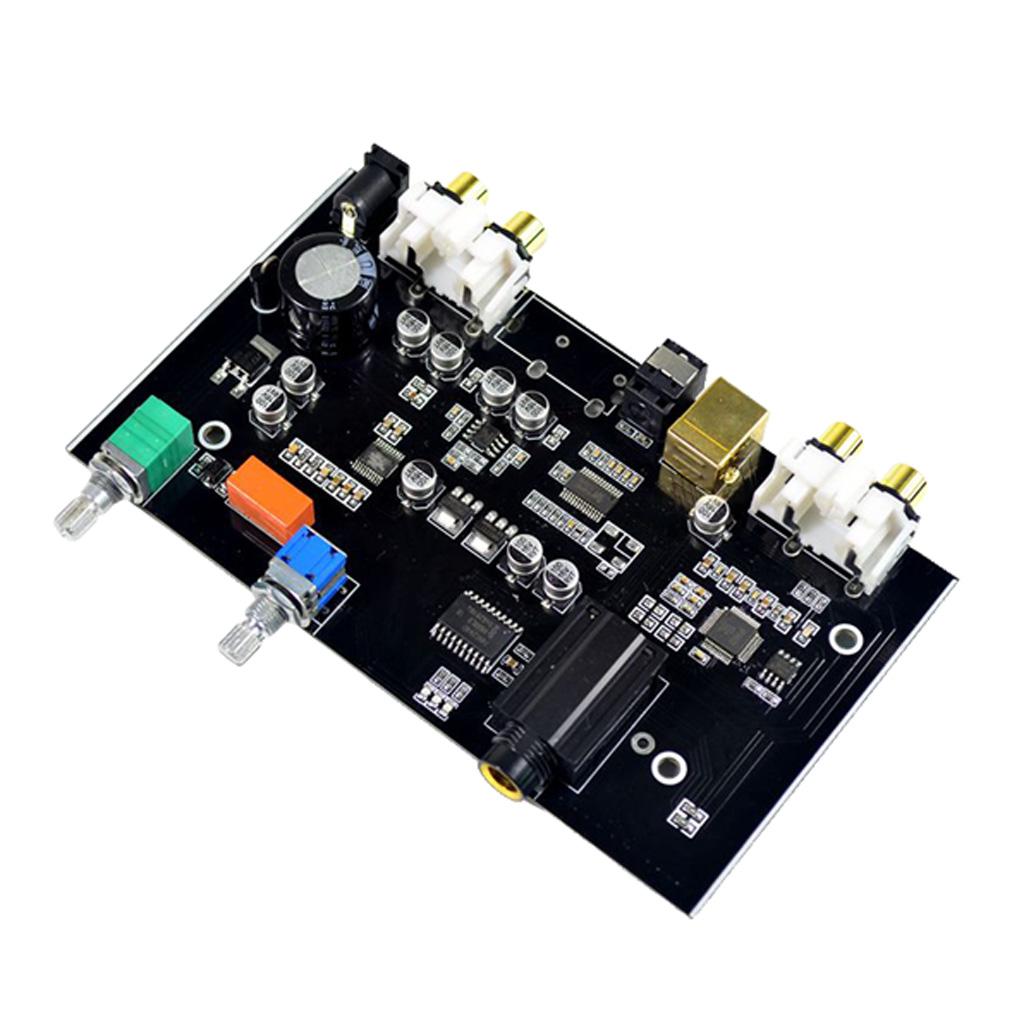

The HiFi audio decoding amplifier board adopts original PCM5100 and MS8416, USB uses custom decoding chip, op amp NE5532.
The resistor uses a five-ring metal resistor, and the main circuit uses a five-ring metal film resistor with an accuracy of ±1% to ensure a good signal-to-noise ratio.

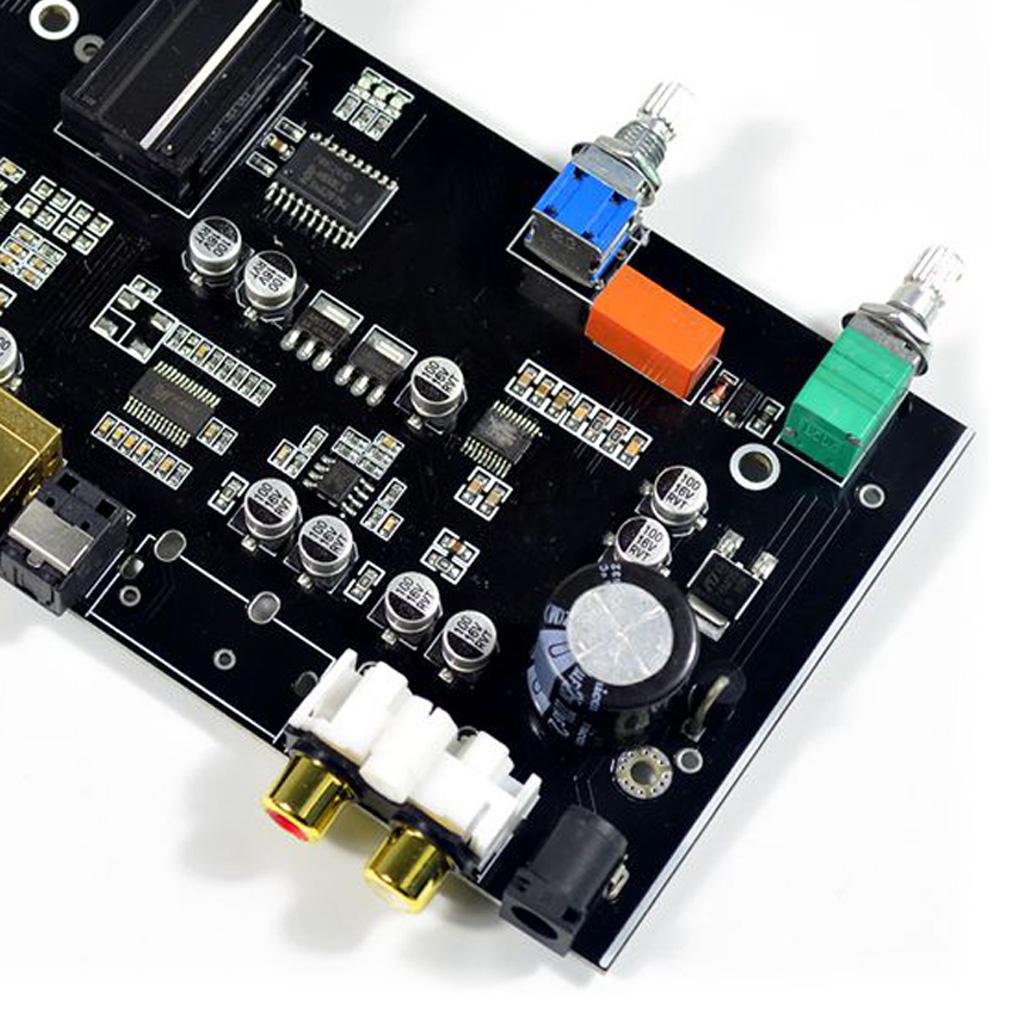

Coupling capacitor adopts chip inlet capacitor, main filter electrolytic capacitor capacity is 2200UF/25V, ensuring strong and continuous power support.
PCB uses 1.6mm thick double-sided sheet, 2.0oz copper thickness, spray tin full process, to ensure good passing performance of large and small current. First-class PCB quality.
Coaxial input support to 96KHz, optical input support to 96KHz, USB support 48KHz (computer does not need to install driver).

Specification:

PCB size: 144x83mm
Voltage: DC 12V

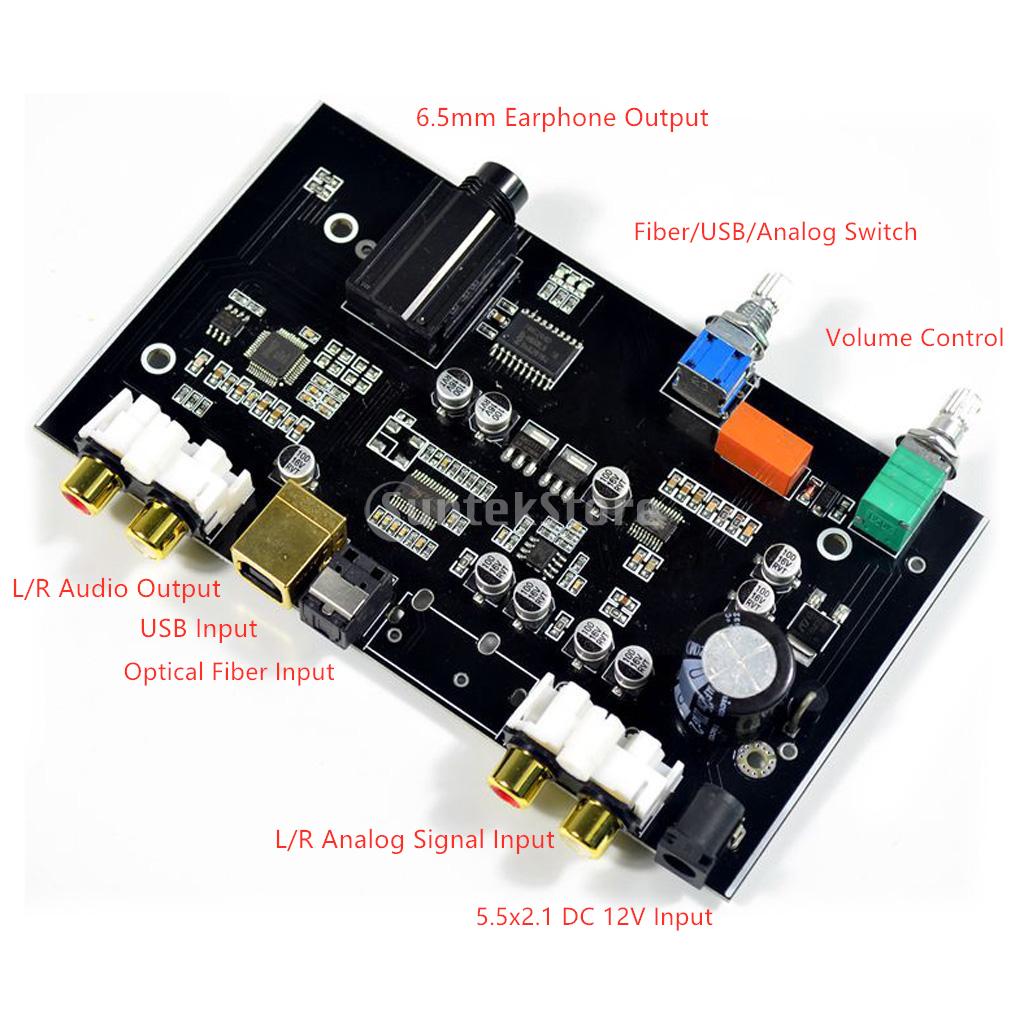

Input: Optical Fiber Input; USB Input; L/R Channel Analog Signal Input
Output: 6.5mm Headphone Output; L/R Channel Audio Output

Package Includes:

1 Piece Audio Decoder Board
