Digital Stereo Audio Amplifier Board Module USB DC 3.6-5.5V

Regular price
Rs. 338.76
Regular price
Sale price
Rs. 338.76
Earn 169 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63018209
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Description:

Size: 39*38*10mm/1.53*1.50*0.39inch

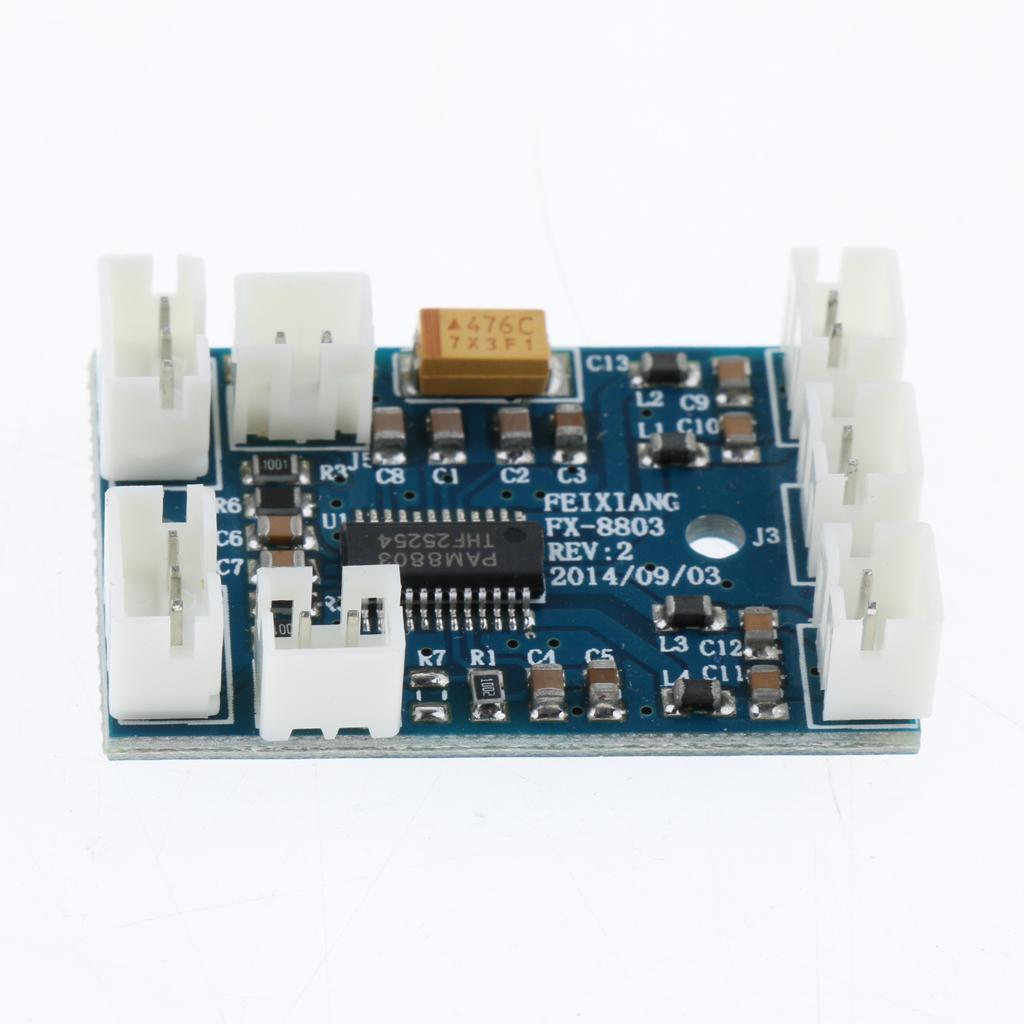

High-efficiency digital power amplifier chip.
Internal special output processing circuit.
Maximum power output at low voltage, super power saving.
With small distortion, low noise, large dynamic range and other characteristics.

Specification:

Power Supply: DC:3.6V-5.5V
Output power:3W+3W(4 Ohm)
Efficiency:>90%

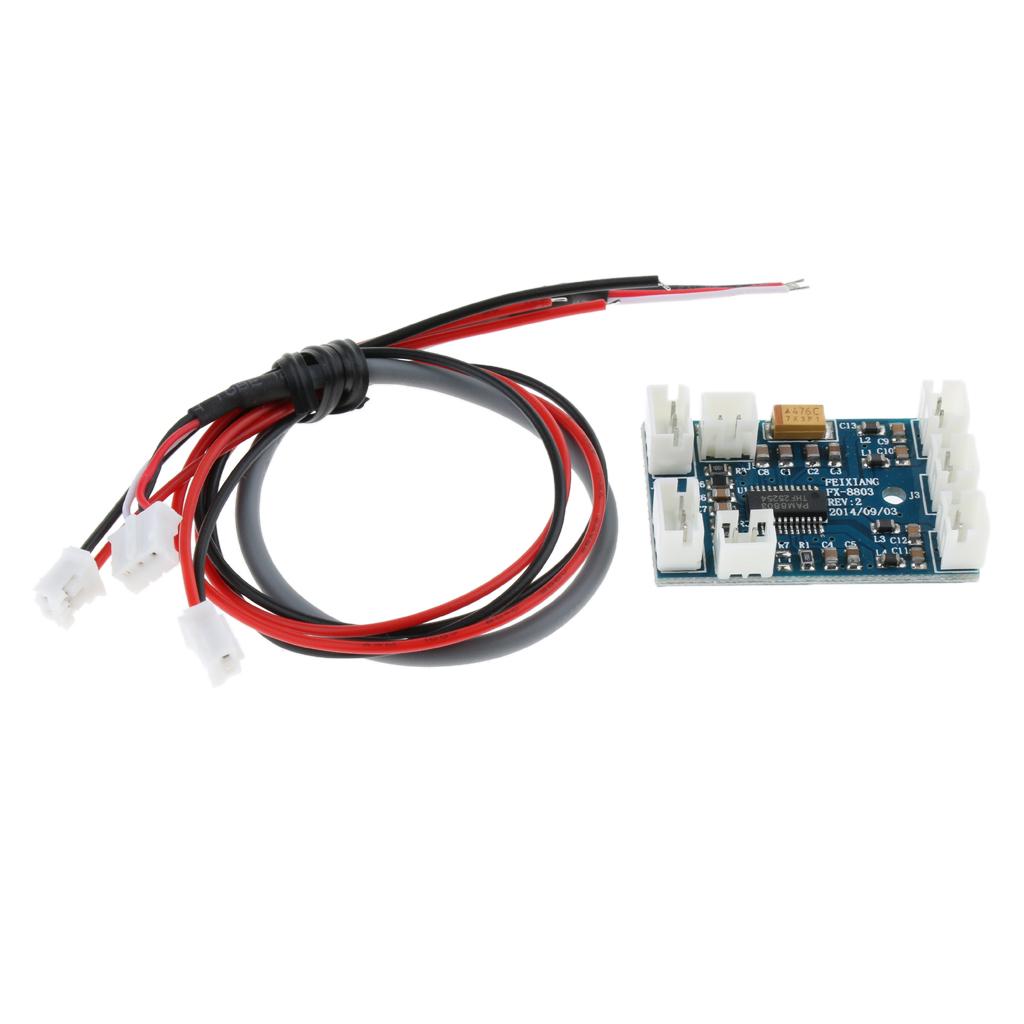

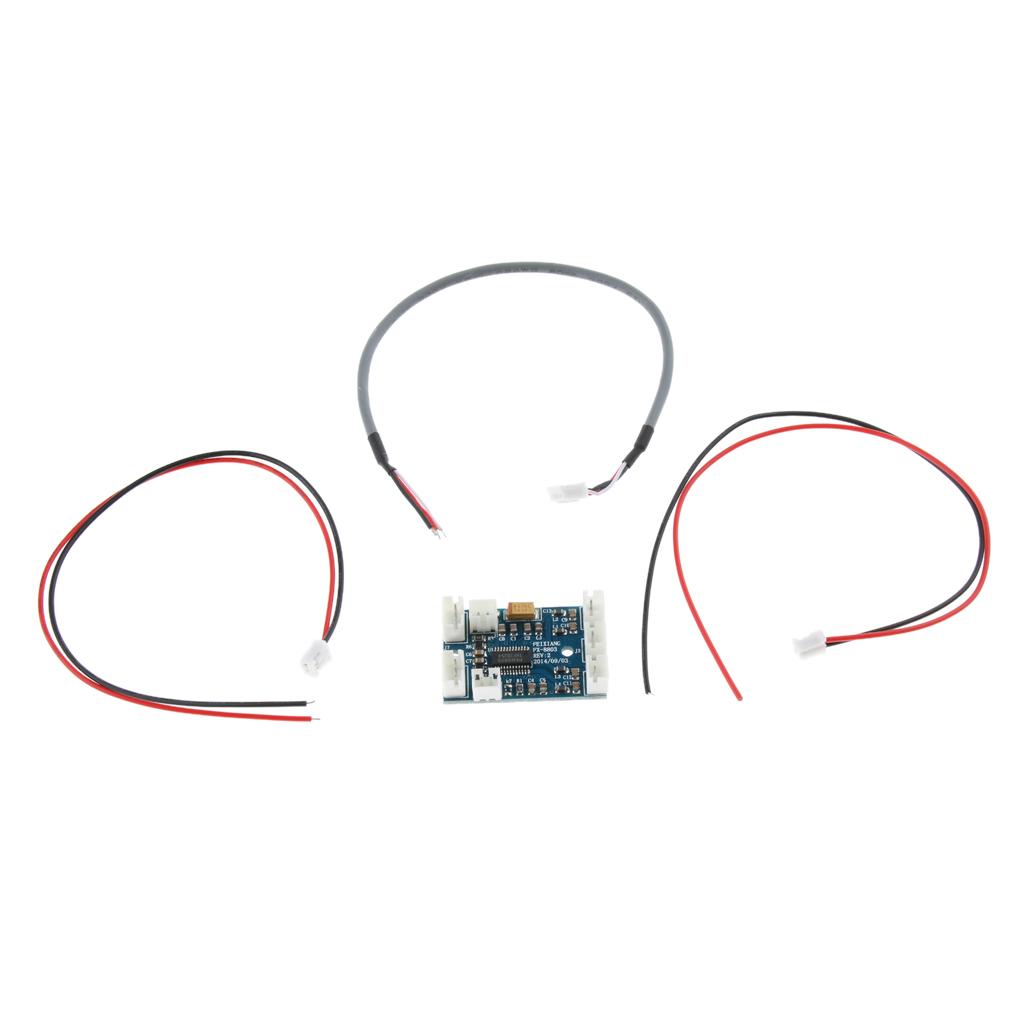

Package Includes:

1 Piece Power Amplifier Board

1 Piece Line

Note:

1.The positive and negative poles of the power supply can not be reversed, the power supply voltage can not exceed 5.5V, as long as one of the cases occurs, IC will be burnt immediately.
2.There is a high gain buffer in the chip, and no component parameters on the board can be changed. Unmatched parameters will lead to IC damage.
3.The output is the BTL driving mode of the CMOS transistor, the negative poles of the left and right horns can not be connected together, that is, the four lines connected to the horn are completely independent and not allowed to be joined together.
