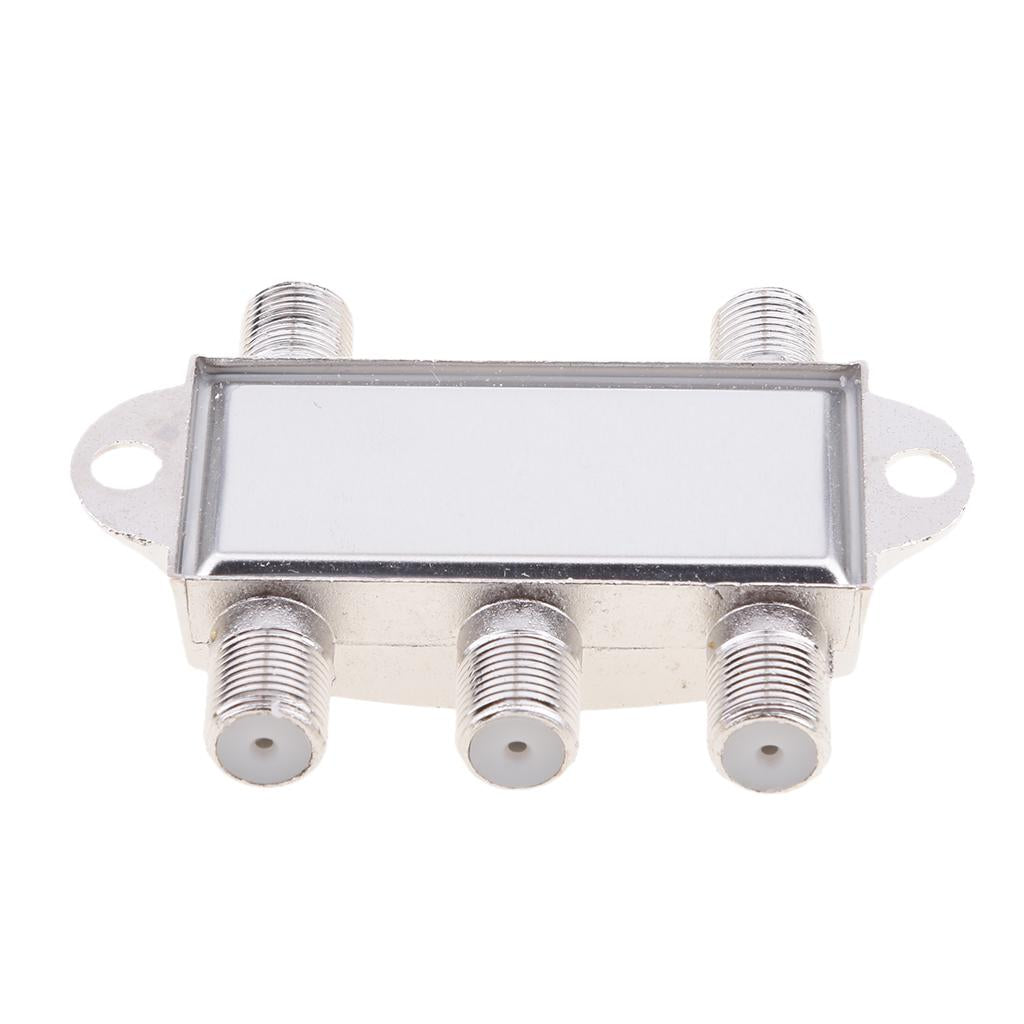

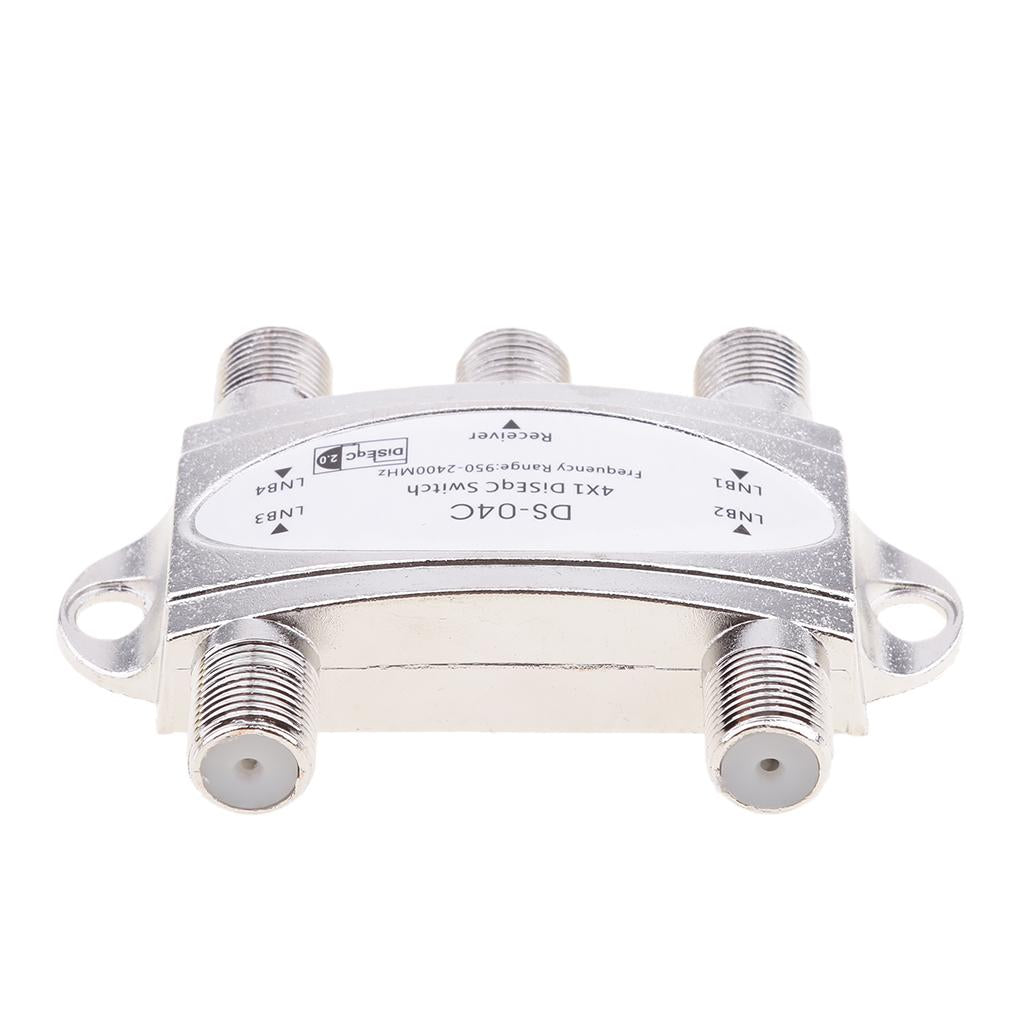

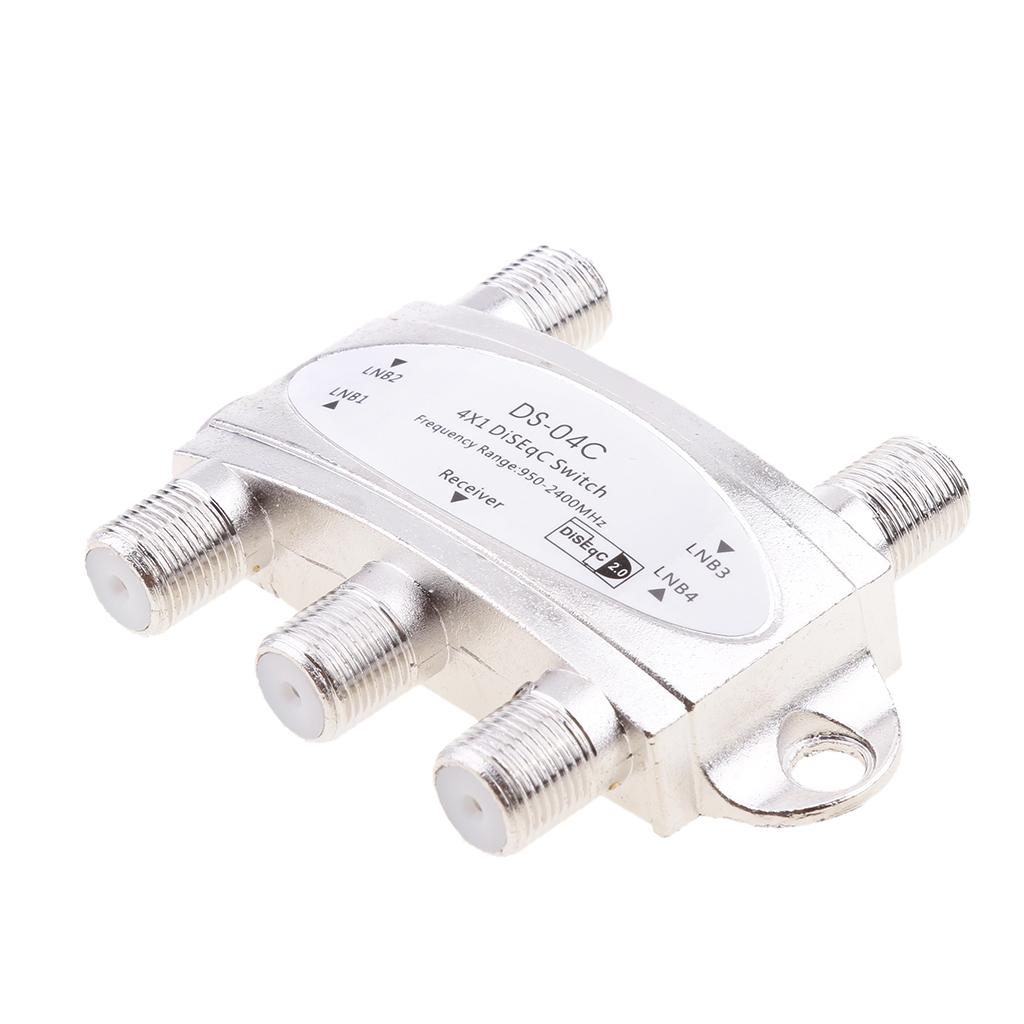

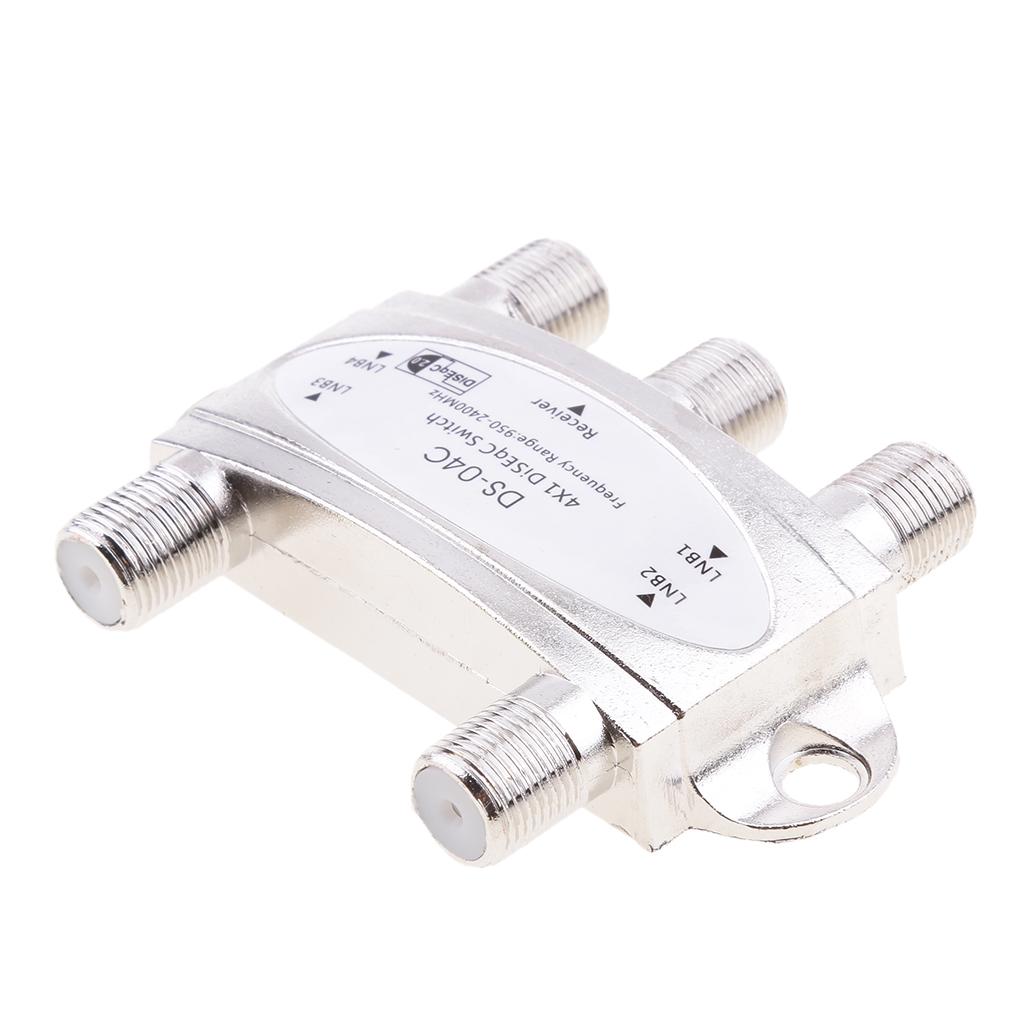

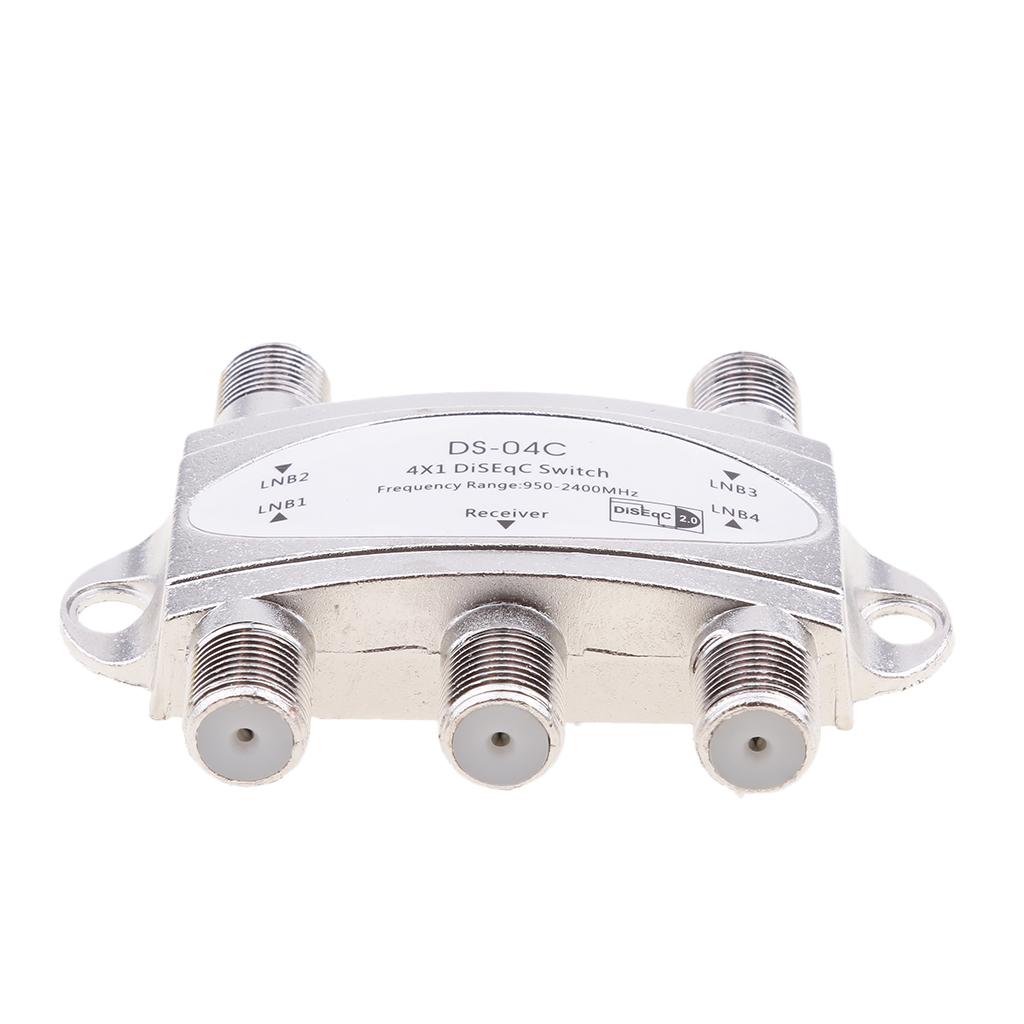

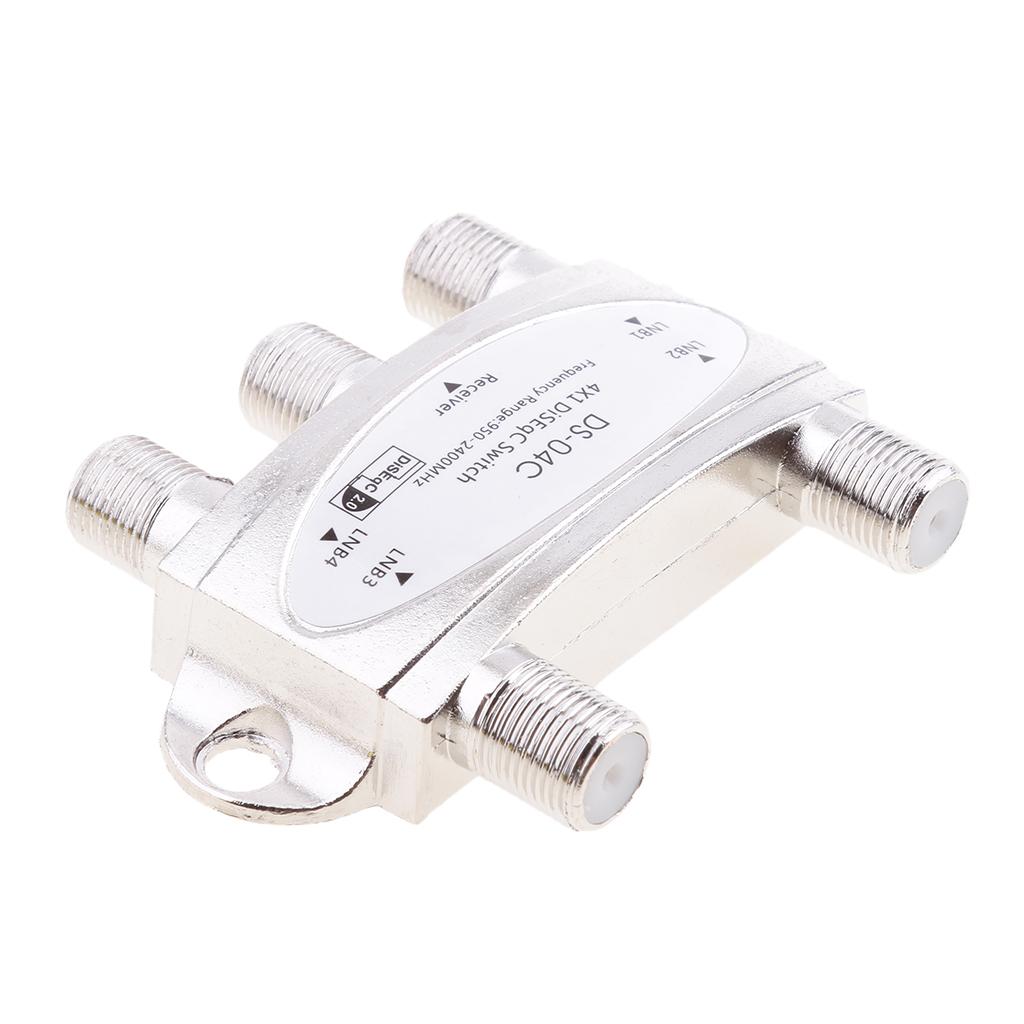

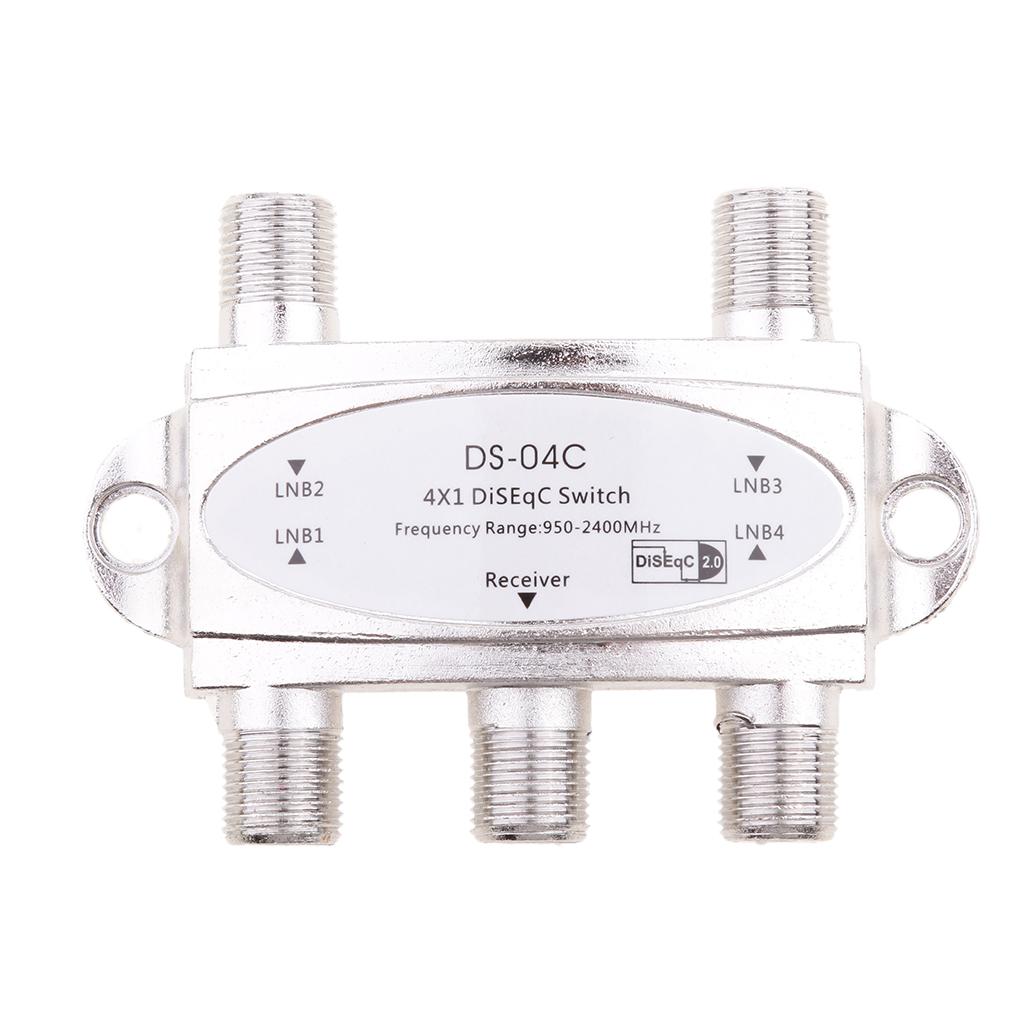

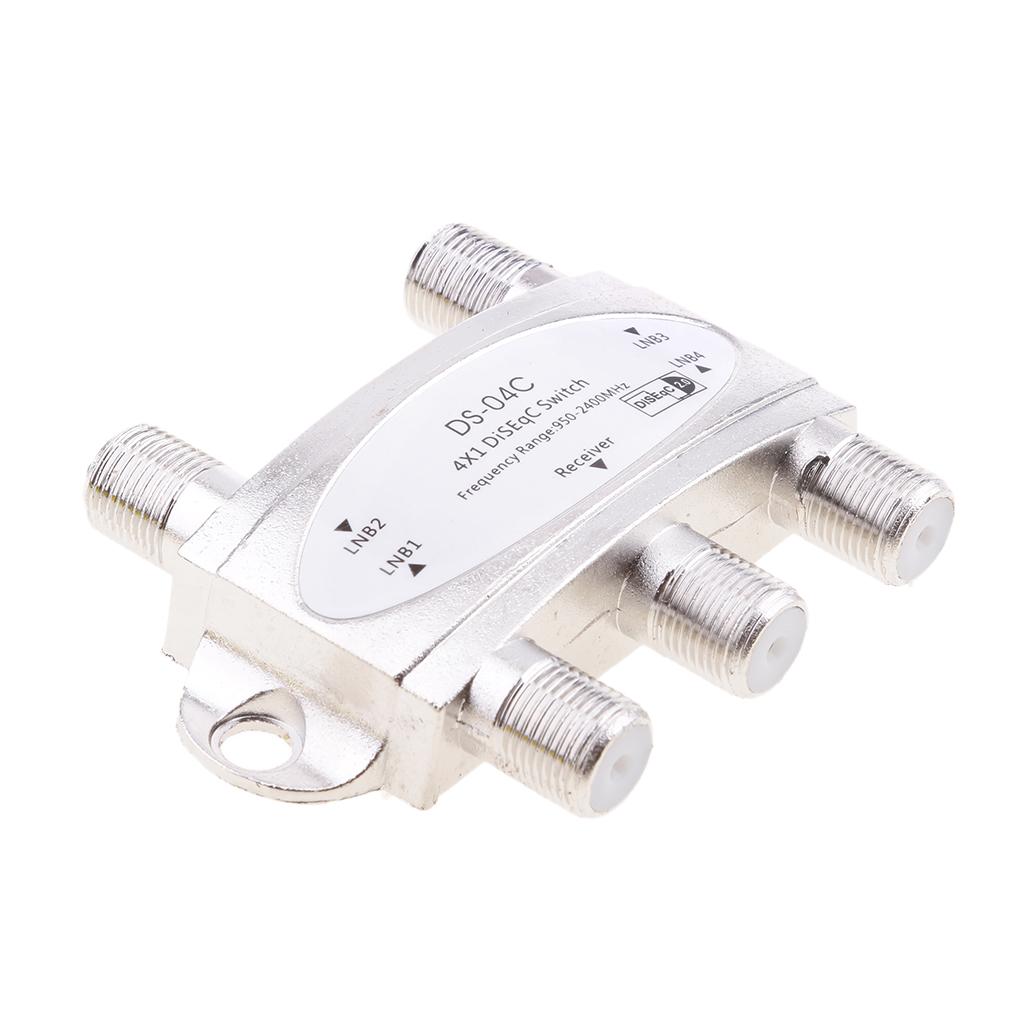

4x1 Diseqc Switch 4 Satellites In 1 Output Waterproof

Regular price
Rs. 454.77
Regular price
Sale price
Rs. 454.77
Earn 227 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68001604
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: Out stock
Description

Description:

High quality alloy material with nickel-plated, excellent chip and professional program, compatible with more types of satellite receiver
Allows the user to connect up to 4 satellite sources (LNBF) and combine the signal into a single coaxial cable and connect them to a single satellite receiver
Select one of four satellite signals through DiSEqC commands supplied from satellite receiver
DiSEqC 2.0 , support “standby” commands
Can work normally outdoors under unsheltered circumstance, designed for indoor or outdoor use

Specification:

Frequency Range: 950-2400(MHz)
Insertion Loss: 3(dB)
Isolation: 20(dB)
Return Loss: 8(dB)
Normal Working Voltage: 12-20(V)
DC Power Consumption: 10(mA)
DC Max Power Passing: 500(mA)
Impedance(all ports): 75(Ω)
Switching Signal : DiSEqC 1.0、2.0
Connectors:“F”type female

Package Includes:

1 piece 4x1 DiSEqC Switch
