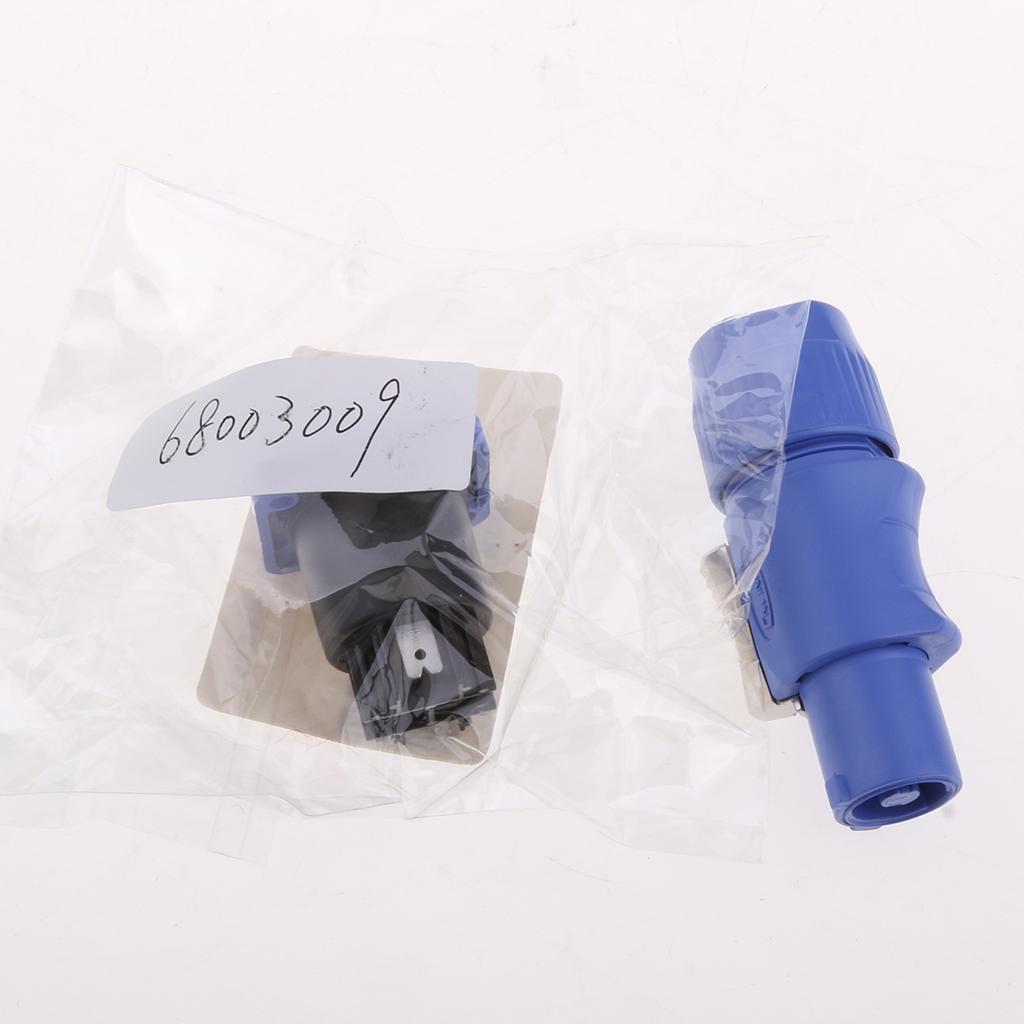

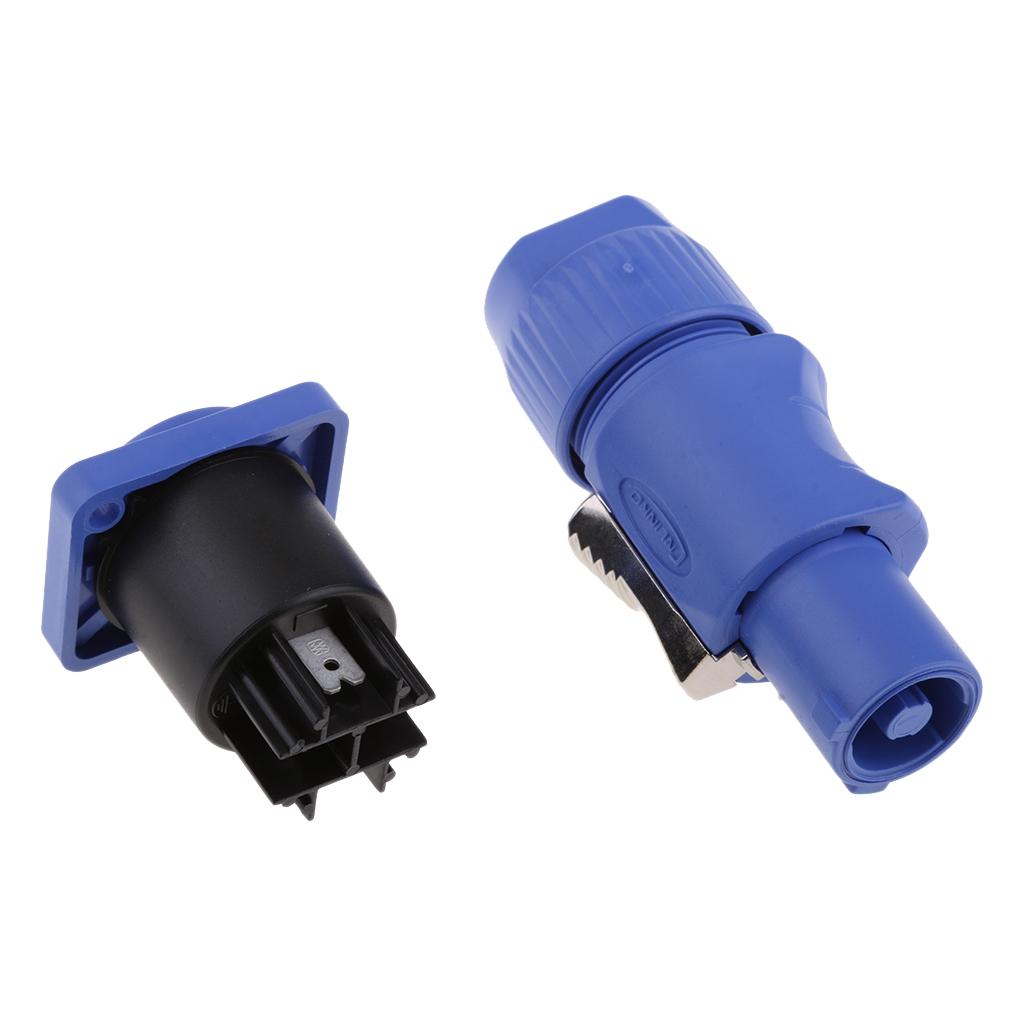

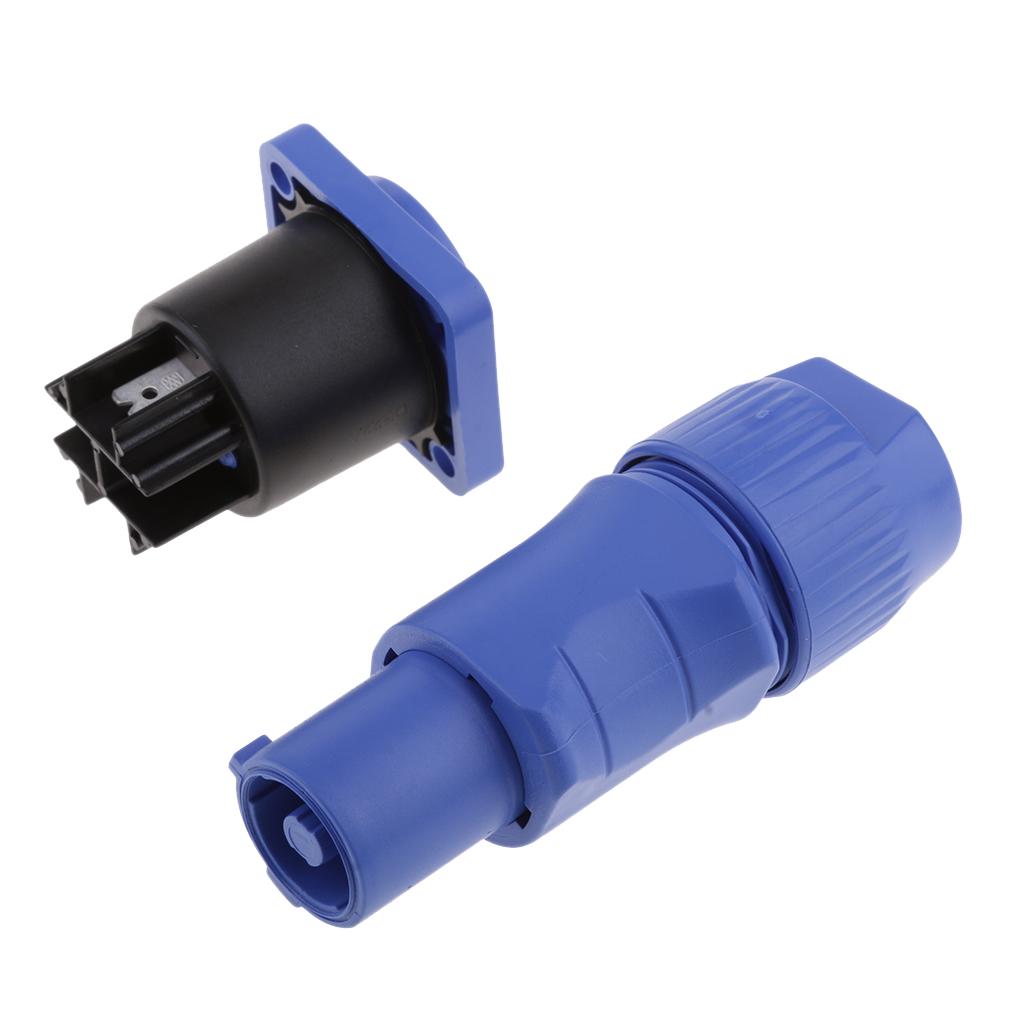

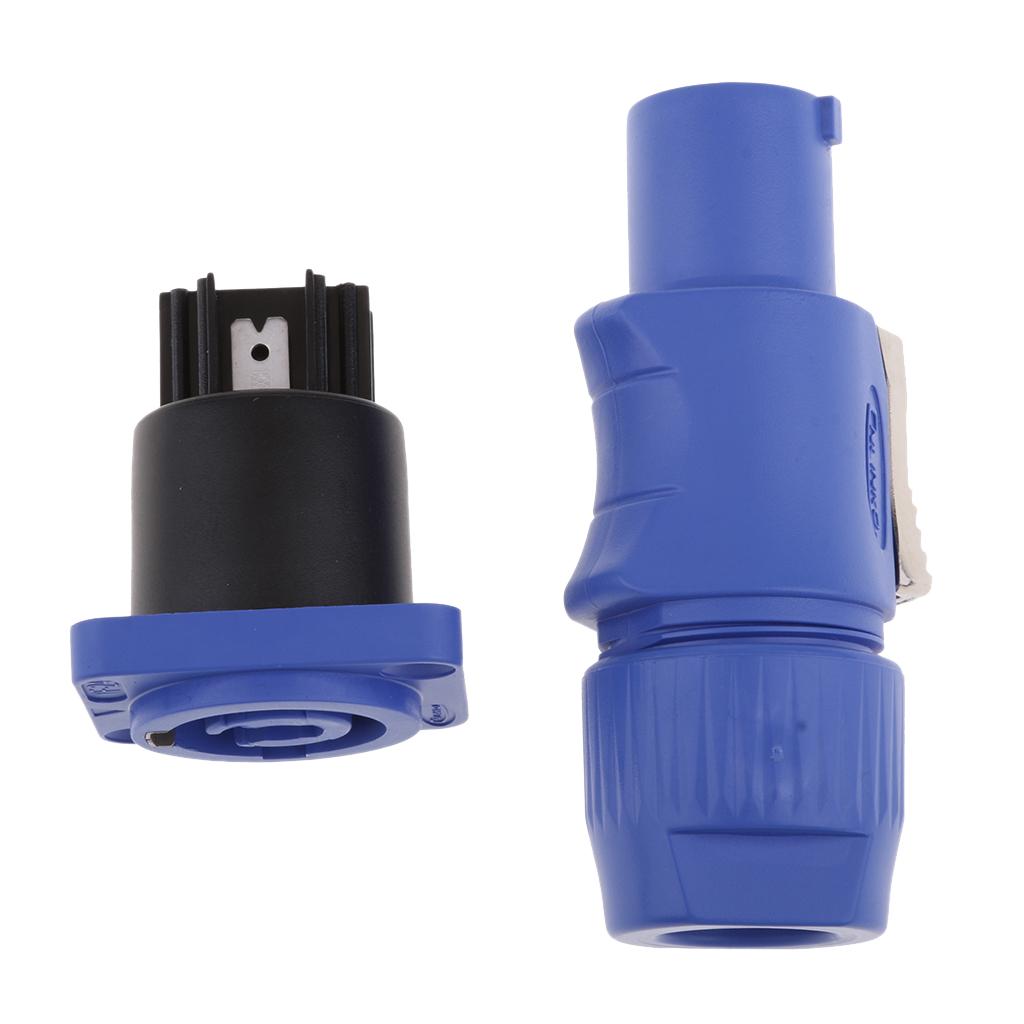

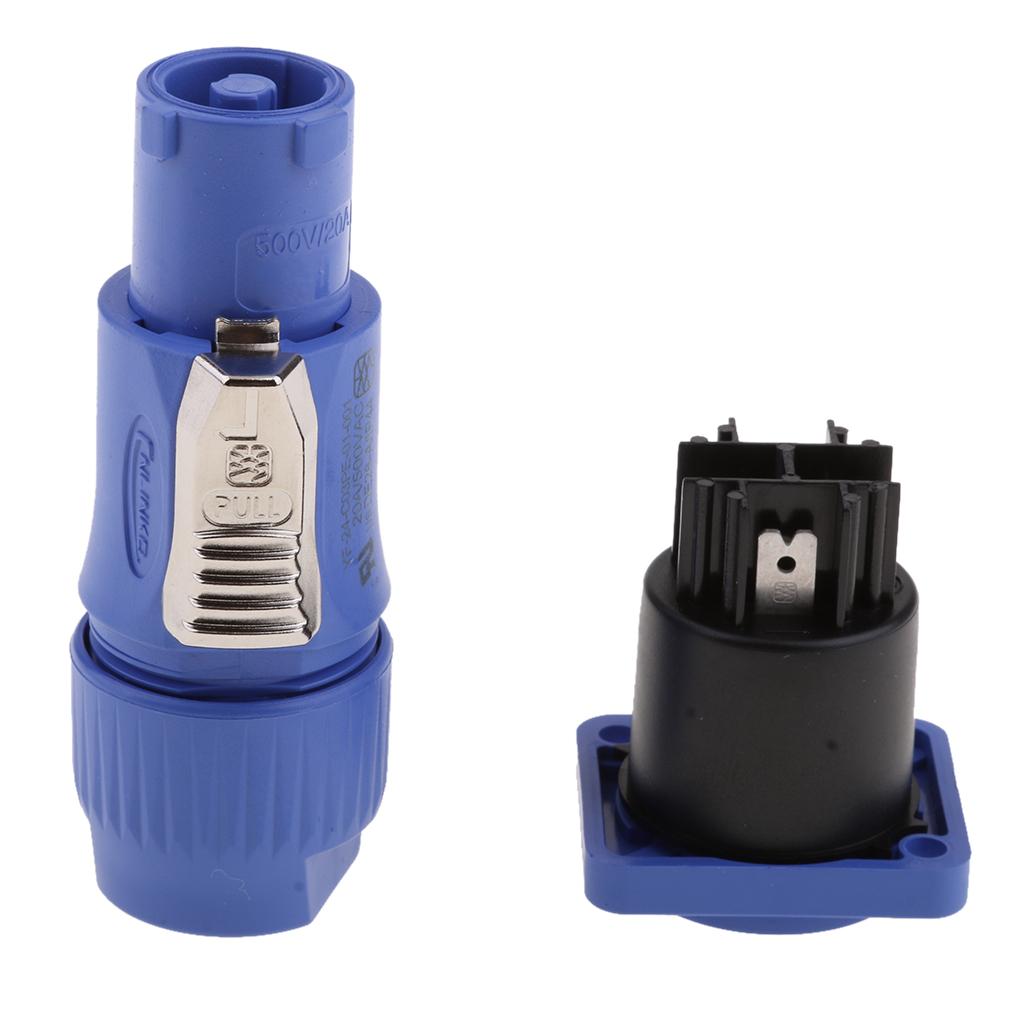

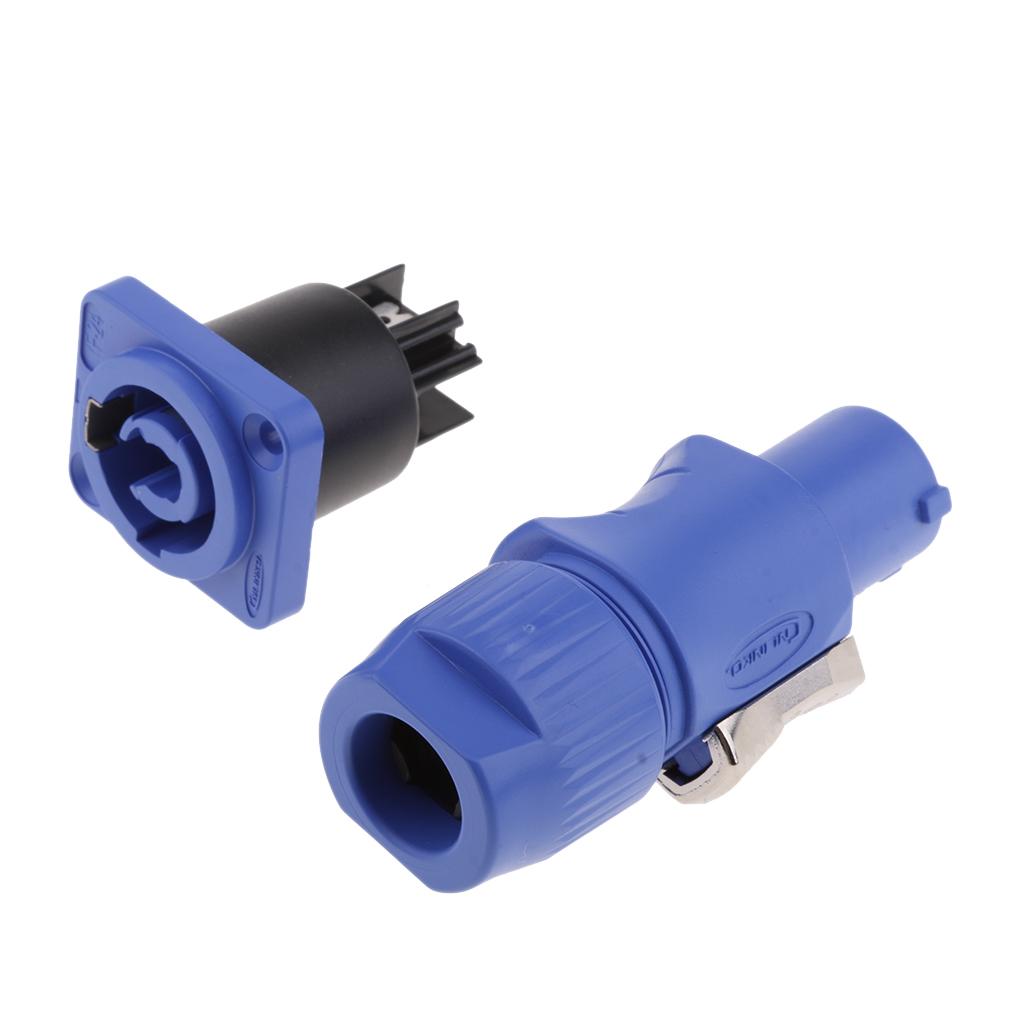

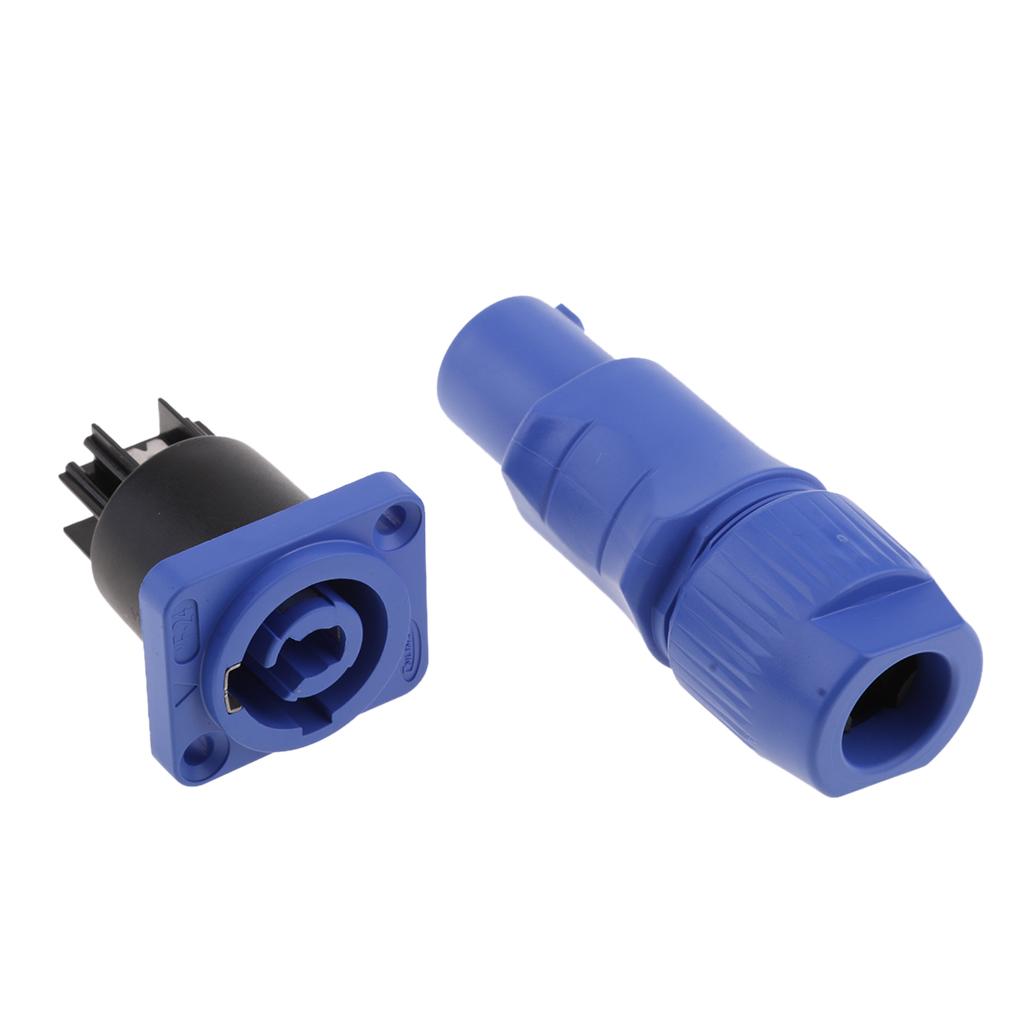

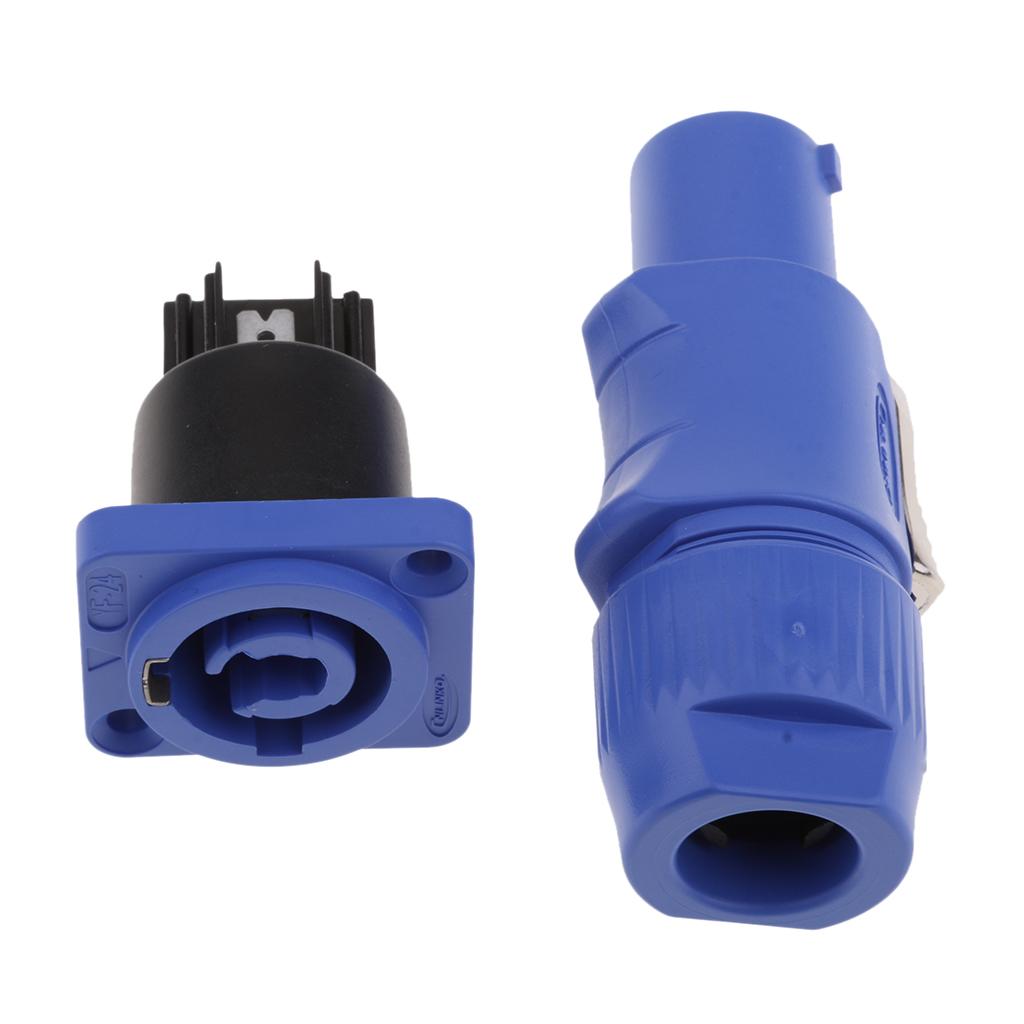

3 Pin Power Industrial Connector Plug & Socket Outdoor Waterproof IP67

Regular price
Rs. 1,217.56
Regular price
Sale price
Rs. 1,217.56
Earn 608 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68003009
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: Out stock
Description

Description:

3 cores for power and signal, with contacts for the middle, straight, pre-adaptation safety ground
Rated current 20A, operation voltage 500VAC, outdoor, waterproof IP67
Use silver-plated beryllium copper double entry, quality assurance, increasing the stability of the current and effective temperature control
PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation
Fast and easy locking system

Specification:

Cable specification: 2.5m㎡--4m㎡/14--12 AWG
Diameter range: Φ8mm--Φ12mm
Contact diameter × number: Φ2.0×3
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Temperature rise: 12A contact temperature below 30℃↓,15A......40℃↓, 20A......50℃↓
Withstanding Voltage (AC.V) 1 minute: 2500V
Insulation resistance: >500MΩ
Protection level: IP67
Durability: >500 times
Working temperature: -40℃~80℃
Connecting mode: Latching lock
Assembly wire: Solder&lock screw
Housing, the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper alloy (2u gold-pleted and 70u Silver plated )
Waterproof circle: Silica gel
Flammability rating: UL94-V0

Package Includes:

1 Piece Connector
1 Piece Waterproof conversion head
1 Bag Screw accessories
