OCDAY 10T 3930KV Brushless Motor+60A ESC+LED Program Card for 1:10 RC Car

Regular price
Rs. 6,120.31
Regular price
Sale price
Rs. 6,120.31
Earn 3060 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 19383424
  • Brand: SFC
  • Type: Toys & Hobbies
  • Availability: Out stock
Description

Description:

4 poles Hi-torque motor design.

CNC machined 6061 T6 billet alumium.

Precision balanced rotor, smoothness for best reliability and maximum RPM.

The ESC features enhanced throttle response, excellent acceleration, strong brakes and throttle linearity.

Suitable for all 1/10 brushless cars-multi-mounting system for M3 screws.

Specification:

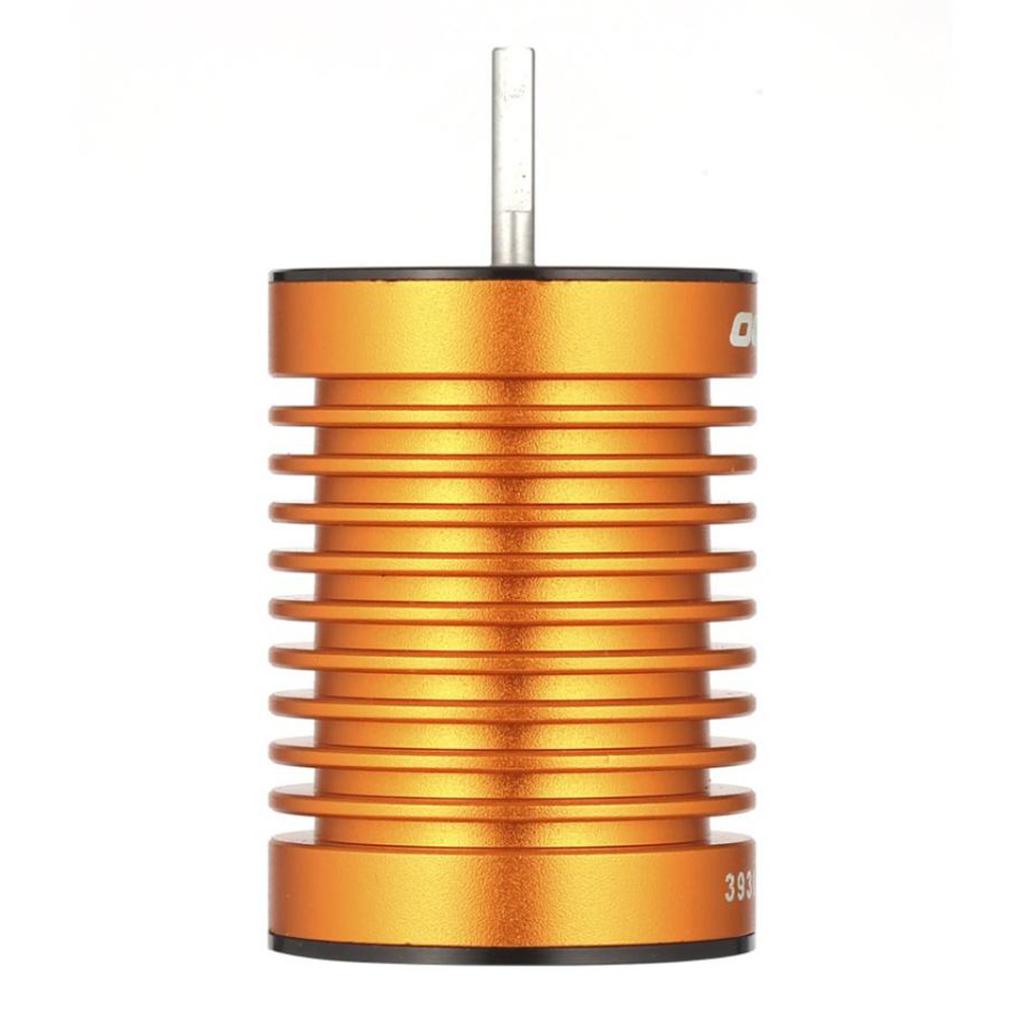

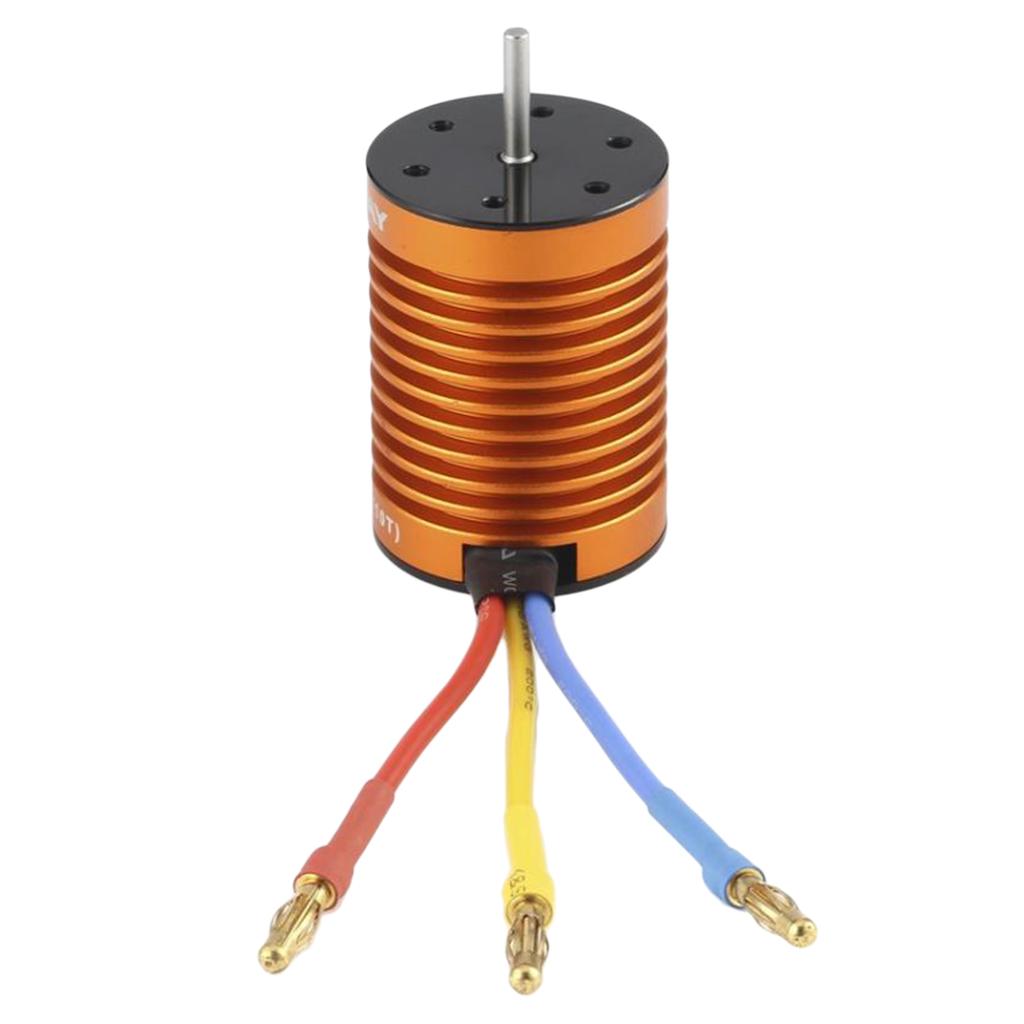

Brand: OCDAY

Motor KV: 3930

Watts: 800

Max voltage: 7.4V(2S)-11.1V(3S)

Suitable ESC: 35A or higher

Sensored: No

Max Current: 60A

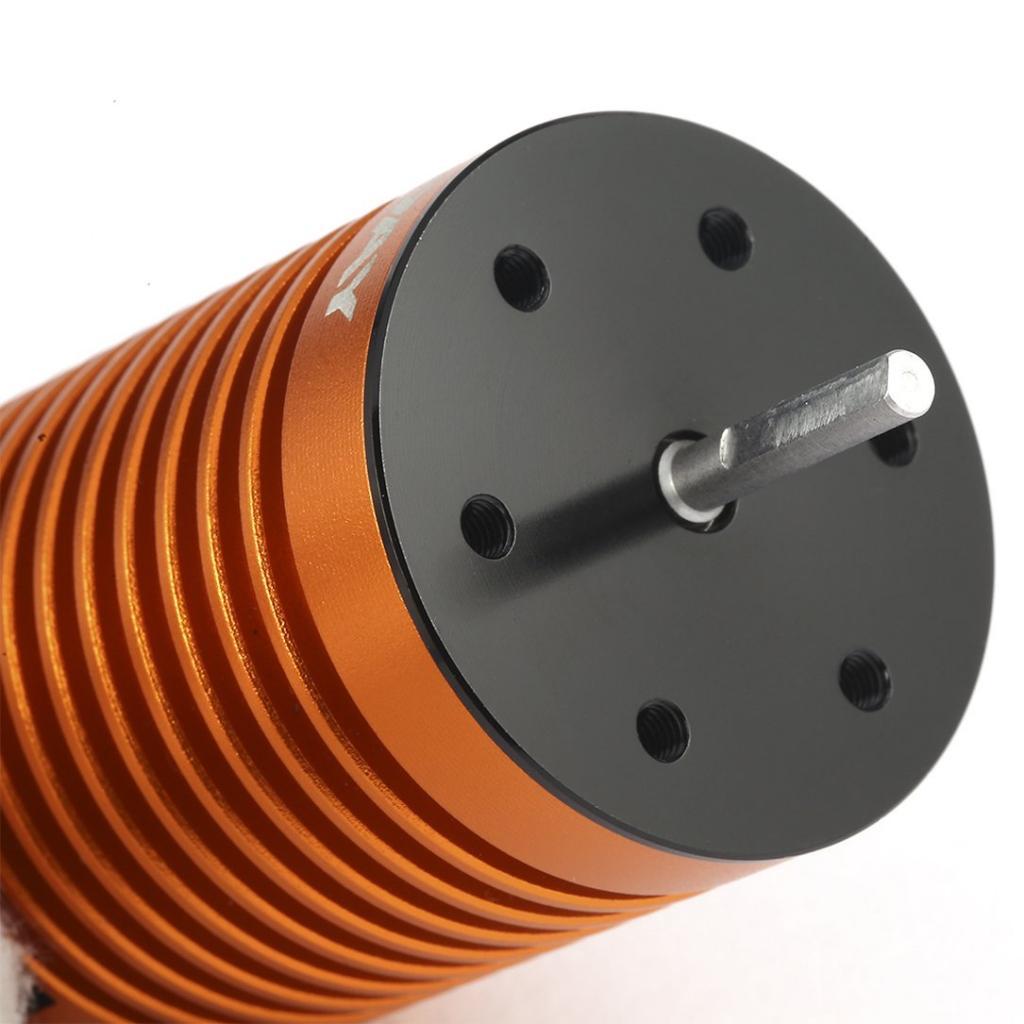

Shaft Diameter: 3.17mm

Shaft length: 15mm

Turns: 10T

Rotor (Pole): 4-pole

Bullet Connector: 4mm Gold Plug

Color: Orange

Weight: 149g

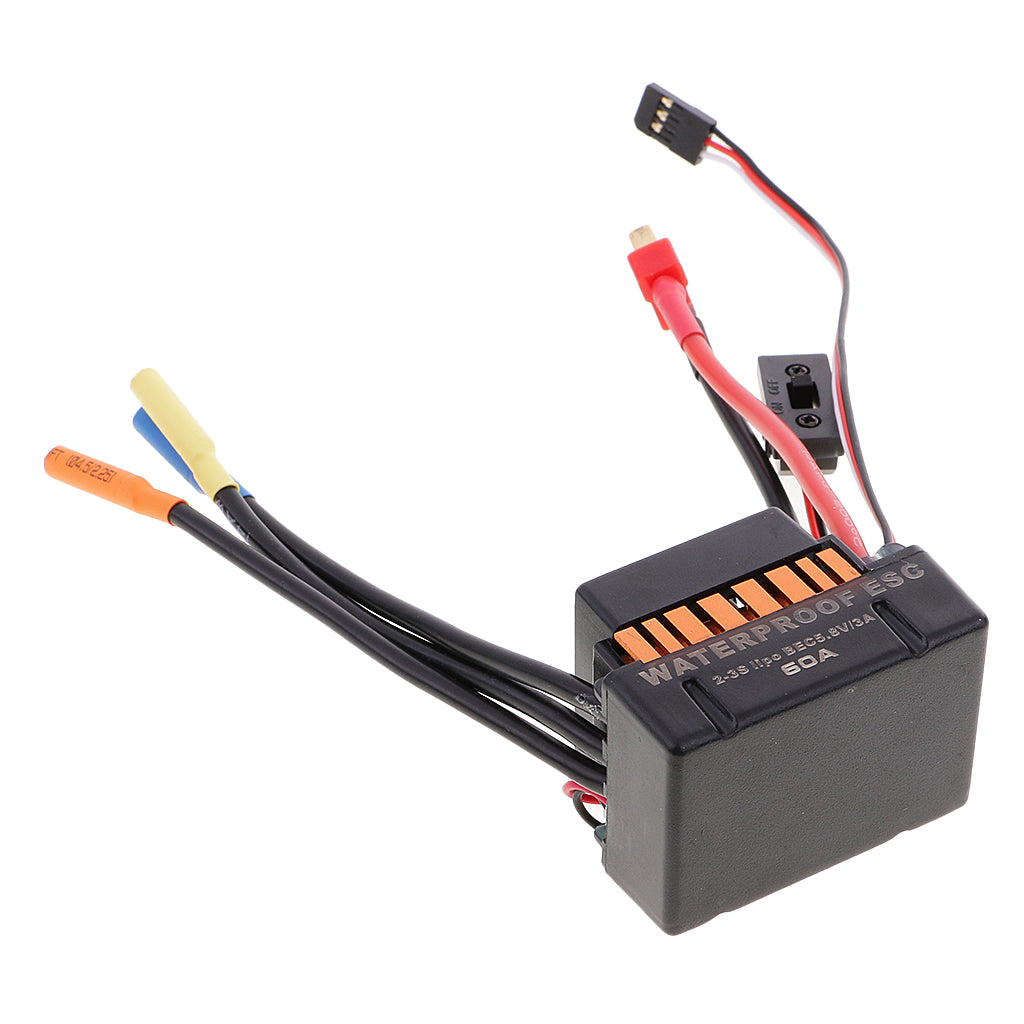

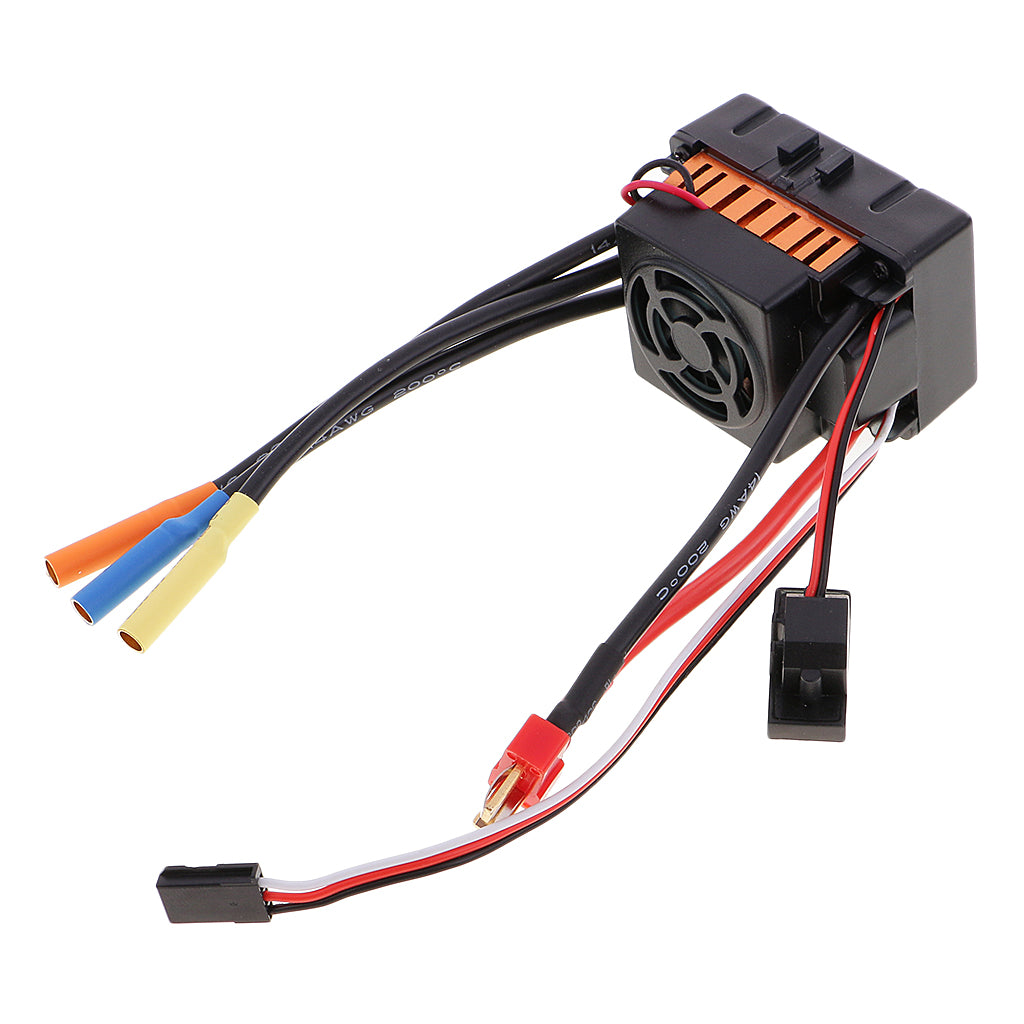

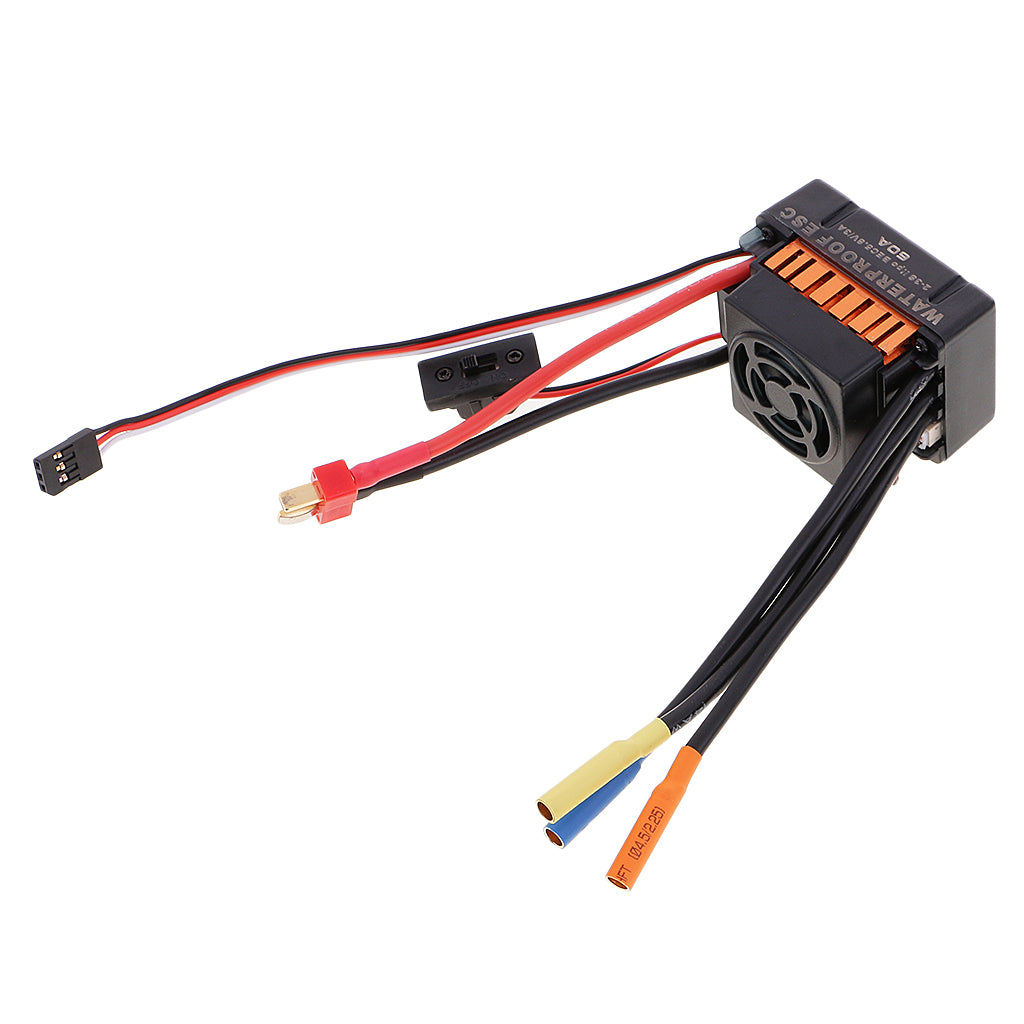

ESC

Continue current: 60A

Burst current: 320A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

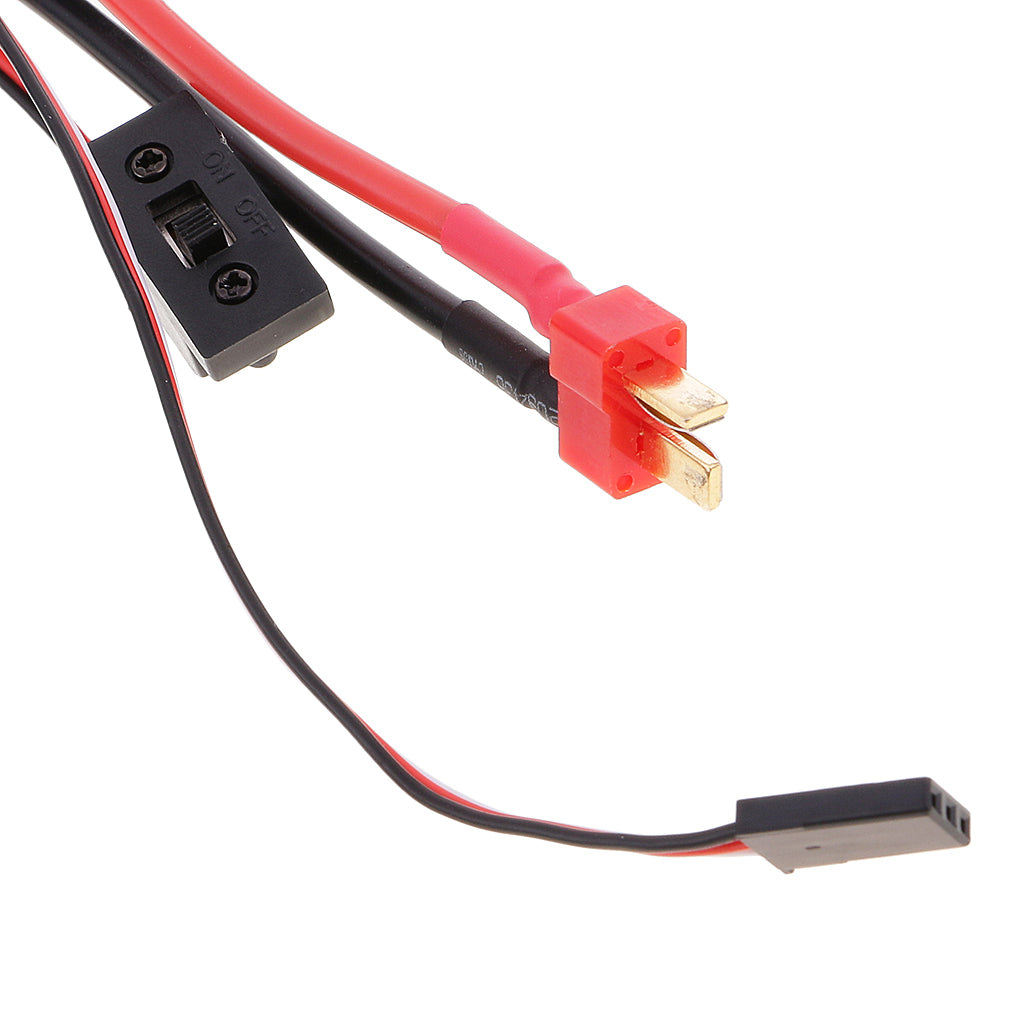

Power supply plugs: T plug male

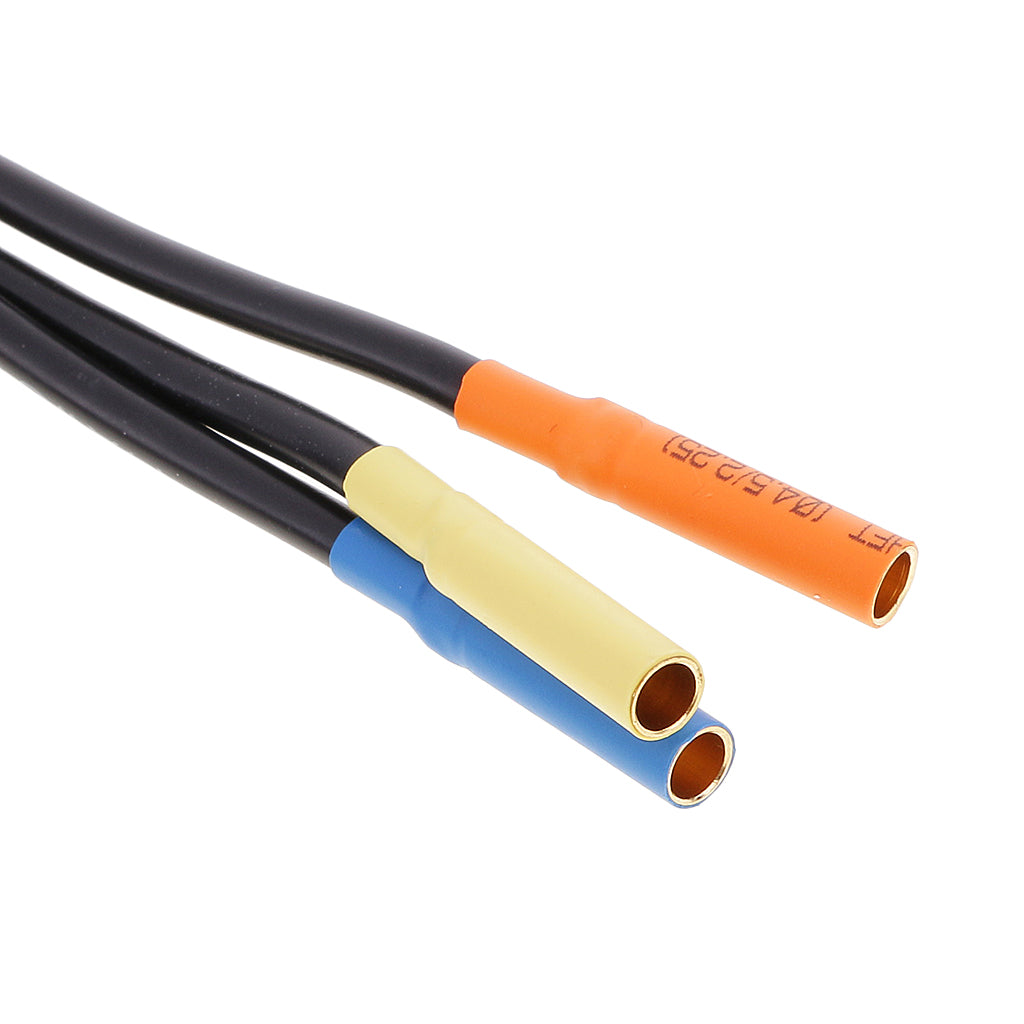

Motor plugs: 4mm banana plug female

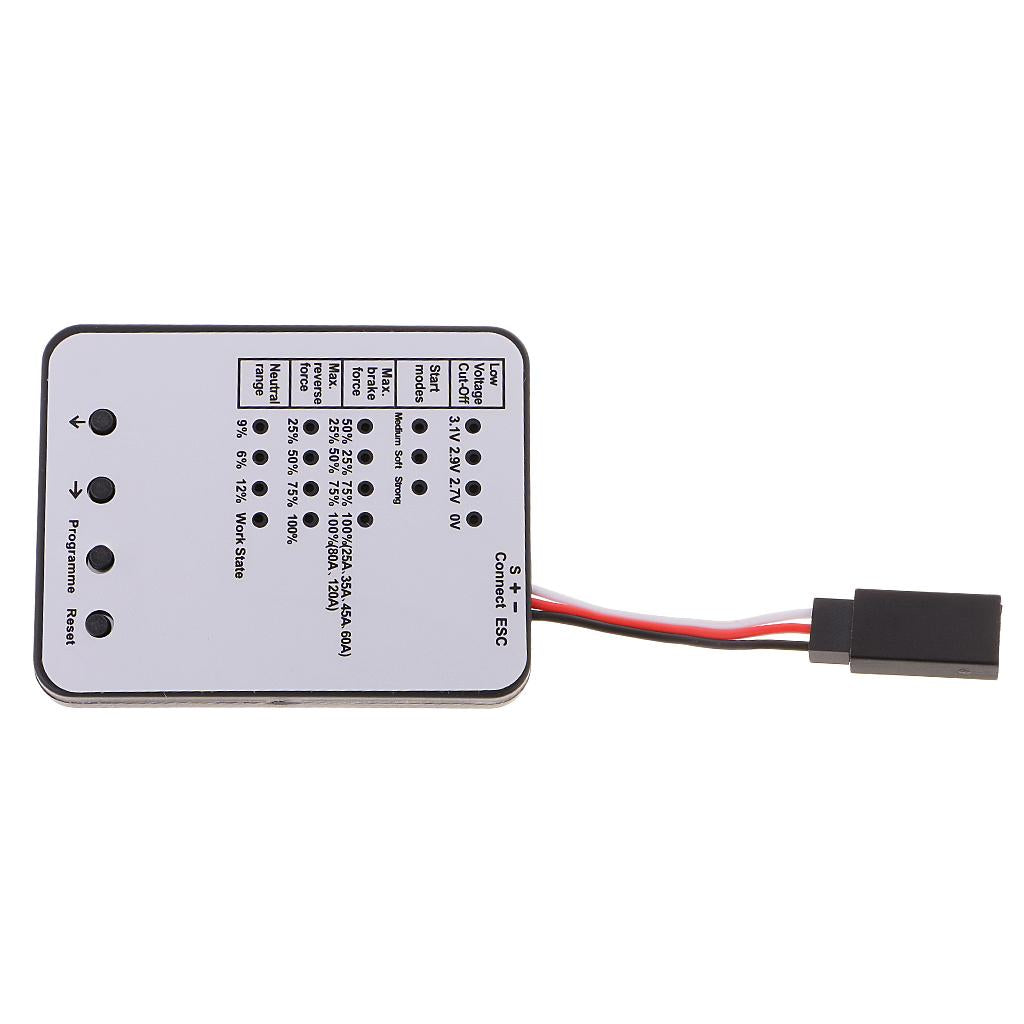

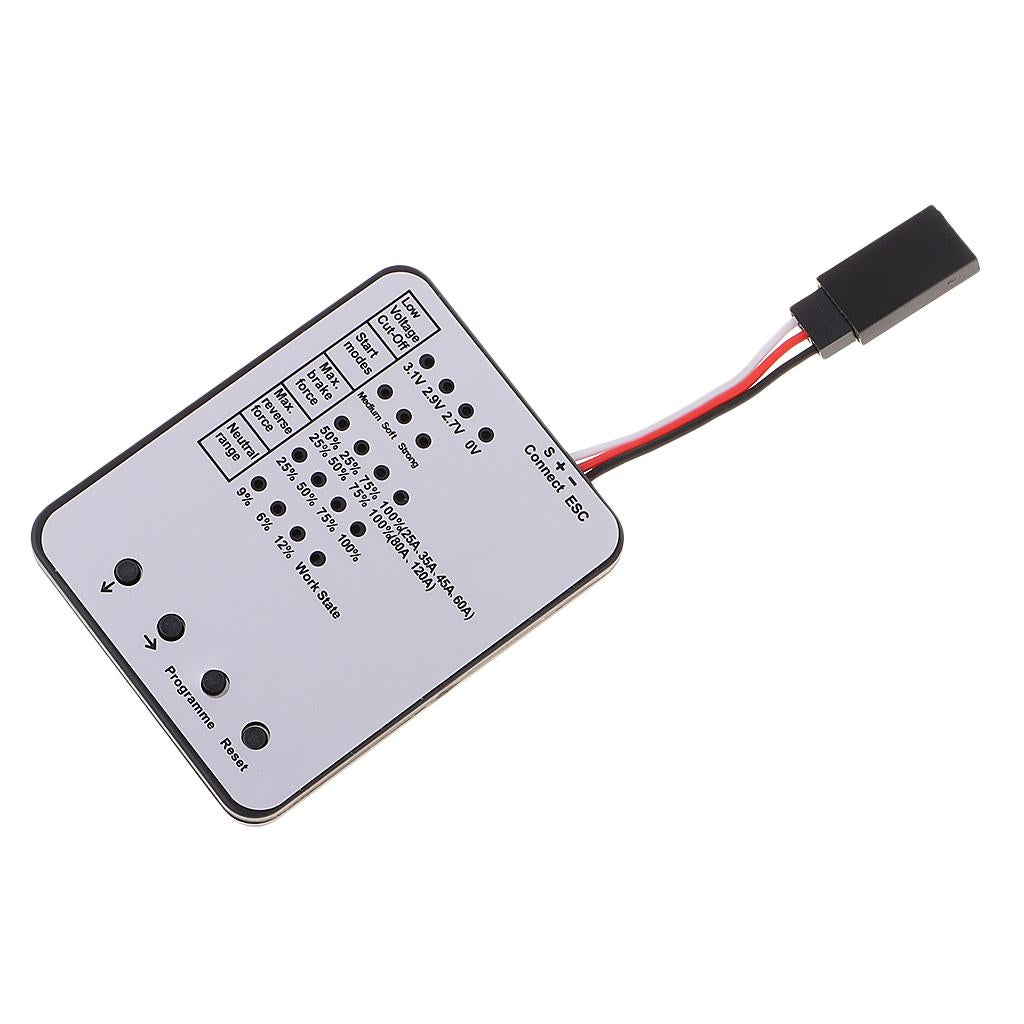

LED Programming Card

Low voltage cut voltage: 3.1V/ Cell 2.8V/ Cell 3.3V/ Cell
Strength maximum braking: 25%, 50%, 75%, 100%,
Maximum reverse force: 25%, 50%, 75%, 100%,
Neutral Range: 6%, 9%, 12% Working Status

Size Chart:

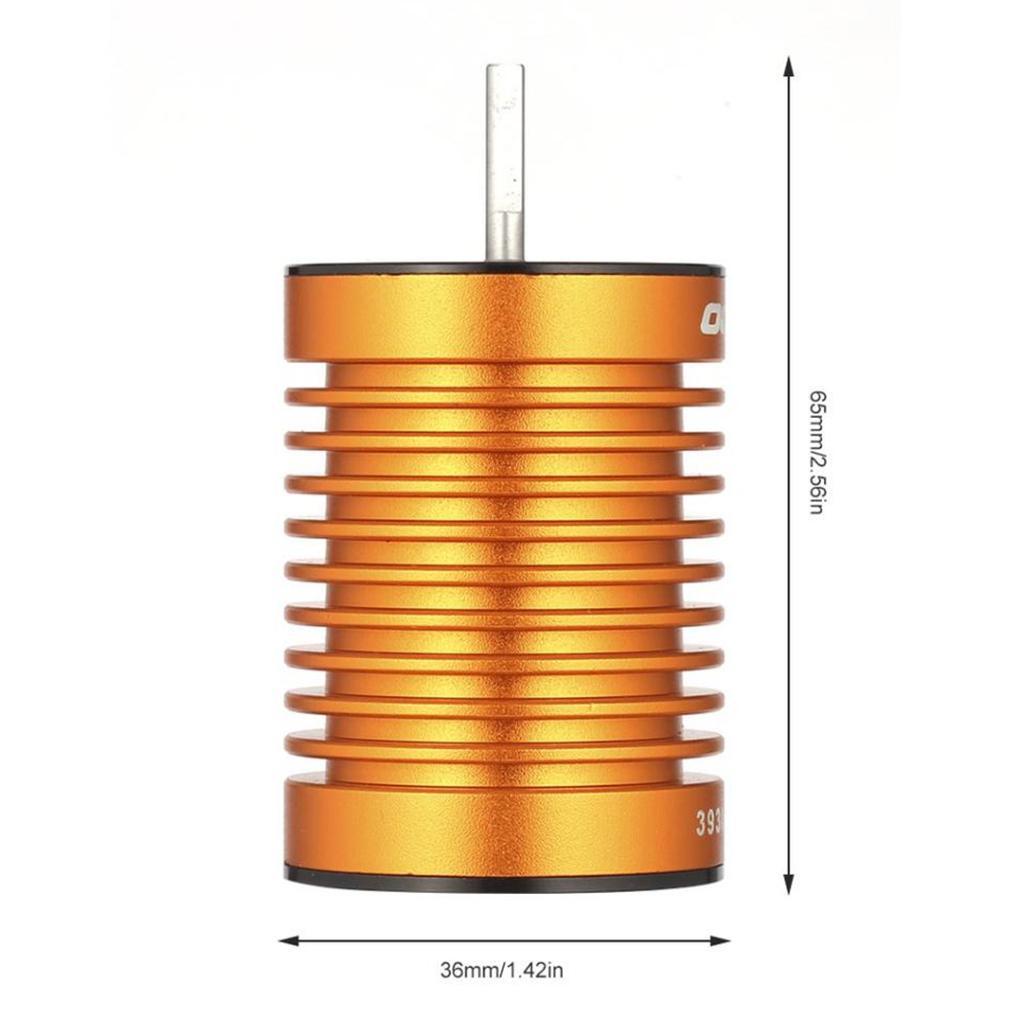

Motor

Outer Diameter: Approx. 36mm/1.42inch

Height: Approx. 66mm/2.60inch


ESC

Dimension: Approx. 50x35x34mm/1.97x1.38x1.34inch


LED Programming Card

Dimension: Approx. 6x4.7x0.6cm/2.36x1.85x0.24inch

Package Includes:

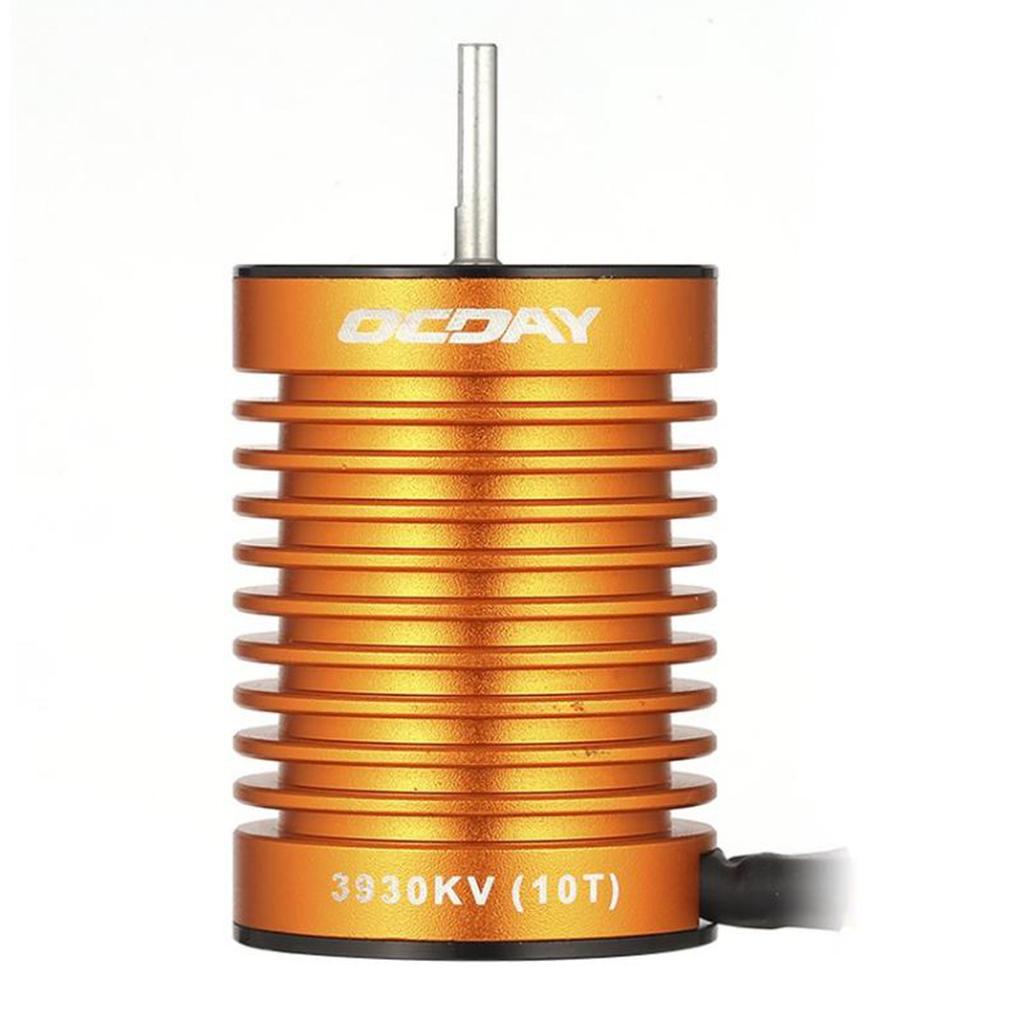

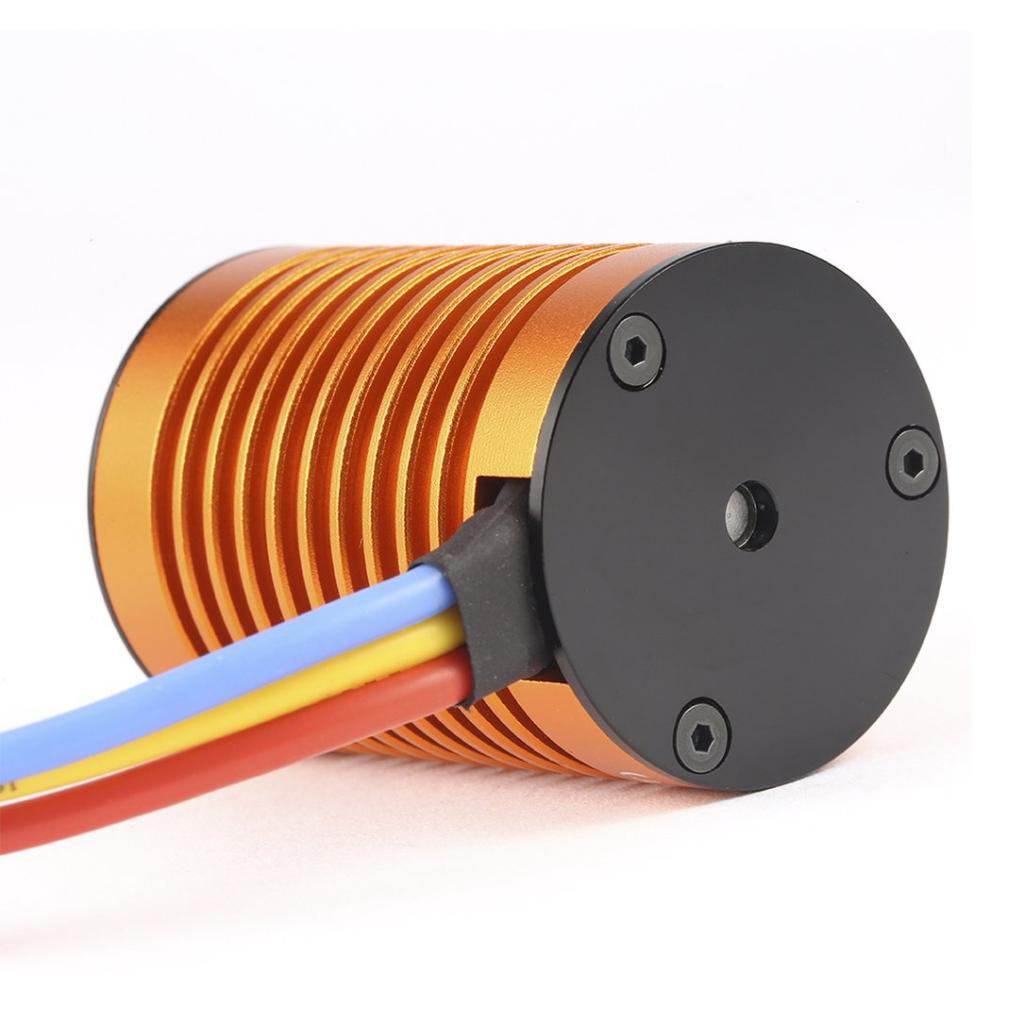

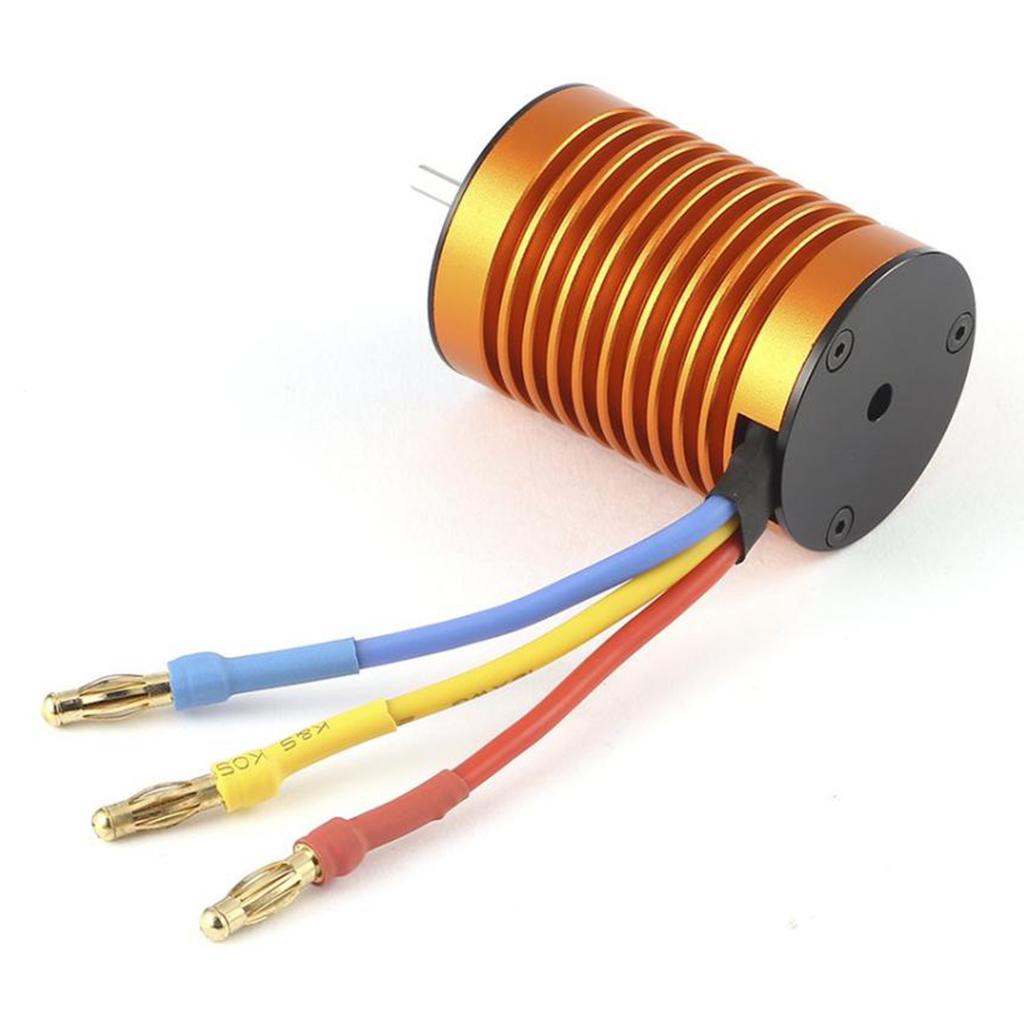

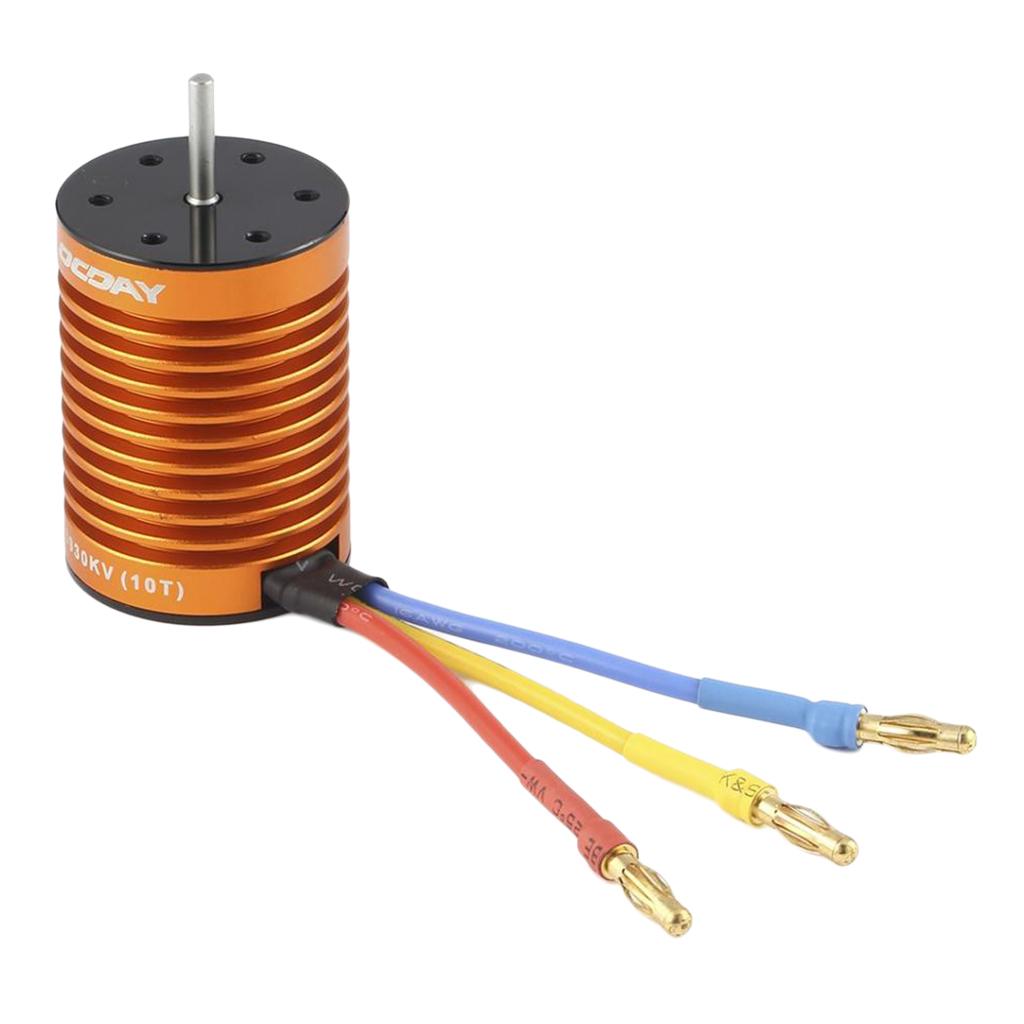

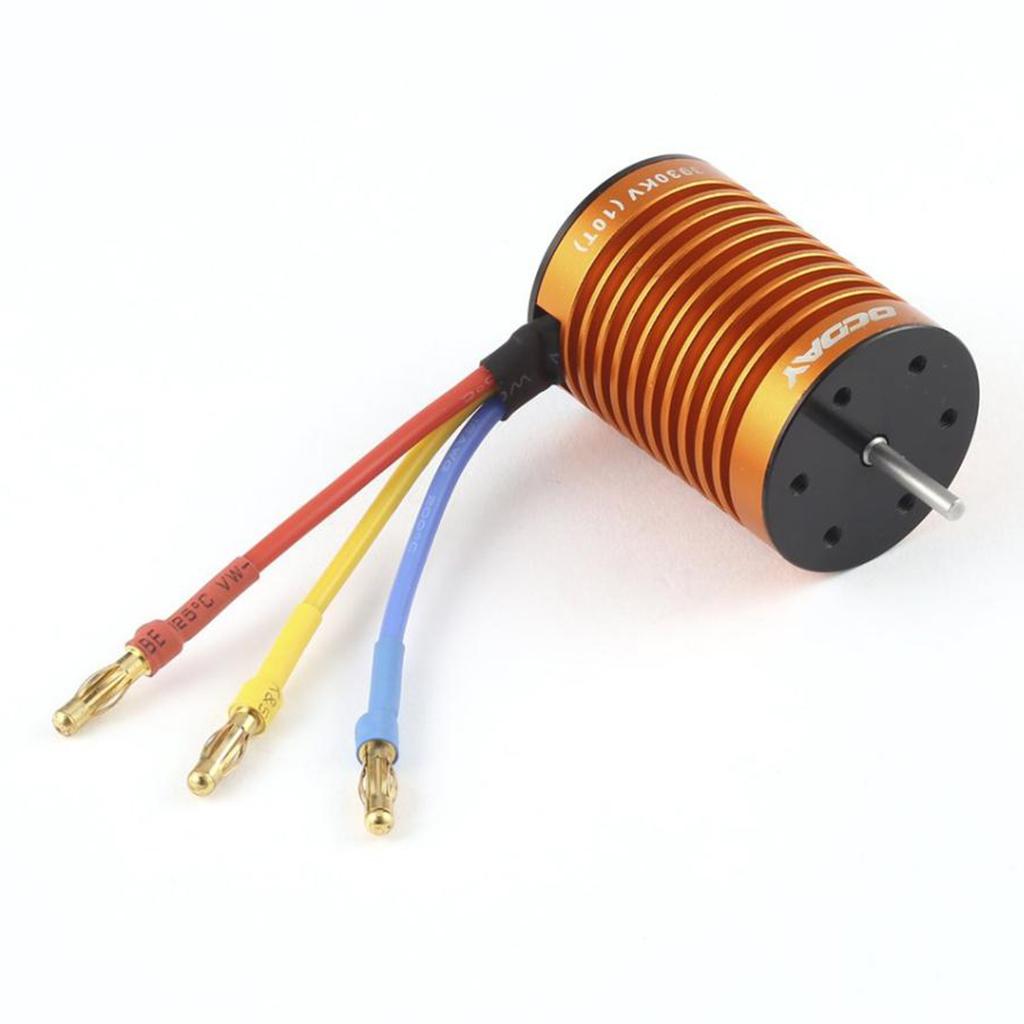

1 Piece OCDAY 10T 3930KV Brushless Motor

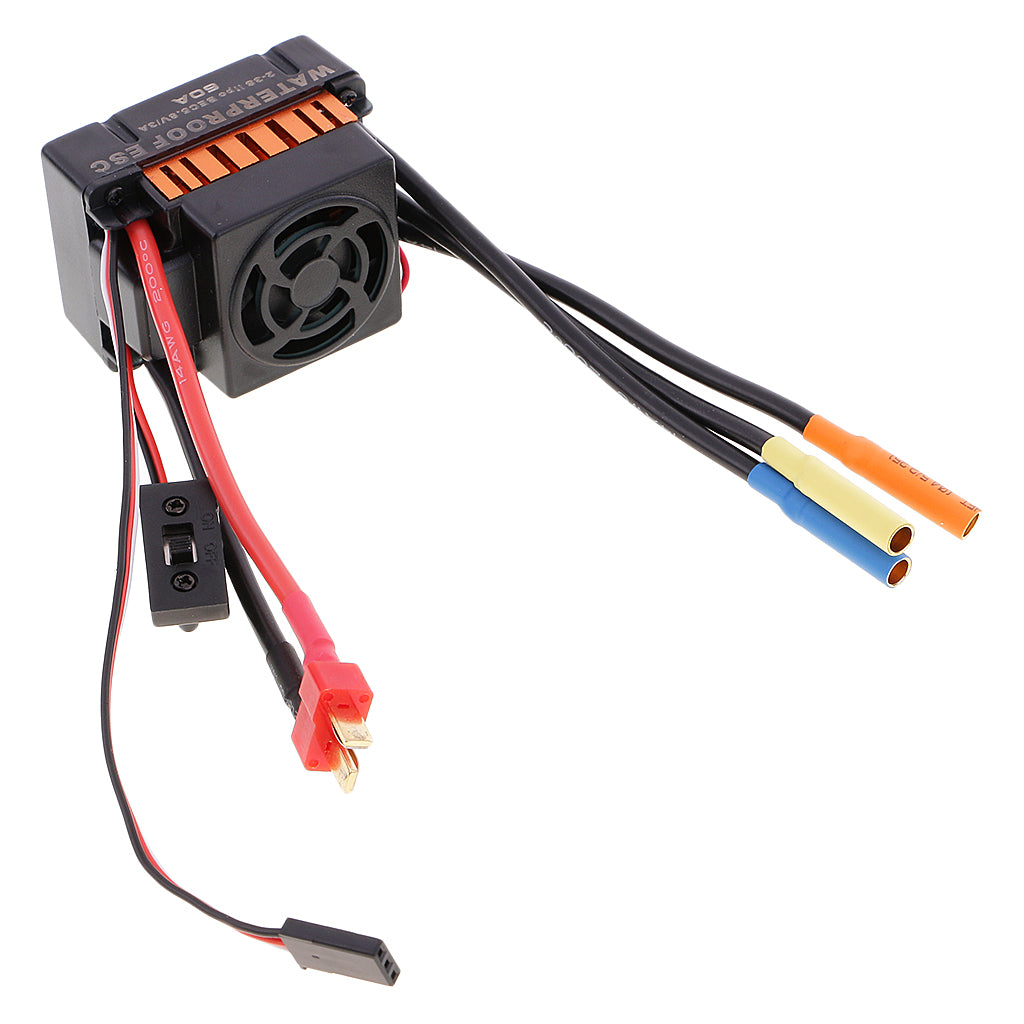

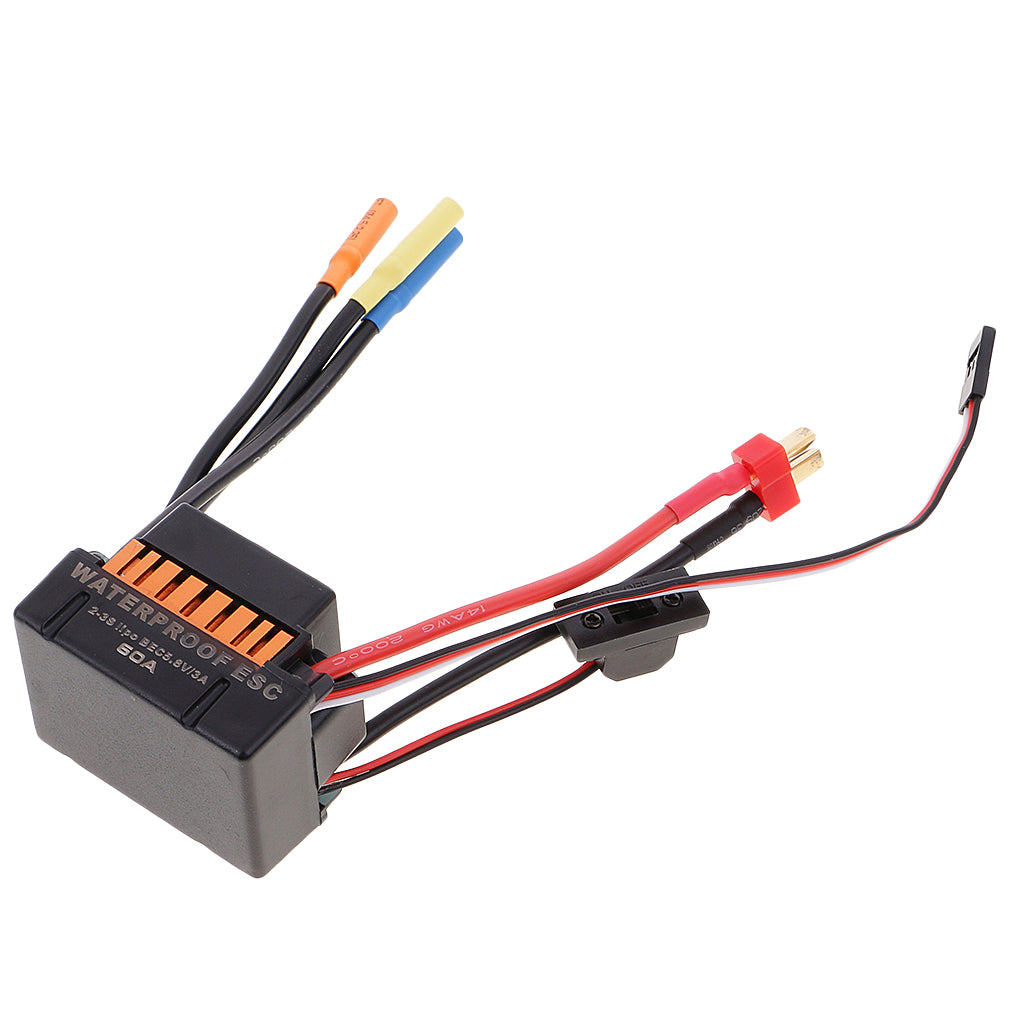

1 Piece 60A Brushless ESC

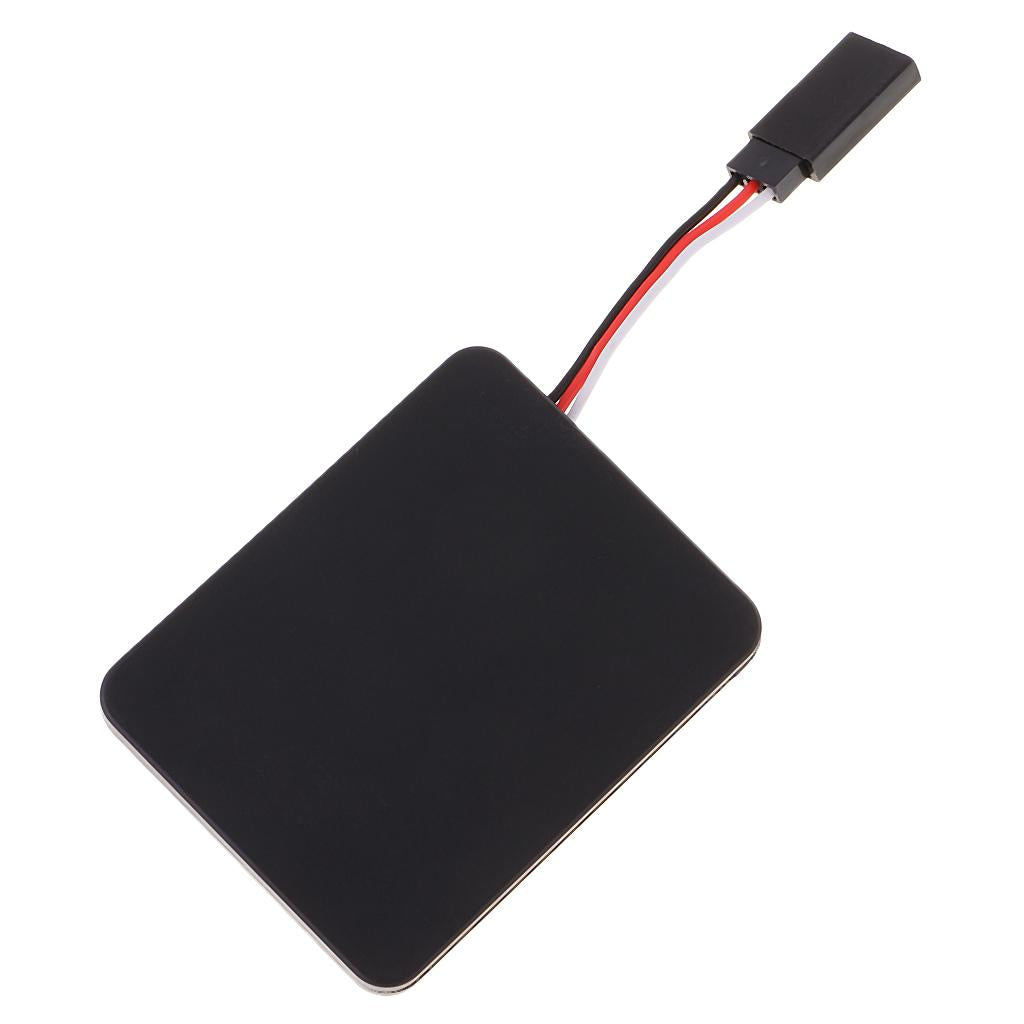

1 Piece LED Programming Card

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Due to manual measurement, there may be 1-2mm error in size.
