2000KV Sensorless Brushless Motor+M1 5mm 11T-15T Pinion Gear for 1/8 RC Car

Regular price
Rs. 7,652.13
Regular price
Sale price
Rs. 7,652.13
Earn 3826 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 19378751
  • Brand: SFC
  • Type: Toys & Hobbies
  • Availability: Out stock
Description

Description:

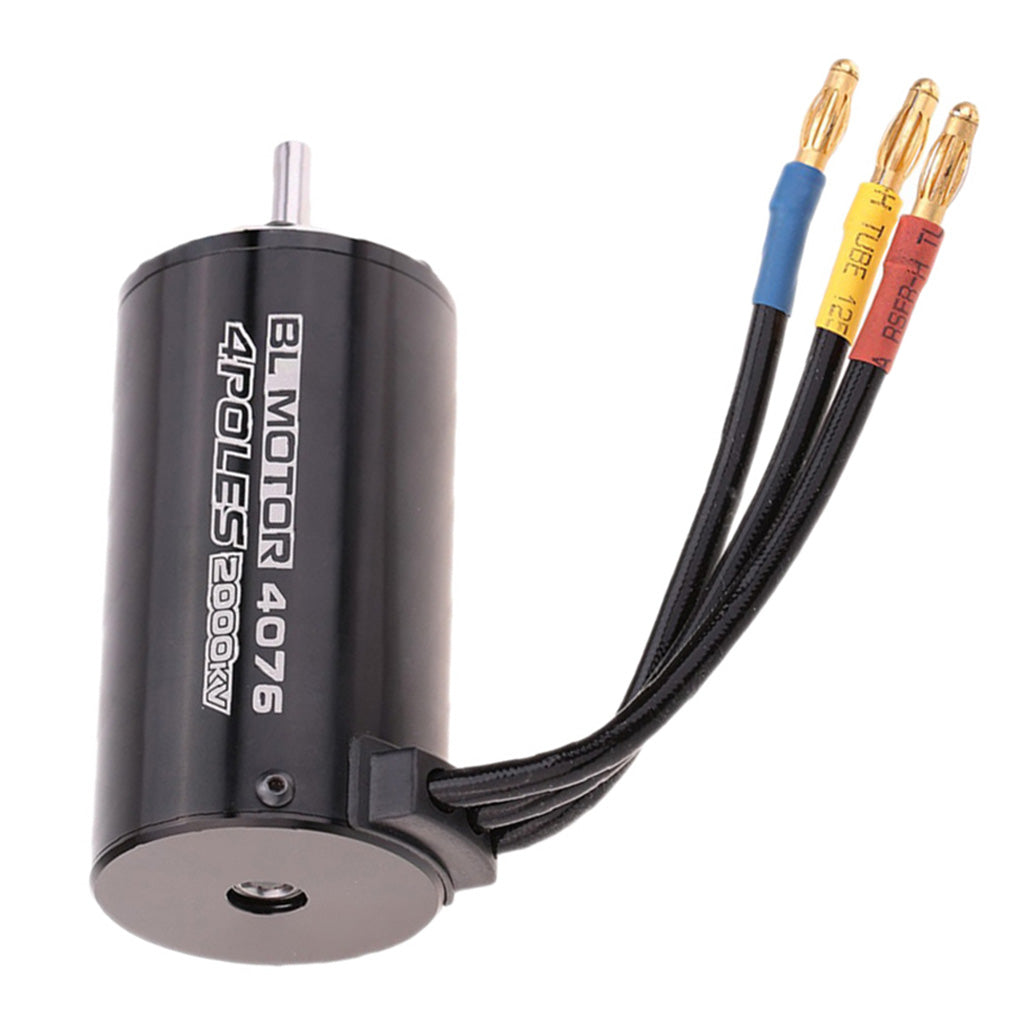

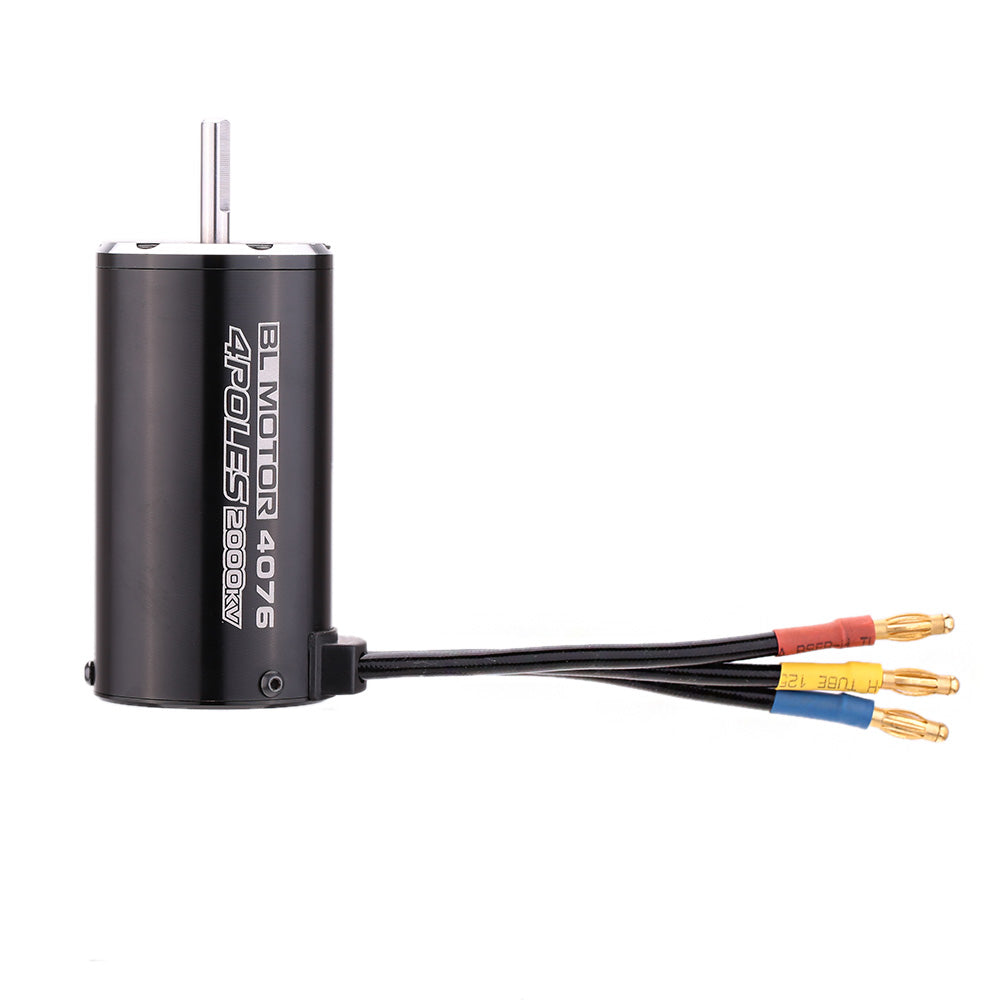

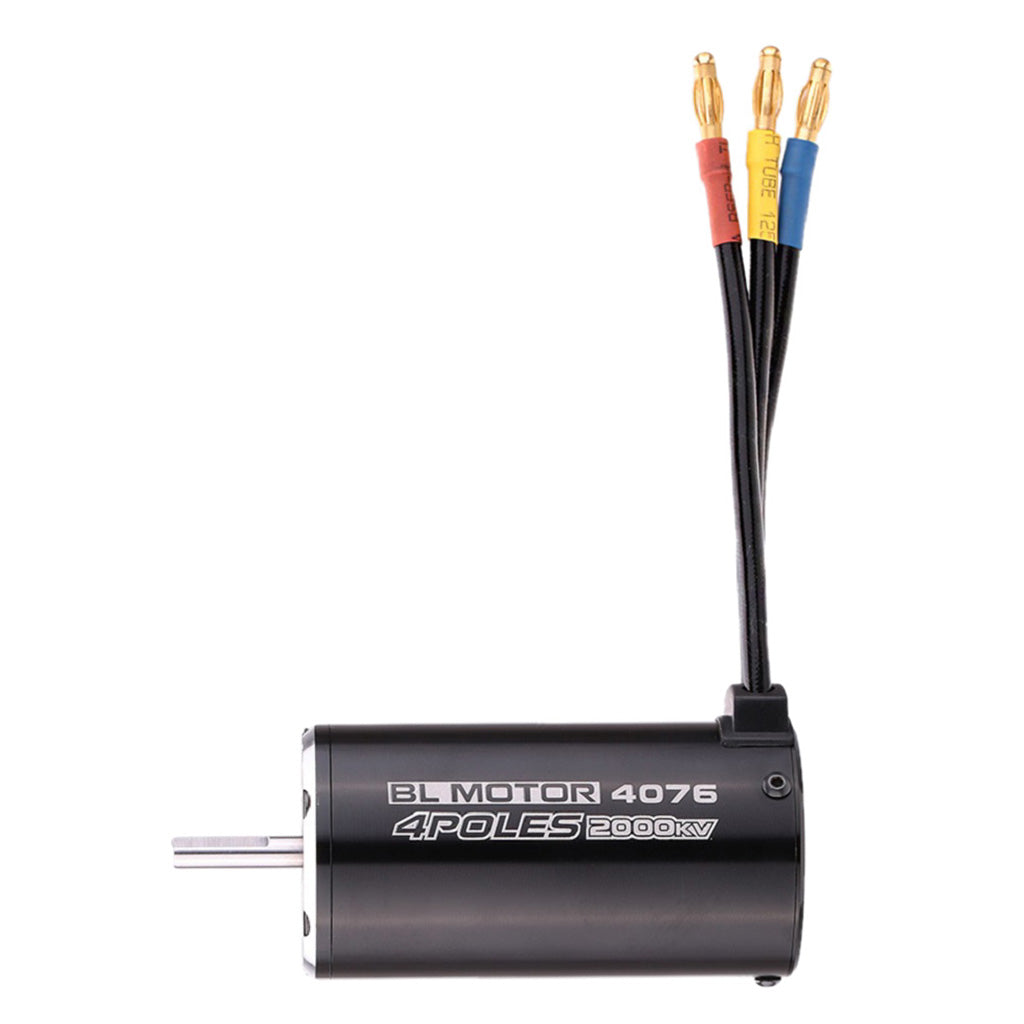

4076 2000KV/4P Sensorless Brushless Motor+M1 ¢5mm 11T-15T Pinion Gear for 1/8 RC Car Parts

4 poles Hi-torque motor design

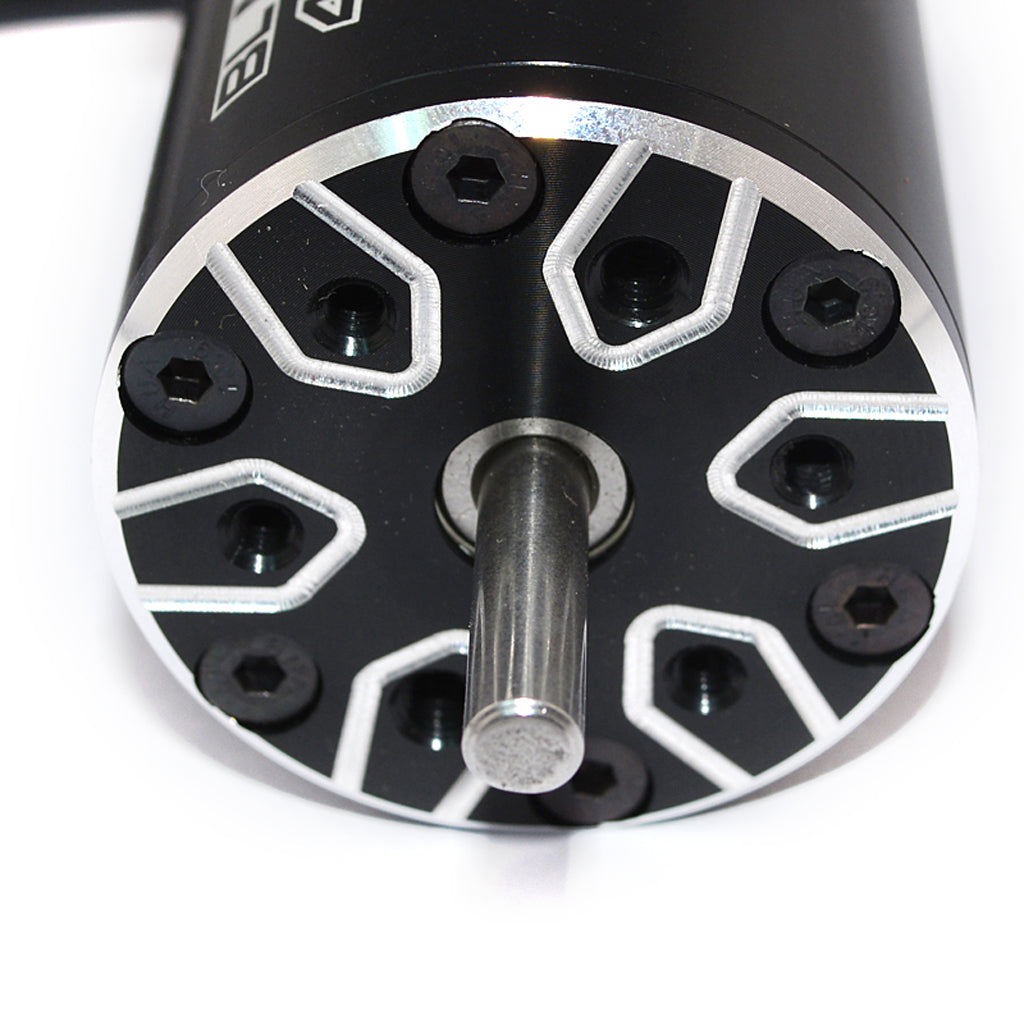

CNC machined 6061 T6 billet alumium heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator - Super Thin (0.2mm) laminations

Hard anodized and rust-proof treatment on the gear surface

The gears are milled by precisely Tanwai milling machine

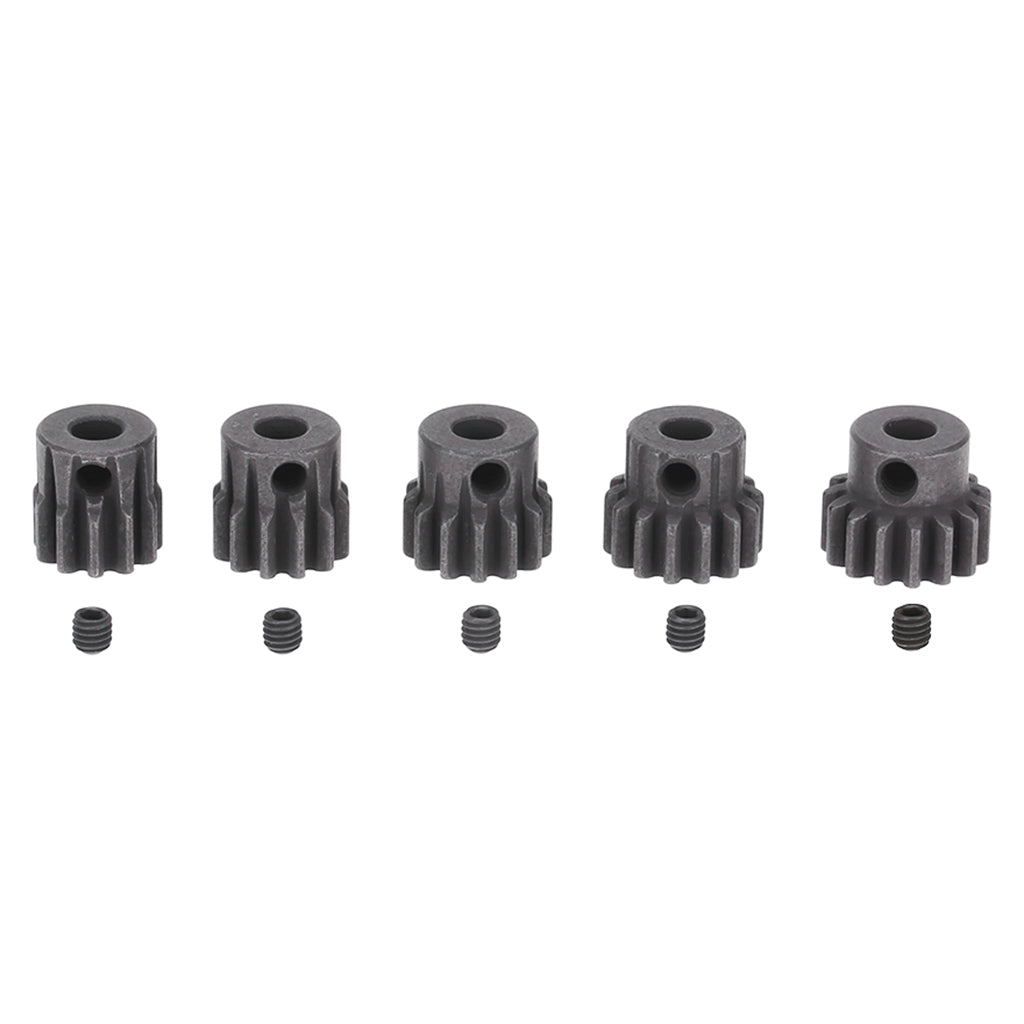

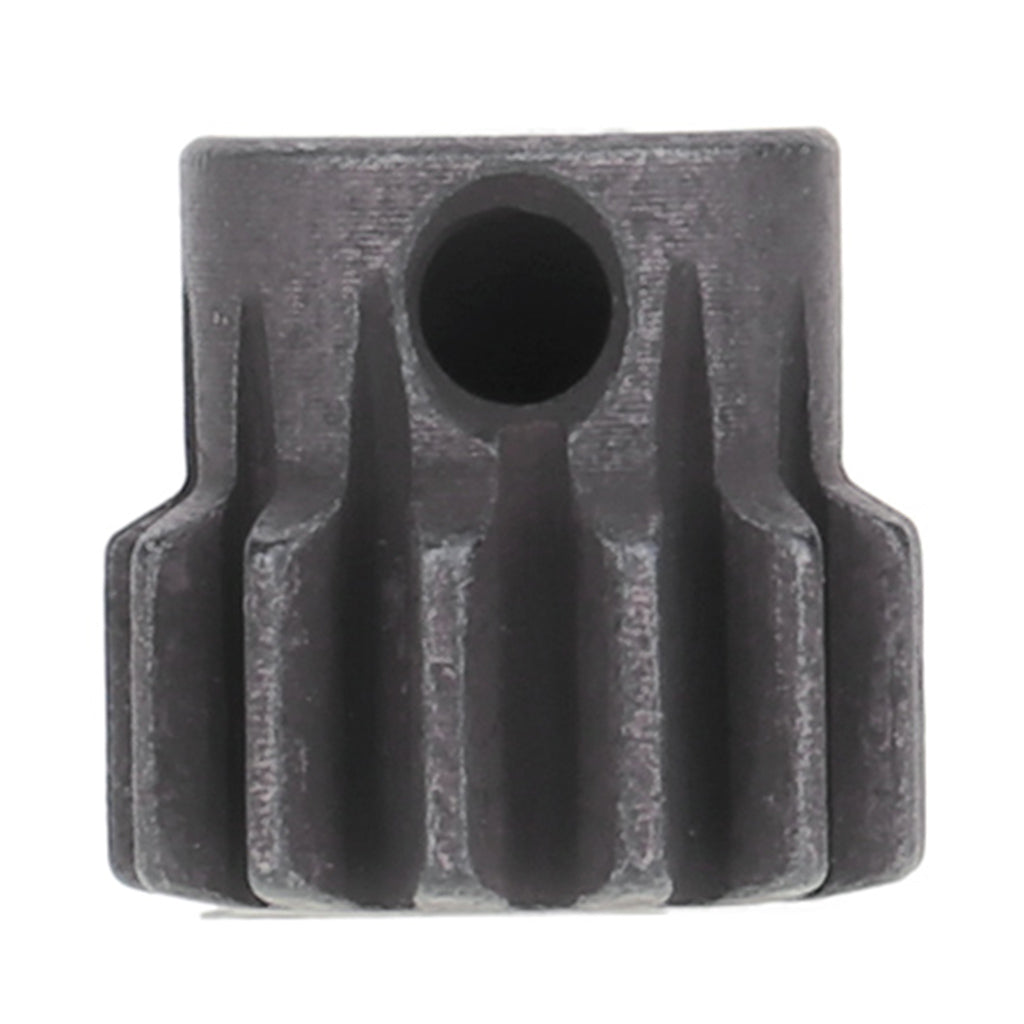

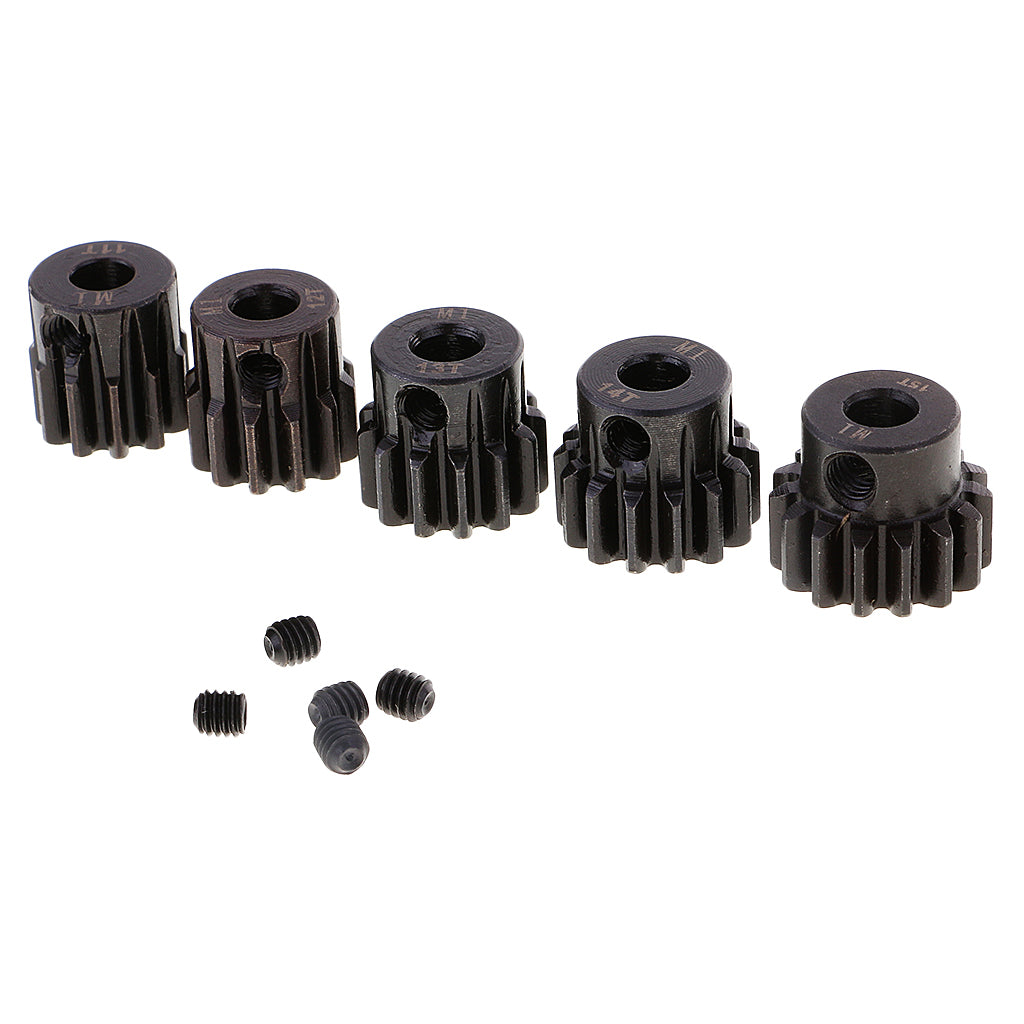

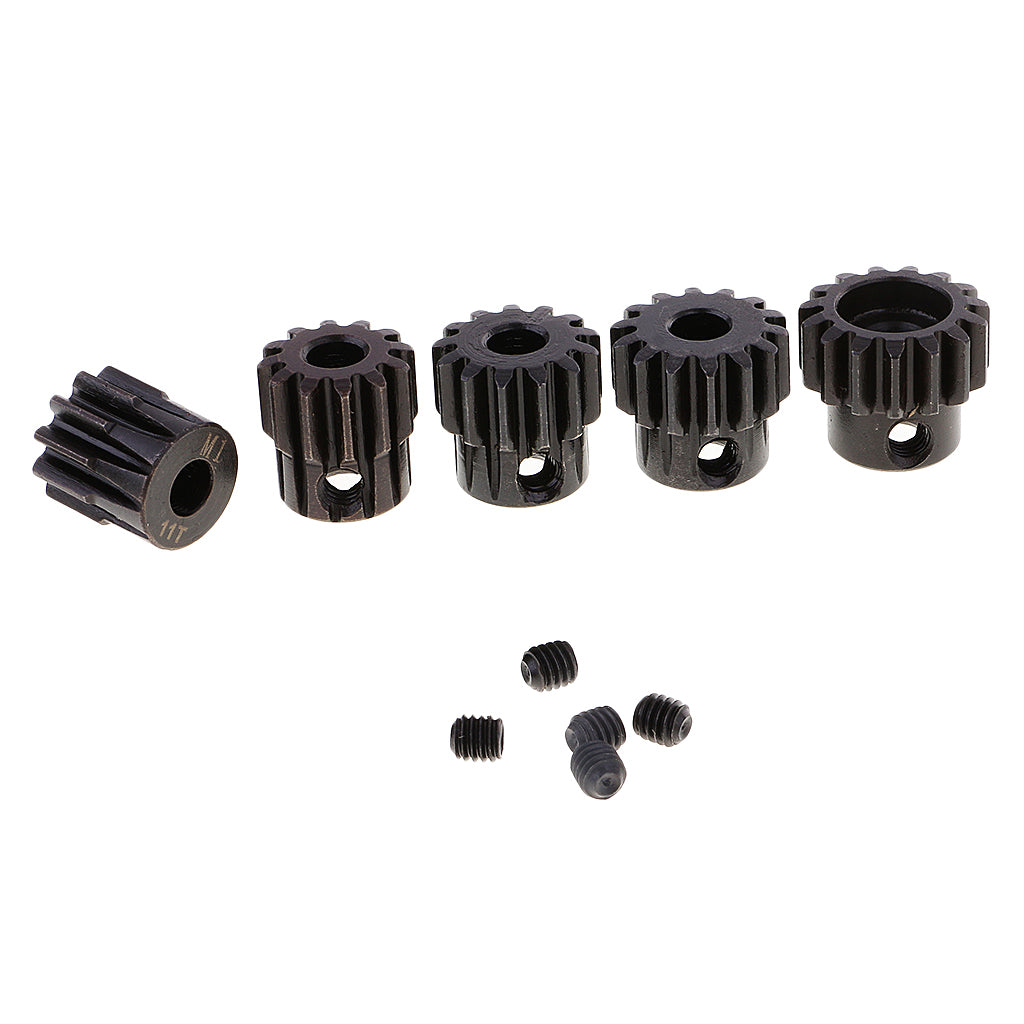

A M4 set screw (12.9 level) has been added to each pinion gear

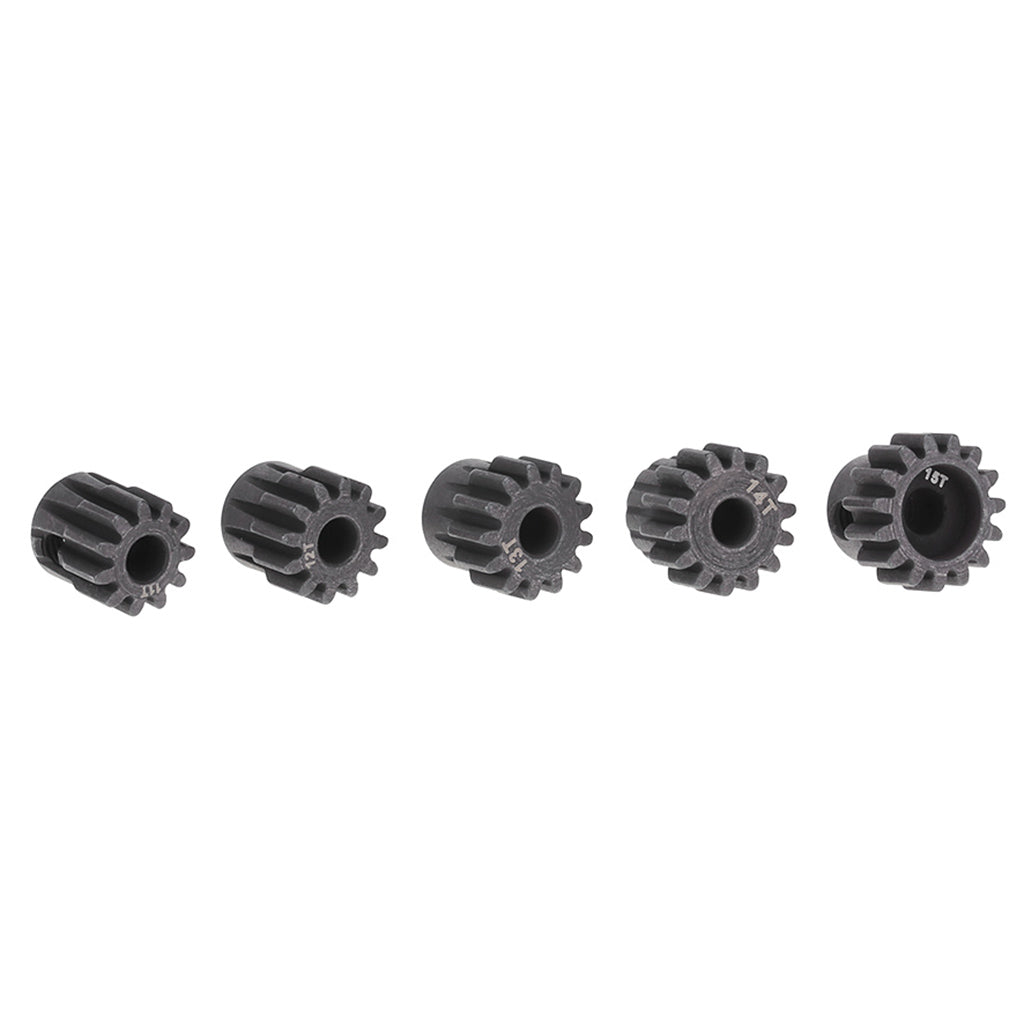

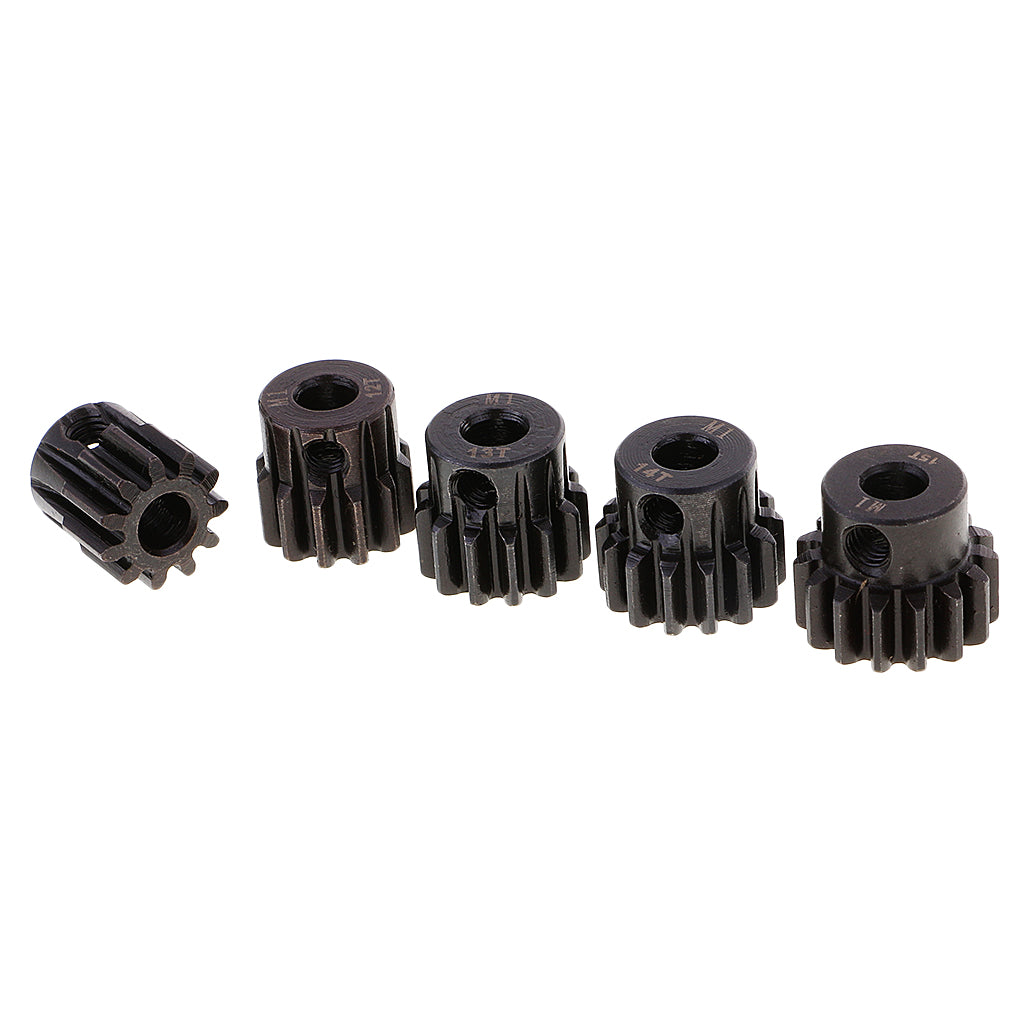

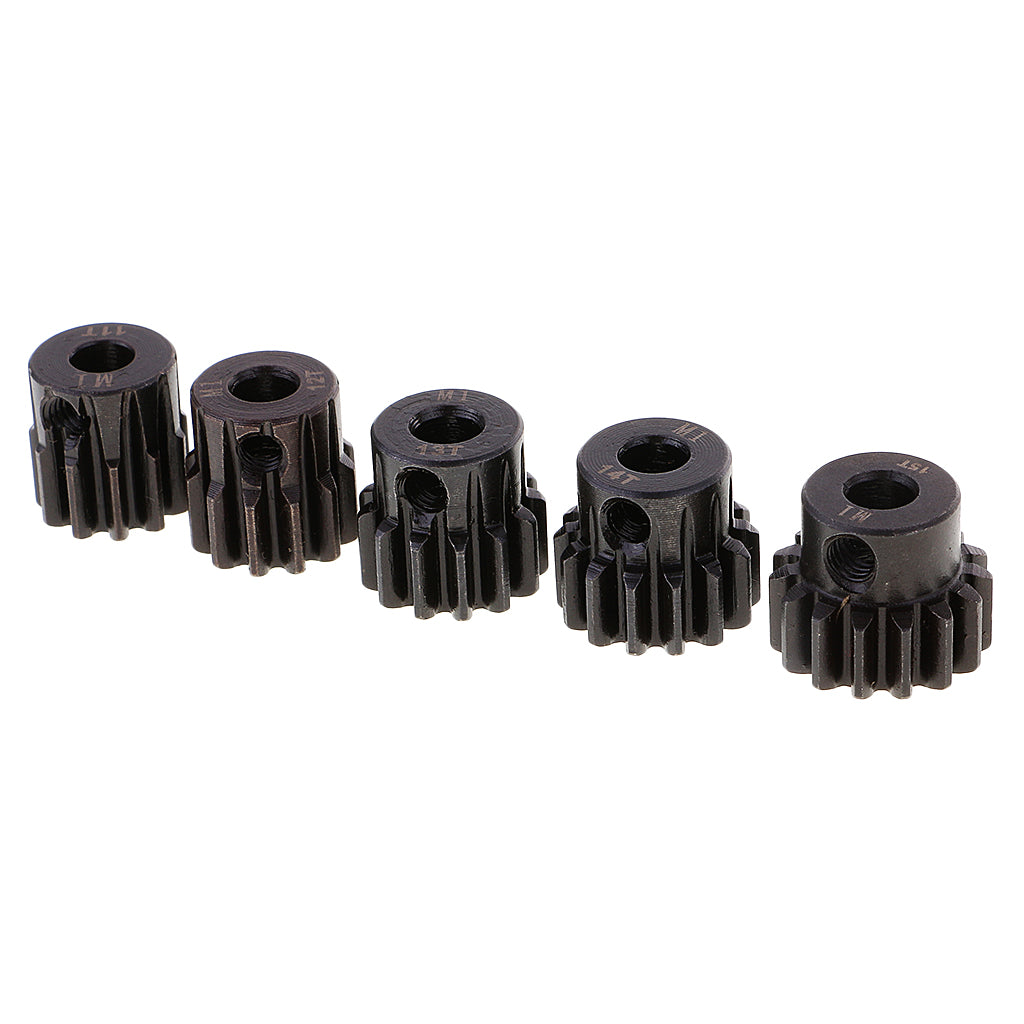

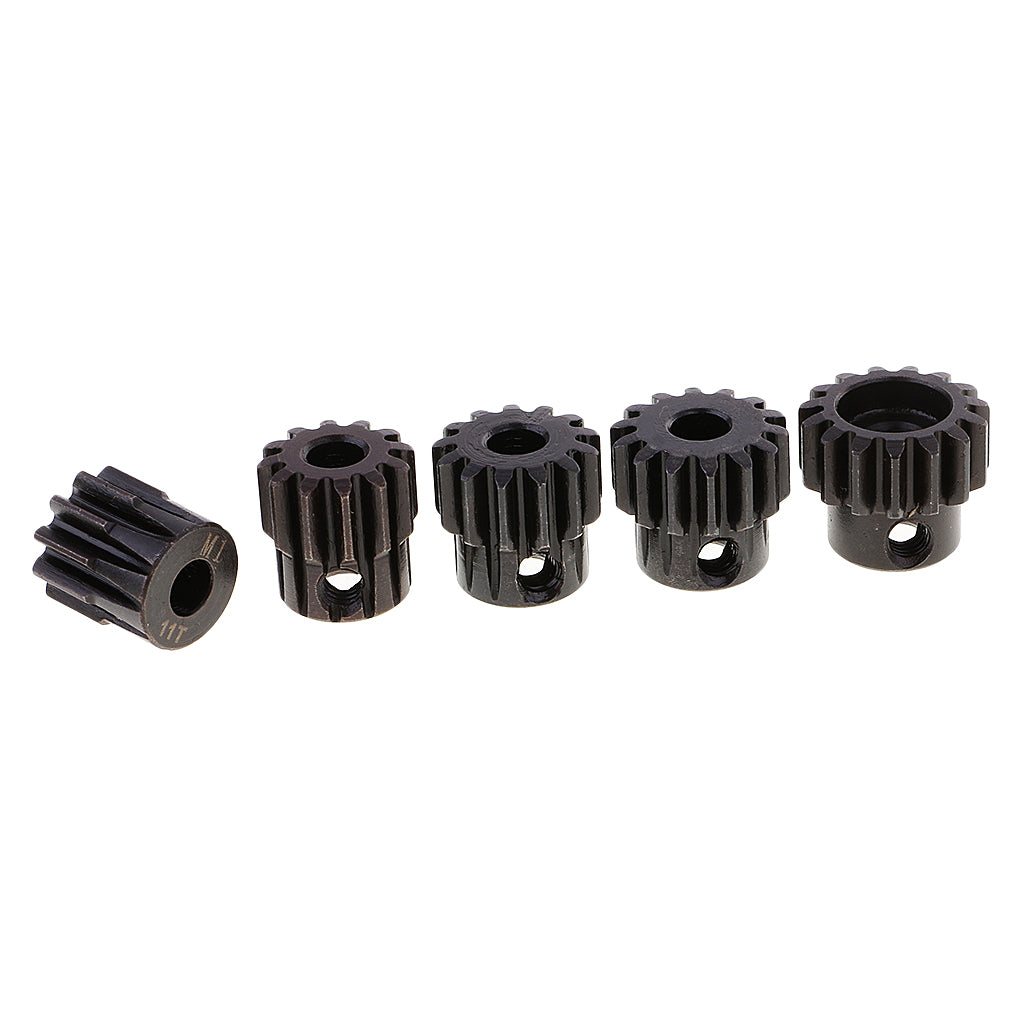

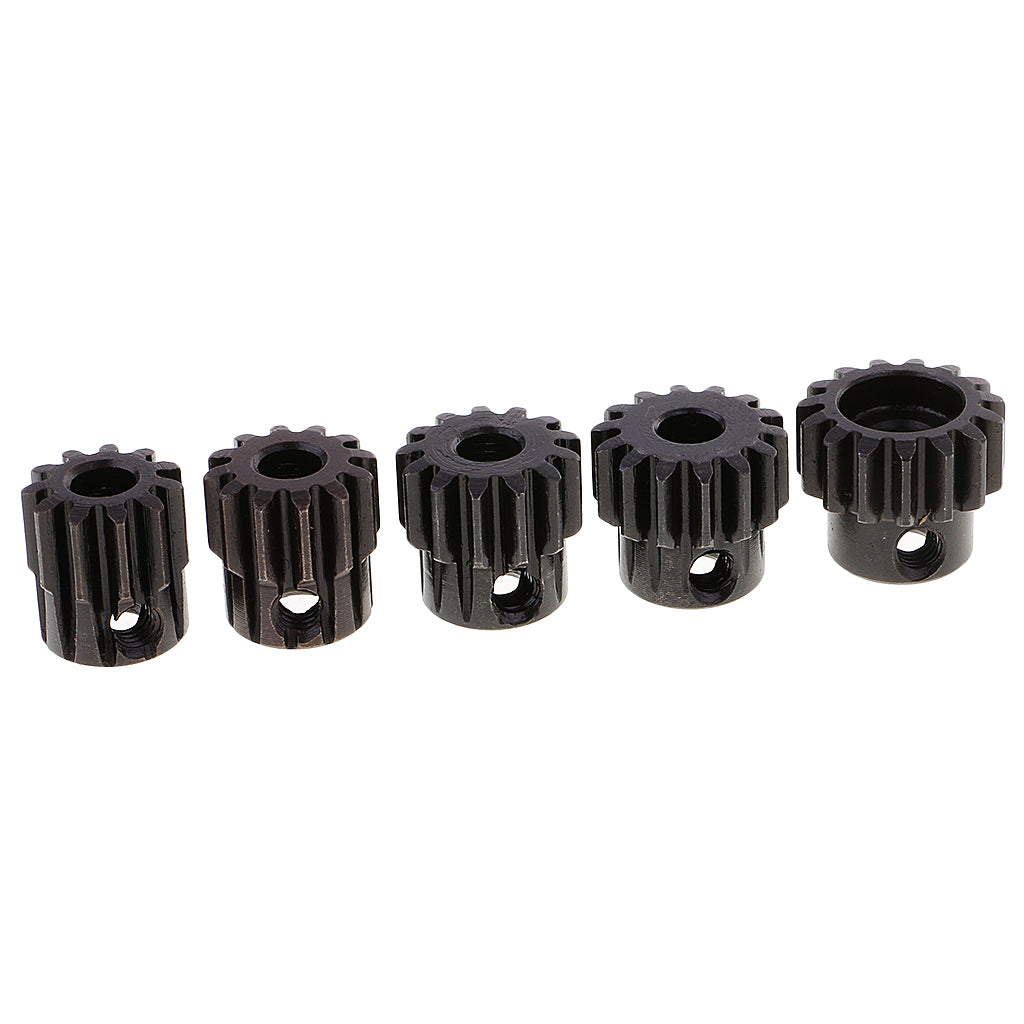

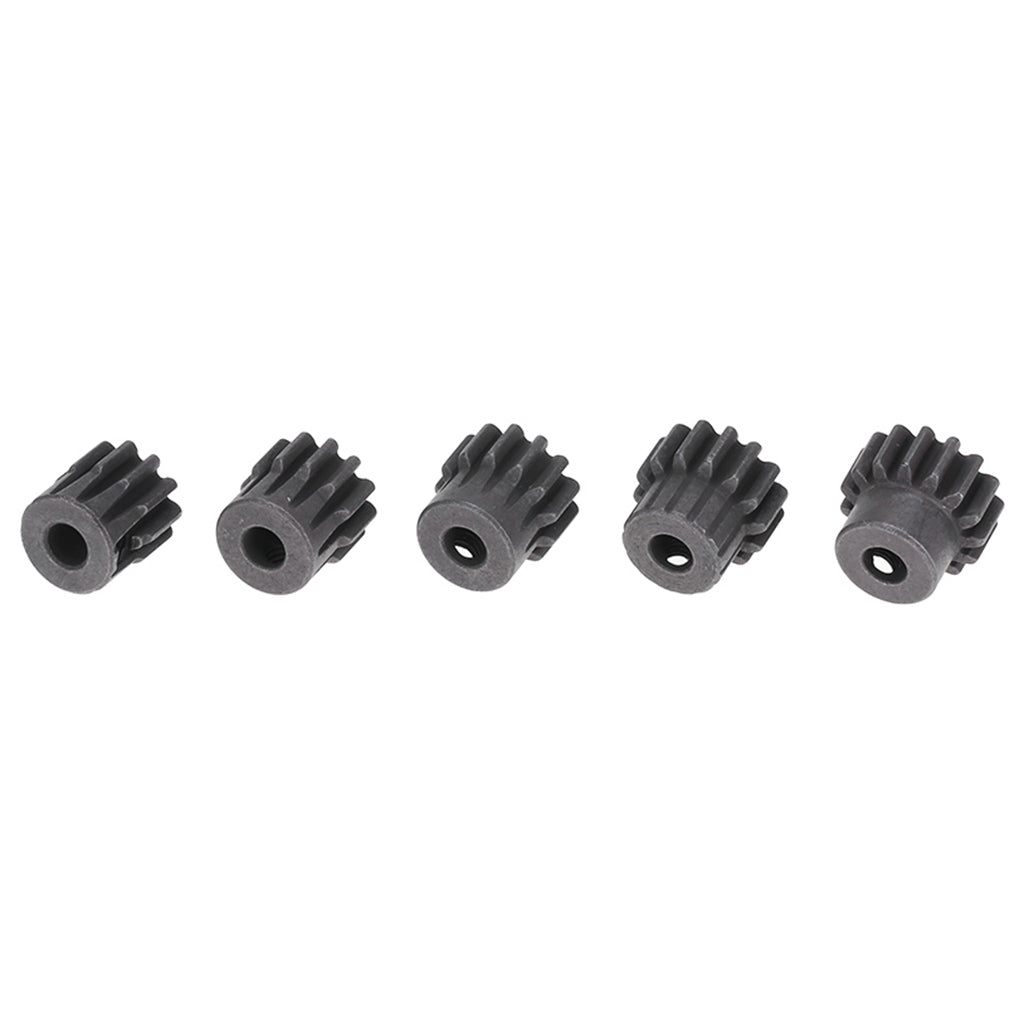

Teeth: 11T 12T 13T 14T 15T

Specification:

RPM: 2000KV
Max Current: 135A
Max Watts: 2800W
Can Size: 4076
Sensored: No
Can Diameter: 40mm
Can Length: 76mm
Shaft Diameter: 5mm
Shaft Length: 20mm
Weight: 359g/12.7oz
Max voltage: 7.4V(2S)-18.5V(5S)

Size Chart:

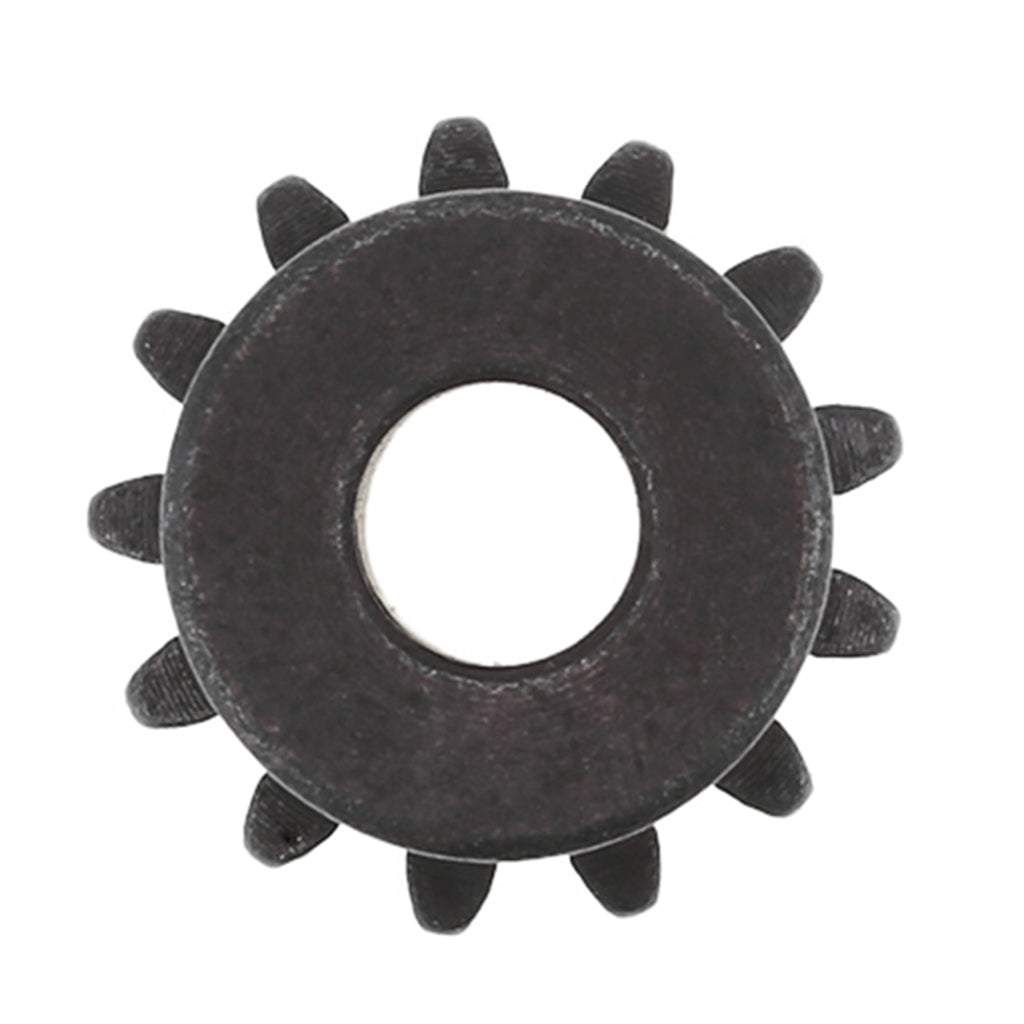

Gear Size:

Height: Approx. 14mm/ 0.55inch

Tip diameter

11T: Approx. 13mm/ 0.51inch

12T: Approx. 14mm/ 0.55inch

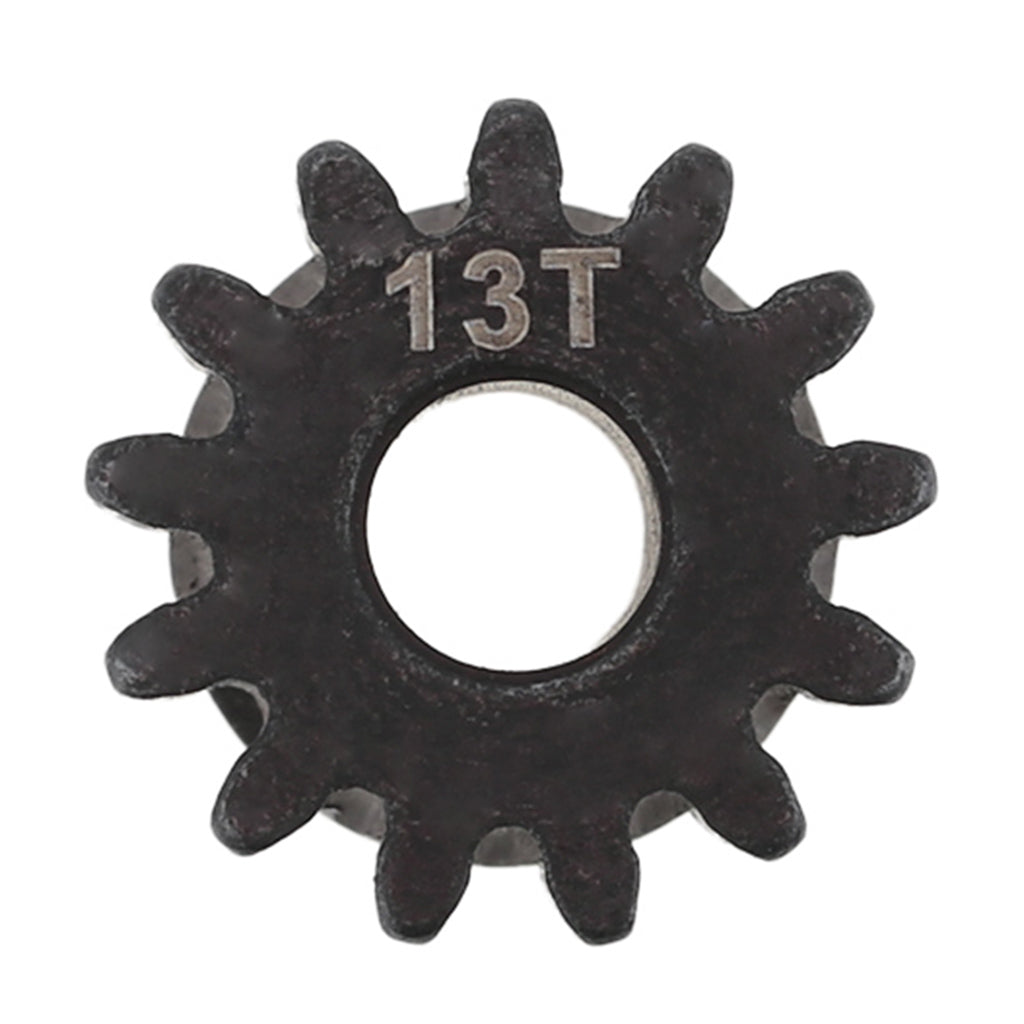

13T: Approx. 15mm/ 0.59inch

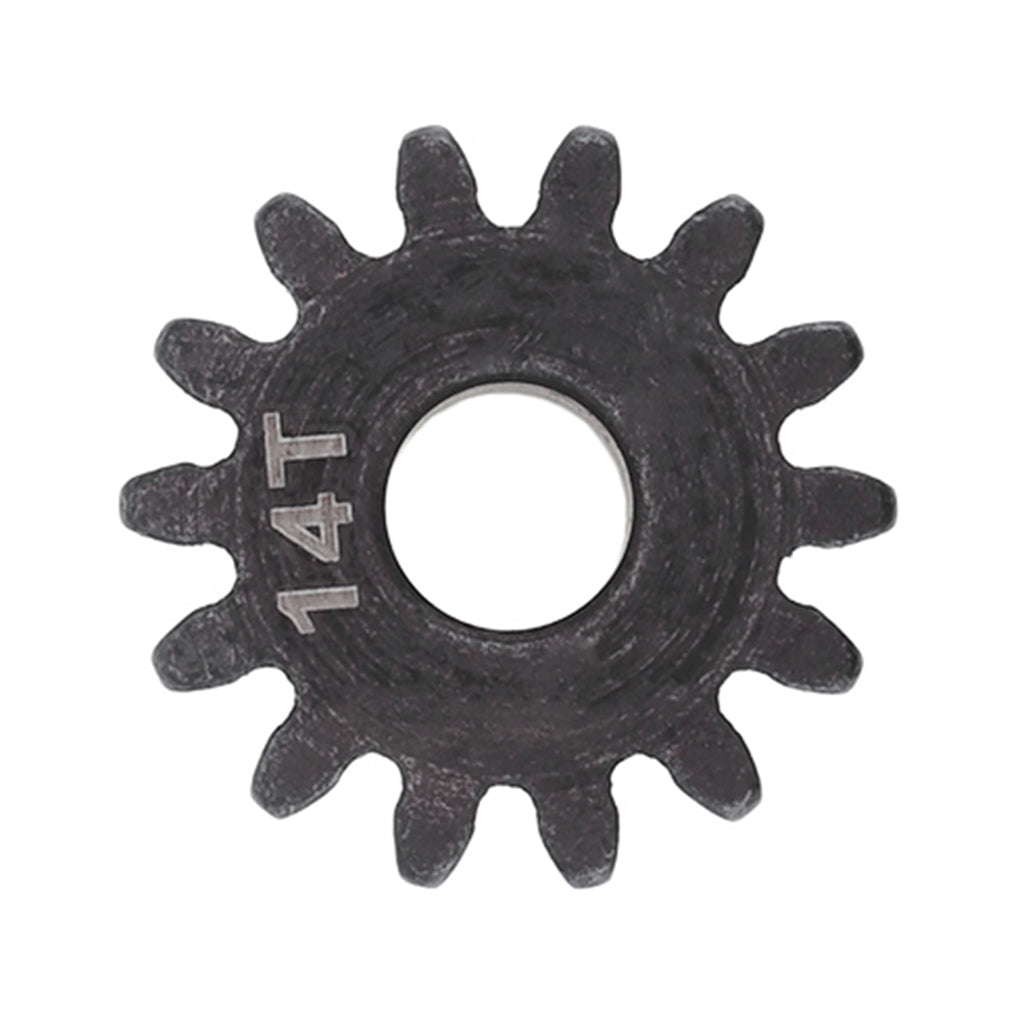

14T: Approx. 16mm/ 0.62inch

15T: Approx. 17mm/ 0.66inch

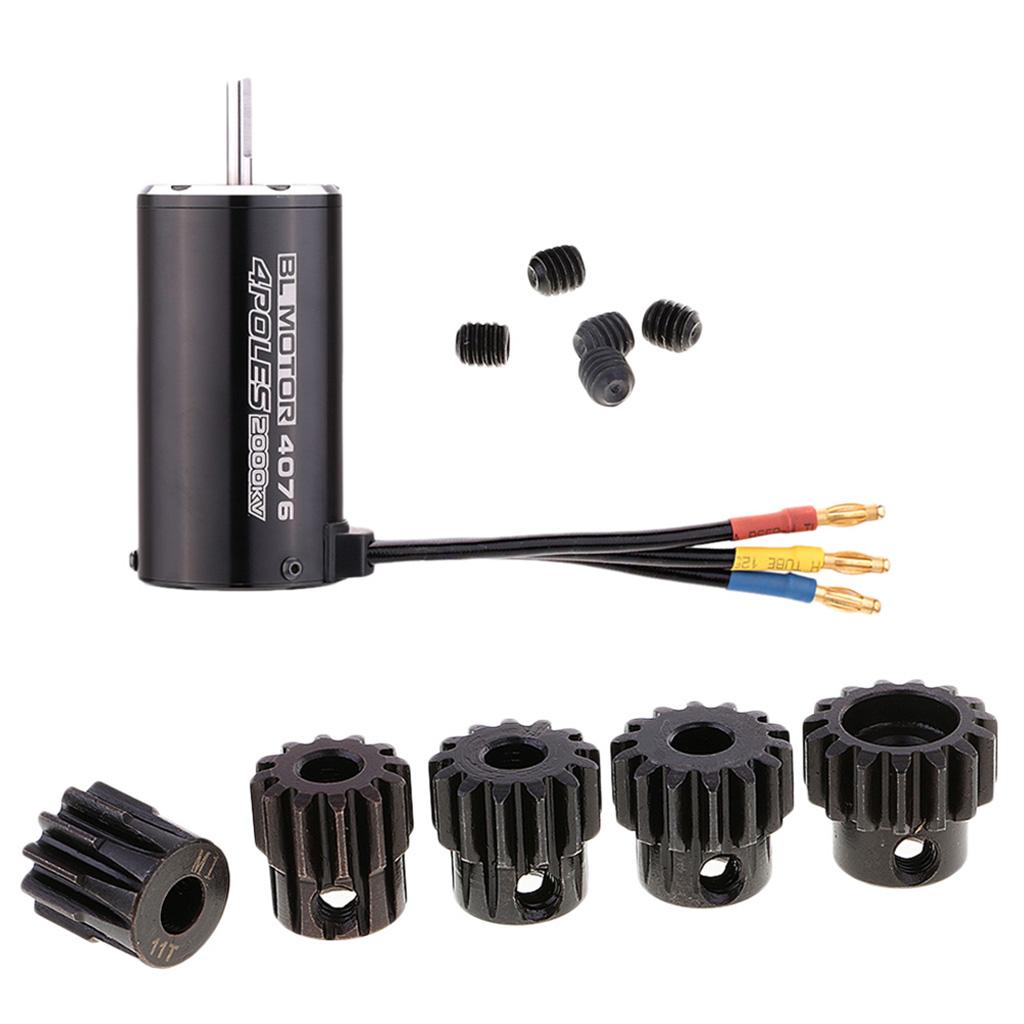

Package Includes:

1 Piece Sensorless Brushless Motor

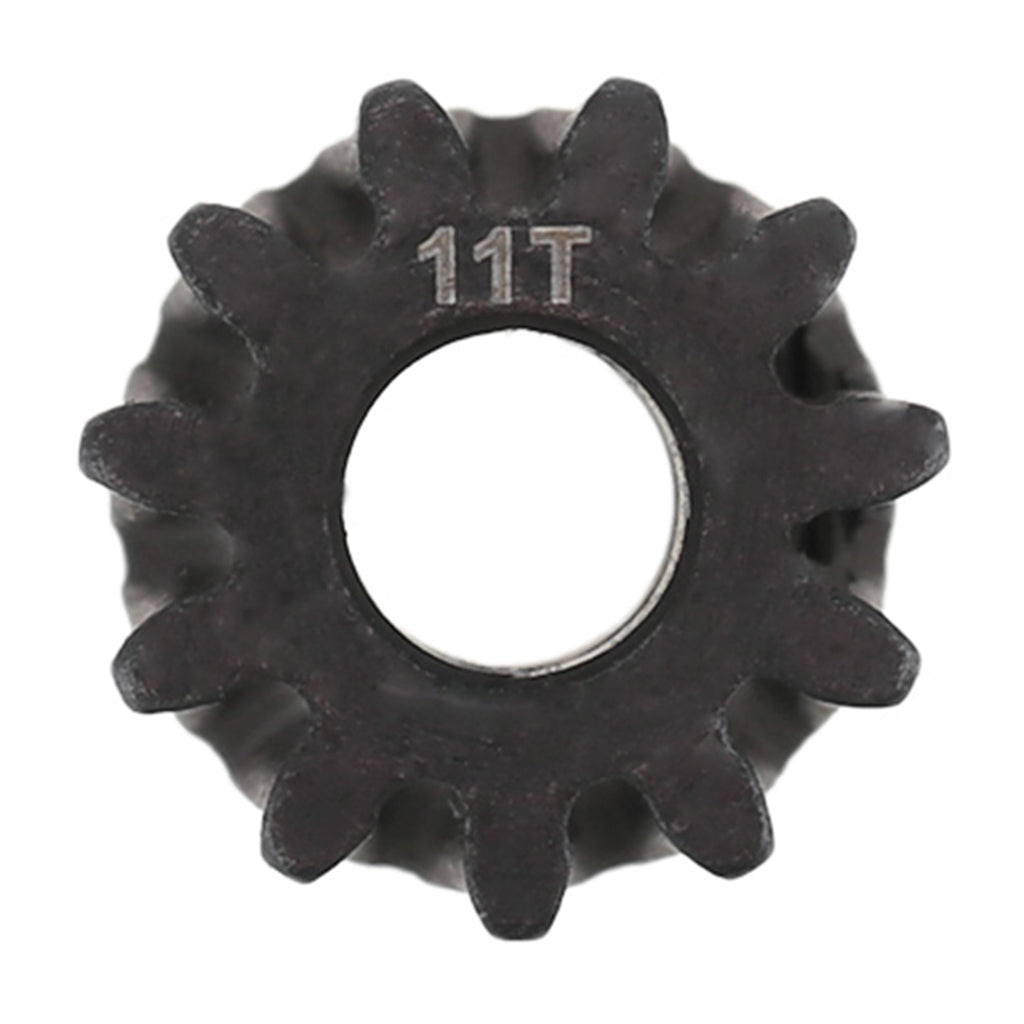

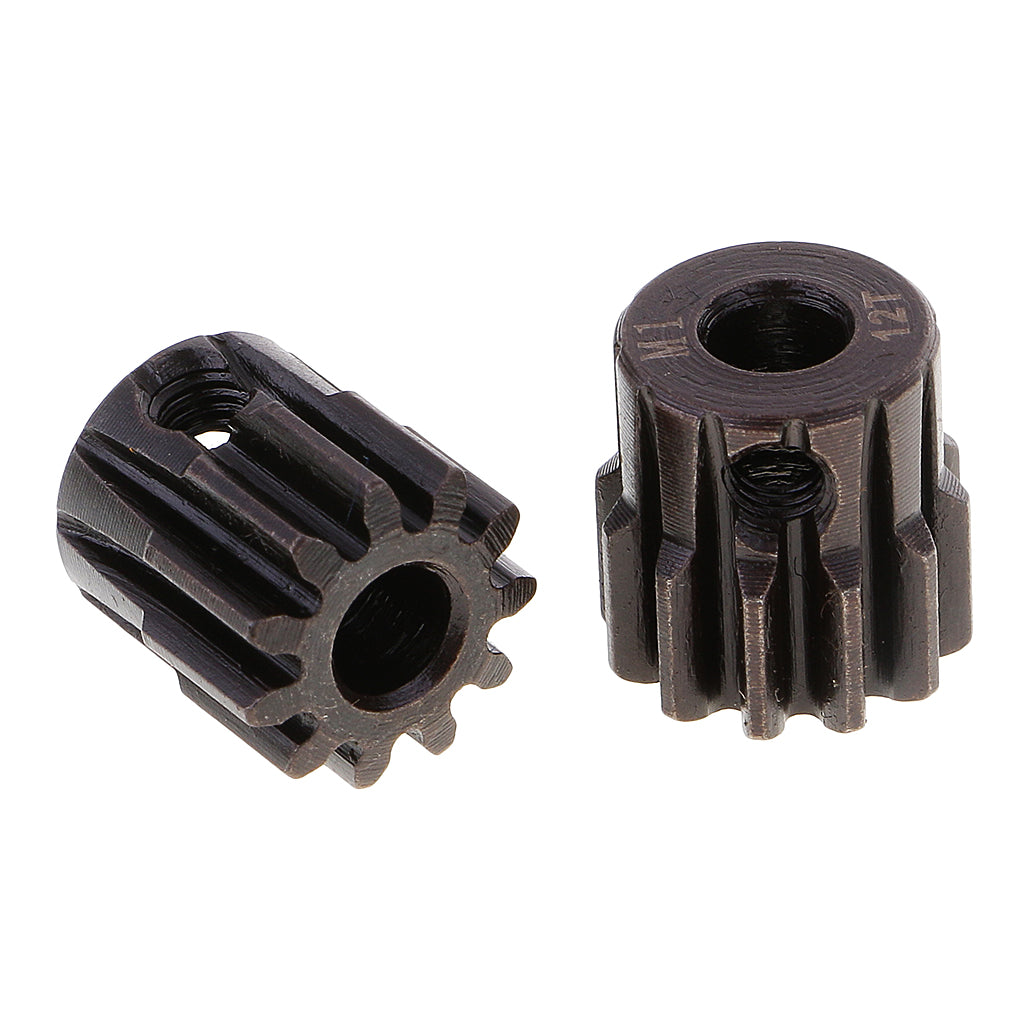

1 Piece M1 5mm 11T Pinion Motor Gear

1 Piece M1 5mm 12T Pinion Motor Gear

1 Piece M1 5mm 13T Pinion Motor Gear

1 Piece M1 5mm 14T Pinion Motor Gear

1 Piece M1 5mm 15T Pinion Motor Gear
