MARINE BOAT RV 1 GANG WATERPROOF ROCKER SWITCH PANEL W/LED INDICATOR

Regular price
Rs. 2,081.97
Regular price
Sale price
Rs. 2,081.97
Earn 1040 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 52033192
  • Brand: SFC
  • Type: eBay Motors
  • Availability: Out stock
Description

Description:

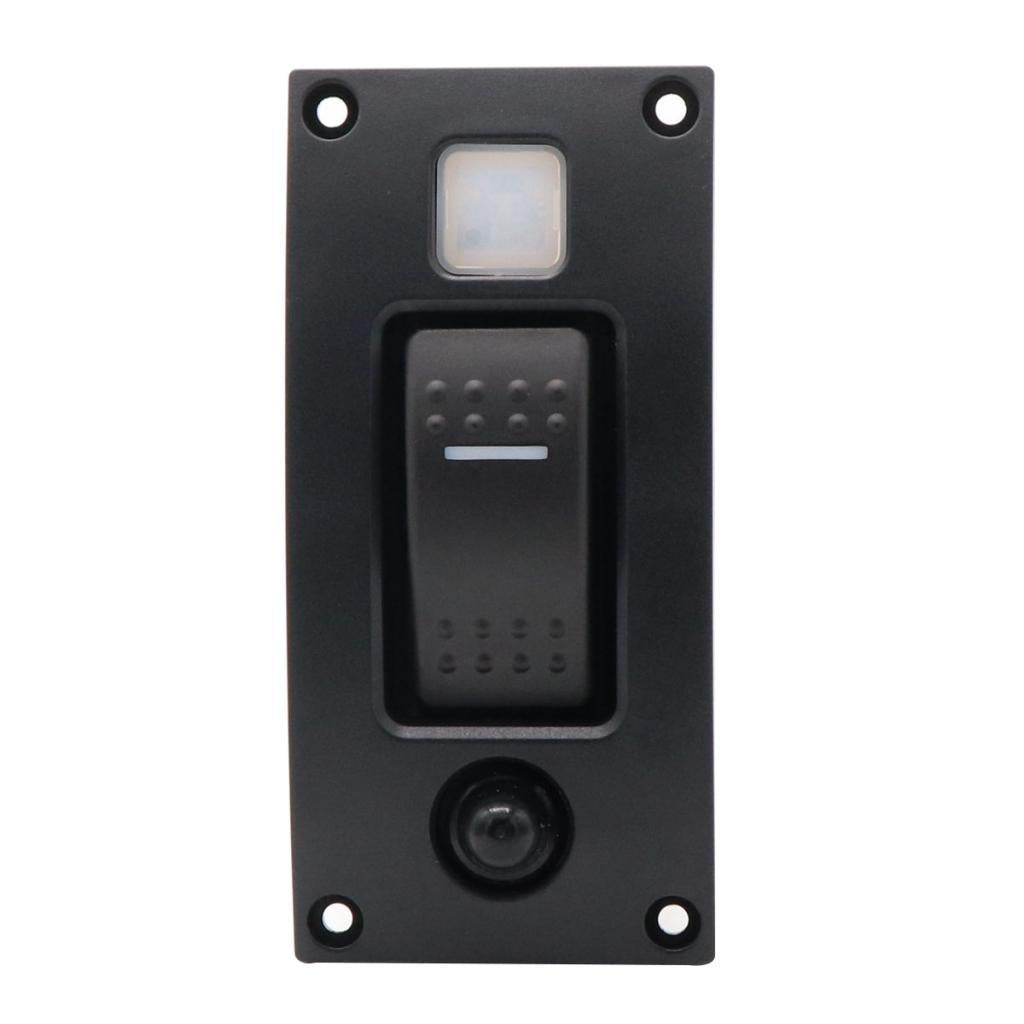

Blank 1P panel that goes well with other SP33 series panels

C-7 sealed IP67 switch with dual (12-24V) voltage rating

Backlight label module allowing easy recognition in darkness

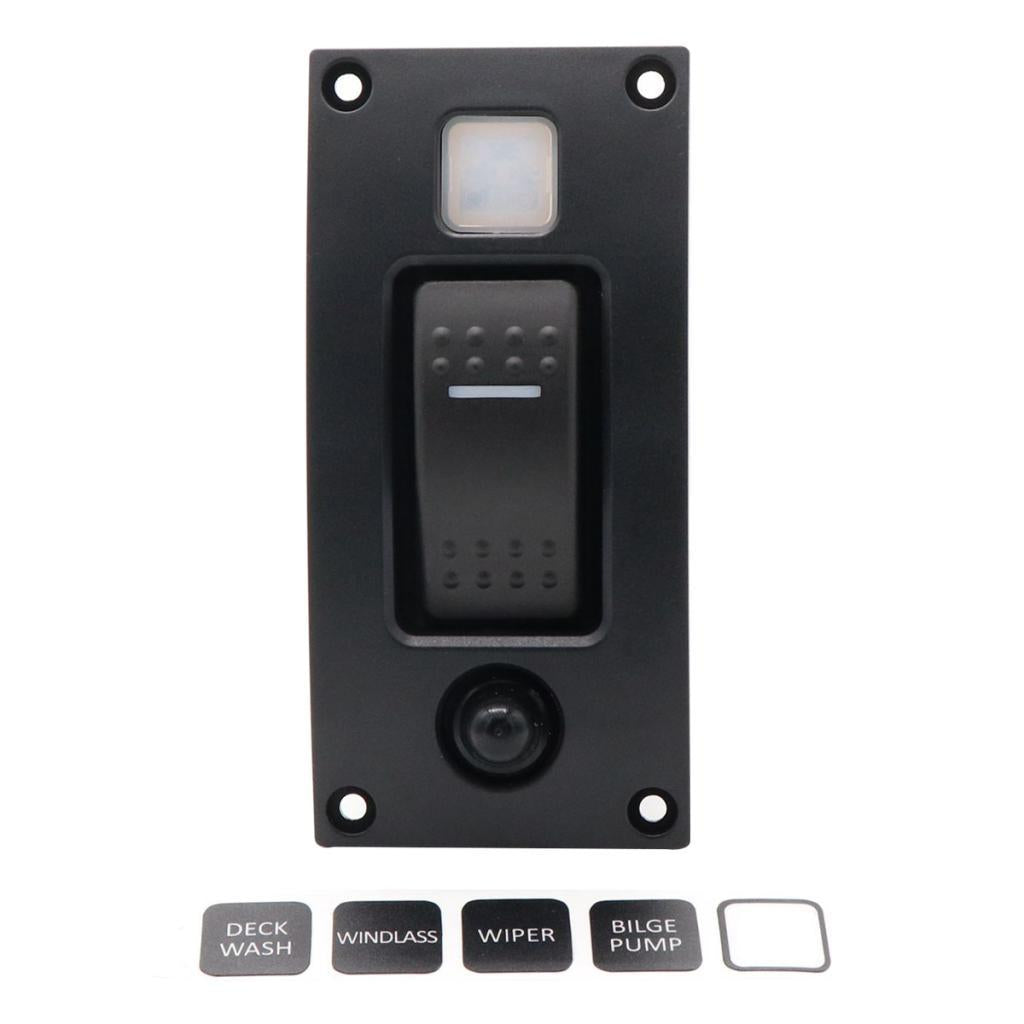

5 pcs assorted label stickers included

Various Switch functions available

Specification:

Product ID:SP3331ST

Type:SPST

Switch Function:ON-OFF

Material: Curved shaped plastic

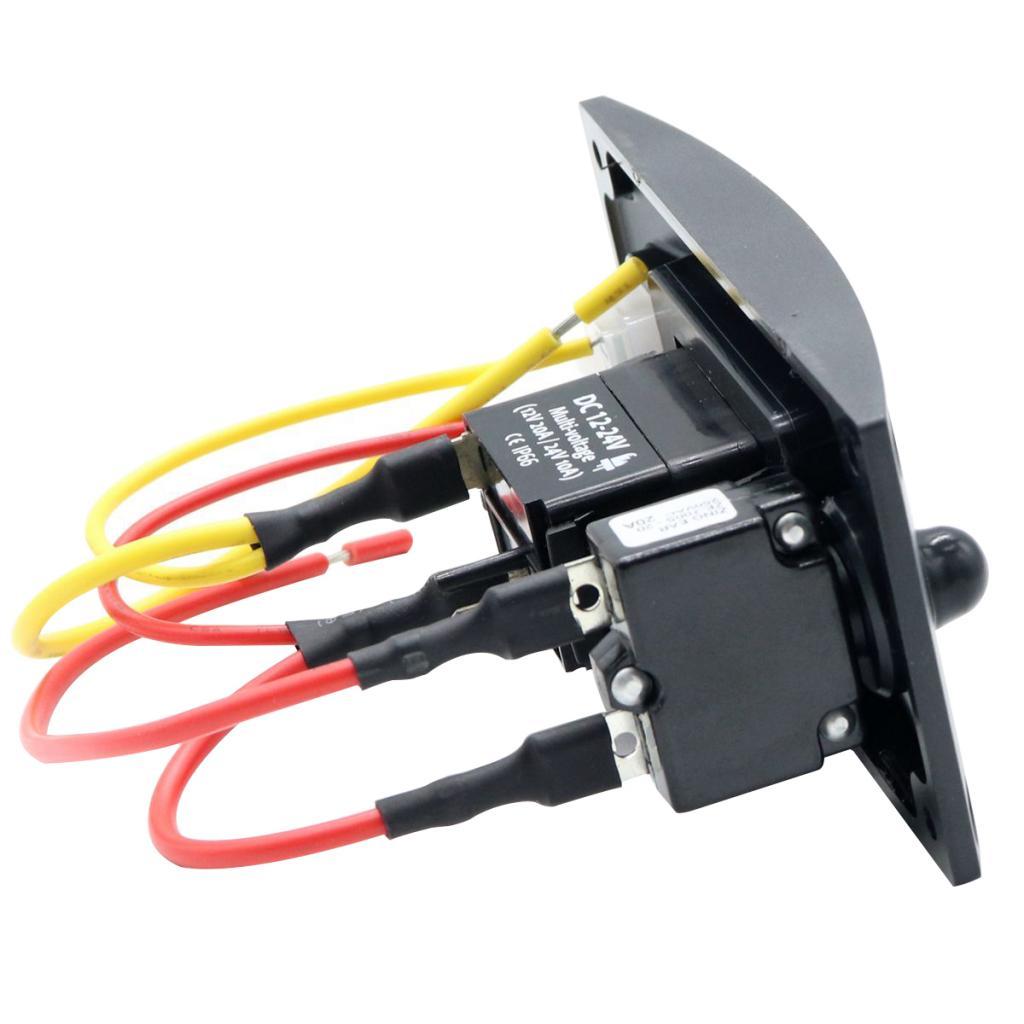

Circuit Protection: 20 A Push Reset Circuit Breakers

Ratings: DC 12V 20A /24V 10A

Panel Depth: 75 mm

Dimensions: 114 x 54 mm

Mounting Dimensions: 103 x 43 mm

Notes: IP66 CE

Package Includes:

1 piece 1 Gang Toggle Switch Panel

Note:

Installation Instructions

1.Disconnect all power (AC & DC).

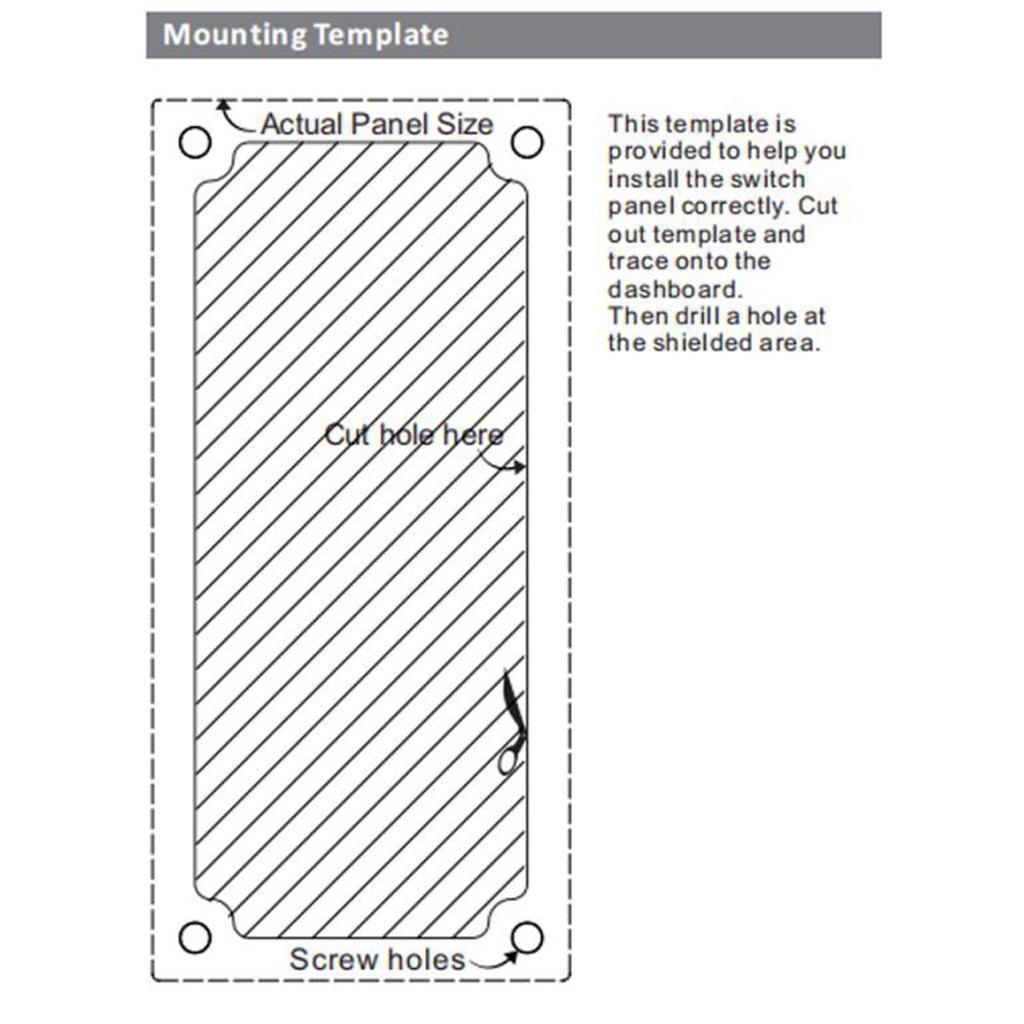

2.Cut opening for mounting location using the template provided.

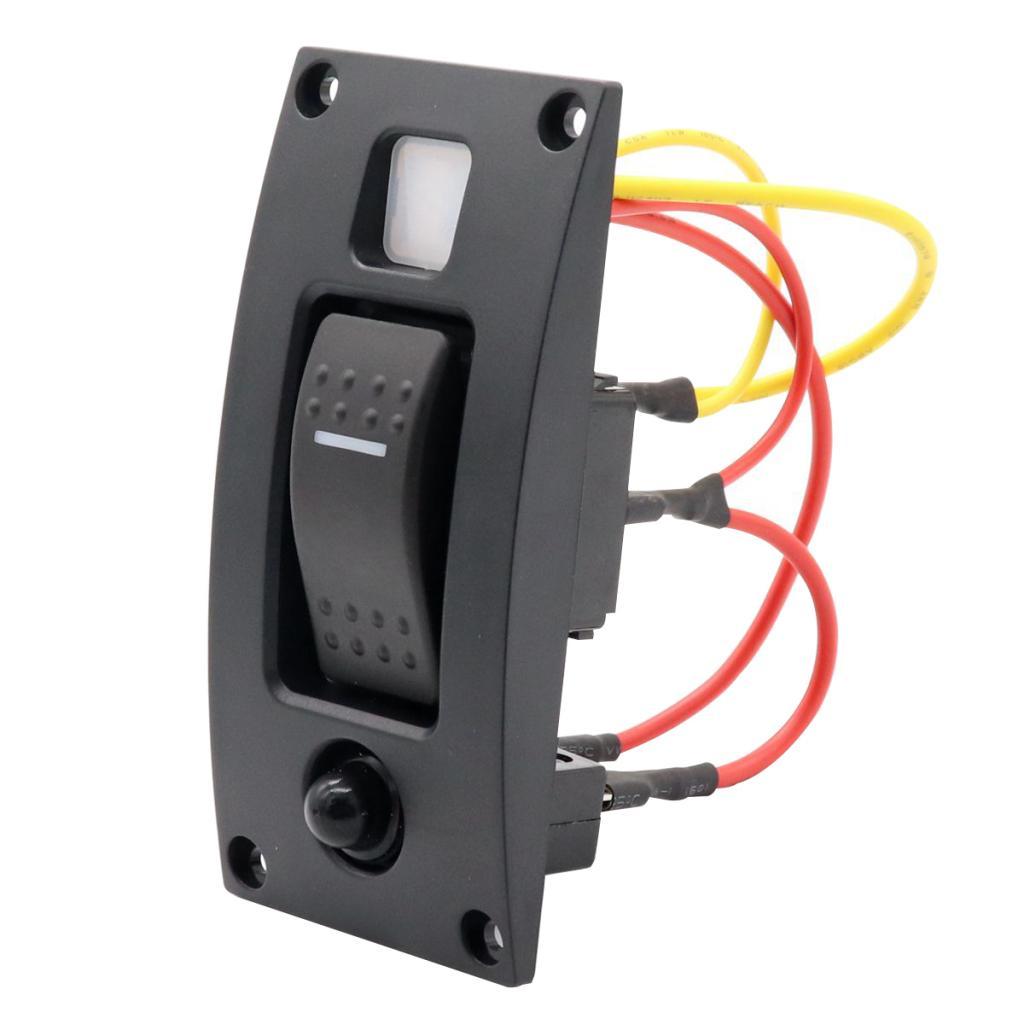

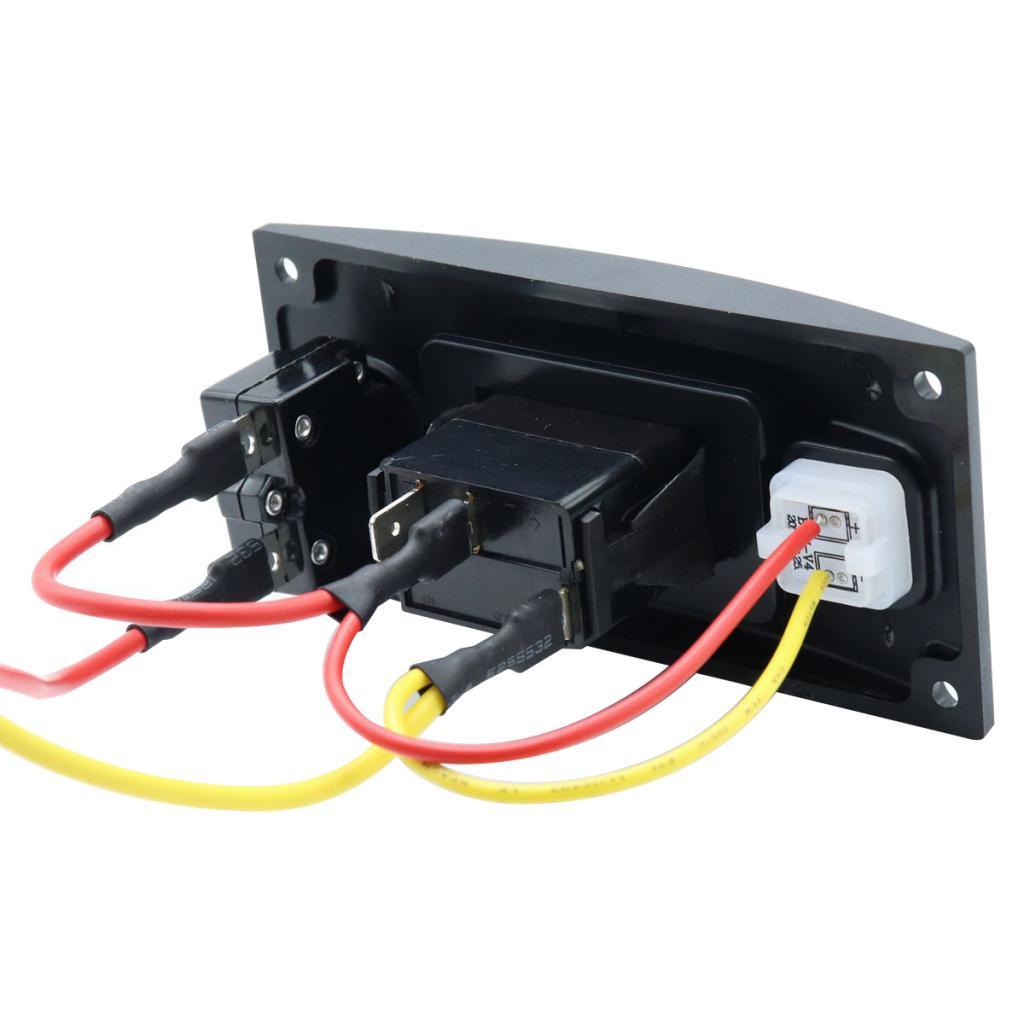

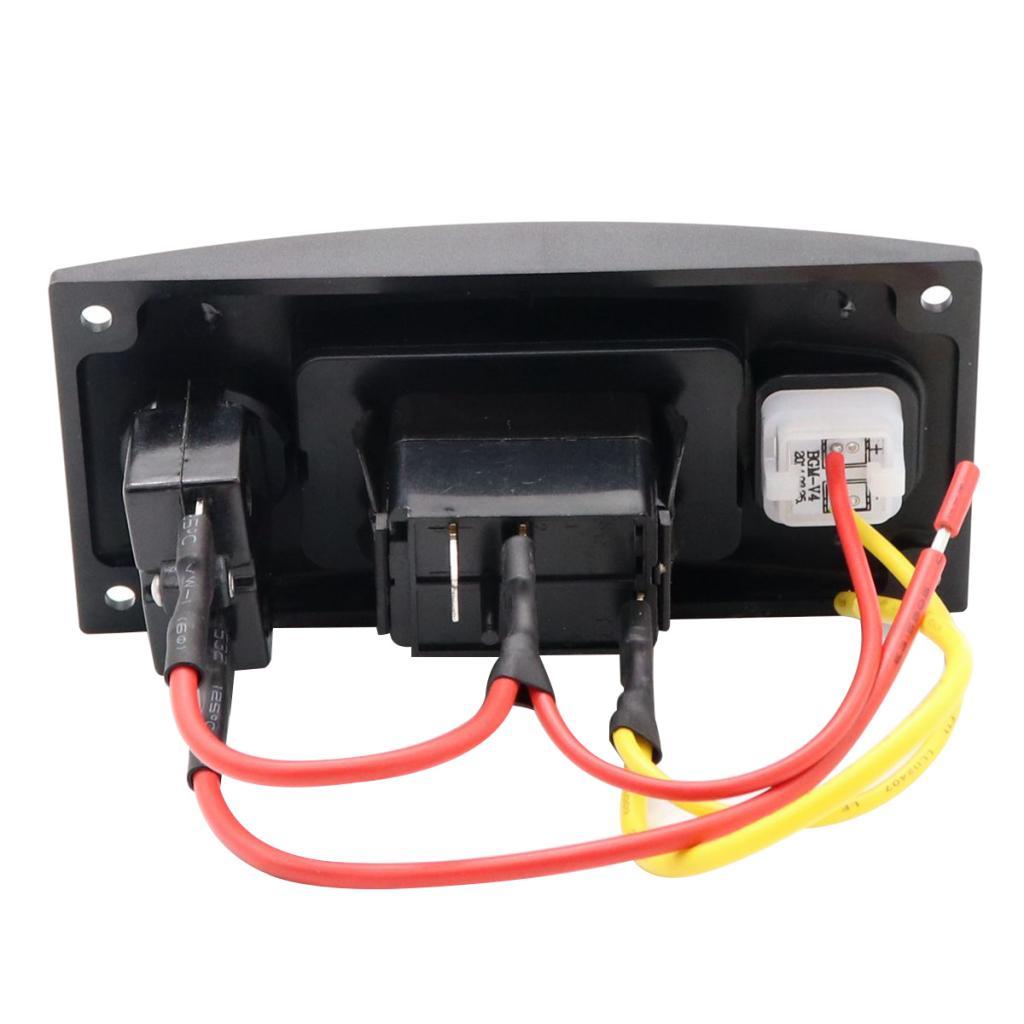

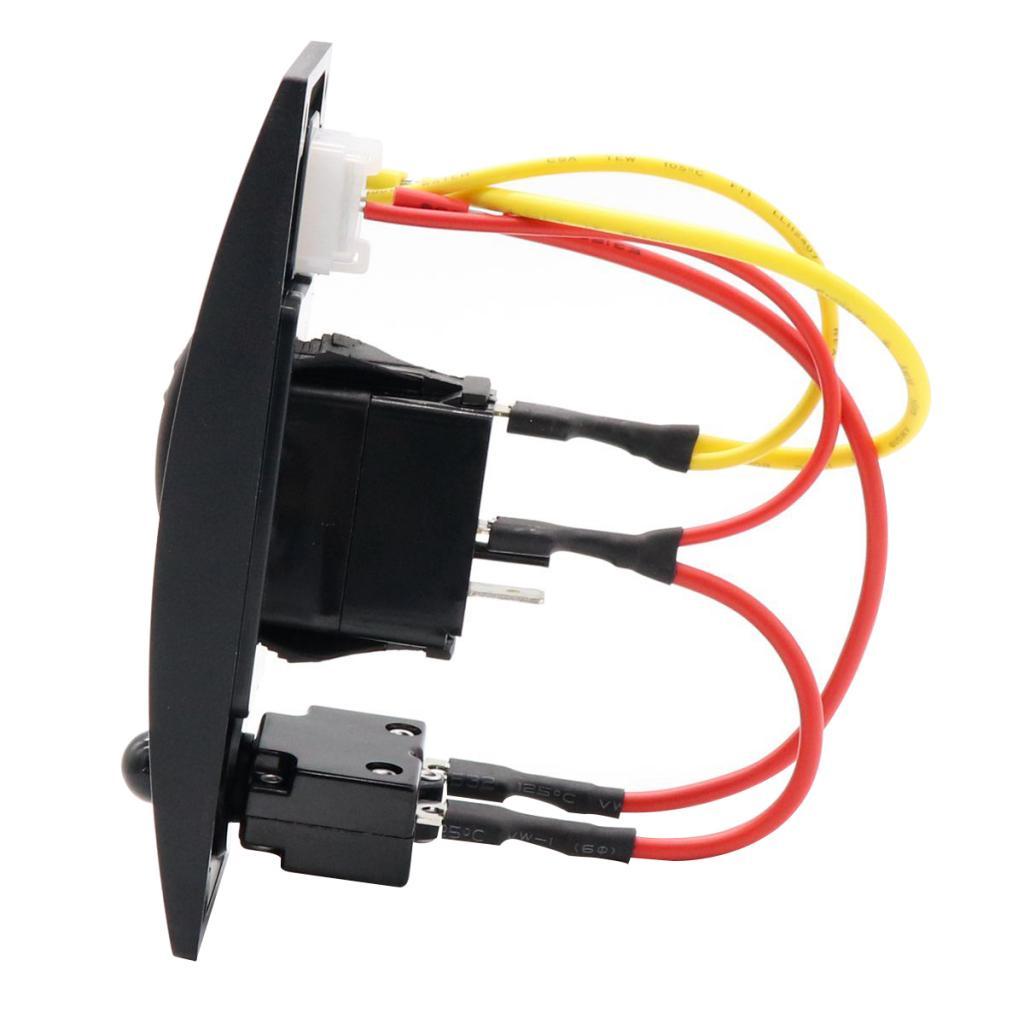

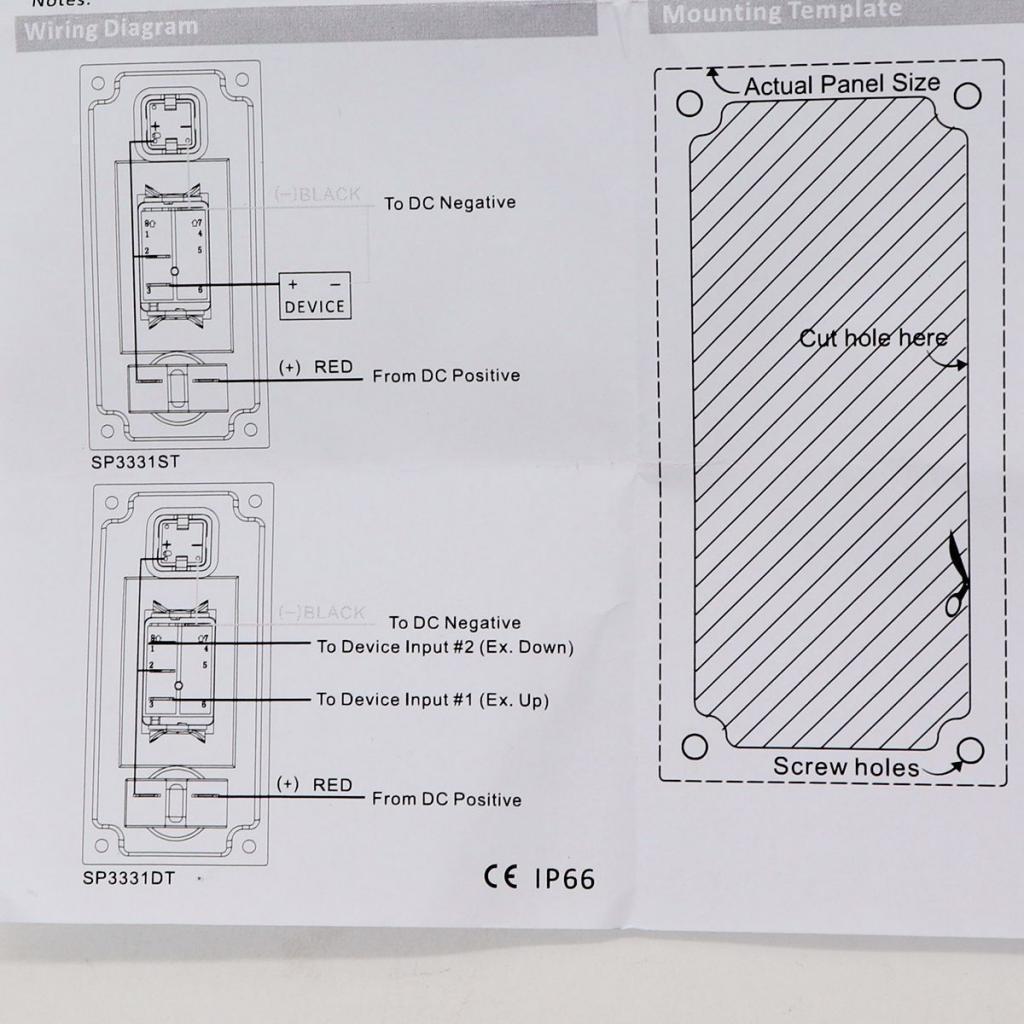

3.Connect the positive wire (red) to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar.

4.Connect switch load terminals to the desired device as illustrated.

5.Connect the negative wires of the devices to a negative bus bar.

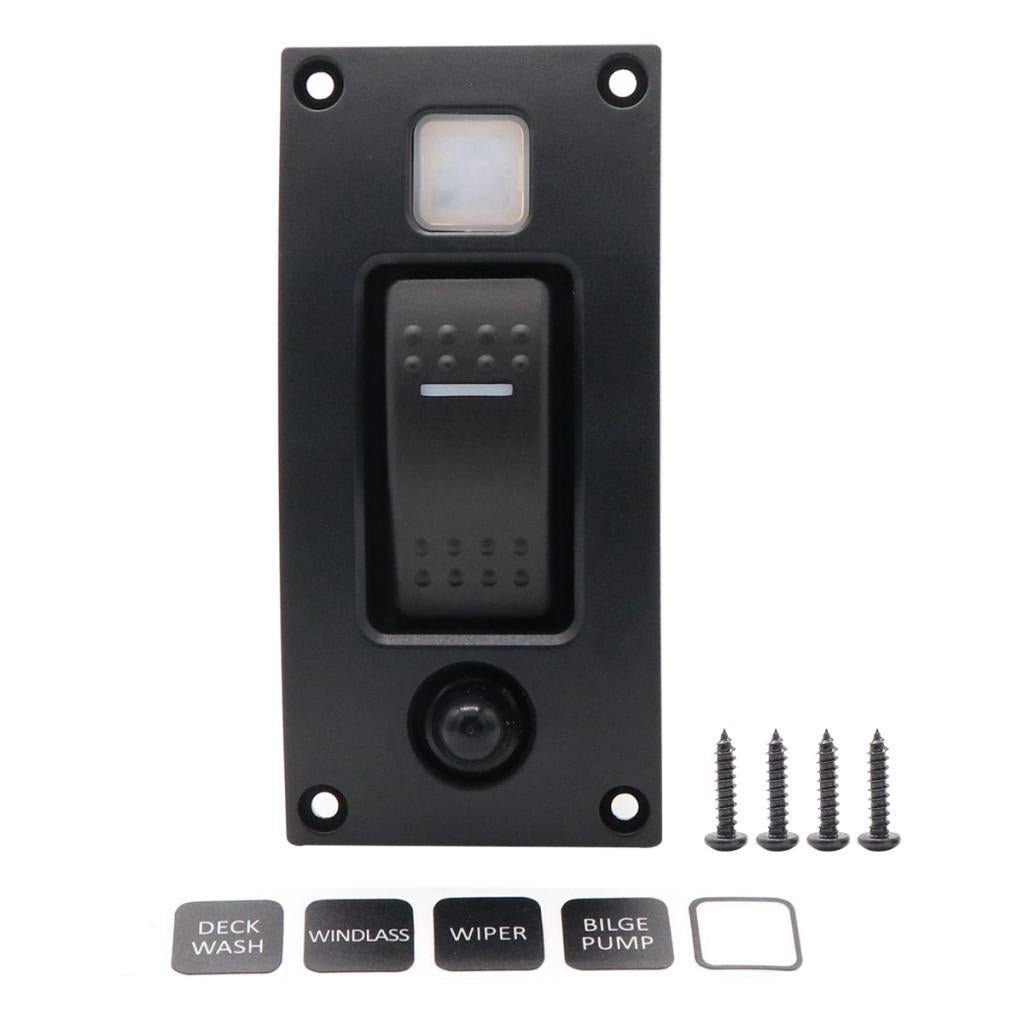

6.Mount the switch panel with the included self-tapping screws.

7.Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally.
