Deck Wash Rocker Switch Panel LED 12 volt Marine Switch Washdown controller

Regular price
Rs. 2,070.44
Regular price
Sale price
Rs. 2,070.44
Earn 1035 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 52033189
  • Brand: SFC
  • Type: eBay Motors
  • Availability: In Stock
Description

Description:

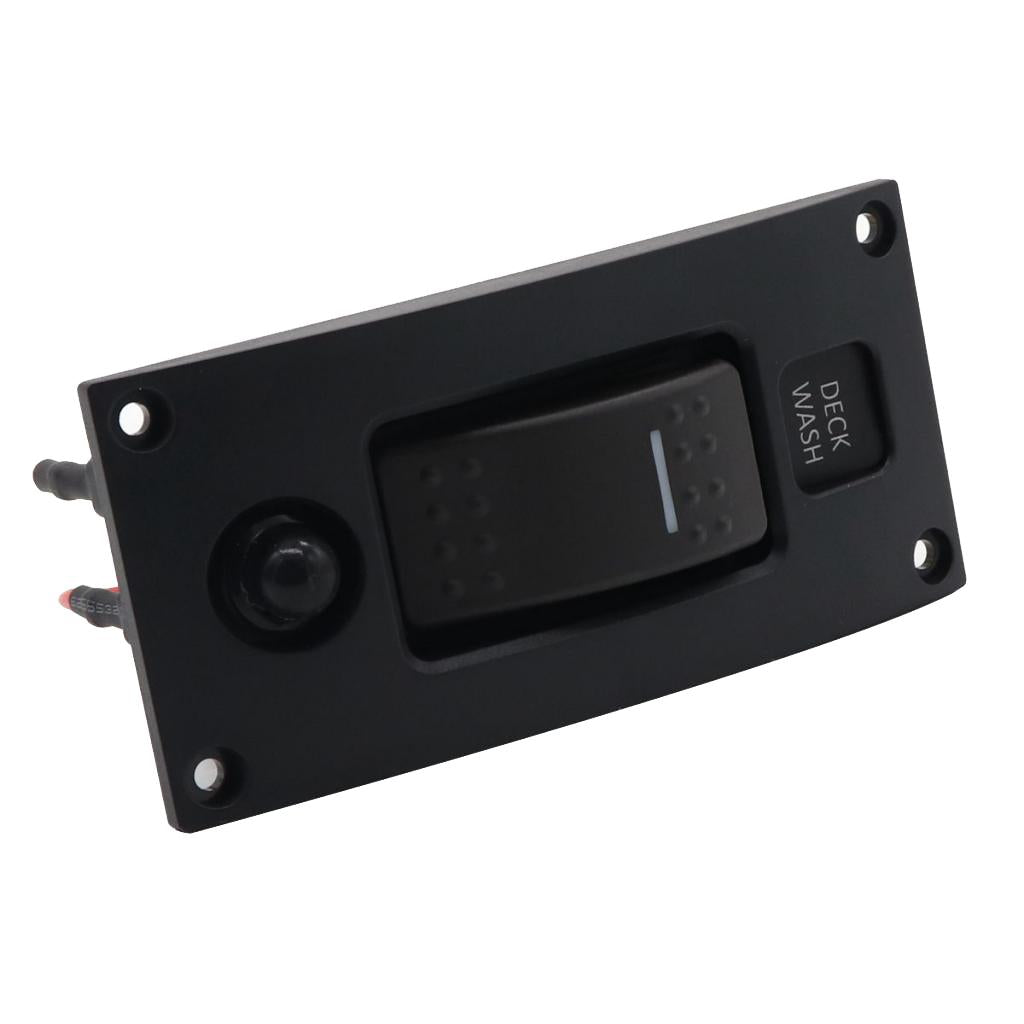

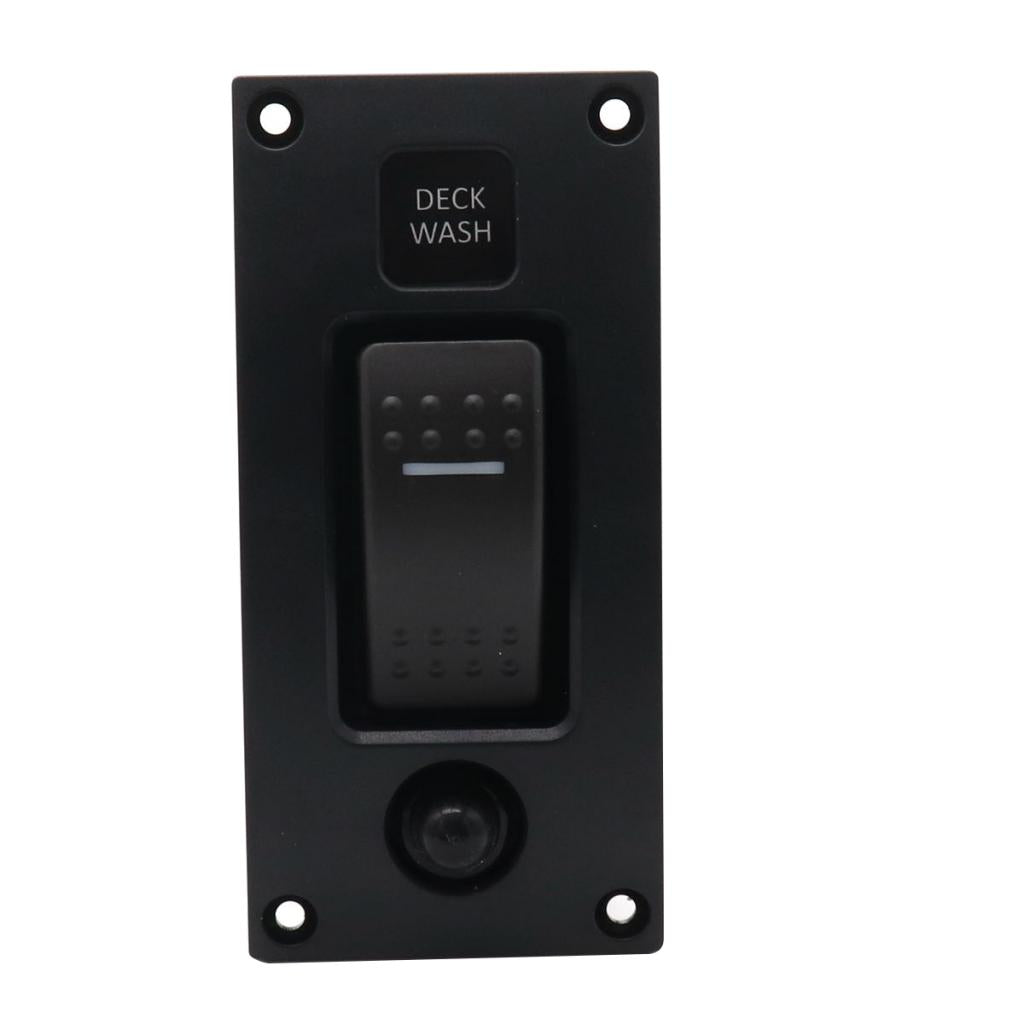

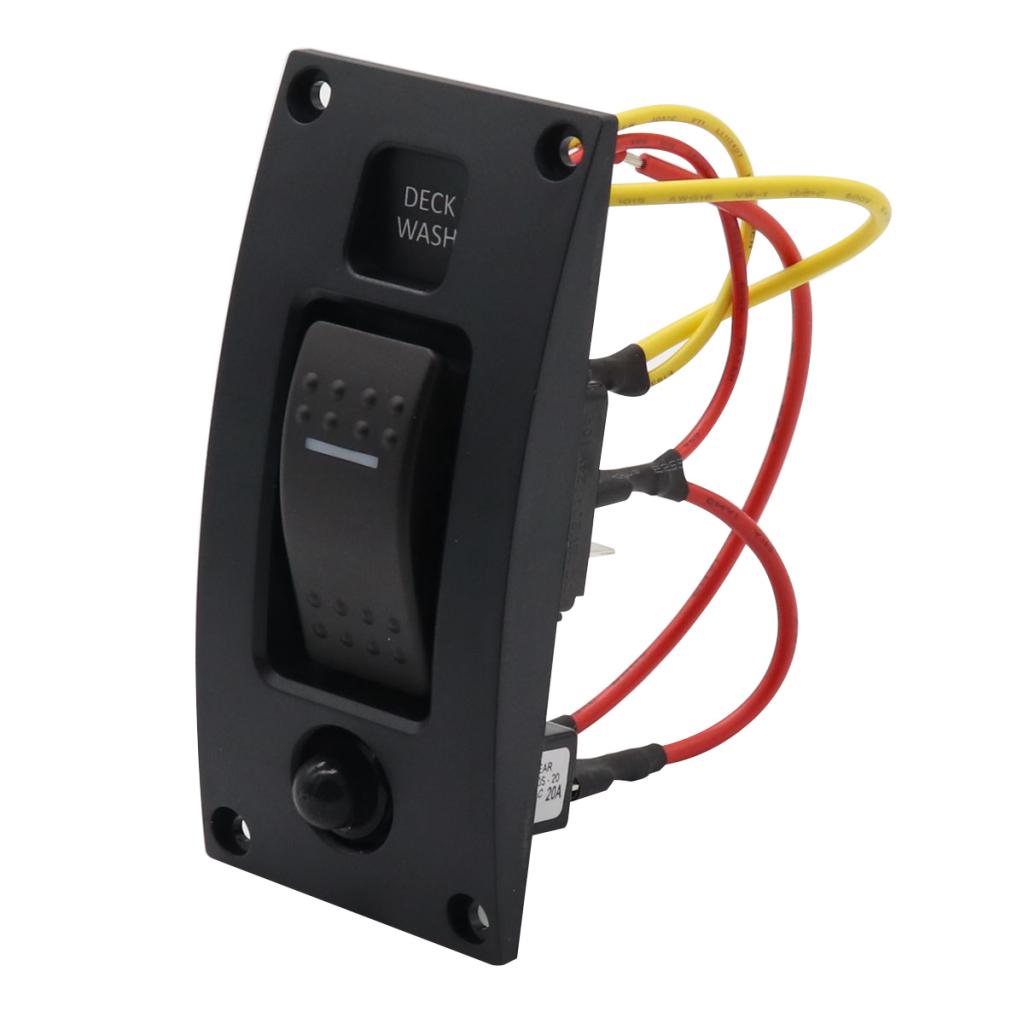

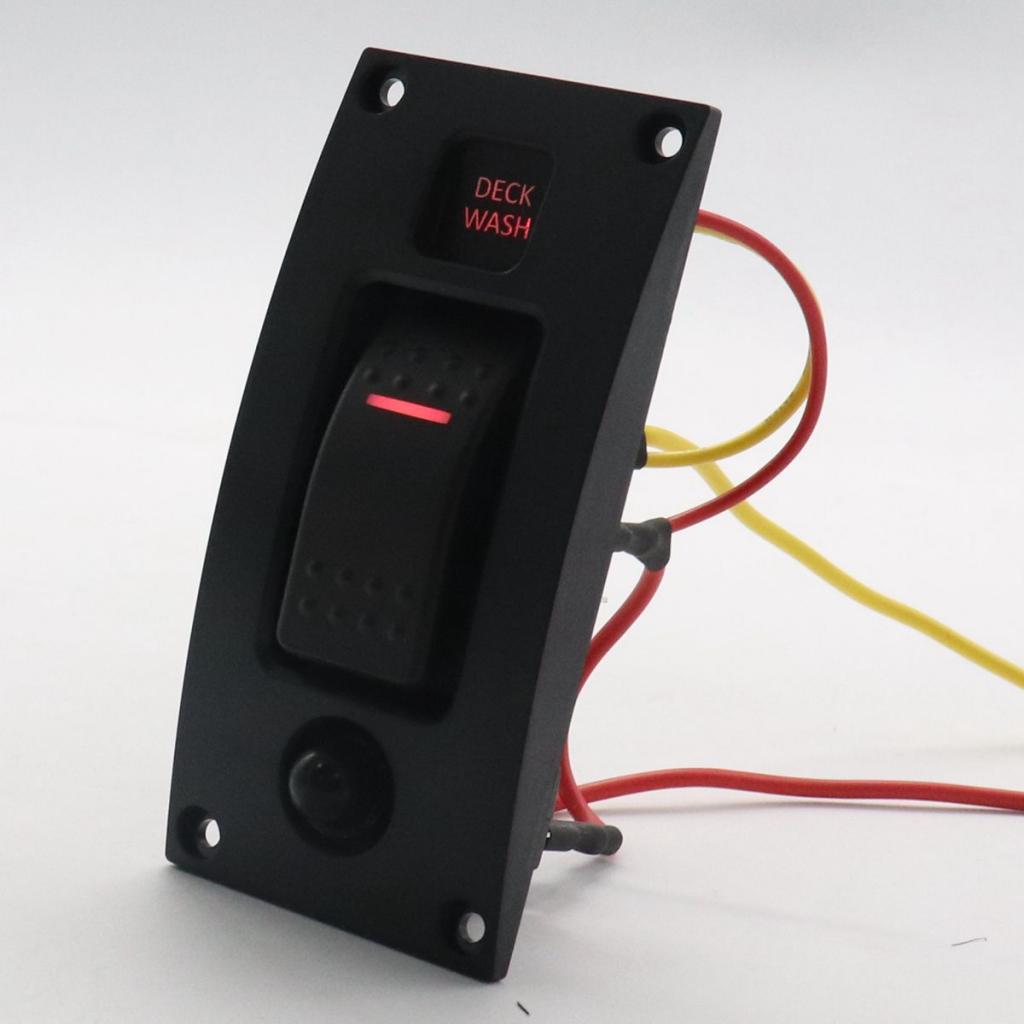

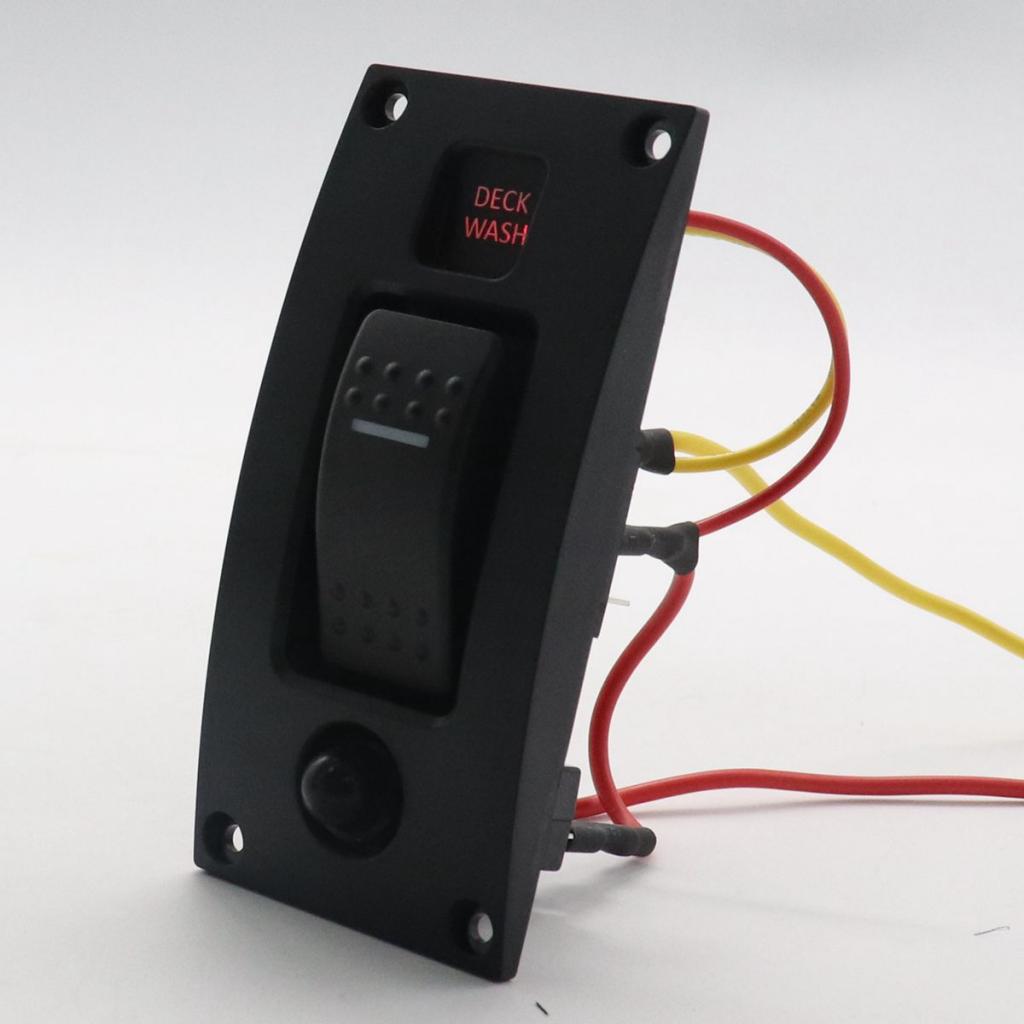

Modern design single gang switch panel

C-7 Sealed IP66 Switch with dual (12-24V) voltage rating

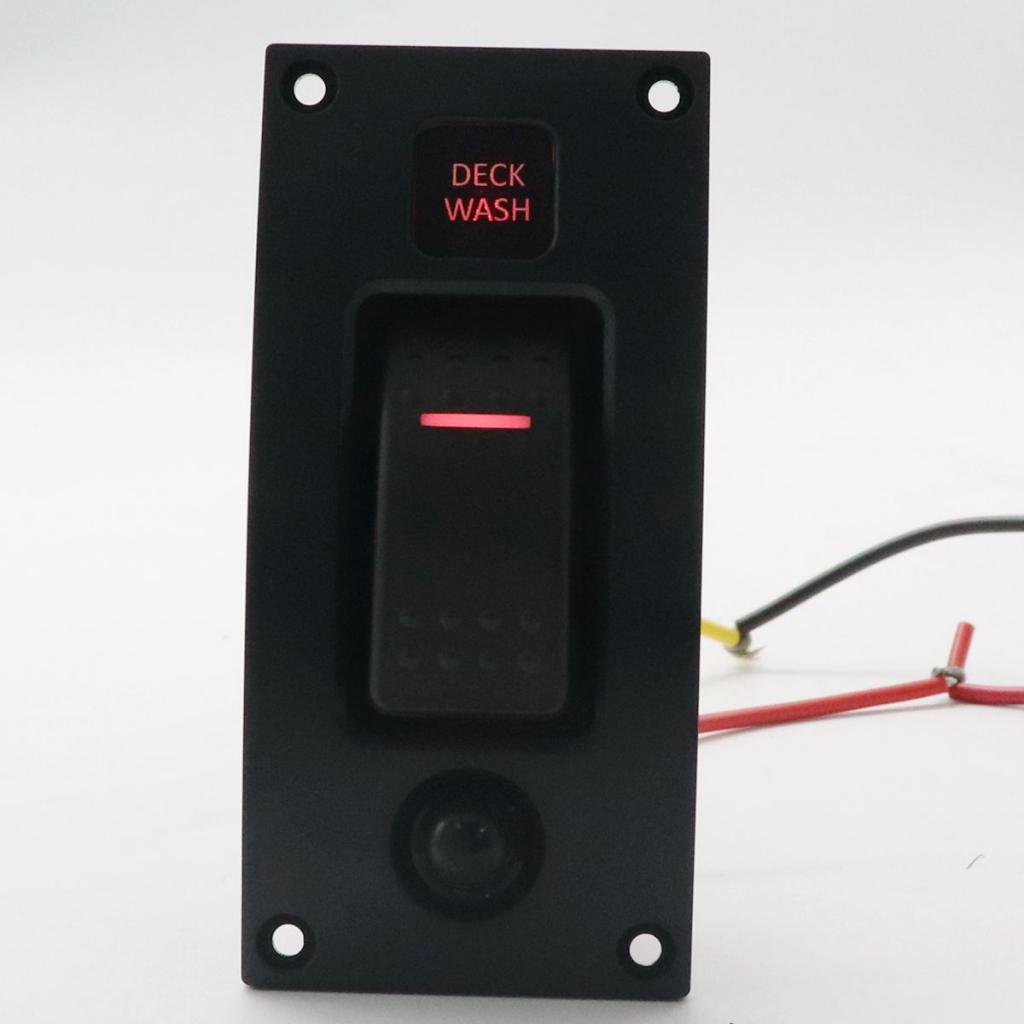

Backlight label module allowing easy recognition in darkness

Fit perfectly with SP33 series regular panels

Controlling single device ON/OFF such as deck washing machine or other devices

Specification:

Material: Curved shaped plastic

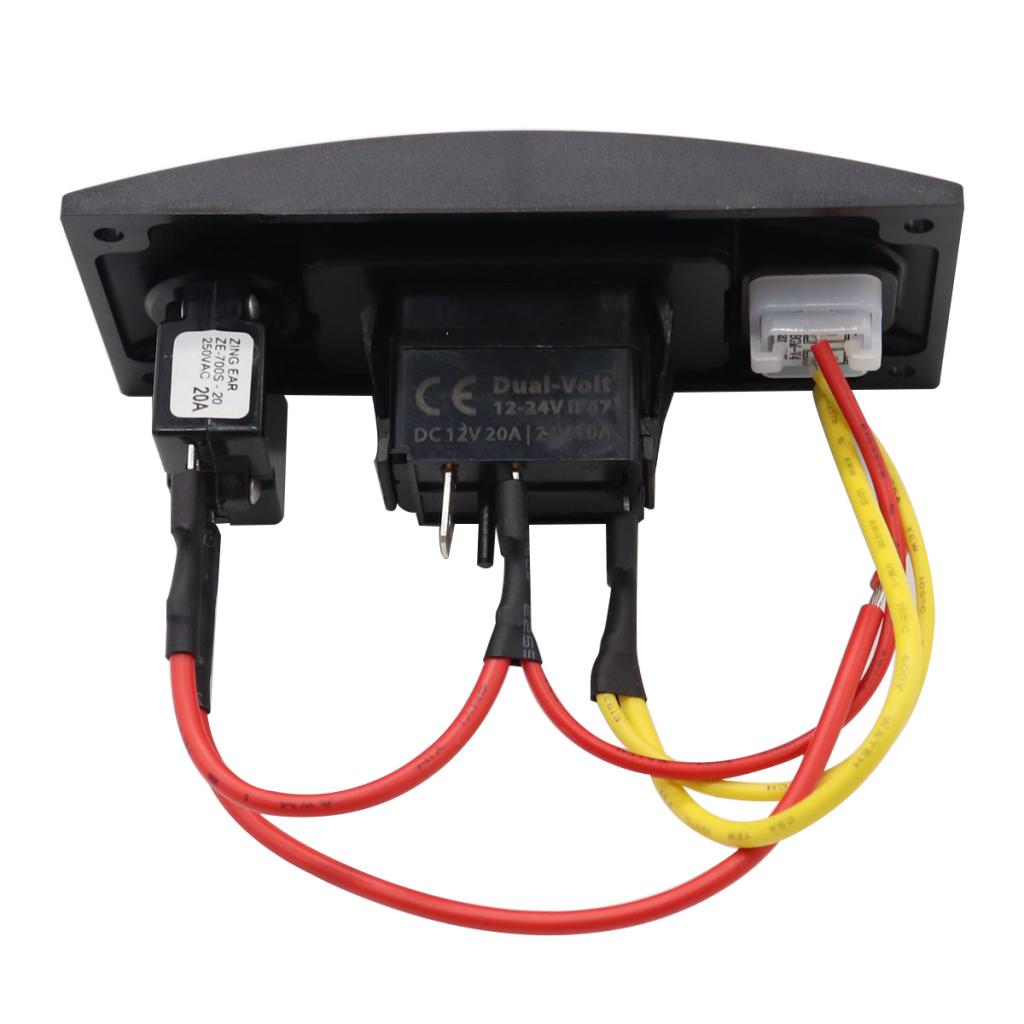

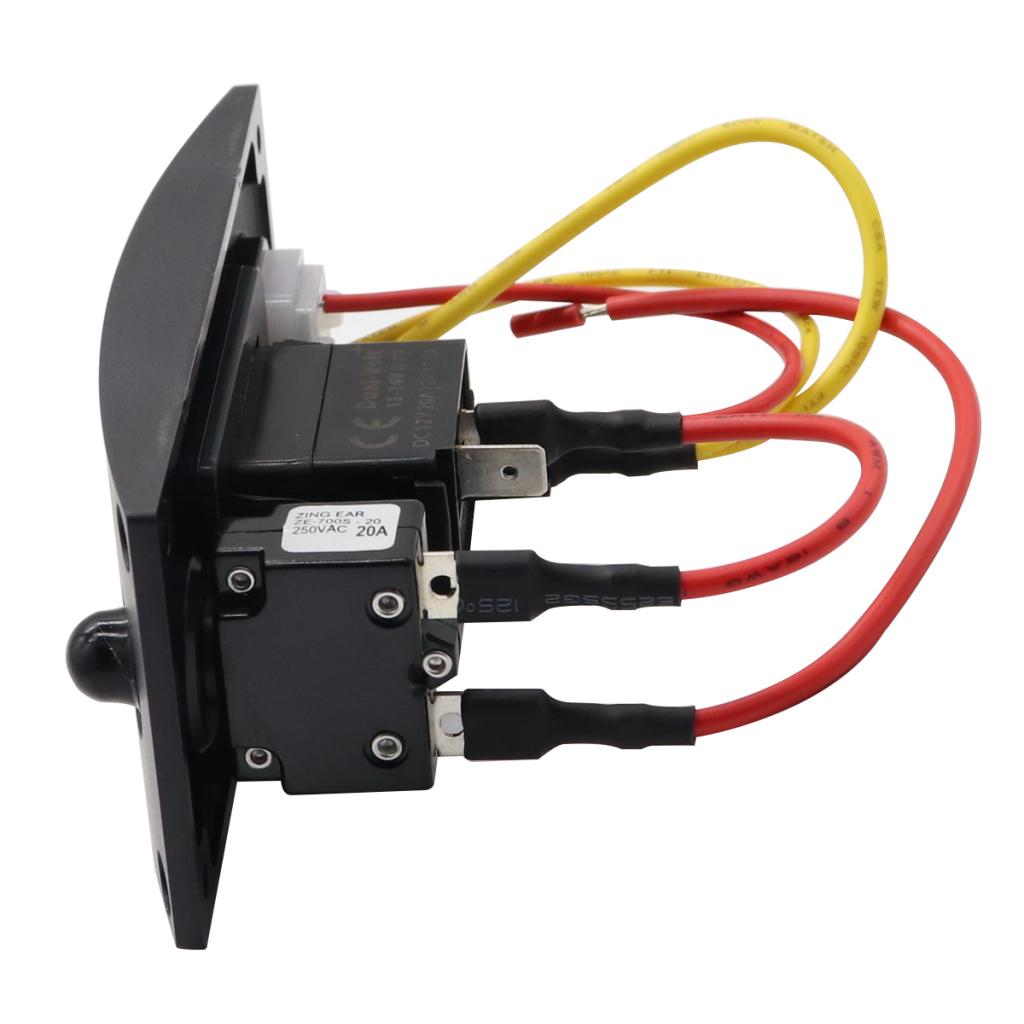

Circuit Protection: 20 A Push Reset Circuit Breakers

Ratings: DC 12V 20A /24V 10A

Panel Depth: 75 mm

Dimensions: 114 x 54 mm

Mounting Dimensions: 103 x 43 mm

Notes: IP66

Package Includes:

1 piece Deck Wash Rocker Switch Panel

Note:

Installation Instructions

1.Disconnect all power (AC & DC).

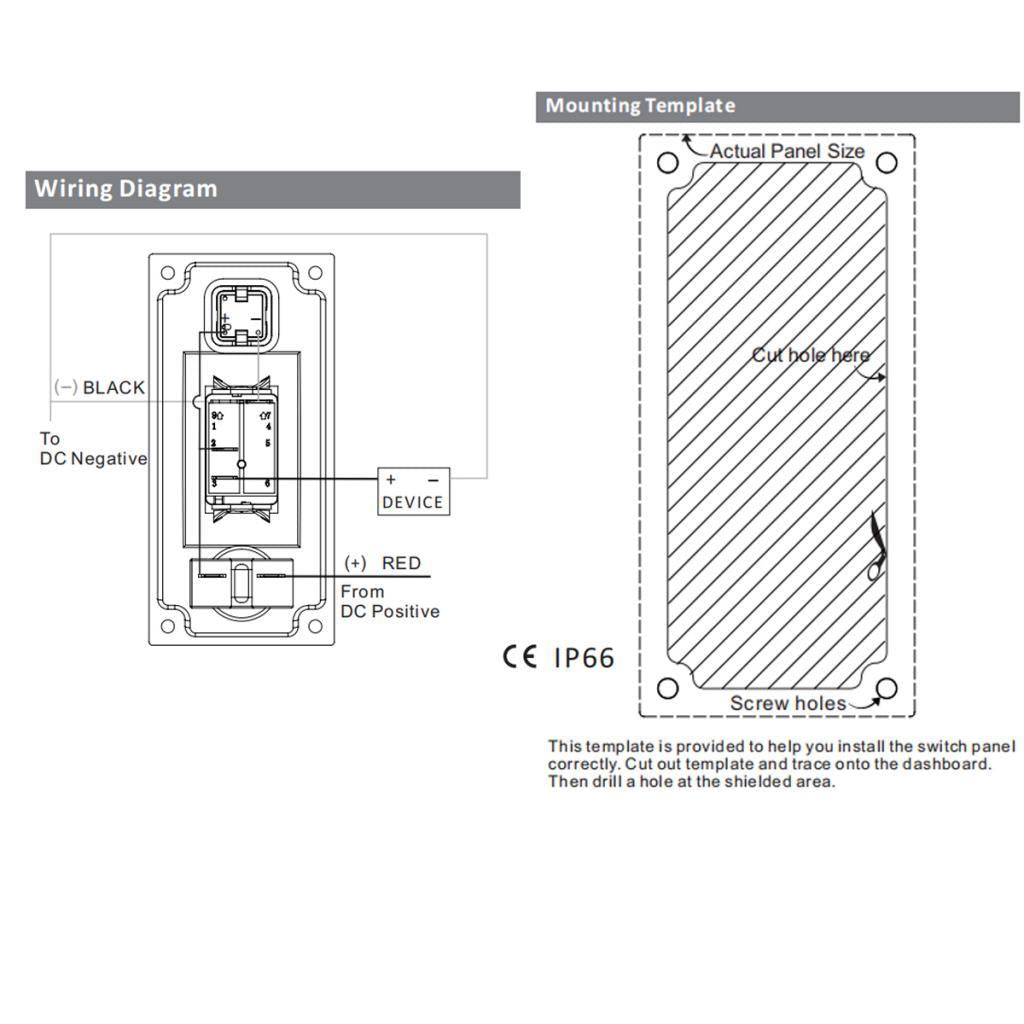

2.Cut opening for mounting location using the template provided.

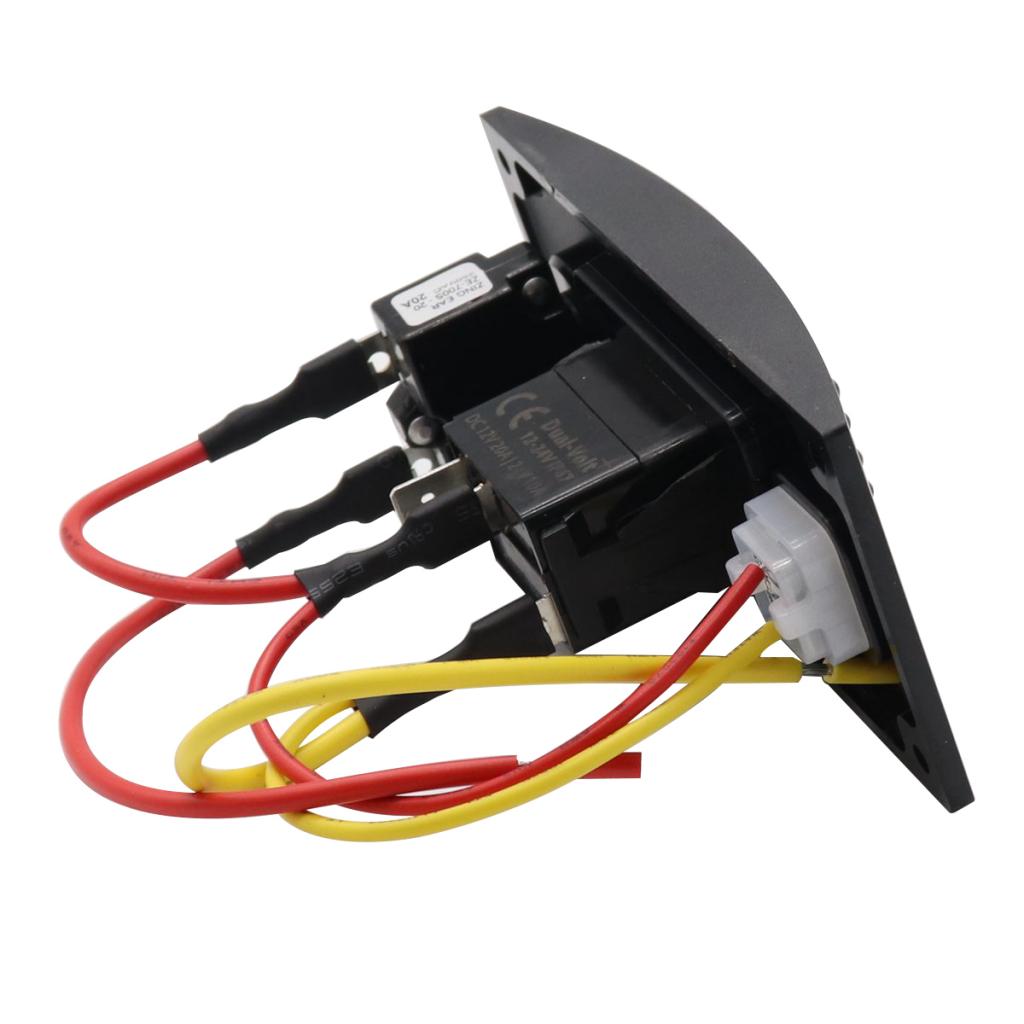

3.Connect the positive wire (red) to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar.

4.Connect the devices positive to the load terminal of the switch. Connect the negative wires of the devices to a negative bus bar.

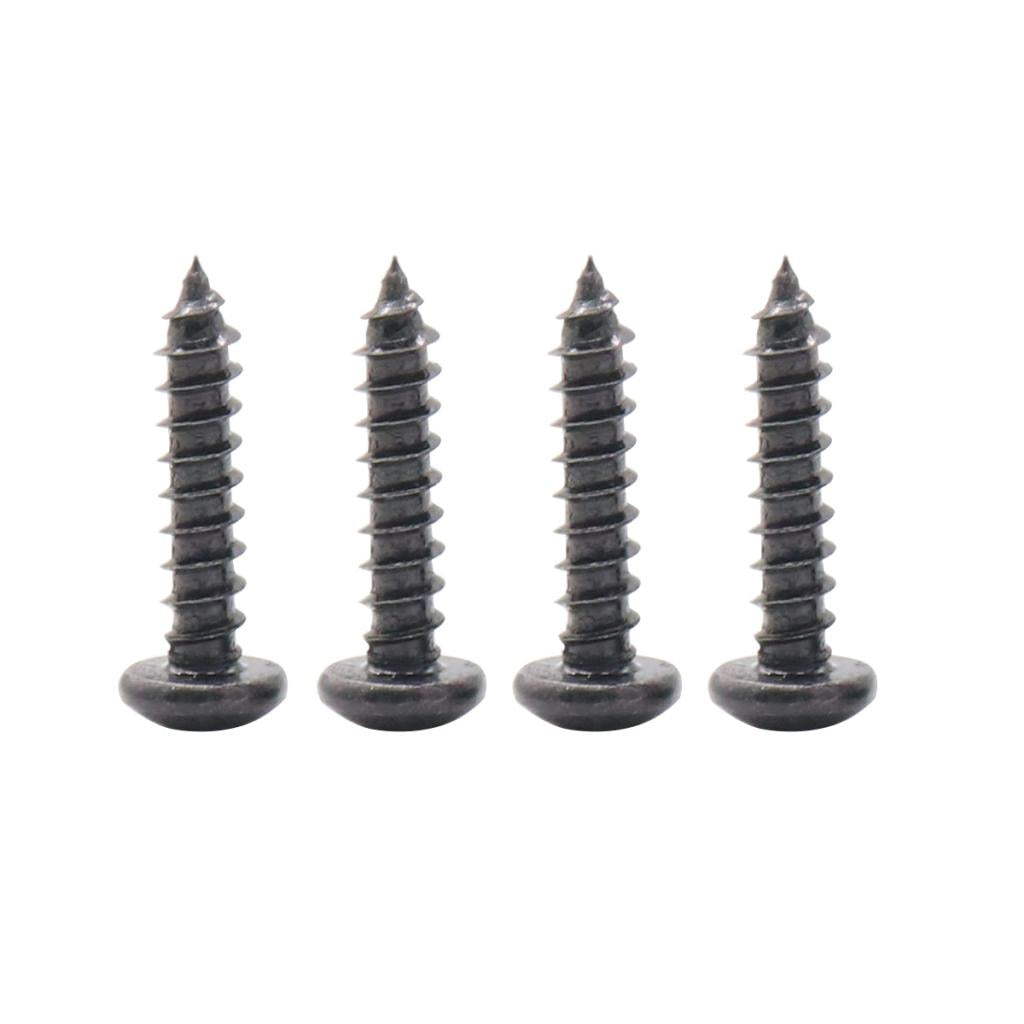

5.Mount the switch panel with the included self-tapping screws.

6 Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally.
