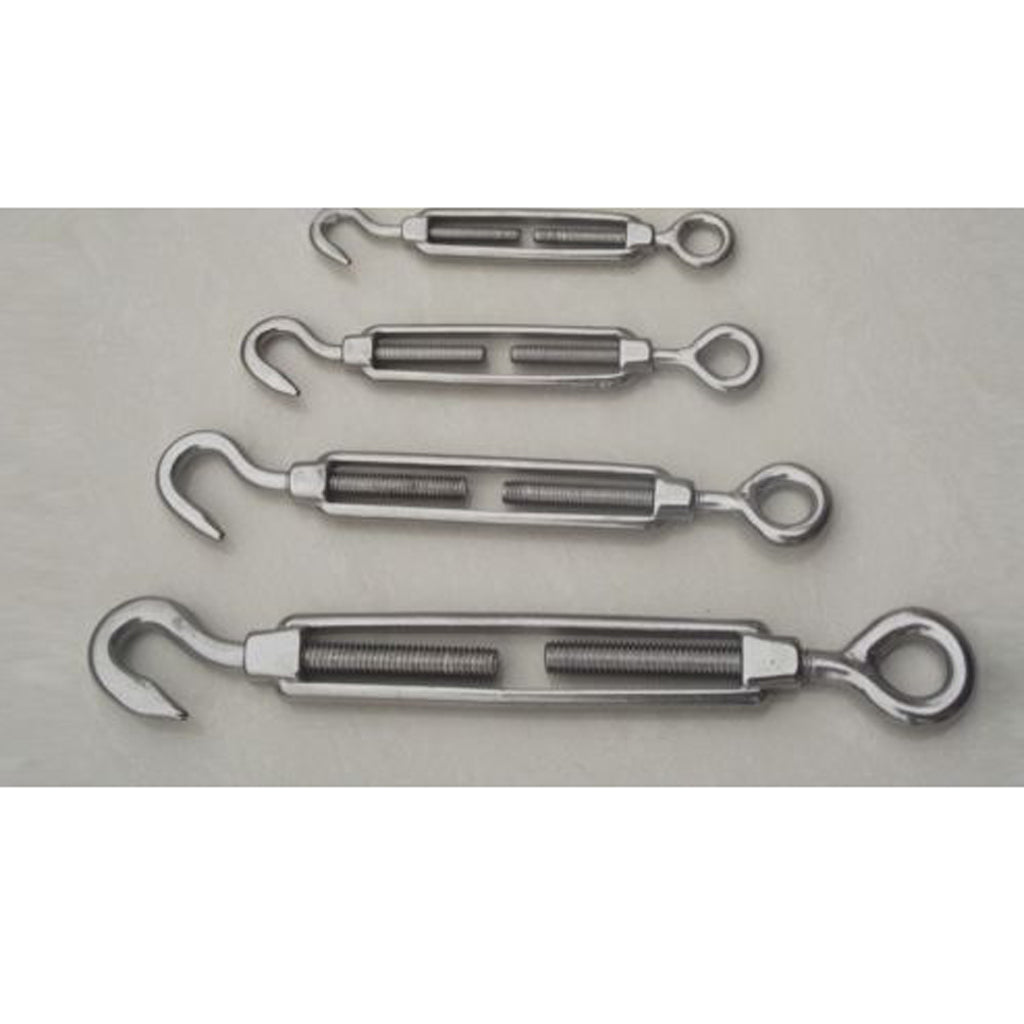

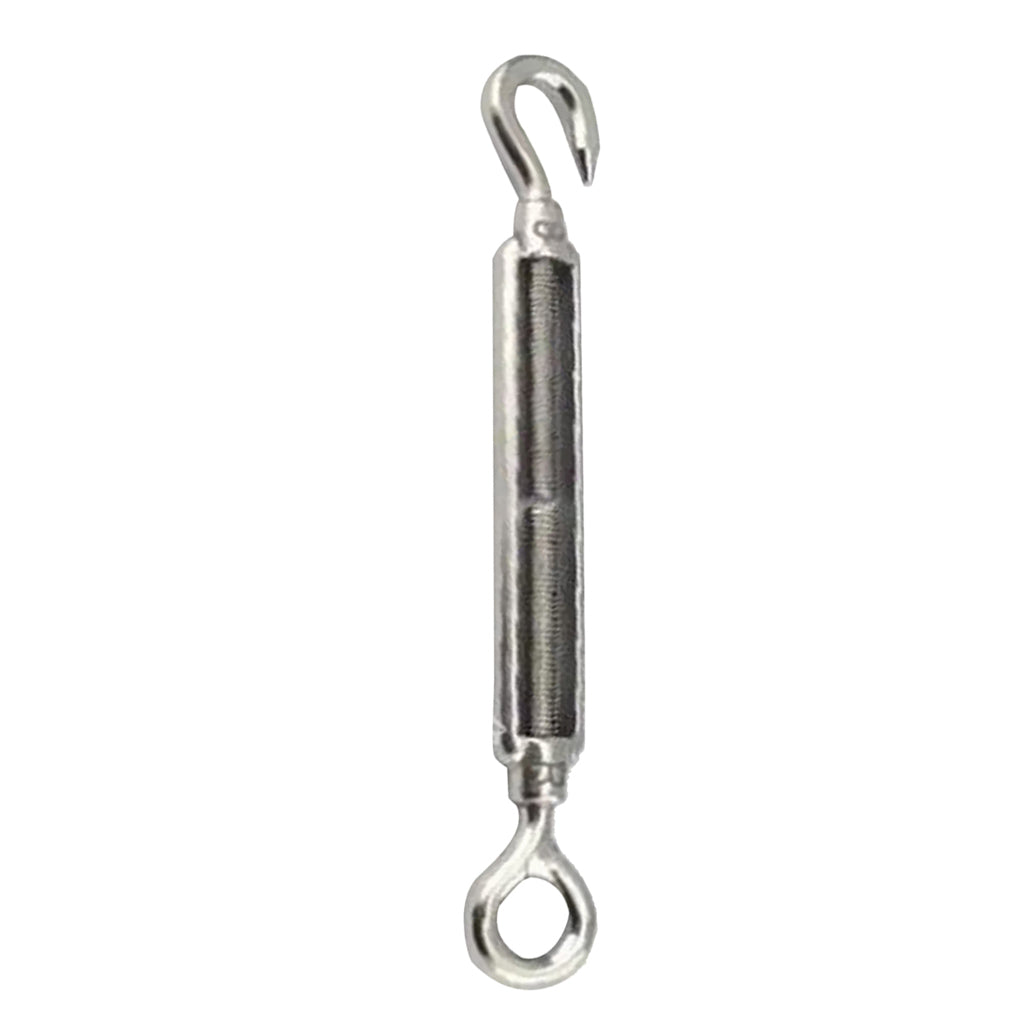

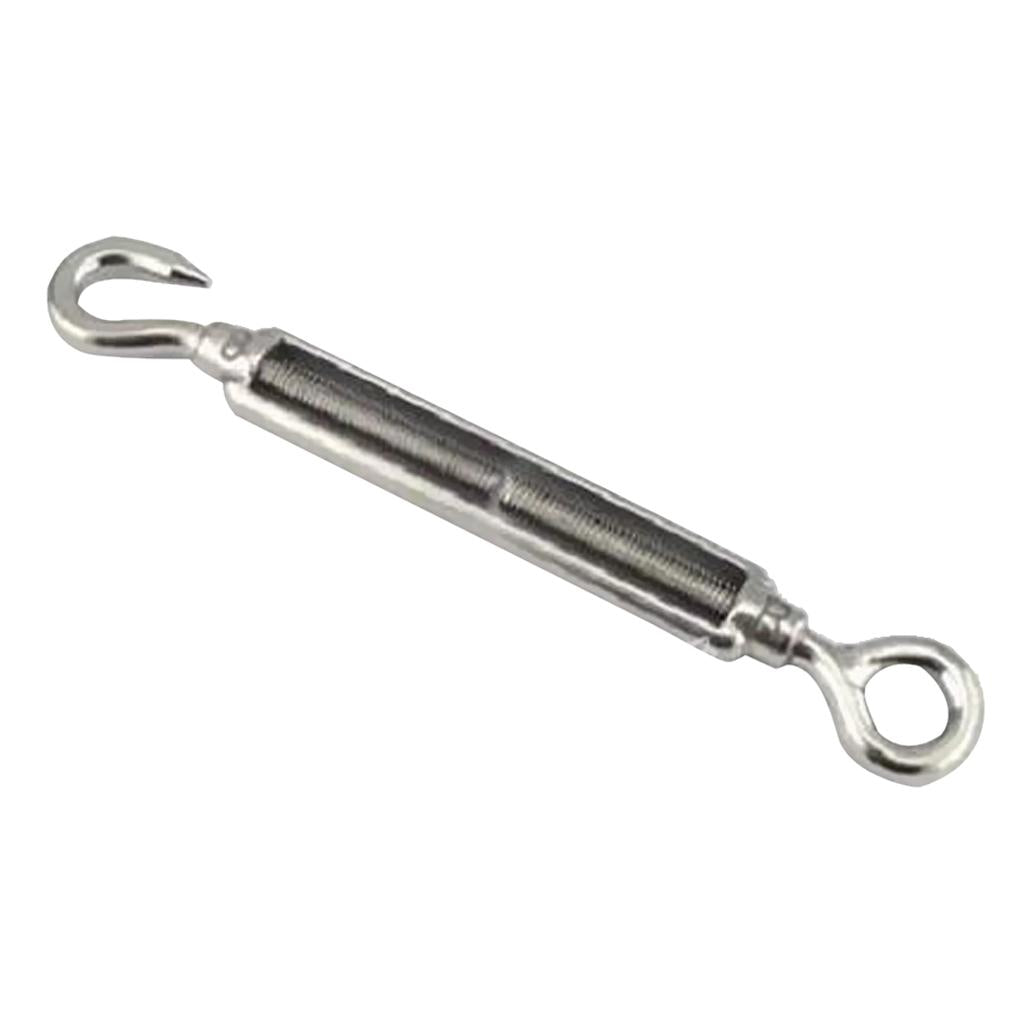

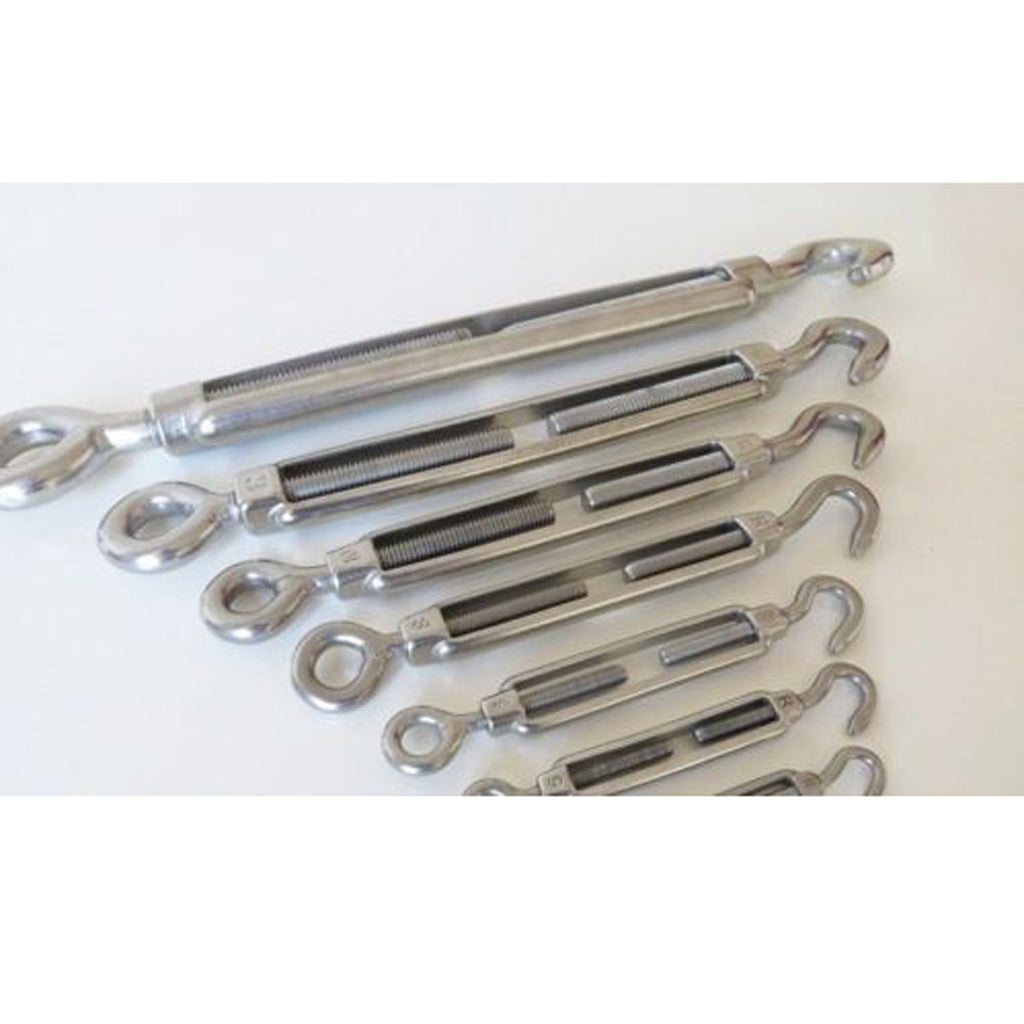

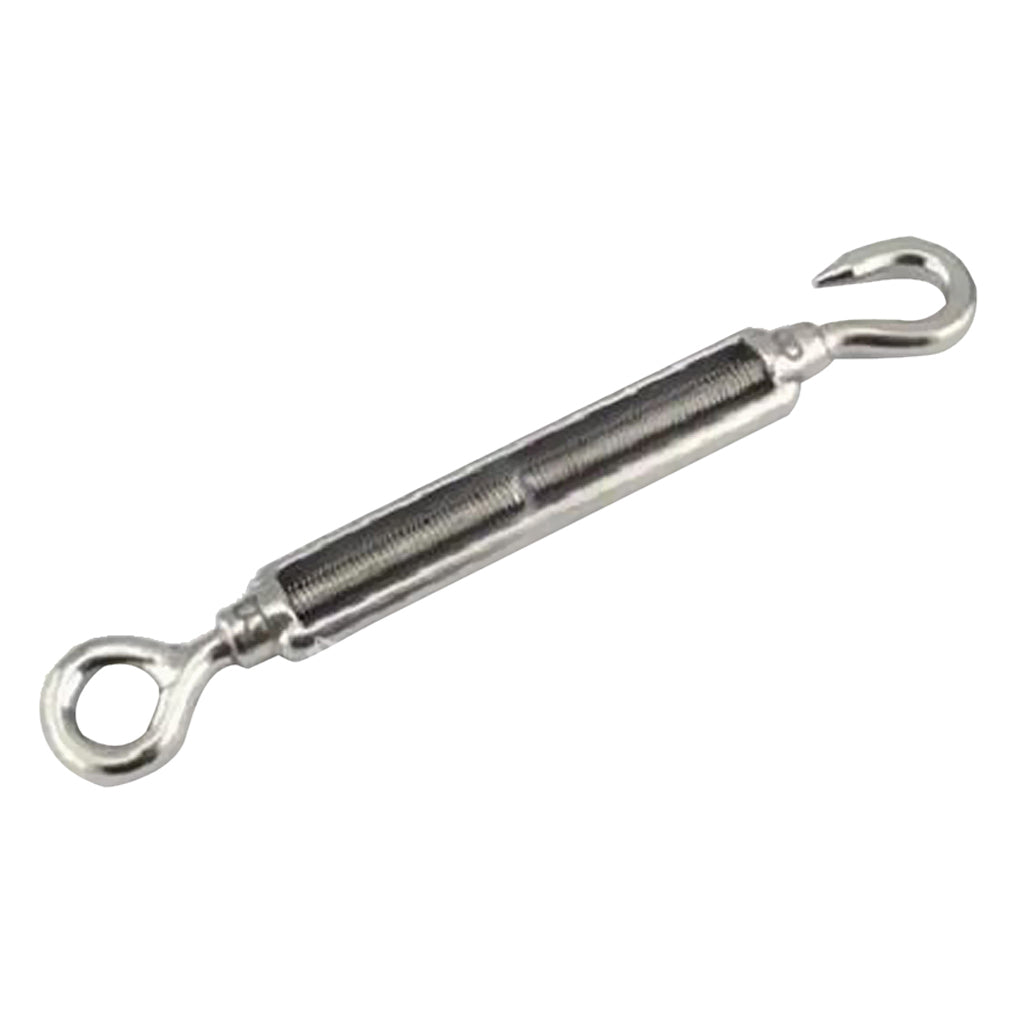

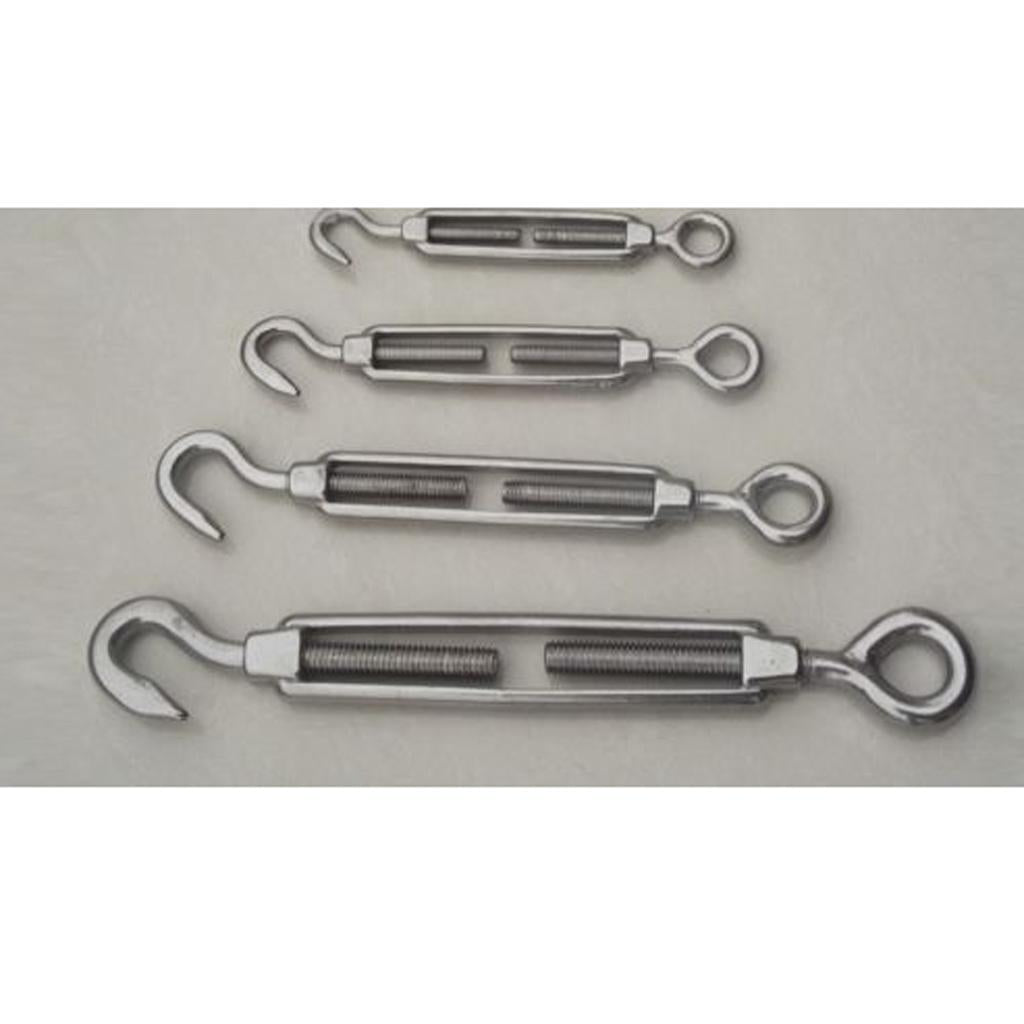

Stainless Steel Hook Eye Turnbuckle Wire Rope Tension Pack Of 5 pieces

Regular price
Rs. 1,858.18
Regular price
Sale price
Rs. 1,858.18
Earn 929 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 19369001
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Made from Stainless steel for best rust protection.
Hook Straining Screw Adjusters.
Twist The Body To Increase Or Decrease Tension.
Used in many applications - marine - outdoor - wire riggings - catenary wire - rope tensioners, and so on.
These are also known as Tensioners, Turn Buckles, Straining Screws, Barrel Strainers, or Open Body Rigging Screws.

Specification:

Material: Stainless Steel

Color: Silver

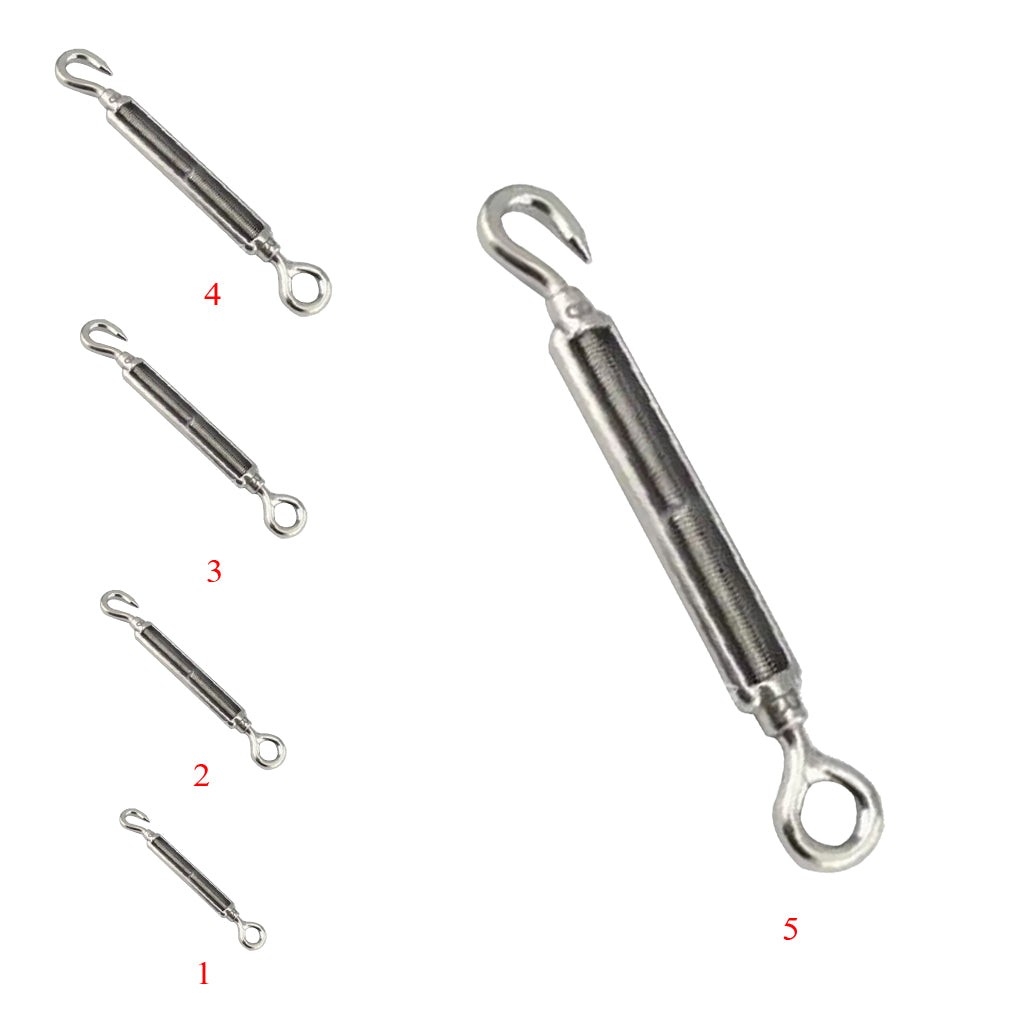

Size: Approx.

S: Length: 97mm/3.82inch; Inner Diameter: 8.3mm/0.33inch; Outer Diameter: 14.8mm/0.58inch; Hook Width: 7mm/0.28inch; Pulling Distance: 138mm/5.43inch

M: Length: 121mm/4.76inch; Inner Diameter: 8.3mm/0.33inch; Outer Diameter: 16.7mm/0.66inch; Hook Width: 8mm/0.31inch; Pulling Distance: 173mm/6.81inch

L: Length: 145mm/5.7inch; Inner Diameter: 10.7mm/0.42inch; Outer Diameter: 20.8mm/0.82inch; Hook Width: 10mm/0.39inch; Pulling Distance: 215mm/8.46inch

XL: Length: 192mm/7.56inch; Inner Diameter: 12.8mm/0.5inch; Outer Diameter: 26.3mm/1.04inch; Hook Width: 10.8mm/0.43inch; Pulling Distance: 280mm/11.02inch

XXL: Length: 235mm/9.25inch; Inner Diameter: 14.8mm/0.58inch; Outer Diameter: 32mm/1.23inch; Hook Width: 12.4mm/0.49inch; Pulling Distance: 350mm/13.78inch

Package Includes:

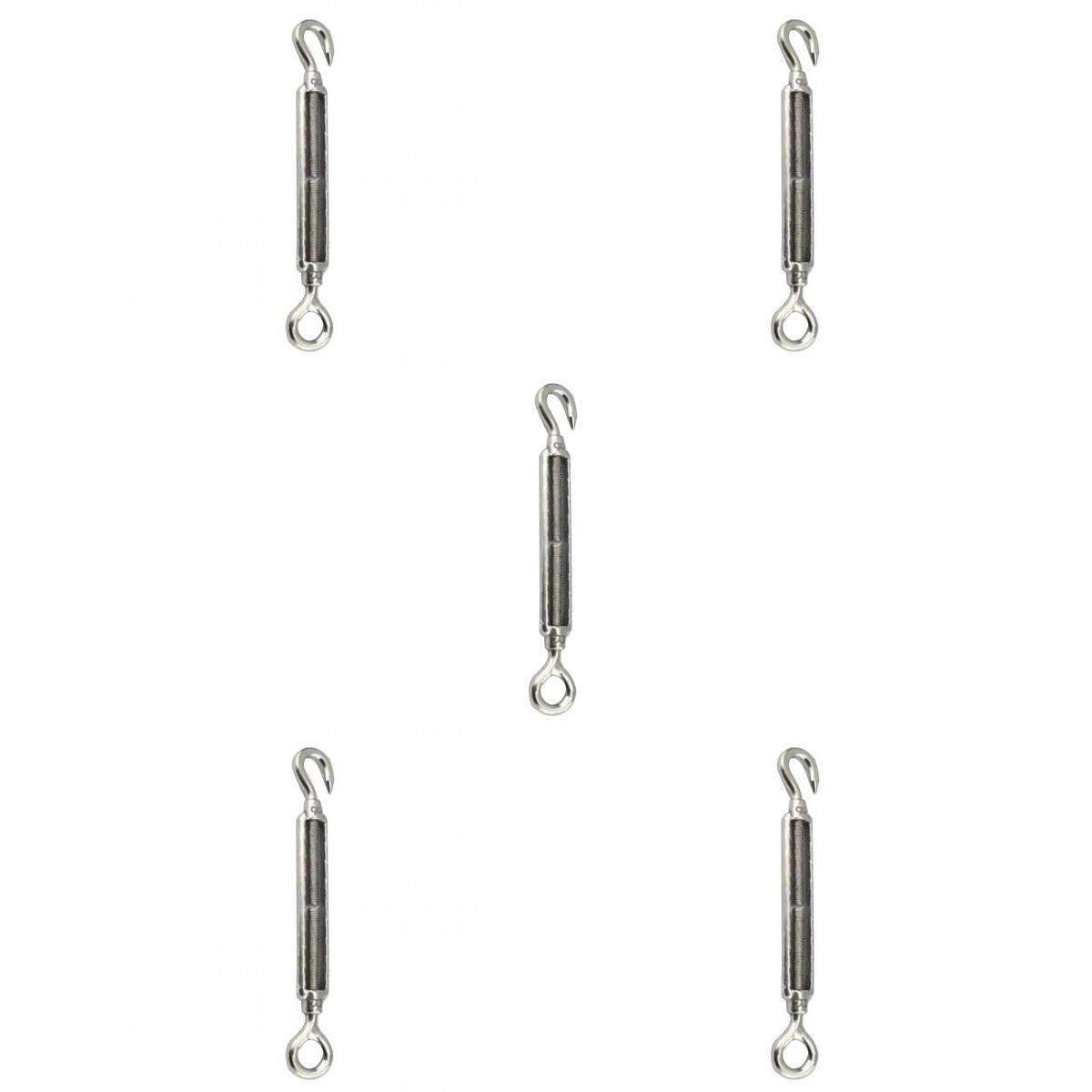

5 pieces Eye Turnbuckle

Note:

Due to the difference in the measurement , pls allow an error of 1 to 3mm.

Pls check the performance of the spring before use.
