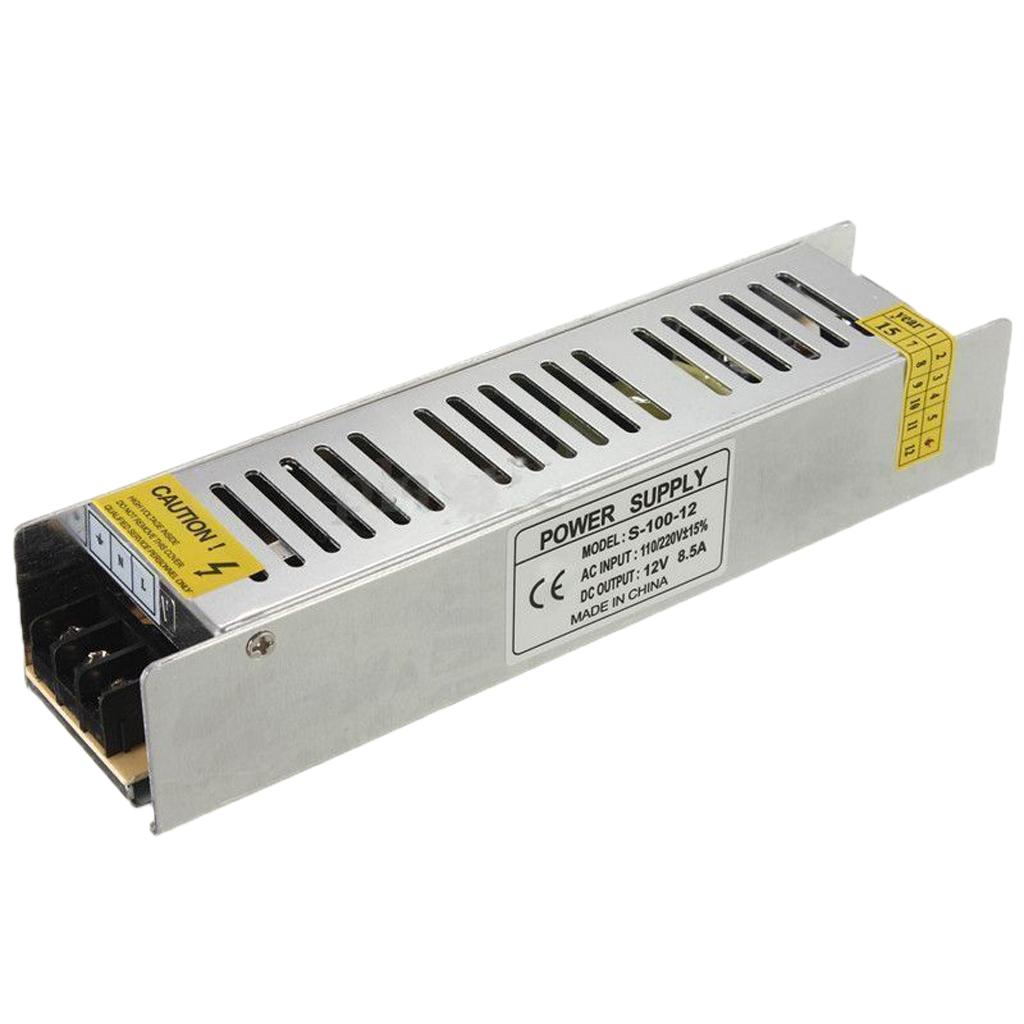

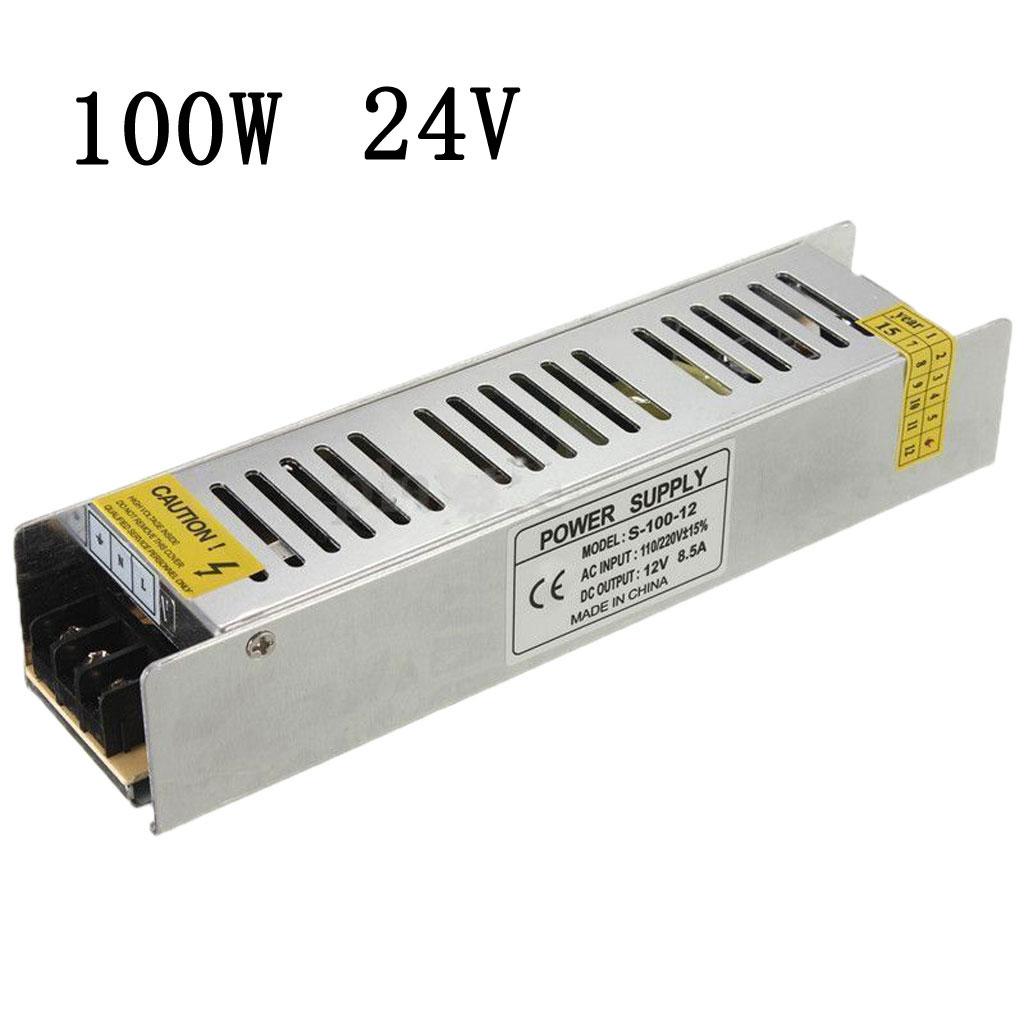

24V 100W 4.15A Switch Power Supply Driver Adapter Convertor LED Strip Light

Regular price
Rs. 1,061.89
Regular price
Sale price
Rs. 1,061.89
Earn 530 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 53010879
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

Description:

  • Universal AC input / full range
  • 100% full load burn-in test
  • Protections: overload/ over voltage/ short circuit
  • Cooling by free air convection
  • (NOT suggest for use in bathroom)
  • Applications 5050 3528 5630 7020 2835 3014 LED Strip Light.
  • Safety Compliance: CCC/ FCC / CE
  • Working Temperature: 0~40℃
  • Storage Temperature: -20~60℃
  • Ambient Humidity: 0~95% Non-Condensation

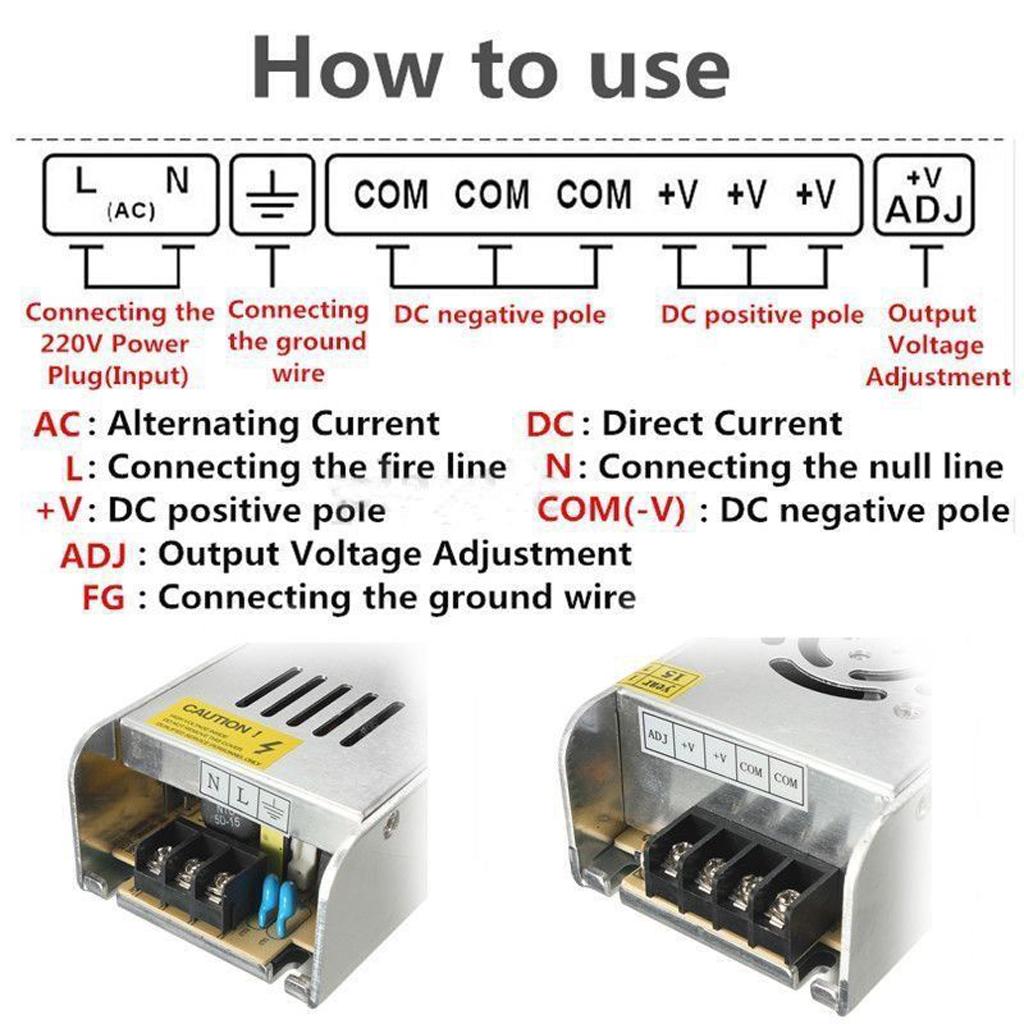

Connection:

  • L, N: AC power input
  • GND: DC power output "-"
  • V: DC power output "+"
  • +V / ADJ: Adjust the output voltage

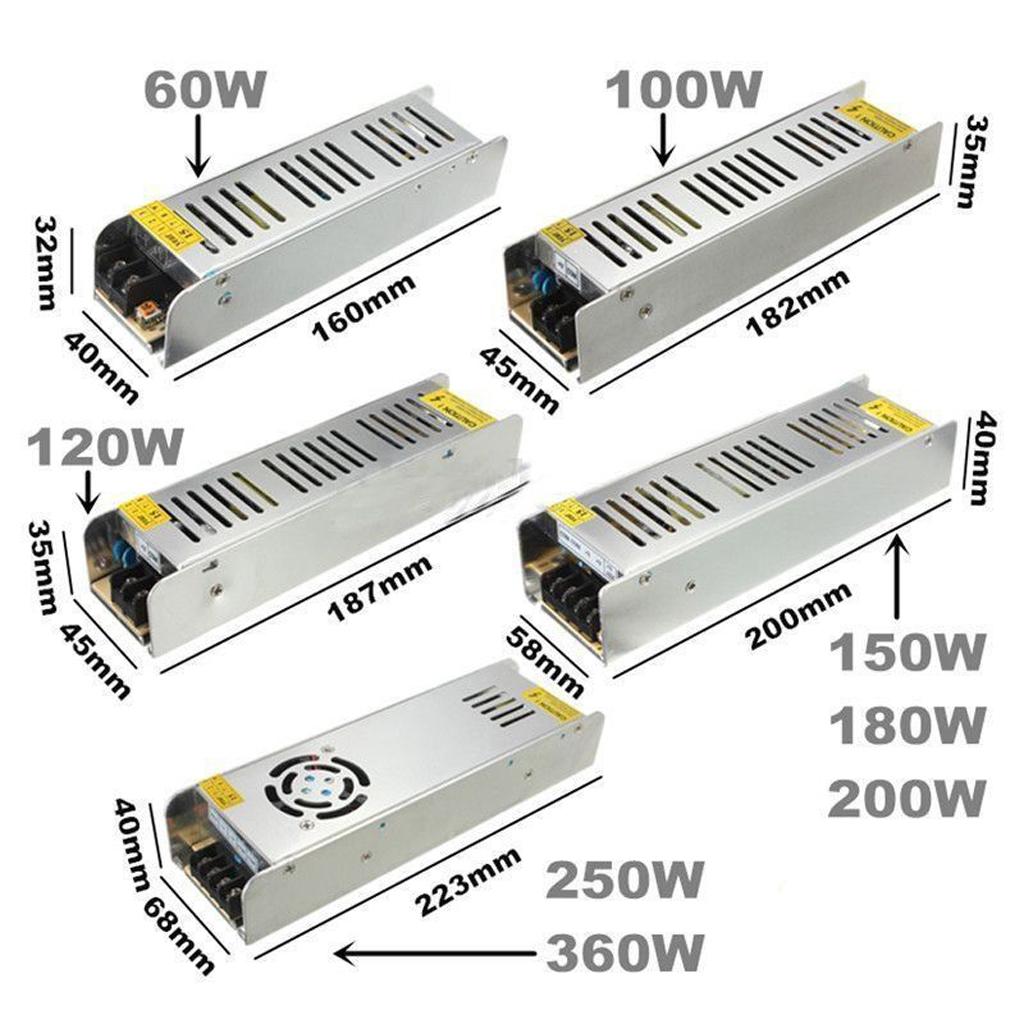

Specification:

Output Voltage      Size(L*W*H)           Input Voltage
24V 60W             160x40x32mm            110V-220V
24V 100W           182x45x35mm            110V-220V
24V 120W           187x45x35mm            110V-220V
24V 150W            200x58x40mm           110V-220V
24V 200W            200x58x40mm                220V
24V 250W            223x68x40mm                220V
24V 350W            220x70x45mm                220V

 Base Type  Input Voltage     Output Voltage     Output Current   Wattage      Size(L*W*H)
12V-5A           85-265V                 12V                        5A                60W       160x40x32mm
12V-8.5A        85-265V                 12V                       8.3A             100W      182x45x35mm
12V-10A         85-265V                 12V                       10A              120W      187x45x35mm
12V-12.5A      85-265V                 12V                      12.5A            150W      200x58x40mm
12V-15A         85-265V                 12V                       15A              180W      200x58x40mm
12V-16.7A        220V                    12V                      16.7A            200W      200x58x40mm
12V-20A           220V                    12V                        20A             250W      223x68x40mm
12V-30A           220V                    12V                        30A             360W      223x68x40mm

Package Includes:

  • 1x Power Adapter

Note:

  • This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
  • Professional Installation of qualified electrician is highly recommended.
