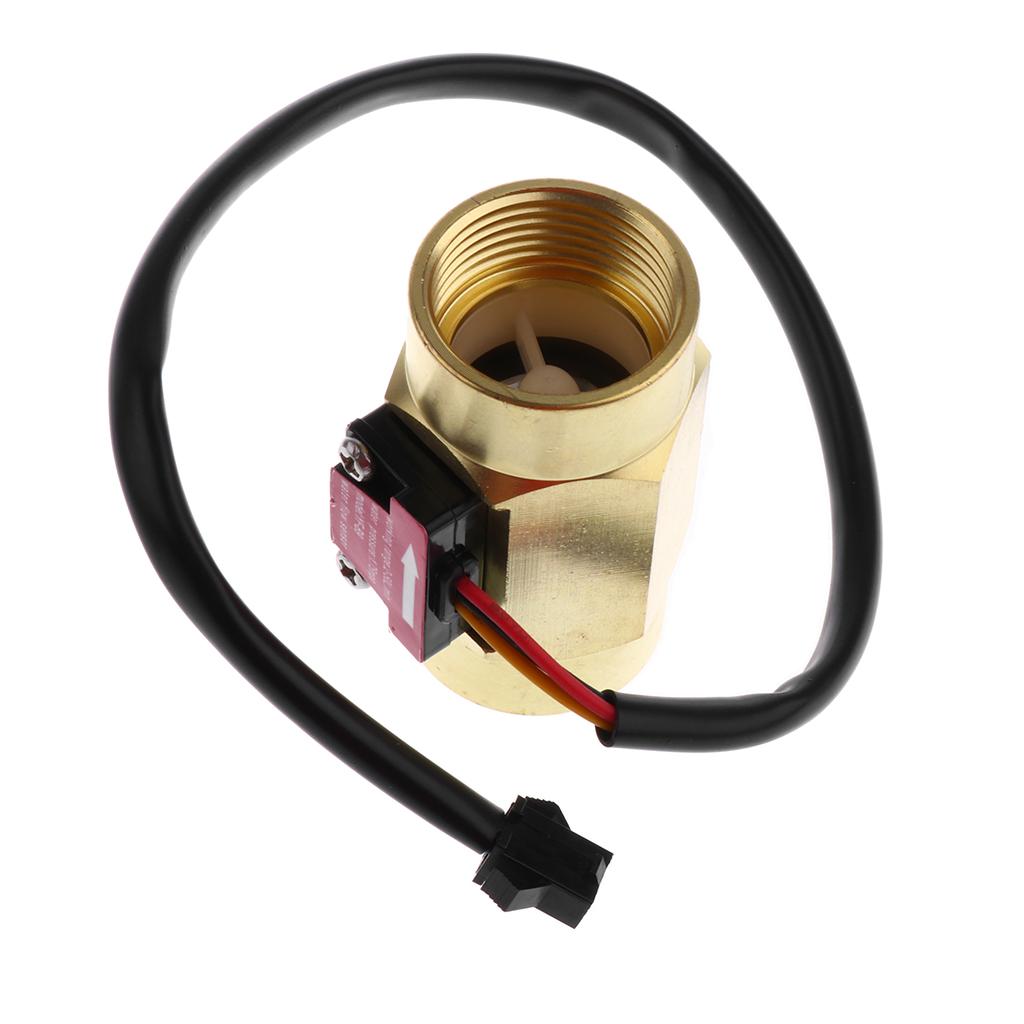

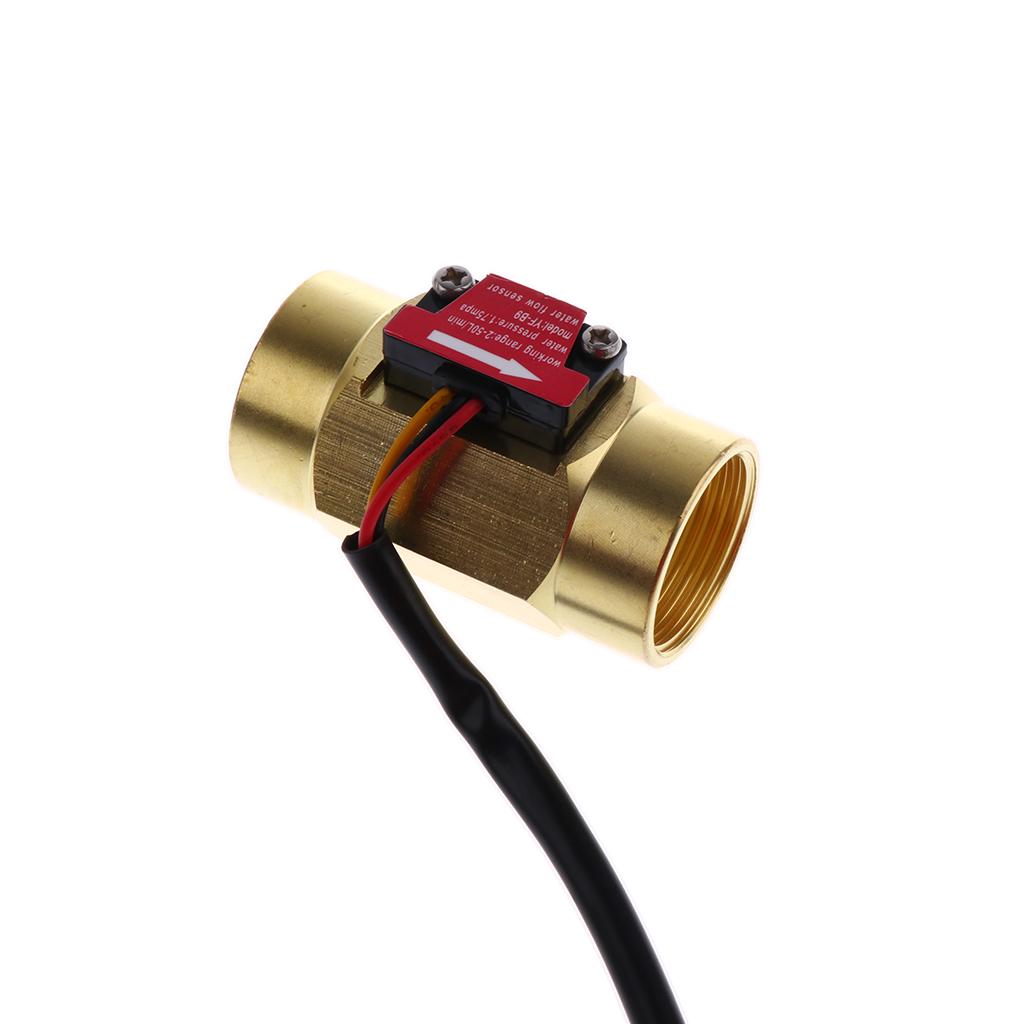

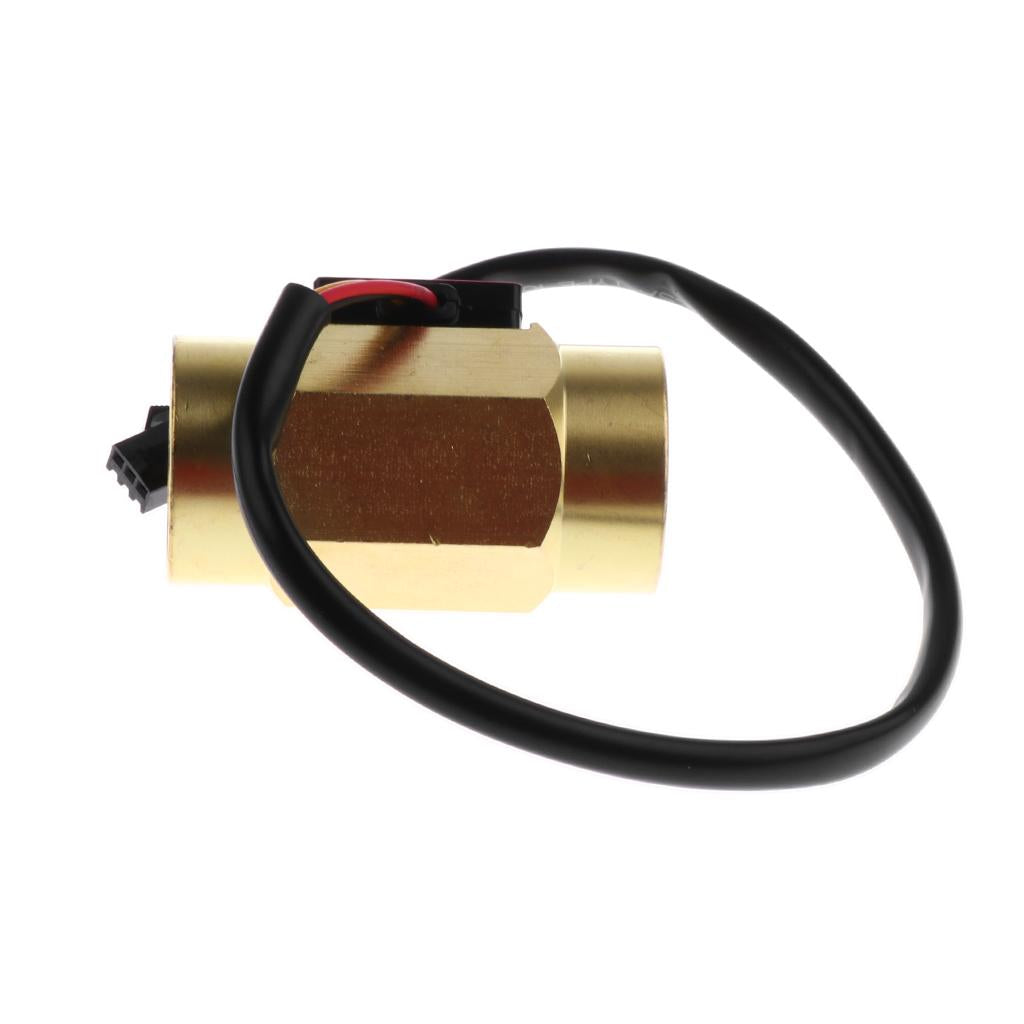

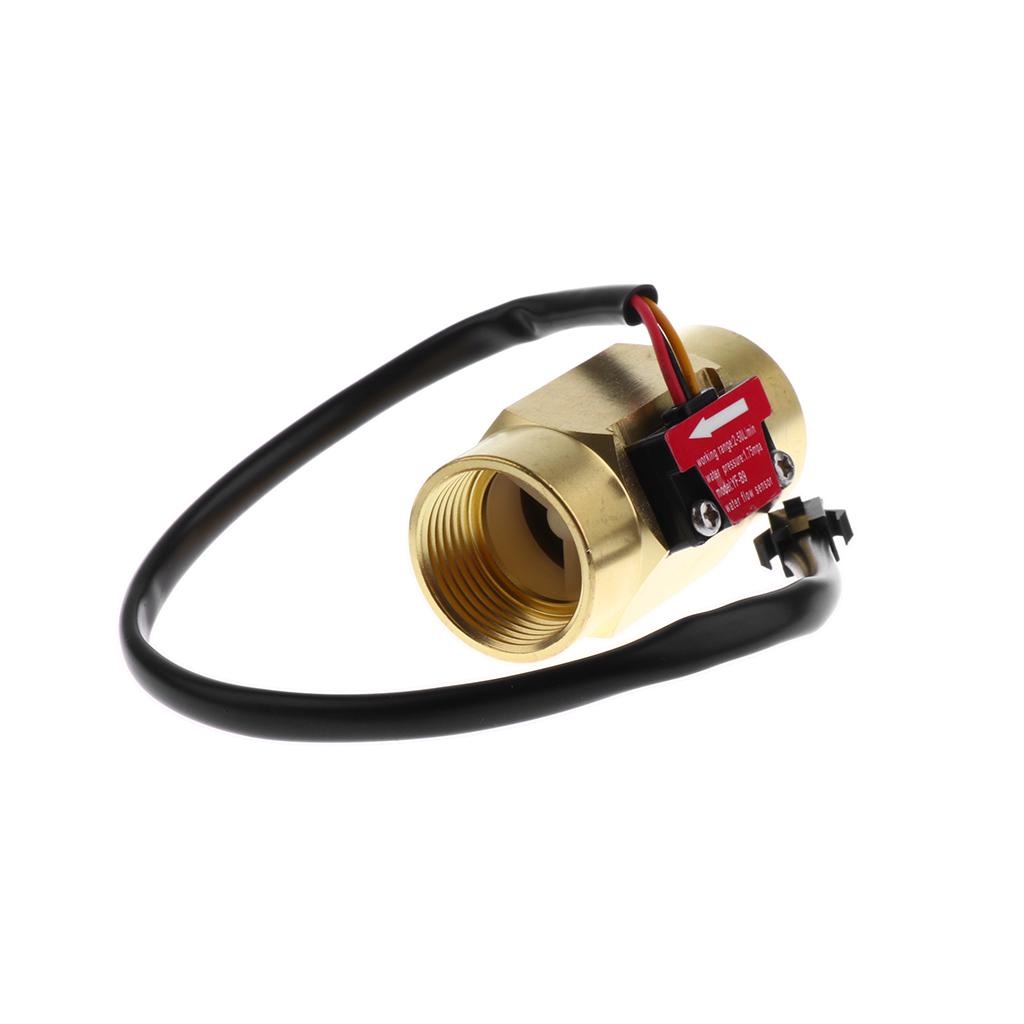

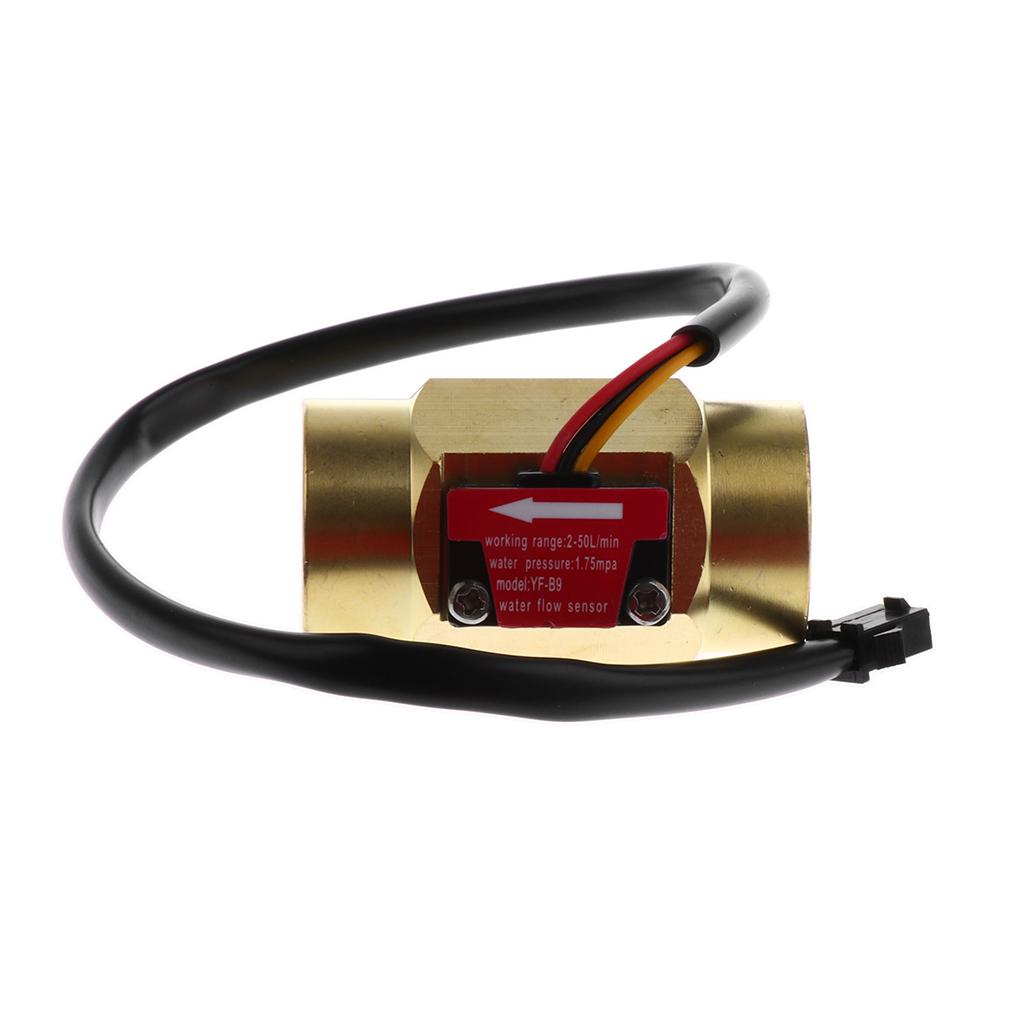

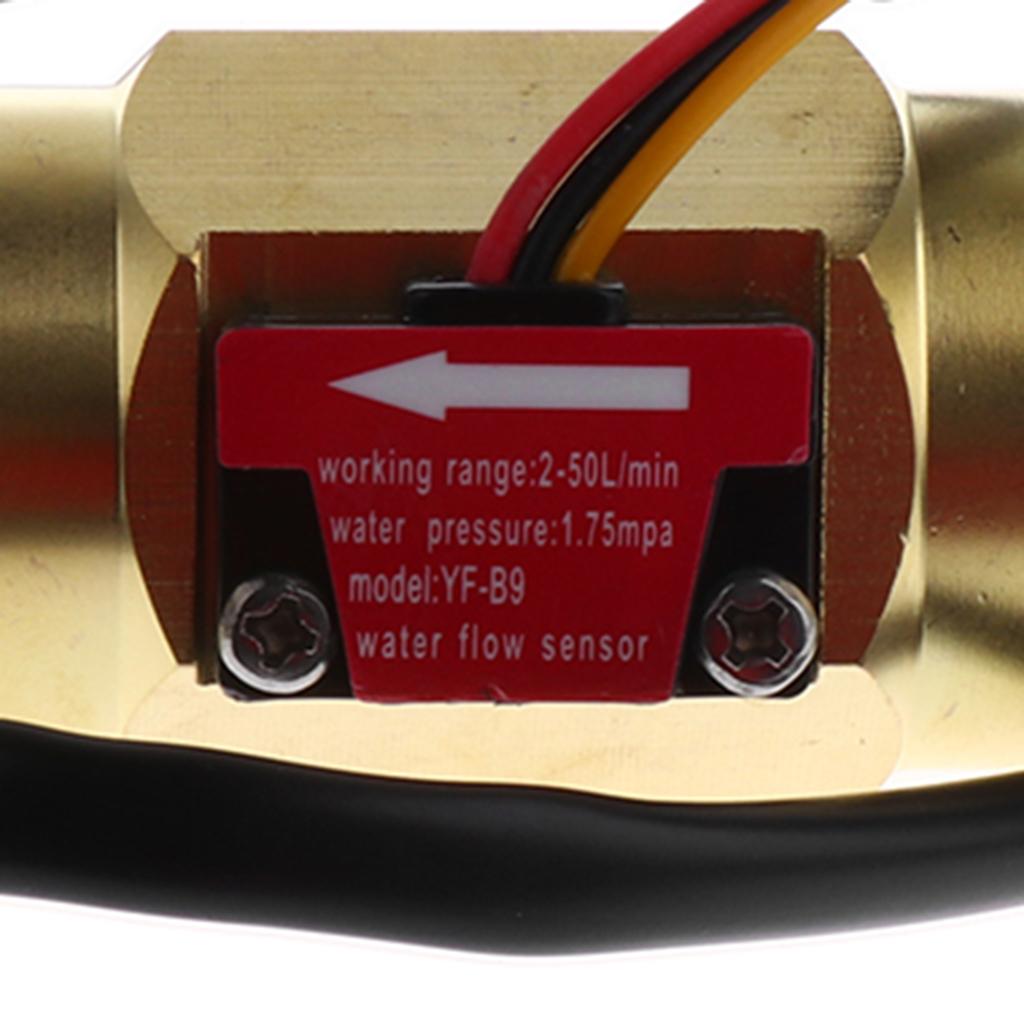

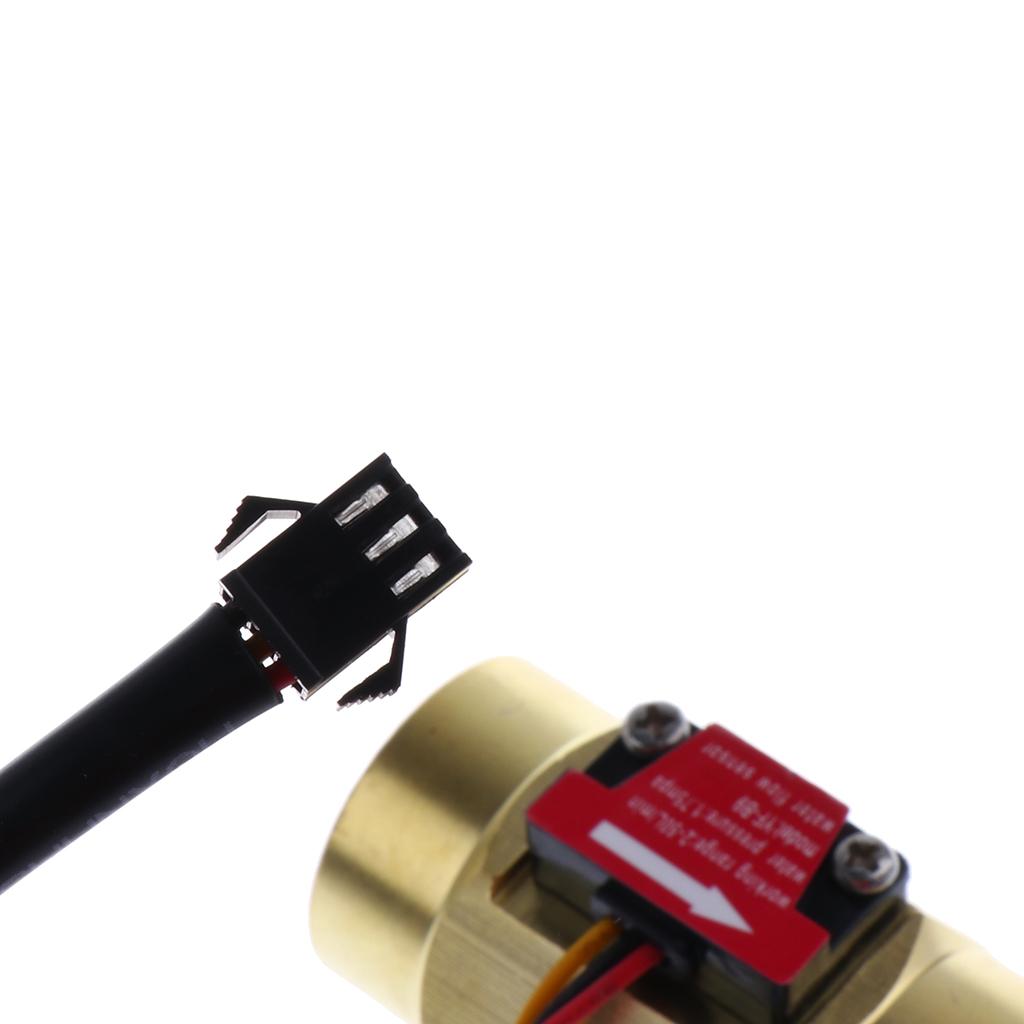

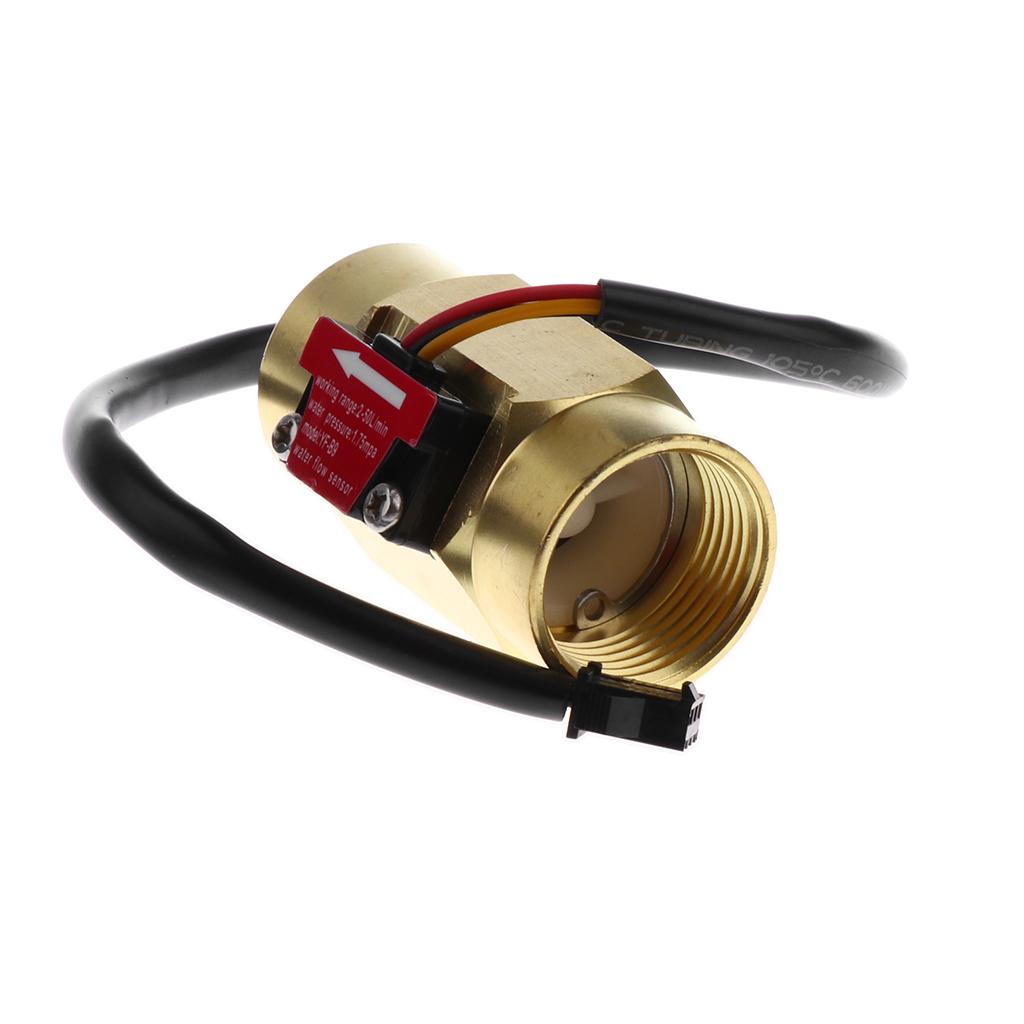

30cm G3/4'' Hall Effect Liquid Water Flow Sensor Switch Flowmeter Fluid Meter 2-50L/min DC 5V-15V 1.75MPa Water Flow Sensor

Regular price
Rs. 1,278.91
Regular price
Sale price
Rs. 1,278.91
Earn 639 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68001475
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Copper material, small size, easy to install
Waterproof,Heat resistance,pressure resistance,cold resistance
Bulit-in an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry
Working range:2-50L/min
Sensor:Hall effect

Specification:

Rated voltage: DC 5V
Working voltage range: DC 5V-15V
Maximum water pressure: 1.75MPa
Insulation resistance: more than 100M ohm
Threaded connection: G3/4
Flow pulse characteristics: (8.1Q-3) Q = L / Min ± 10%
Output high pulse:> DC 4.7V (input voltage DC 5V)
Size:57x35x35mm
Cable Length:30cm

Package Includes:

1 piece Water Flow Meter Hall Sensor Switch
