Waterproof Security Door Black ID Wiegand 26 RFID Card Reader

Regular price
Rs. 1,650.67
Regular price
Sale price
Rs. 1,650.67
Earn 825 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14007945
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

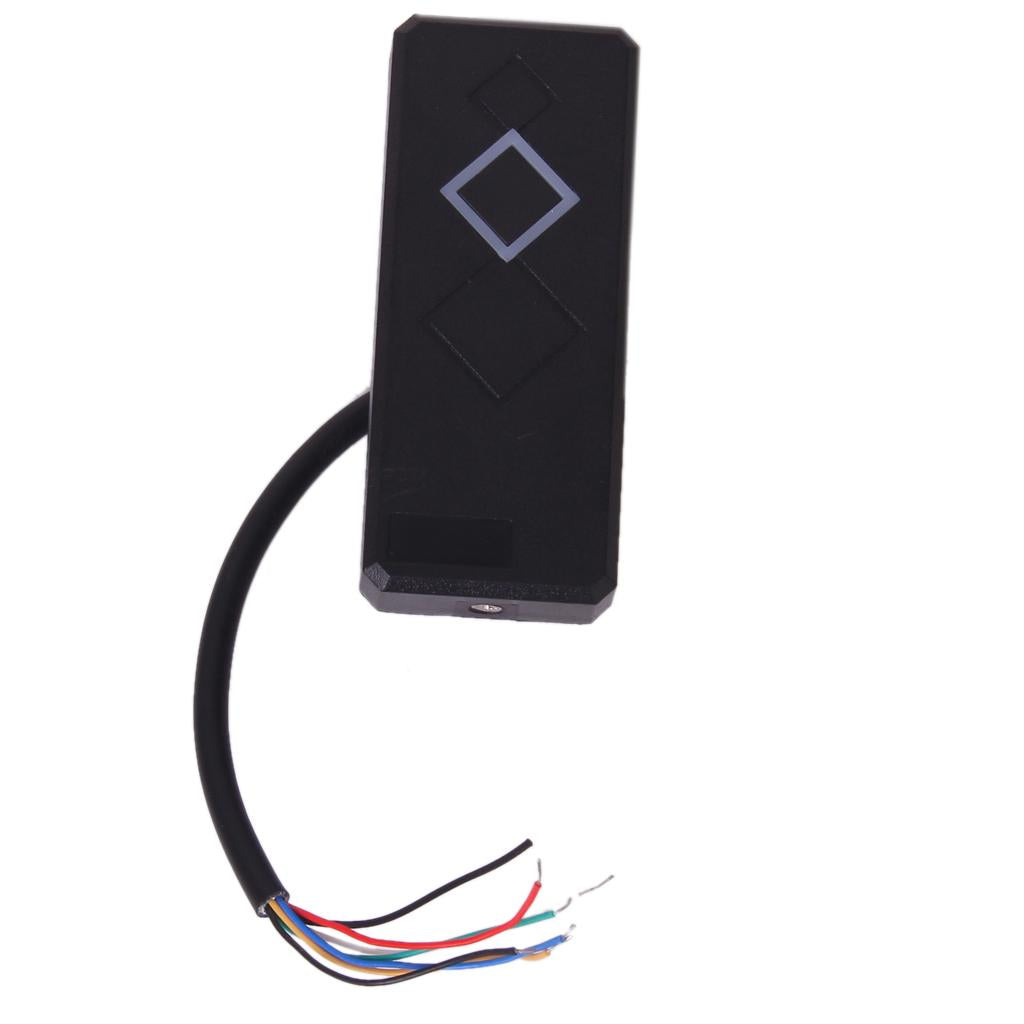

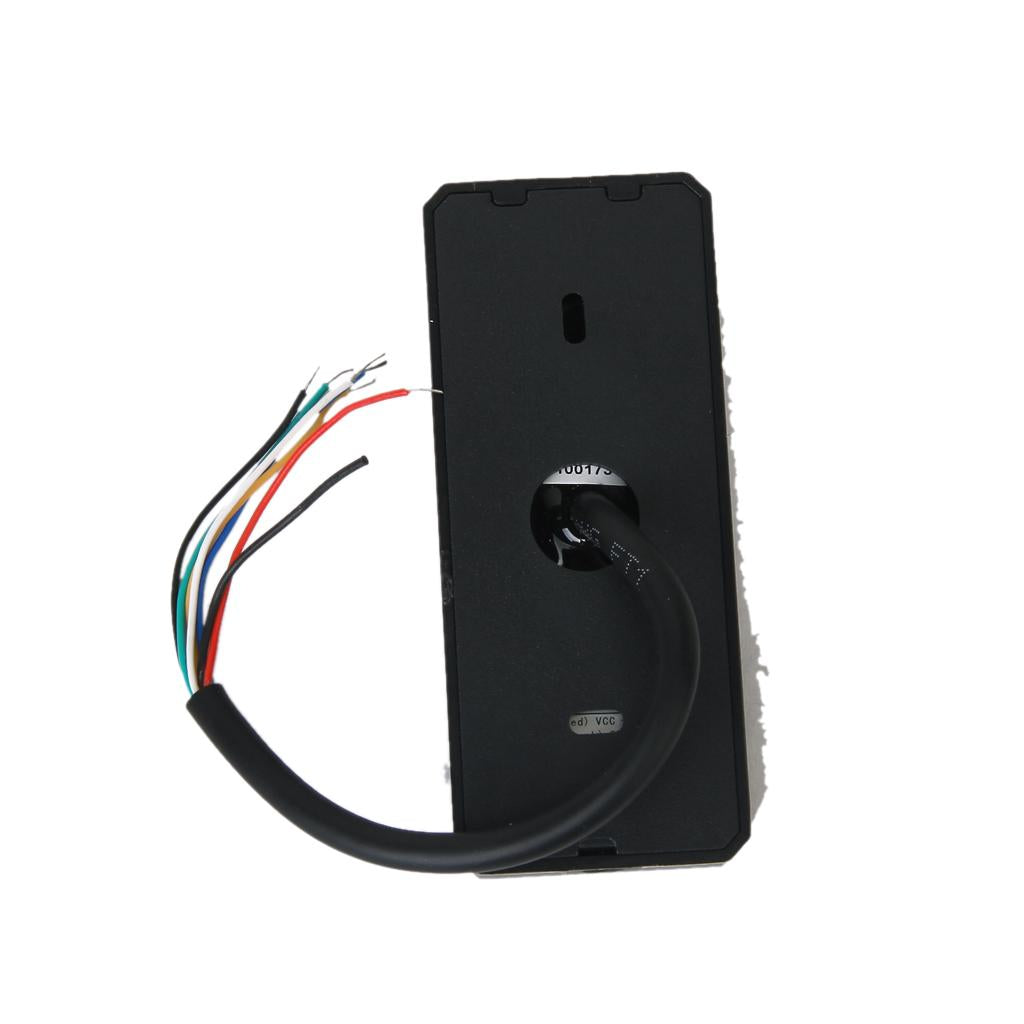

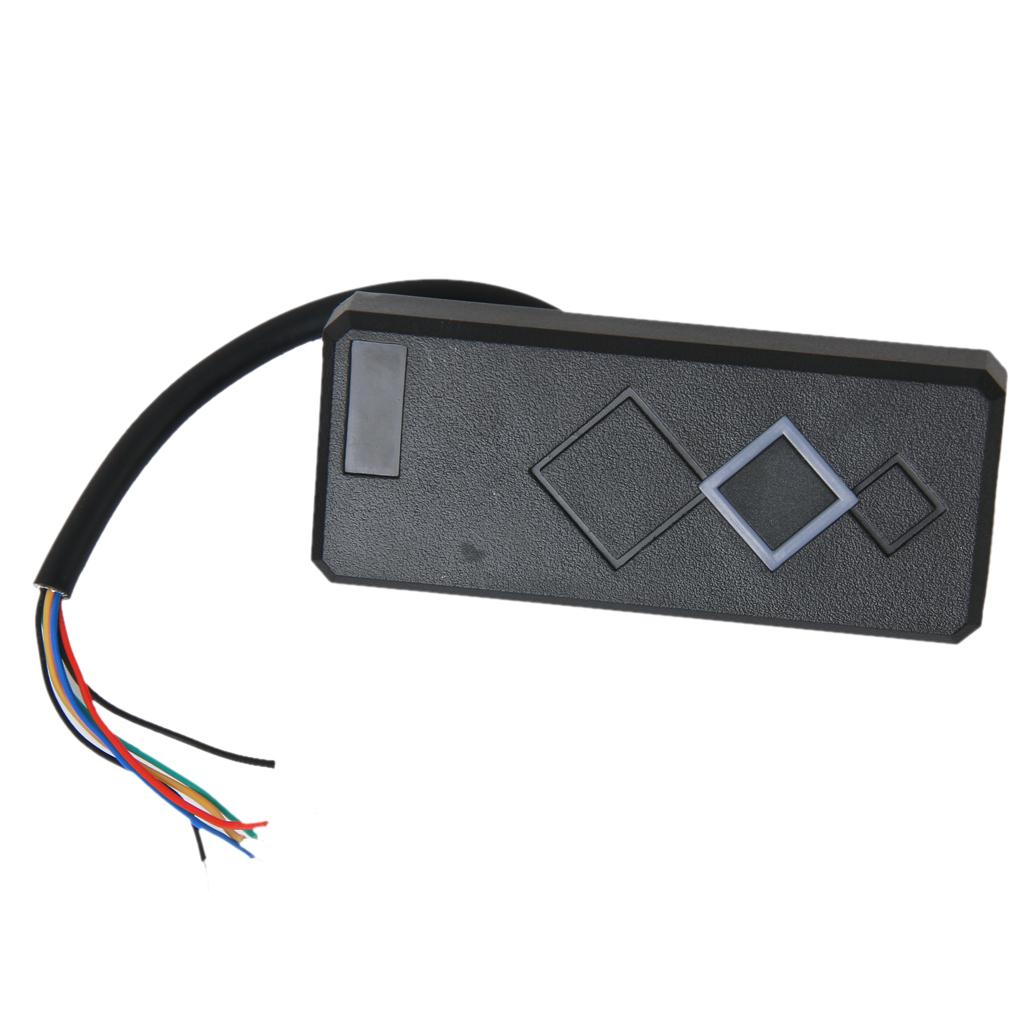

This RFID Reader system is composed with quite compact circuit and high-efficiency controlling program .It is an excellent product, reading RFID card effectively.Door Access/ ID/IC card data-collecting terminal in work attendance check-on system.It is useful for safety door systerm, easy to connect and use.

Description:

  • Operating mode: weigand26
  • Reader Speed: <0.2 seconds
  • Clocking interval: <0.5 seconds
  • Induction distance: 5-15CM
  • Card type: ID card
  • Frequency: 125KHz
  • Operating temperature: -25 ℃ -75 ℃
  • Operating Humidity: 10-90%
  • Built-in antenna: Yes
  • Built-in LED blue-green: two-color LED
  • Built-in speaker: buzzer
  • Card supported: uem4100 compatible format ID card (64bits, Manchester encoding)
  • operating voltage: DC 5-16V
  • Operating current: 70mA
  • Means of communication: weigand26
  • Communication distance: 100 meters Wiegand
  • Send type: real time
  • Equipment color: black
  • Case Material: PC and spray -> internal irrigation black resin (effectively waterproof)
  • Dimension: 101mm*43mm*15mm

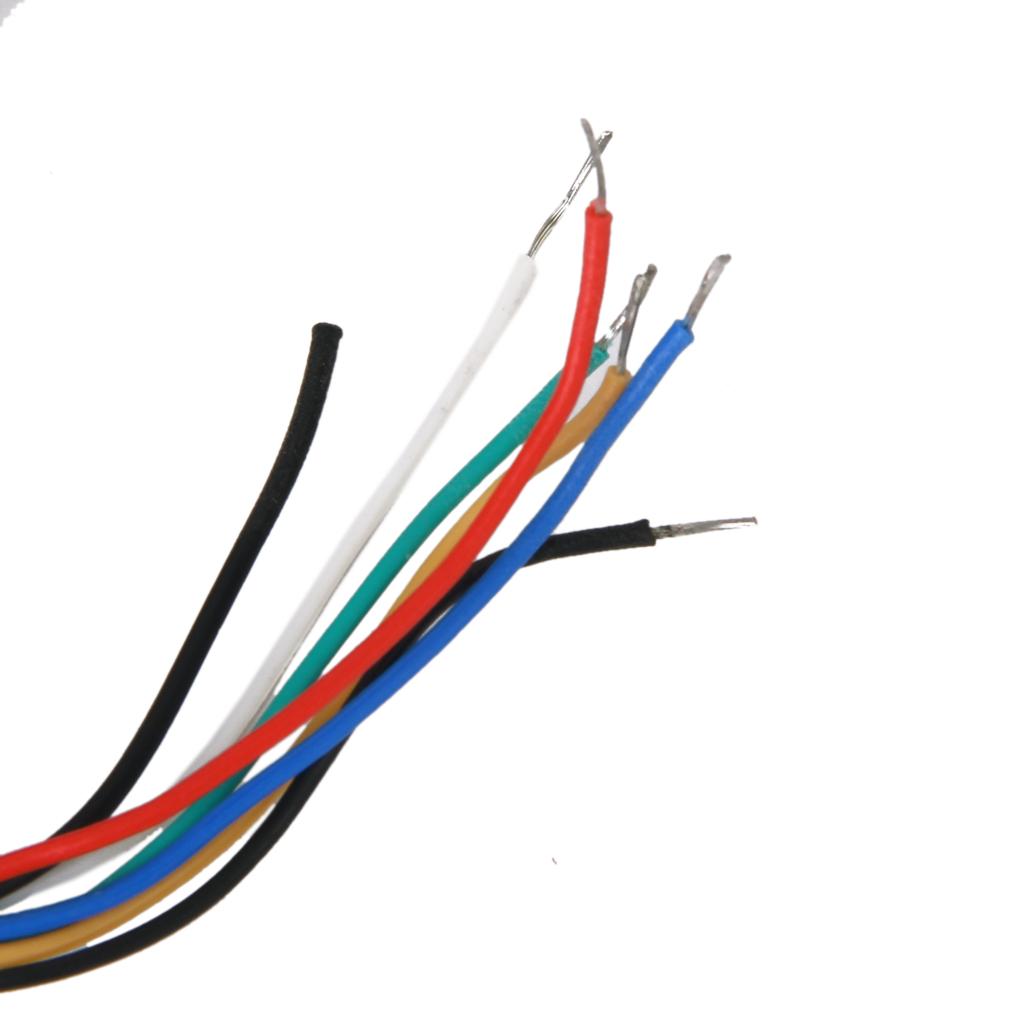

  • Different color Line Symbol

  • (1)Red: VCC Power Anode
  • (2)Black: GND Power Cathode
  • (3)Green: DATA0 weigand Data Line
  • (4)White : Data1 Weigand Data Line
  • (5)Blue:  LED Controlling Line, effective in Low Voltage
  • (6)Yellow: Buzzer  Buzzer Control Line, effective in low voltage

Package Includes:

  • 1x Card Reader
