Secure Drop Electric Bolt Lock Signal Control System Door Safety Locker 12V DC

Regular price
Rs. 8,032.44
Regular price
Sale price
Rs. 8,032.44
Earn 4016 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 64002608
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

Description:

Long life with 500000 operations tests;
Suitable For: wooden Door,glass door,metal door,PVC door;
Superior strength aluminium alloy,solid stain-less steel bolt;
Special photoelectricity control,three steps current application;
Low temperature acceptable,low power,environmental protection.

Specification:

Material: aluminum and iron
Voltage: DC12V
Start current: 960mA
Standby current: 180mA

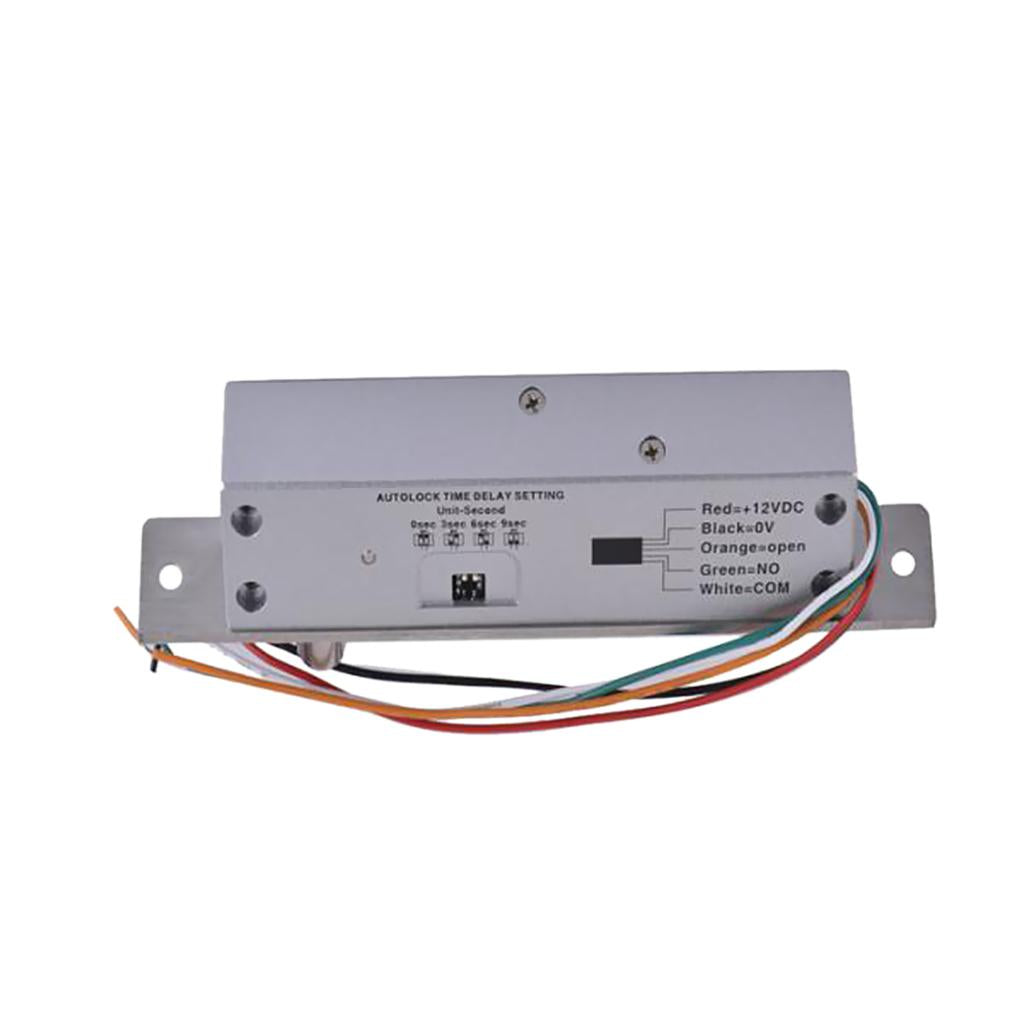

Signal output: door status output,NO/NC/COM
Operating temp: -10~+55 degree (14-131F)
Operating humidity: 0~90%(non-condensing)
Autolock time delay: 0,3,6,9 sec.
Solid bolt: polishing housing, 1000kg holding force
Certificate: CE and MA
Open: enegized state
Lock: power off state

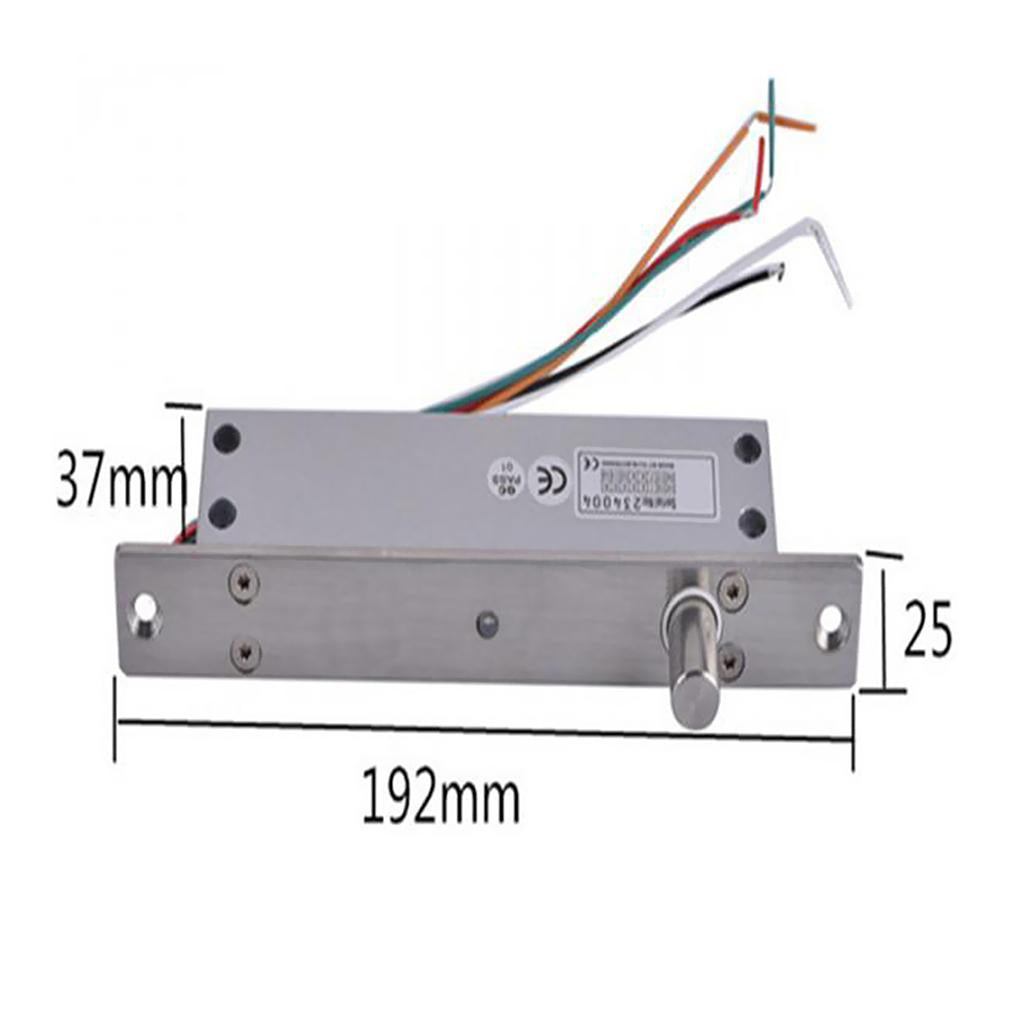

Size Chart:

Face Plate(LXWXH): 192x25X37mm/ 7.56X0.98X1.46 inch;
Strike (LXWXH): 90x25x2mm/ 3.54X0.98X0.08 inch
Weight: 0.676kg

Package Includes:

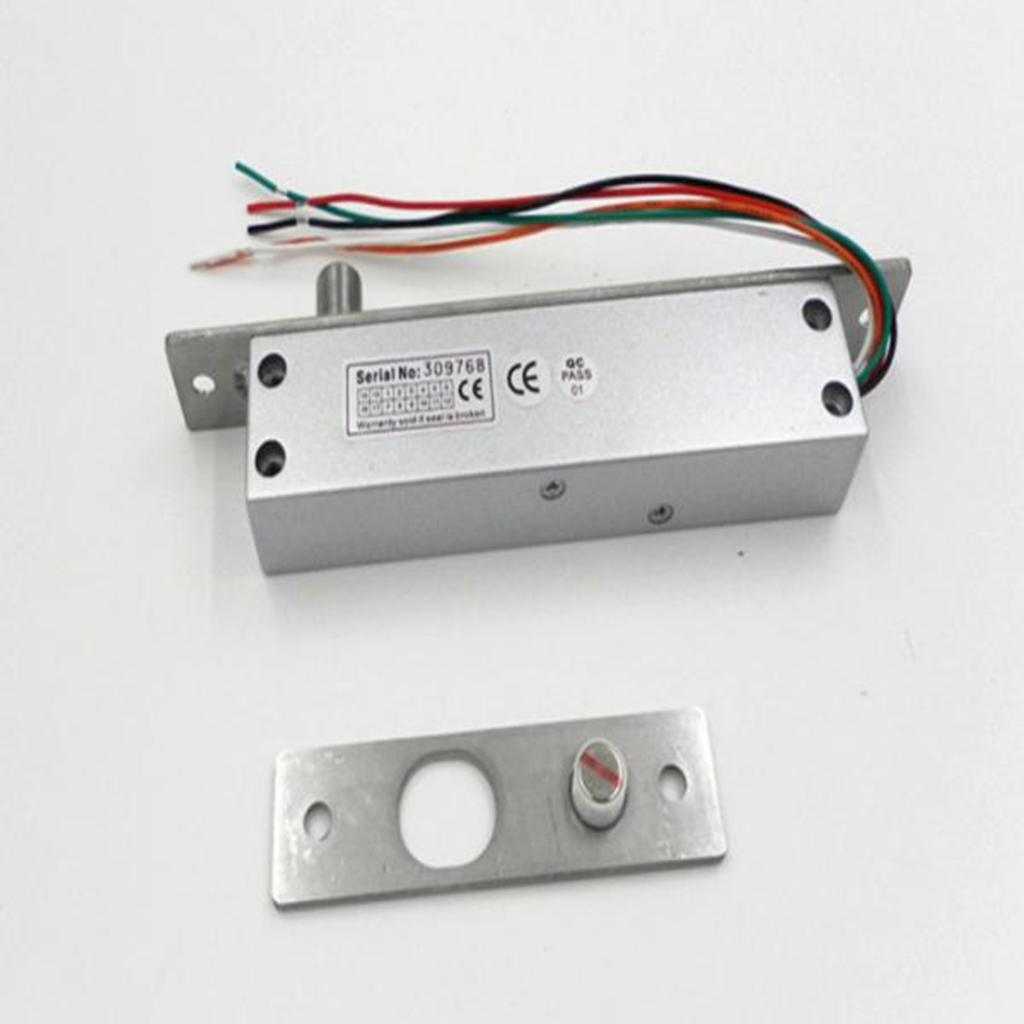

1 X electric lock
1 X magnet seat
screw kits

Note:

Due to the manual measurement, there is a slight difference between the size from the above and the actual item.
Because of the displaying and lighting effects, monitor settings,etc.there could be a little color difference acceptable, please kindly note.
When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
