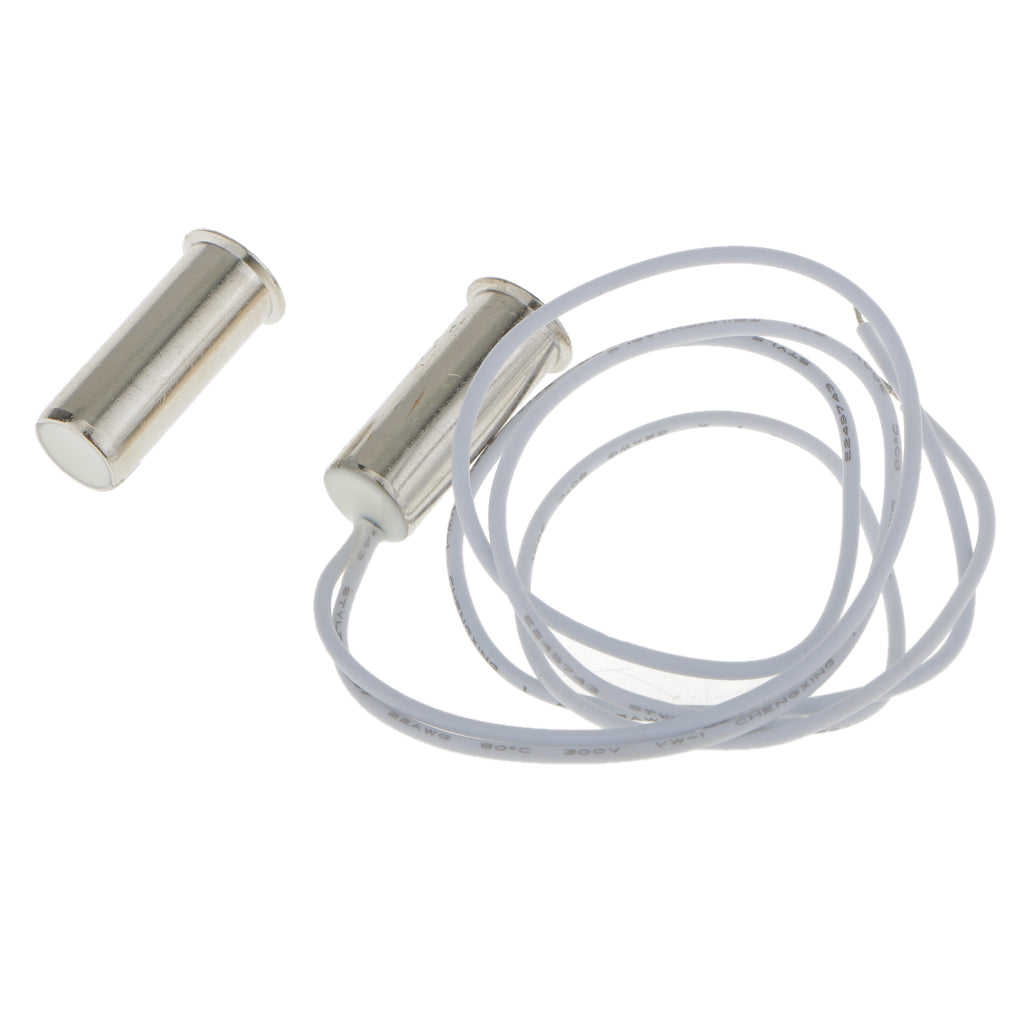

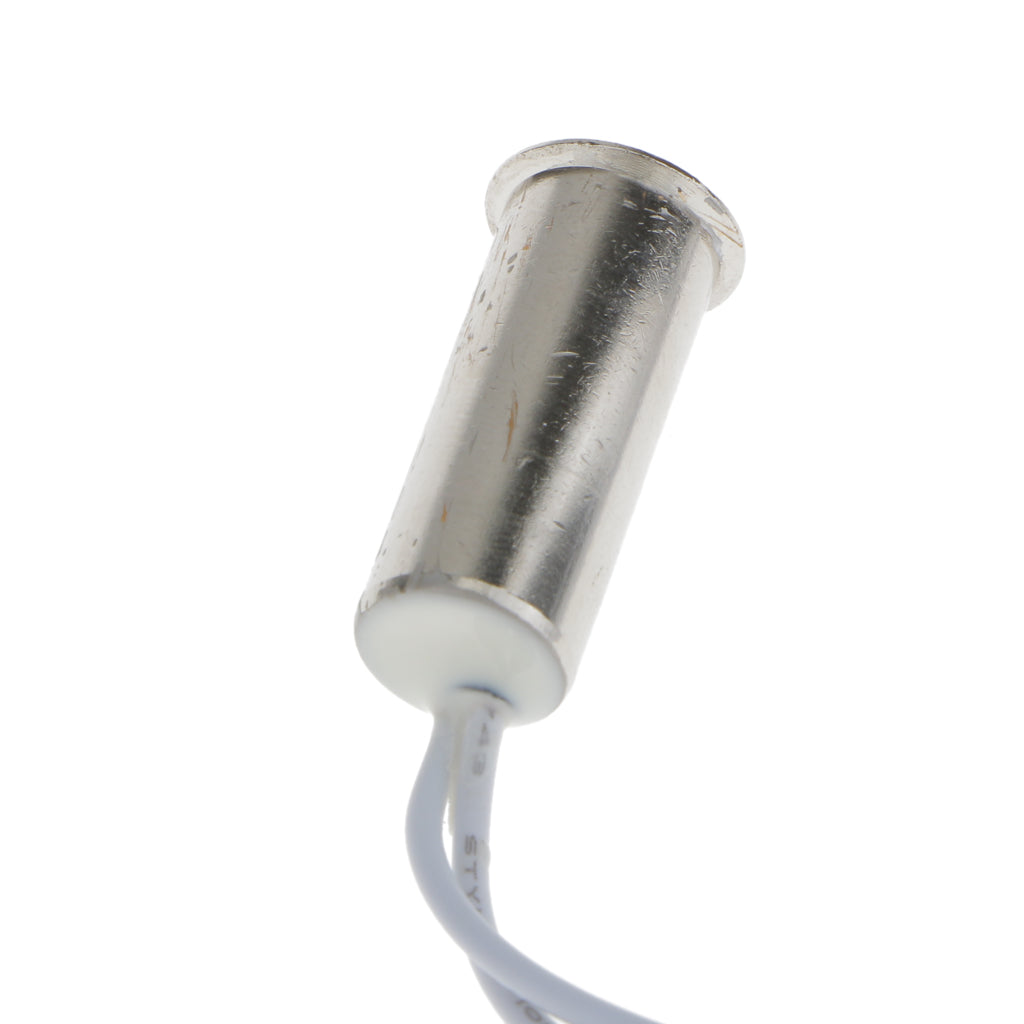

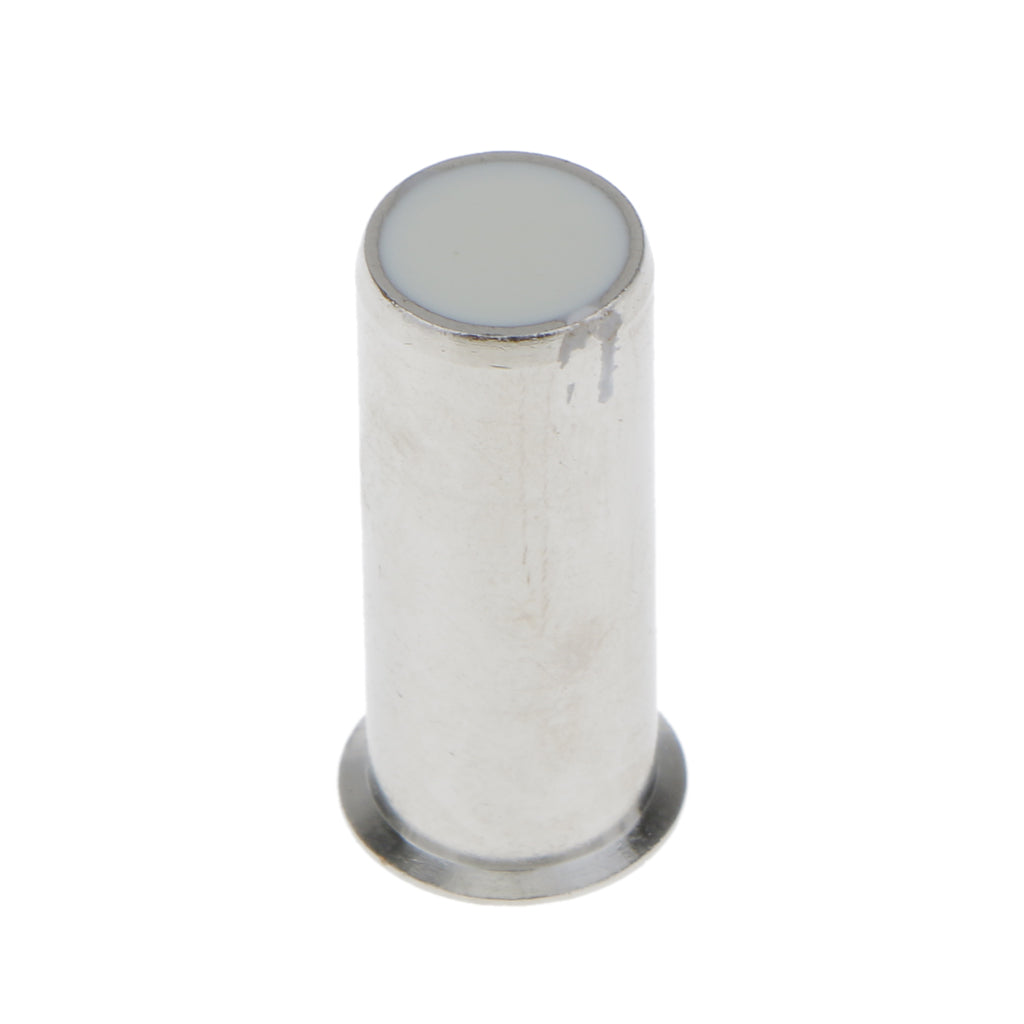

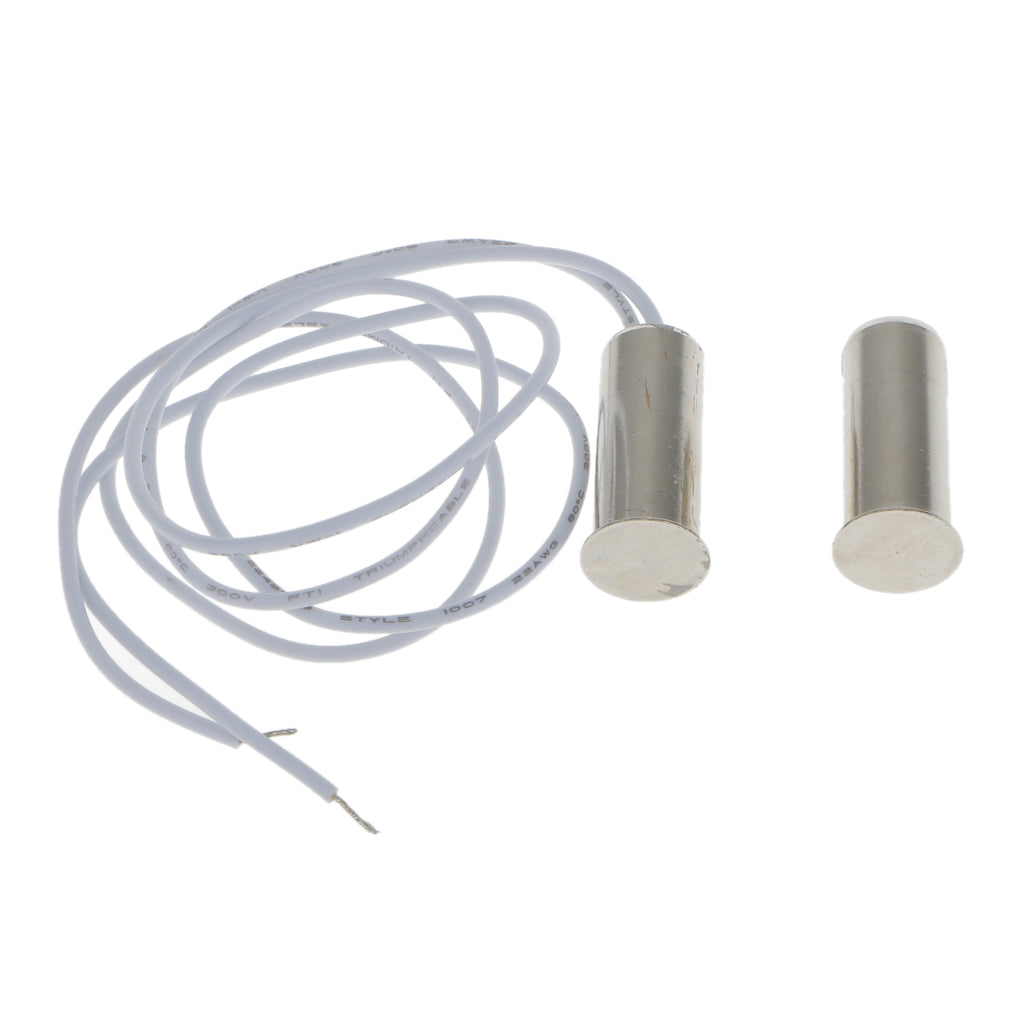

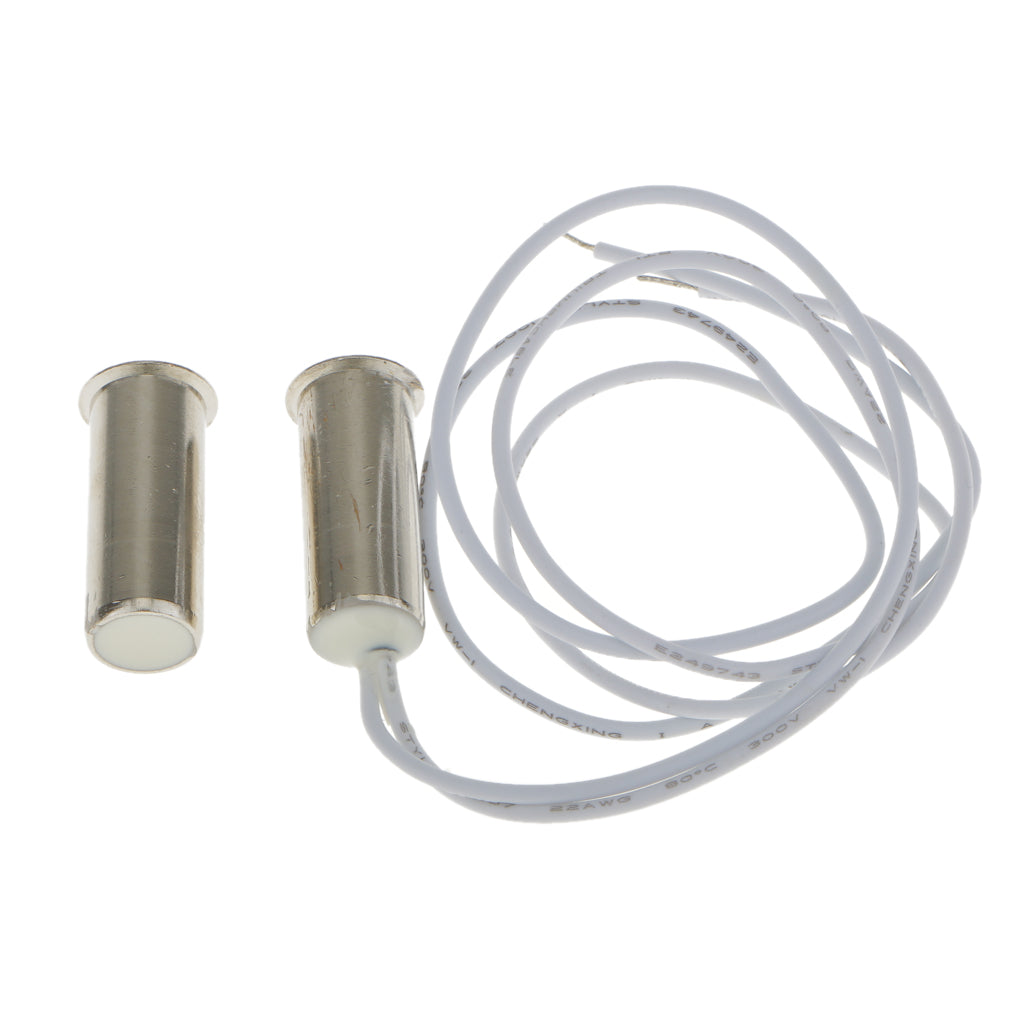

Max. Current 0.5A 1007UL22AWG350mm Recessed Magnetic NC Closed Window Door Magnet Contact Switch

Regular price
Rs. 450.05
Regular price
Sale price
Rs. 450.05
Earn 225 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 64000042
  • Brand: SFC
  • Type: Home & Garden
  • Availability: Out stock
Description

Description:

  • 100% Brand New and High Quality

  • Suitable for metal door, metal machine carbinet, device controller, home security system, smart home and Safes and etc.

  • The switch part ( the wire part) should be installed at fixed frame of metal window door, on which can not be easily touched, magnet part should be installed at flexible metal window.

  • Via magnet to emmit signal, easy installation, low price, high sensitive, easy operation, waterproof invasion and hard to damage.

  • There should not be iron interfere between magnets, otherwise it would cut down the magnetic lines of force and lead to a failure.

Specification:

  • Total Length: Approx. 43cm

  • Wire Length: Approx. 38cm

  • Dia. of Door Magnet: 13cm

  • Height of Door Magnet: 25cm

  • Item: NC LC-1025

  • Material: Brass ( nickel plating on the surface)

  • Max. Voltage: 100VDC

  • Max. Current: 0.5A

  • Contact Power: 10W

  • Sensor Distance: 20~25mm

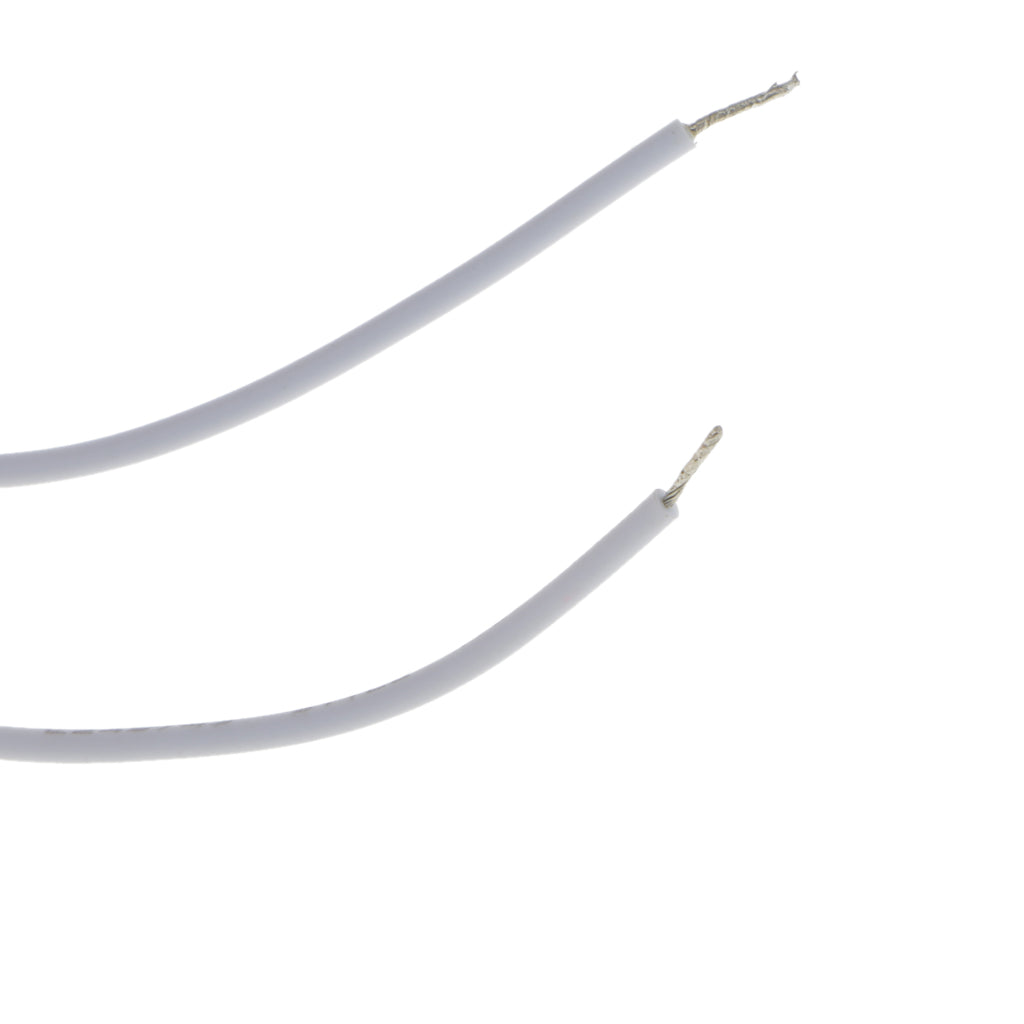

  • Wire Lead: 1007UL22AWG350mm

  • Installation Method: Recessed Install

  • Usage Temperature: -30℃~80℃

Package Includes:

  • 1* NC Window Door Magnet LC-1025

Note:

  • The switch part should be pricisely intalled with magnet , otherwise the distance between the best access of magnetic line of force with the switch touch point would be shortened, and then it would fail to snesor the attraction and cause the unstuck error.

  • The switch part should be stay awny from the strong magnet interfere areas, otherwise the charactor of magnetic switch would be changed and it is possible to generate error.
