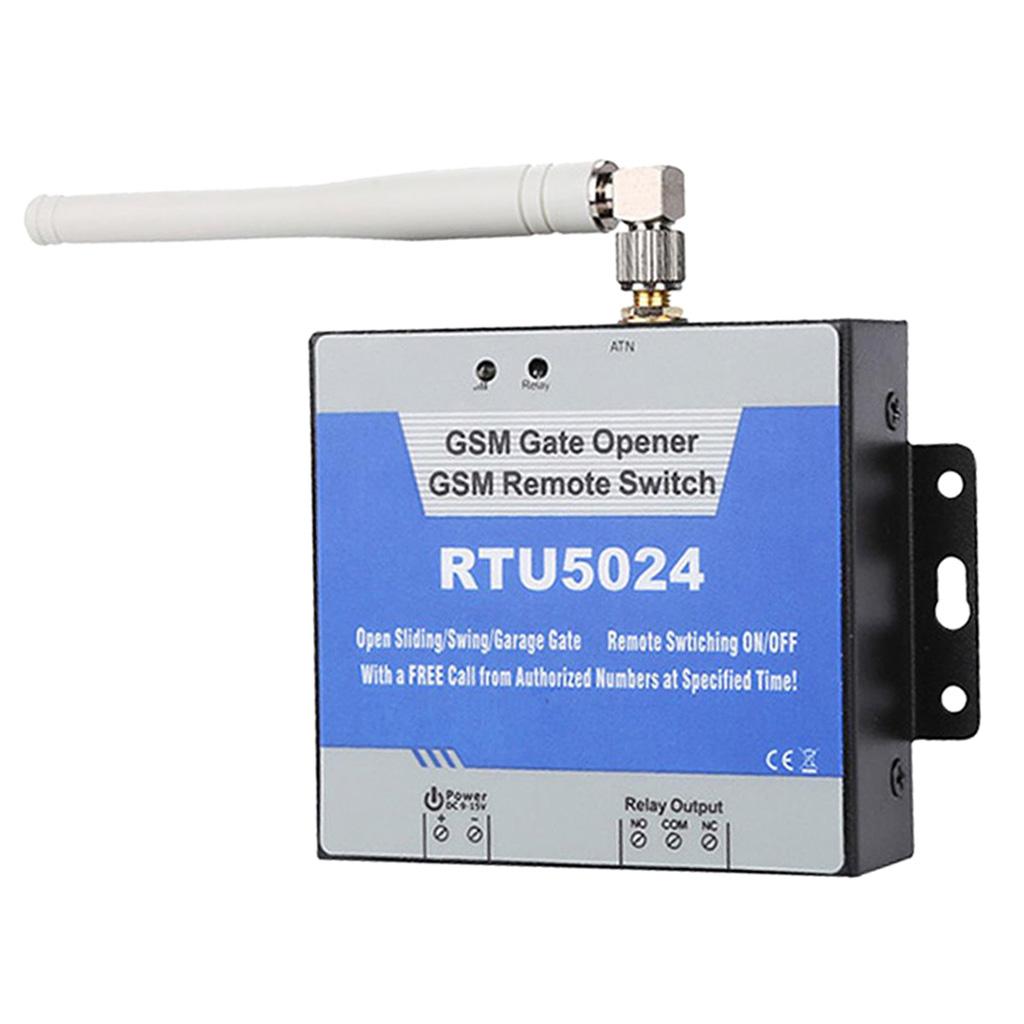

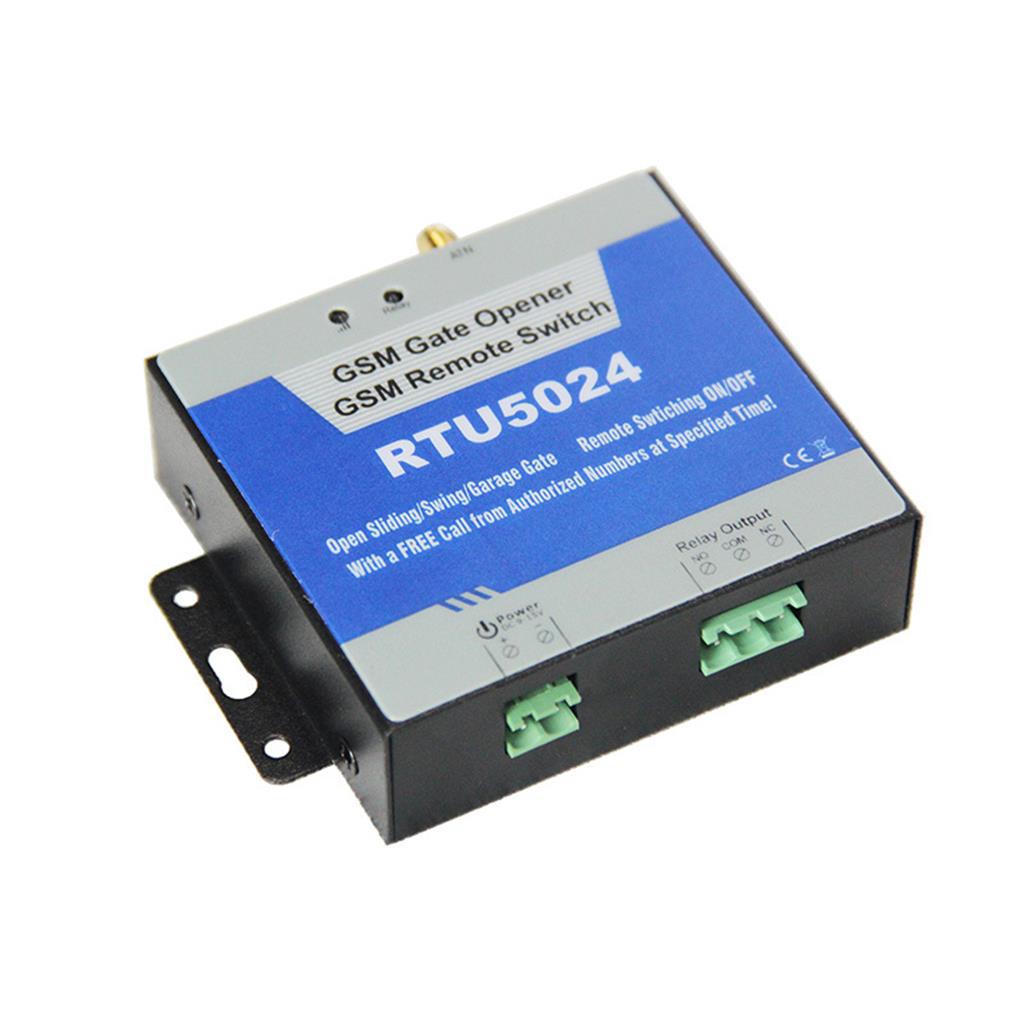

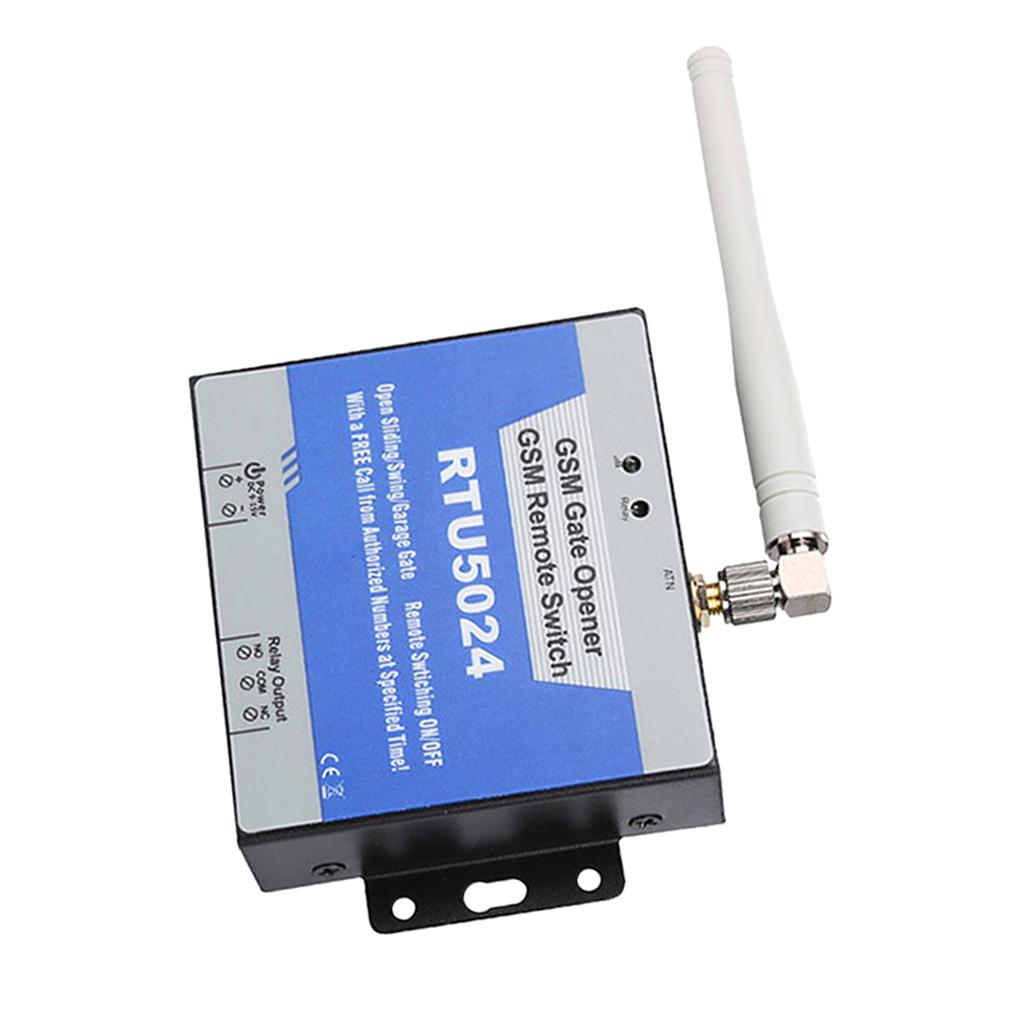

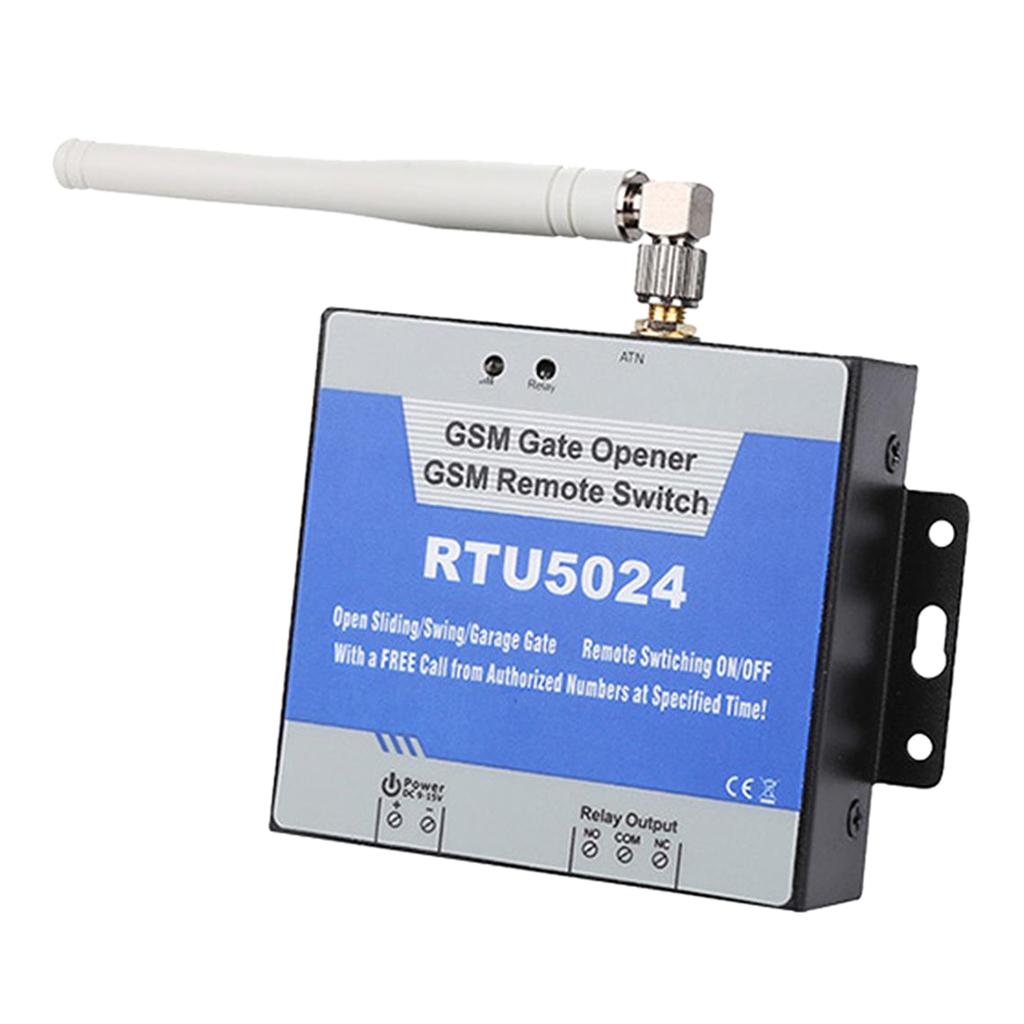

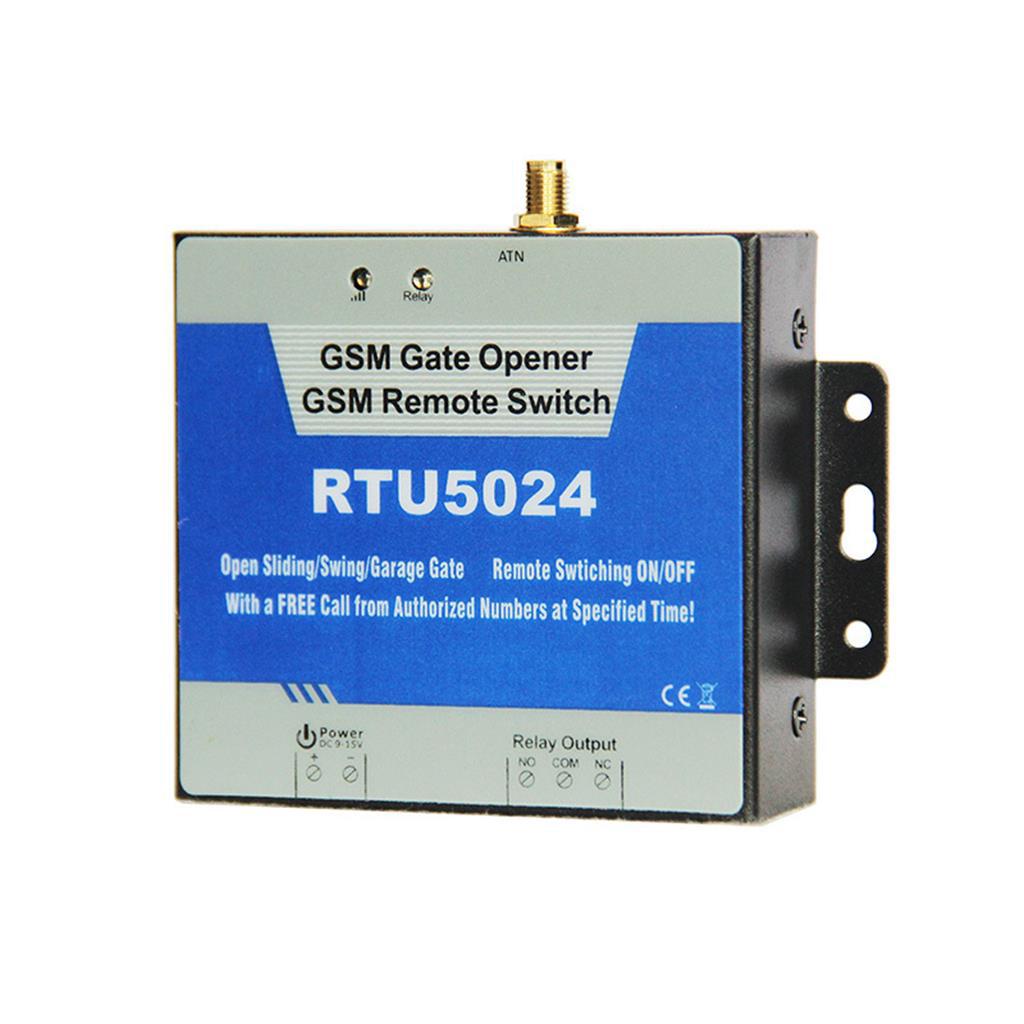

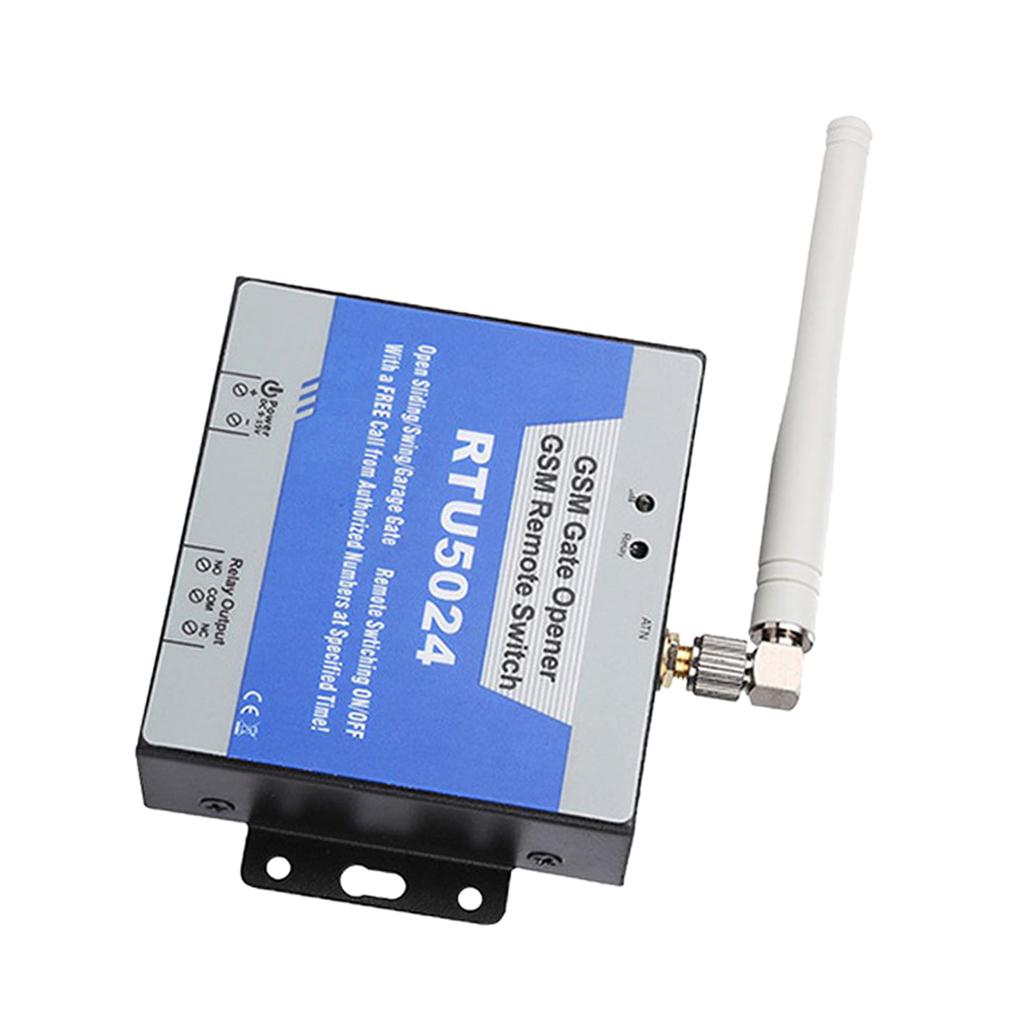

GSM Gate Opener Remote Relay Switch Garage Door Pump Light Fan Motor On/Off Wireless Controller, RTU 5024

Regular price
Rs. 2,625.42
Regular price
Sale price
Rs. 2,625.42
Earn 1312 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 64005493
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

Description:

The GSM/2G Gate Opener Relay Switch is a device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems by FREE CALL from your mobile phone. There is no call charges.

Just dial from authorized user number at the specified time then the barrier and doors are opened, or the machine are turn on or off by the GSM/2G Gate Opener/Relay Switch. The relay close or open time is programmable.

Up to 200 authorized phone numbers can be configured at the specified time. You do not need to provide a remote control or keys for different users.

850/900/1800/1900MHz quad bands, can work in the worldwide GSM/2G networks.

Multiple applications: Remote open/close swing/sliding gates, doors, shutters, garage doors, locks with a free call ; microwave, air-conditioner control; remote switch equipment, for example: street lights, solar power, motor, pumps, fans, etc.

Specification:

How it works?

A) Wiring the RTU5024 gate opener with your door locks or other machines.

B) Insert SIM card to RTU5024 Gate Opener, Power up.

C) Send few SMS commands to RTU5024 Gate opener, to assign the authorized user list.

D) Make a phone call from the authorized user's phone number, RTU5024 Gate Opener reject phone call and door open or close.

For example, If you are using the RTU5024 GSM gate opener for open/close your garage door by your family members, what you need is just 2~5 SMS commands only.

Material: Metal

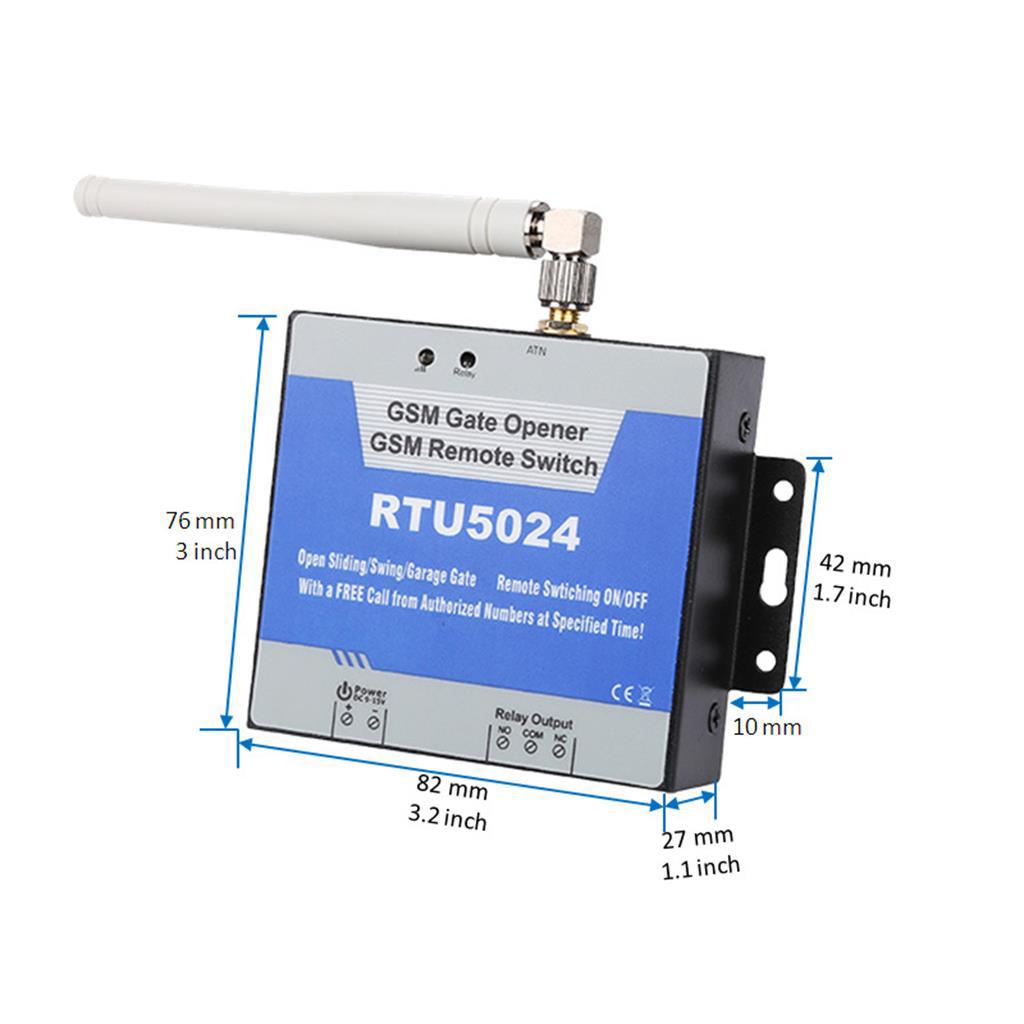

Size: Approx. 82x76x27mm/3.22x2.99x1.06 inch

GSM Frequency: 850/900/1800/1900MHz

Digital Output: NC/NO dry contact, 3A/240VAC

DC Power Supply: 9-15VDC/2A

Power Consumption: 12V input Max. 50mA/Average 25mA

SIM Card: Standard SIM Card

Antenna: 50Ω SMA Antenna interface

Temperature Range: -20~+60°C

Humidity Range: Relative humidity 90%

Package Includes:

1 Piece Main Device

1 Piece Antenna

1 Piece Terminal

1 Piece User Manual
