Door Access Control System Kits Set Fingerprint RFID Card Entry Control

Regular price
Rs. 10,469.98
Regular price
Sale price
Rs. 10,469.98
Earn 5234 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 64004496
  • Brand: SFC
  • Type: Home & Garden
  • Availability: In Stock
Description

Description:

86mm box structure, easier installation;

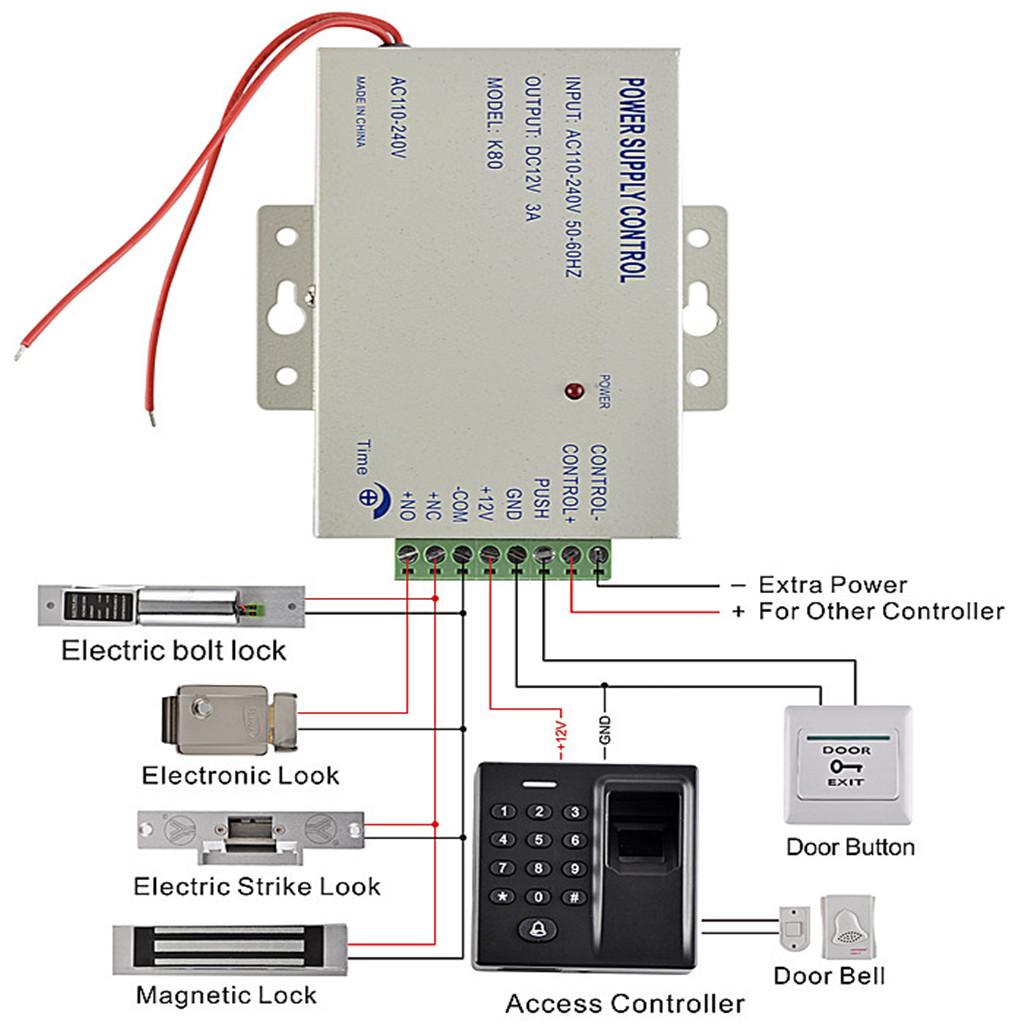

Independent internal control for electric locks, exit buttons and door magnet detection;
Capacitance induction type for fingerprint collector, standby and sleep mode functions;
Standard build in RFID 125KHz card swiping module, optional IC module, great combination of cards and fingerprints;
Wiegand signal output, compatible for all standard access controllers; without software

Specification:

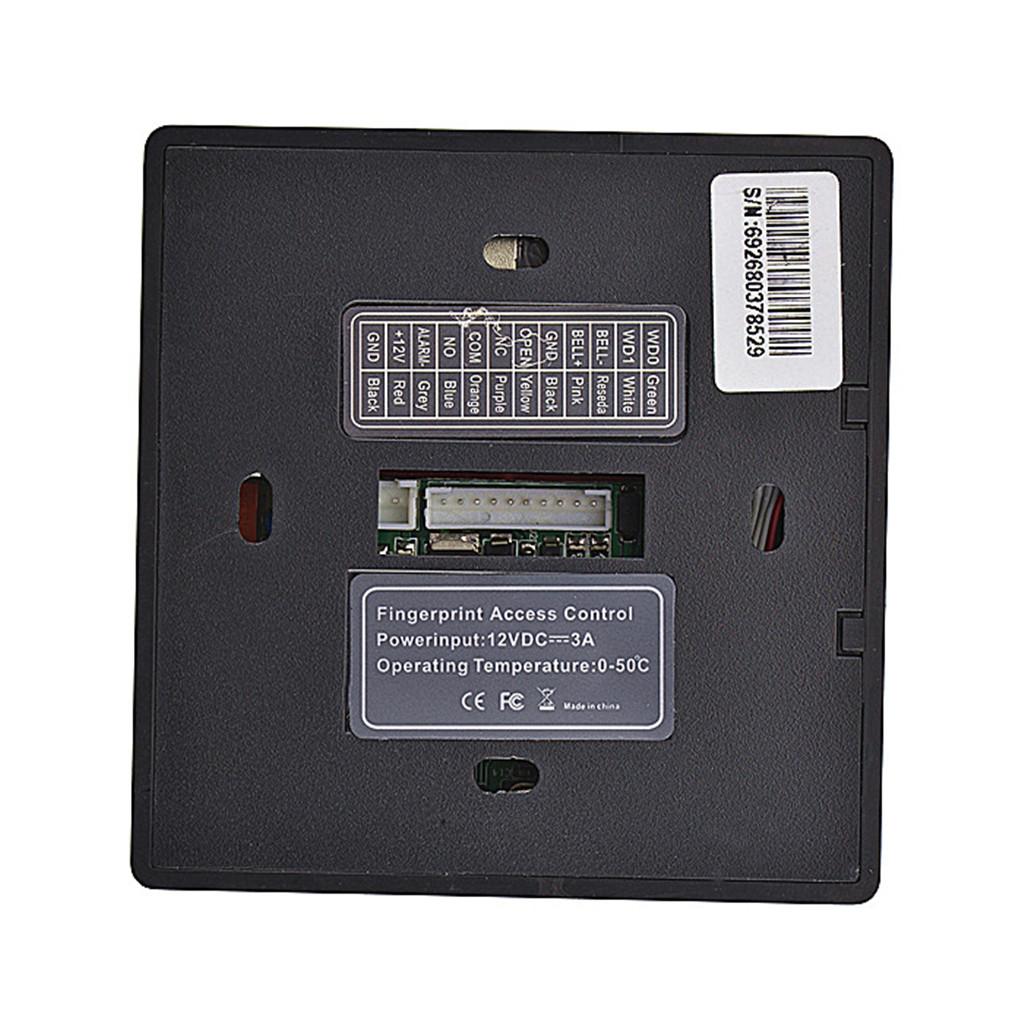

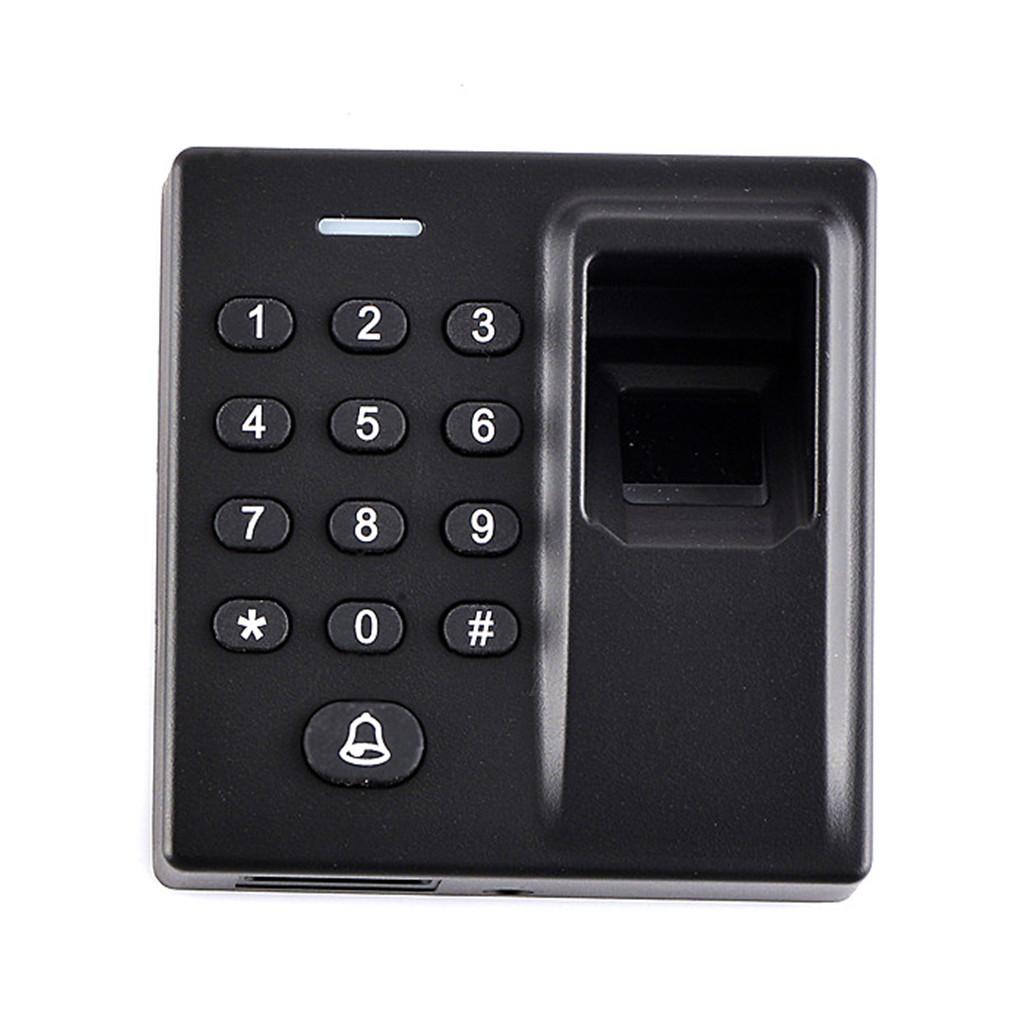

1. Fingerprint Access Controller:
Hardware Platform: ARM9
Fingerprint Collector: Inductive & optical blue-ray fingerprint collector
Fingerprint capacity: 500pcs ( 1000pcs, 3000pcs optional)
password capacity: 500 groups
Administrator Function: 2 groups of register supported, 2 groups of delete supported
Card reading module: standard 125KHz RFID ( 13.56Mhz IC optional)
Wiegand: Wiegand 26
Recognition Speed:<1 second
LED: red, blue
Alert Tone: buzzer
Alarm: anti-dismantle, force door open, overtime door open
Working Temperature: -25°C~45°C
Working Humidity: 20%~80%
Power Supply: +12V
Dimension: 87x87x25mm/3.43x3.43x0.98 inch
No Support Card Reader

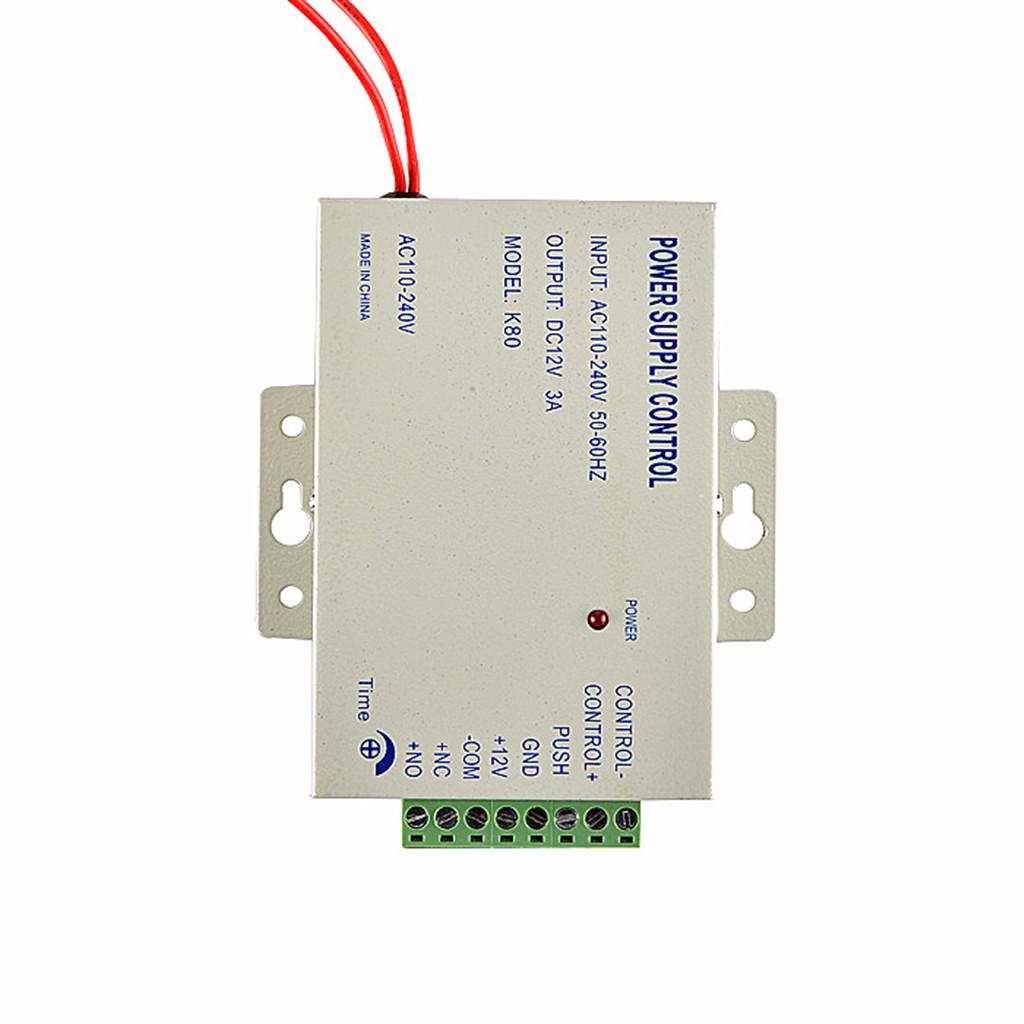

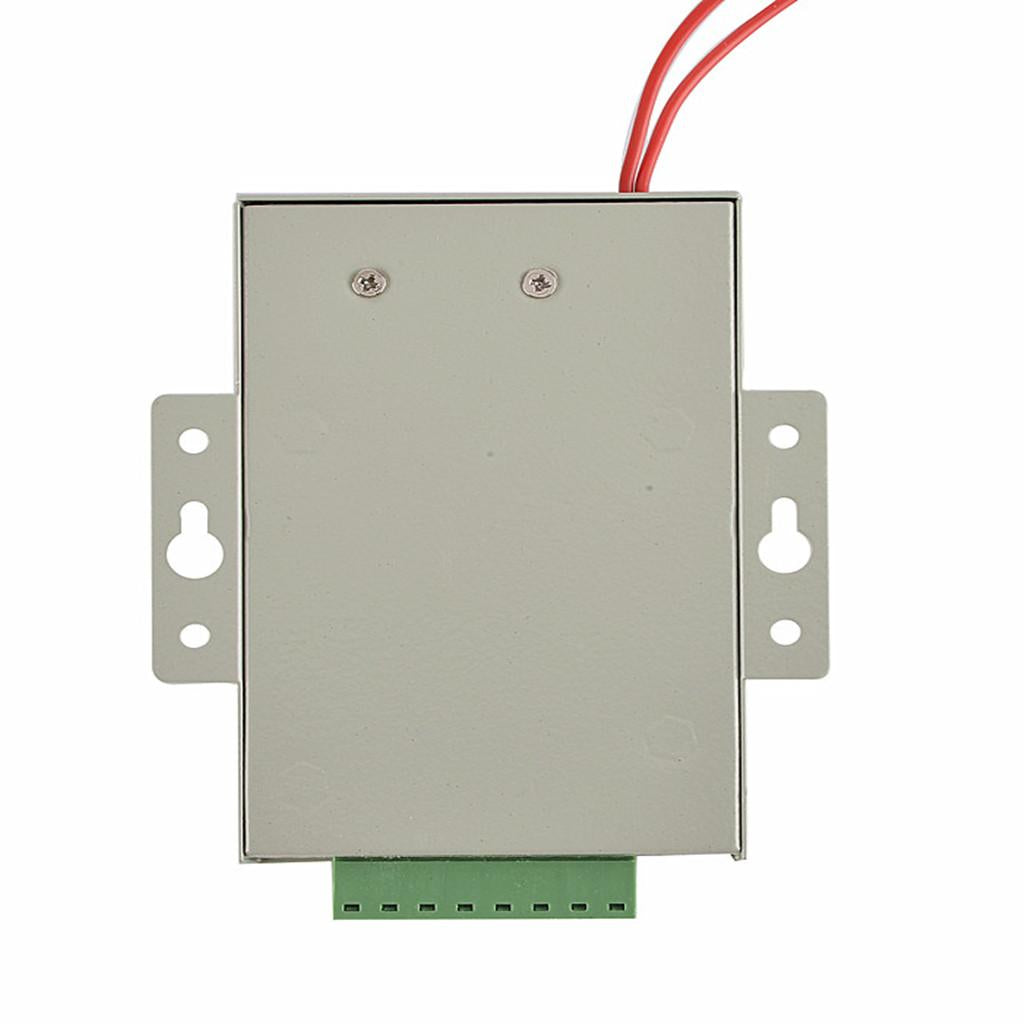

2. Power supply:
Input Voltage: AC 110-240V 50-60HZ
Output Voltage: DC 12V 3A
Outer Dimensions: 120x95x38mm/4.72x3.74x1.50 inch

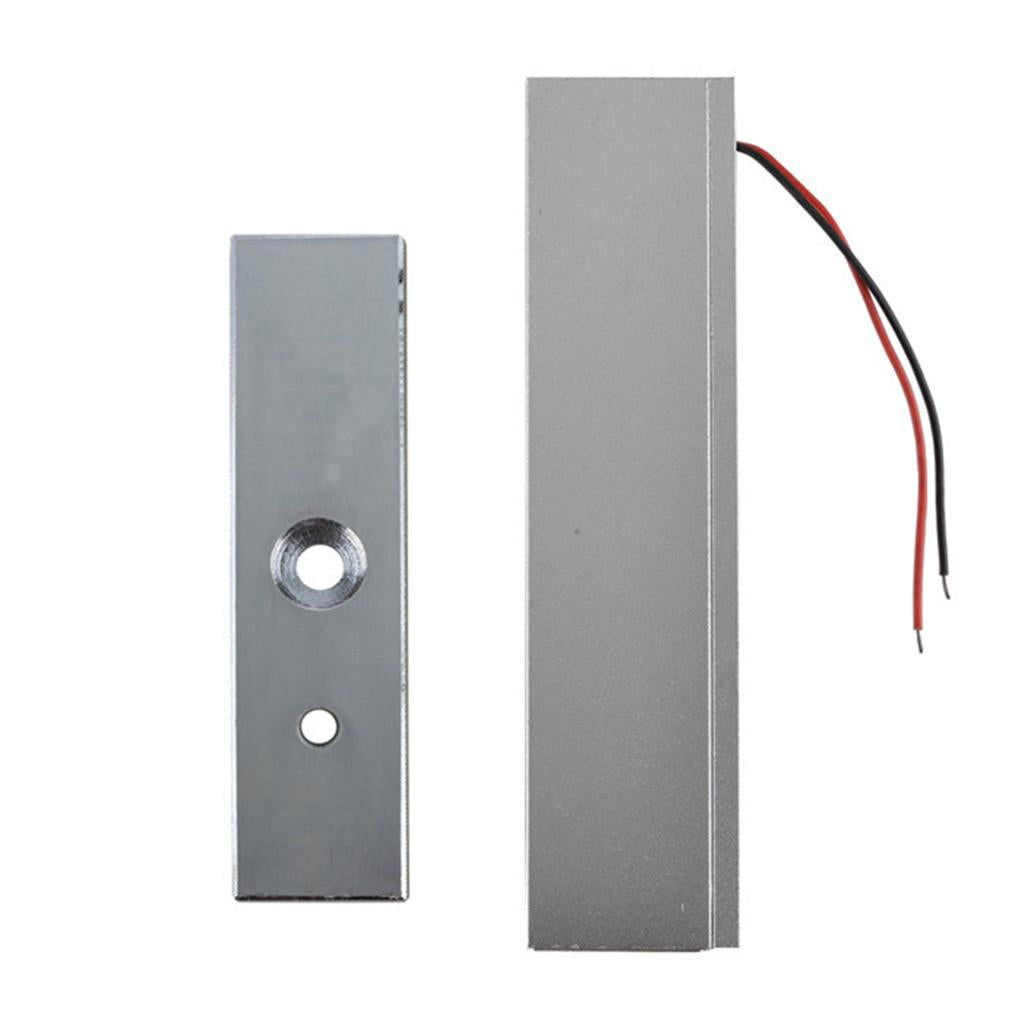

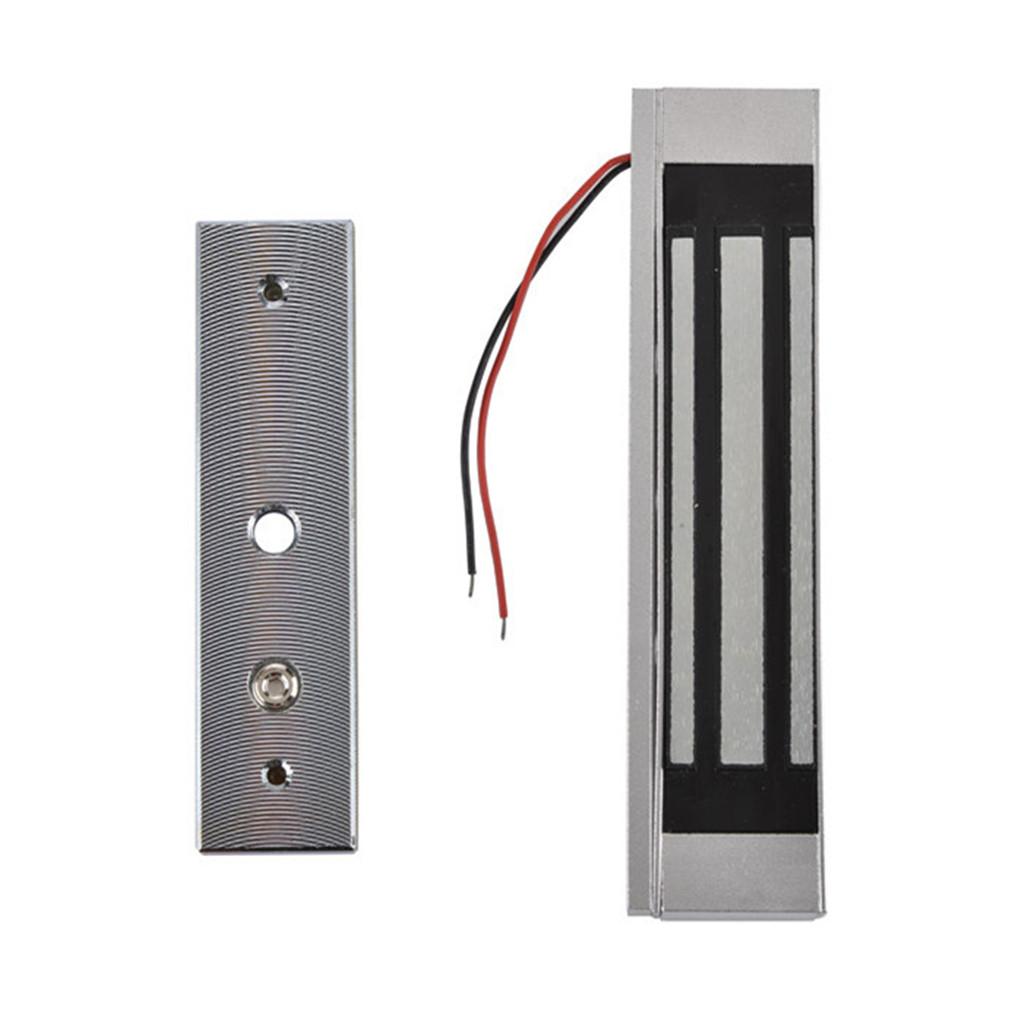

3. Electric Lock:
Voltage: 12V DC
Current: 400mA
Mode: NC (locked whilst power supply is operating), fail safe mode
Application: wood, iron doors
Faceplate dimensions: 130x32x9.3mm/5.12x1.26x0.37 inch
Main body dimensions: 170x40x22mm/6.69x1.57x0.87 inch
Pack includes: electric magnetic lock, installation diagrams
Construction: stainless steel
Holding force: 180KG

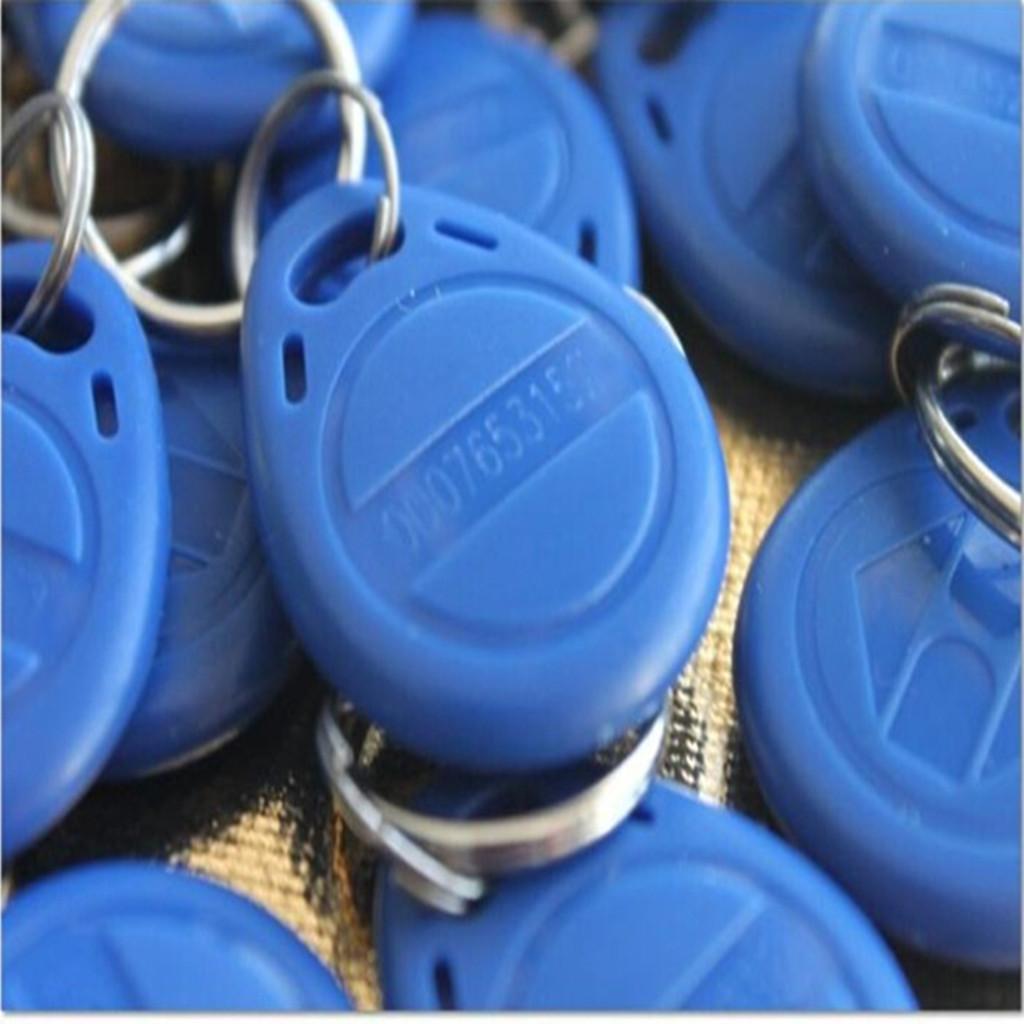

4. 125KHz RFID Key Fob:
Water resistant
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it.

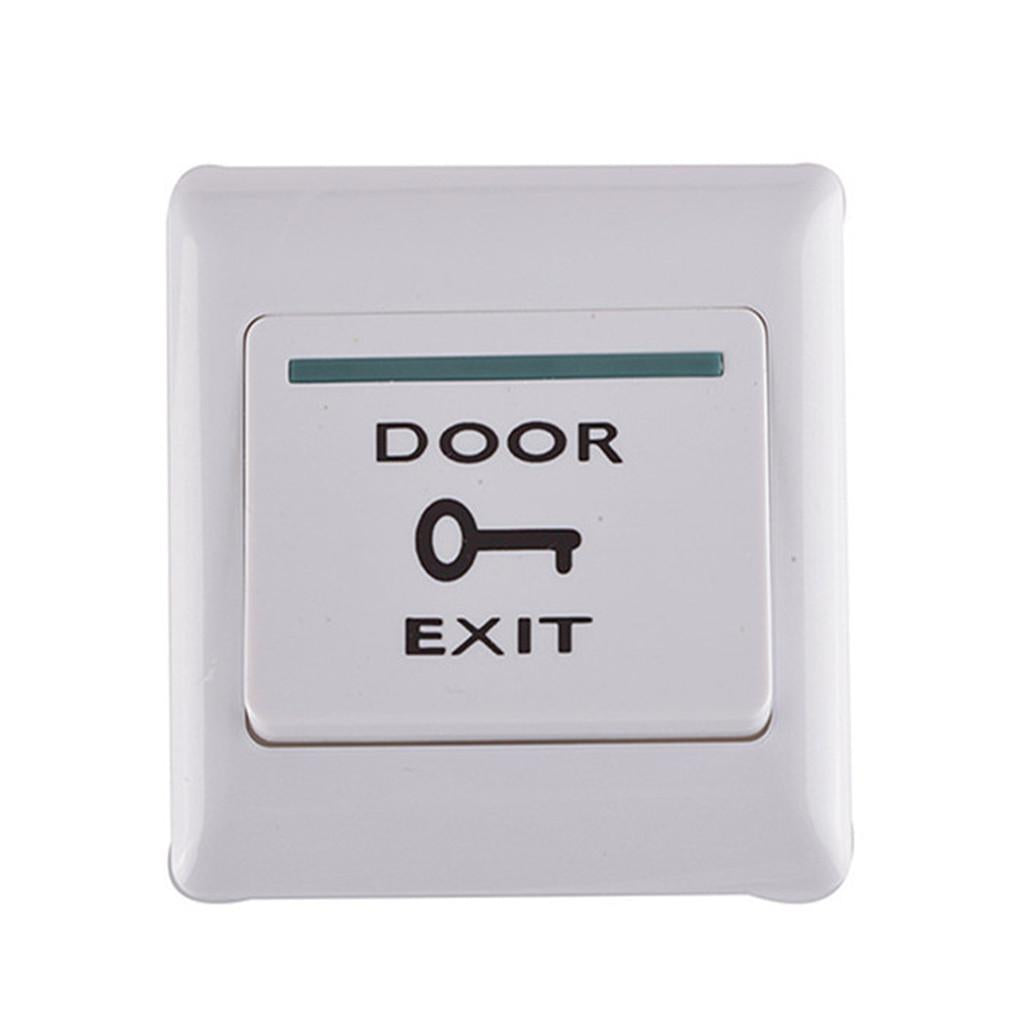

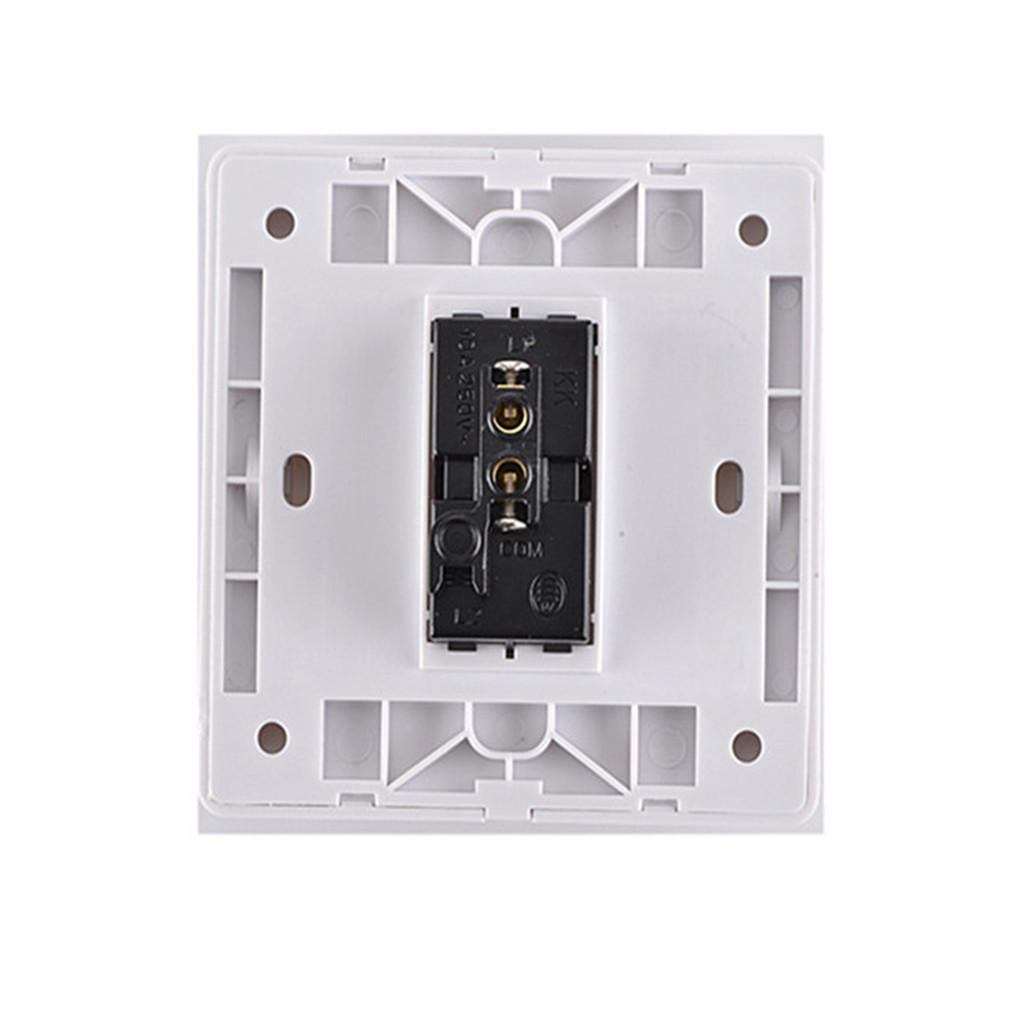

5. Exit Button:
Maximun Power Rating: 12 VDC 3A 5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Performance Testing: 1000000 times aging test.
Maximun Power Rating: 3A/12VDC
Faceplate Dimension : 85x85mm/3.35x3.35 inch
Material: Hard Plastic

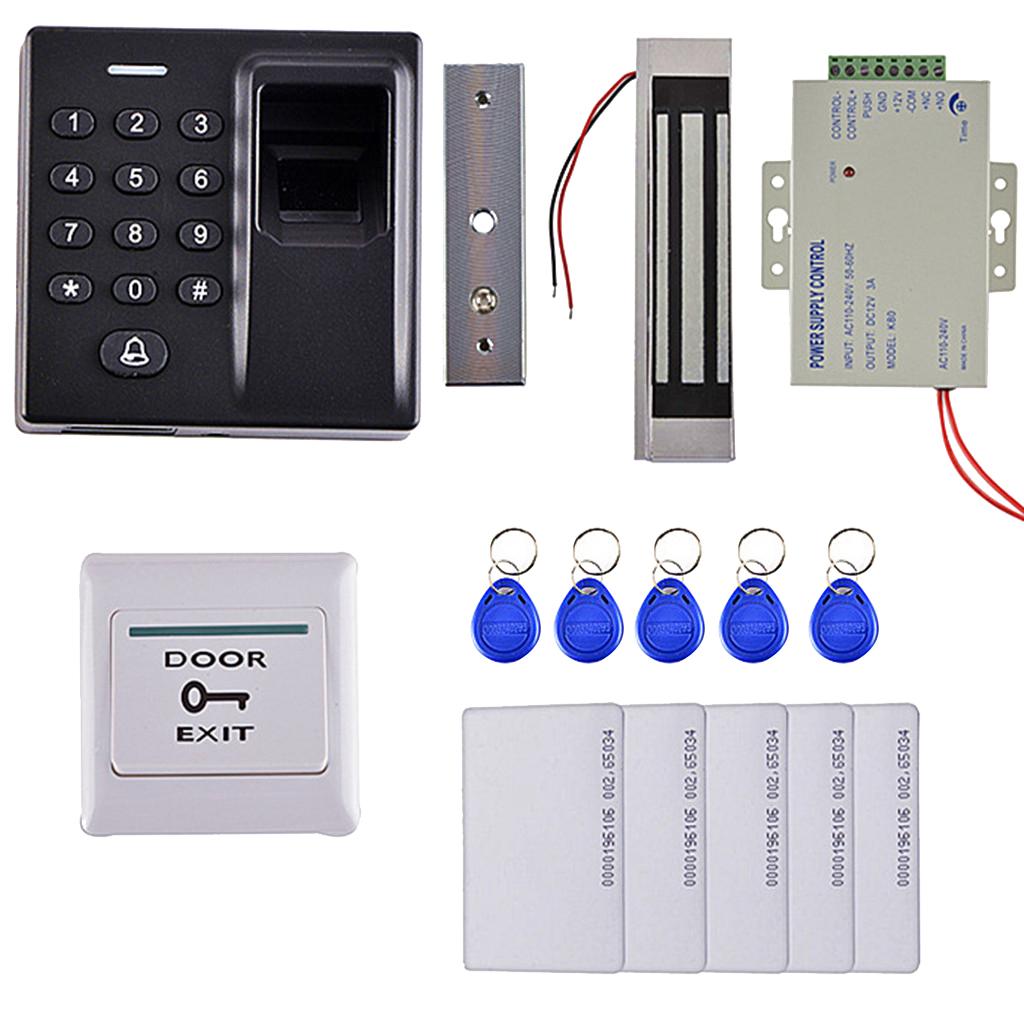

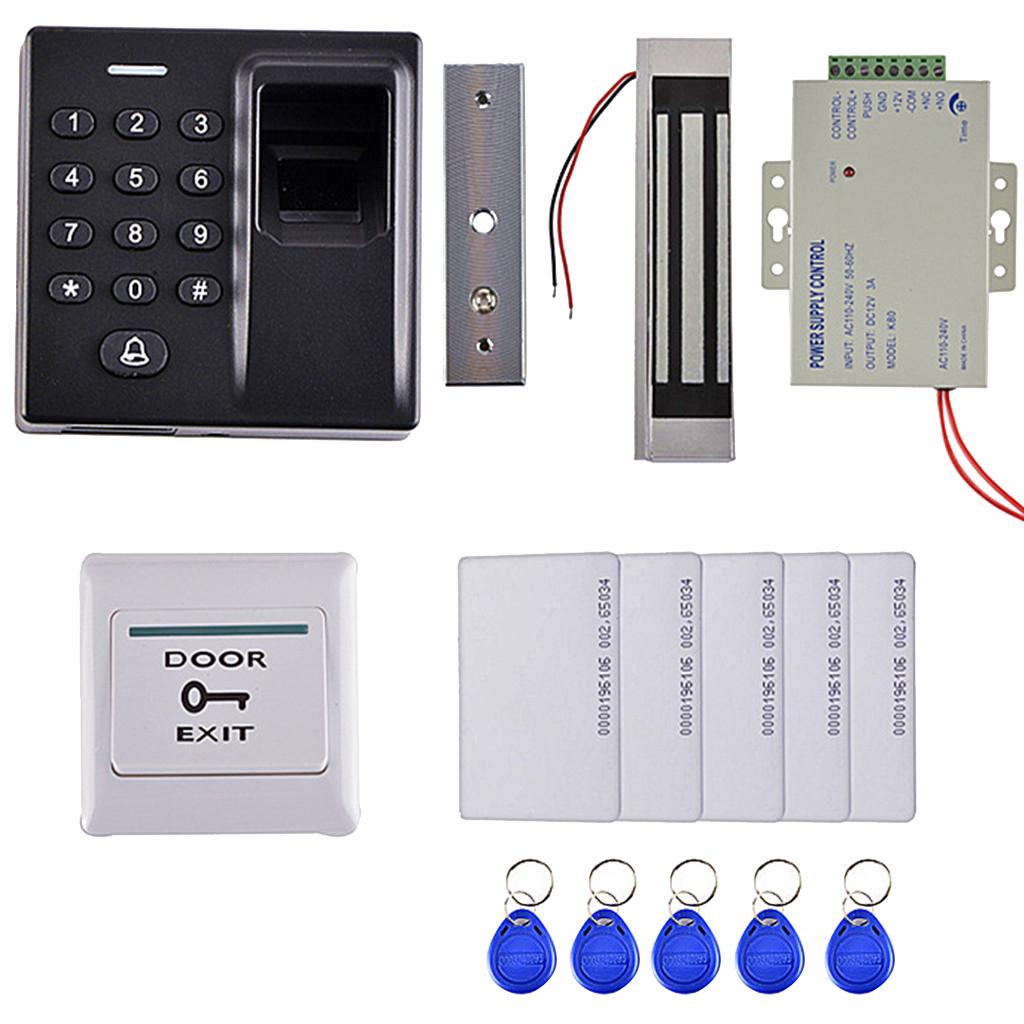

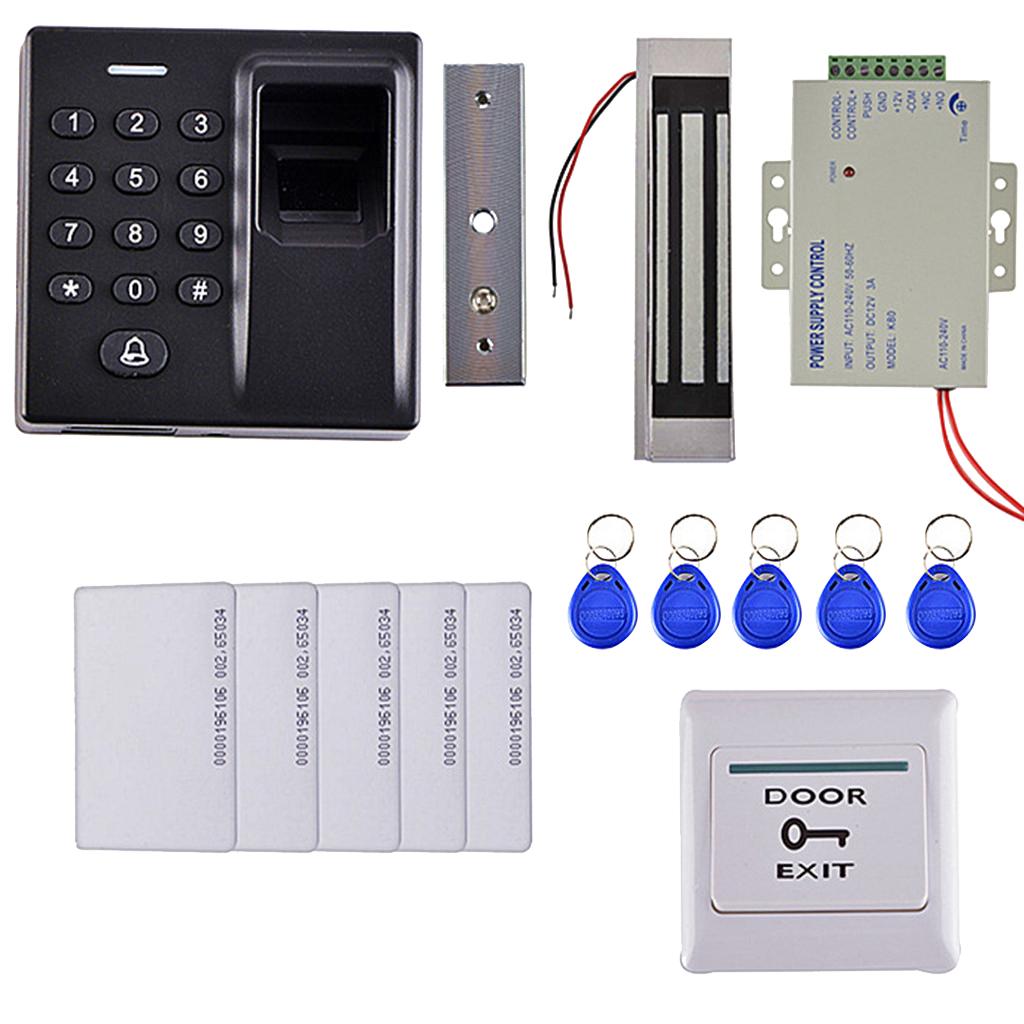

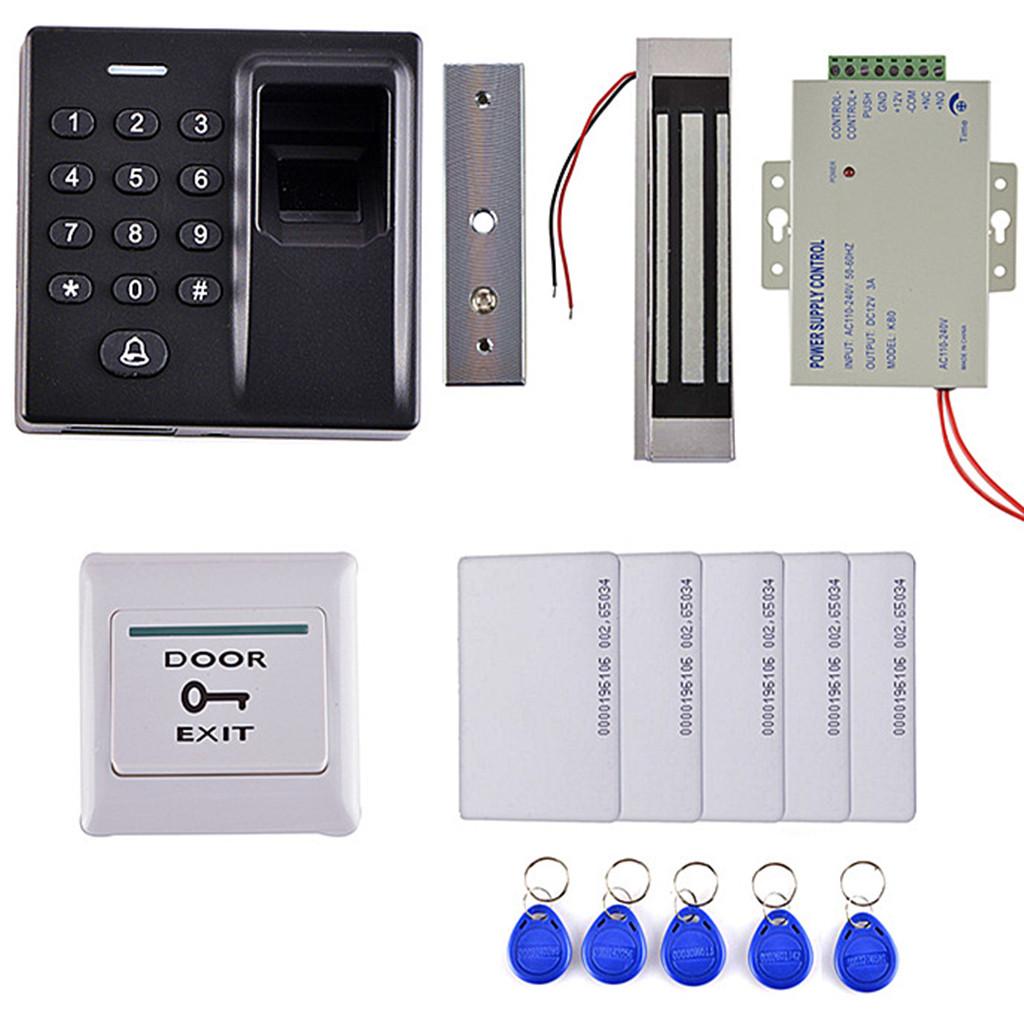

Package Includes:

1 Piece Access Controller
1 Piece Power Supply
1 Piece Electric Door lock
1 Piece Exit Button
5 Pieces Keyfobs

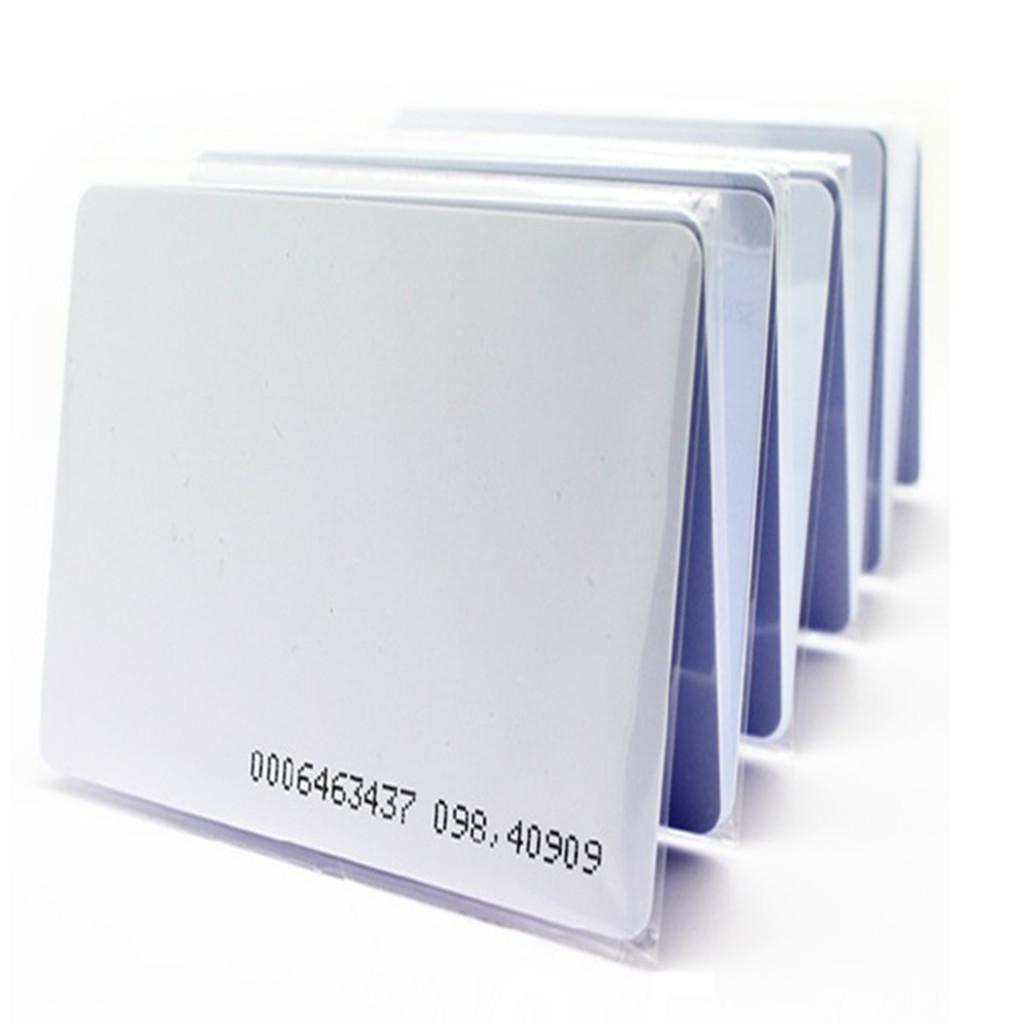

5 Pieces RFID Card
