1000-user RFID Access Control System Kit w/ Magnetic Lock ID Keyfob Doorbell
- Regular price
- Rs. 9,833.37
- Regular price
-
- Sale price
- Rs. 9,833.37
Earn 4916 Reward Points.
Learn More...
Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.
Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.
When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.
We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.
You will also be asked to provide an email address, to which we will send confirmation that your order was placed.
Couldn't load pickup availability
Details
- SKU: 53000426
- Brand: SFC
- Type: Home & Garden
- Availability: Out stock
Description
Description:

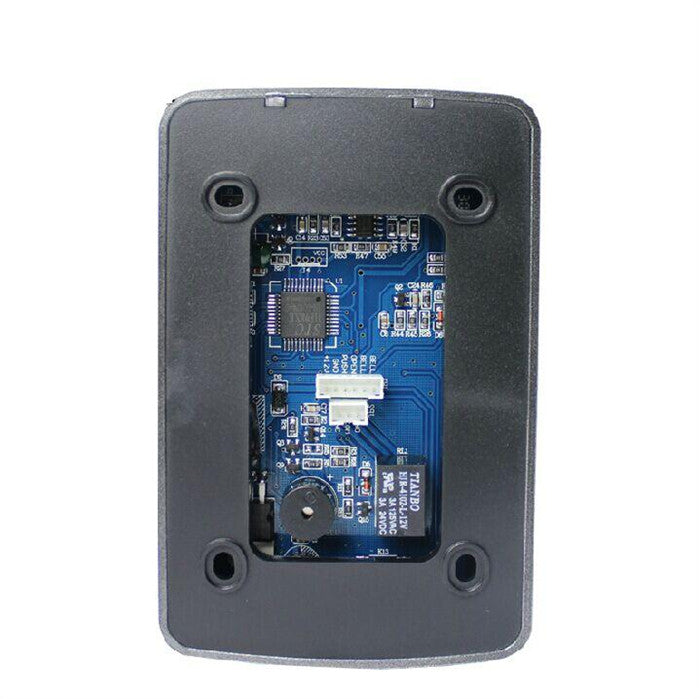

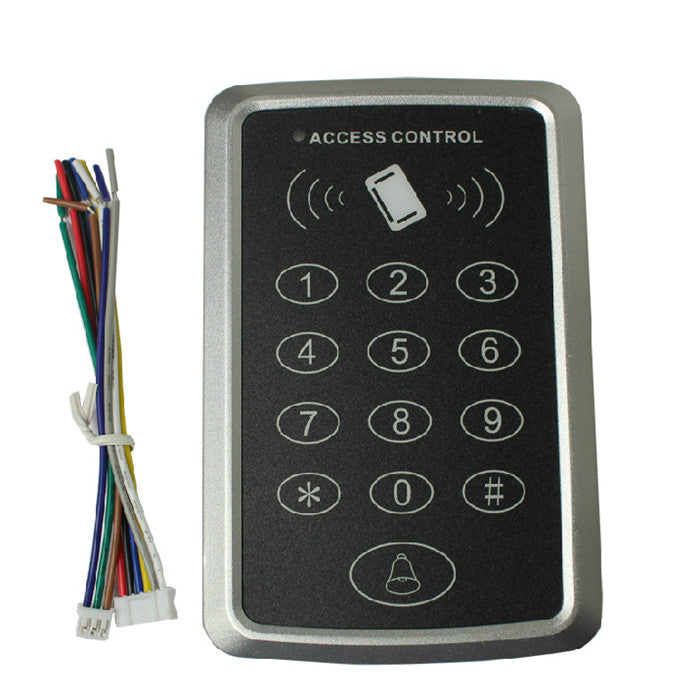

1. RFID Access control:
- Simple Programming, Easy Operation
- Adopt function steady card reader of blocks
- Keypad Locks for 30 Seconds after 10 False Entries
- Can be Connect with Door-open Button and Doorbell
- Tamper Switch can be Connect to Security Alarm System.
Specification:
|
Card Holders |
1,000 |
|
Frequency |
125 kHz |
|
Display |
Red-power , Black-access granted, Yellow-Beep |
|
Working Voltage |
+12VDC+(-)10% |
|
Working Current |
Less than 100mA |
|
Temperature |
-10°C~70°C |
|
Humidity |
20%~80%RH |
|
Dimensions |
88 x 88 x 21mm |
|
Box Dimensions |
120(L) x 78(W) x 22(H) mm |
|
Weight |
250g |
|
Reading range |
Within 10cm |

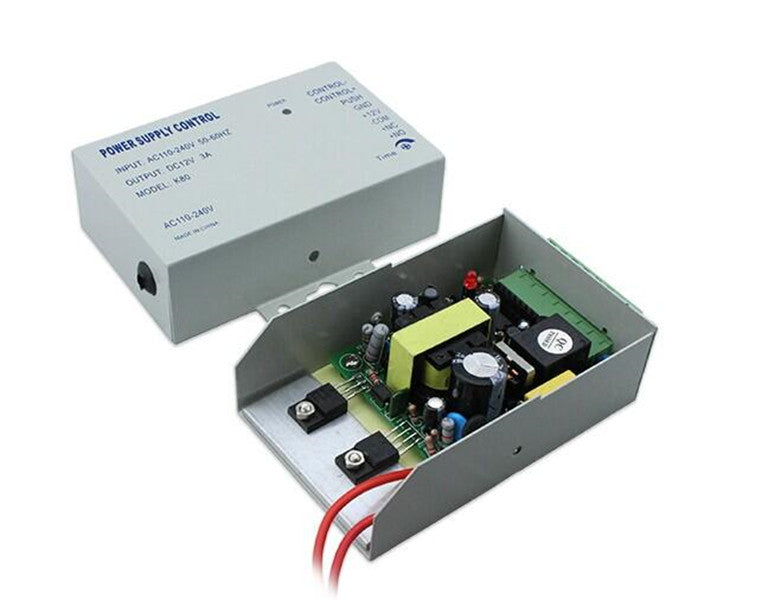

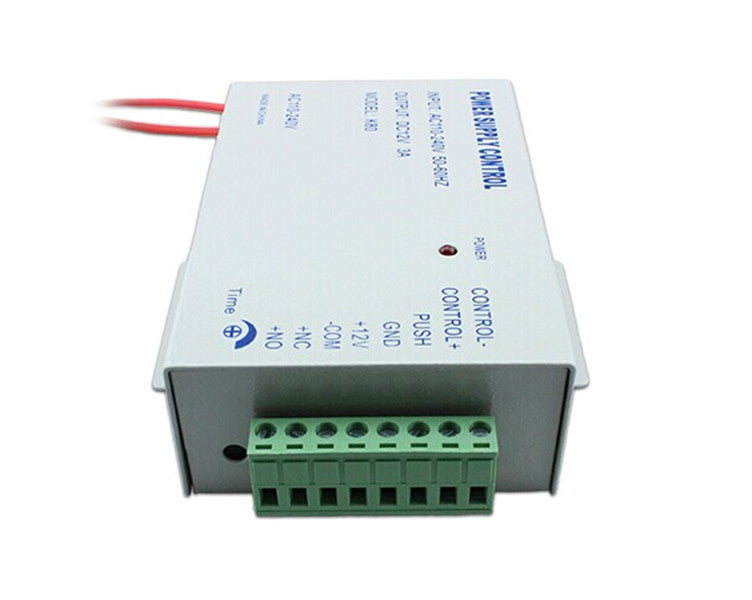

2. Power supply controller:
This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button.
- It controls electric lock directly;
- Help to reduce overload for access controller;
- Automatic protection function for unexpected short circuit or power off;
- NC/NO output modes selectable for various types of electric locks.
Specification:
- AC input: AC110V-240V
- DC output: DC12V/3A
- Package Dimension: 117mmx67mm8x32mm.

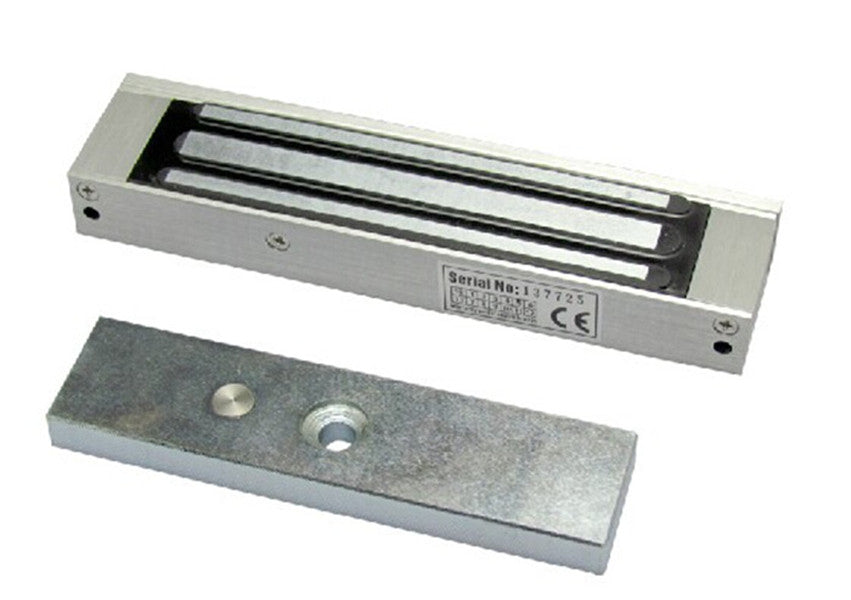

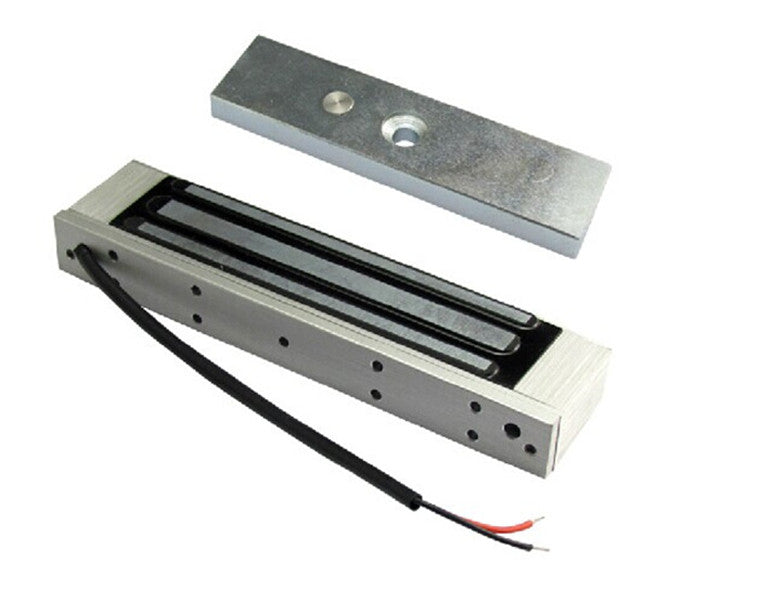

3. Magnetic Lock :
- It is a High-performance 180kg Holding Force electric magnetic lock which suits for many access control system.
- NC Mode - (Locked while supplied with power) Fail Safe Mode
- Performance Testing: 1000000 times aging test
- Suitable For: Wooden Door, Metal Doorr, Fireproof Door, Glass Door, etc.
- Safety function: Built-in voltage spike suppressor
- Anti-Residual Magnesium Designed.
Specification:
- Voltage: 12V DC
- Current: 400mA
- Mode: NC (locked whilst power supply is operating), fail
- Safe mode
- Application: wood, iron doors
- Faceplate dimensions: 130 x 32 x 11mm
- Main body dimensions: 170 x 32 x 21mm
- Construction: stainless steel
- Holding force: 180KG

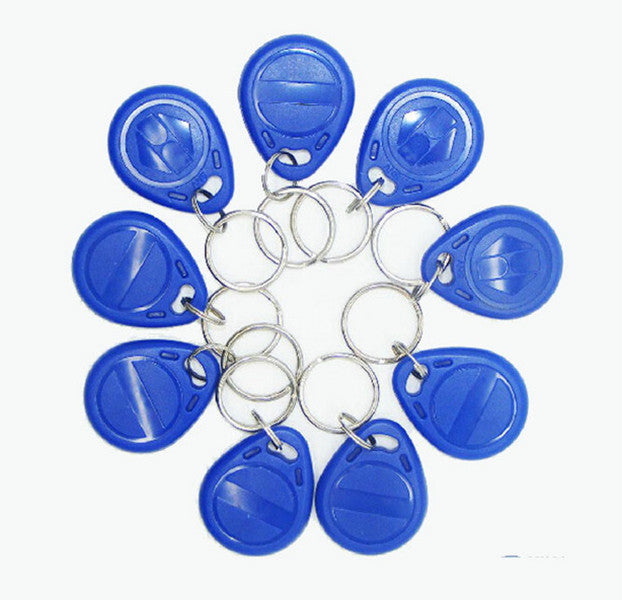

4. RFID Card:
This is the 125KHz RFID Proximity Card, it can work with the product which has the RFID card reader.
- Operation Frequency: 125KHz
- Detecting distance: 8-10cm
- Thickness: 0.8mm
- Size:55mm x 86mm x 0.8mm
- Each card pre-programmed with a uniqe ID, which is printed on it.
Specification:
- Detecting distance: 8-10cm
- Dimension: 55mmx86mmx0.8mm
- Thickness: 0.8mm

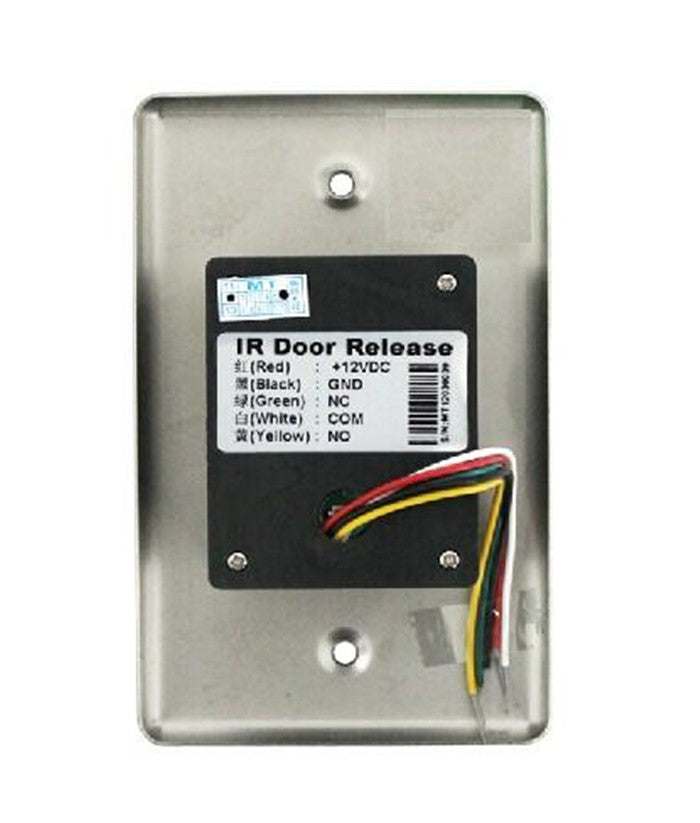

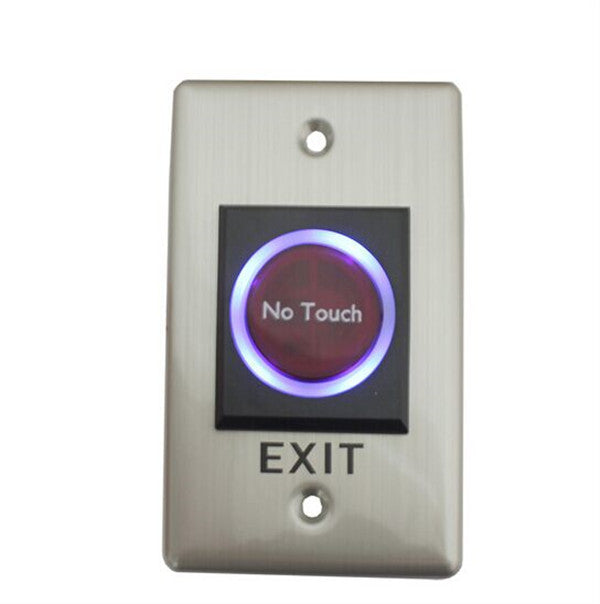

5. Exit button:
- Optical / Infrared Technology
- IP-55 Ingress Protection / SUS 304 Stainless steel Plate
- User friendly (Healthy protection)
- Free from contagious diseases spread
- Detection range: 0.1 ~ 10 cm
- Application: Gate/Door/Exit/Automation control
- High capacity of relay dry contact (3A/AC120V,DC30V)
- Normally open/Normally close/Common relay output
- Twin led indicators for sensor standby or approached :
- (1) Sensor Standby: BLUE LED ON
- (2) Visitors whom approached to the sensor in 10 cm : RED LED ON
Specifications:
- Contact Rating: 3A/AC120V,DC30V
- Input Volt.: DC 12V
- Simple and clear for operation.
- Operation temperature range -20C -55C
- Life: 100,000 Times
- Durable stainless steel plate
- Dimension: 115x70x29(mm)
- Weight: 85g

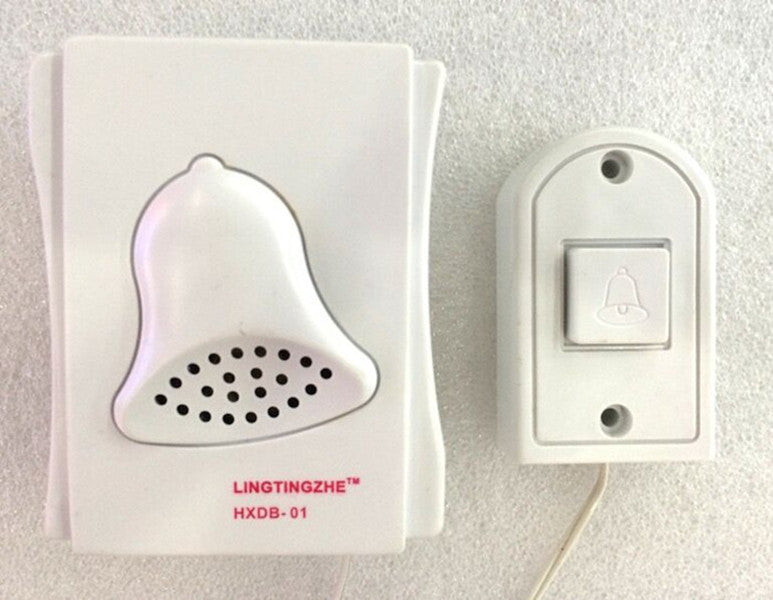

6. Door Bell
Guide:
- Lock red cable to power nc
- Lock black cable to power com
- Access +12v to power +12v
- Access gnd to power gnd
- Door button red to push
- Door button black to gnd
- Doorbell 2 cables to access doorbell

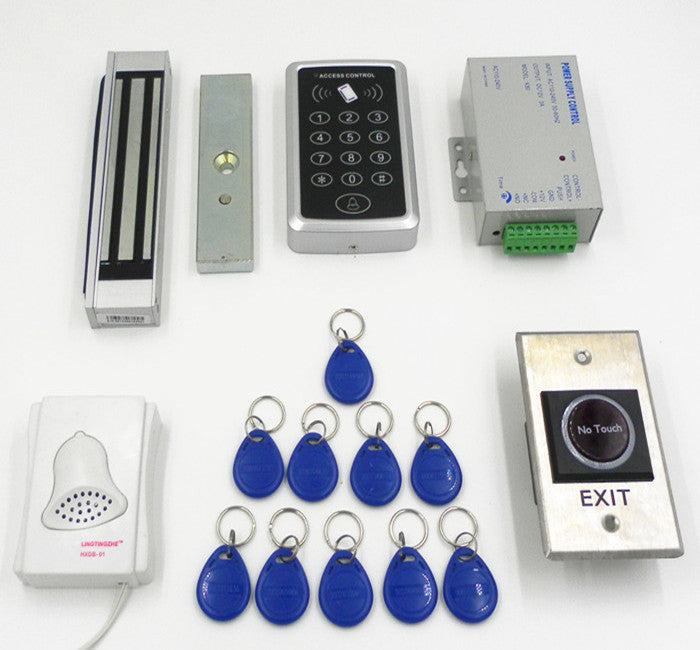

Package Includes:
- 1 x Access control keypad
- 1 x Electricmagnetic lock
- 1 x Power supply
- 1 x No Touch Exit button
- 1 x DoorBell
- 10 x Keyfob
