CNC kit / CNC Shield V3.0 + uno R3+4 Pieces a4988 Driver / GRBL for Arduino

Regular price
Rs. 3,524.28
Regular price
Sale price
Rs. 3,524.28
Earn 1762 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60002035
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Description:

Latest CNC Shield Version 3.

GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)

4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)

2 x End stops for each axis (6 in total)

Spindle enable and direction

Specification:

Coolant enable

Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)

Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )

Compact design.

Stepper Motors can be connected with 4 pin molex connectors or soldered in place.

Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Size: Approx. 6.9x 5.3x 1.9cm/ 2.72x 2.09x 0.75inch

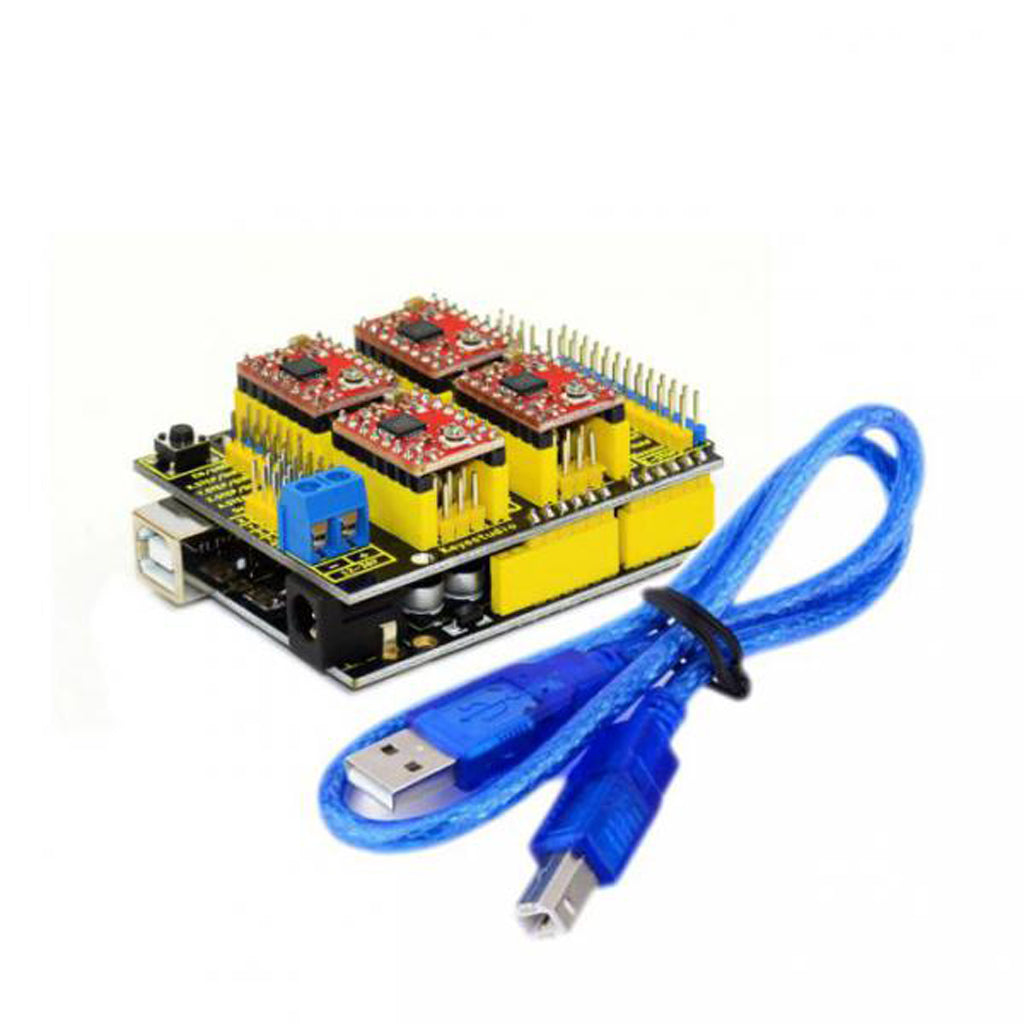

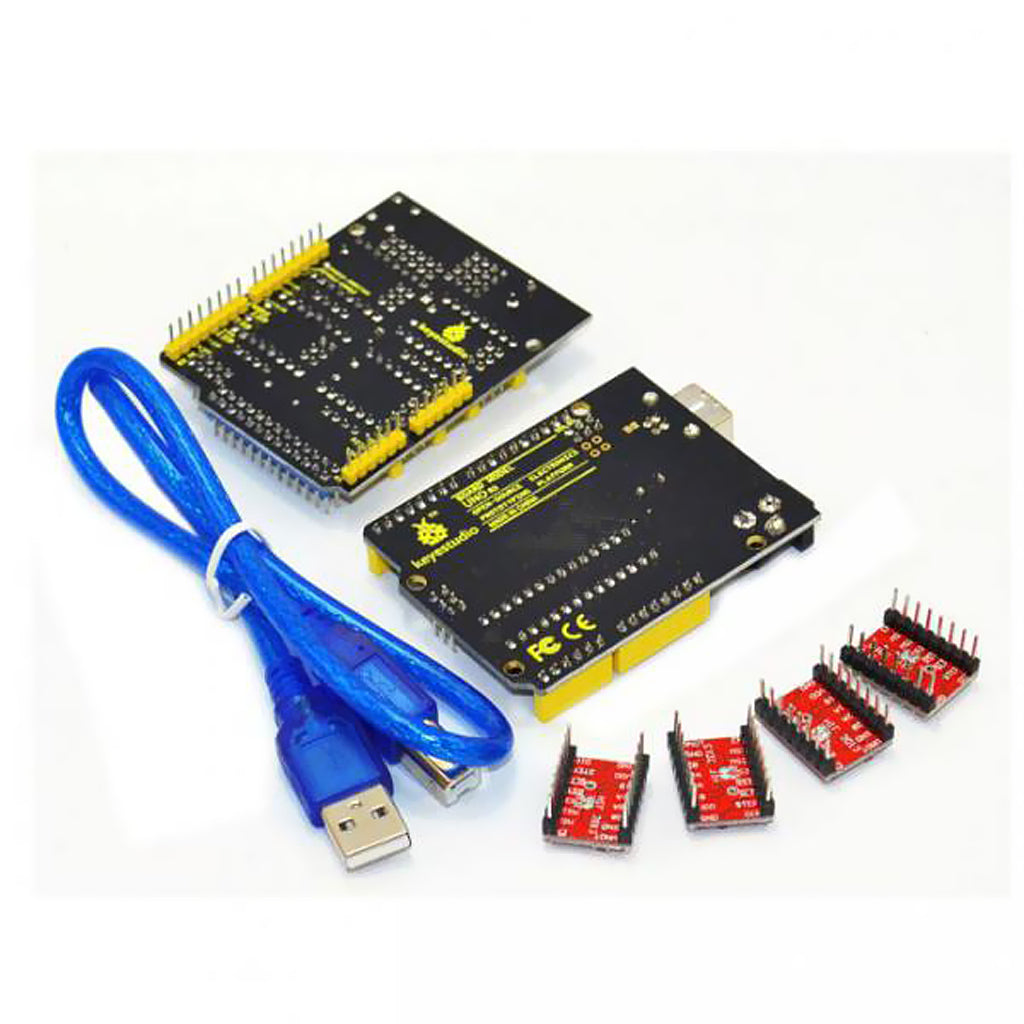

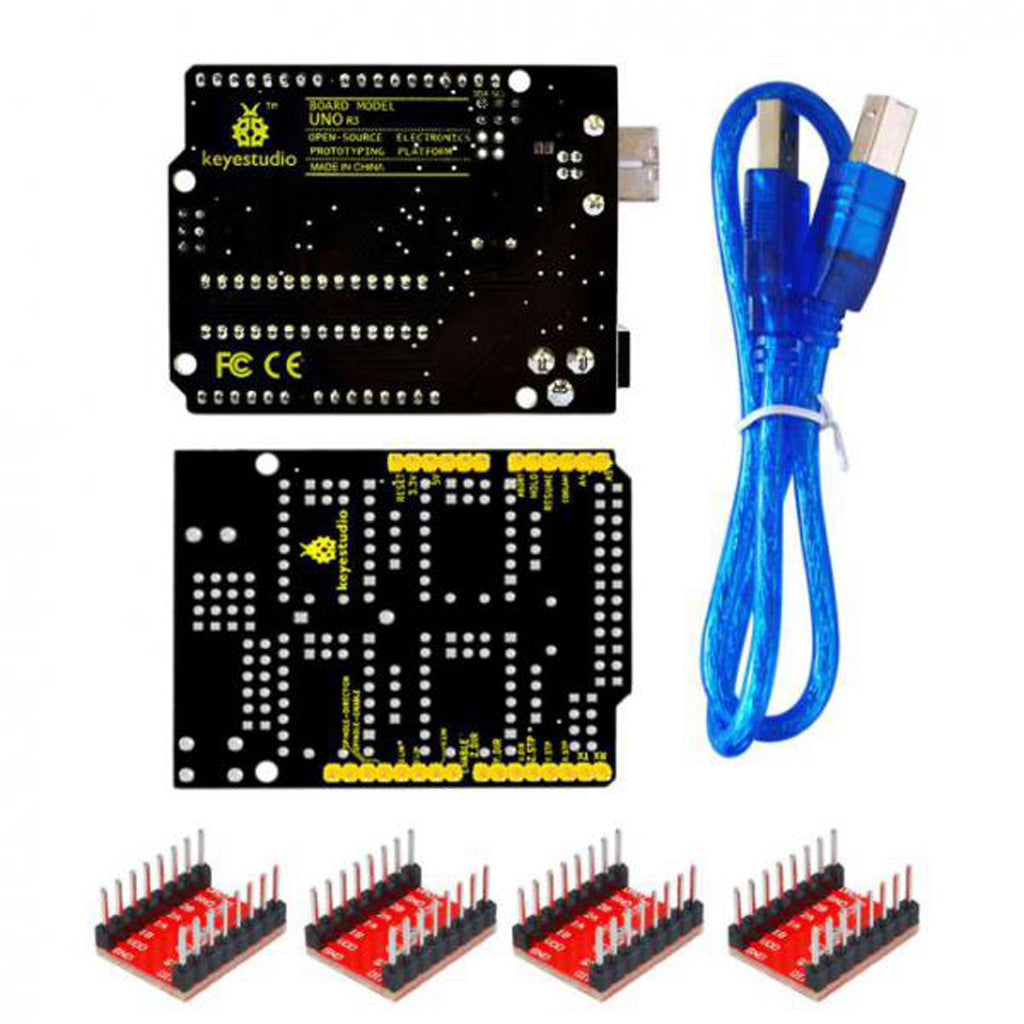

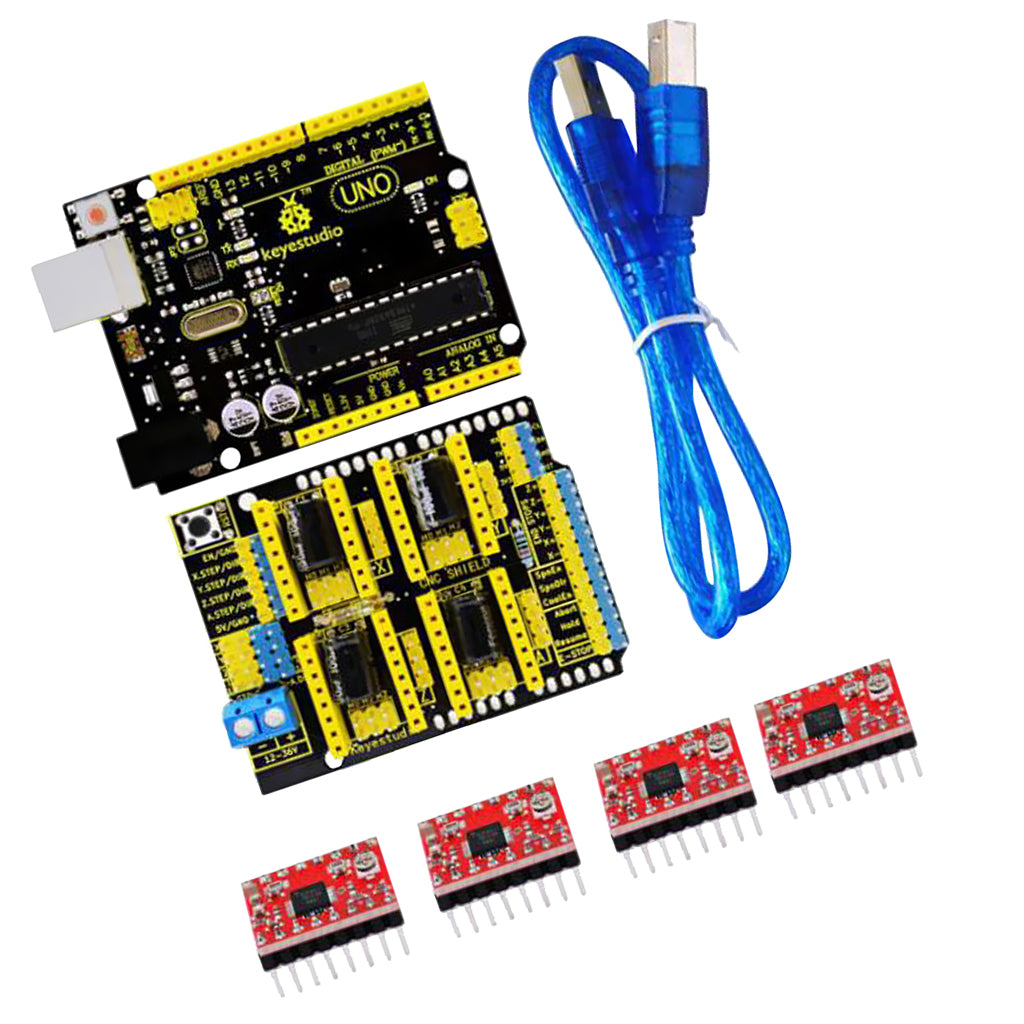

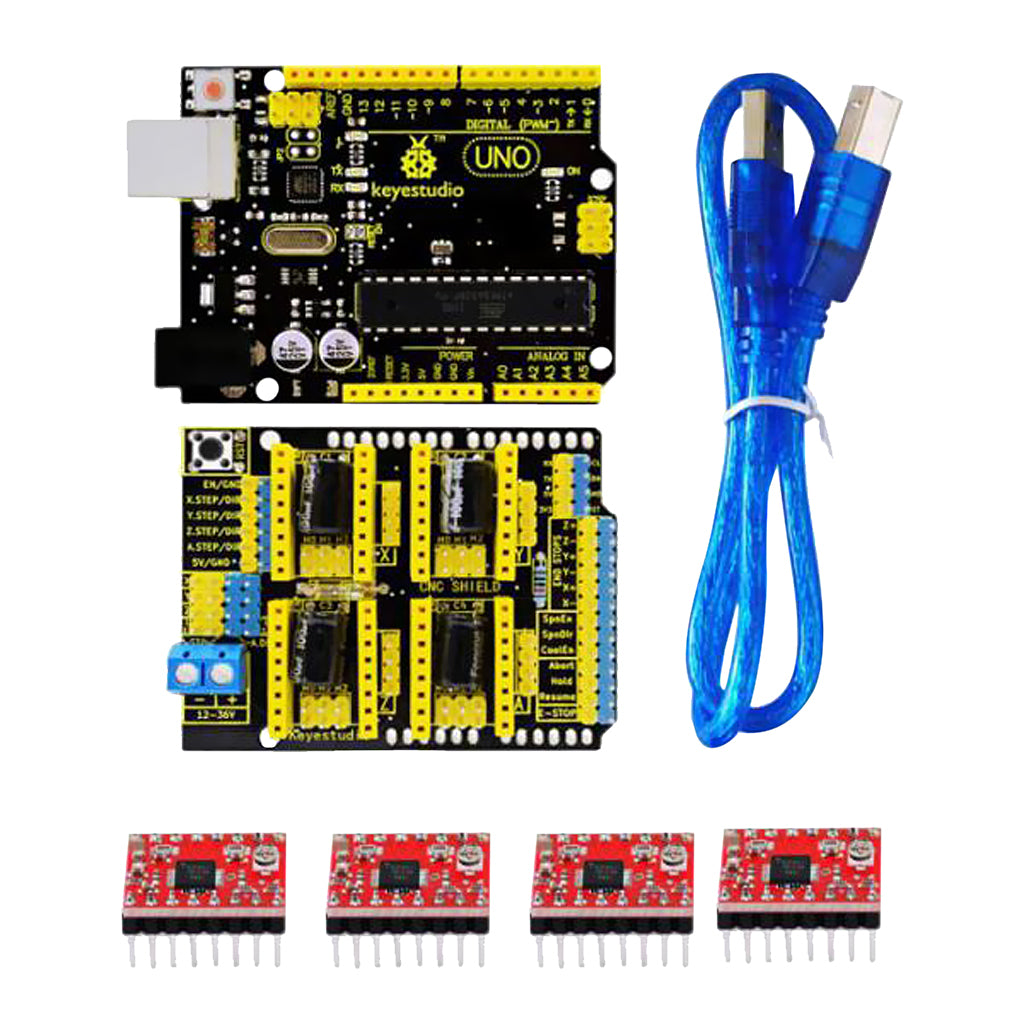

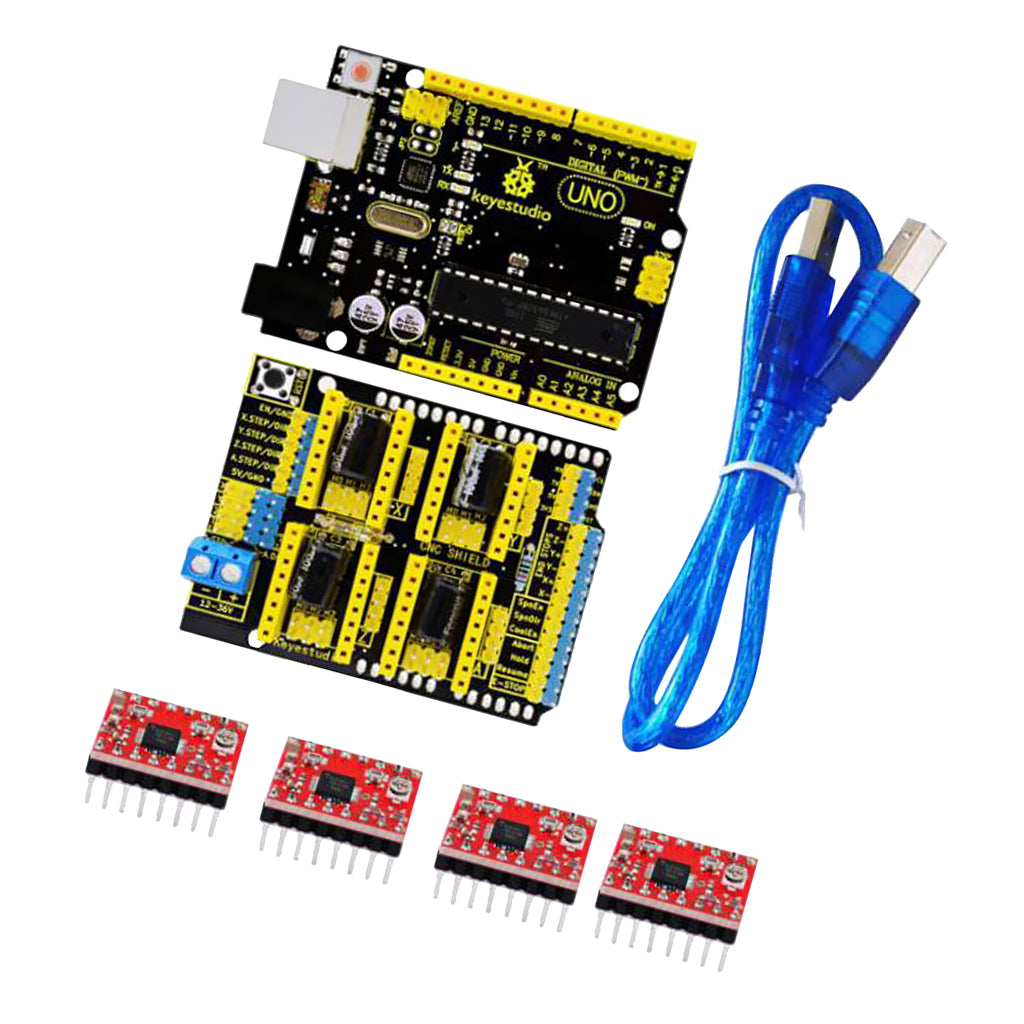

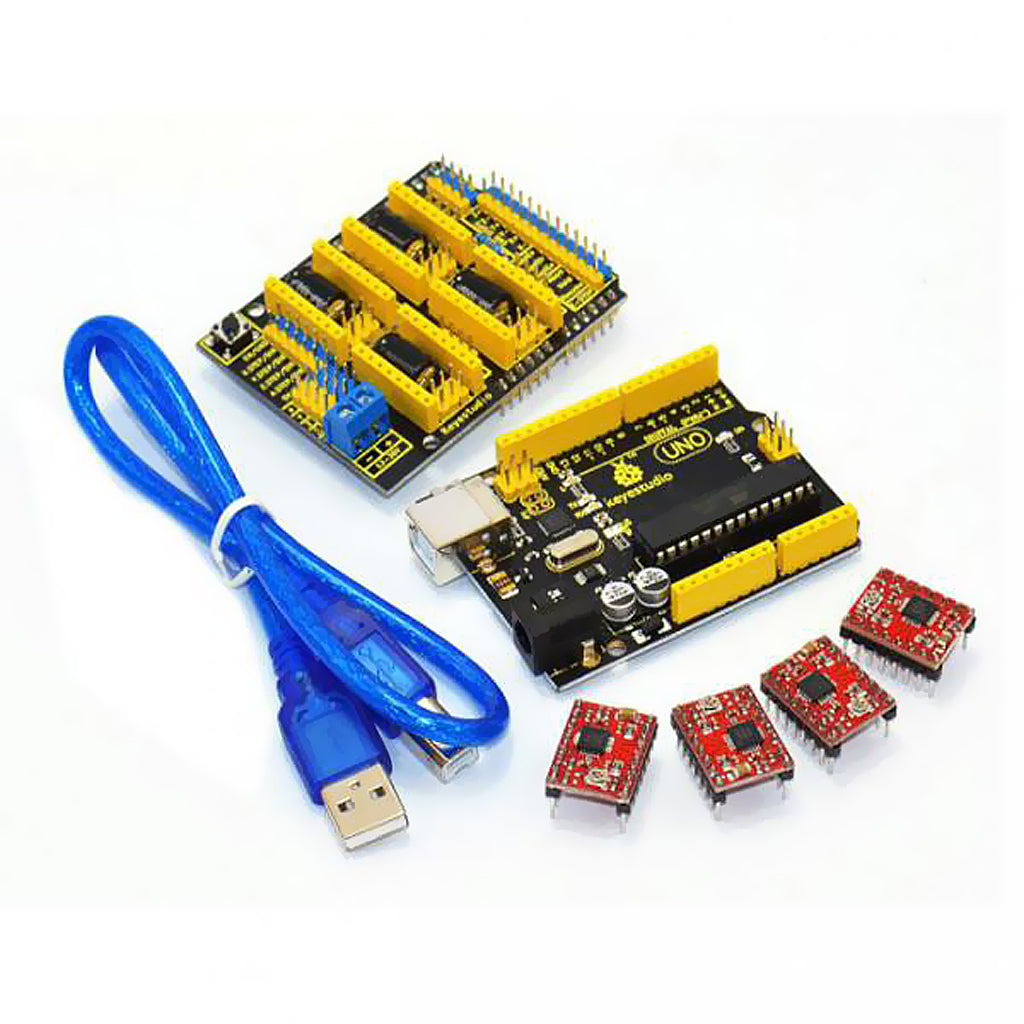

Package Includes:

1 Piece CNC Shield V3.0

1 Piece Keyestudio uno R3 board

4 Pieces A4988 driver

1 Piece USB cable

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
