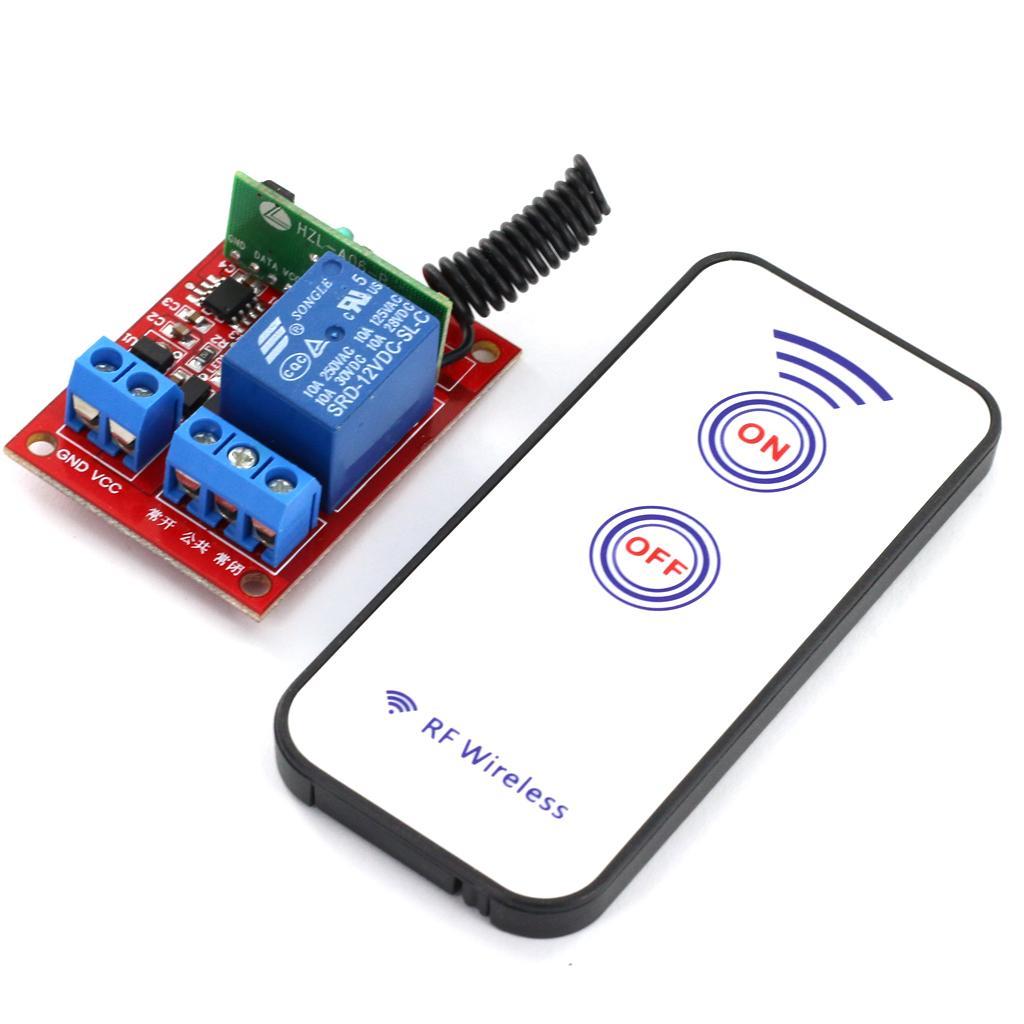

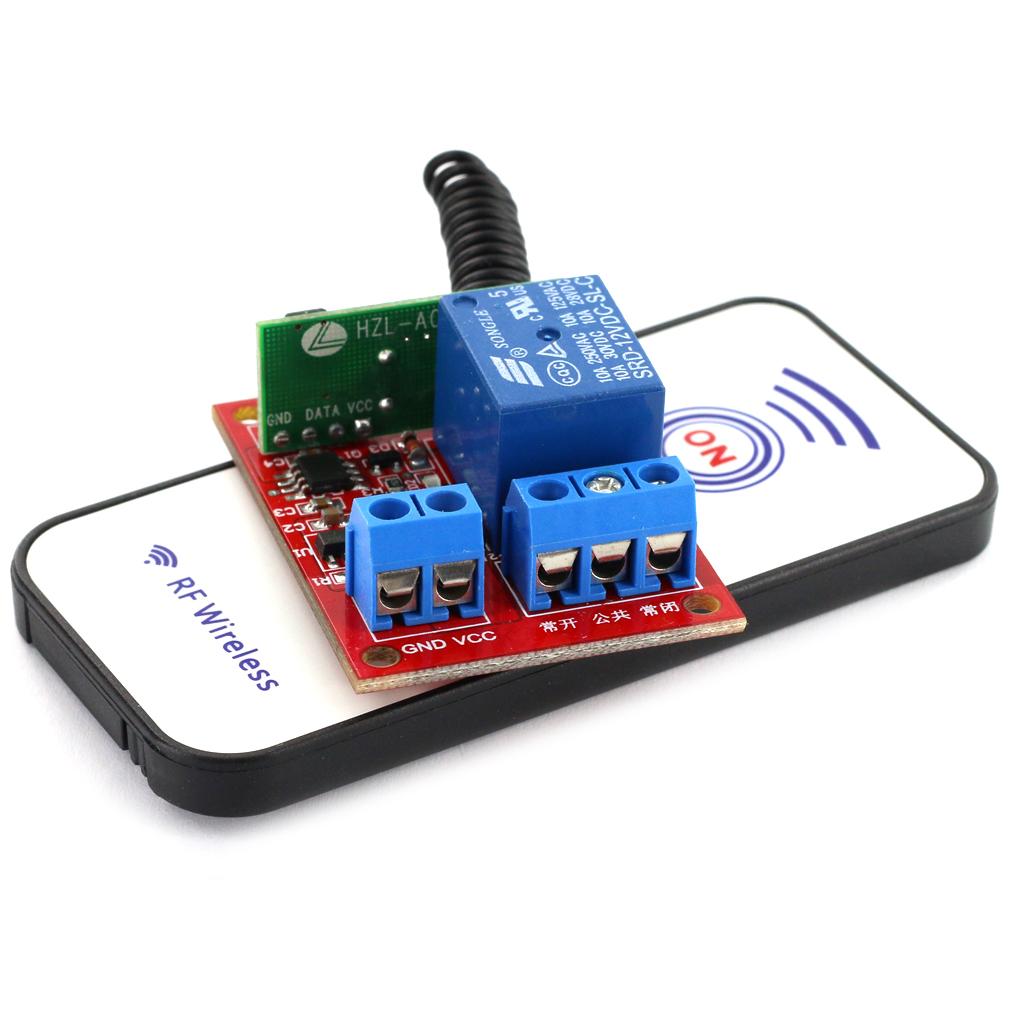

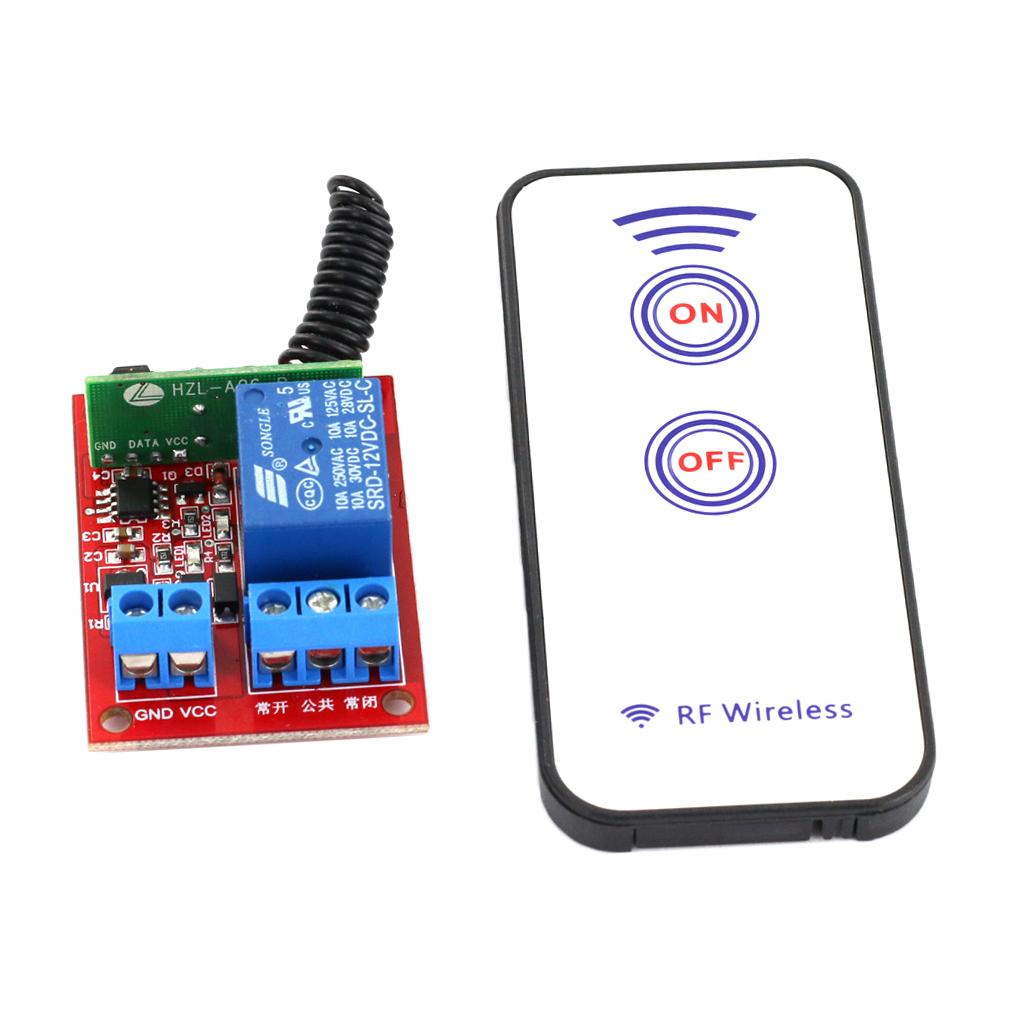

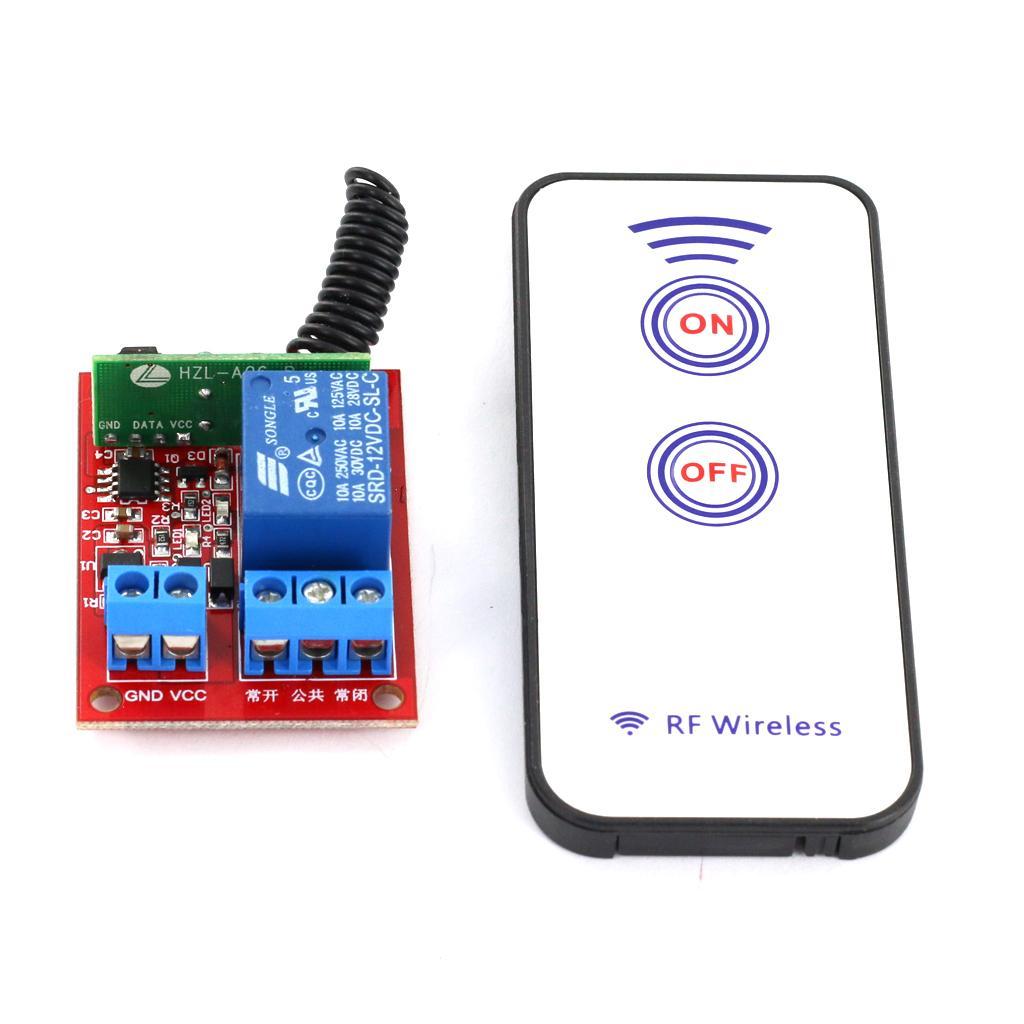

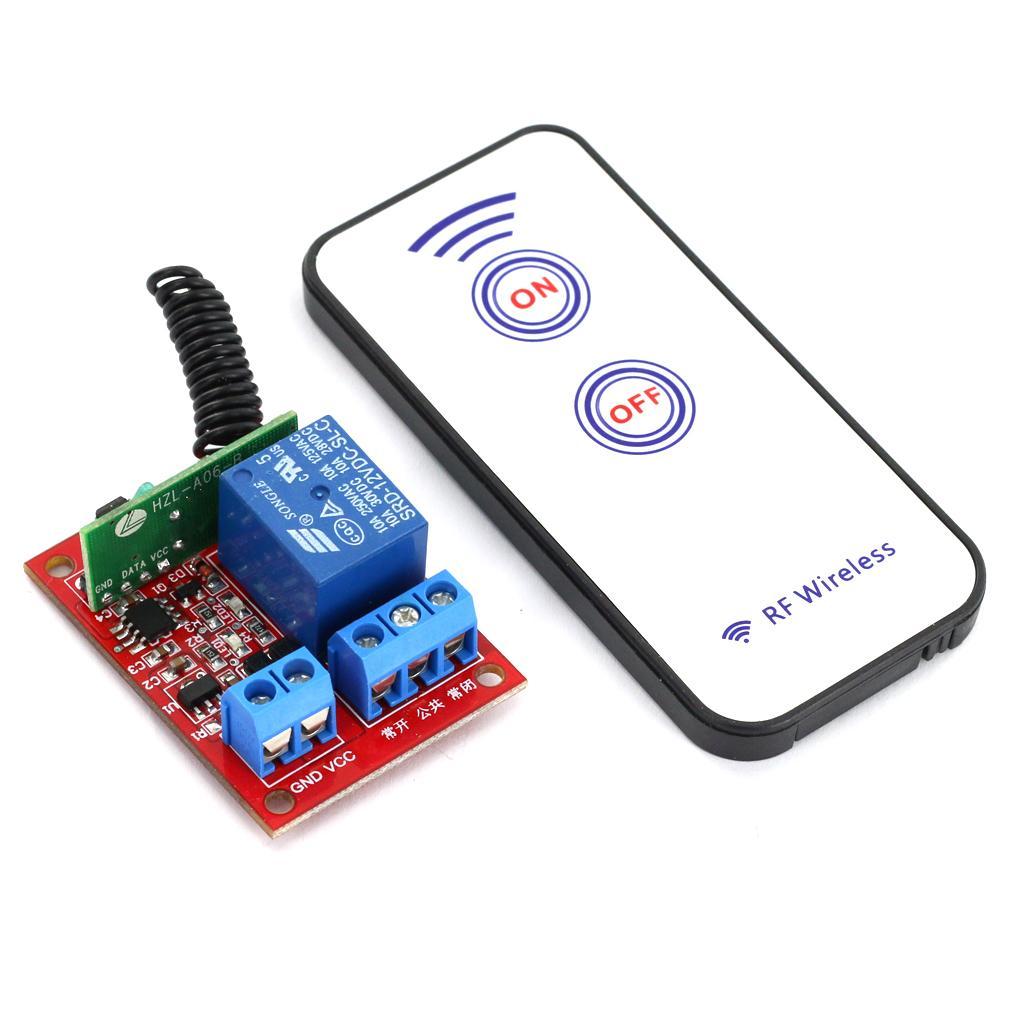

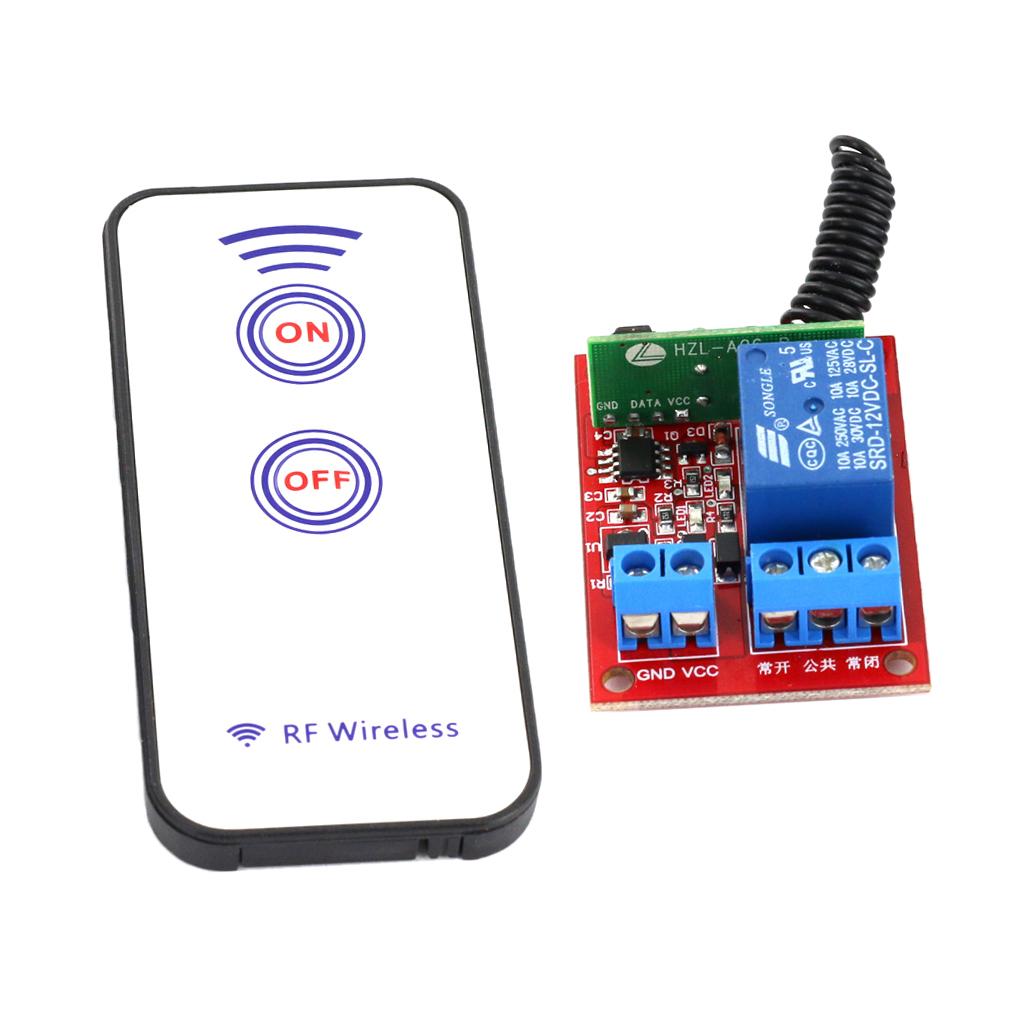

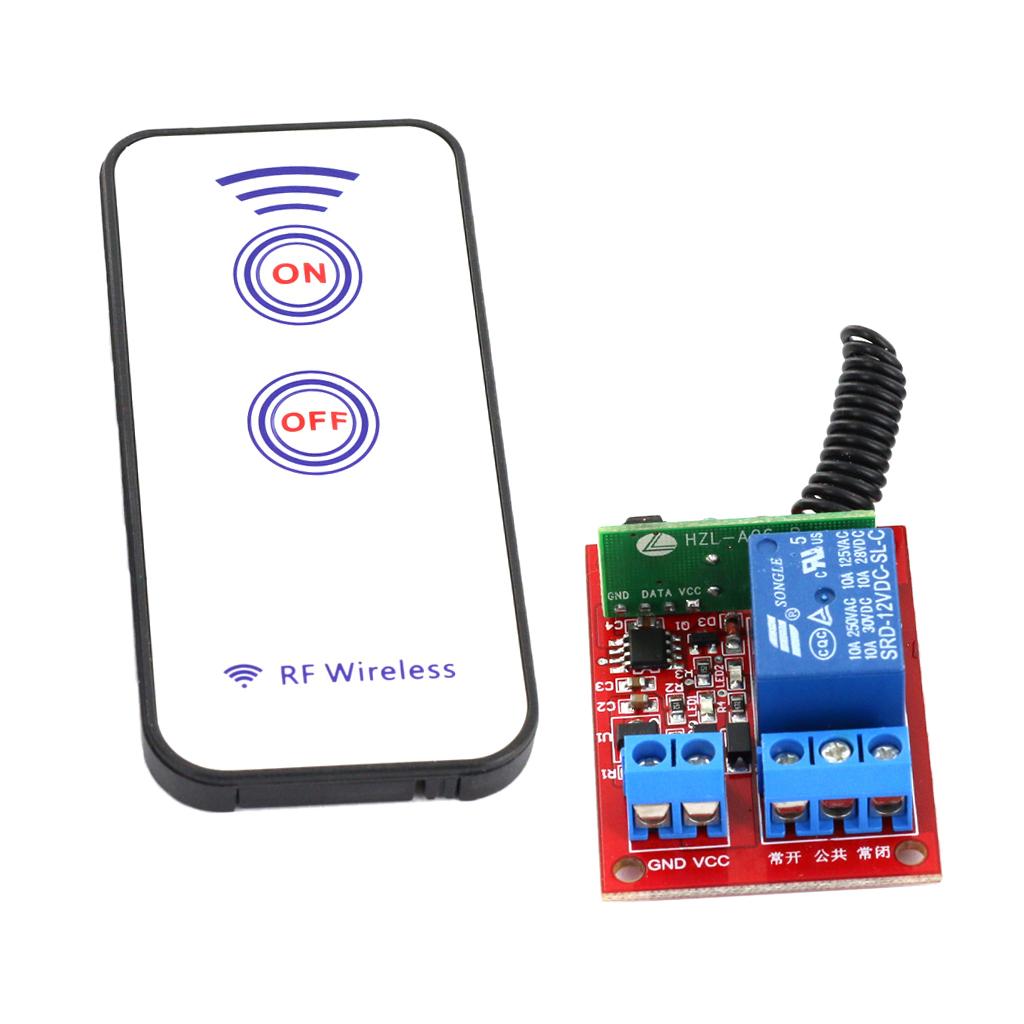

12V One Channal RF Wireless Relay Module with Remote Control

Regular price
Rs. 819.30
Regular price
Sale price
Rs. 819.30
Earn 409 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14011958
  • Brand: SFC
  • Type: Consumer Electronics
  • Availability: In Stock
Description

Specifications:

  • Operating voltage:11.5-12.5V VCC
  • Operating current:Approx 40mA (relay close status)
  • Quiescent current: Approx 6mA (relay release status)
  • Module Size (L x W):35*48mm /1.4*1.9 inch

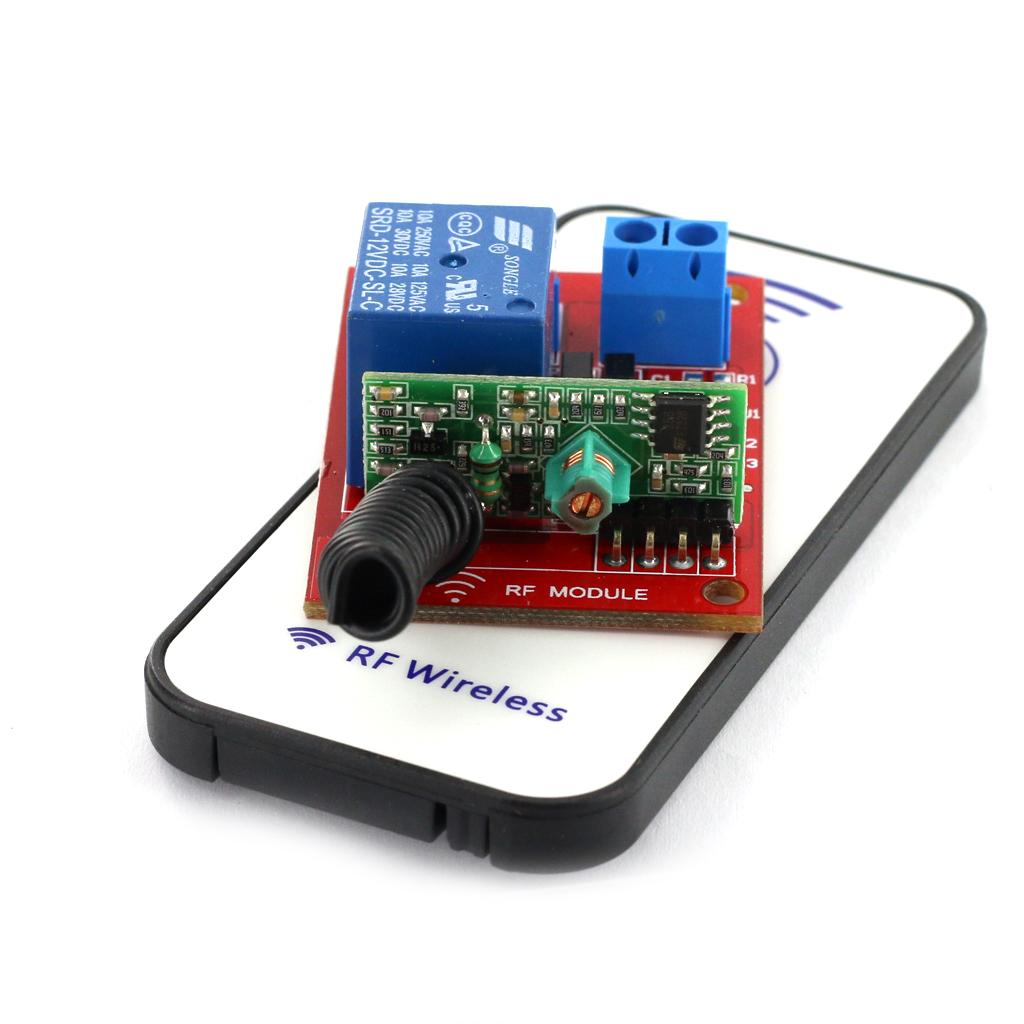

  • Module Type: 433M RF wireless receiving
  • Receive distance: 15-30m (can through the wall)
  • Operating mode: Self-lock
  • Work instructions: LED1 (power indicator), LED2 (relay switch indicator light)

Features:

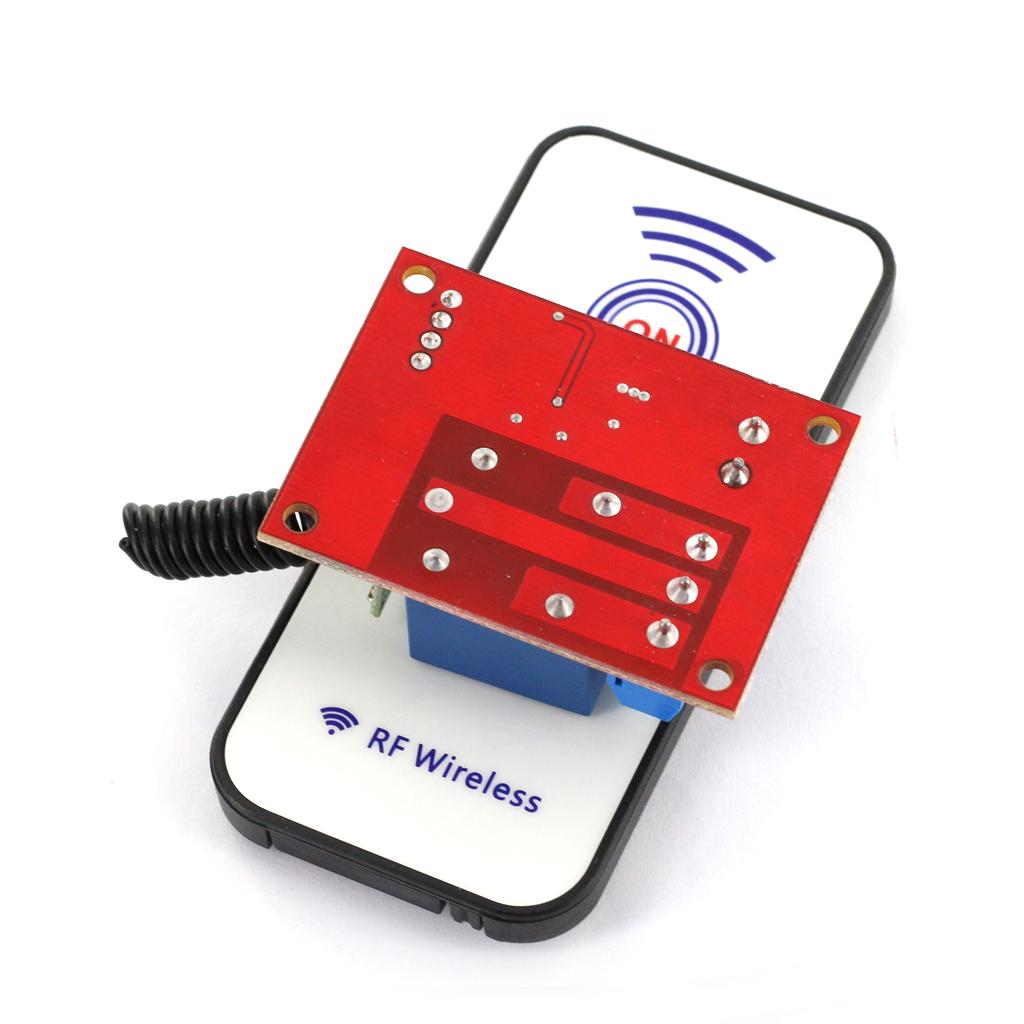

  • The module with four 3 mm screw hole, easy to use
  • Suitable for domestic & abroad customers
  • Send with remote controller, portable and convenient
  • Press the “on” button on the remote controller after the module gets through electric, the relay will in close status
  • Press the “off” button on the remote control, the relay will in release status
  • The receive board must use with the wireless remote controller, it won’t identify other wireless remote control (unless with the same code value)

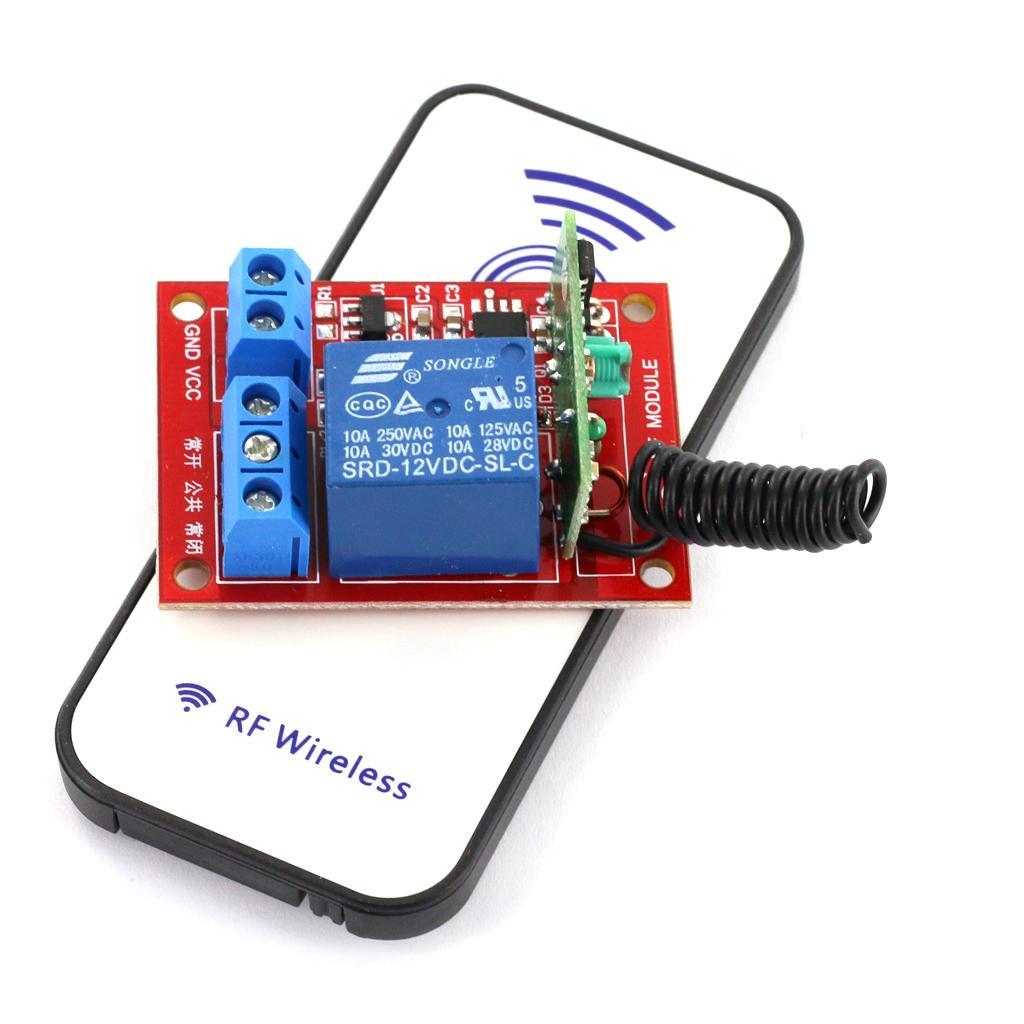

  • The load capacity of this relay is: 250VAC-10A、125VAC-10A、30VDC-10A、28VDC-10A, can drive most of the household appliances or other equipment to achieve remote control function, such as control the lamp, TV…

Package Includes:

  • 1 x Relay Module
  • 1 x Remote controller
