W5500 Ethernet Network Module Hardware TCP/IP 51/STM32 Monolithic Program

Regular price
Rs. 780.19
Regular price
Sale price
Rs. 780.19
Earn 390 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73004884
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

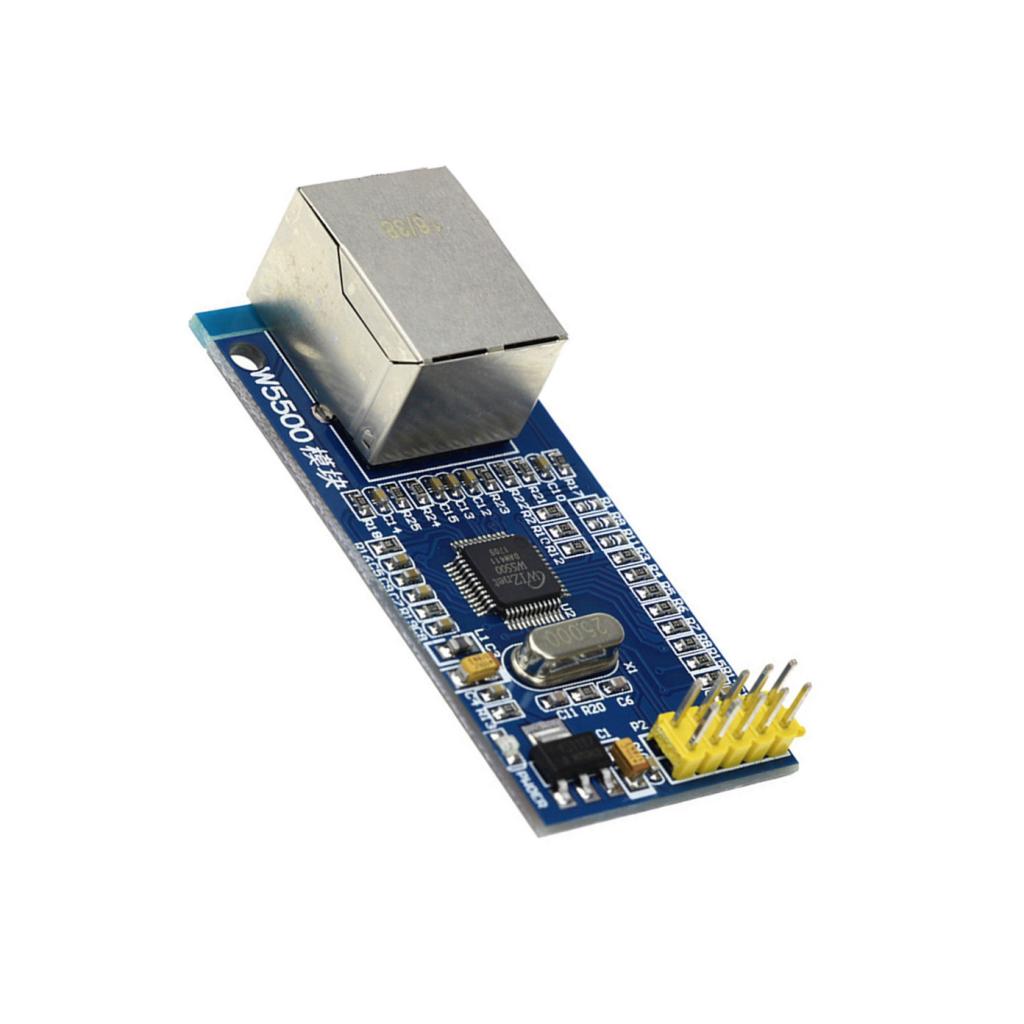

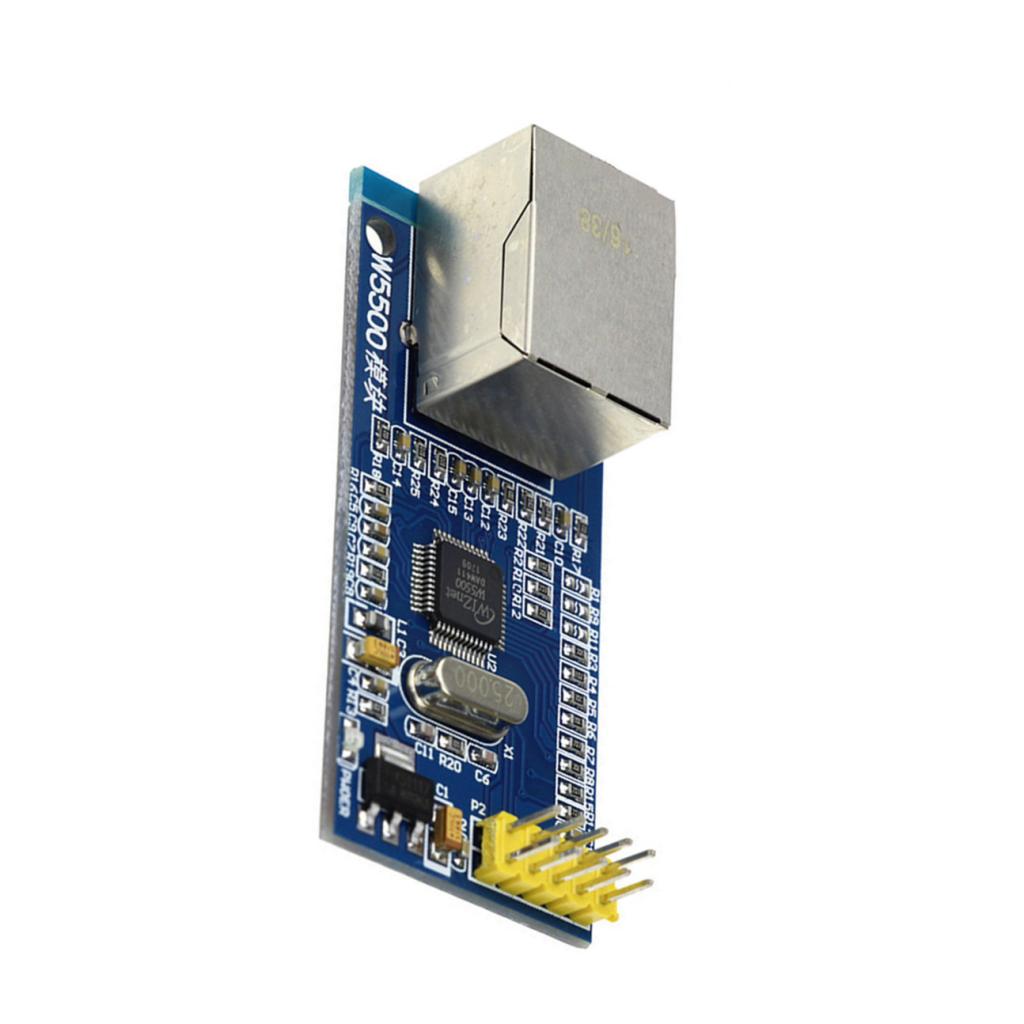

The W5500 module is based on the Ethernet WSi500 new chip W5500 module, the module integrates the entire hardware TCP / IP protocol stack, without the need to implement the TCP / IP protocol stack.
Supports transfer rate of 10 / 100MBPS.
Sleep mode and Wake on LAN are supported in the integrated 32K TX / Rxlev cache.

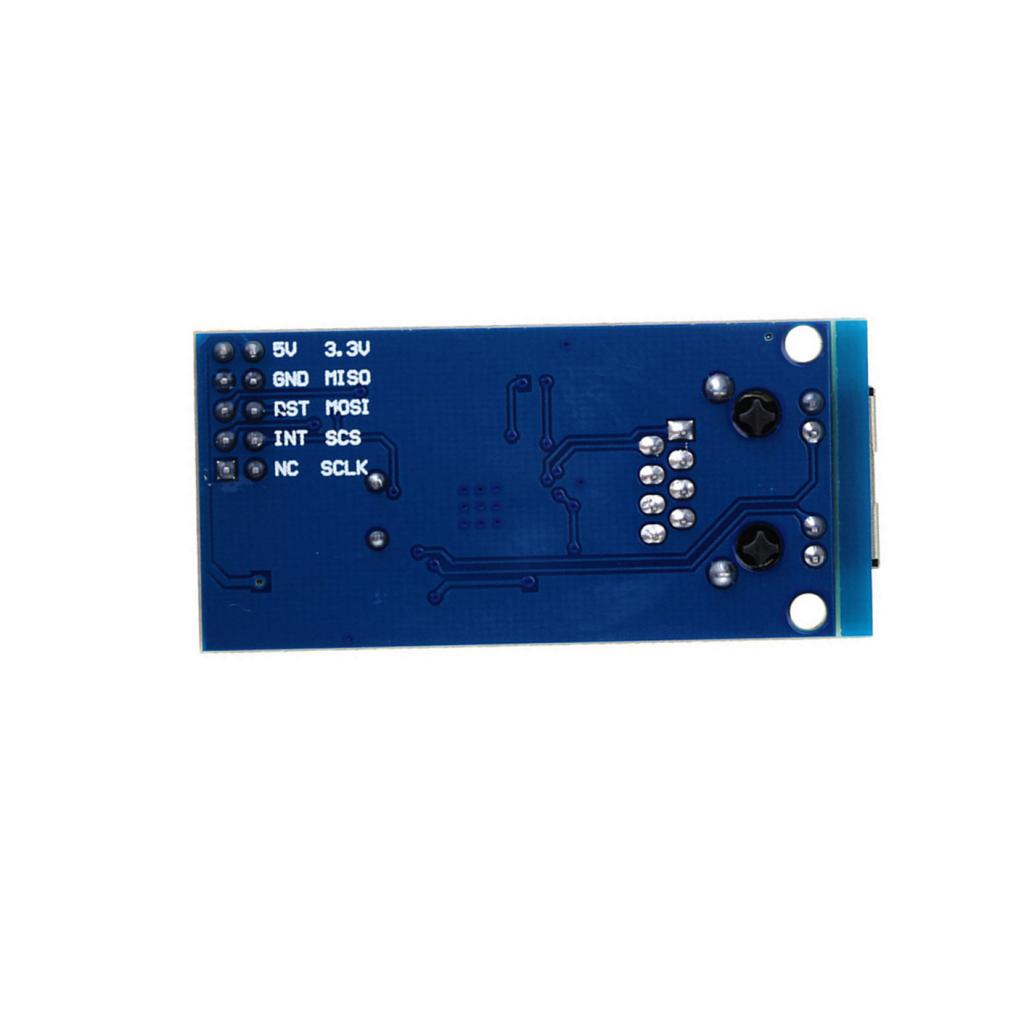

Support 8 independent ports to run at the same time, Module supports 3.3V or 5V power supply, which is convenient for users to use in SCM system. Module and MCU system communication mode is SPI protocol.
Support SPI clock frequency up to 80M, provide STM32 and 51 SCM client, server, three UDP routine modes.

Specification:

Hardware support TCP / IP protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, IGMP, PPPoE and Ethernet.
Supports eight independent ports (sockets).
It provides sleep mode.
WOL provided.
Support high-speed SPI bus (SPI mode 0,3).
32K bytes of internal memory as TX / Rxlev buffer.
Embedded 10 / 100Mbps Ethernet Physical Layer.
It supports auto-negotiation (10 / 100Base full / half duplex).
IP fragmentation is not supported.
3.3V operating voltage, I / O port can withstand 5V voltage.
Multiple indicator signal output (full / half duplex mode, network connectivity and network speed).

Package Includes:

1 Piece W5500 Ethernet Network Module
