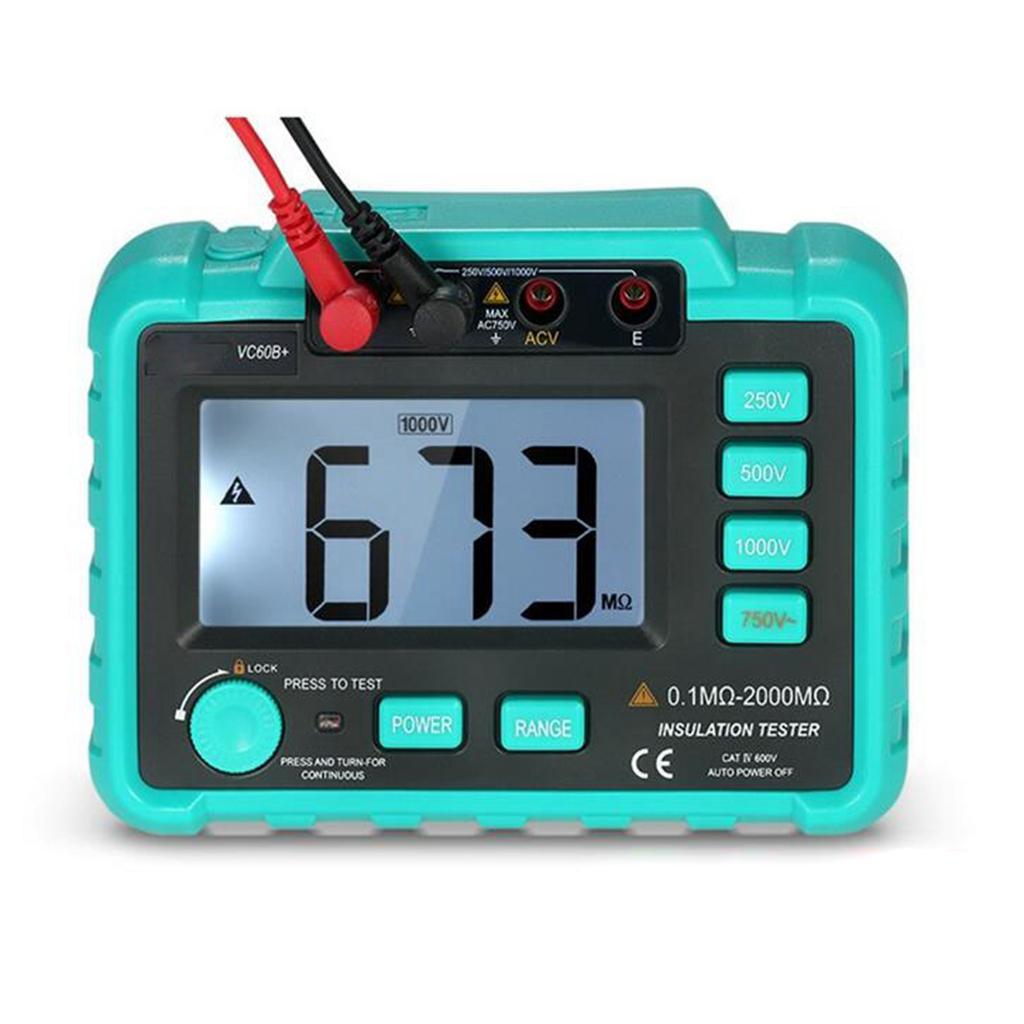

VC60B+ Auto-Ranging Megohmmeter Insulation Resistance Meter 2000MΩ 1000V

Regular price
Rs. 6,856.23
Regular price
Sale price
Rs. 6,856.23
Earn 3428 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73007539
  • Brand: SFC
  • Type: Electrical & Test Equipment
  • Availability: Out stock
Description

Description:

Wide measuring range: up to 2000MΩ 1000V with accuracy of ±(4% of reading+2 digits).
Large LCD display(90 * 48mm), with backlight, max. display "1999".
Data hold and auto power off function.
Over range indication: display "1".
Low power consumption: less than 300mW at no-load measurement.
Applied in insulation resistance testing of motors, cables, electrical equipment, telecommunication equipment, etc

Specification:

Color: Dark Grey + Green
Material: ABS
Output Voltage: DC250V/500V/1000V, ±10%

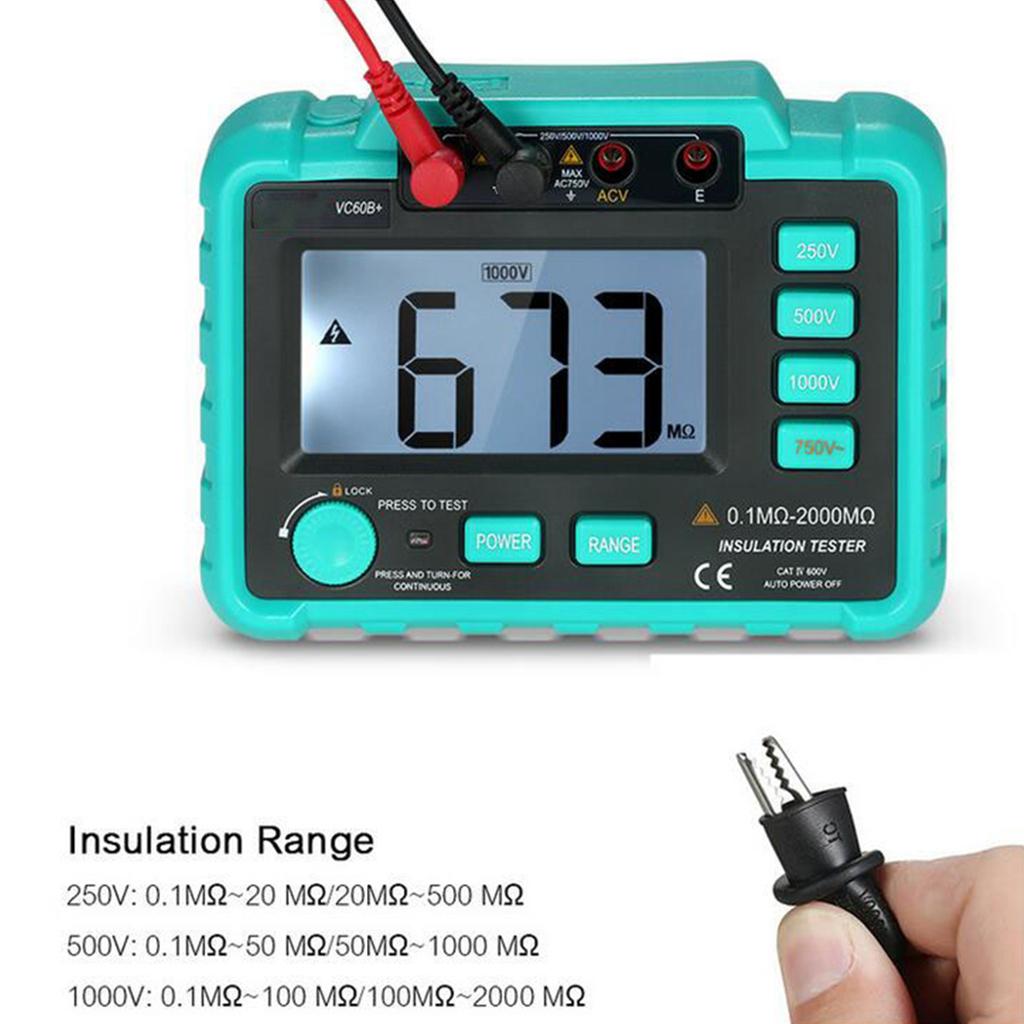

Insulation Range: 250V: 0.1MΩ~20 MΩ/20MΩ~500 MΩ; 500V: 0.1MΩ~50 MΩ/50MΩ~1000 MΩ; 1000V: 0.1MΩ~100 MΩ/100MΩ~2000 MΩ
Accuracy: ±(4% reading + 2 digits)
Short-circuit Current:<1.6mA
Median Resistance: 250V/500V: 2MΩ; 1000V: 5MΩ
Terminal Position: L & E
Voltage Test: AC750V; Accuracy: ±(1% reading + 6 digits)
Input Impedance: 1MΩ
Frequency Response: (50~200) Hz
Terminal Position: ACV & G
Display: 90 * 48mm LCD with Backlight
Max. Display: "1999"
Over Range Display: "1"
Measurement Method: A / D Conversion
Sampling Rate: 3 times/second
Operating Temperature: 0~40°C
Operating Humidity: 30%~85%RH

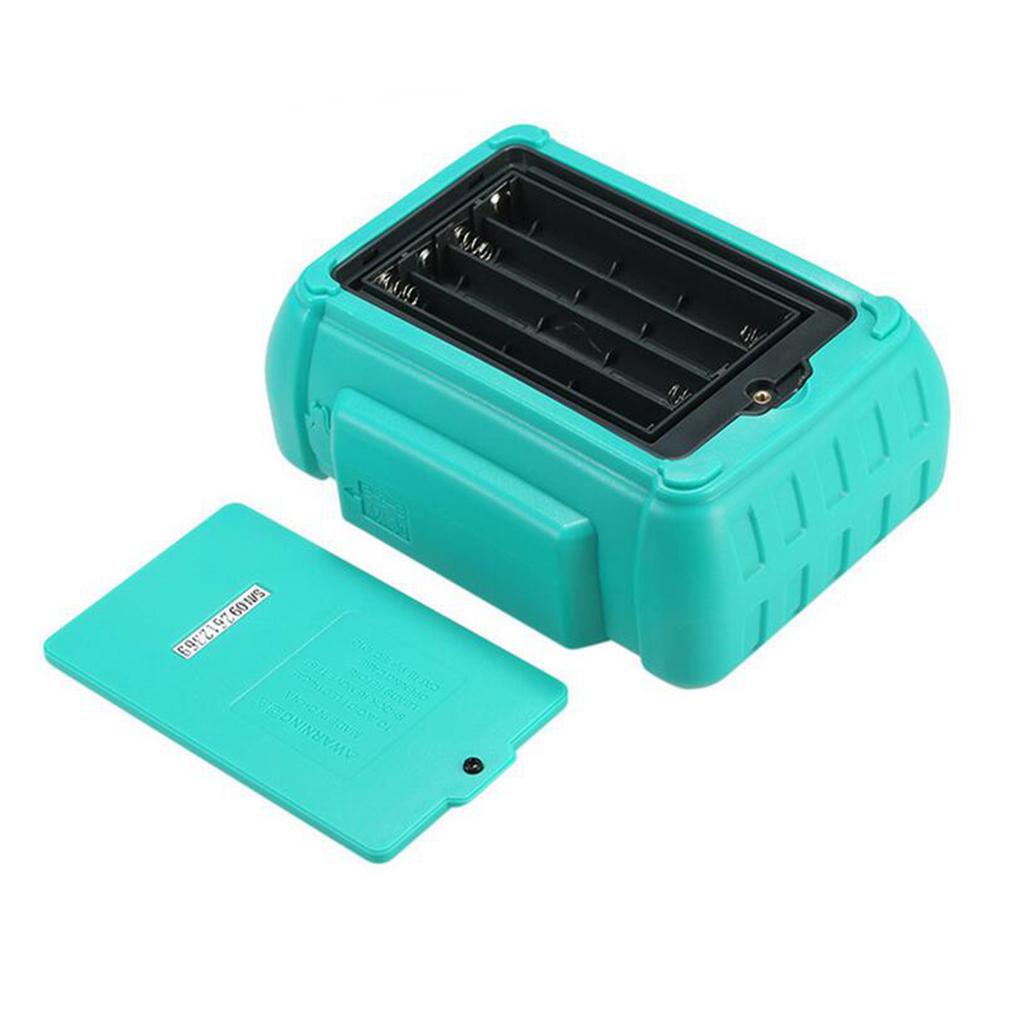

Power Supply: 8x 1.5V LR6 Batteries(NOT Included); or DC 12V Power Adapter(NOT Included)
Product Size: 170x120x60 mm/ 6.7x4.7x2.36 inch

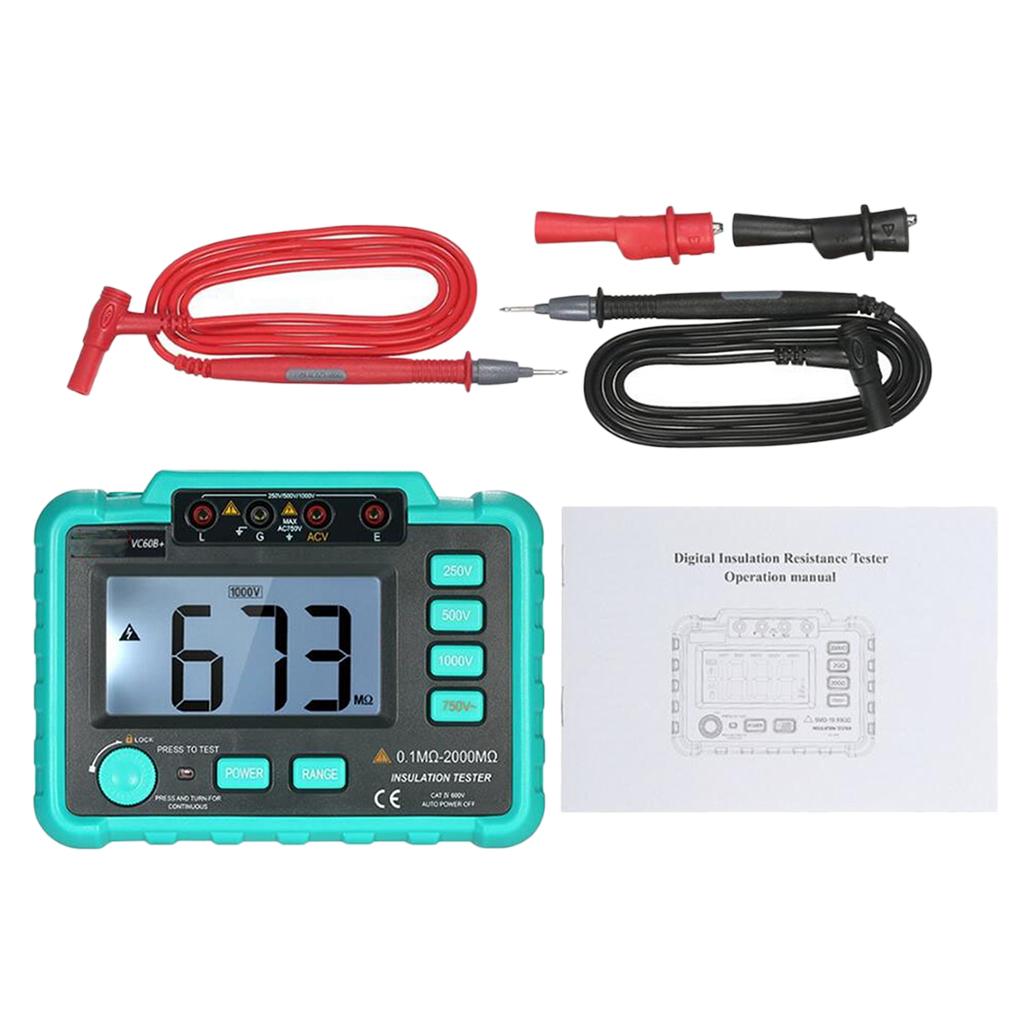

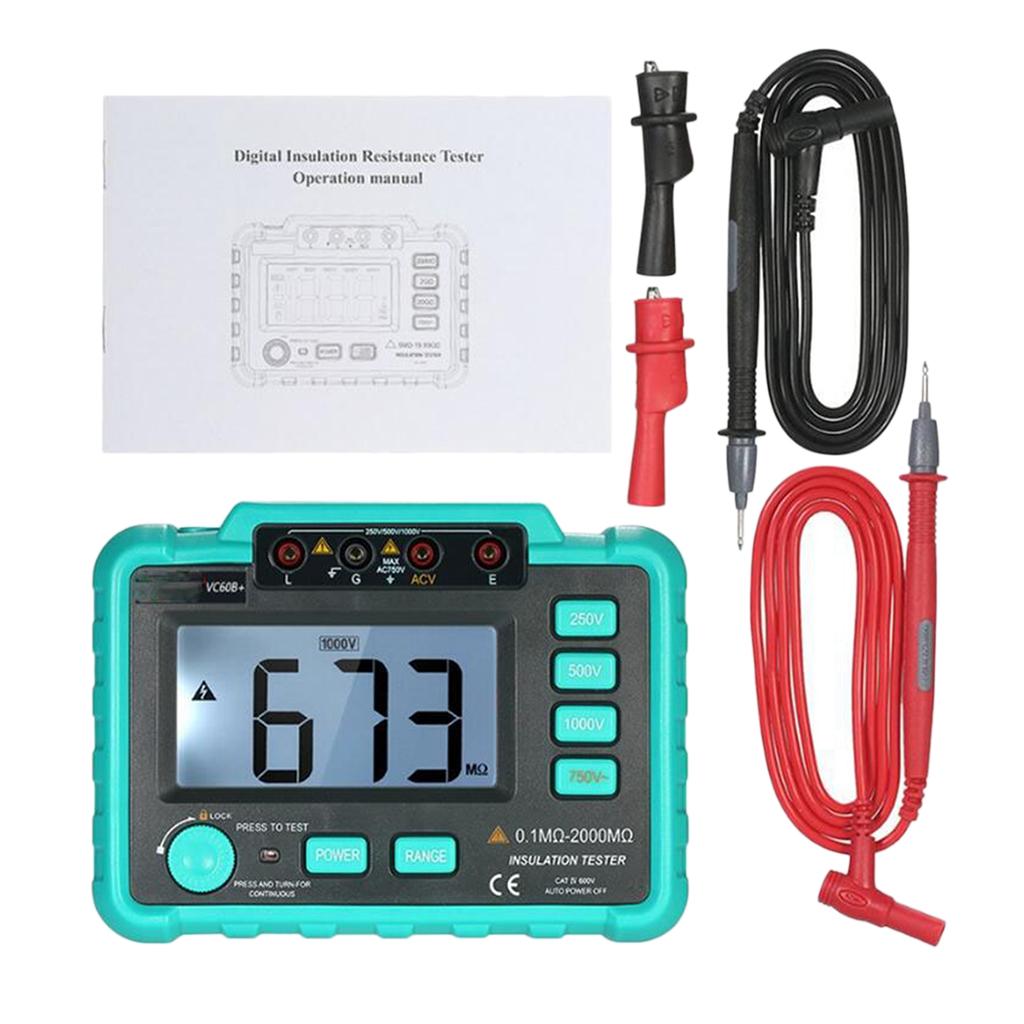

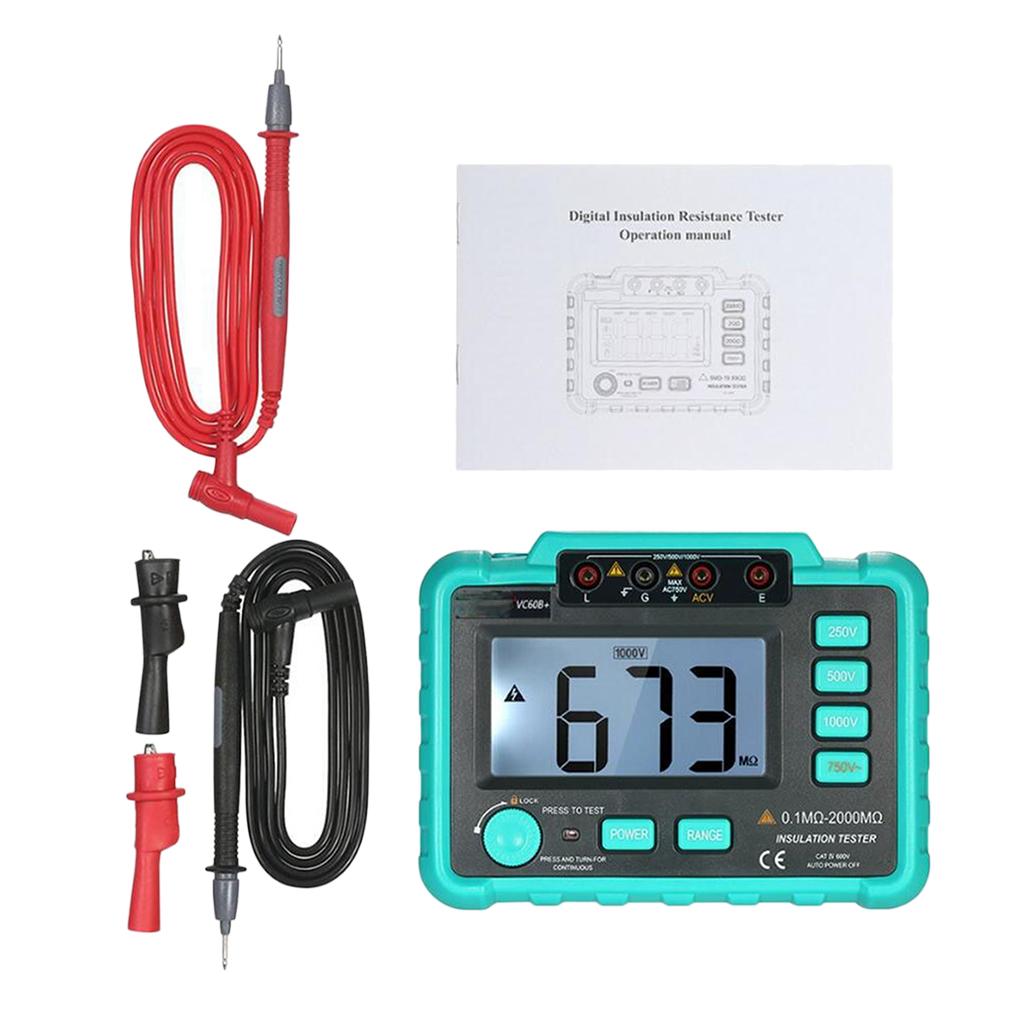

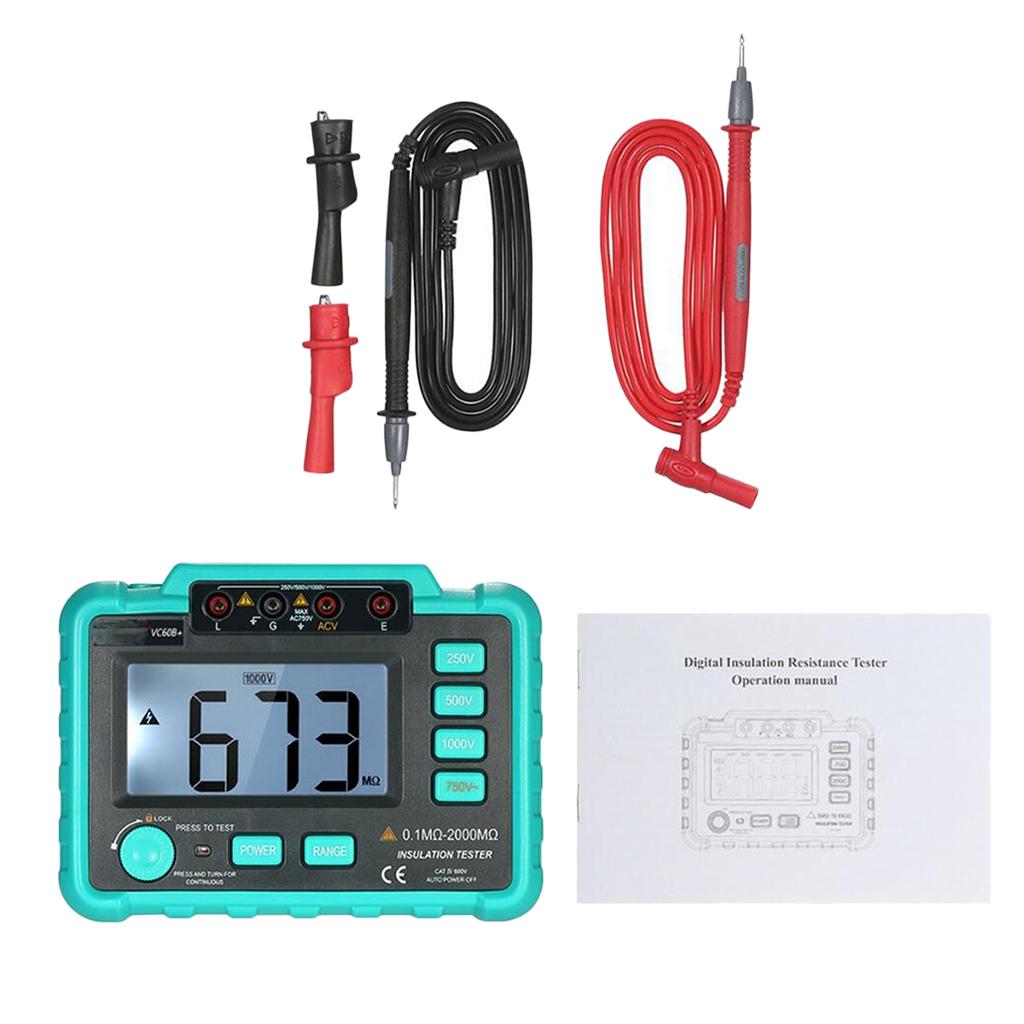

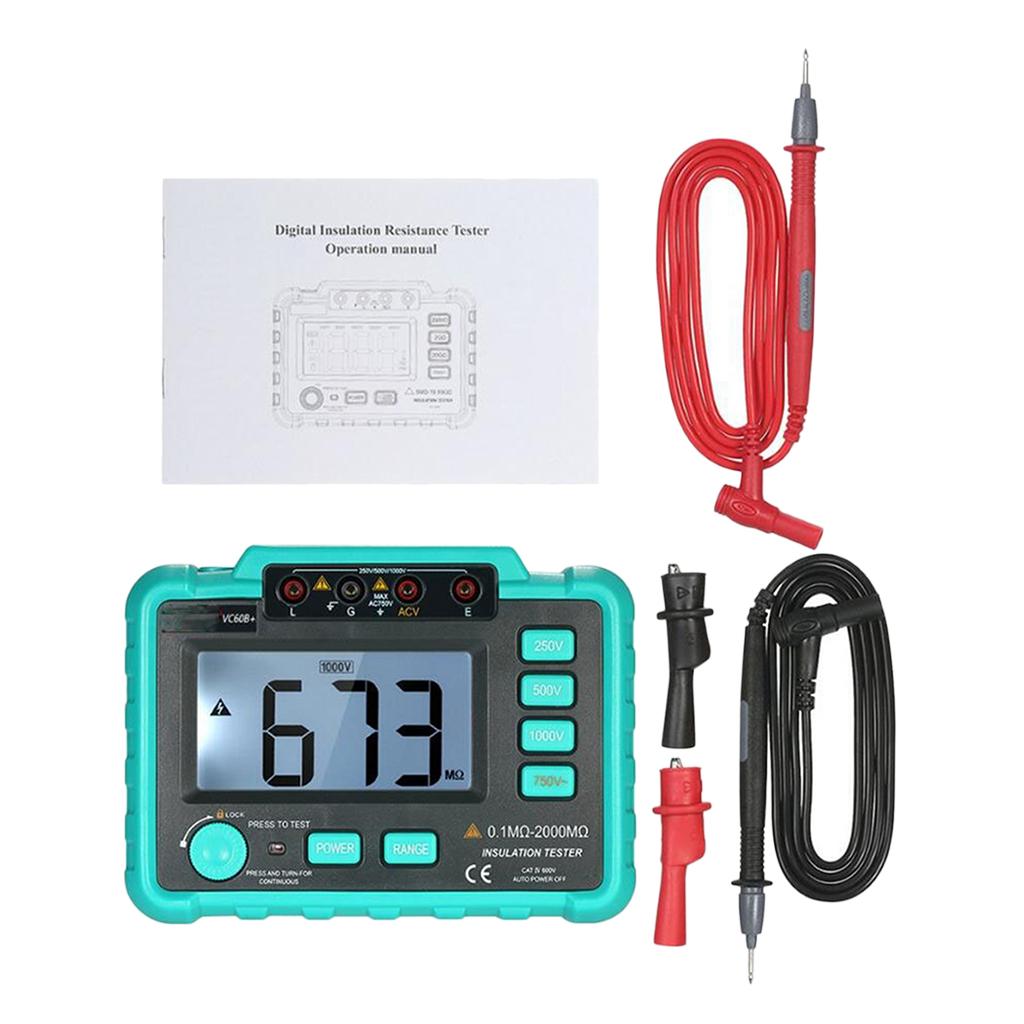

Package Includes:

1x Insulation Resistance Tester
1 Pair of 10A Test Leads
2 x Alligator Clips
1 x English User Manual
