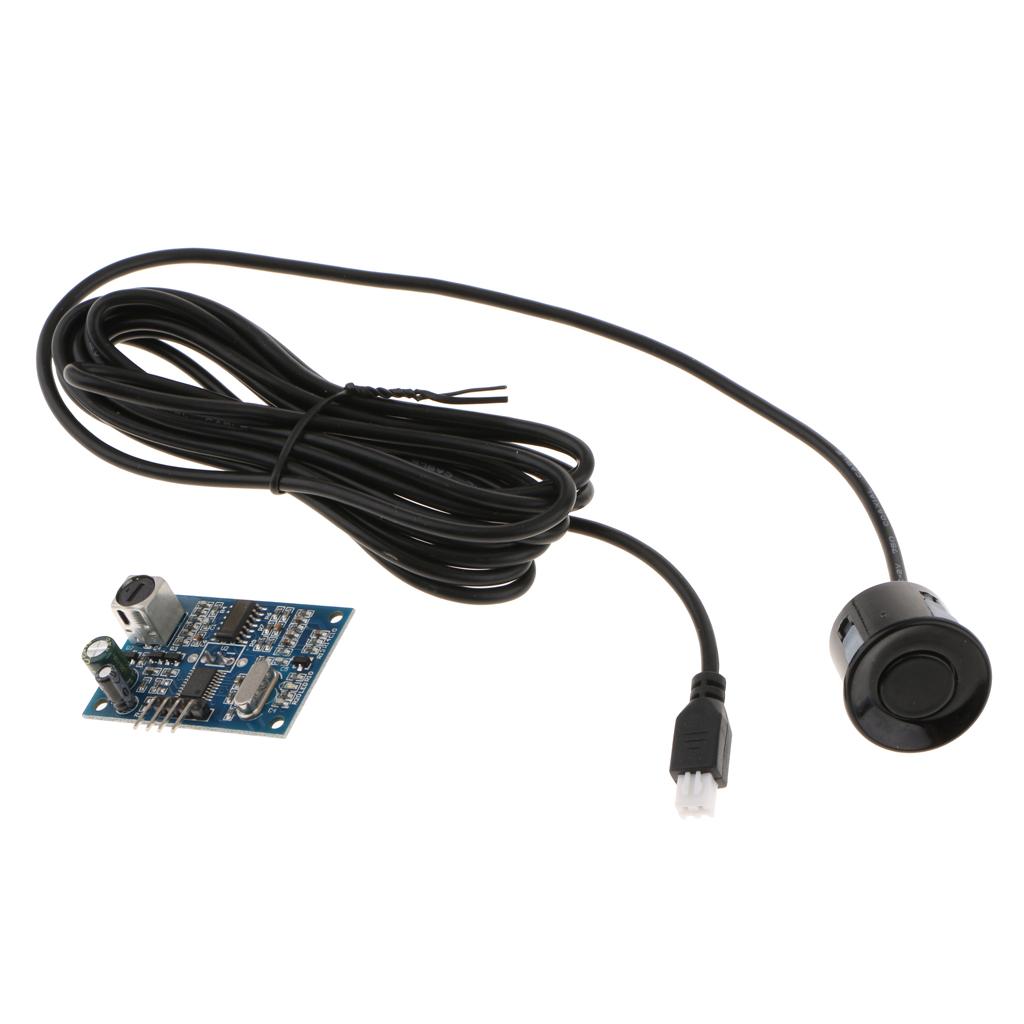

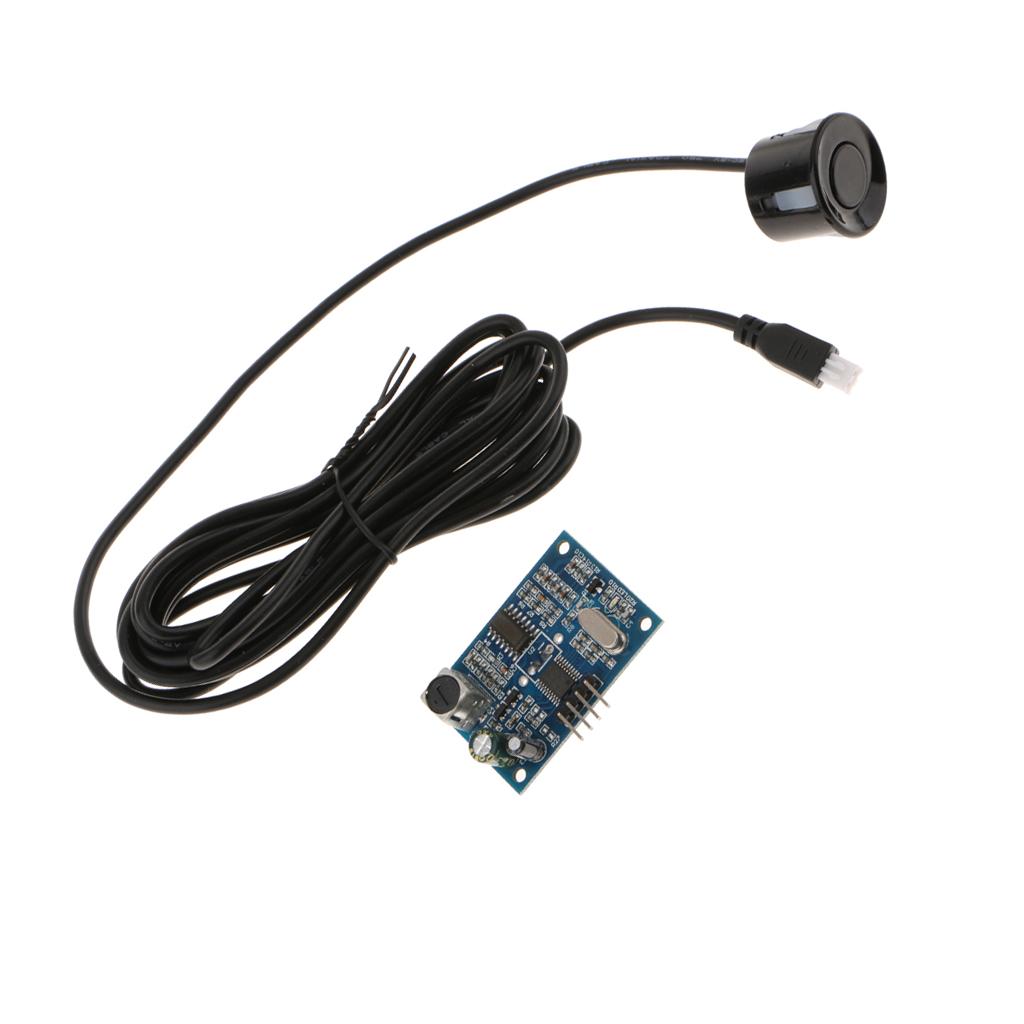

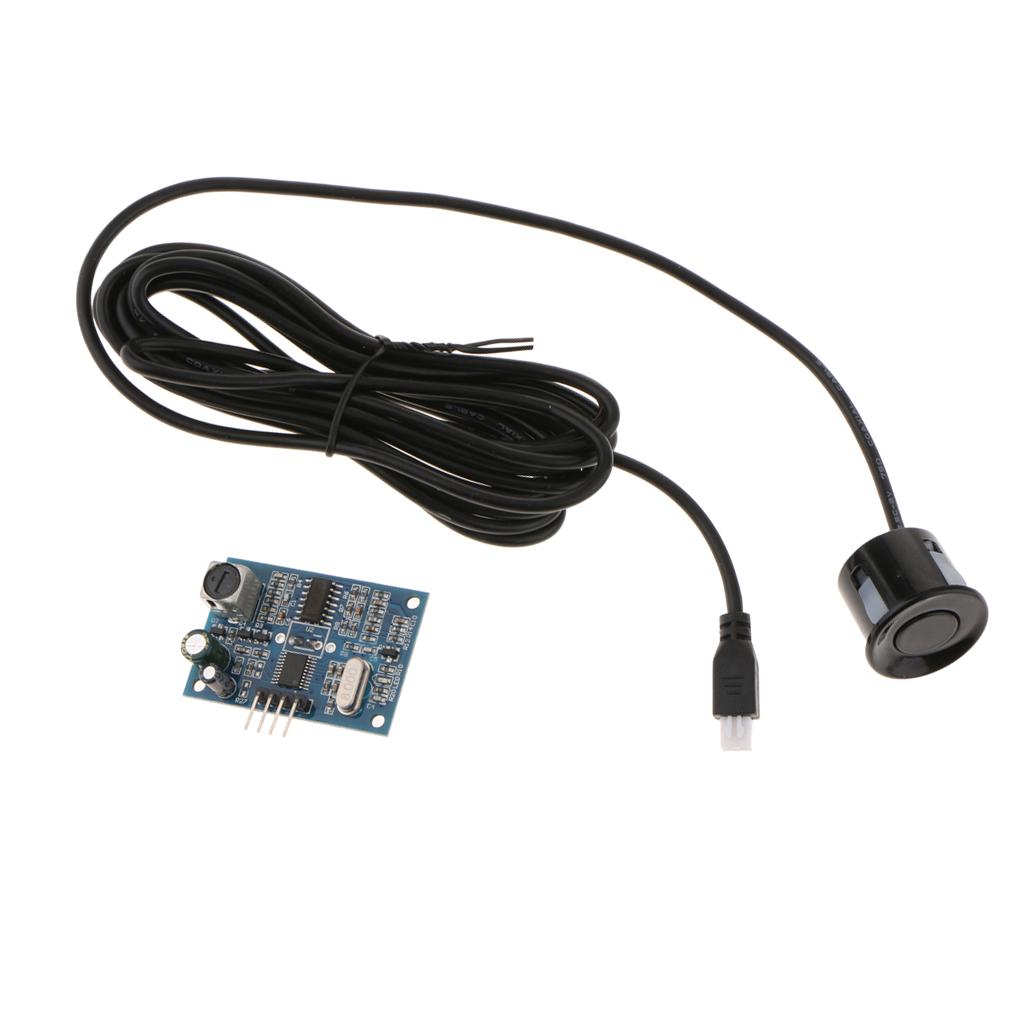

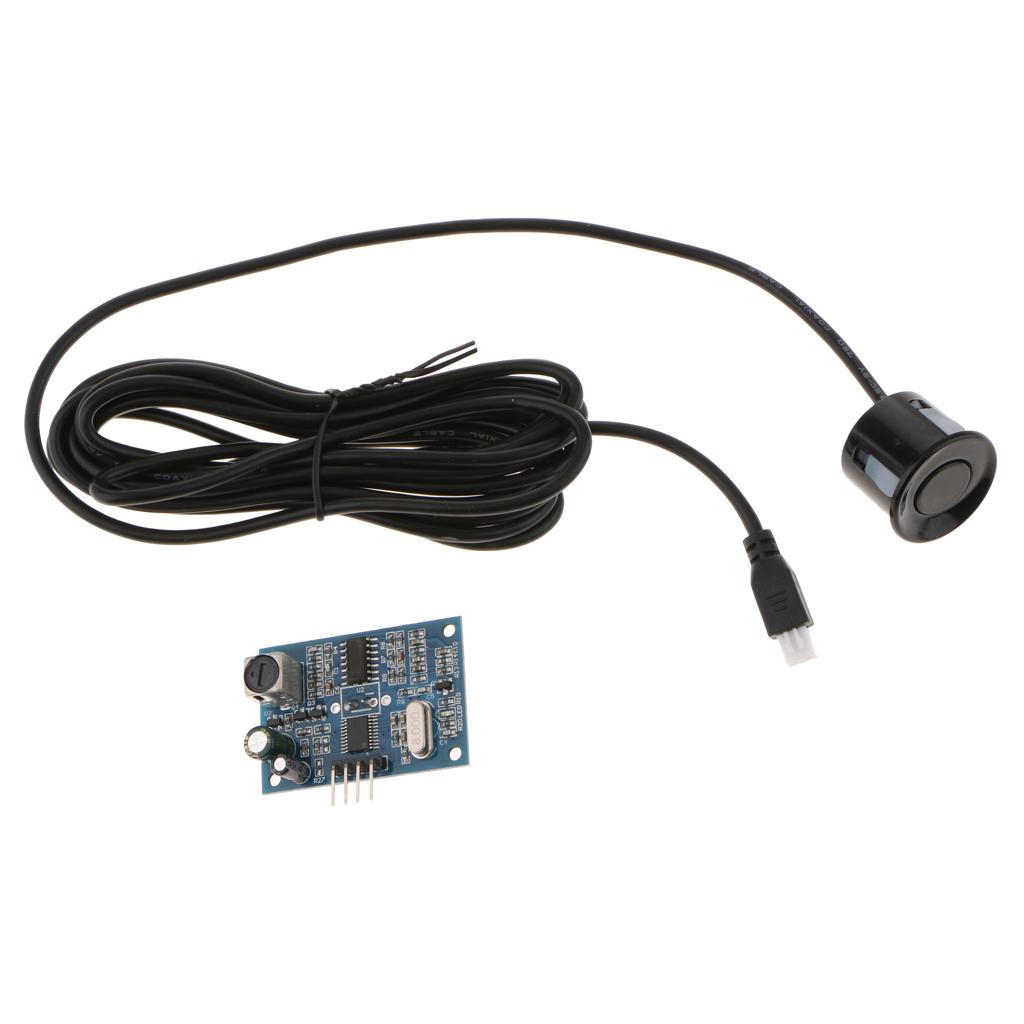

Ultrasonic Ranging Distance Detector Sensor Module Waterproof AJ-SR04M

Regular price
Rs. 1,416.99
Regular price
Sale price
Rs. 1,416.99
Earn 708 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73005775
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Industrial design, measuring range up to 8 meters, blind zone 20cm, high stability and sensitivity.
Integrated closed waterproof tape probe for wet and harsh measurement occasions, multiple modes to suit different occasions.
Ultra-low power consumption 20uA low-power current, wider operating voltage 3.0-5.5V, compatible with more environments, battery low power supply is the best choice.
Multiple modes and power selection, suitable for different occasions, and teaching experiments.

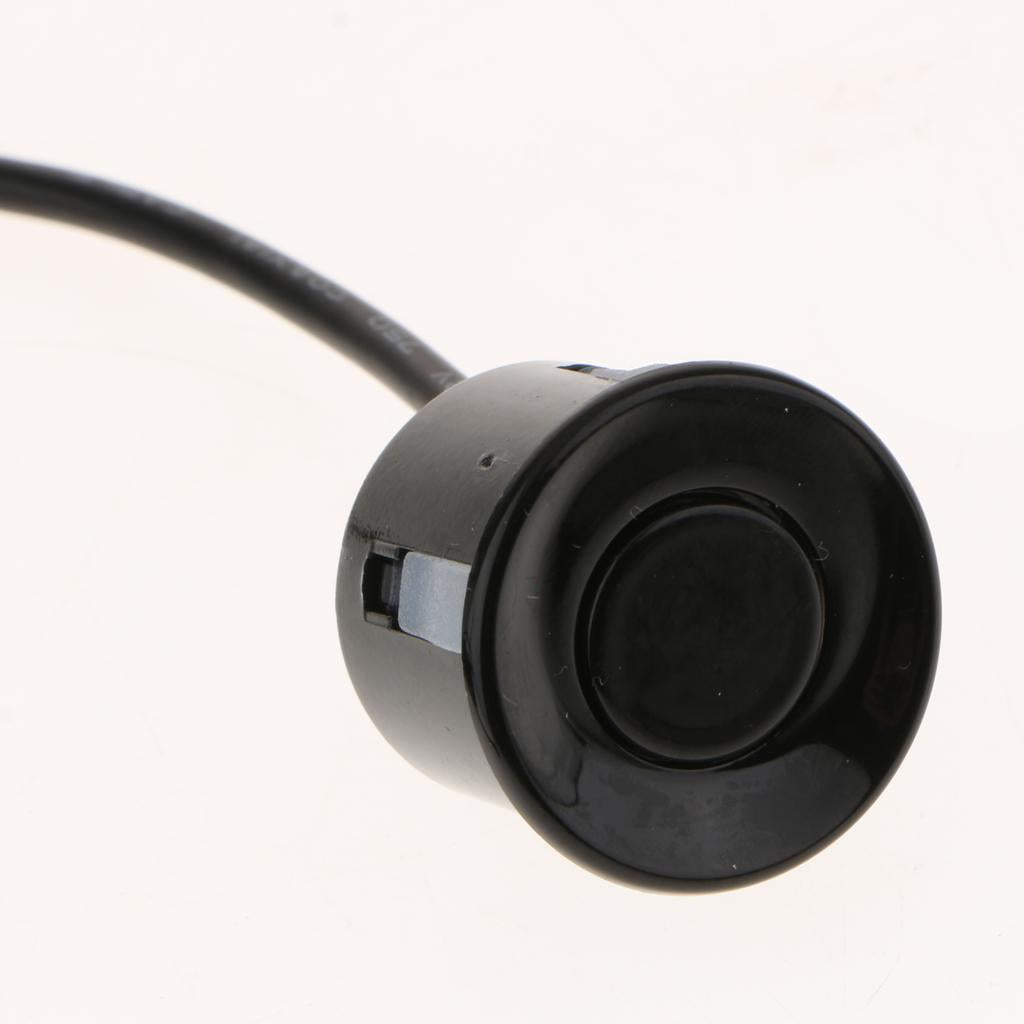

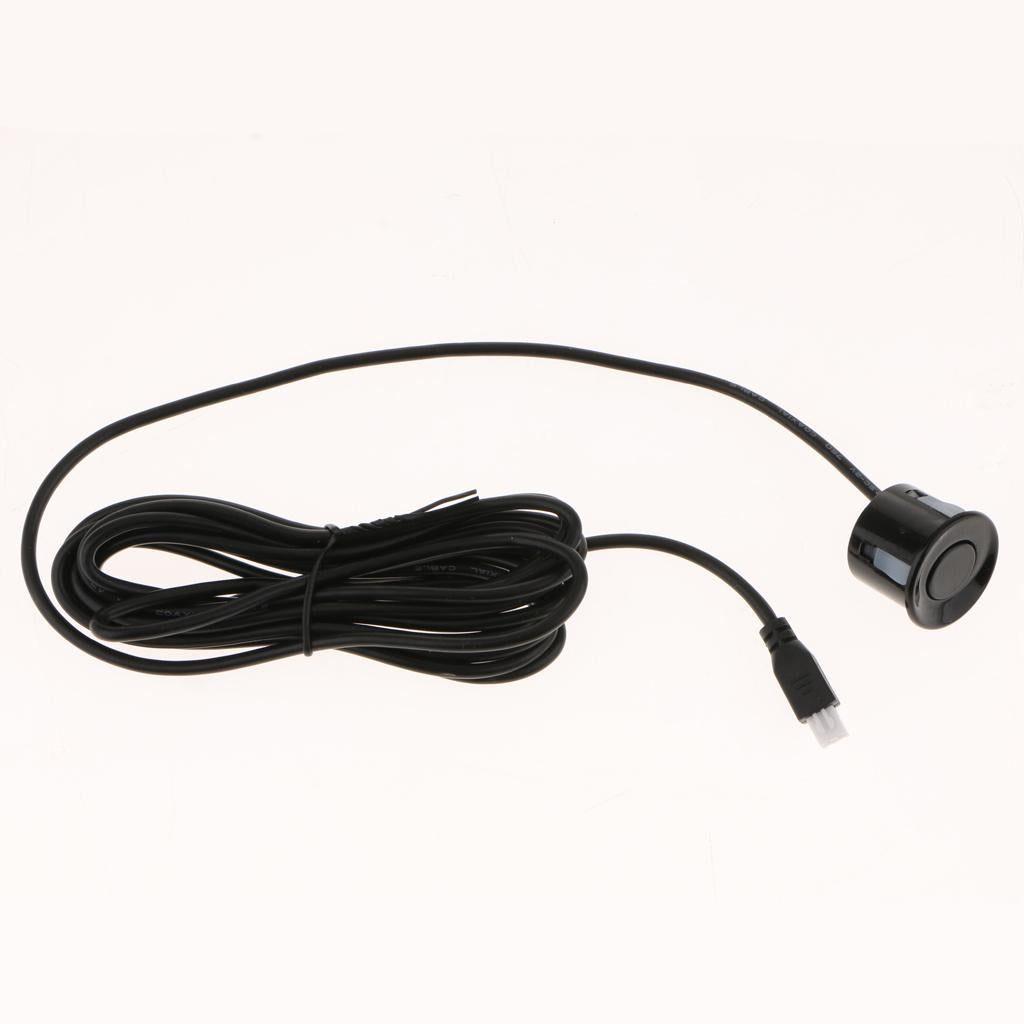

The product uses a waterproof ultrasonic probe to prevent probe failure due to water and dust.

Specification:

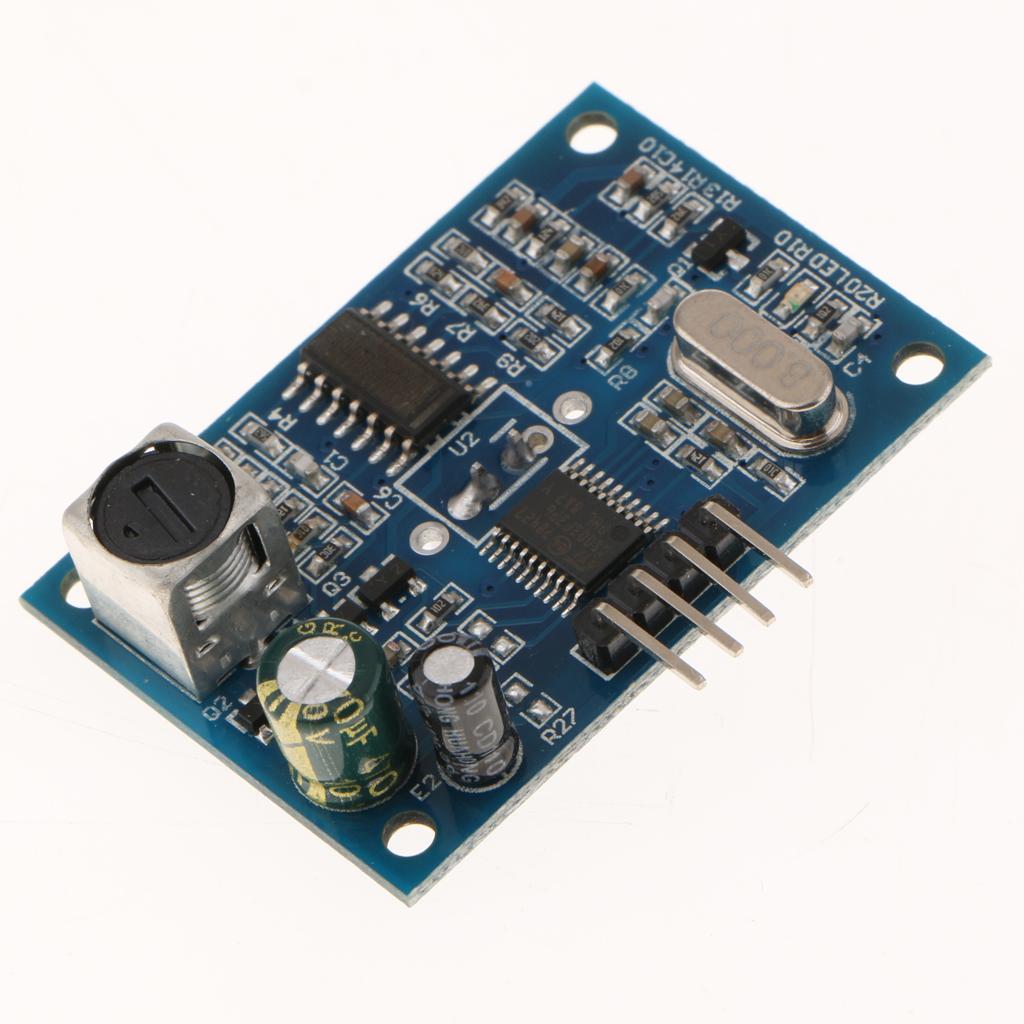

TYPE: AJ-SR04M Module
Color: as pictures shown
Material: Electronic components

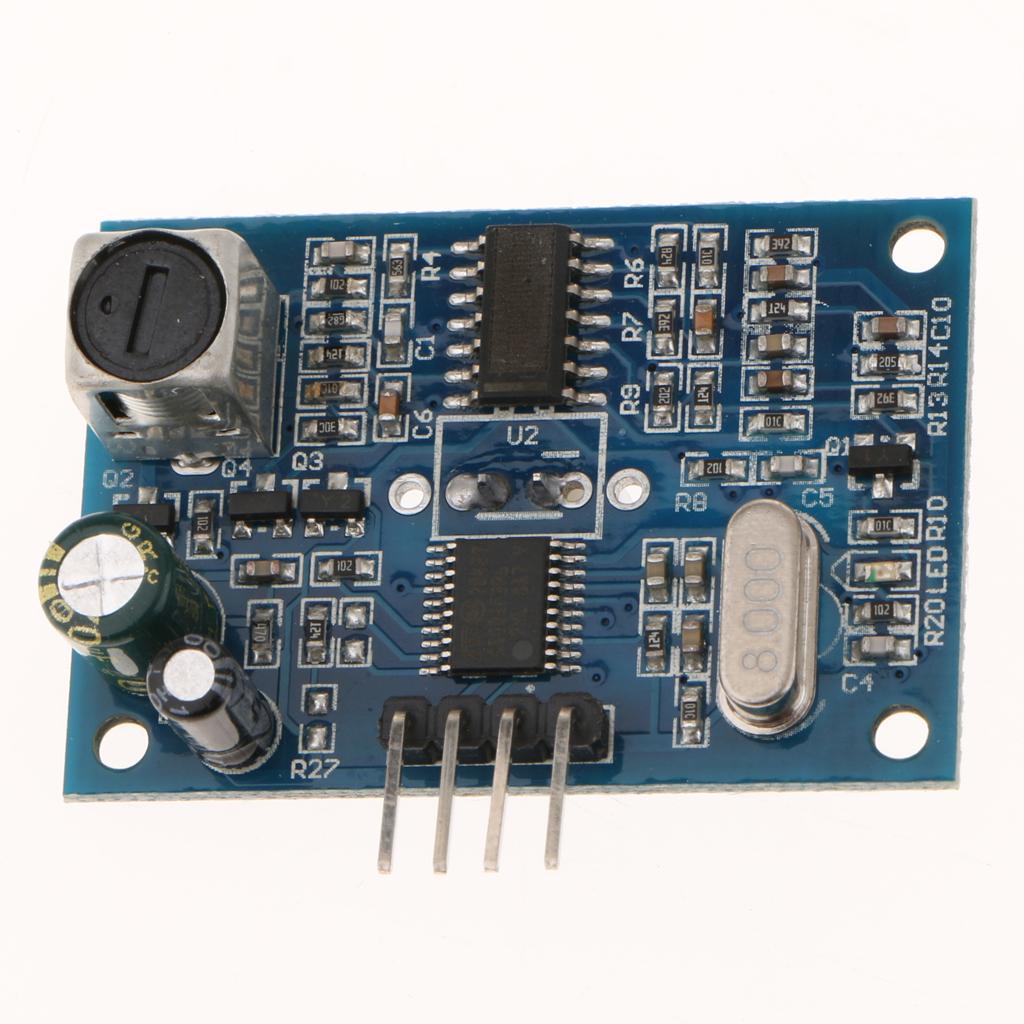

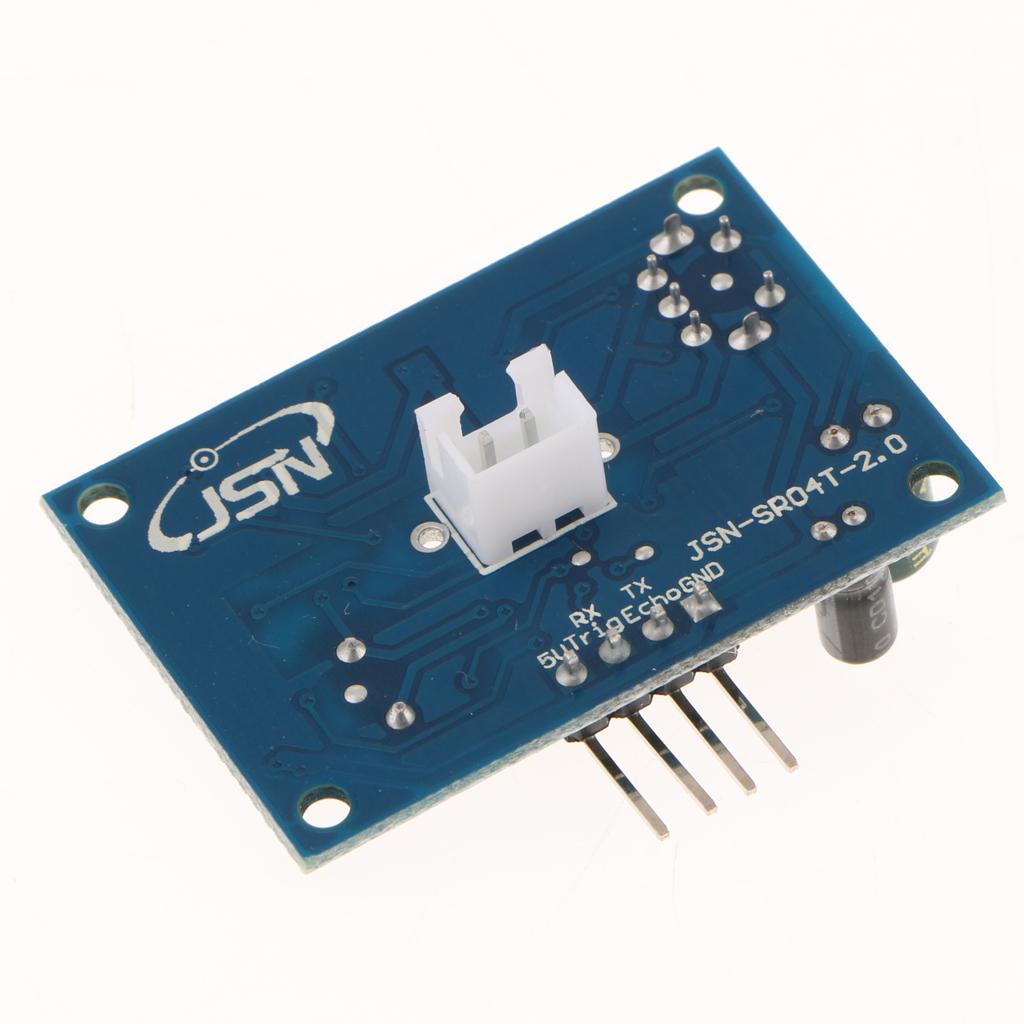

Module size: Approx. 41x28mm / 1.61x1.1inch

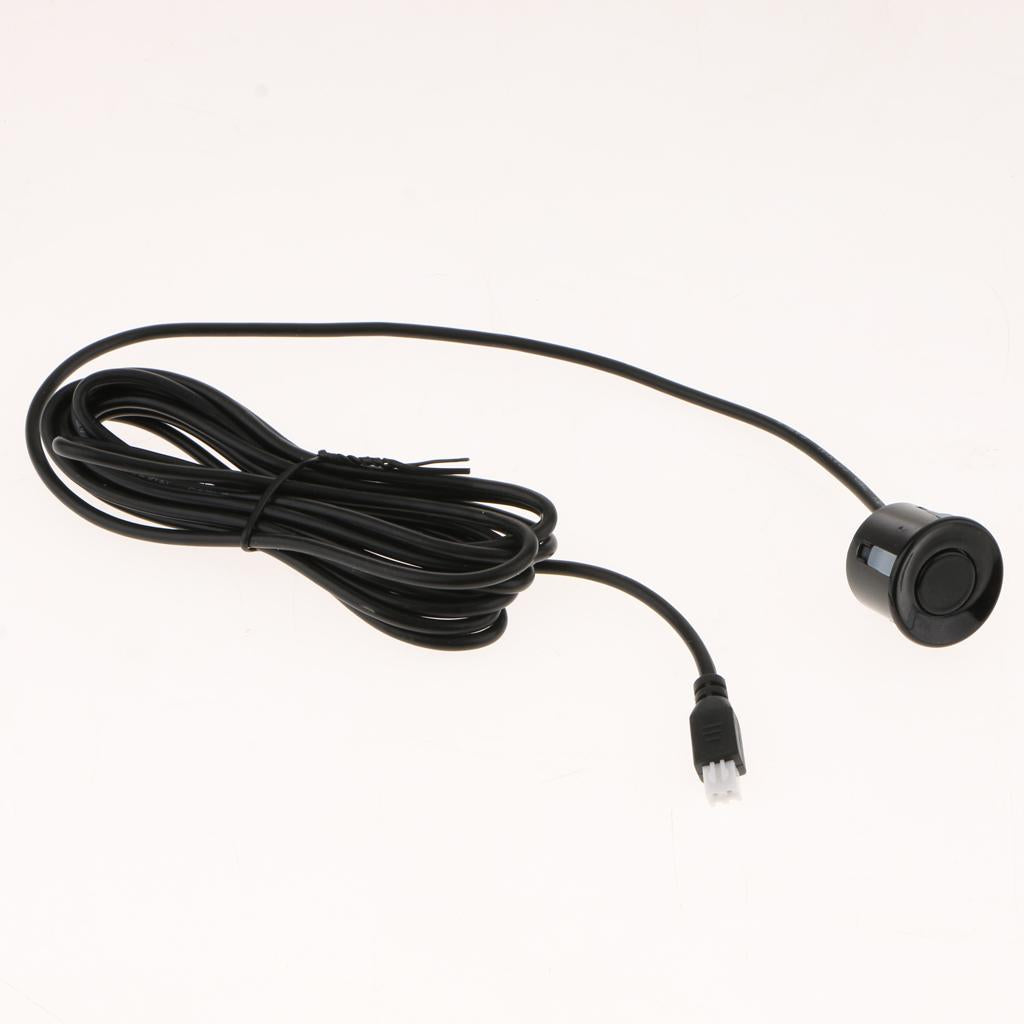

Machine line length: Approx. 2.5m / 8.2ft
Working voltage: DC 3-5.5V
Working current: 40mA
Stand-by current: 2mA
Low power current: 20μA
Working frequency: 40KHz
Farthest range: 8m / 26.25ft
Minimum range: 20cm / 0.67ft
Measuring angle: 15Degree
Input trigger signal: 5 Modes for choosing
Output echo signal: 5 Modes for choosing

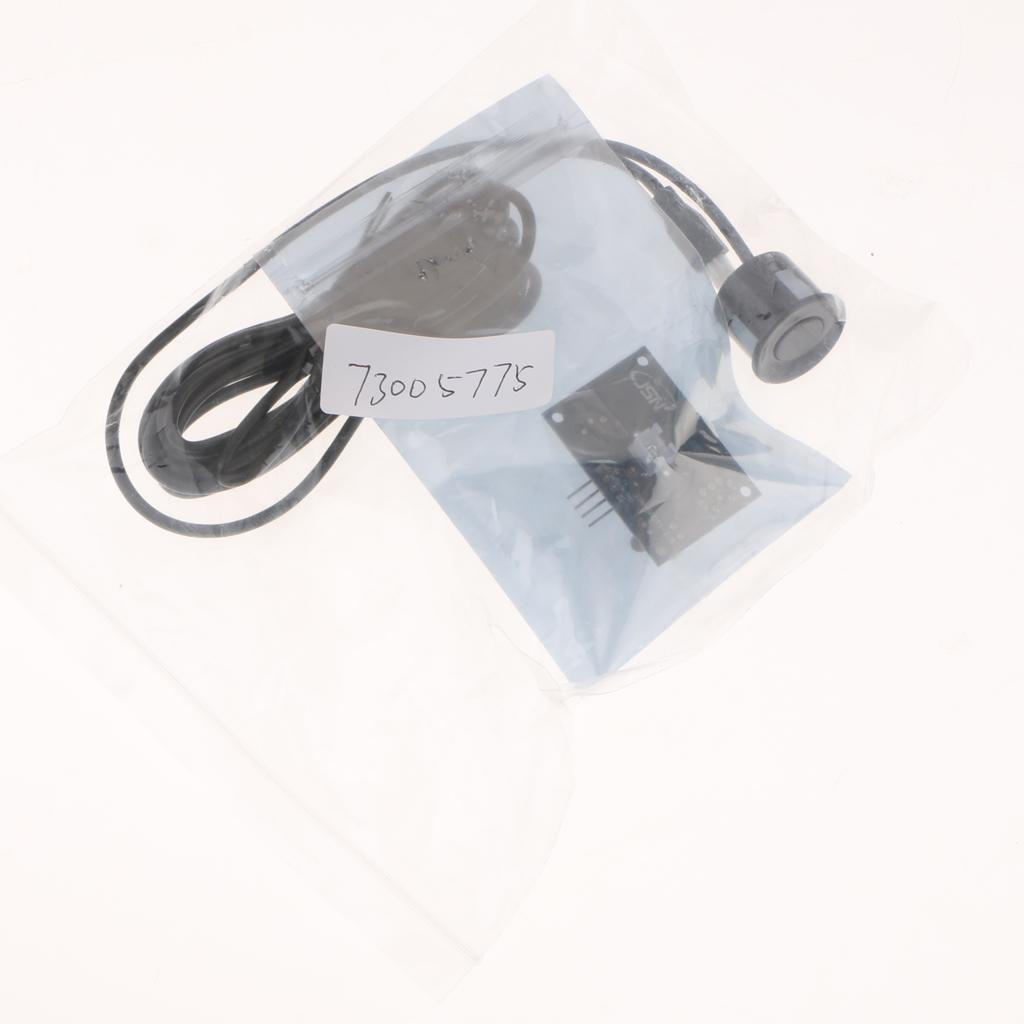

Package Includes:

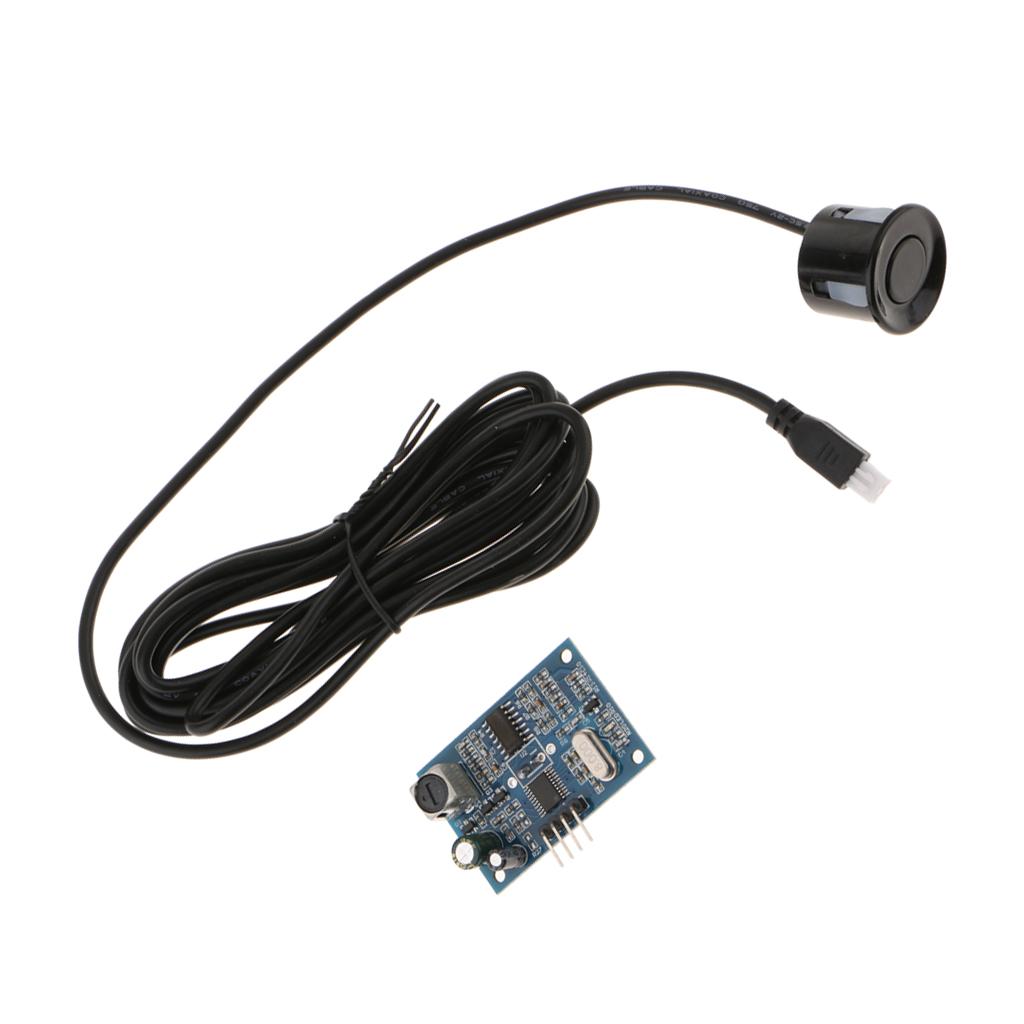

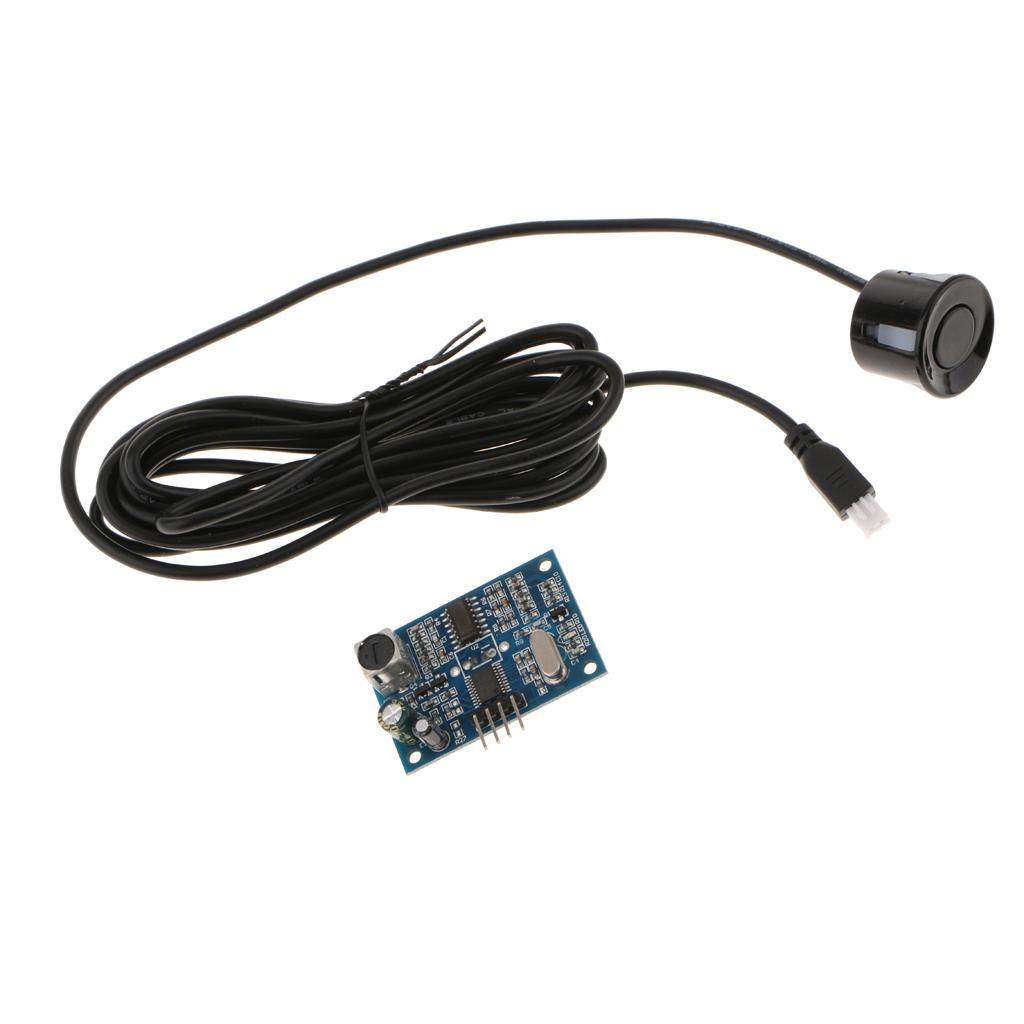

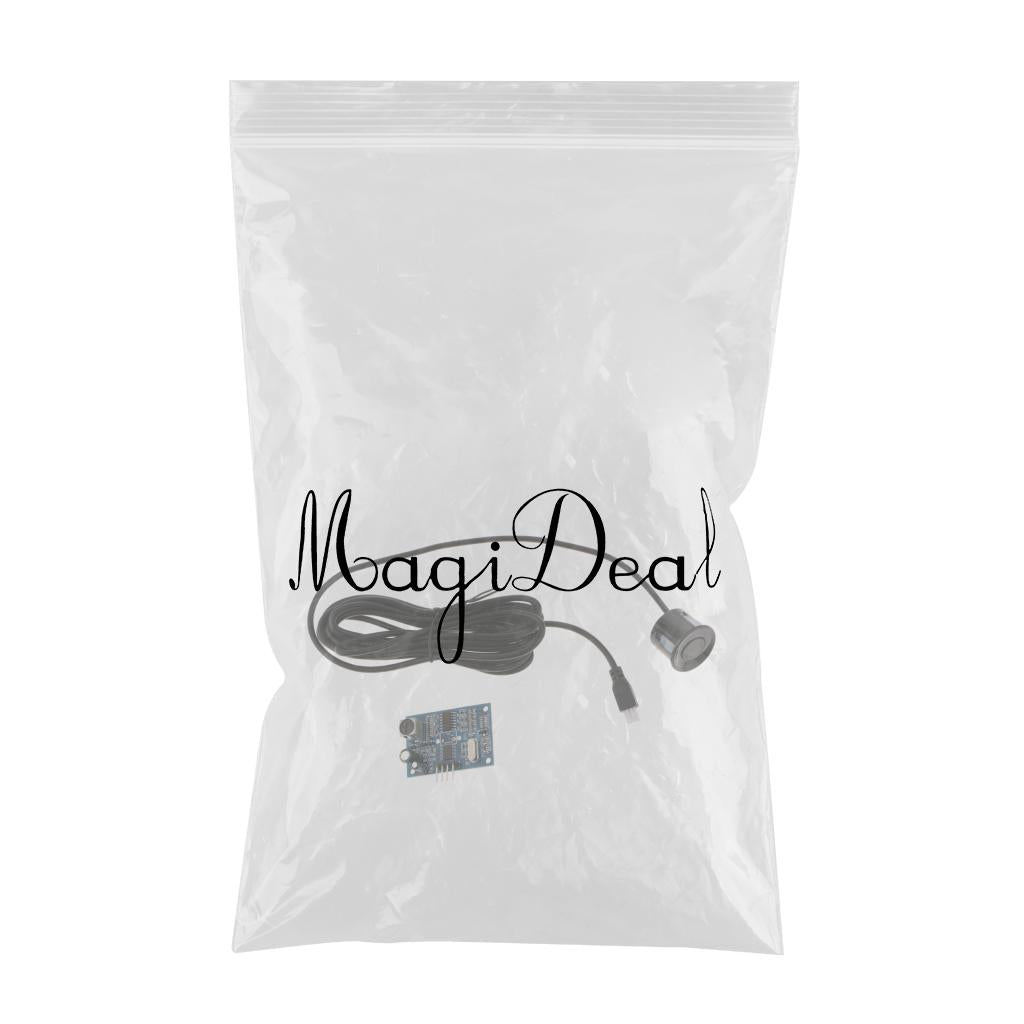

1 Set Ultrasonic Module Distance Sensor

Note:

This module should not be connected with power. If you want to have a live connection, first connect the GND terminal of the module first, otherwise it will affect the normal operation of the module.
When measuring distance, the area of the measured object is not less than 0.5 square meters and the plane should be flat as much as possible, otherwise the measurement result will be affected.
