Transformer Driver Power Supply 12-18W AC 85-265V (IN) to 36 ~ 63V (Out) for LED Strip Lights

Regular price
Rs. 908.34
Regular price
Sale price
Rs. 908.34
Earn 454 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73008537
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

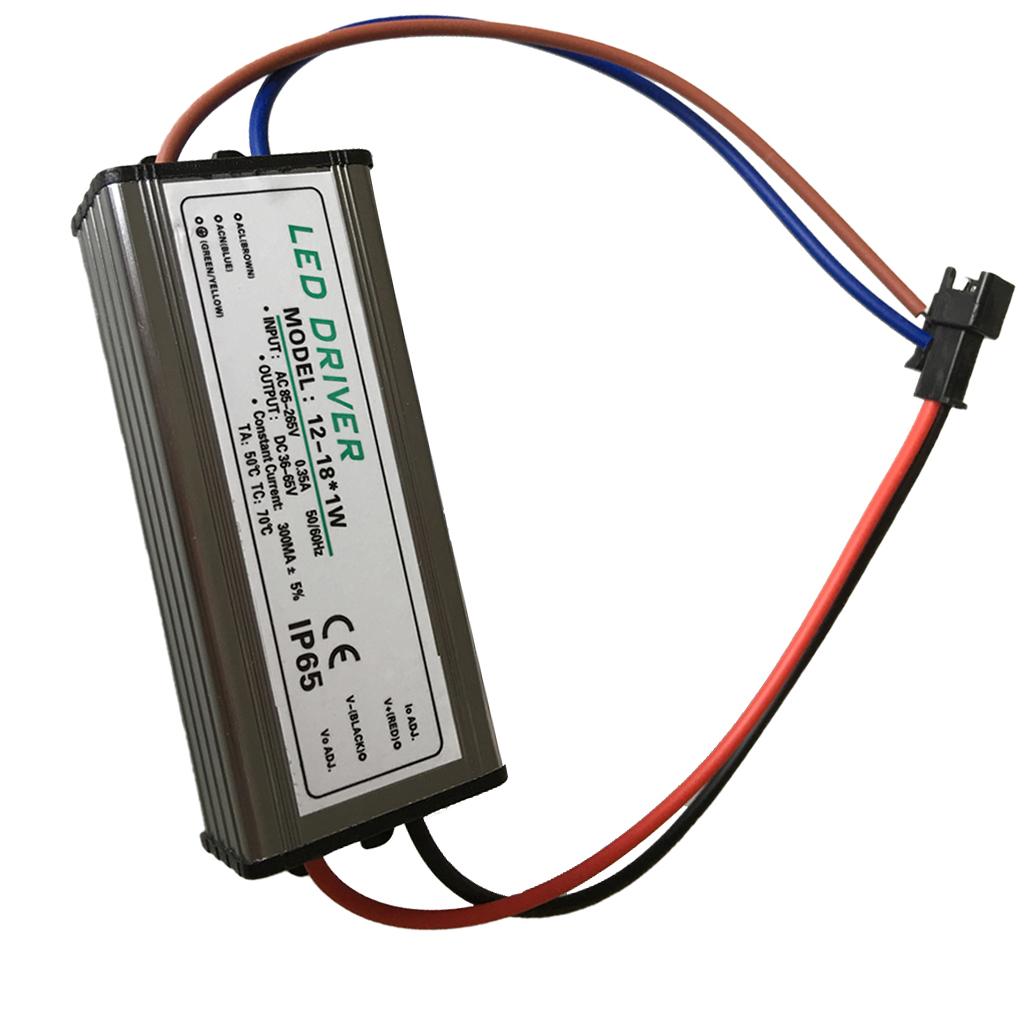

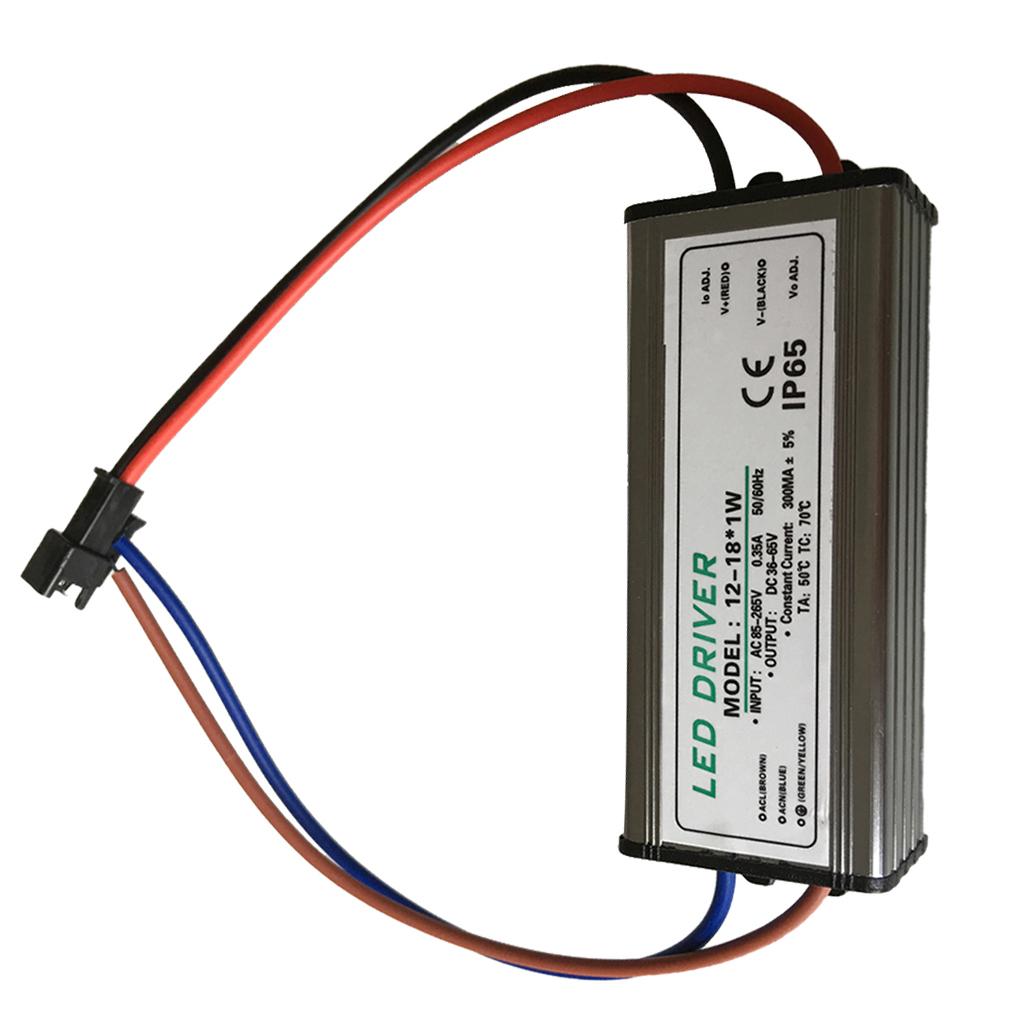

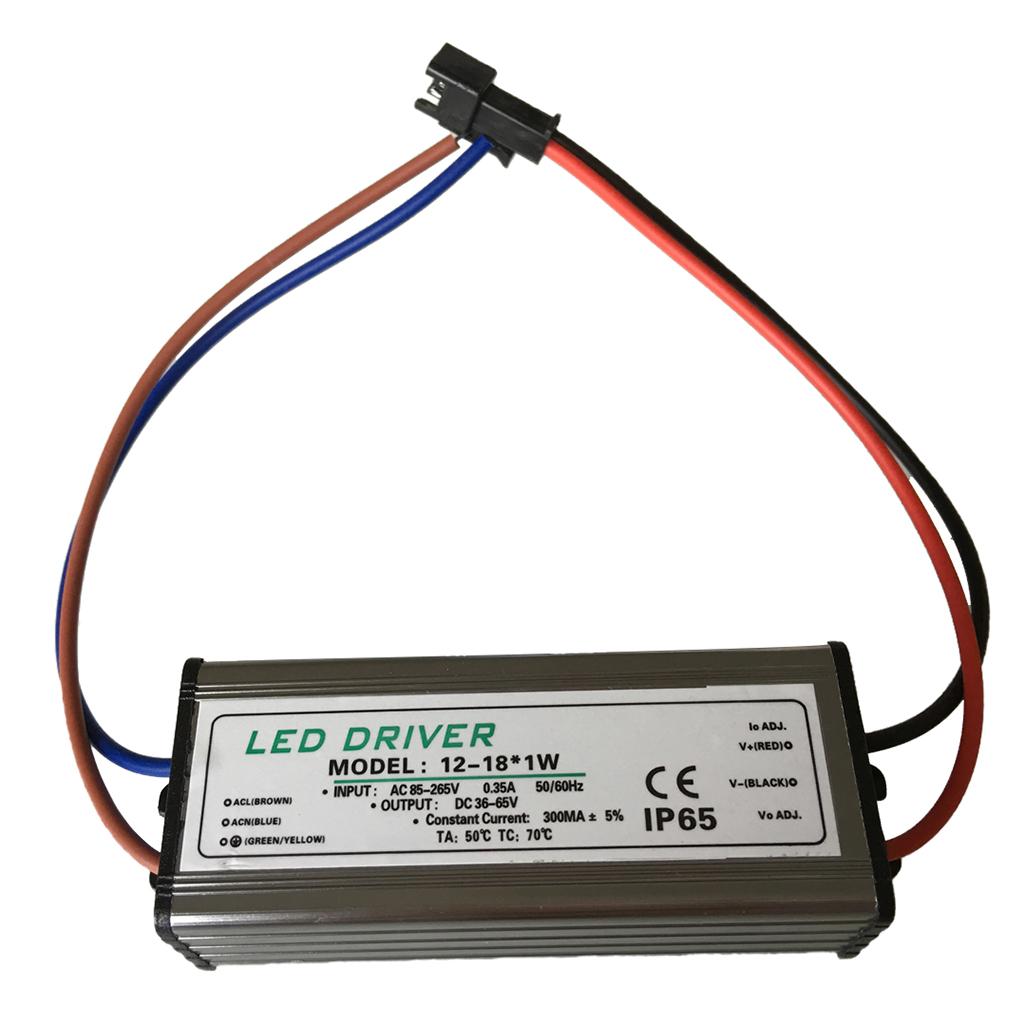

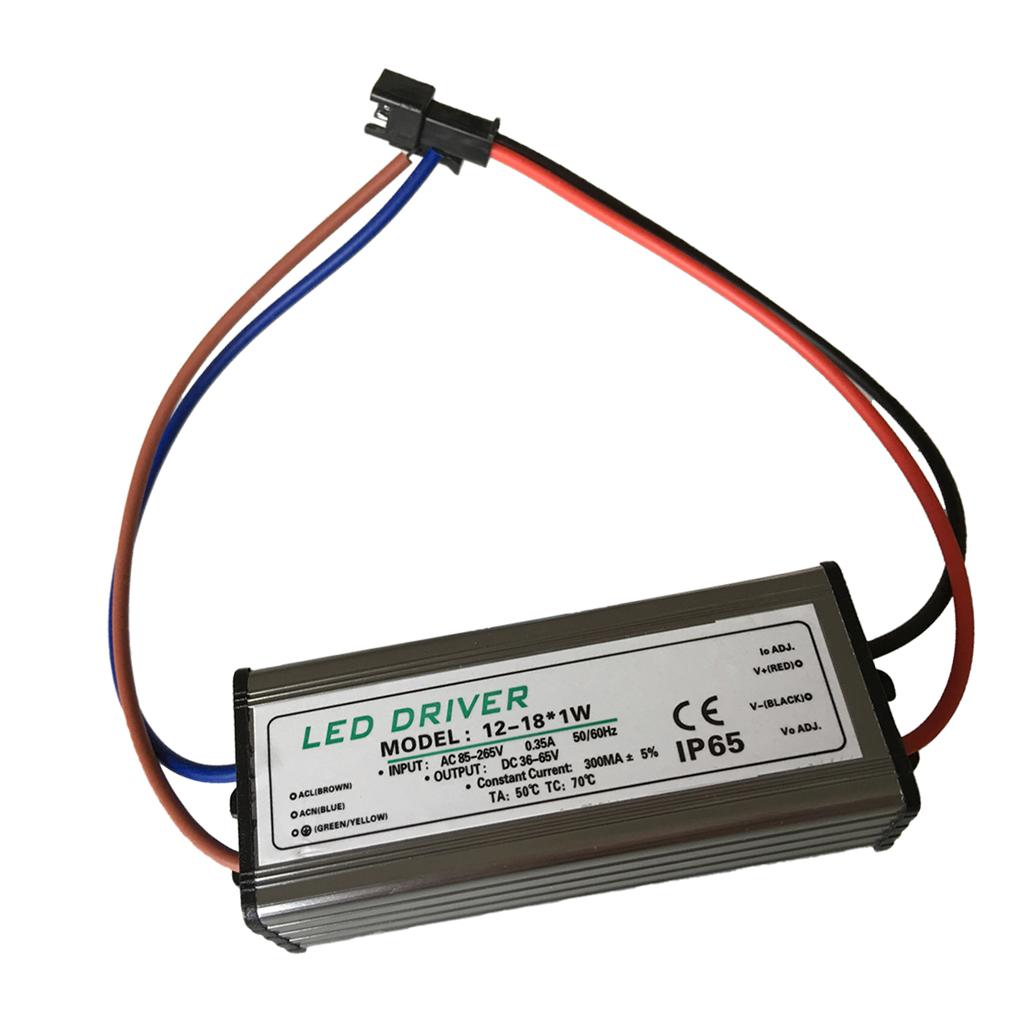

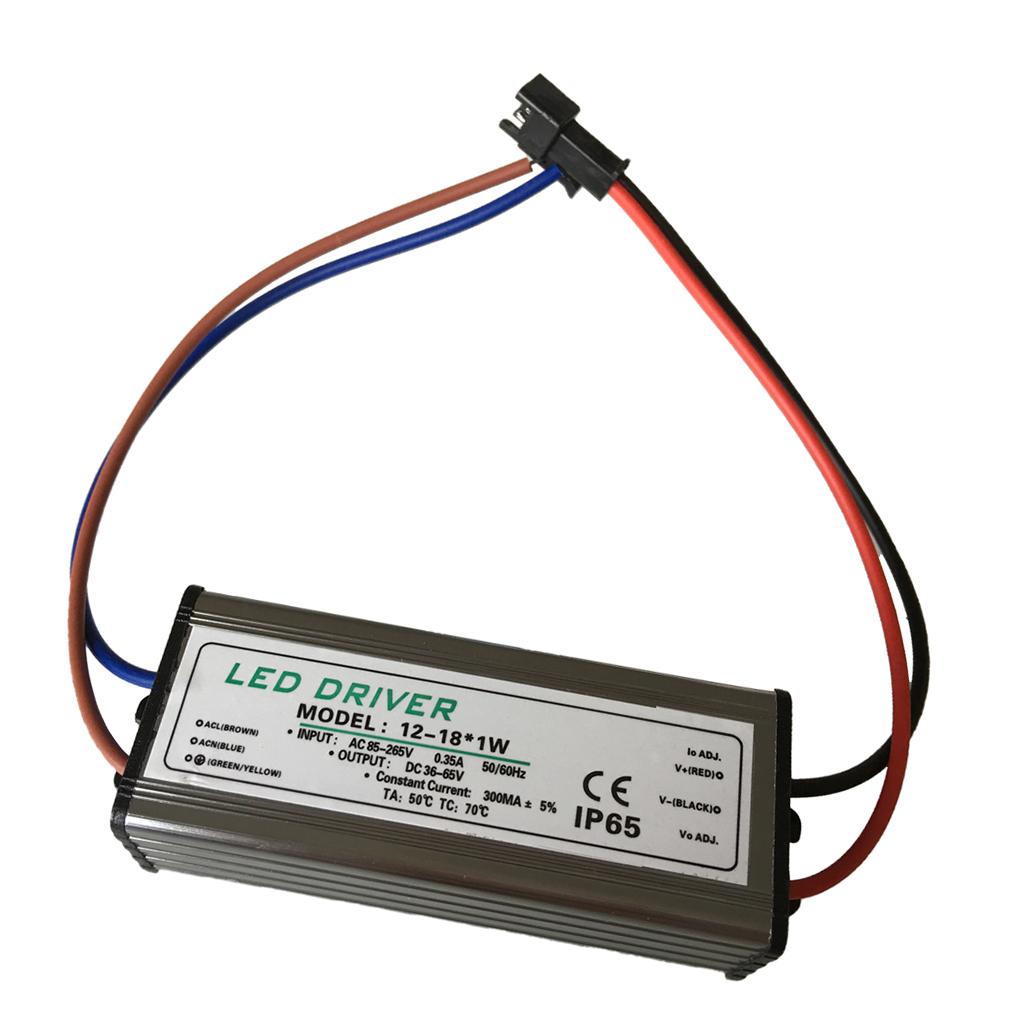

12W~18W waterproof AC85-265V(In) LED Driver For light power supply, 12 String 18.
Input Rating voltage: AC85-265V; Output Voltage(loading): DC 36 ~ 63V
Output Voltage(no loading): DC ≤ 75V; Output Current(loading): 300mA
Size(LxWxH): 70x30x20 mm/2.75x1.18x0.78 inch
Suitable for Input Voltage AC85-265V light 12 String 18 and 300mA wall lamp, line lamp, track lamp, etc.

Specification:

Model: PL-WP-300-63N
Reference Standard Basics: IEC 61347
Working Frequency: 50 ~ 60 Hz
Input power(loading): ≤ 20W
Short Circuit Protection: Yes
Overloading Protection: Yes
Insulation Strength: AC 1.5 KV/5 mA 1Min
Ripple: ≤ 600 MVpp(120Hz)
Working Temperature: -25 °C ~ +40 °C
Efficiency: ≥ 85 %

Package Includes:

1 piece Power Supply LED Driver
