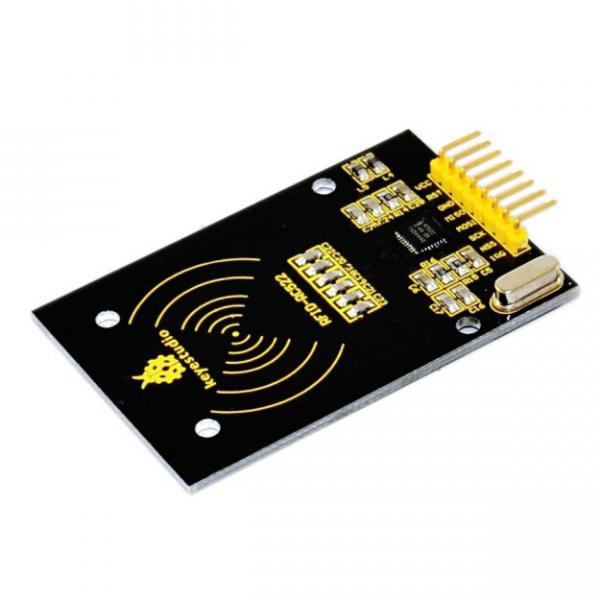

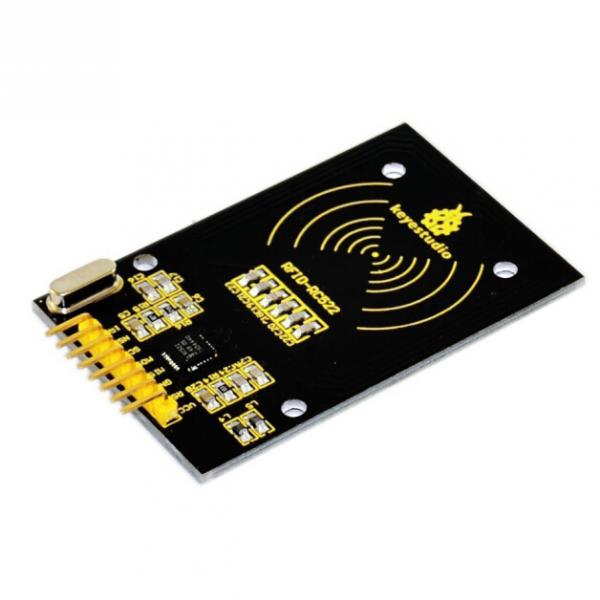

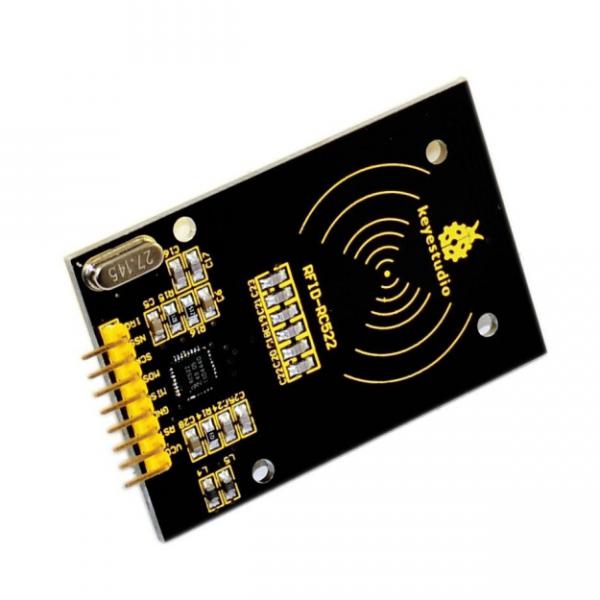

RC522 RFID 13.56 MHz Reader and Writer Module for Android

Regular price
Rs. 547.25
Regular price
Sale price
Rs. 547.25
Earn 273 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 51004377
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

  • RFID module adopts the card reader circuit design of Philips MFRC522 original chip, easy to use and low cost
  • This module can be directly loaded into various reader molds and it uses a voltage of 3.3V.
  • You can achieve direct communication with user's any CPU motherboard by using a few wires and simple connection to the SPI interface
  • FR4 Epoxy Glass Fiber

Specification:

  • Current :13-26mA / DC 3.3V
  • Idle Current :10-13mA / DC 3.3V
  • Sleep current: <80uA
  • Peak current: <30mA
  • Operating Frequency: 13.56MHz
  • Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
  • Dimensions: 40mm × 60mm
  • Environmental Operating temperature: -20-80 degrees Celsius
  • Environment Storage temperature: -40-85 degrees Celsius
  • Relative Humidity: 5% -95%

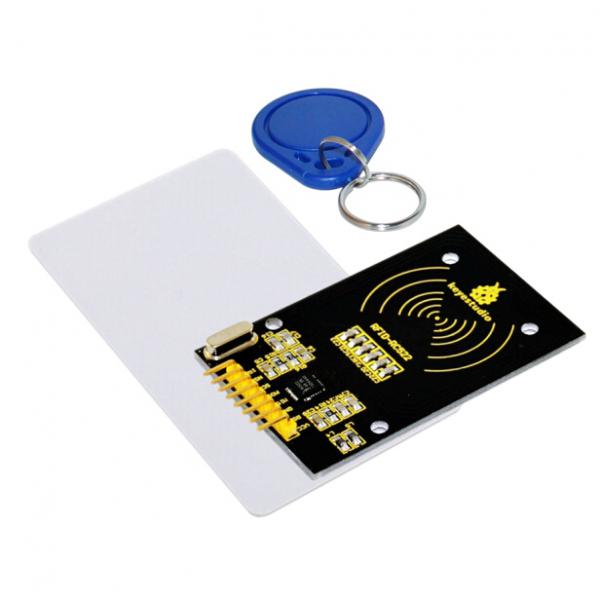

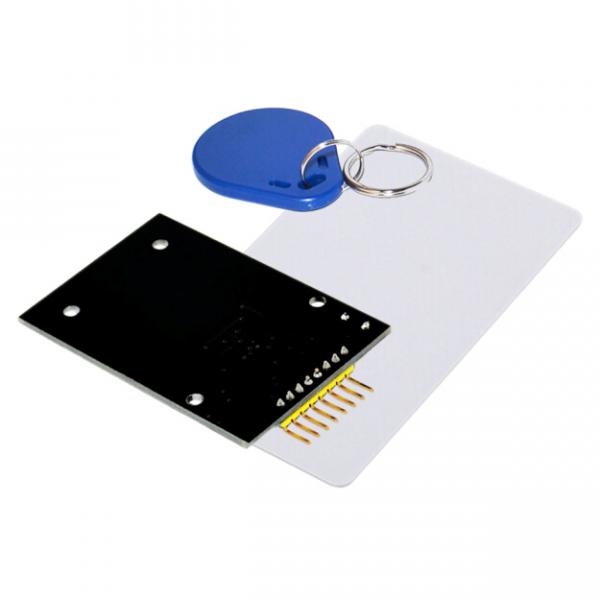

Package Includes:

  • 1 x RC522 RFID module
  • 1 x White card
  • 1 x Keyring
