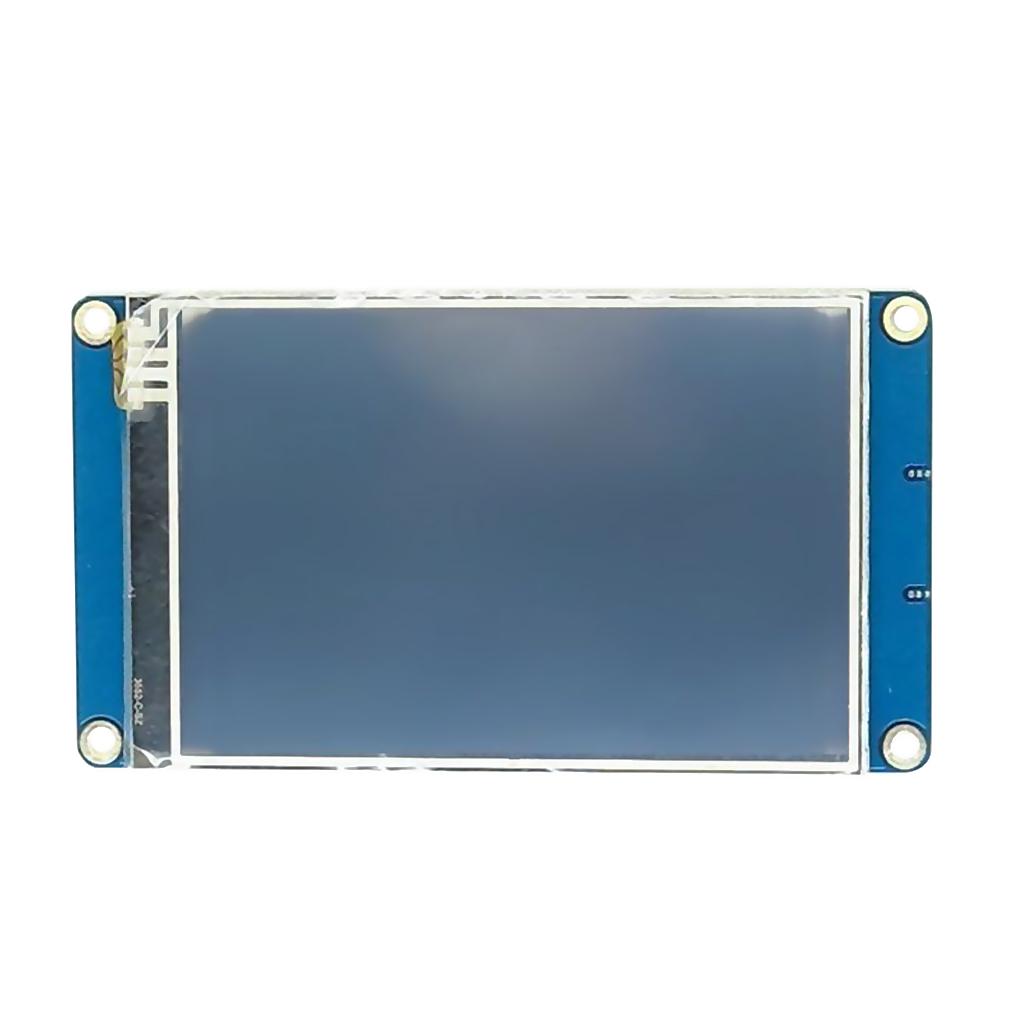

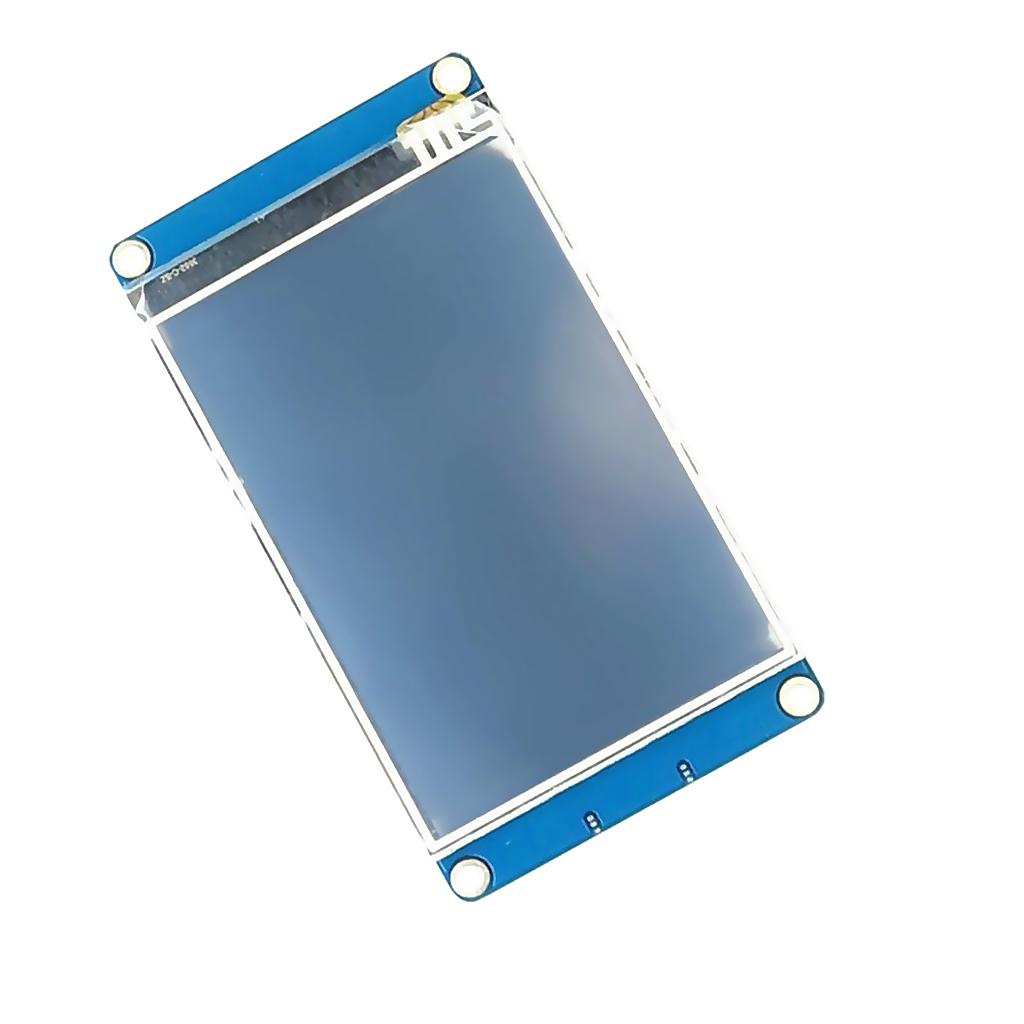

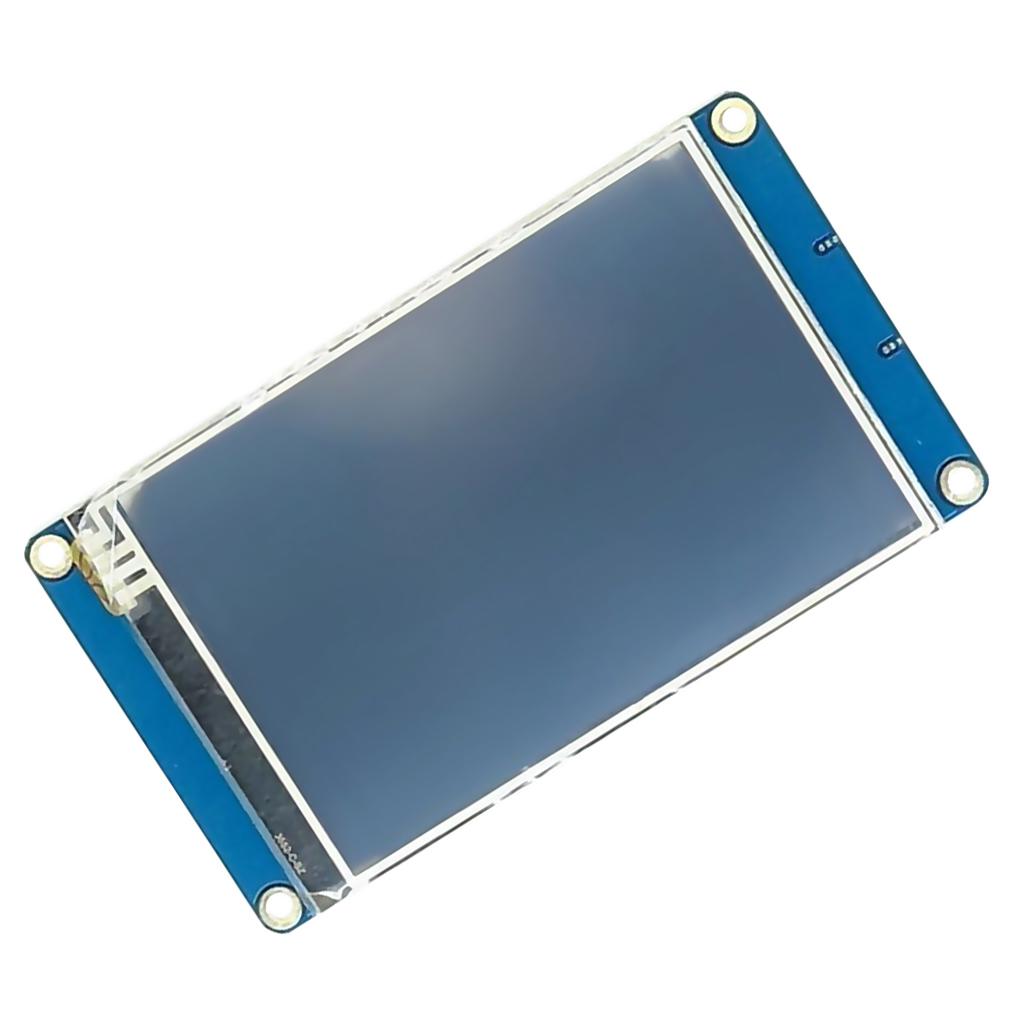

NX4832T035 - 3.5inch 480 X 320 Resolution HMI TFT LCD Touch Module Board

Regular price
Rs. 4,620.74
Regular price
Sale price
Rs. 4,620.74
Earn 2310 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60007673
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

480 x 320 Resolution

RGB 65K true to life colours

TFT Screen with integrated 4-wire Resistive Touch Panel

Easy 4 pin interface to any TTL Serial Host

16M Flash memory for User Application Code and Data

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.

This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce your 99% development workloads. With the help of this WYSIWYG editor, GUI designing is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

NX4832T035 is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.


Specification:

Material: PCS

Color: Blue

Size: Approx. 74.4x42.9mm / 2.93x1.69inch

On board micro-SD card for firmware upgrade

Visual Area: 69.60mm(L)×41.76mm(W)

Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%

5V 5145mA power consumption

Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.

5V 500mA DC recommended power supply

using for all Arduino or Raspberry Pi project.


Package Includes:

1 Piece of HMI TFT LCD Touch Display Module
