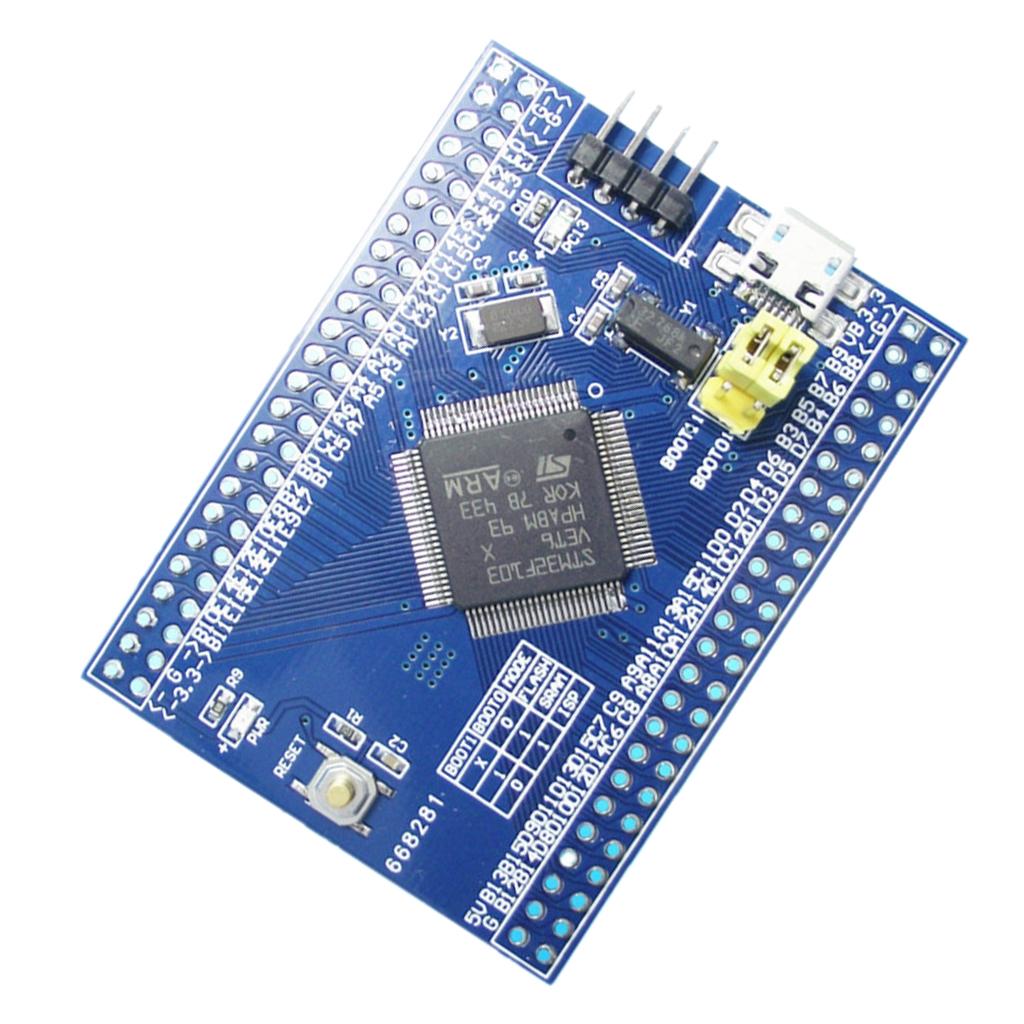

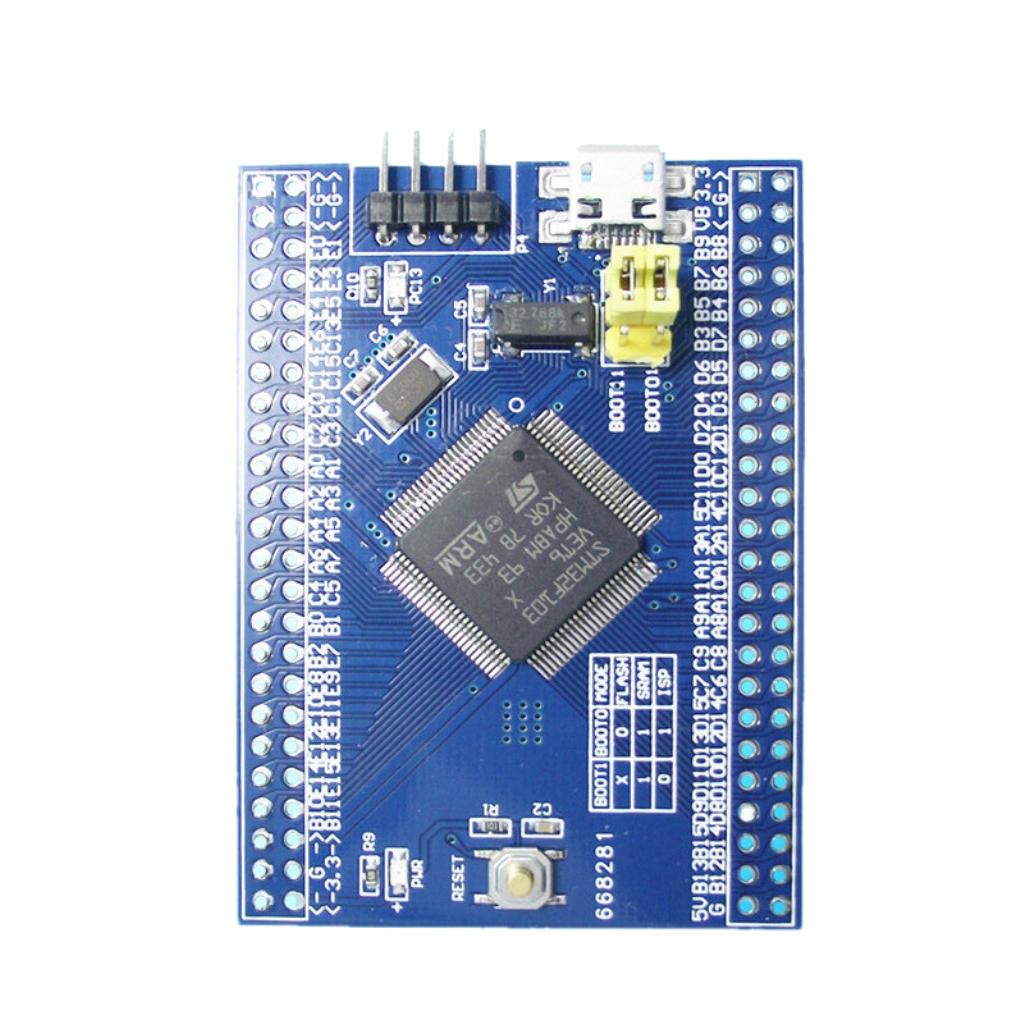

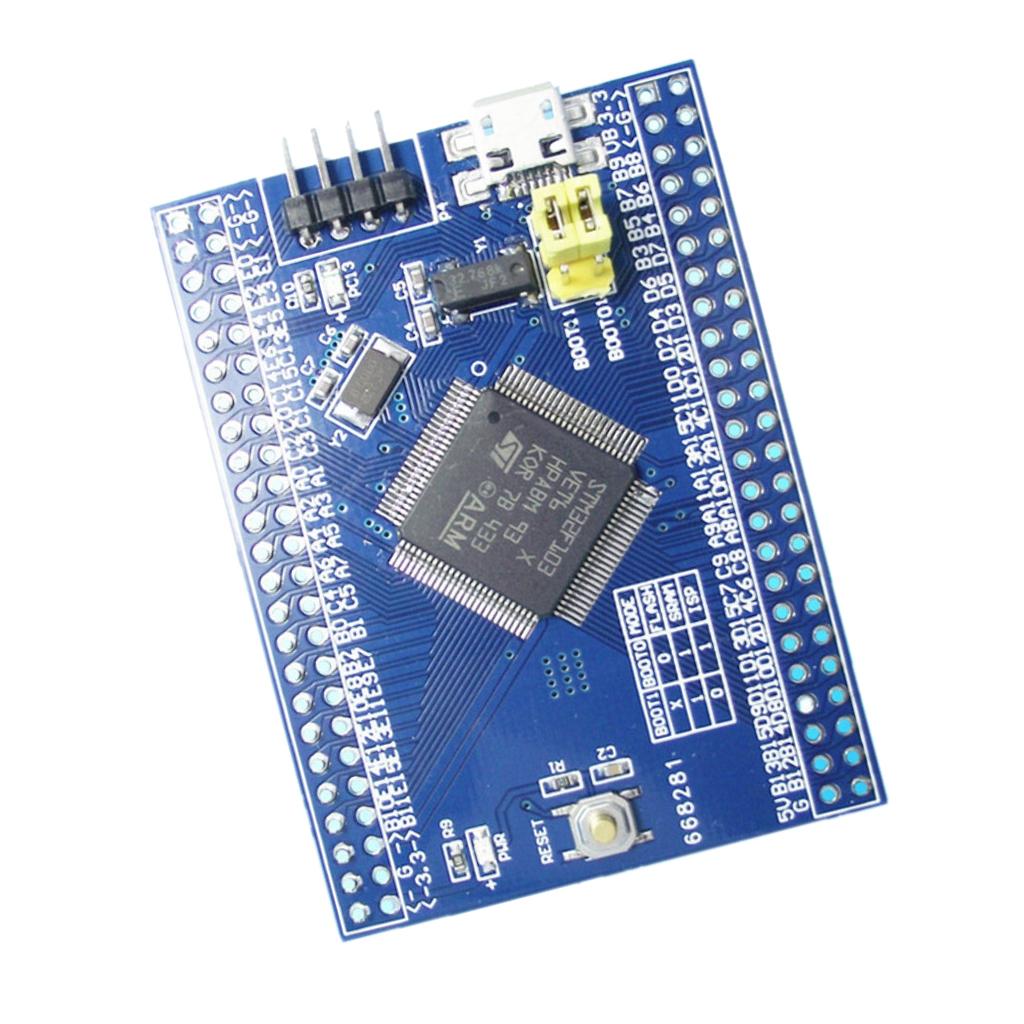

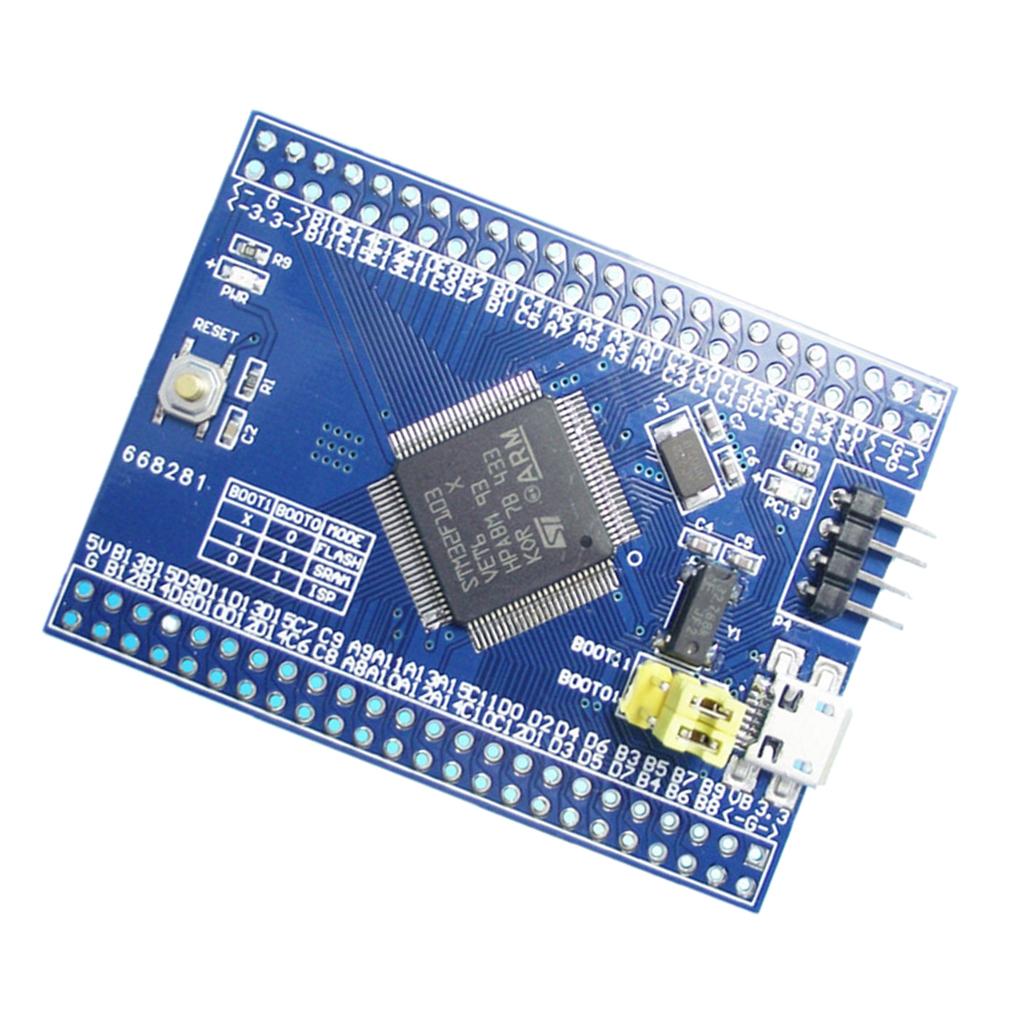

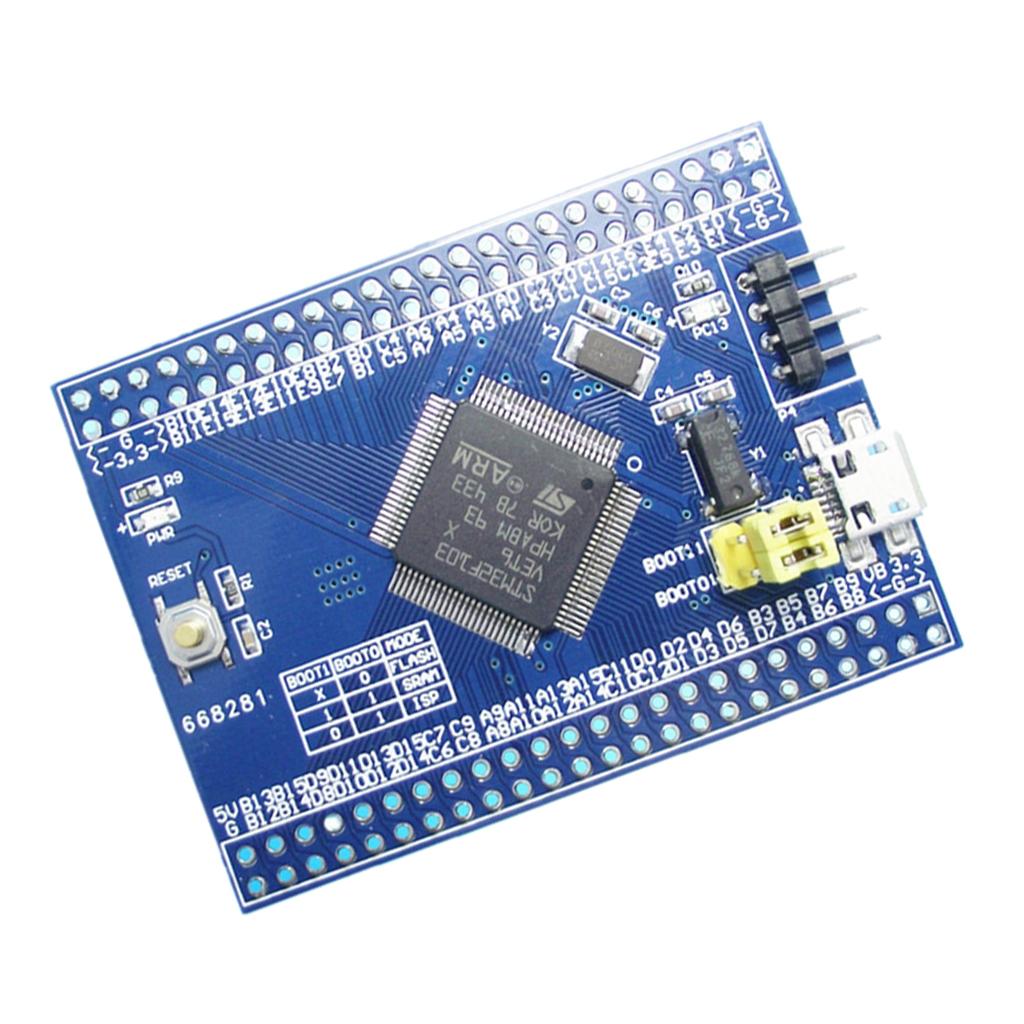

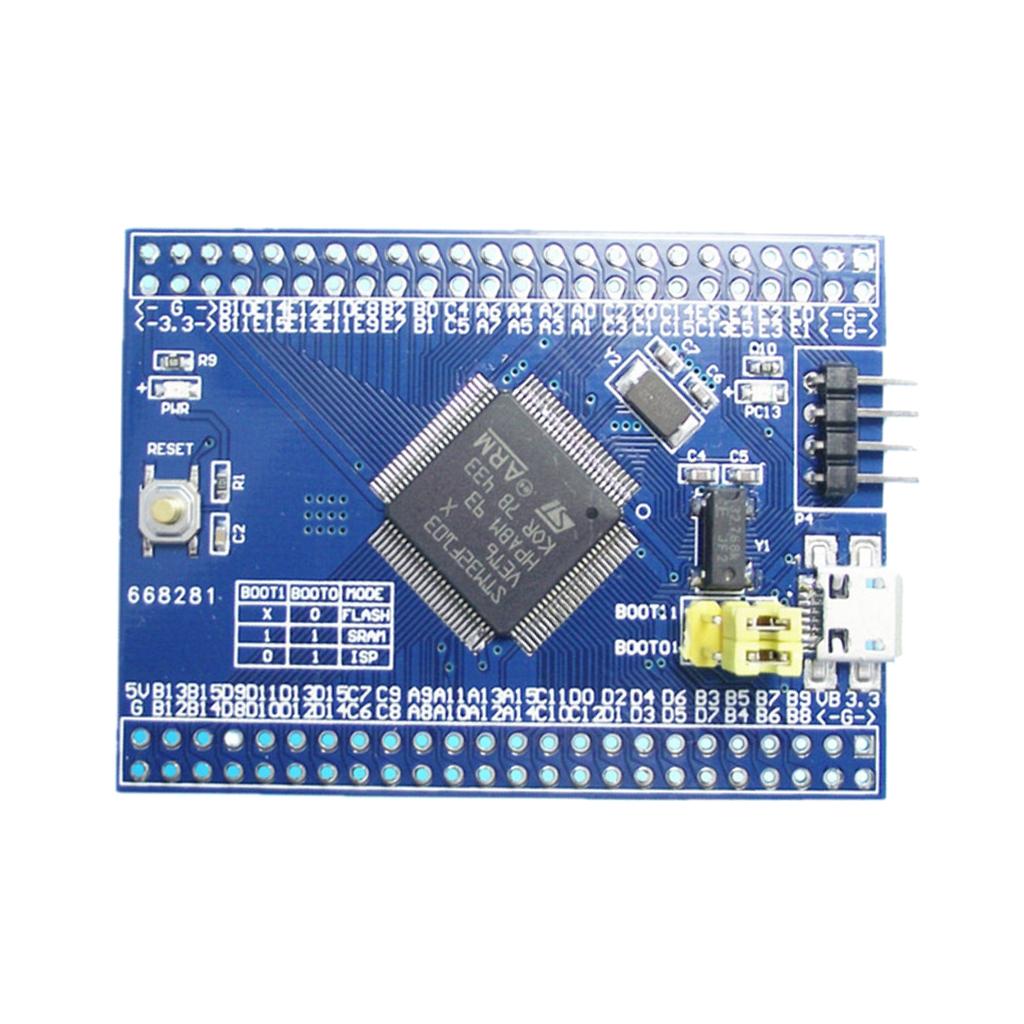

New STM32F103VET6 ARM STM32 Minimum System Development Board

Regular price
Rs. 2,909.14
Regular price
Sale price
Rs. 2,909.14
Earn 1454 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73006453
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Onboard the most basic circuits based on MCU, such as crystal oscillator circuit, power conversion circuit and USB interface, etc.
The core board brings out the common I/O port resources.
Added EEPROM peripherals to expand the memory circuit.
The SWD simulation debug download interface is introduced.
It uses the Mirco USB interface that is commonly used in smartphones today. It is easy to use and can do USB communication and power supply.
With its own power supply voltage regulator chip, the power inlet/outlet is equipped with a tantalum capacitor, which has an extraordinary effect in filtering and voltage regulation.
Equipped with high quality 2.54mm spacing of single rows of pins, ensuring excellent conductivecontact.

Specification:

Model: STM32F103VET6
Core: ARM 32-bit Cortex-M3
Work Frequency: 72MHz
Flash Memory: 512K Byte Flash,64KByte RAM
Working Voltage: 2.0~3.6V
Power supply: 3.3V regulator chip, maximum output 1000mA
Size: 62.48x44.7mm/2.46x1.76 inch
Color: Blue

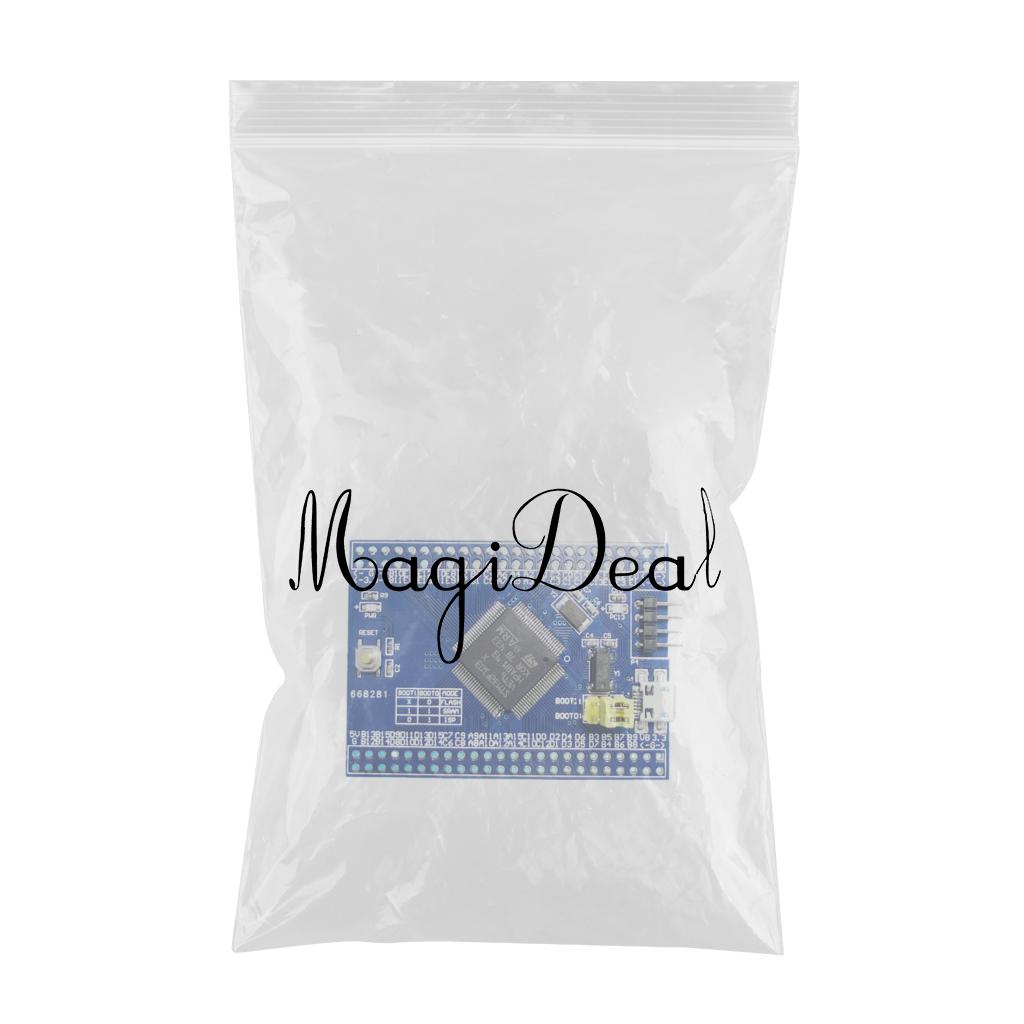

Package Includes:

1 Piece STM32F103VET6 Core Board Module

Note:

- This product has led to the necessary I/O port pins for easy connection to peripherals.
- In addition to downloading programs via the SWD interface, programs can be downloaded via USART1 (PA9 and PA10).
