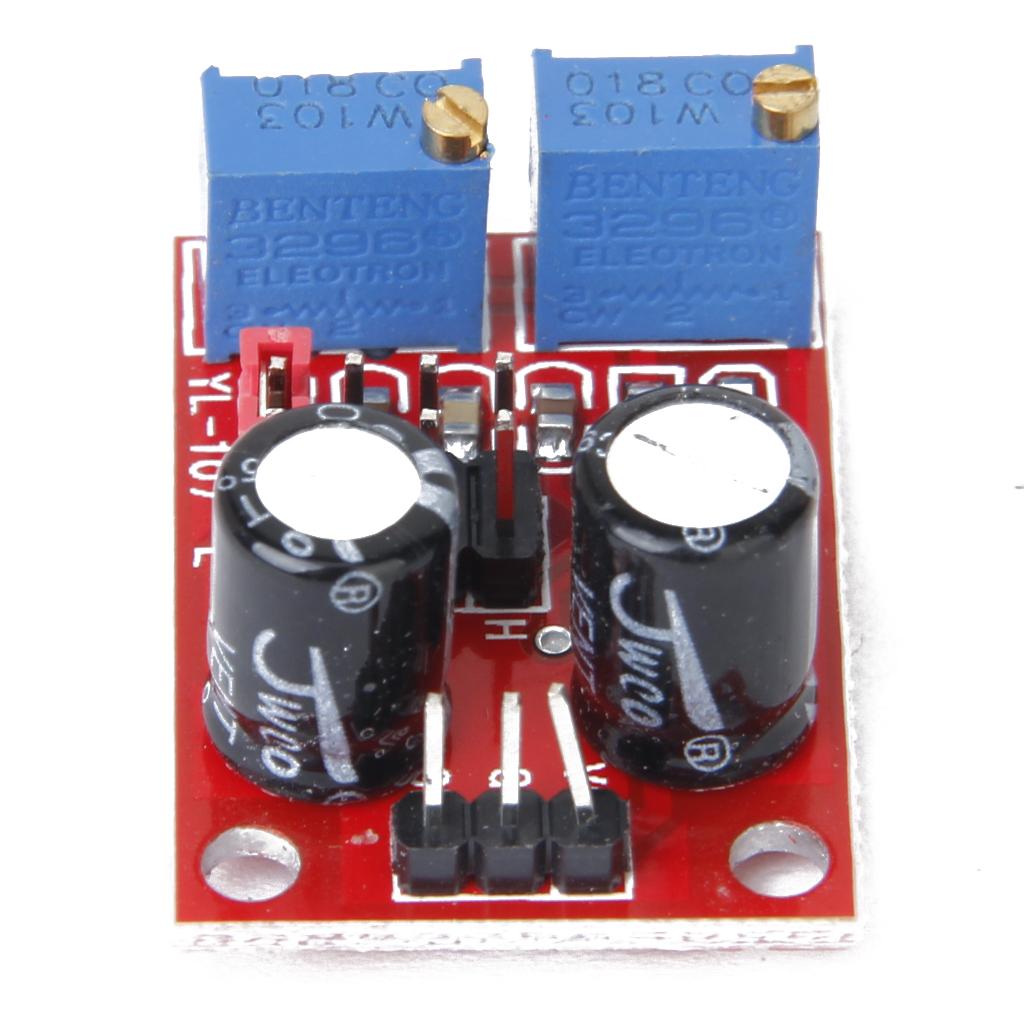

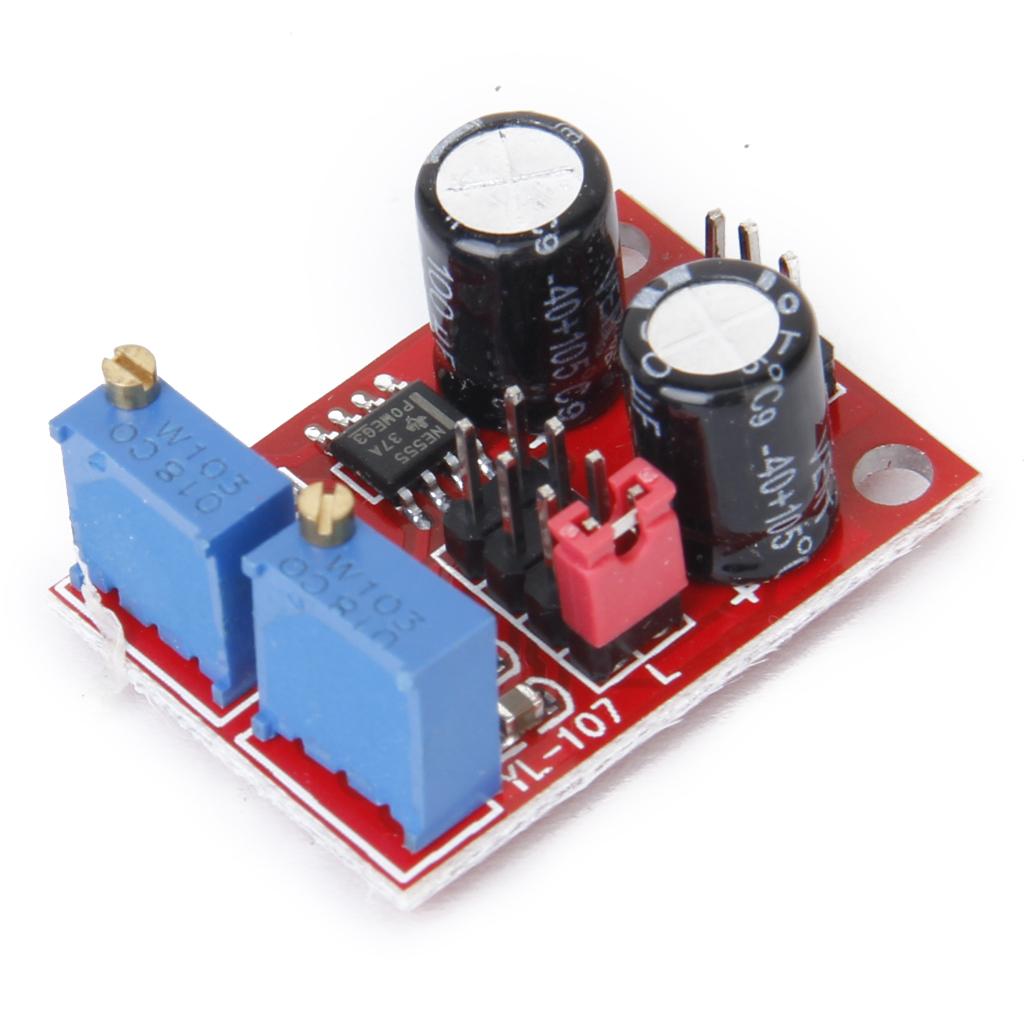

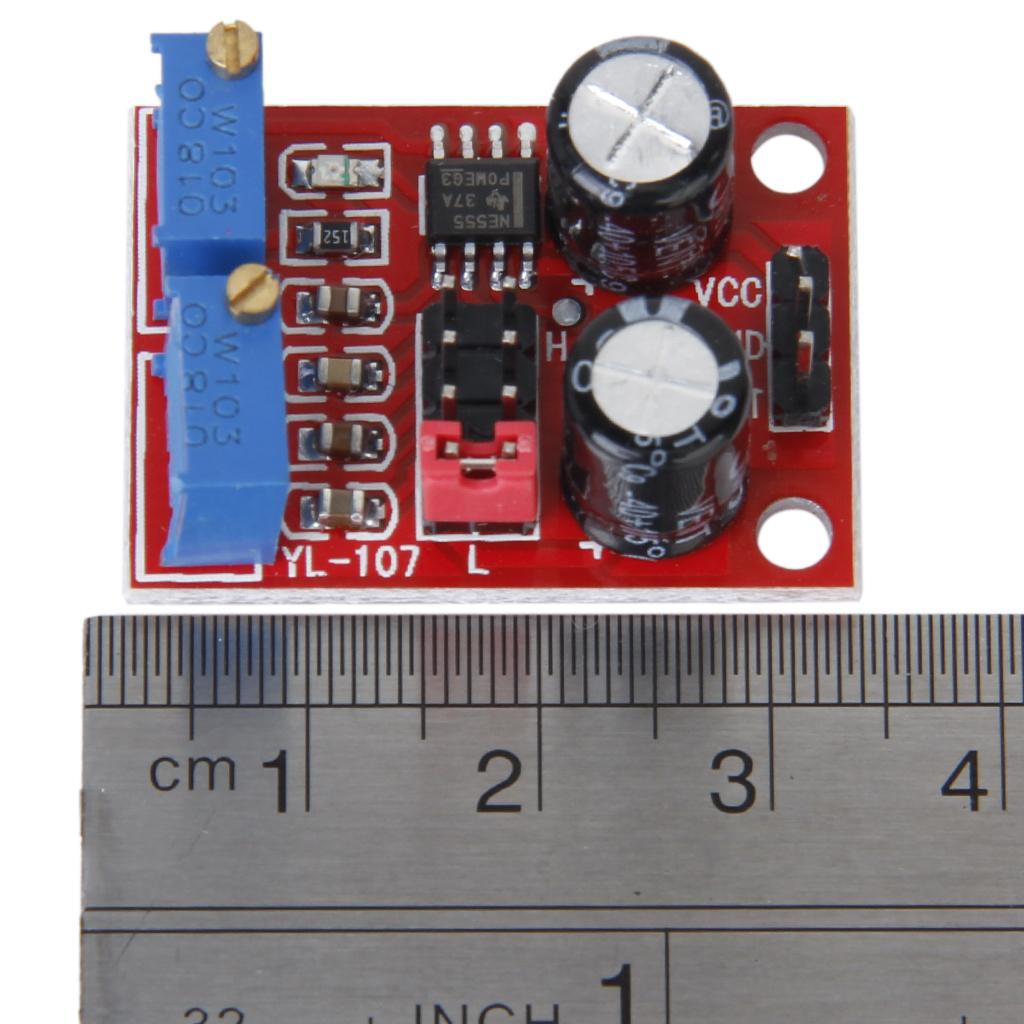

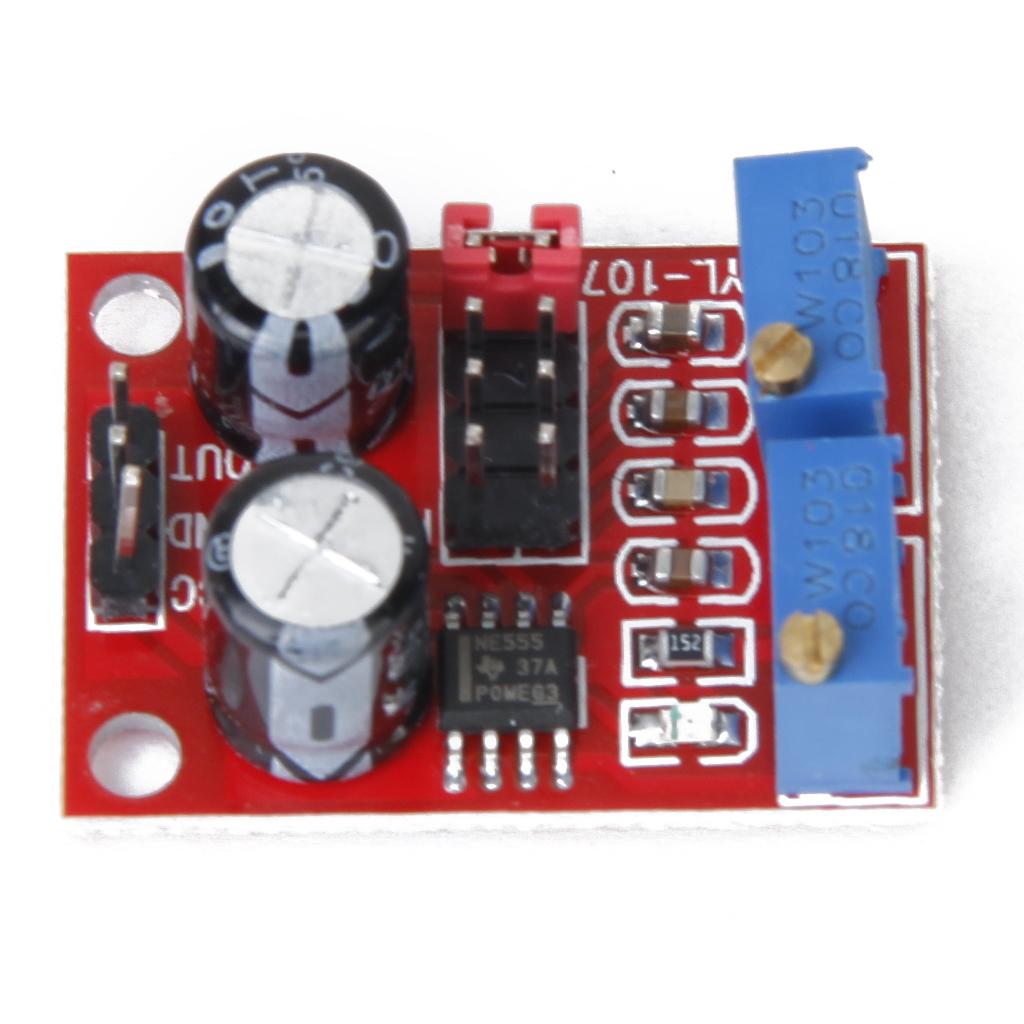

NE555 Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Regular price
Rs. 300.12
Regular price
Sale price
Rs. 300.12
Earn 150 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14008963
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Features:

  • Main chip: NE555;
  • Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
  • Input current: >=100MA
  • Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  • Maximum output current: >=15MA (when 5V power supply, V-PP greater than 50%),
  •                                         >=35MA (when 12V power supply, V-PP greater than 50%)
  • Output with LED indication (low level ,LED will on; high level, LED will off; low frequency, the LED flashes);
  • Size: Approx.3.1 * 2.4cm/1.22 * 0.94inch;

Package includes:

  • 1x NE555 Signal Generator
