MAX7219 Microcontroller with 5P Line Dot Matrix Display Module for Arduino

Regular price
Rs. 524.83
Regular price
Sale price
Rs. 524.83
Earn 262 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 51000679
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

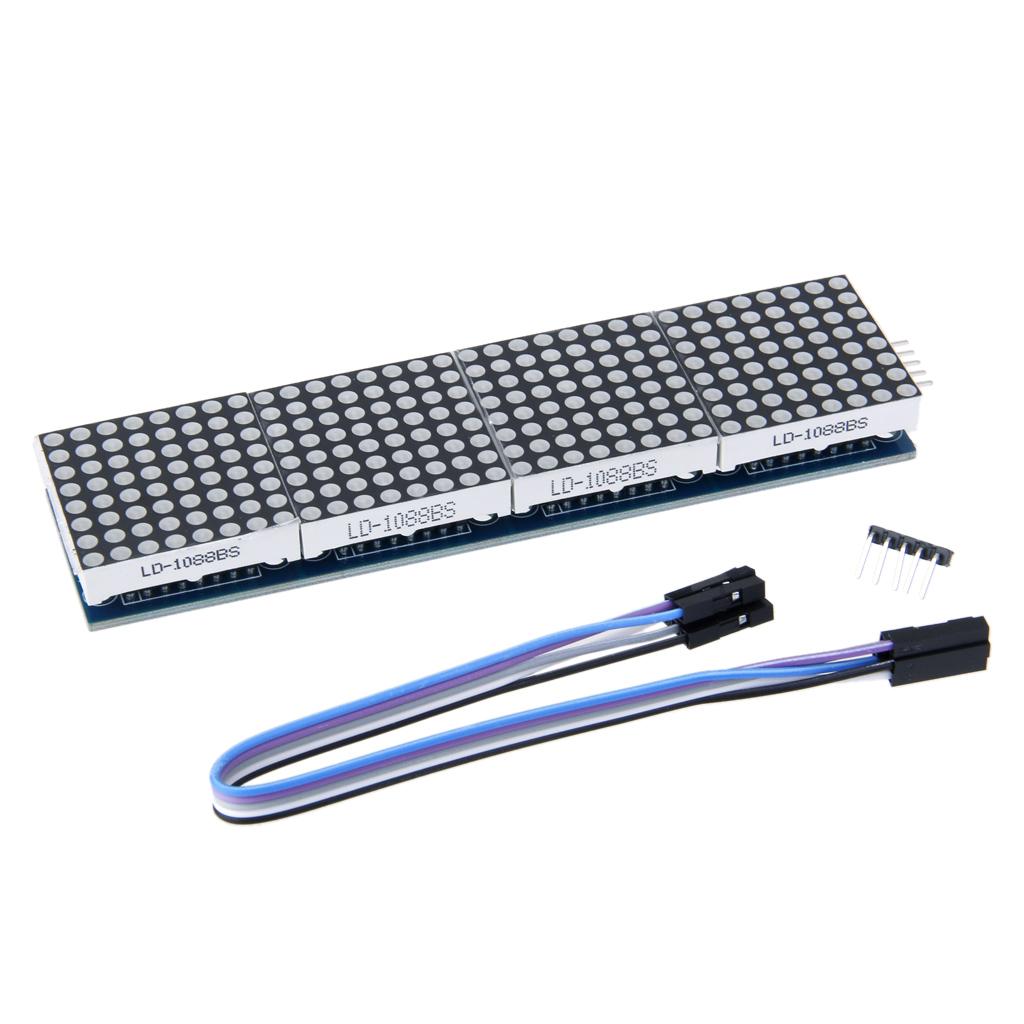

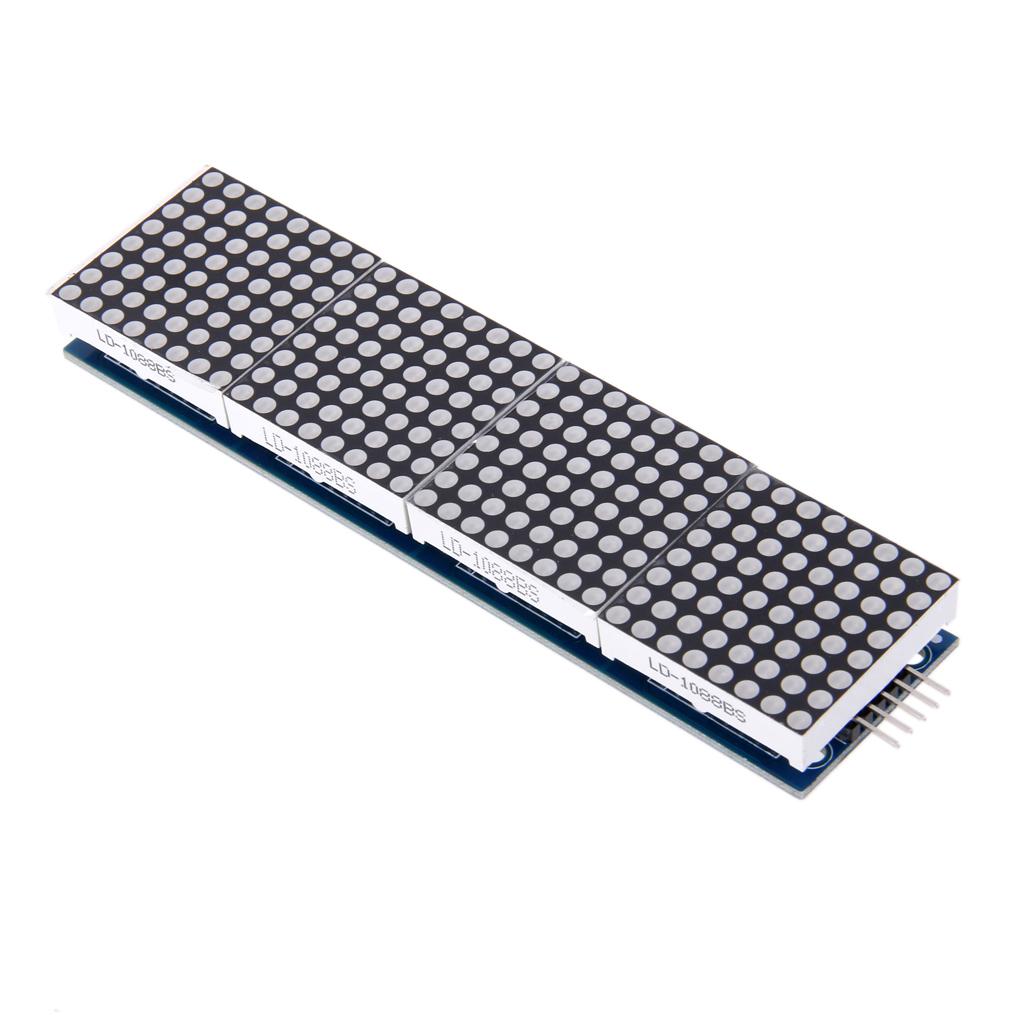

A single module can drive a 8x8 dot matrix common cathode.
Operating Voltage:5V
Dimensions:7.3X3X1cm
Fixing screws with 64 holes with a diameter 3mm
Module with input and output interfaces,support for cascading multiple module.

Specification:

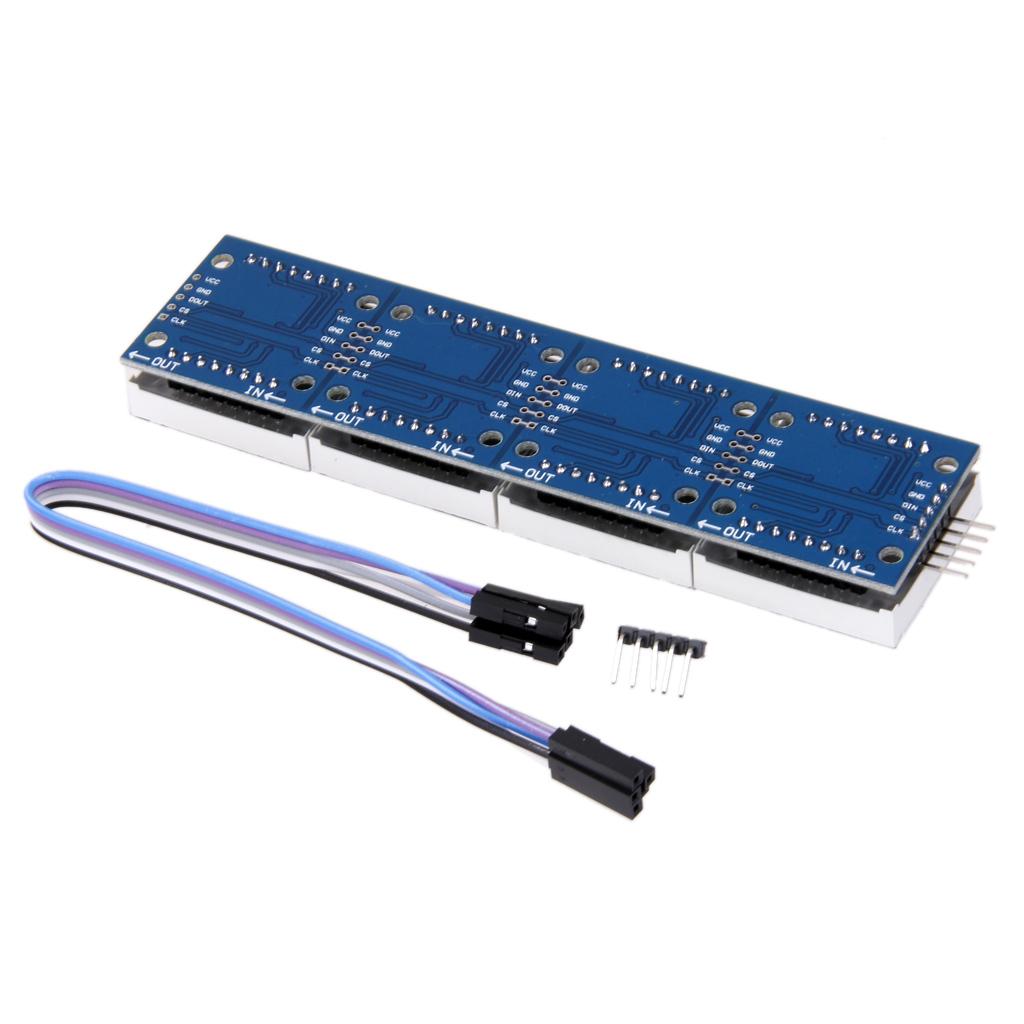

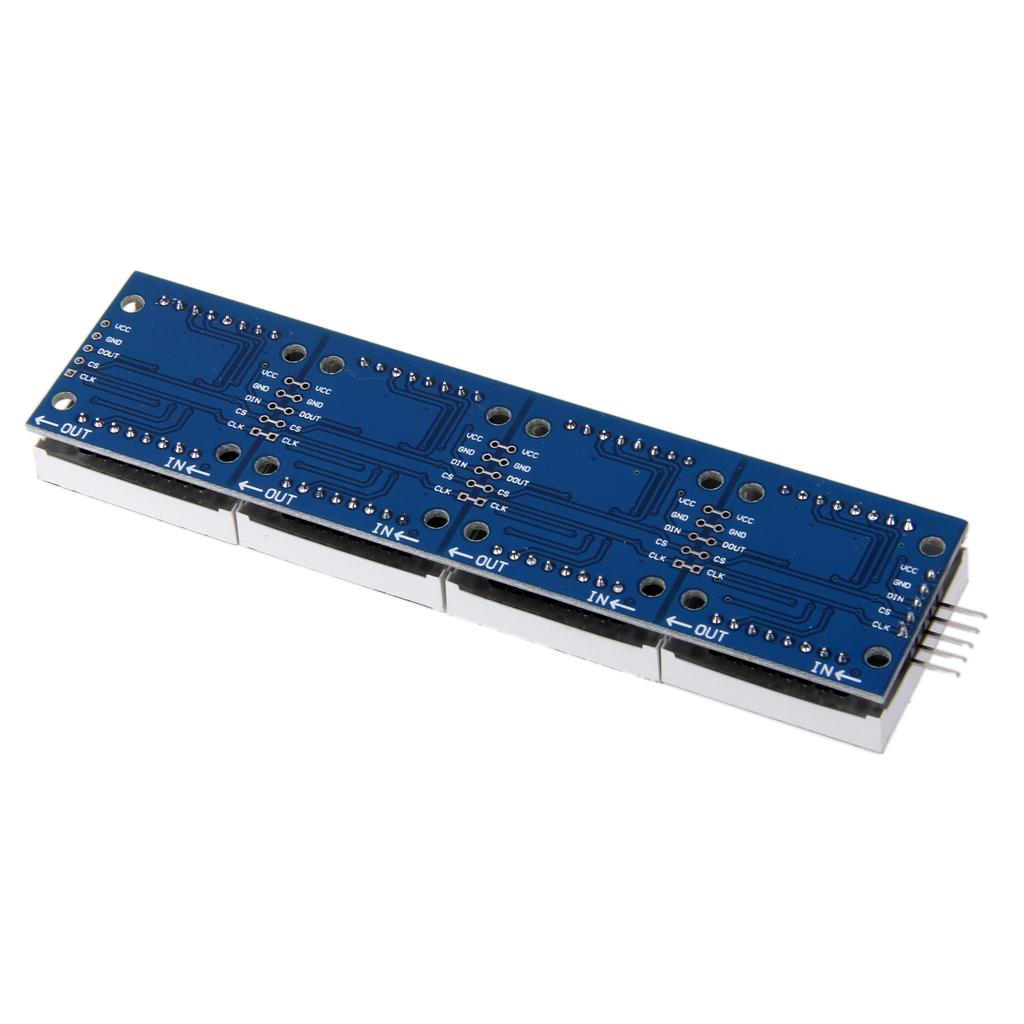

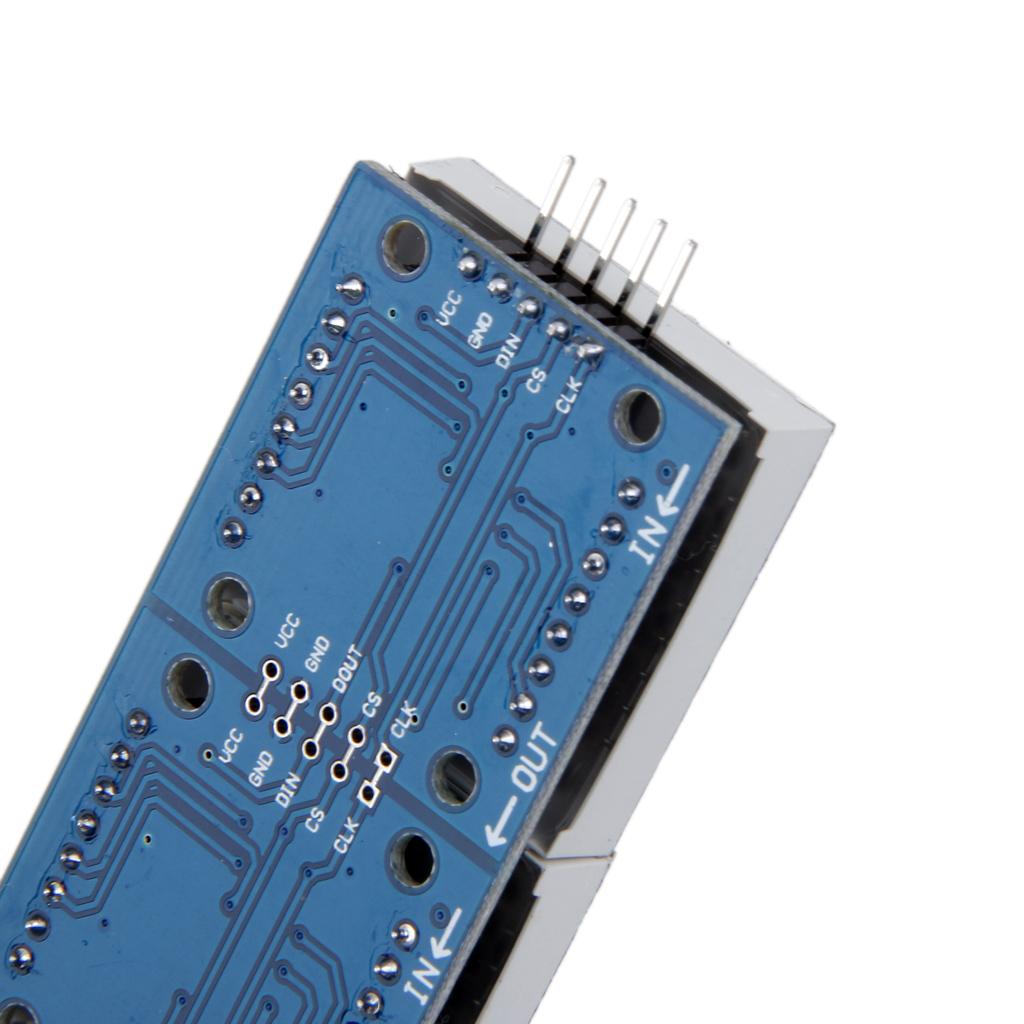

The left side of the module to the input port,the right to an output port.
When the control of a single module,simply input port connected to CPU.
When a plurality of cascaded modules,input and output termination CPU,an input terminal of the second output end of the first module a module,the first two modules of the input terminal of the three termination modules,and so on...
For example:
VCC → 5V
GND → GND
DIN → P2.2
CS → P2.1
CLK → P2.0

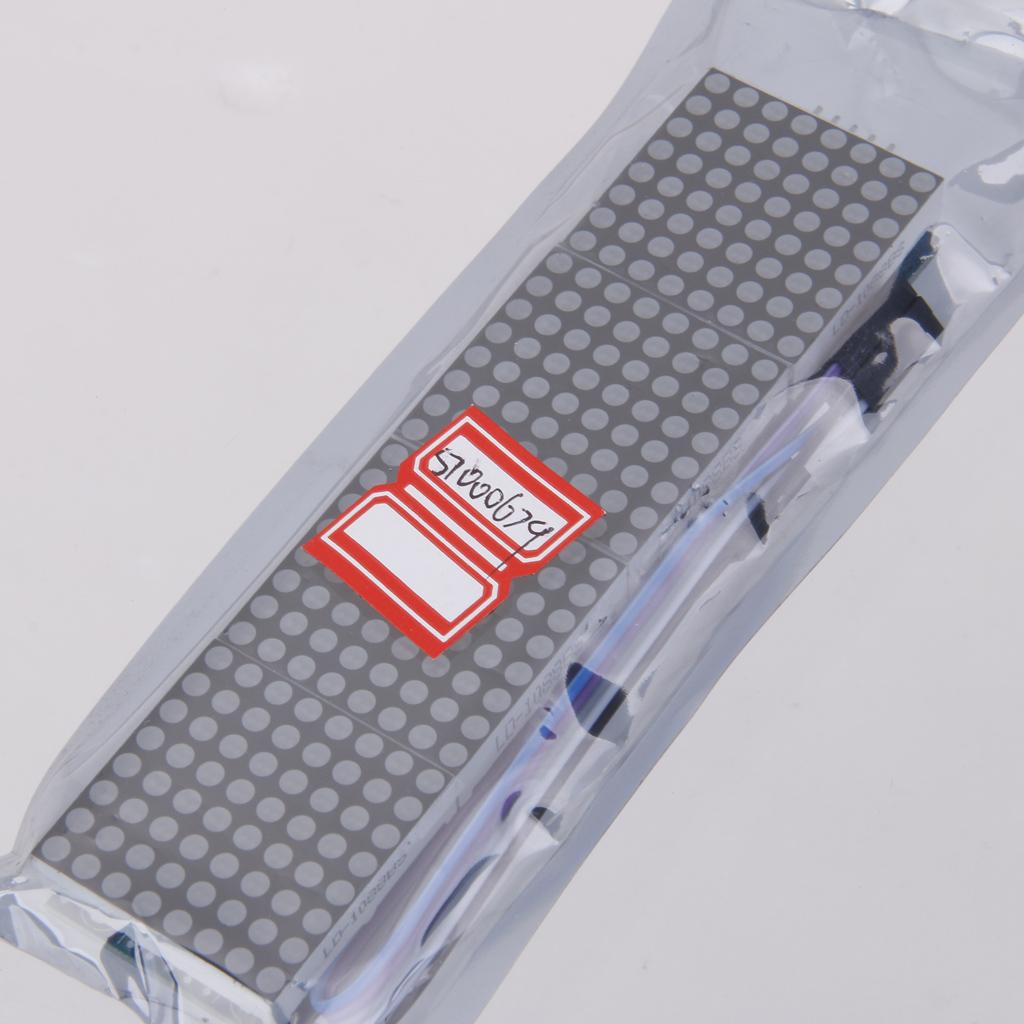

Package Includes:

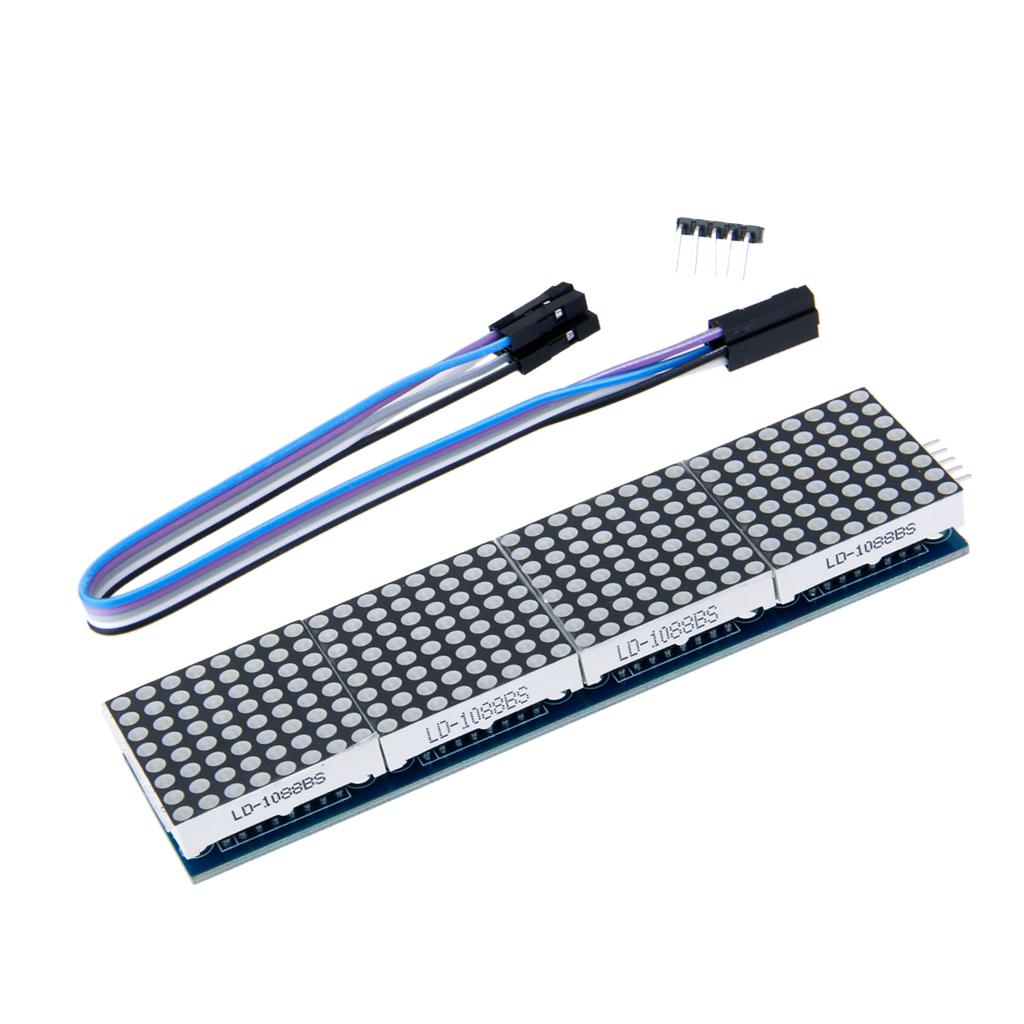

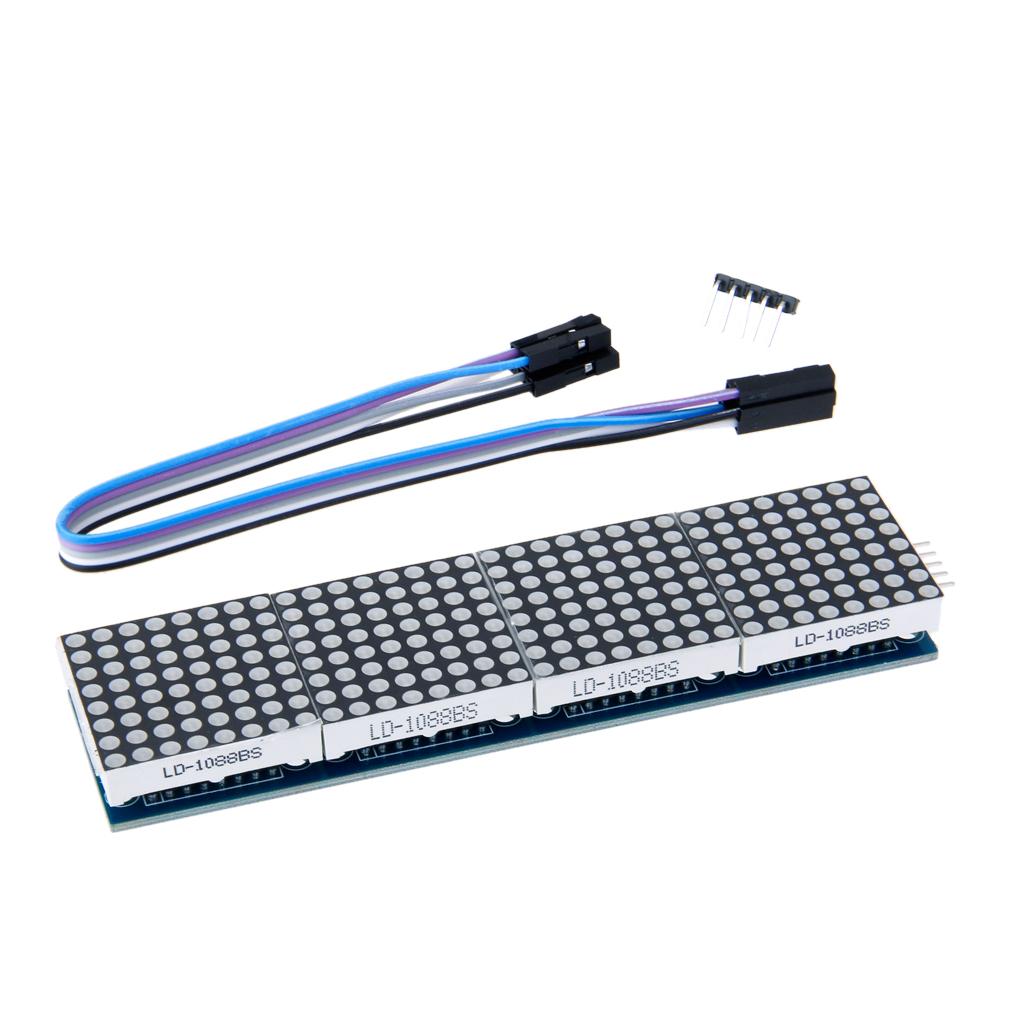

1 Piece MAX7219 Microcontroller with 5P Line Dot Matrix Module

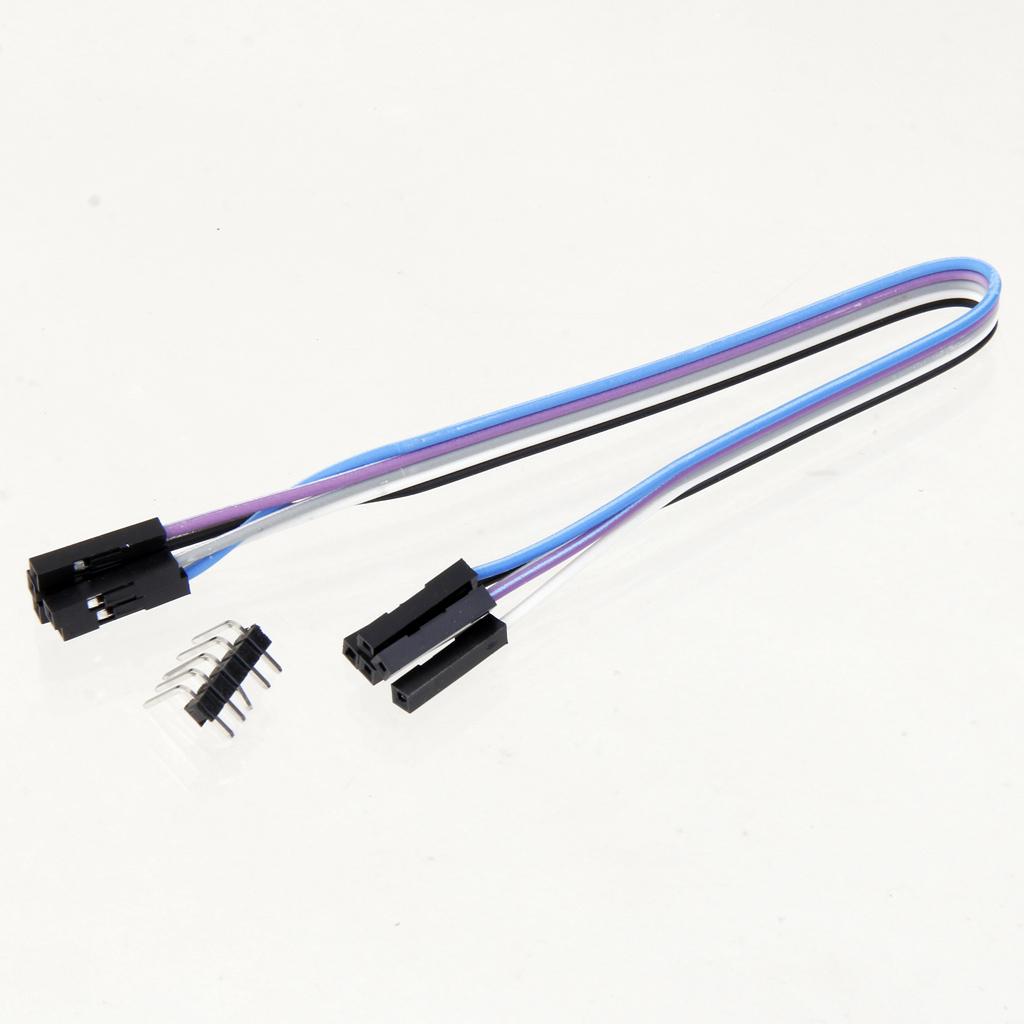

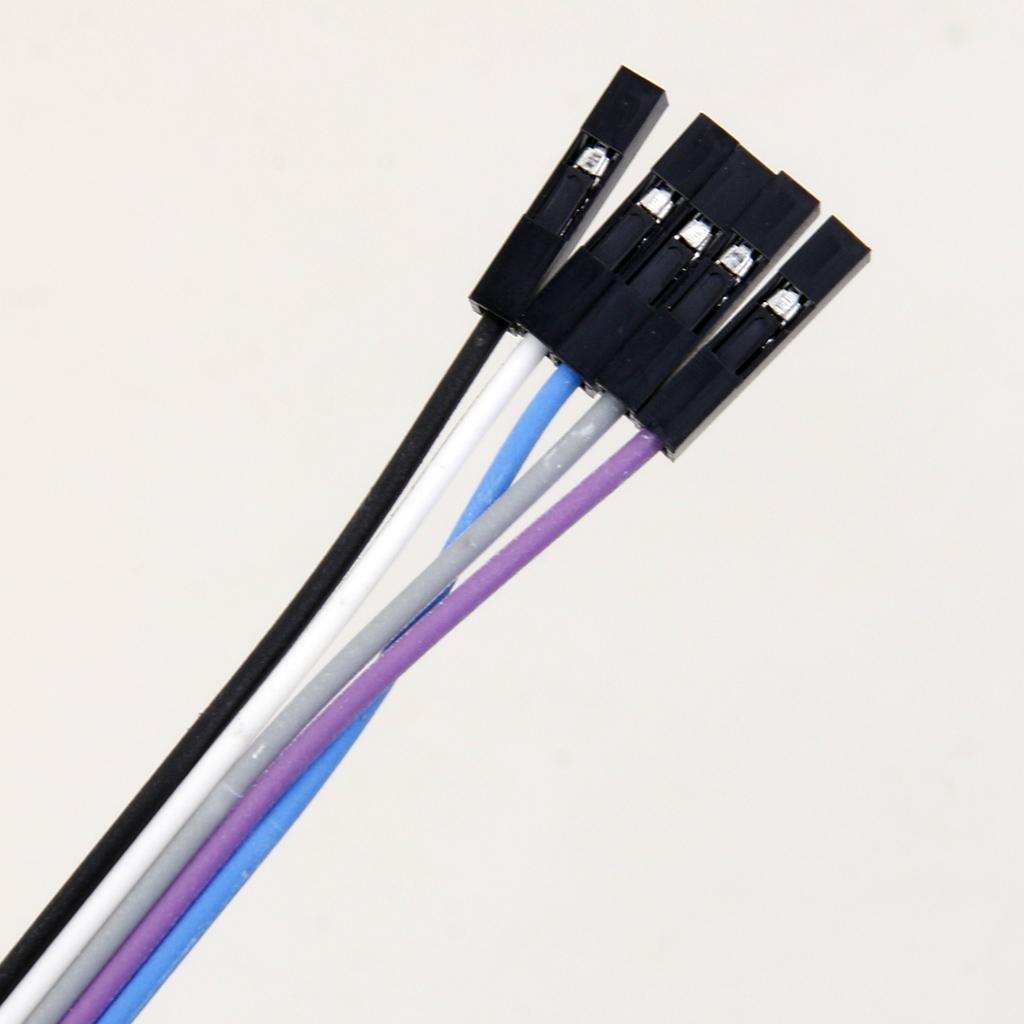

1 Piece Wire
