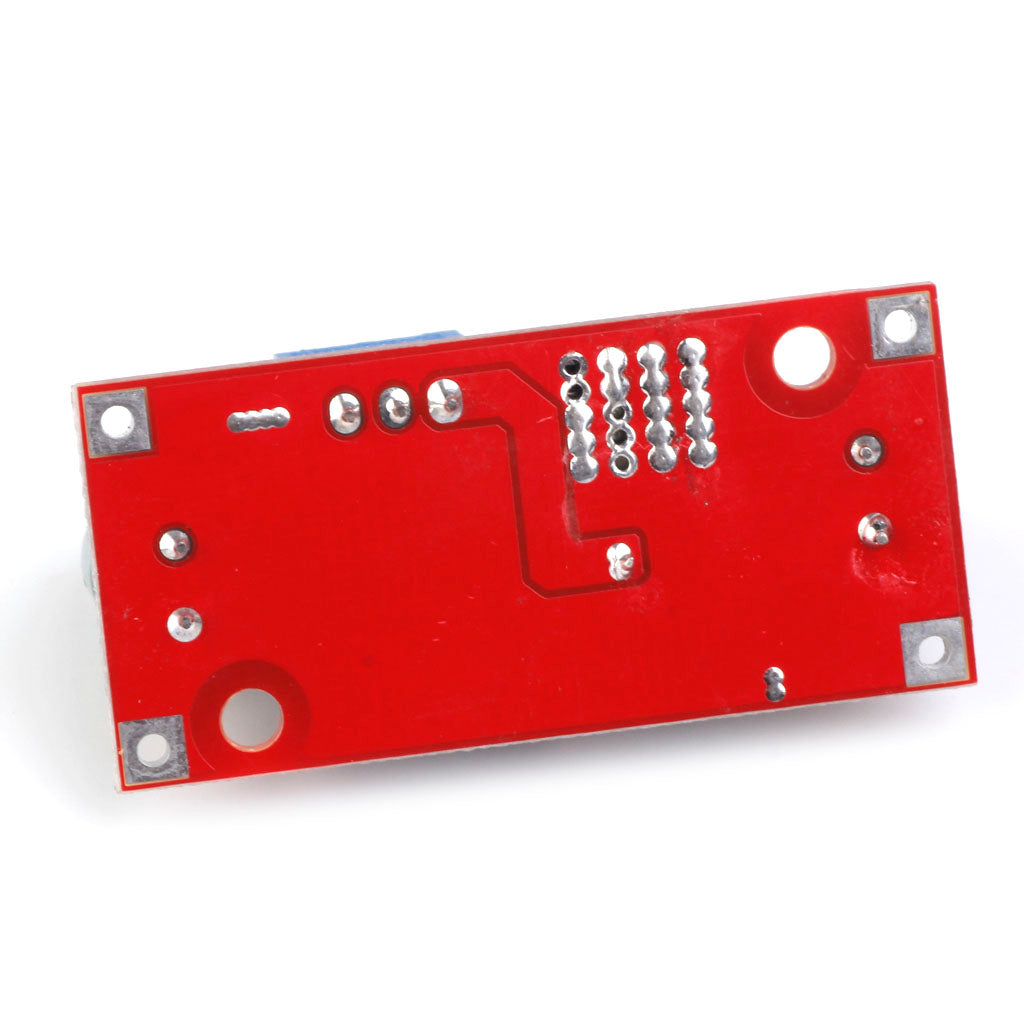

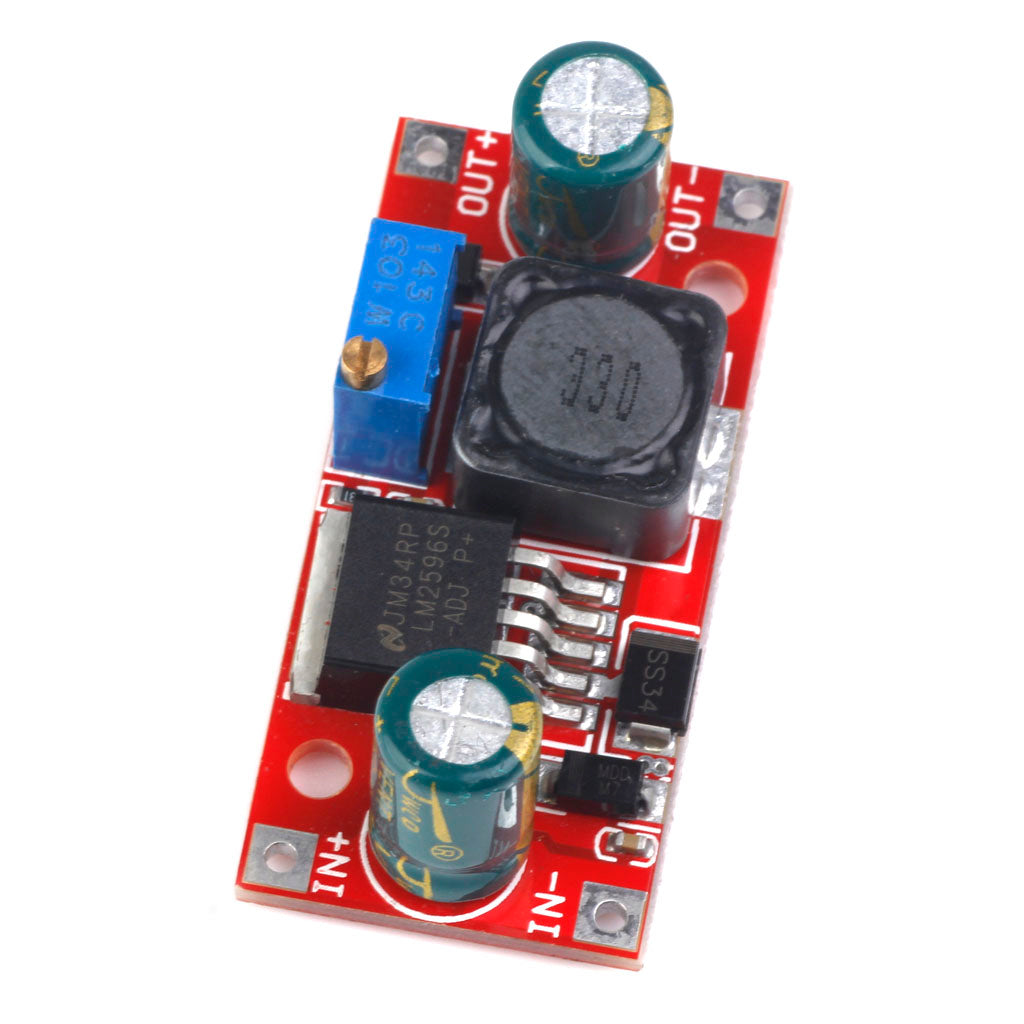

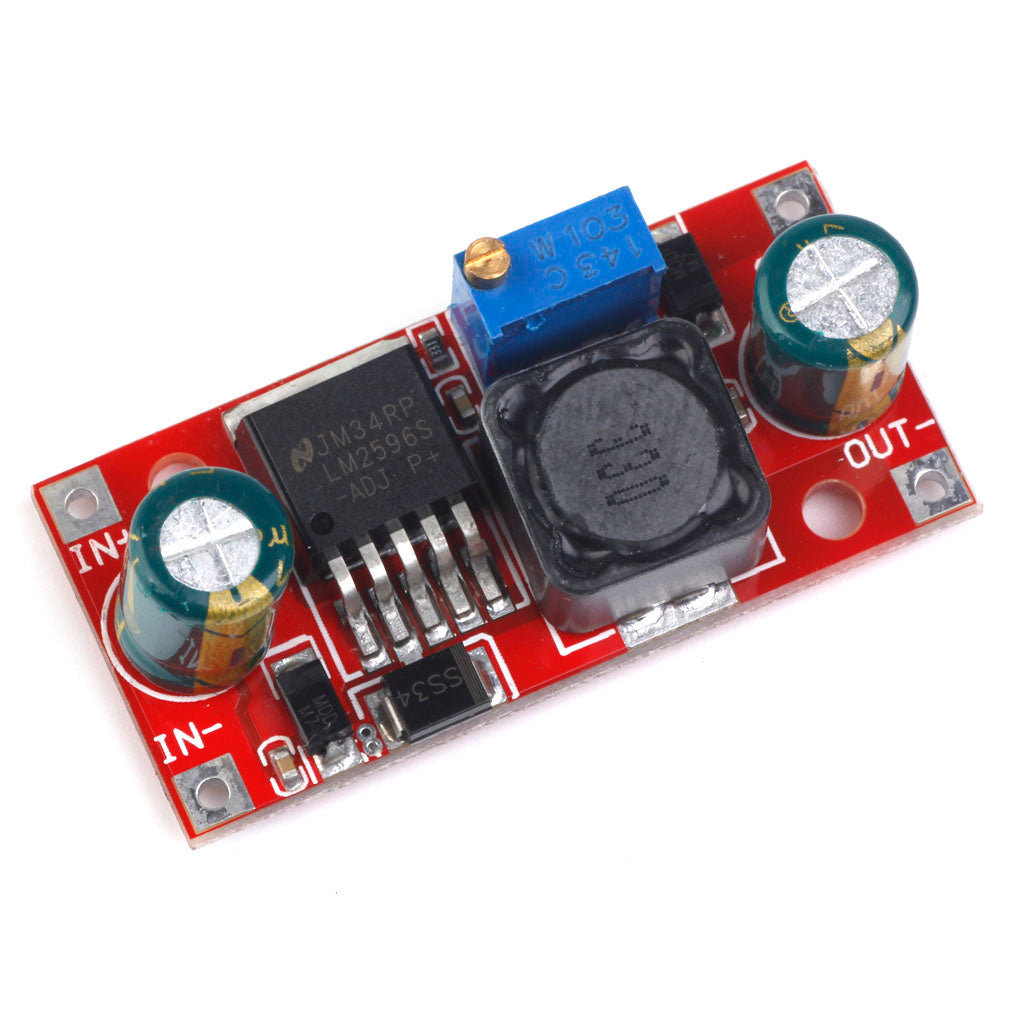

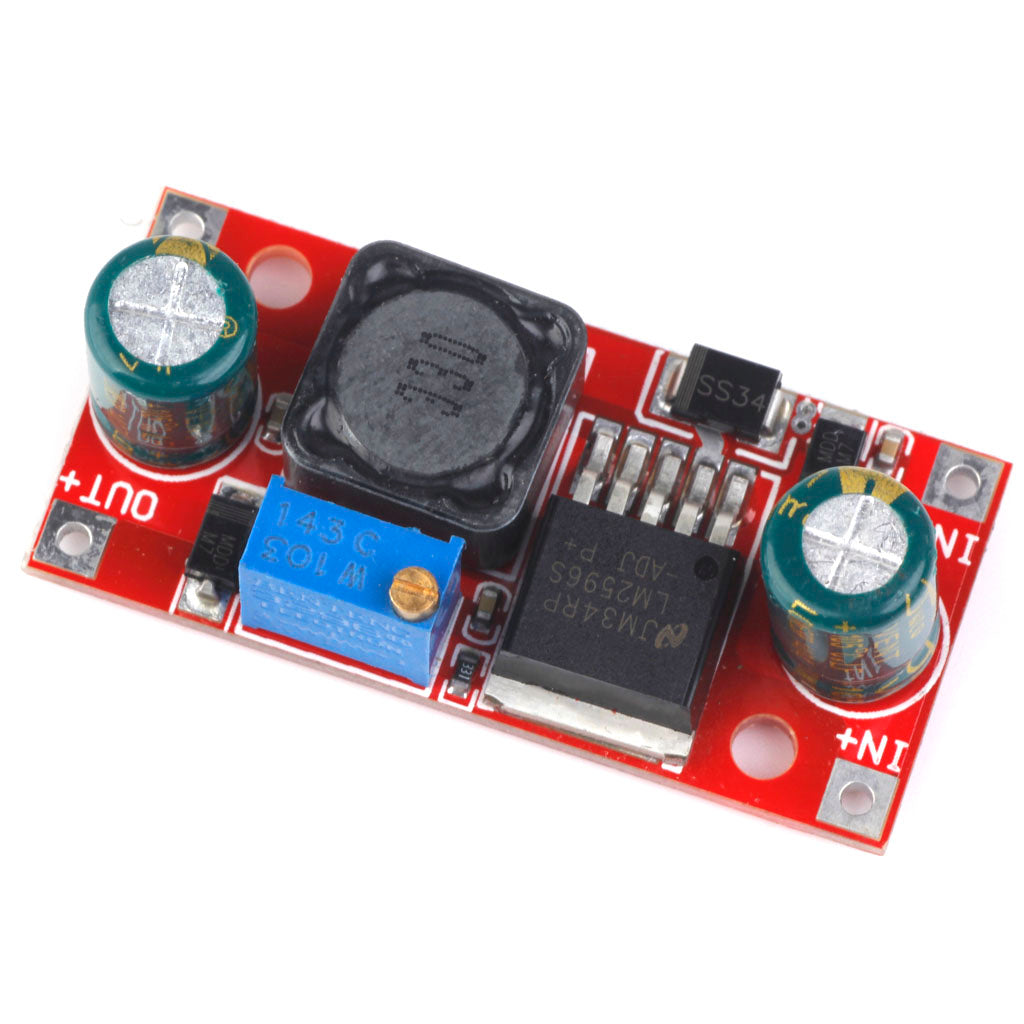

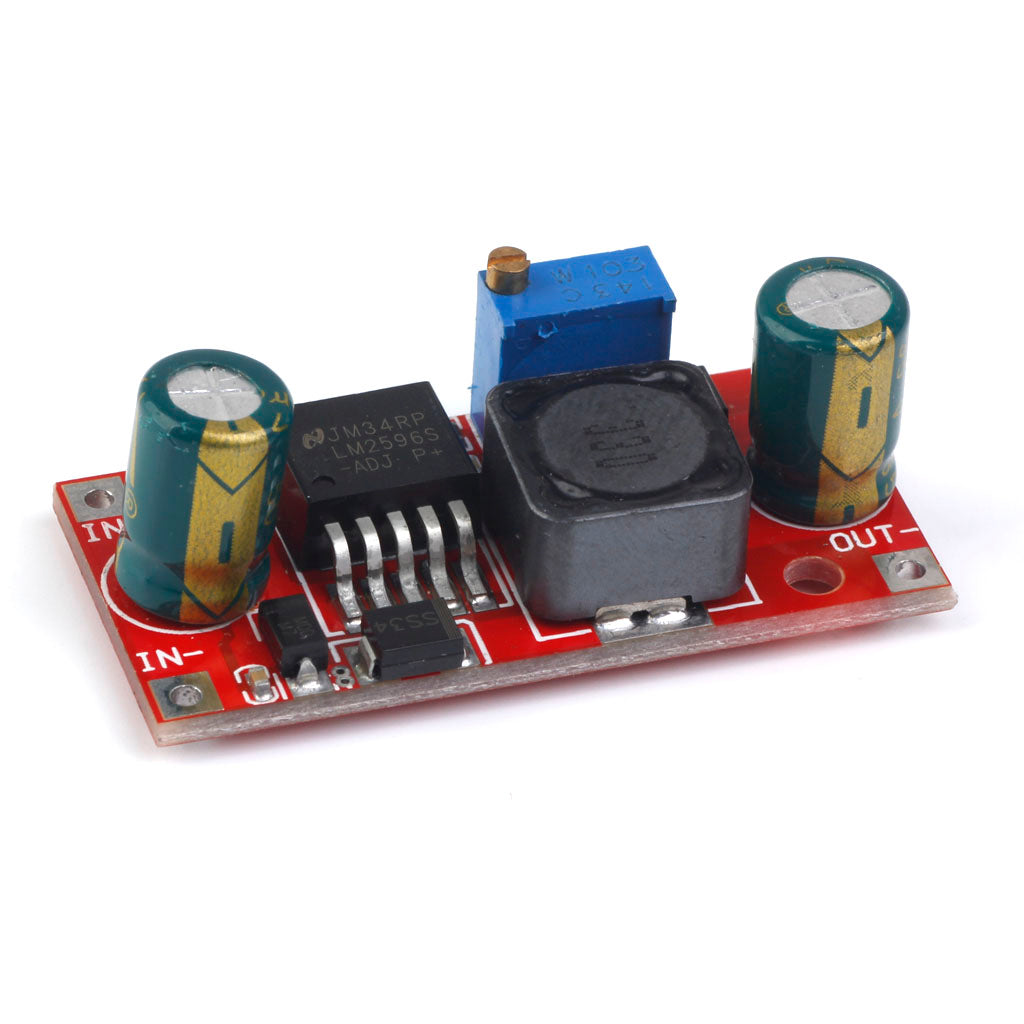

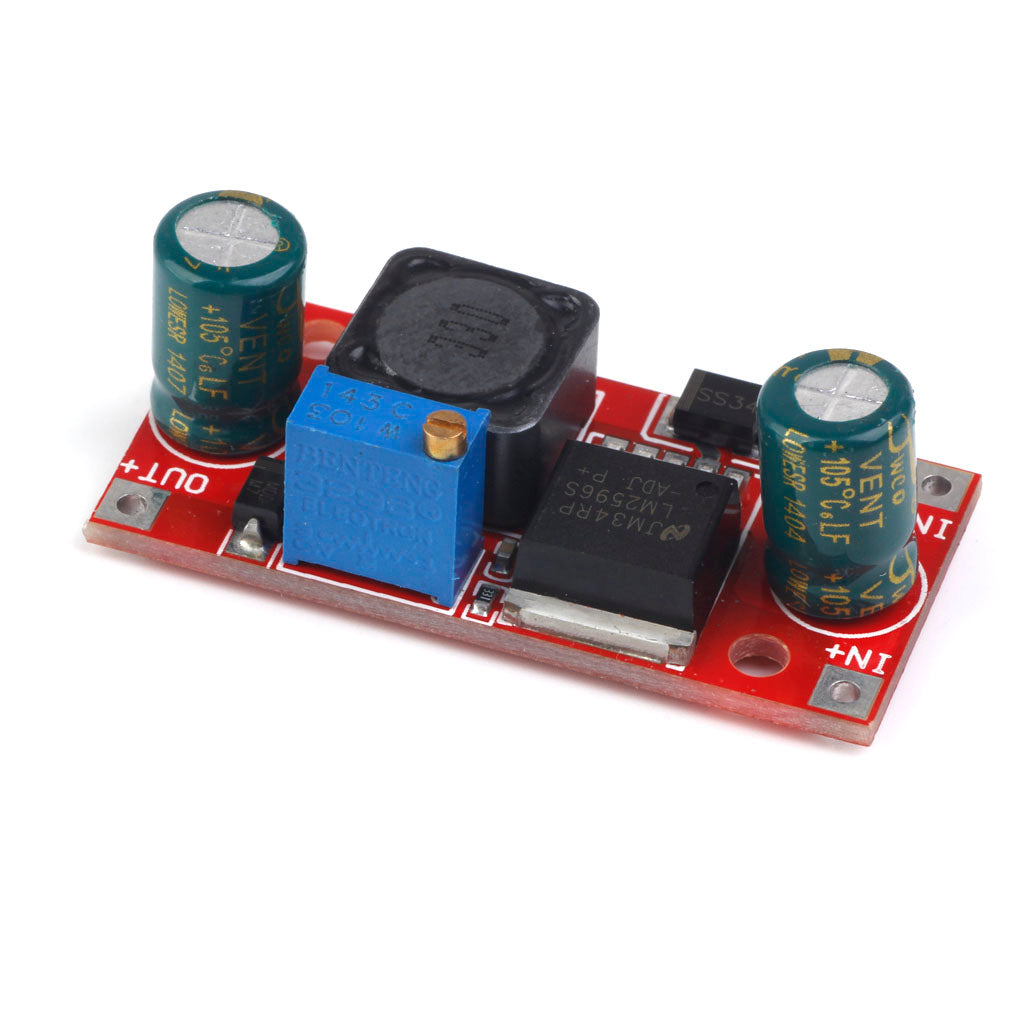

LM2596 DC-DC Step-down Adjustable Power Supply Module

Regular price
Rs. 369.08
Regular price
Sale price
Rs. 369.08
Earn 184 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 14002072
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

  • Dimension(L x W x H): Approx. 43 x 21 x 14mm(With potentiometer)
  • Input Voltage: 4.5 - 40V
  • Output Voltage: 1.5 - 35V (adjustable)
  • Output Current: Rated current 2A, maximum 3A (Additional heat sink is required)
  • Conversion Efficiency: Up to 92%
  • Potentiometer Adjustment Direction: Clockwise (increase), Anti-clockwise (decrease)
  • Switching Frequency: 150KHz
  • Rectifier: Non-Synchronous rectification
  • Module Properties: Non-isolated step-down module (buck)
  • Short Circuit Protection: Current limiting, since the recovery
  • Operating Temperature: -40 to 85 degrees Celsius (output power 10W or less)
  • Full Load Temperature Rise: 40 degrees Celsius
  • Load Regulation: ± 0.5%
  • Voltage Regulation: ± 0.5%
  • Dynamic Response Speed: 5% 200uS
  • Connection Mode: Welded, plus pin can be directly soldered PCB

Output Ripple:

  • Input 12V, Output 5V 3A 60mV (MAX)
  • Input 24V, Output 12V 3A 120mV (MAX)

Package Includes:

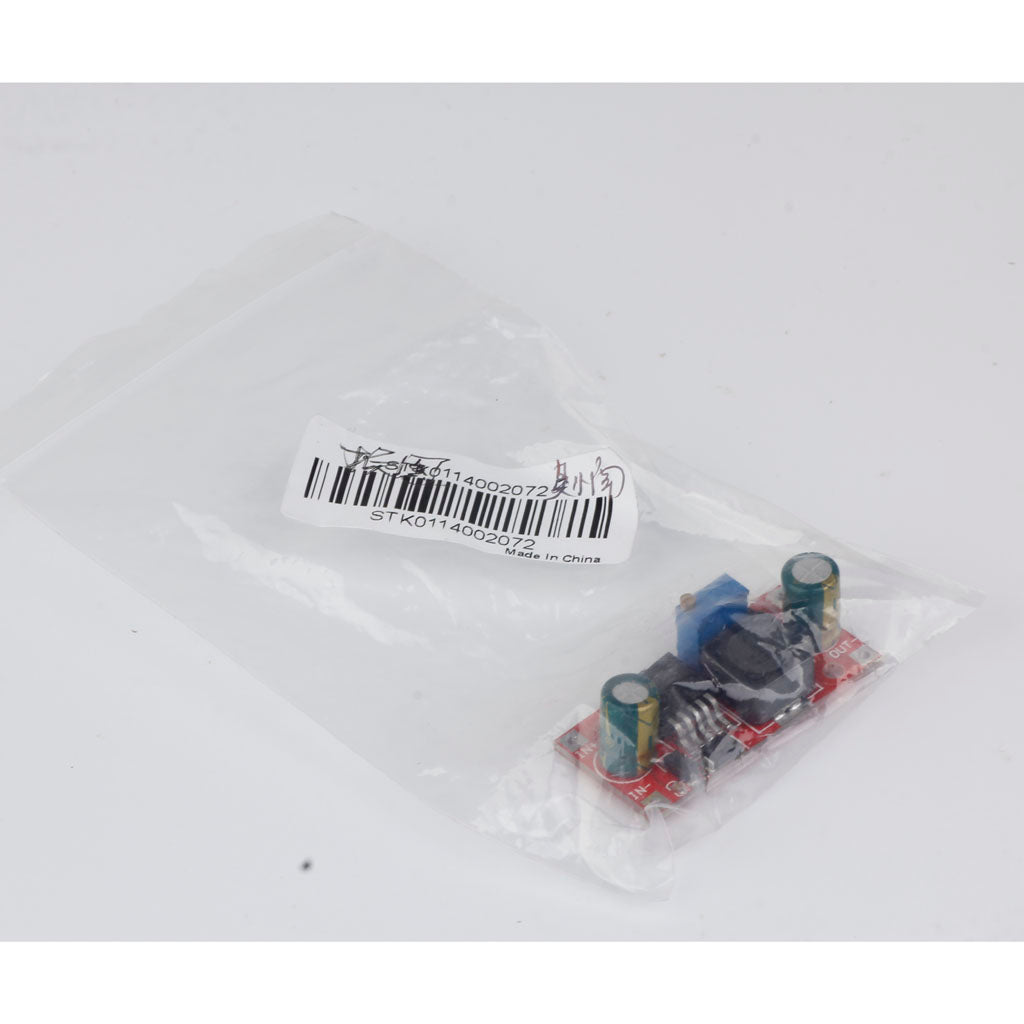

  • 1 x adjustable power supply module

Keywords: Power module, power supply module, adjustable power module
