LM2596 DC-DC Buck Adjustable Step-Down Power Supply Converter Module 43×21×14mm / 1.69×0.83×0.55 Inch

Regular price
Rs. 325.35
Regular price
Sale price
Rs. 325.35
Earn 162 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60006576
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

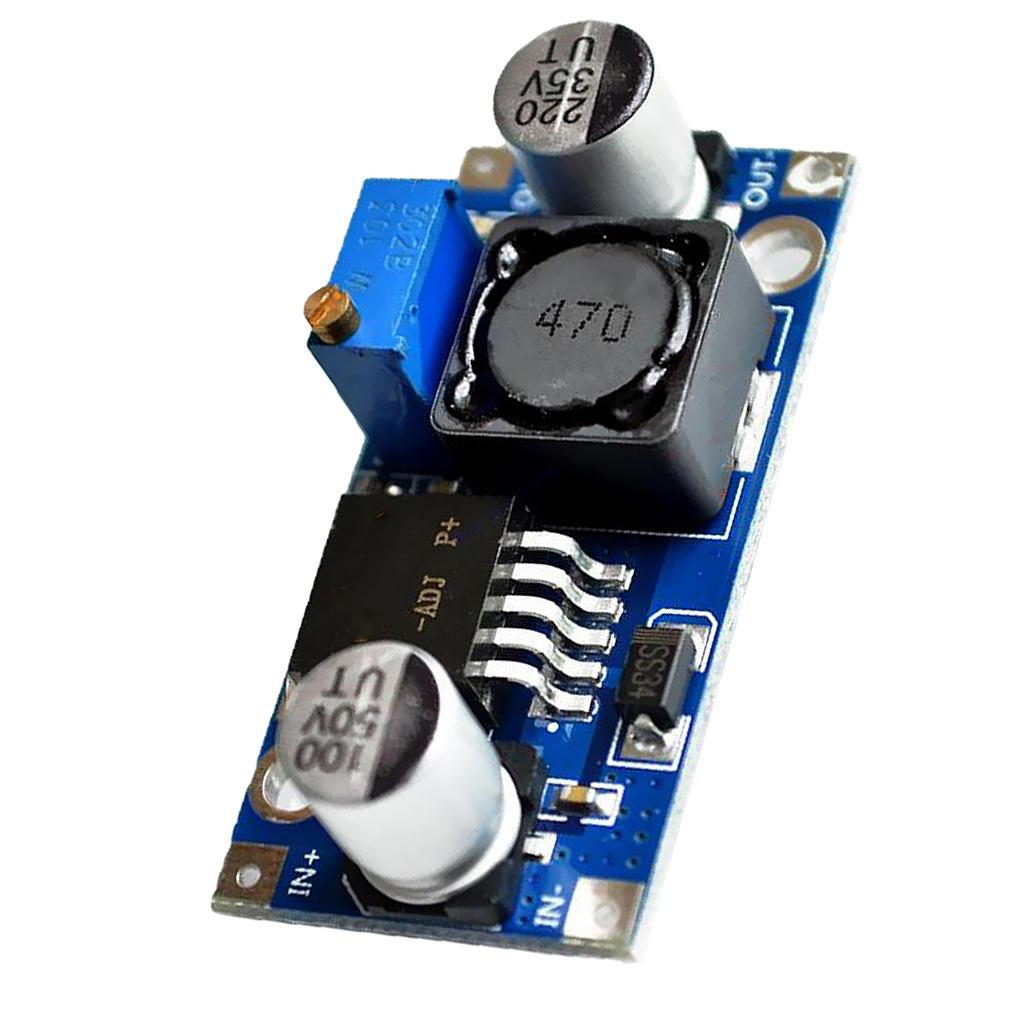

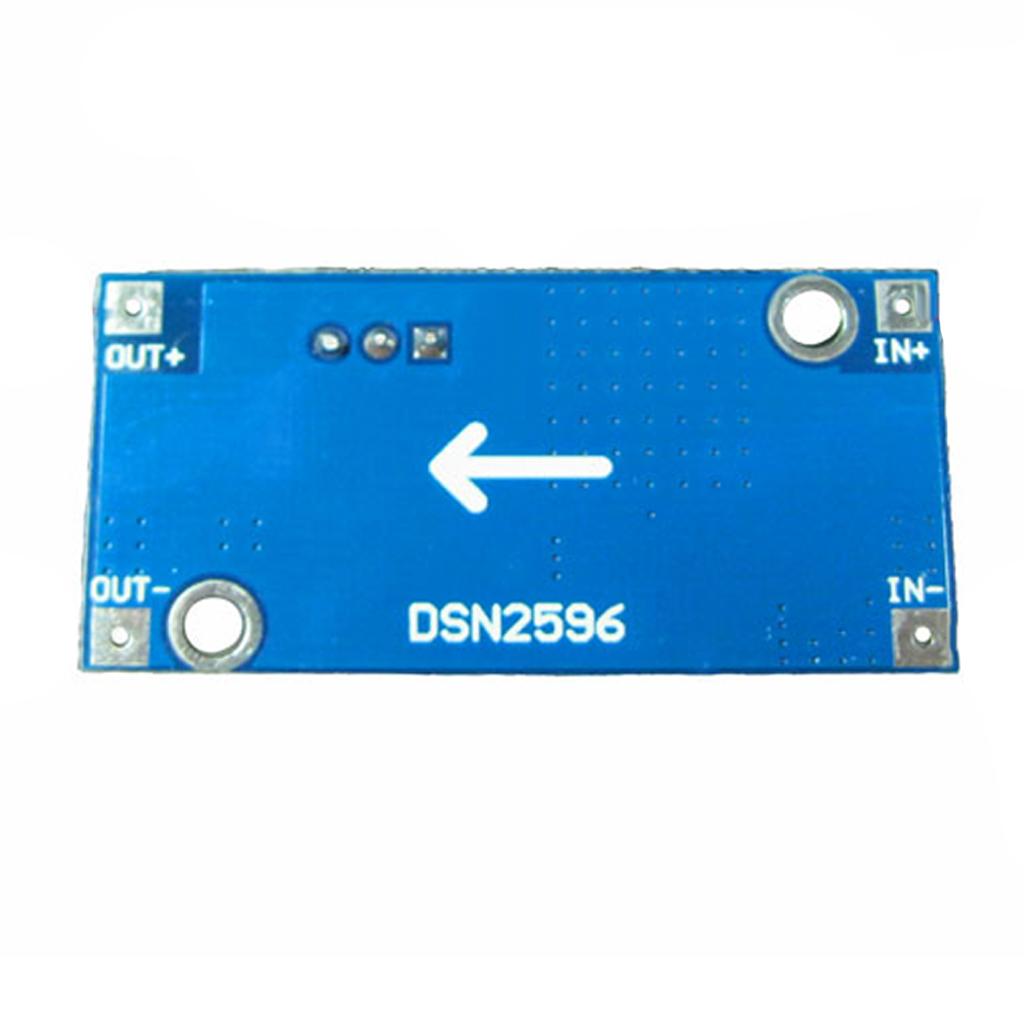

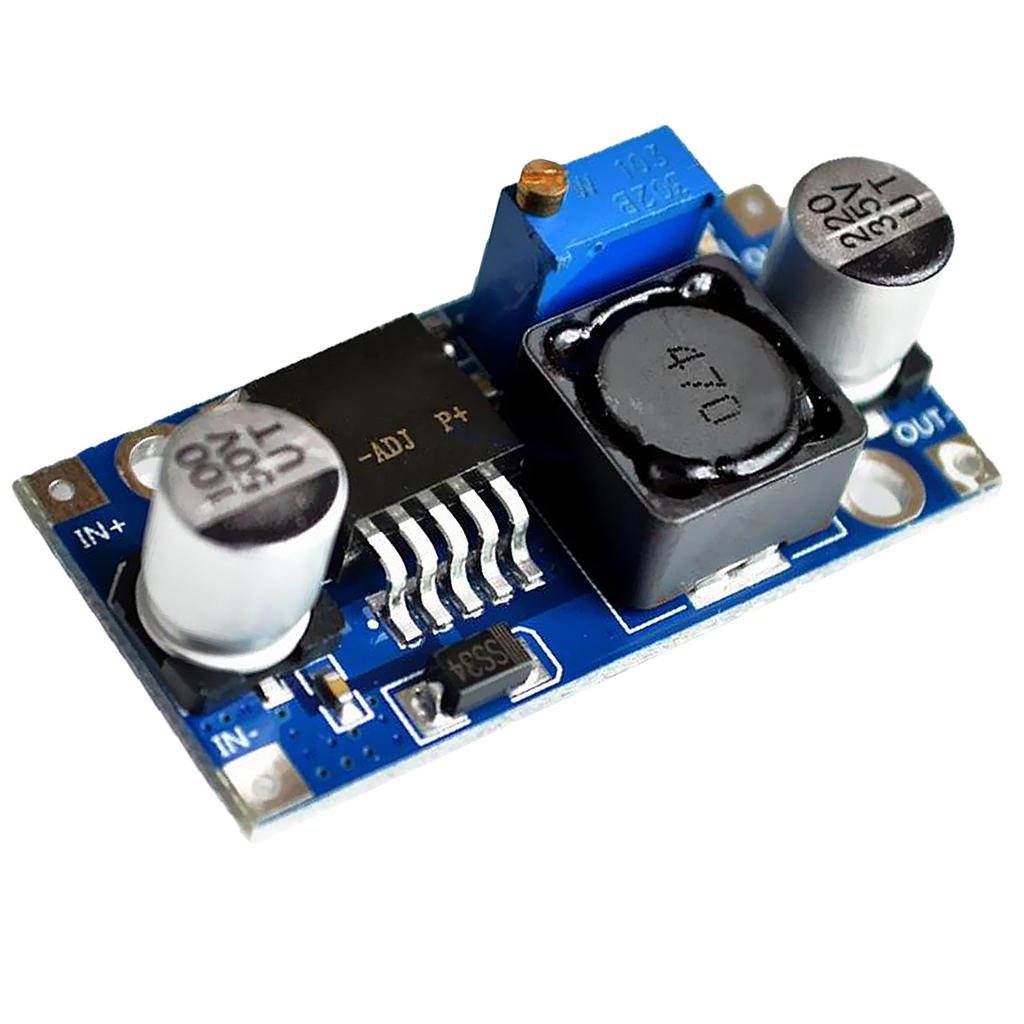

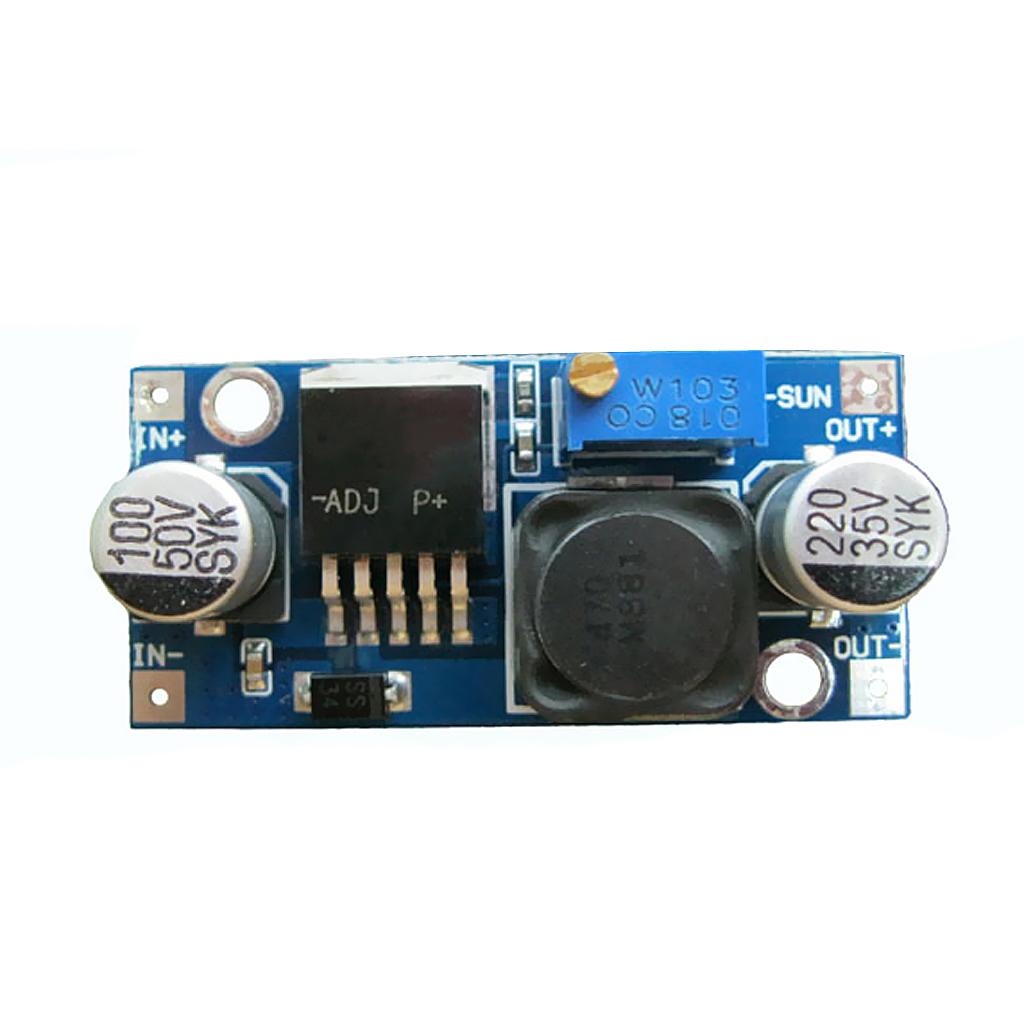

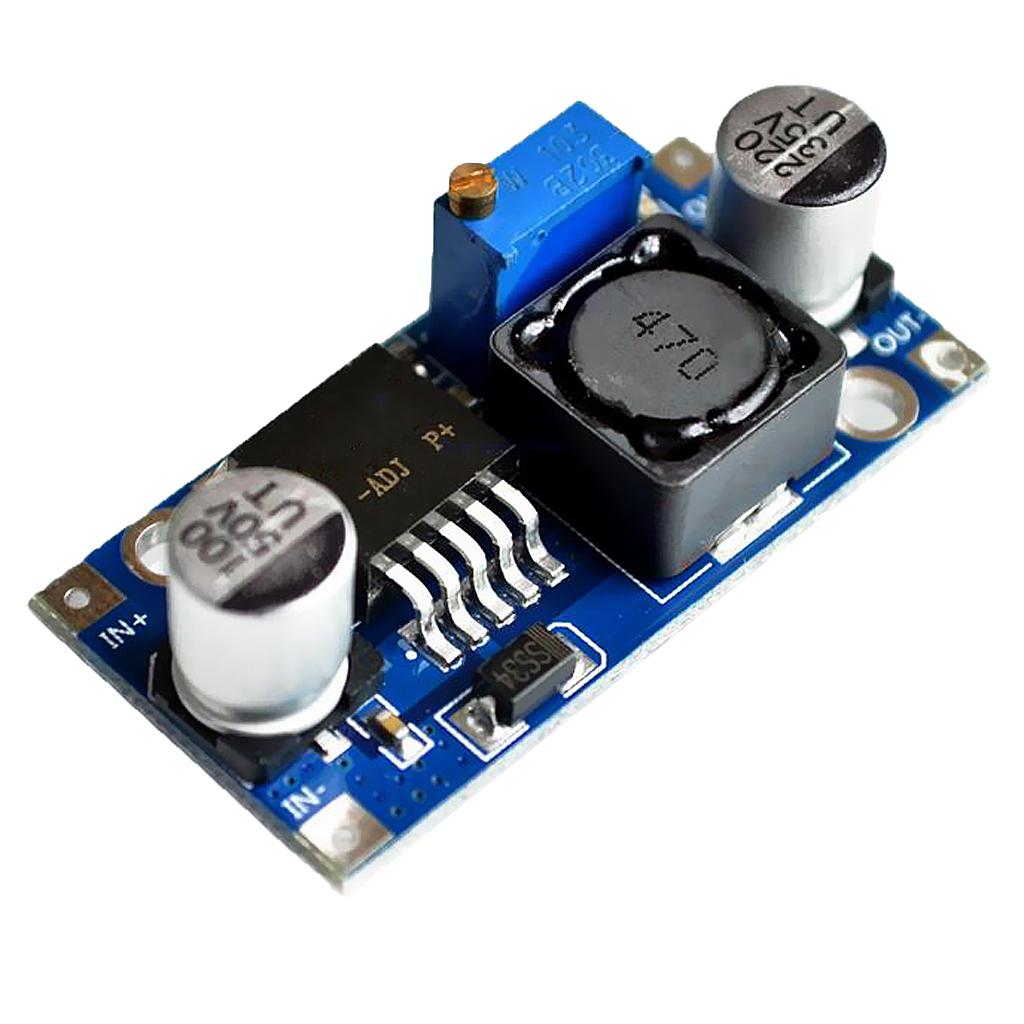

DC-DC step-down power module LM2596S
Input voltage: 3.2V ~ 40V
Output voltage: 1.25V ~ 35V
Output current: 3A (Max)
High efficiency: 92% (Max)

Specification:

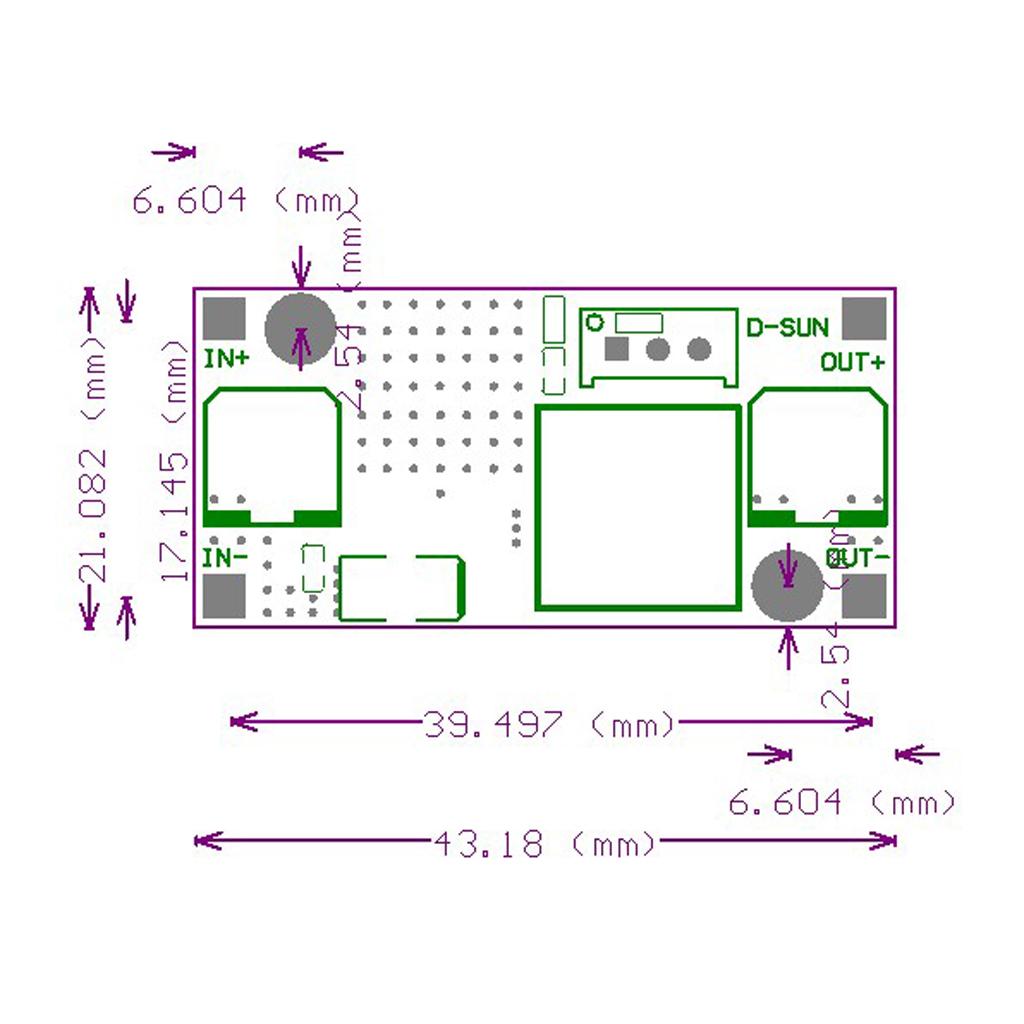

Size: Approx. 43×21×14mm/ 1.69×0.83×0.55 inch
Output ripple: less than 30mV
Switching frequency: 65KHz
Operating temperature: -45℃ to +85℃
IN-IN + input Positive Input Negative
Positive output OUT + OUT: output negative
Input voltage range: DC 3.2V-40V (input voltage must be greater than the output voltage 1.5V or higher than that, it could not boost)
Output Voltage Range: 1.25V-35V DC voltage continuously adjustable
Measured 12V input, 5V output, current: 1A
Load regulation rate: less than 1%
20V to 12V/ 5V/ 3V, etc.

Package Includes:

1 Piece of Module
