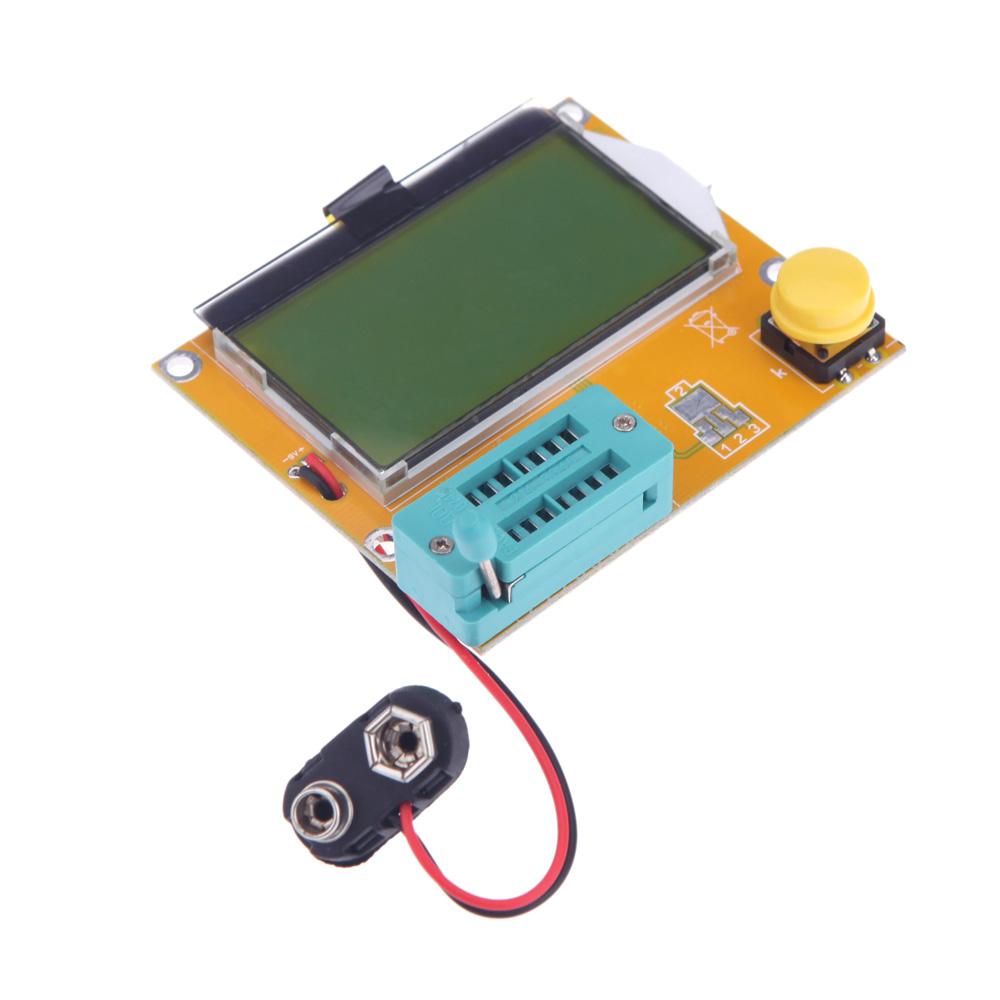

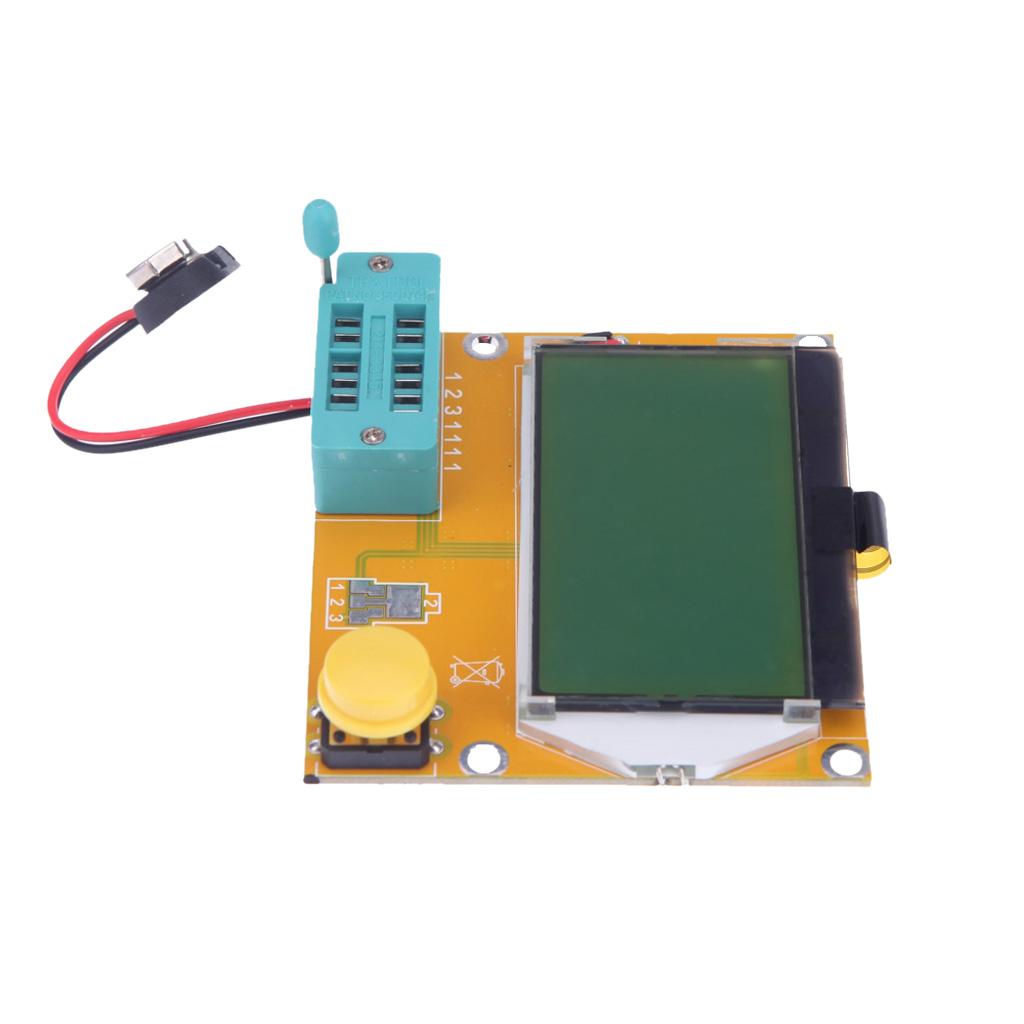

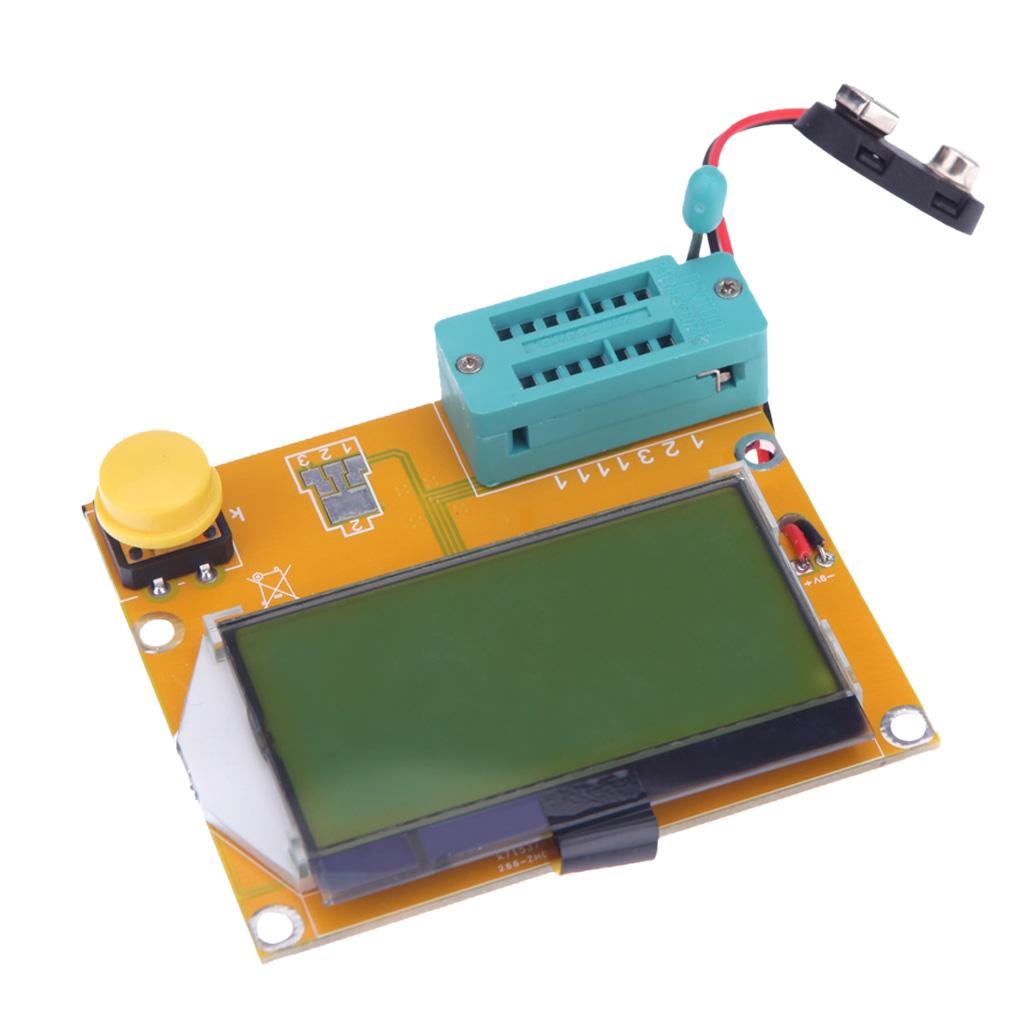

LCD Backlight ESR Meter LCR Transistor Tester Diode Triode MOS NPN/PNP

Regular price
Rs. 1,992.11
Regular price
Sale price
Rs. 1,992.11
Earn 996 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60000103
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

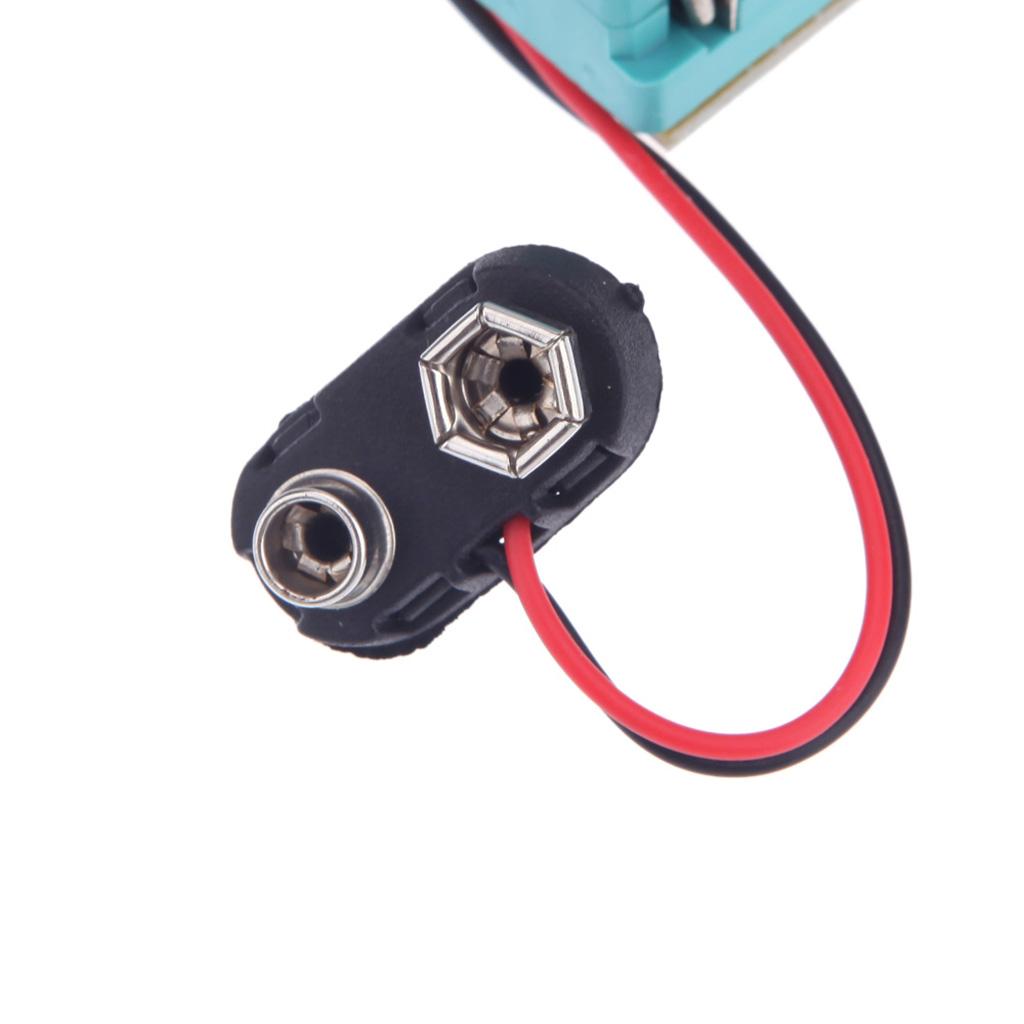

  • Powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power.
  • Measuring bipolar transistor current amplification factor and base-emitter threshold voltage.

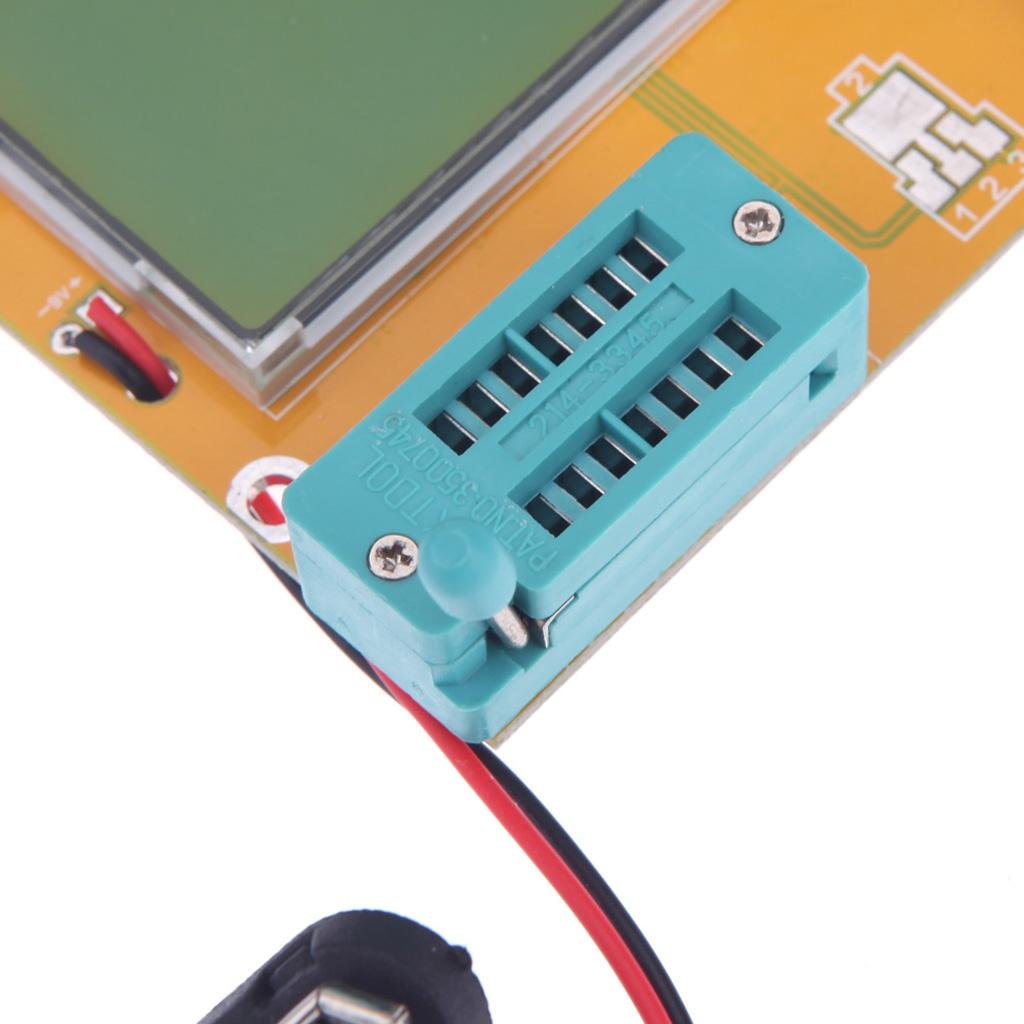

  • Automatic test the pin of a component, and display on the 128 * 64 LCD backlight.
  • Measure the gate and gate capacitance of the MOSFET threshold voltage.

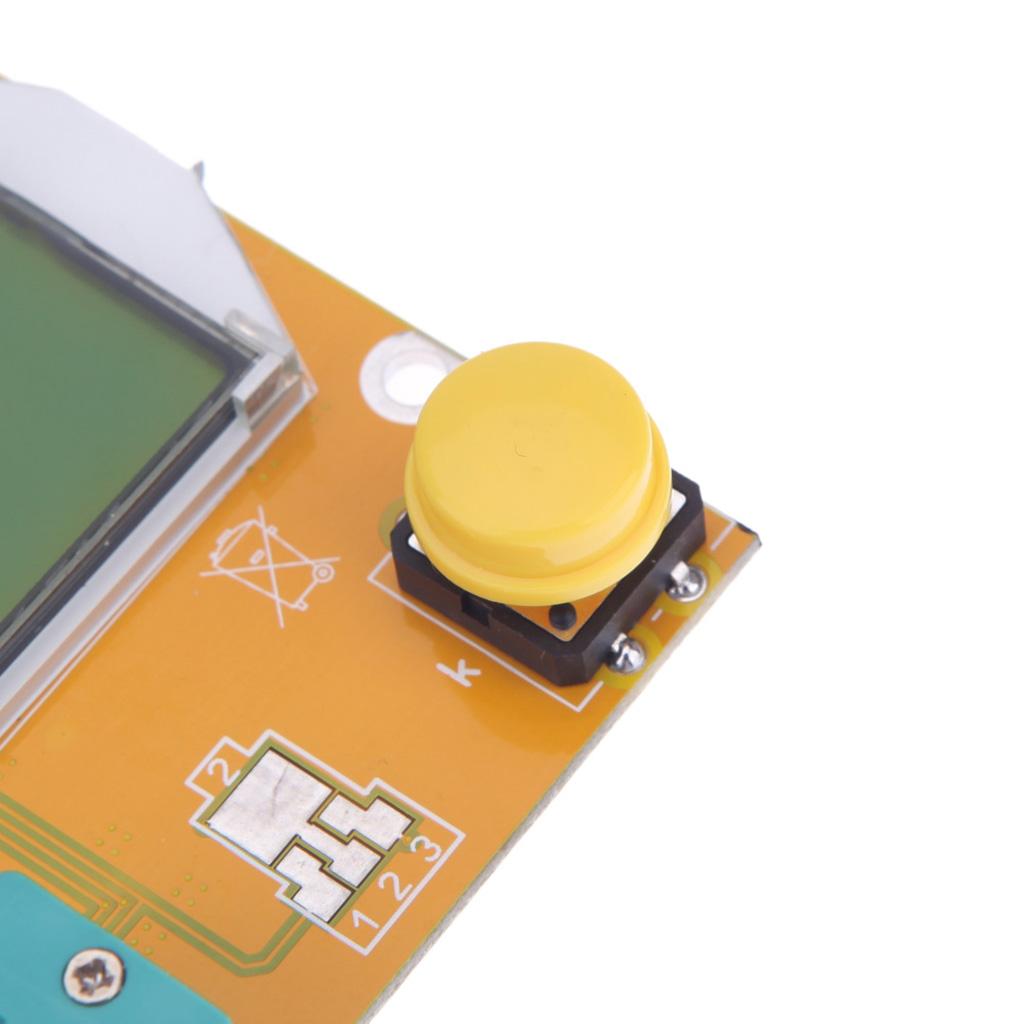

  • One -button operation, automatic shutdown, only 20nA shutdown current.
  • Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified.
  • 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values.
  • Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
  • Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4.
  • Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
  • Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.





Specification:

  • Material: PCB
  • Power Mode: 6F22
  • Display: 128 * 64 LCD backlight
  • Testing Speed: 2 seconds (1 minute is normal for large capacitor)
  • Shutdown Current: 20nA
  • Displayed Value: 25pf-100mF (resolution 1pF)
  • Inductance: 0.01mH-20H
  • Resistance: ≤2100Ω
  • Power Volatge: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
  • Resolution of Resistance Measurement: 0.1 ohms
  • The Highest Measured Value: 50M ohms
  • Provided Testing Current: Approx. 6mA
  • Size: Approx. 7 x 6.3cm / 2.76x2.48inch

Package Includes:

  • 1 x ESR Meter Transistor Tester
