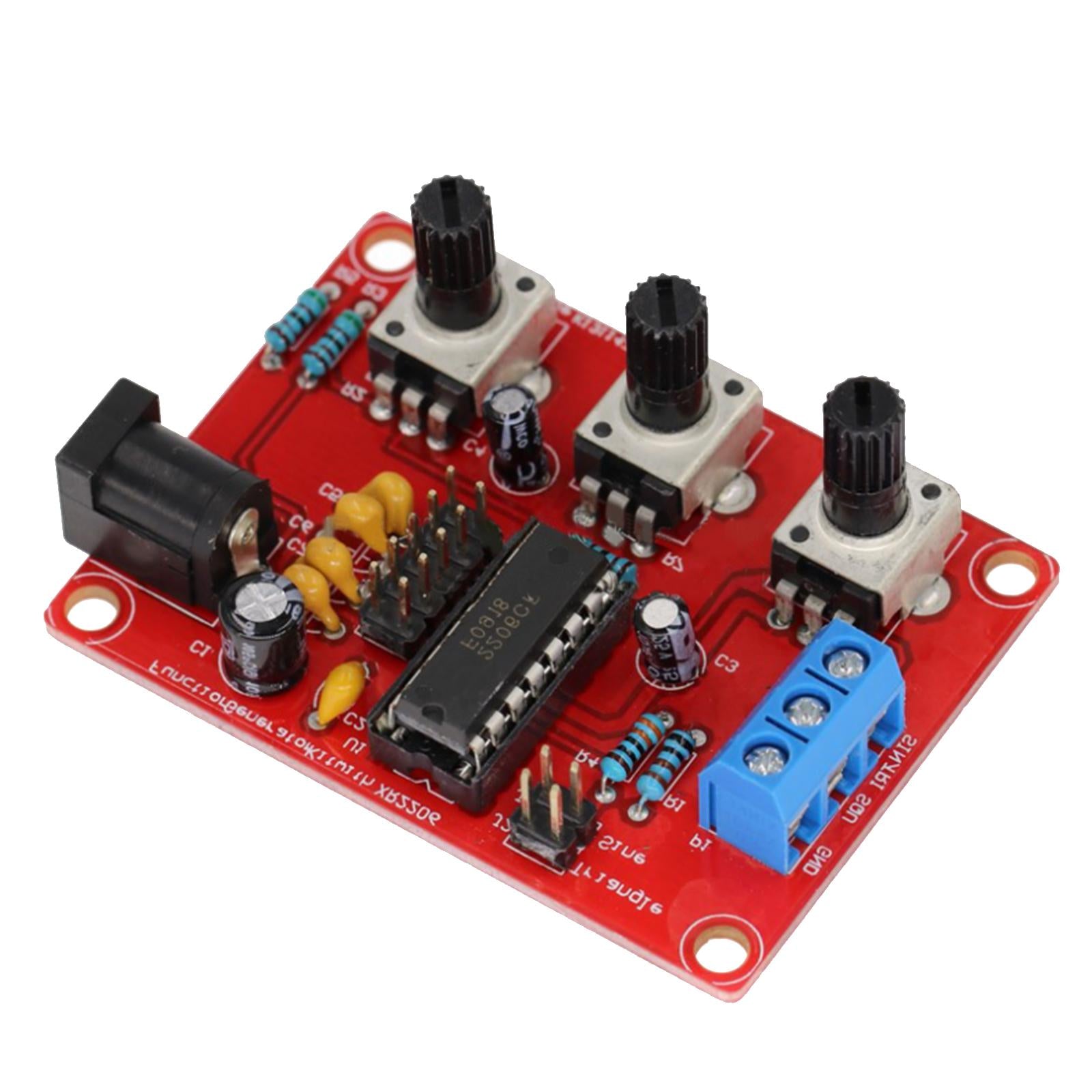

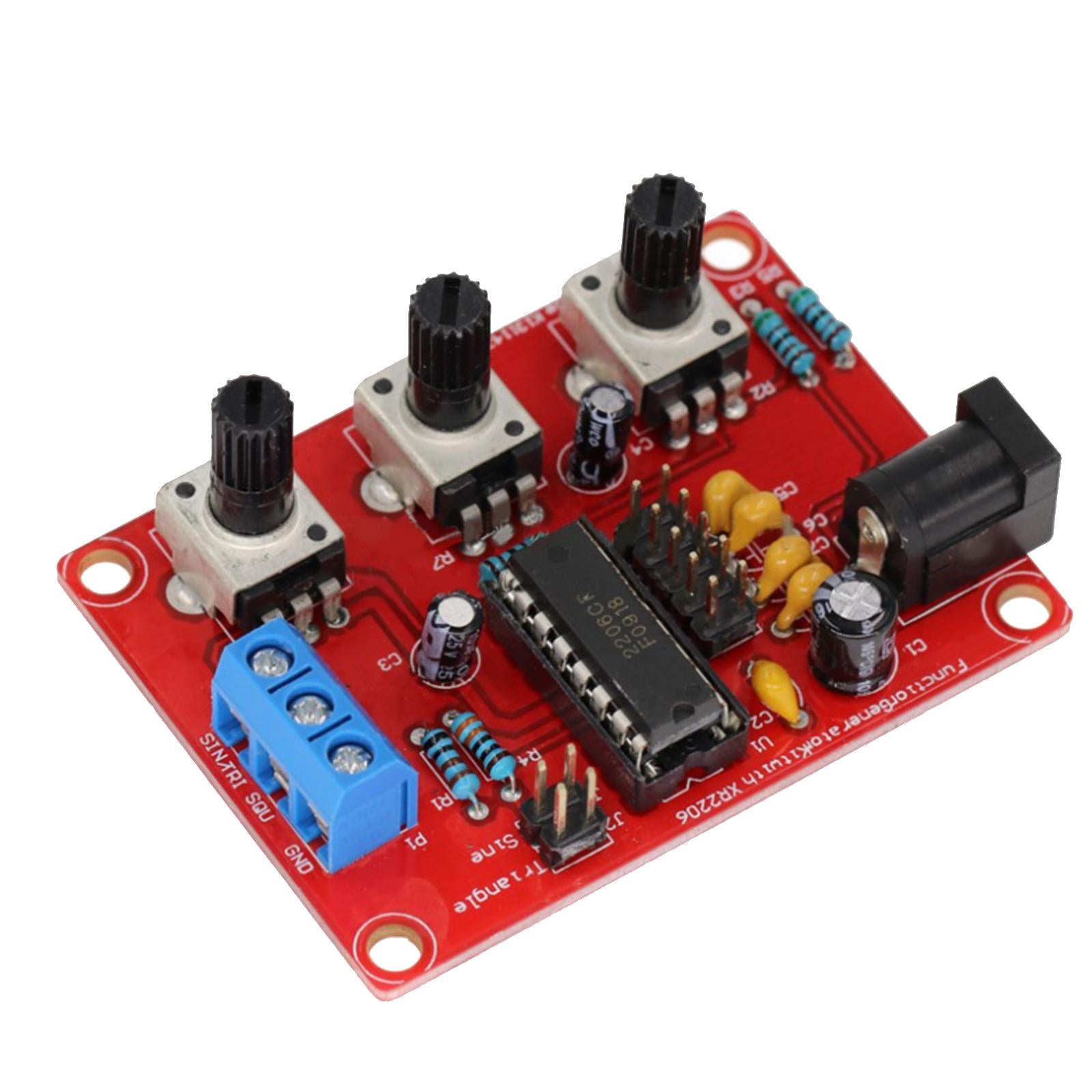

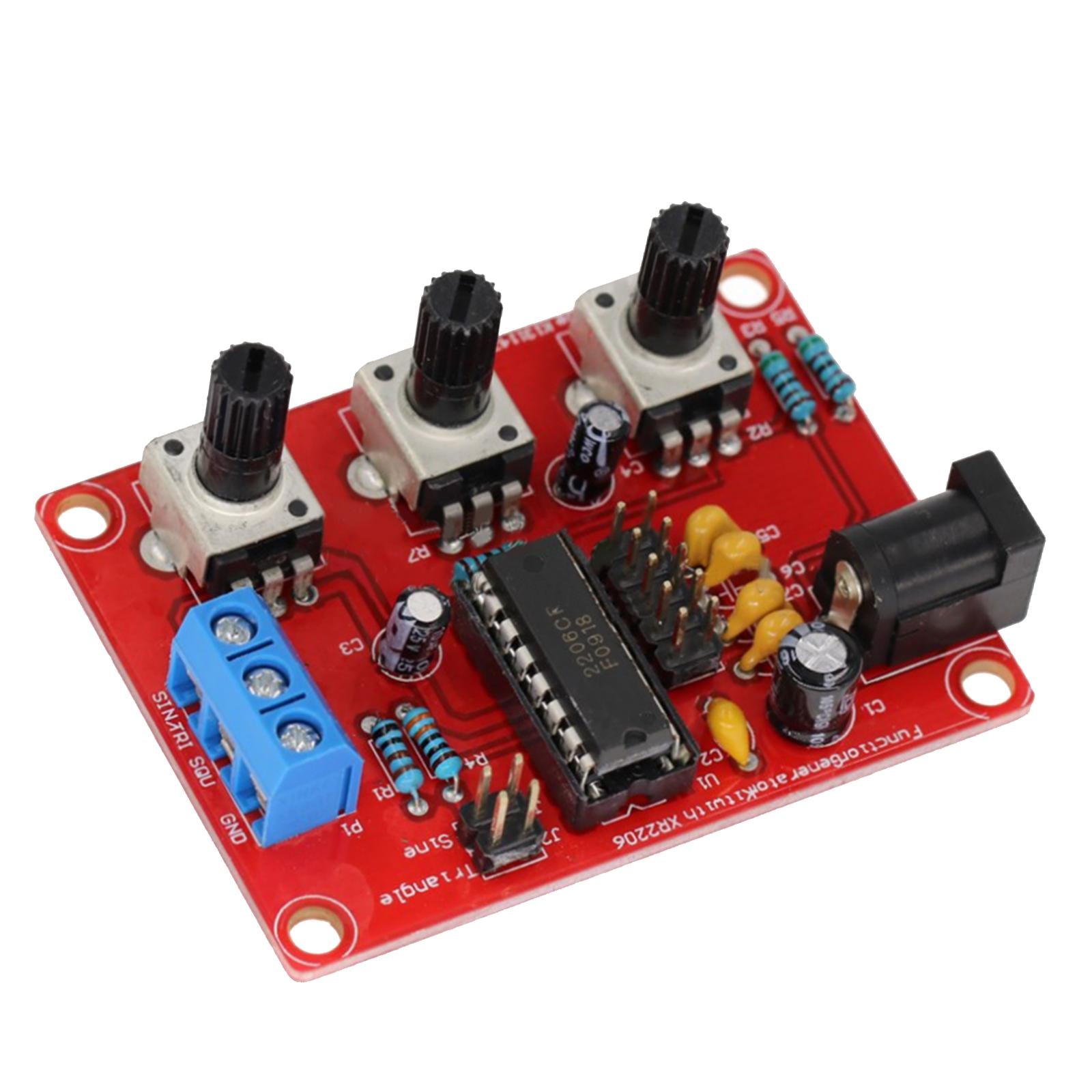

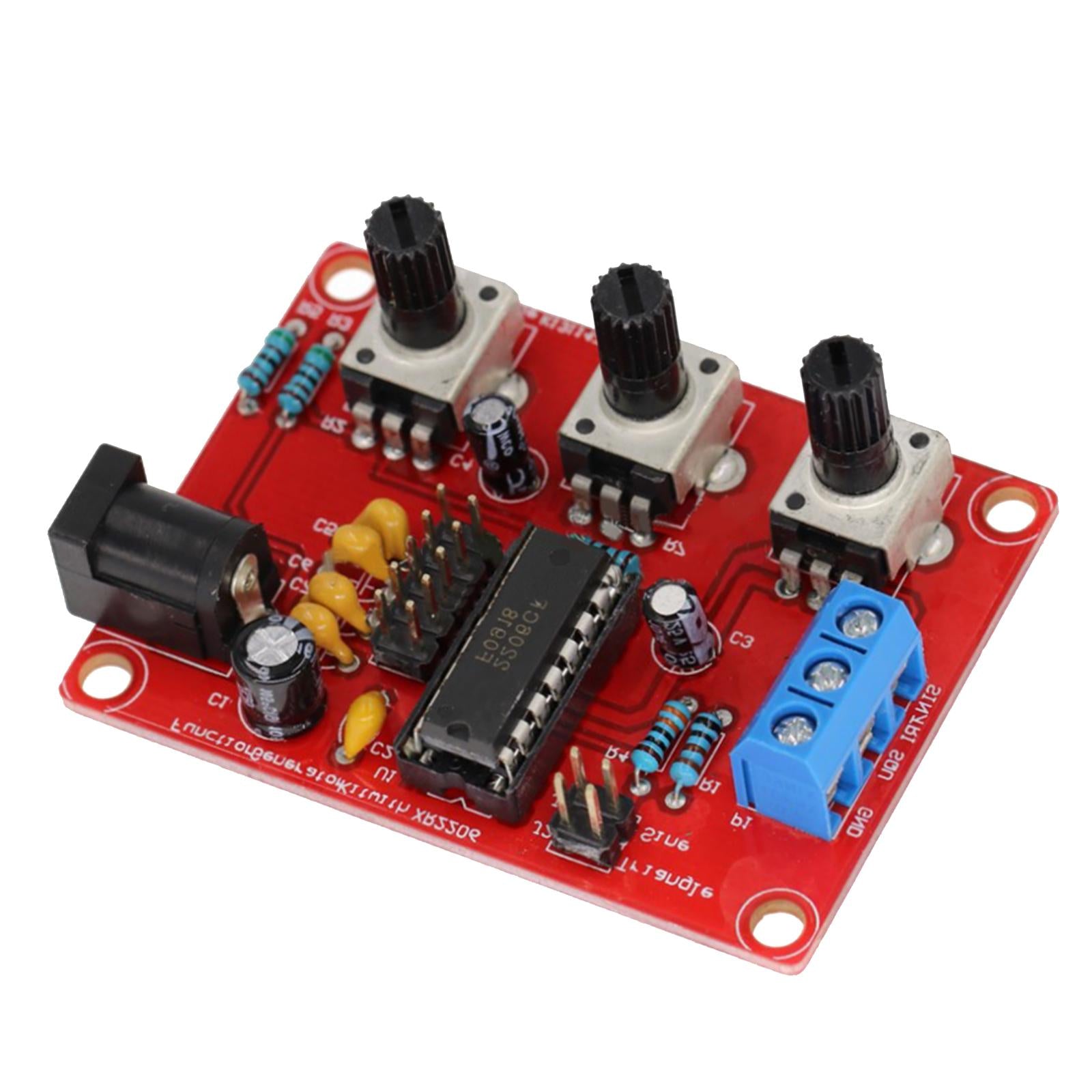

High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude

Regular price
Rs. 1,238.07
Regular price
Sale price
Rs. 1,238.07
Earn 619 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 68001509
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Voltage Supply: 9-12V DC Input or 9V battery
Waveforms: Square, Sine and Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
Please note that this product is finished, no need for installing and welding

Specification:

SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

Package Includes:

1 piece High Precision Function Signal Generator Kit(Finished product)
