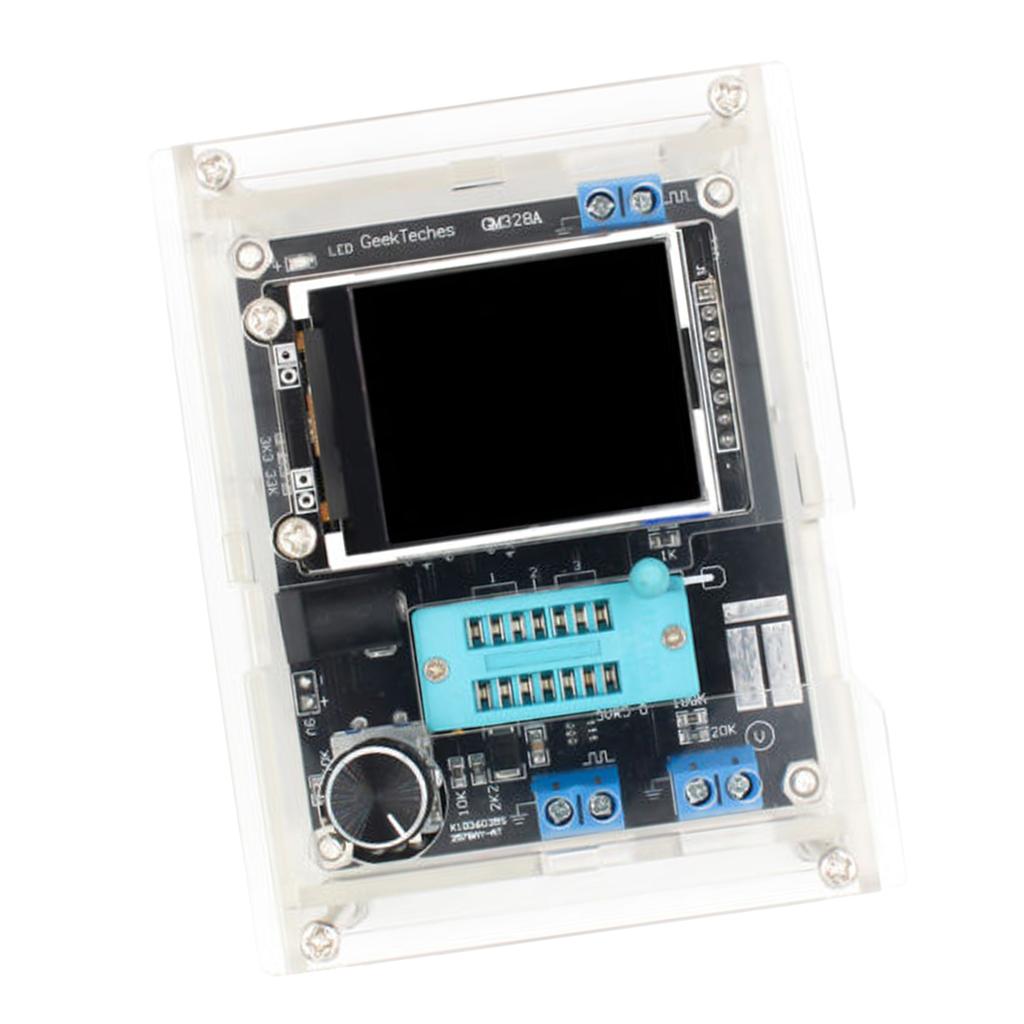

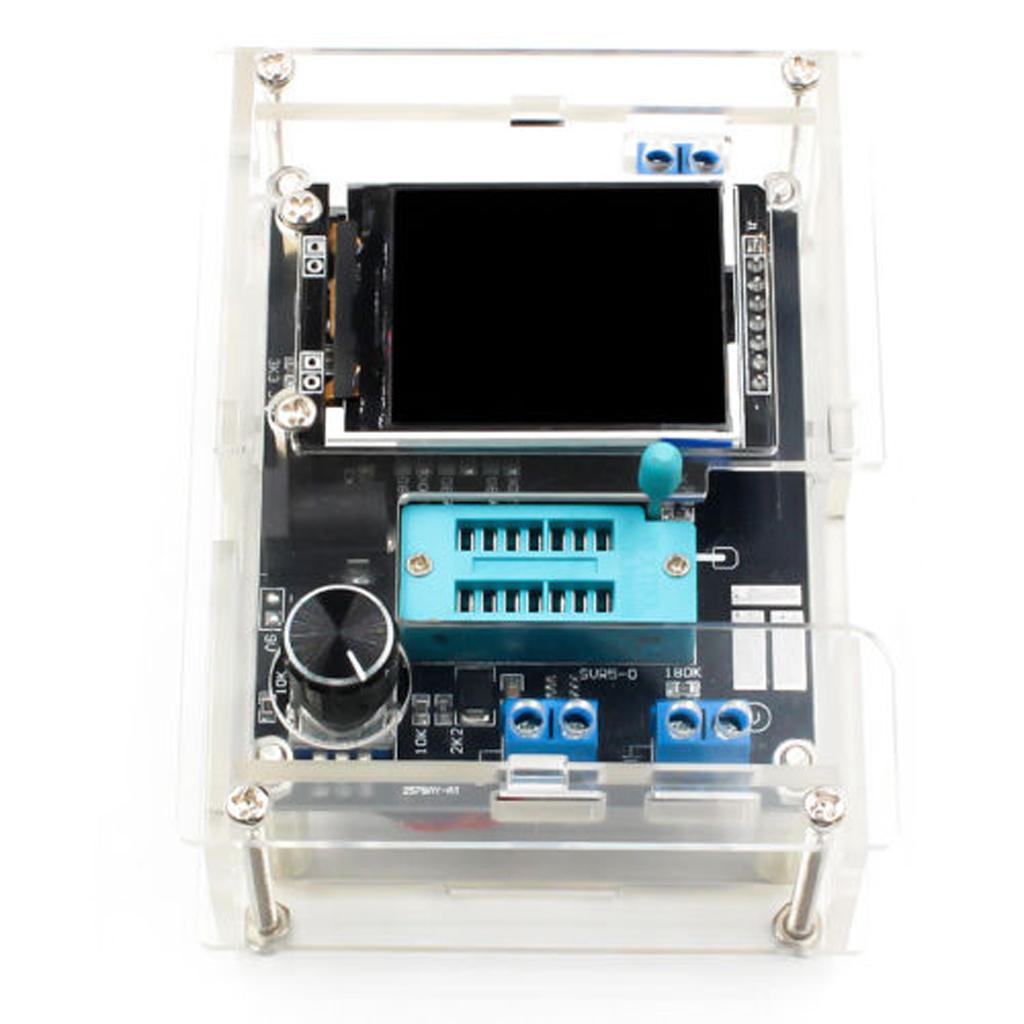

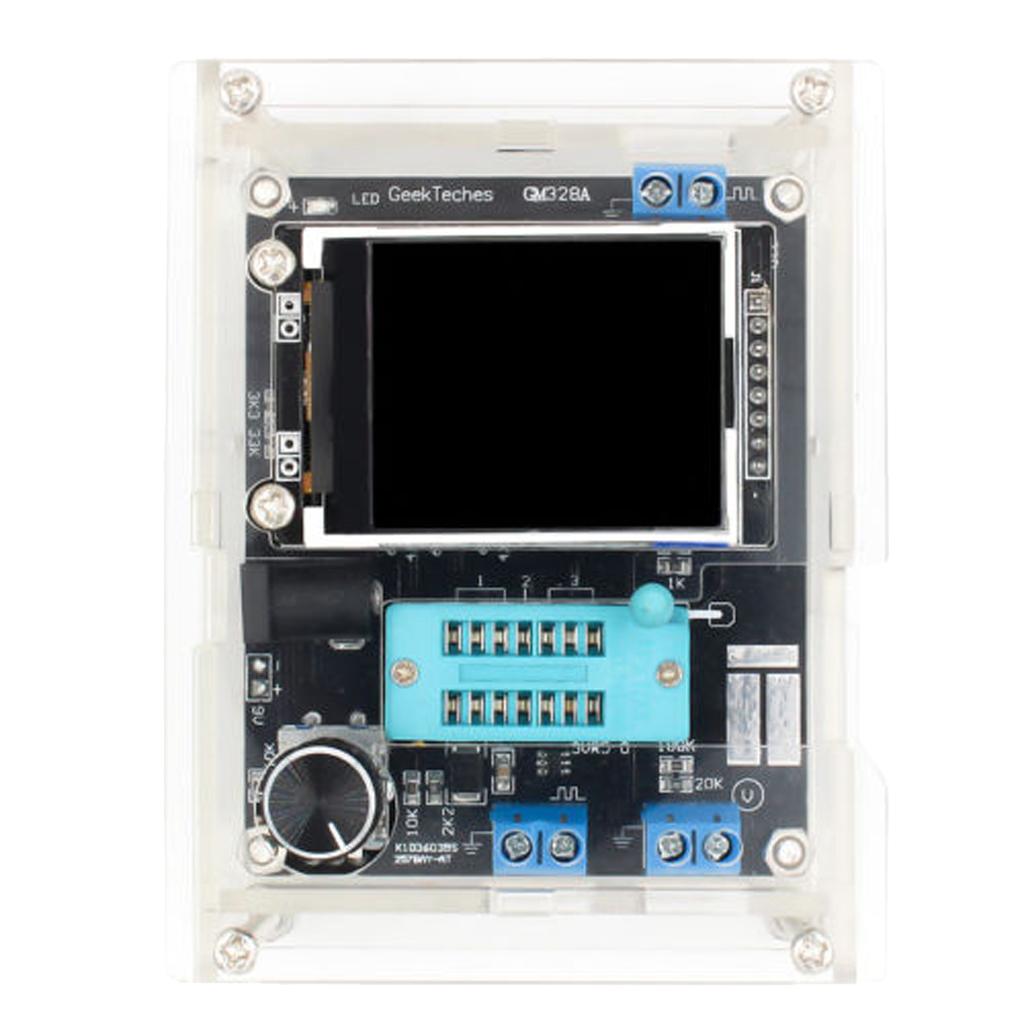

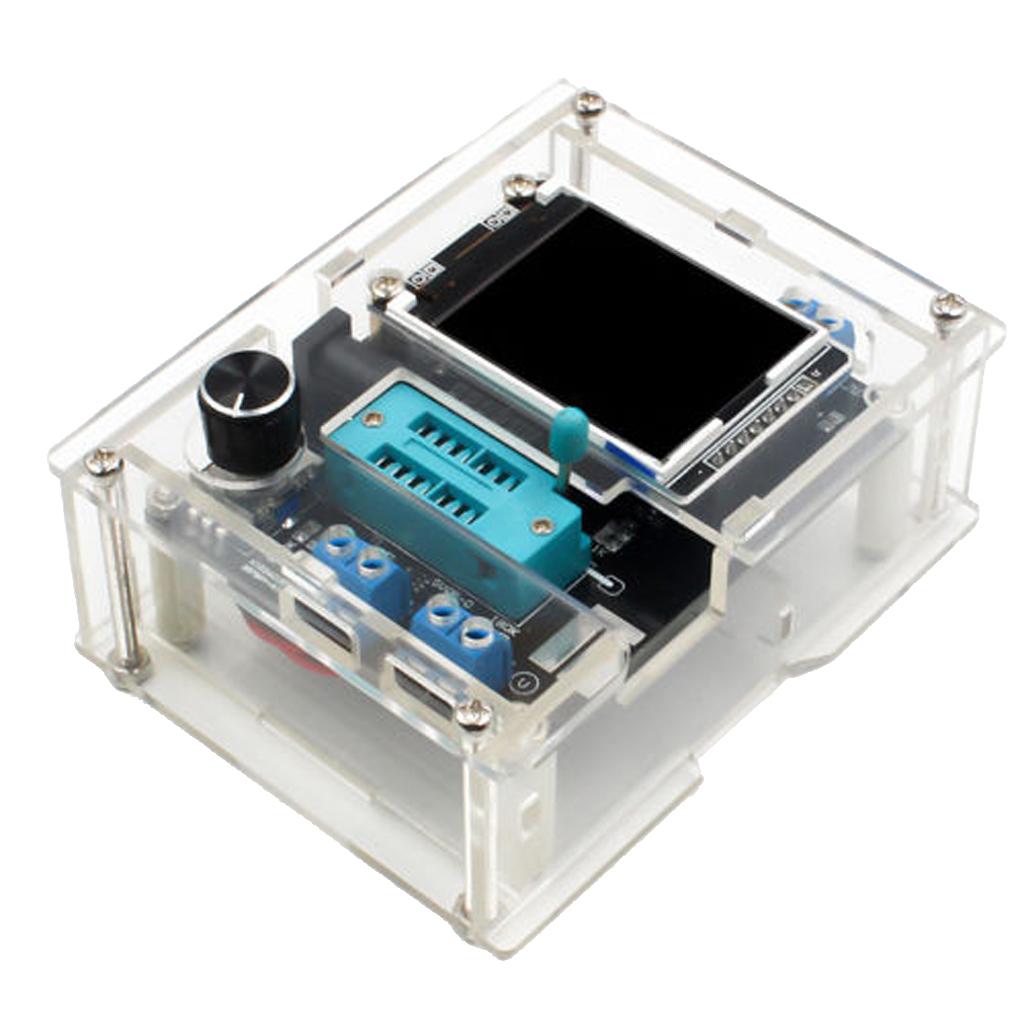

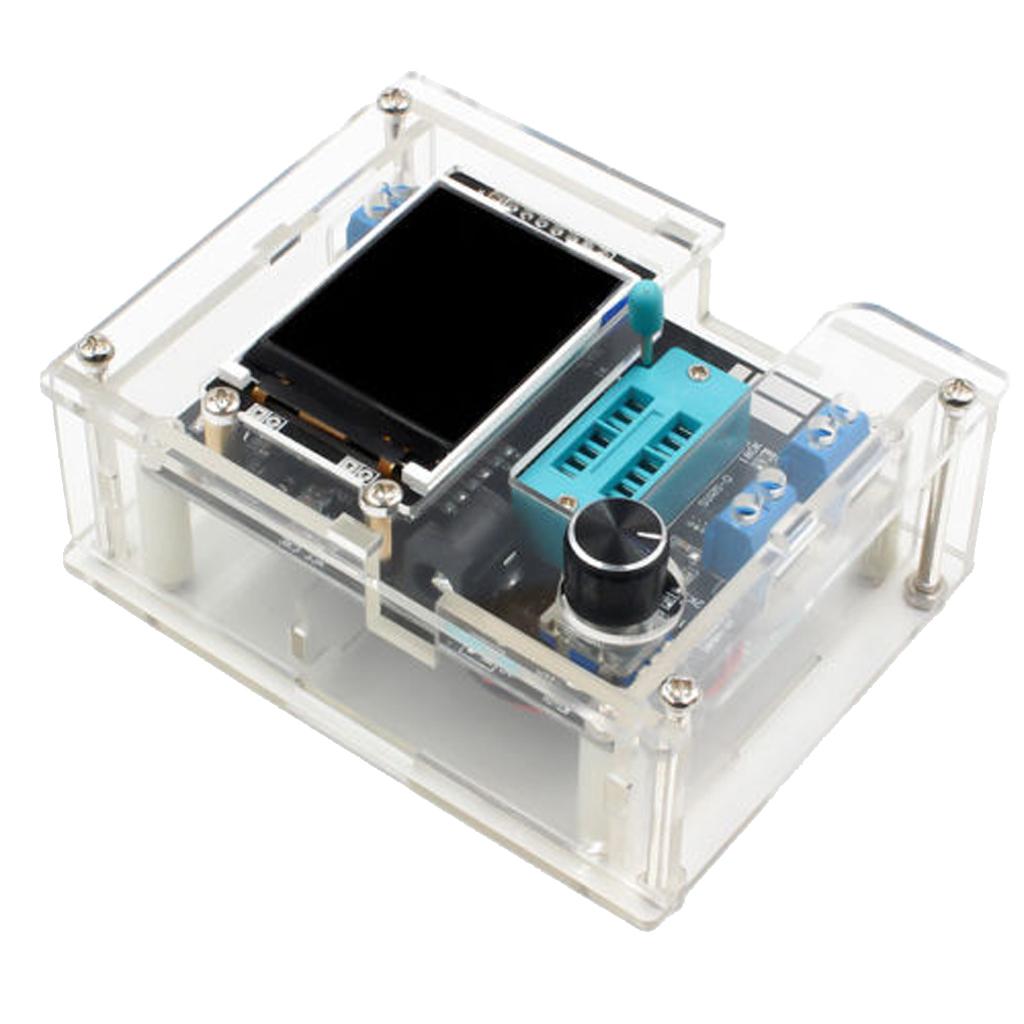

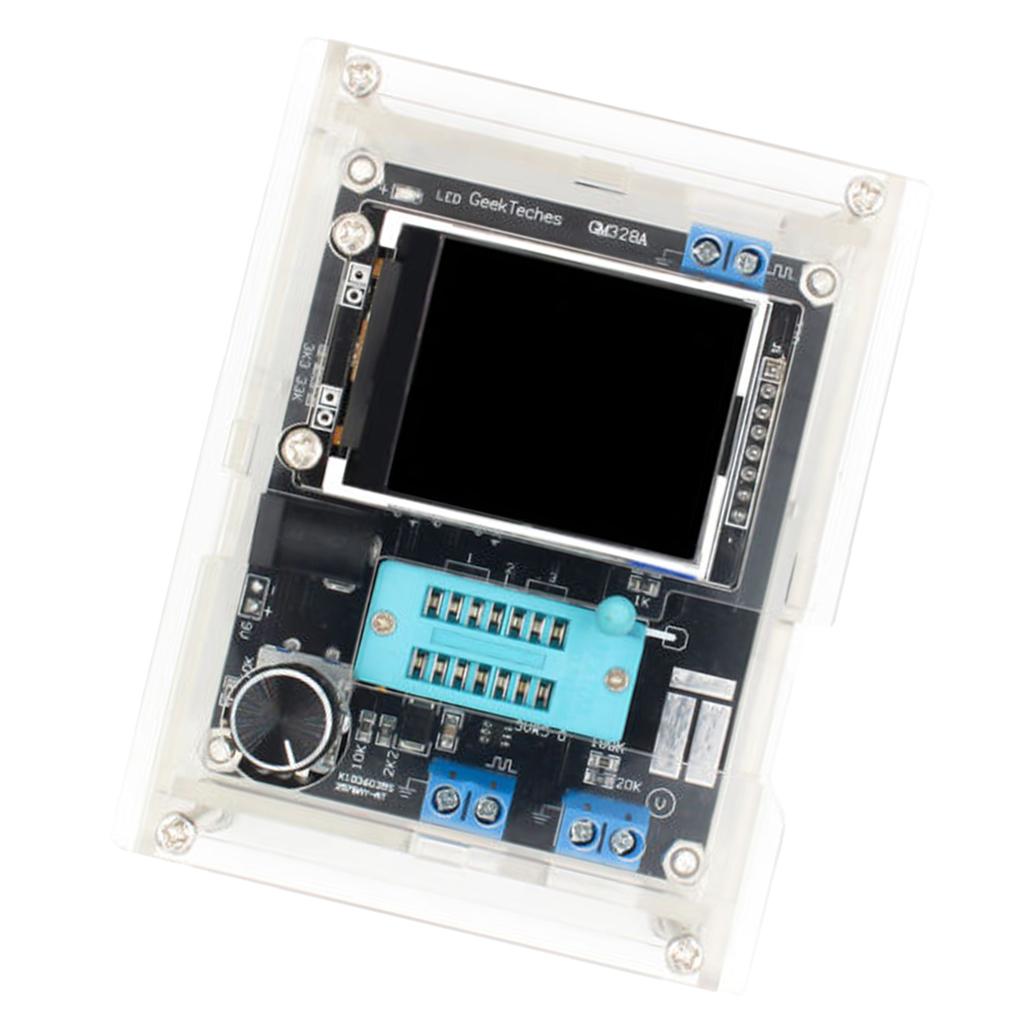

GM328 Transistor Tester Diode Triode Capacitance ESR Meter PNP / NPN LCR with Clear case

Regular price
Rs. 2,597.80
Regular price
Sale price
Rs. 2,597.80
Earn 1298 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73007601
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

Digital LCD display for easy readings, can display measured data and graphics.
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, automatic identification of the transistor pinout.
Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals.
Rotary switch control, a key measurement for convenient use.
Automatic shutdown, shutdown current is only about 20nA.
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.

Specification:

Display: 160x128 LCD
Power Supply: 1 x 9V Battery(not included); DC 6.8-12V
Current: Approx. 30mA
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.01Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
DC Voltage Measurement: Up to 50V
Screen Size: 3.7 x 3cm / 1.45 x 1.18 inch
PCB Size: 7.8 x 6.2cm / 3.1 x 2.44 inch
Product Weight: 66g / 2.3oz
Case Material: Acrylic
Case Size: Approx. 96 x 82 x 28mm / 3. 8 x 3.2 x 1.1 inch (L x W x H)

Package Includes:

1 x Full Assembled Transistor Tester

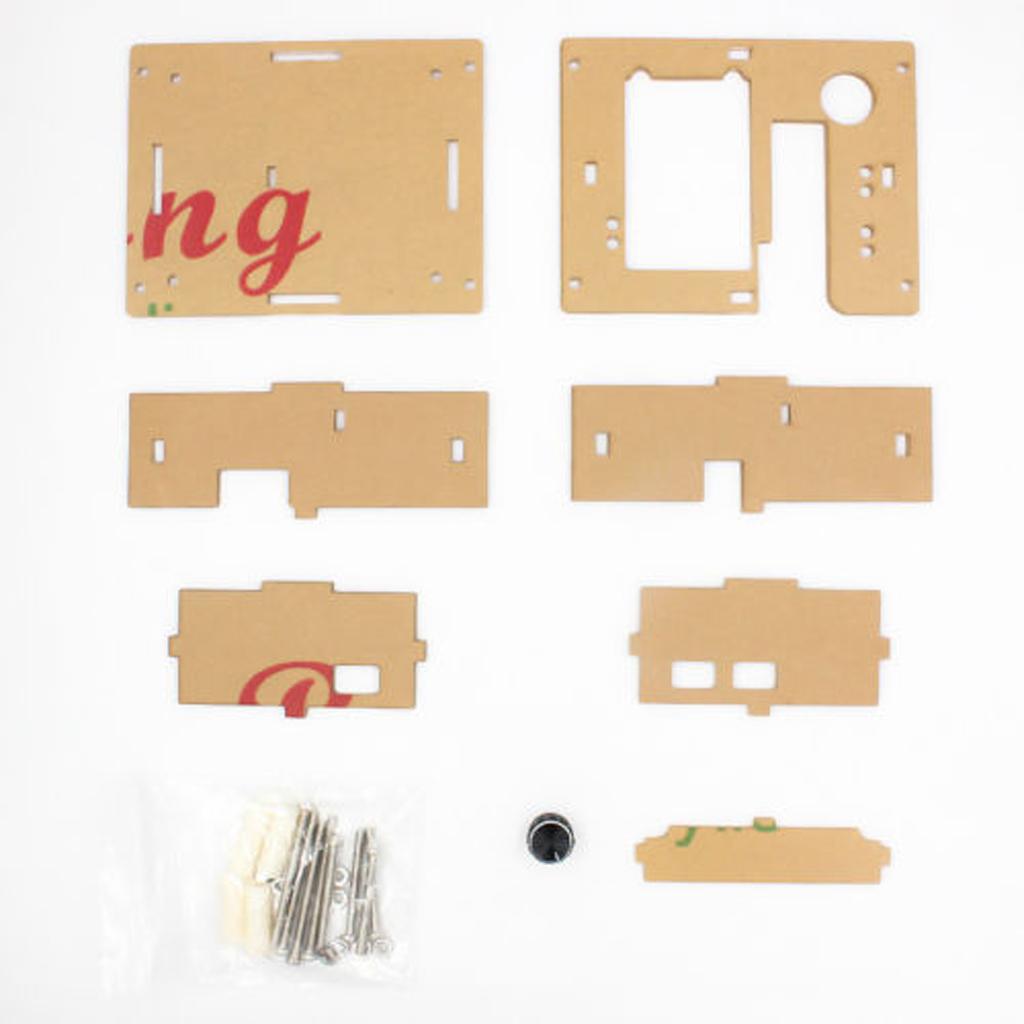

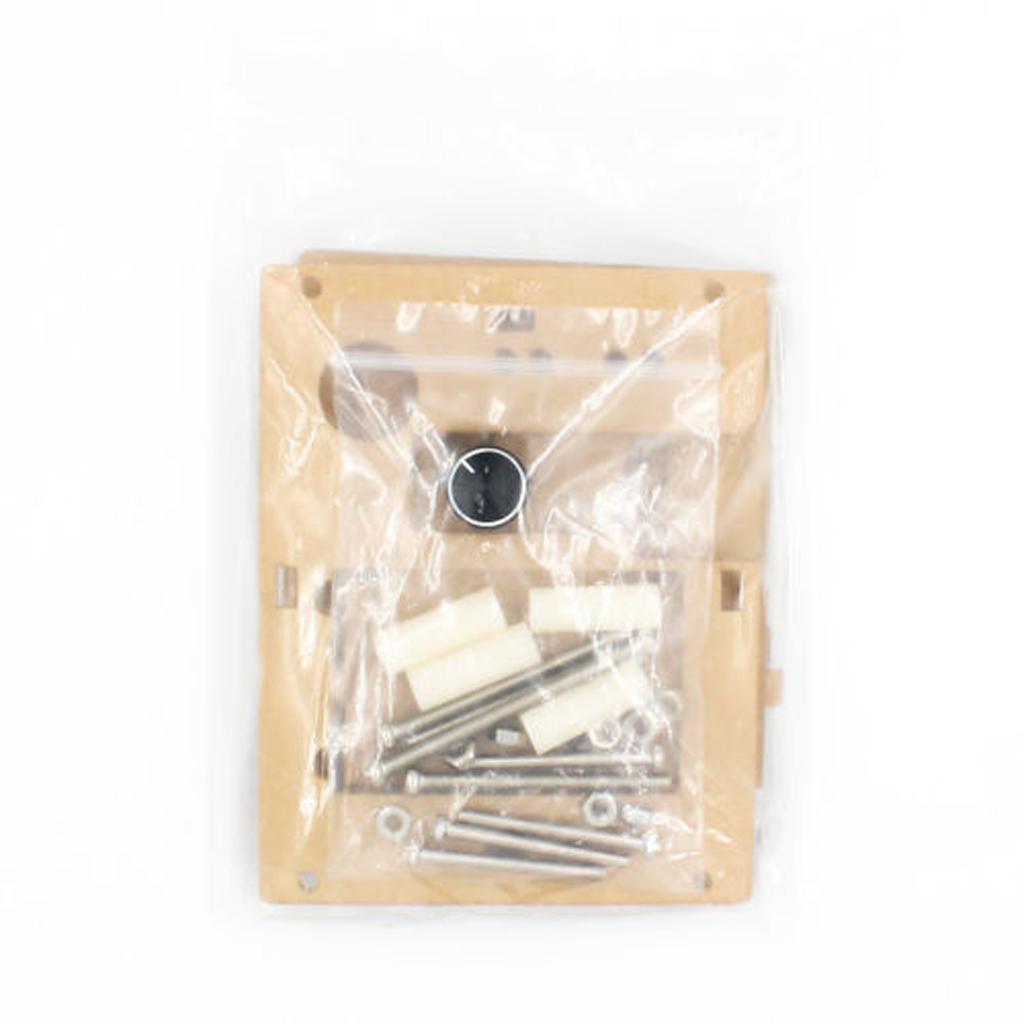

1 x DIY Acrylic Case

Note:

Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
