Enclosed High-power Power Relay for Arduino, Raspberry Pi, PIC or Wifi

Regular price
Rs. 2,729.64
Regular price
Sale price
Rs. 2,729.64
Earn 1364 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60009864
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

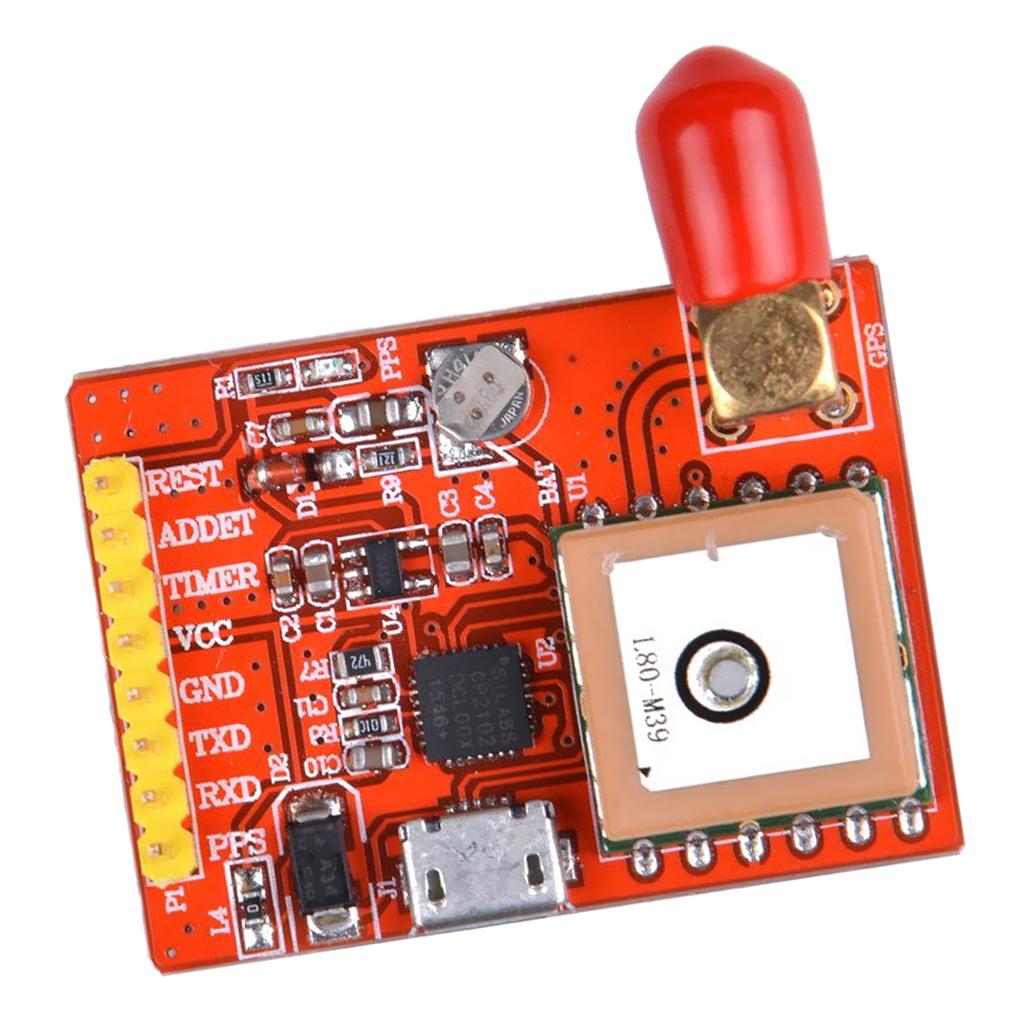

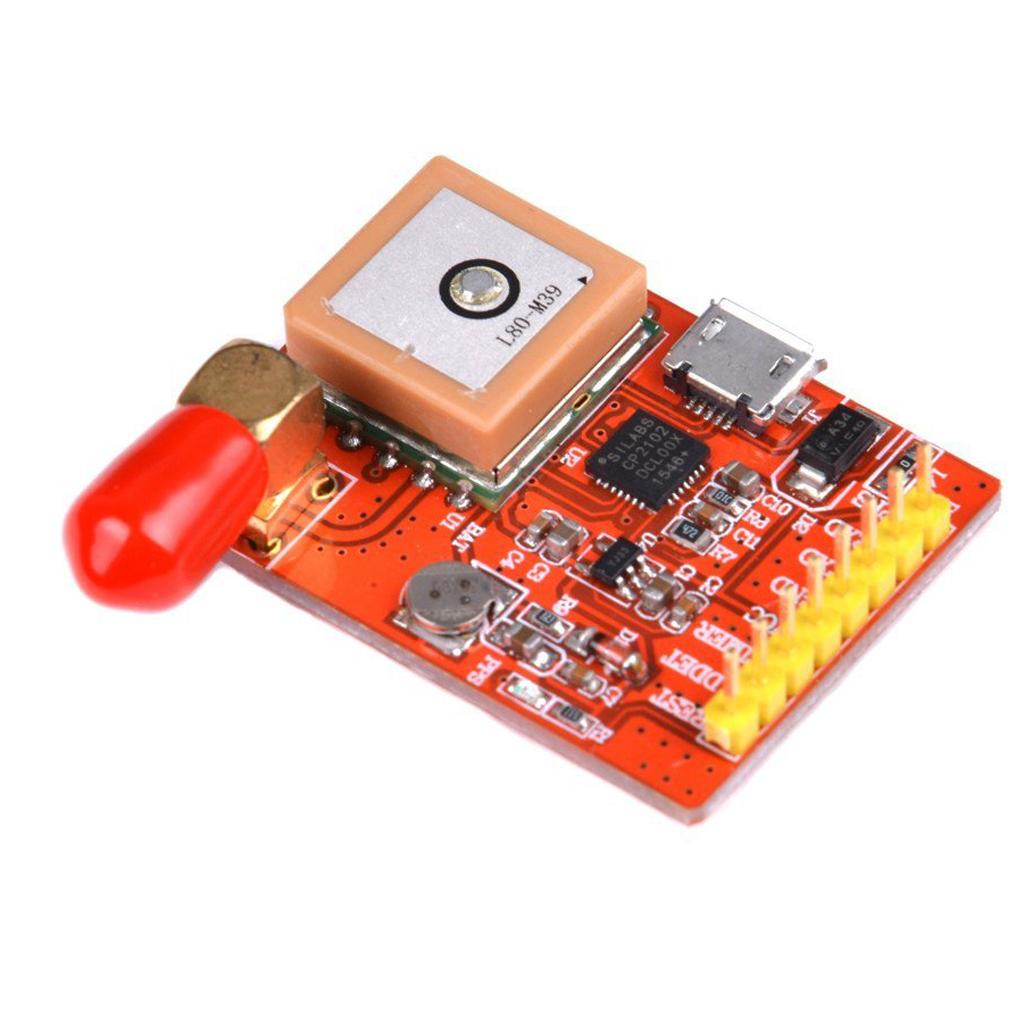

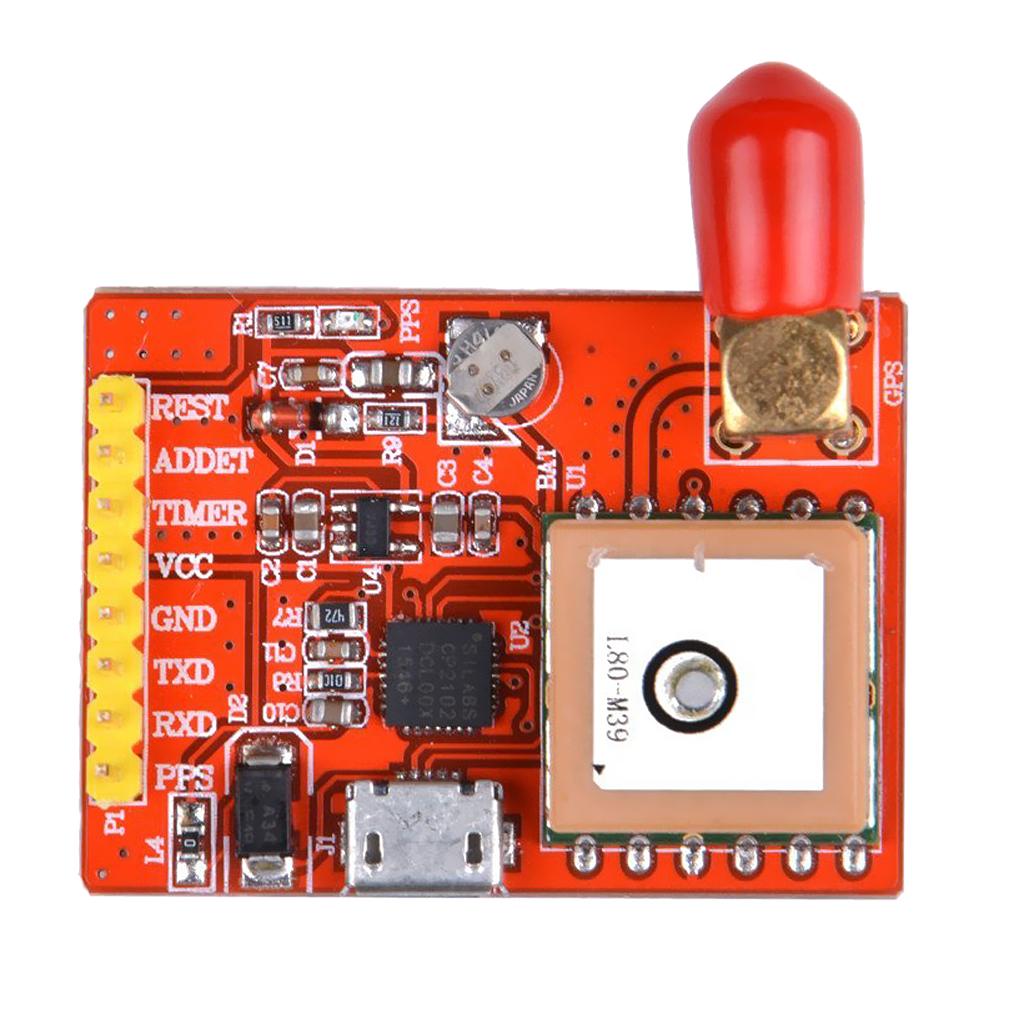

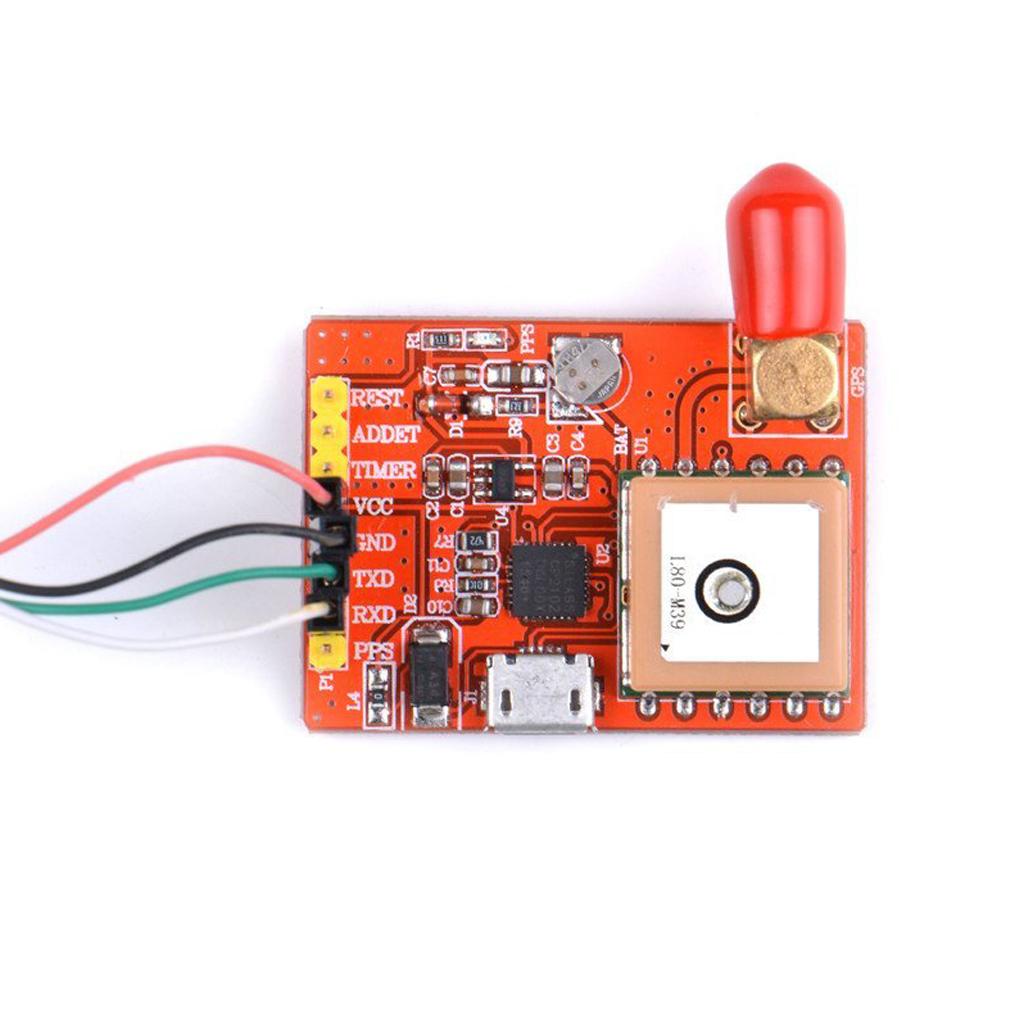

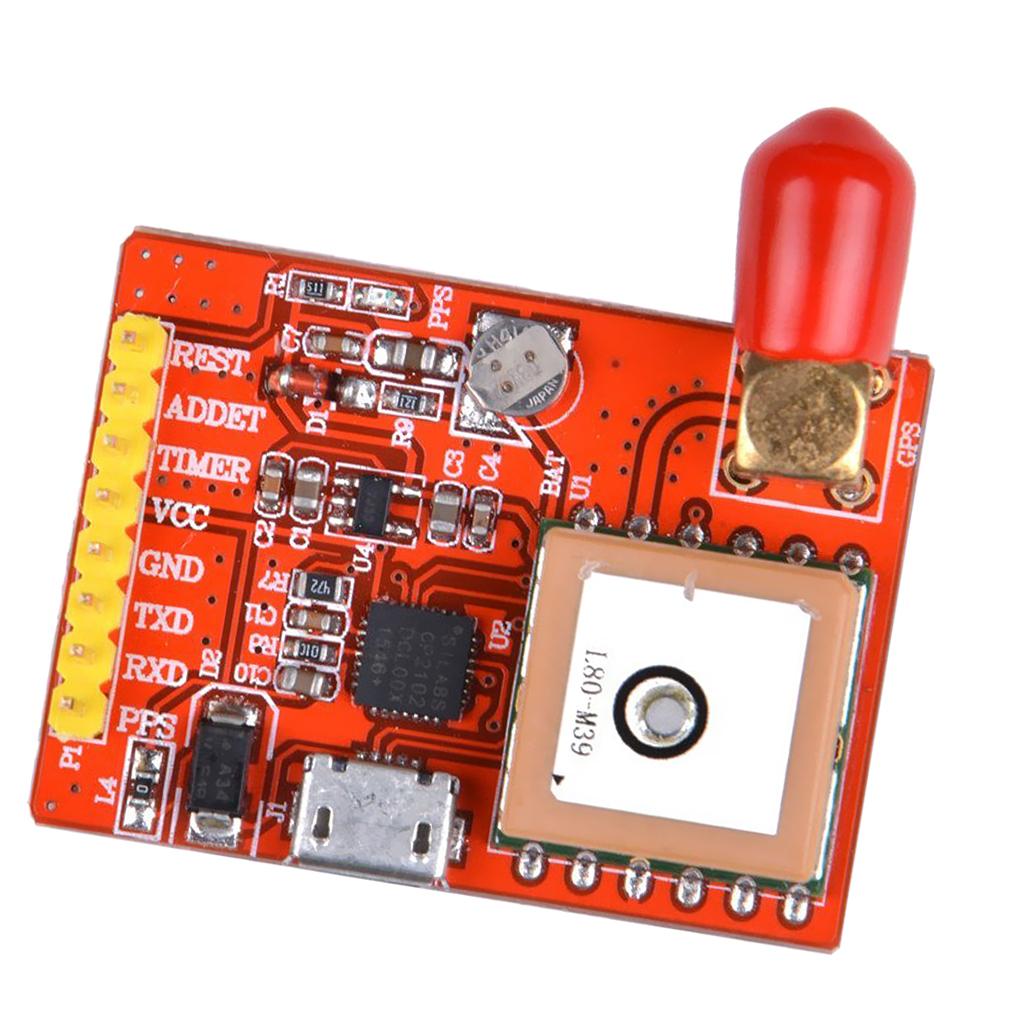

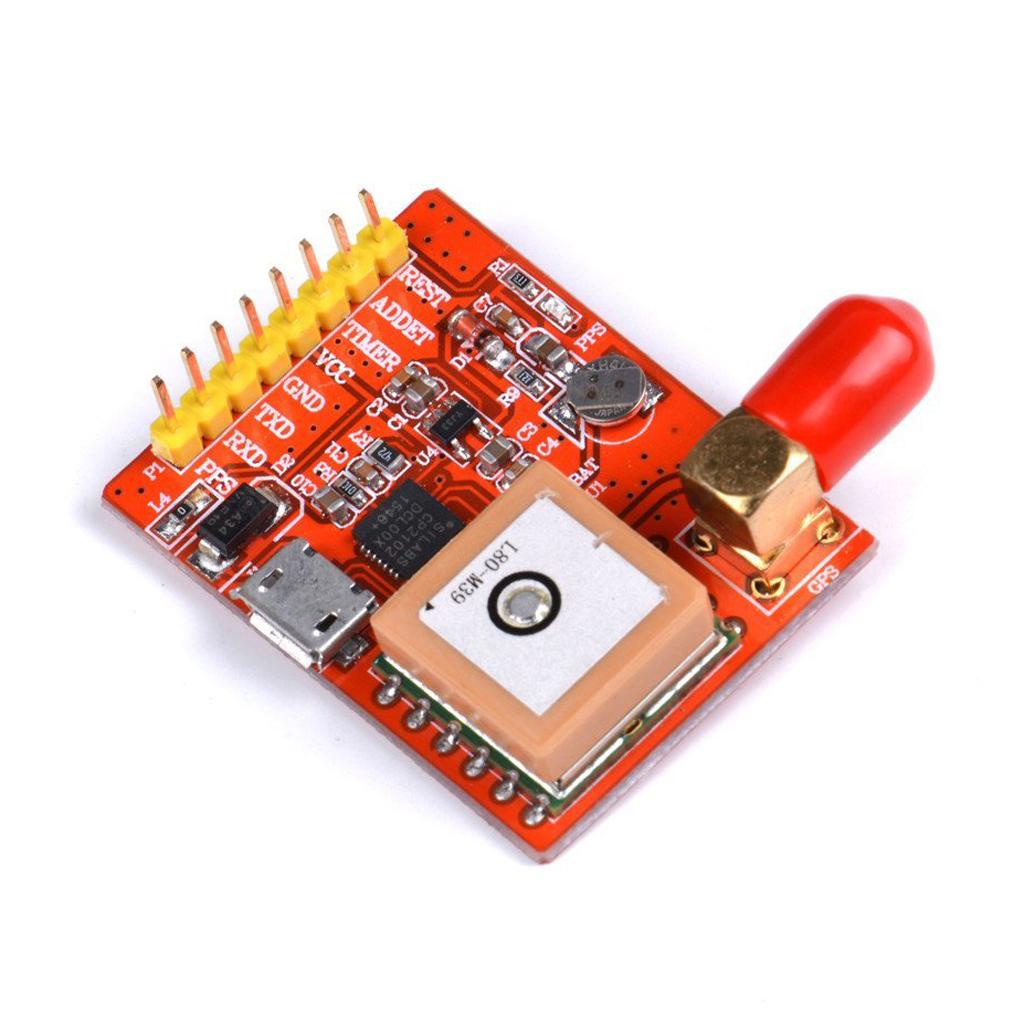

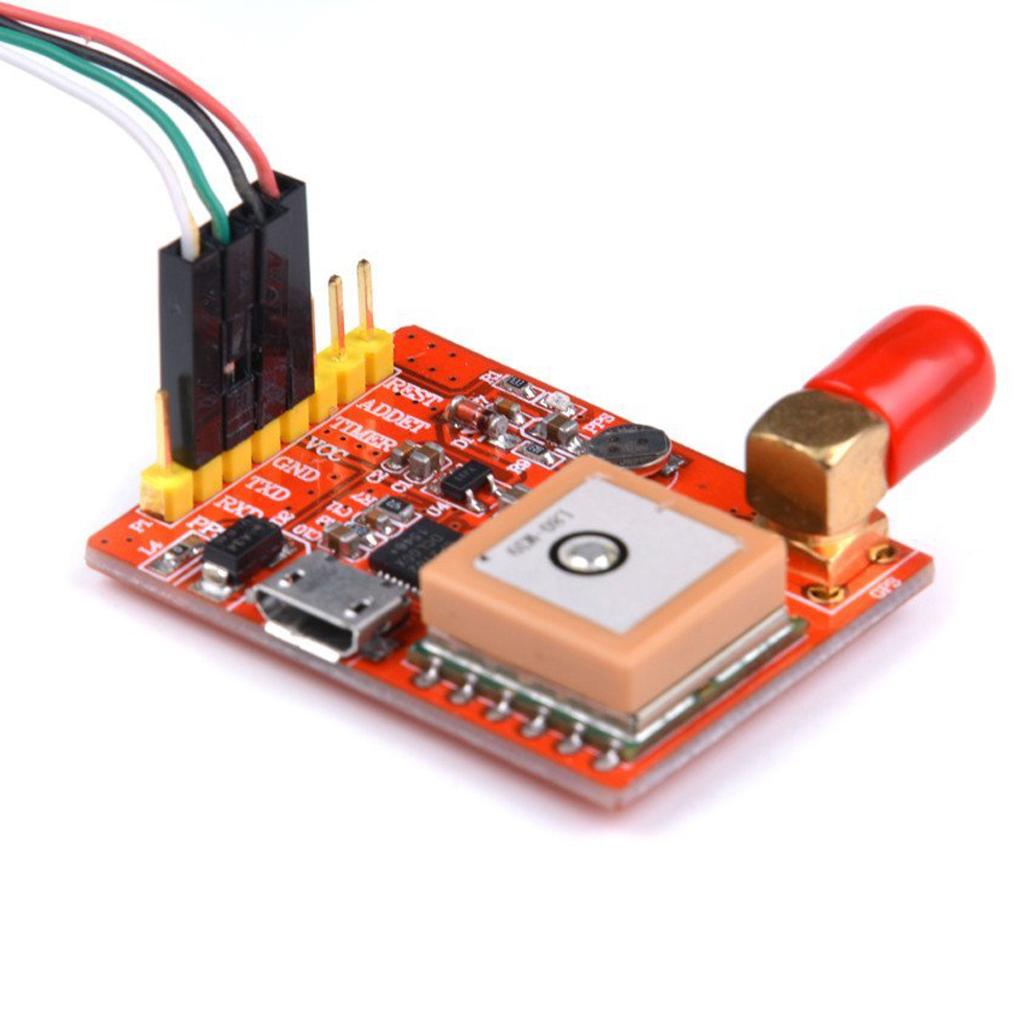

With L80-39 GPS Chip inside, this USB-Port-GPS module will help you communicate satellite with UART or USB
With chip CP2102 working as the USB to UART Bridge chip, it works faster and more stable

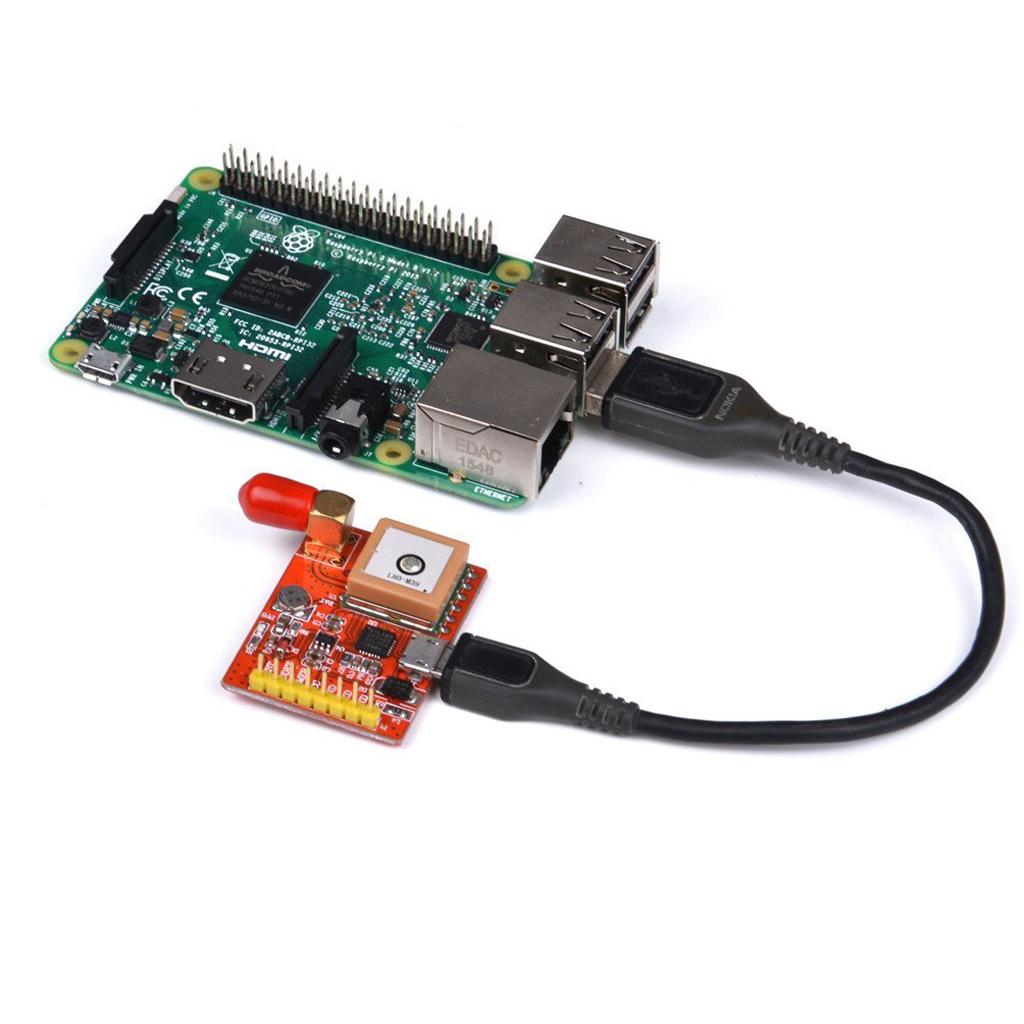

It is compatilable with all models of Raspberry Pi which includes Raspberry Pi 3/Pi 2/B+/A+/B/A/Zero
Built-in LNA for better sensitivity
The L80 offers the benefits of ultra-low power consumption, fast positioning, etc

Specification:

Material: PCB Circuit Board
Working Voltage: 4.5-5.5V
100mA current draw to startup
Maximum Current: 100mA MAX
Working Temperature: -40 ~ +85°c
Size: Approx. 1.66x2.6x1.86cm/0.65x1.02x0.73 inch

GPS: L80-M39
Patch Antenna Size: Approx. 1.5x1.5x0.4cm/0.59x0.59x0.16 inch
Position Accuracy:<2.5M CEP
Velocity Accuracy:<1.0m/s
Warm/cold start without ESEY:<35s
Warm/cold start with ESEY:<15s
Acquisition sensitivity: -148dBm
Tracking sensitivity: -165dBm
Update rate:1Hz (Default) up to 5Hz
Baud Rate: 4800~115200 bps, 9600bps default
Protocols: NMEA 0183
Mount Cable: 1x8 Stacking Header USB micro data cable

Package Includes:

1 Piece GPS Module
