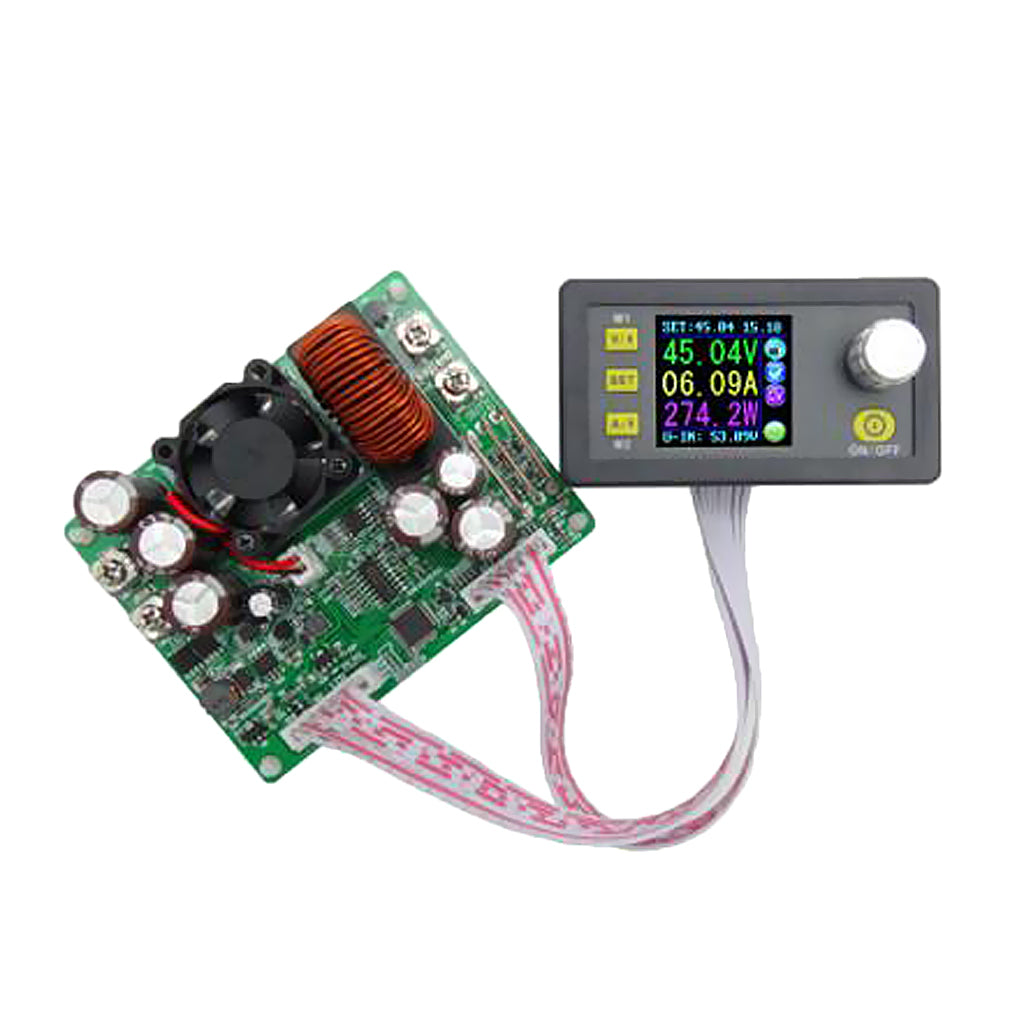

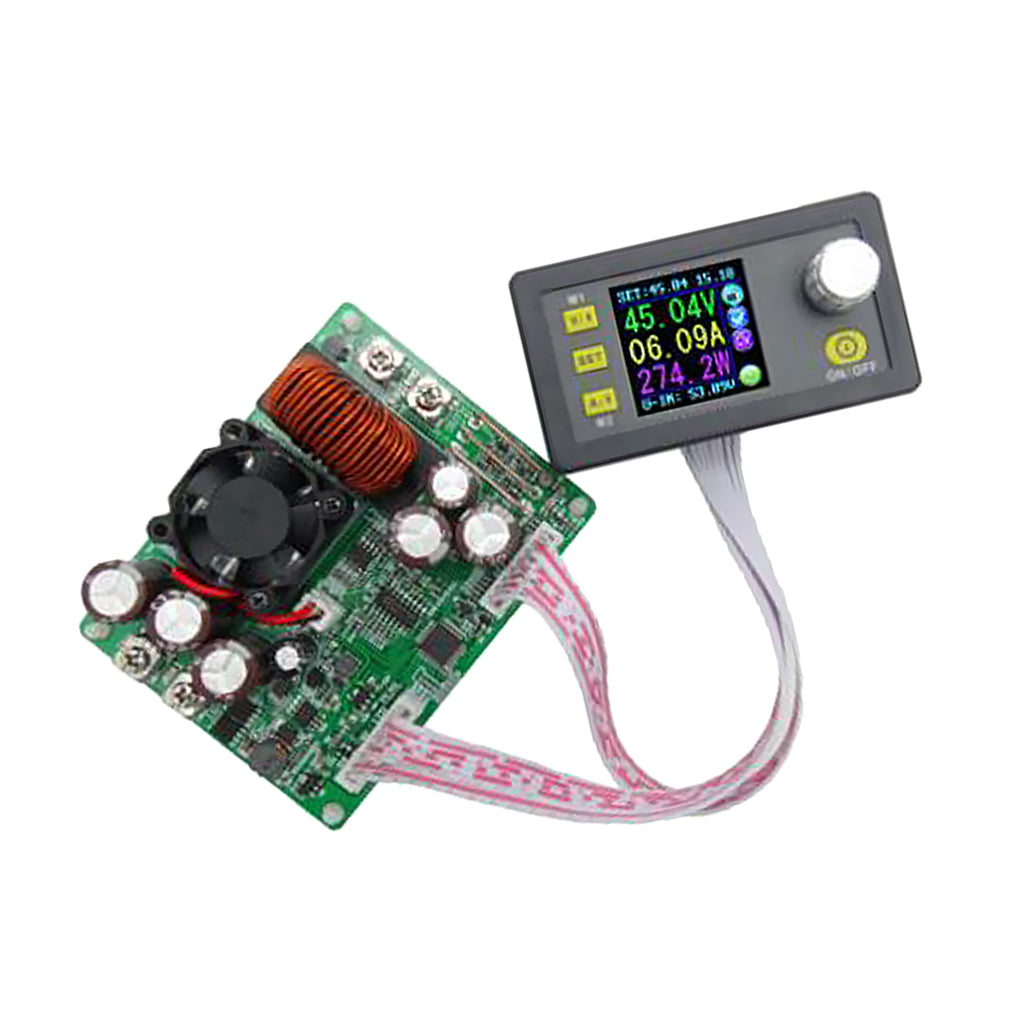

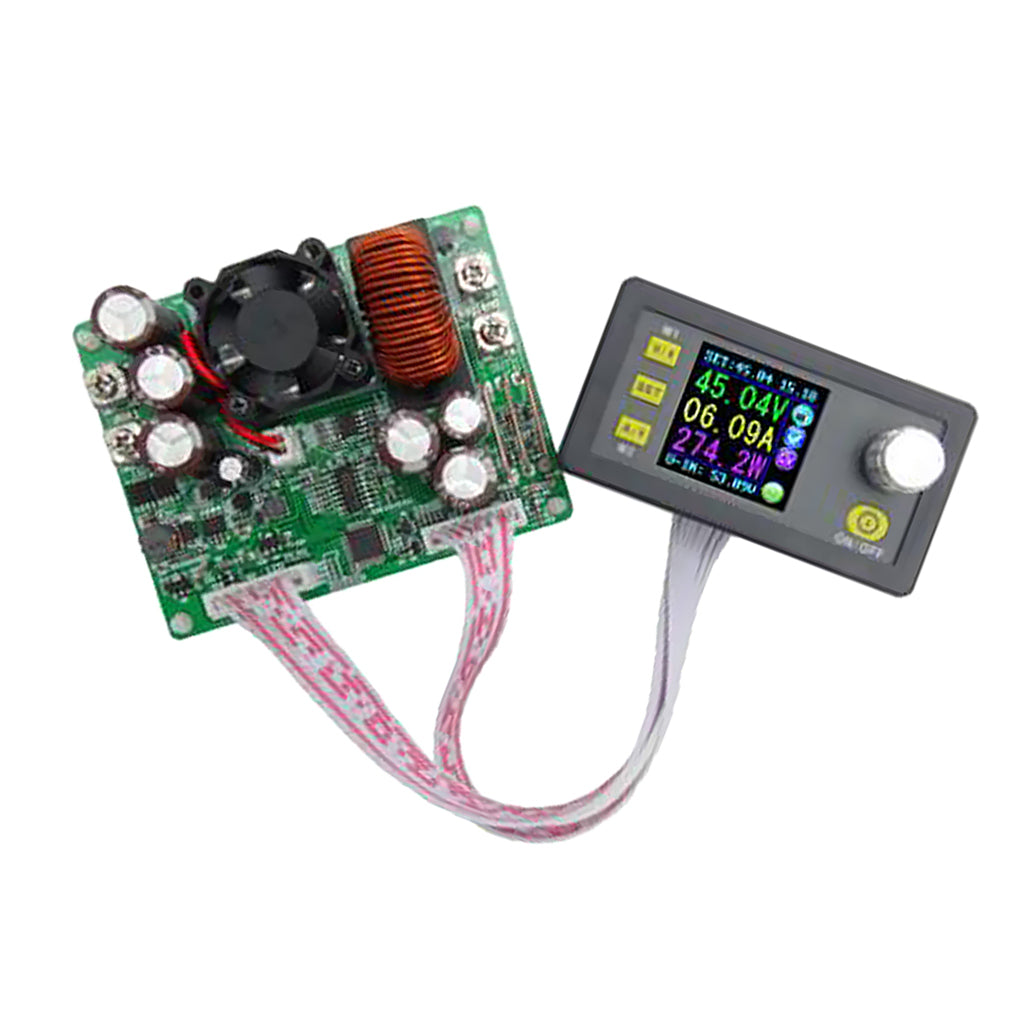

DPS5020 DC50V 20A Step Down Programmable Power Supply Module LCD Display

Regular price
Rs. 7,833.08
Regular price
Sale price
Rs. 7,833.08
Earn 3916 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60008202
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.

Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-20.00A, step by 0.01A.

The module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value.

With LCD display and the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.

In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.

With advanced functions, high accuracy, wide application, the item is really practical.

Specification:

Material: Plastic

Color: As Pictures Shown

Model Type: DPS5020

Input voltage range: 6.00-60.00V

Output voltage range: 0V-50.00V

Output current: 0-20.00A

Output power range: 0-1000W

Output voltage resolution: 0.01V

Output current resolution: 0.01A

Output Voltage accuracy: ± (0.5% + 1 digit)

Output Current accuracy: ± (0.5% + 2 digits)

Display module size: Approx. 79*43*41(mm) (L*W*H)/ 3.11x 1.69x 1.61inch

Power module size: Approx. 93*71*41(mm) (L*W*H)/ 3.66x 2.80x 1.61inch

Length of connecting line: 200mm

Input positive: IN+

Input negative: IN-

Output positive: OUT+

Output negative: OUT-

Package Includes:

1 Piece Programmable Power Supply

1 Piece User Manual

Note:

When you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.

You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
