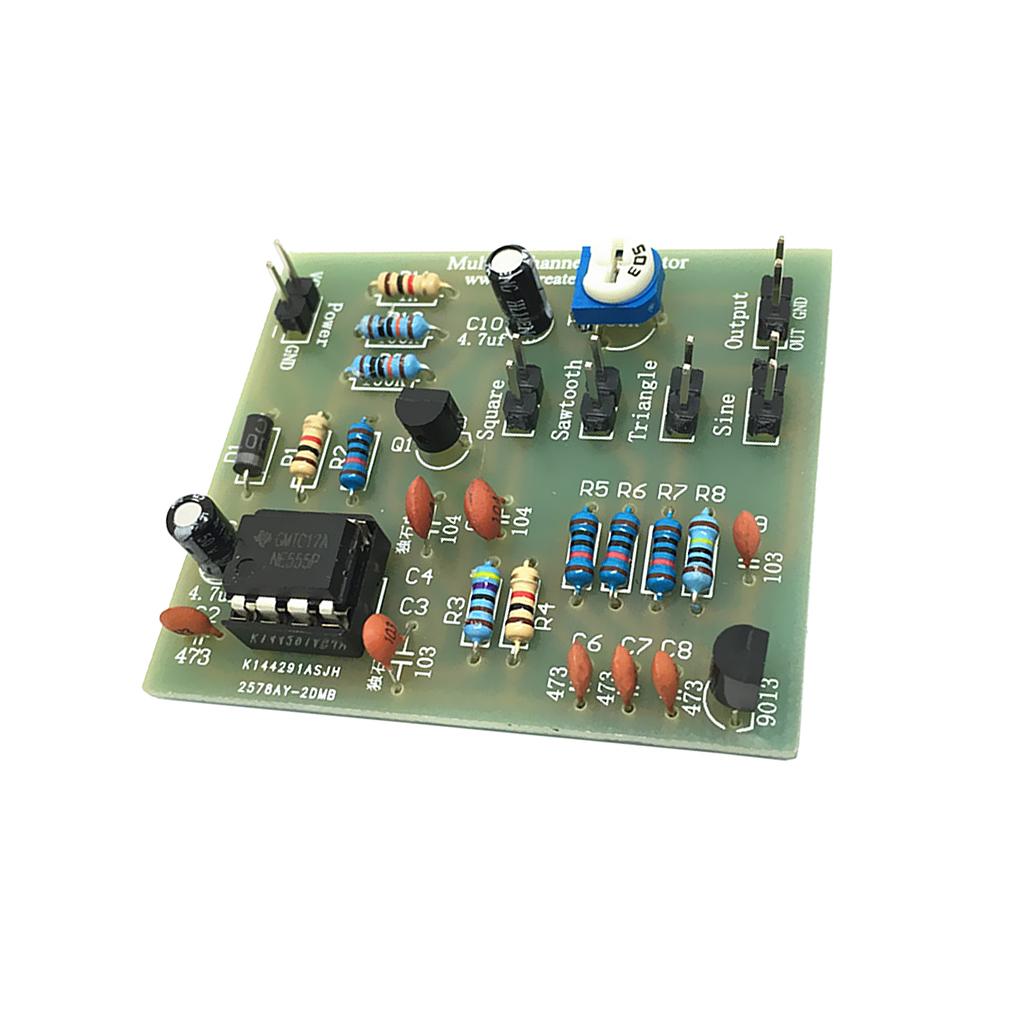

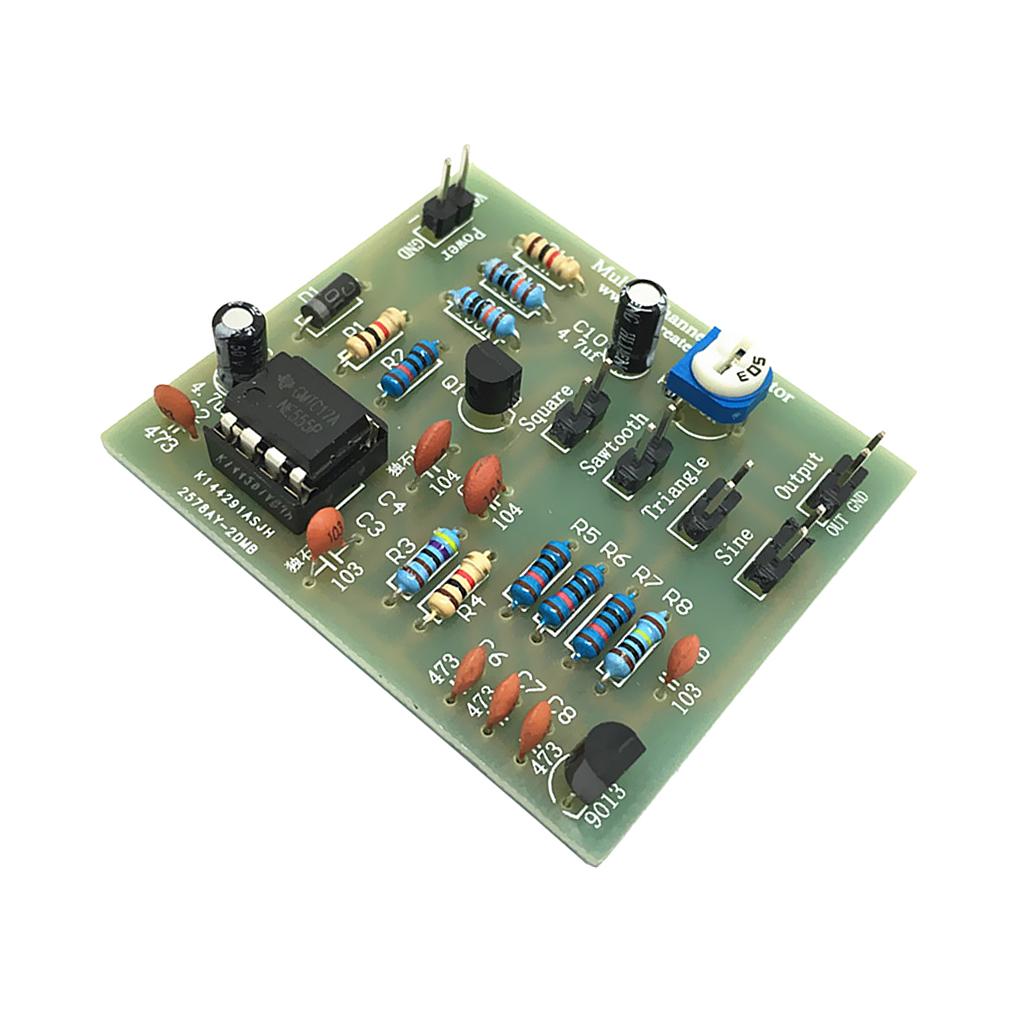

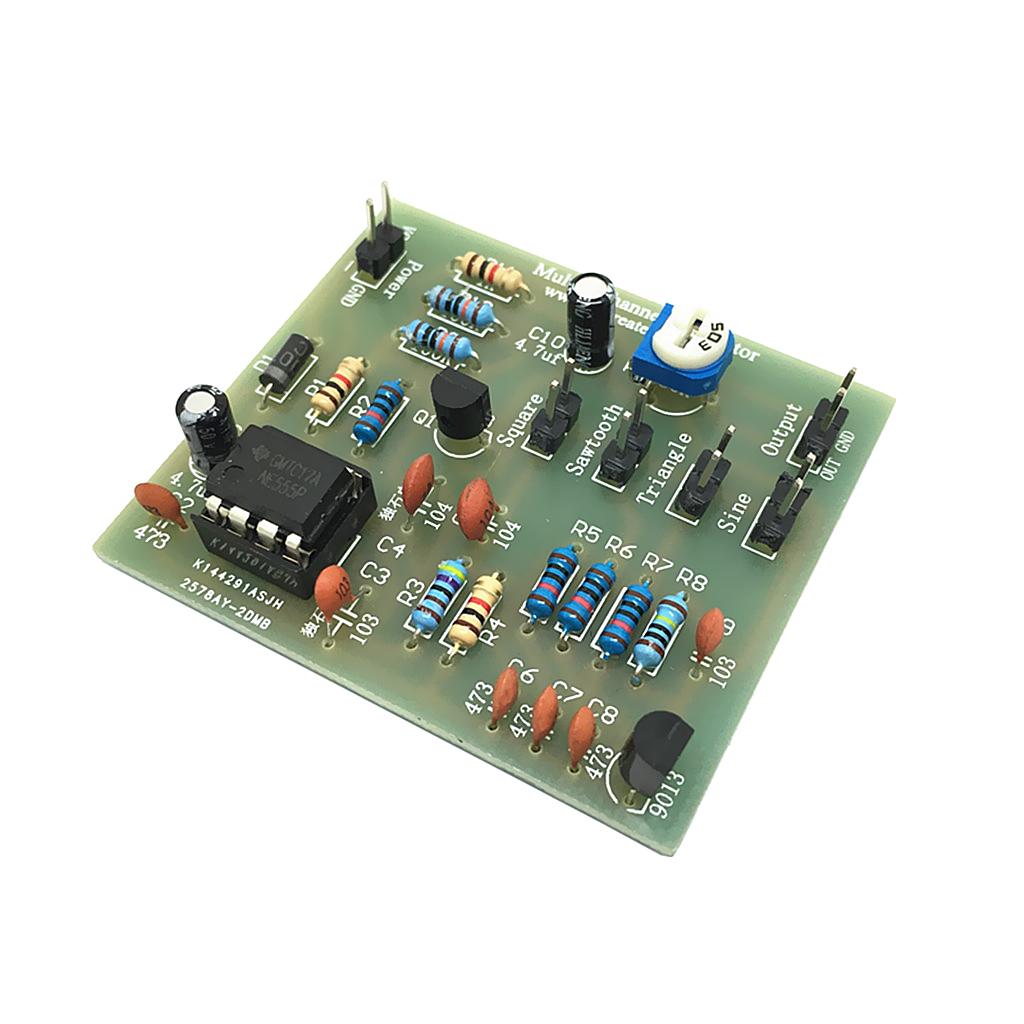

DIY NE555 Multi-Channel Waveform Generator Module Sine Triangle Square Wave

Regular price
Rs. 370.71
Regular price
Sale price
Rs. 370.71
Earn 185 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60007826
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

100% Brand new and high quality

The waveform generator is a digital signal generator for digital frequency and amplitude modulation

This waveform generator can generate square wave, Sawtooth wave, sine wave and triangular wave

By changing the connection on PCB , you can choose the waveform as you wanted

Easy to use and operate

Specification:

Size: Approx. 51x 44x 5mm/ 2.01x 1.73x 0.20inch

Input: DC6~12V(suggested 9V)

Color Ring Resistor: 1KΩ, 1MΩ,4.7KΩ, 10KΩ,15KΩ, 100KΩ

Monolithic Capacitor: 0.01uF, 0.1uF

Ceramic Capacitor: 0.01uF, 0.1uF, 0.047uF

Electrolytic Capacitor: 4.7uF

Diode: 1N4007

Adjustable Resistor: 50KΩ

Triode: 9013

IC: NE555

Pin: 2P

Package Includes:

1Piece Waveform Generator DIY Kits

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
