DC 0-100V 50A Voltmeter Ammeter LED Digital Amp Volt Meter Gauge W/ Shunt

Regular price
Rs. 762.75
Regular price
Sale price
Rs. 762.75
Earn 381 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60011472
  • Brand: SFC
  • Type: Electrical & Test Equipment
  • Availability: In Stock
Description

Description:

Voltmeter ammeter voltage range is DC 0-100V, current range is 0.0-50A.

The multimeter can clearly display voltage and current at the same time, red for voltage, red for current.

Can be installed on anywhere flexibly.

The voltage ampere monitor gauge is powered by the circuit being measured, no need to connect extra power source.

This volts amp tester is designed with built-in trimmer potentiometer, enable you to calibrate the meter easily.

Specification:

Material: PCB Board

Color: Black

LED Display Color: Red

Size: Approx. 20.5x41mm/0.81x1.61inch

Measurement Range: 0-100V

External shunt specifications: 75mΩ

Working power: 4-30V DC power supply with reverse polarity protection
Local power consumption: <20MA

Refresh rate: about 300ms/times


Package Includes:

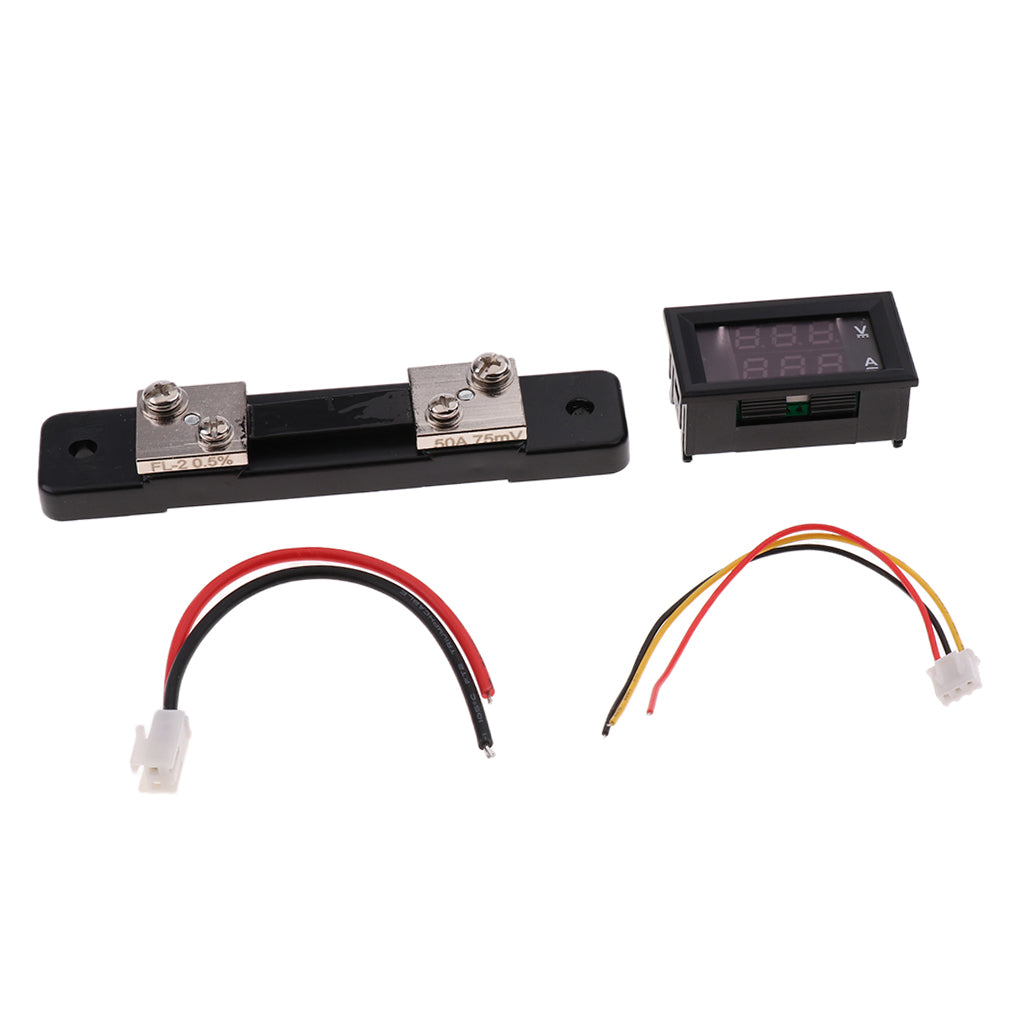

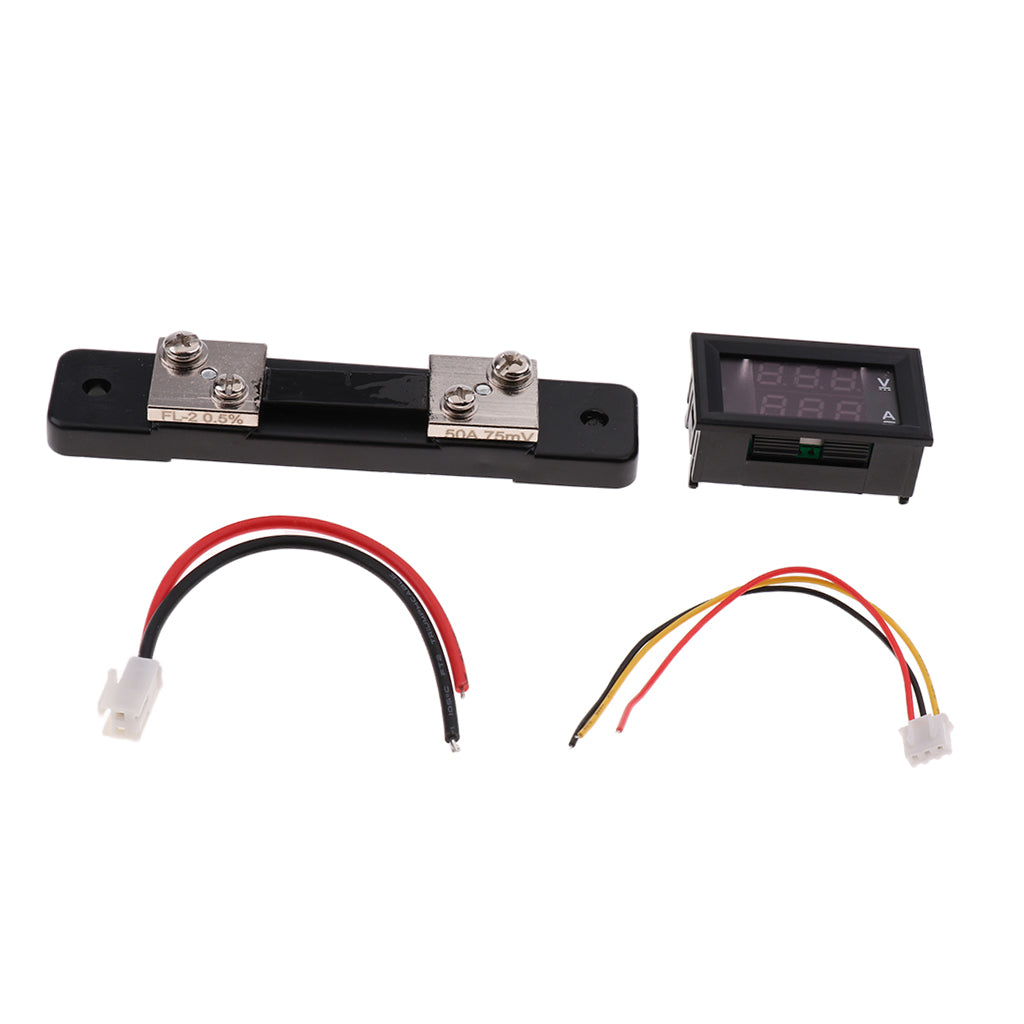

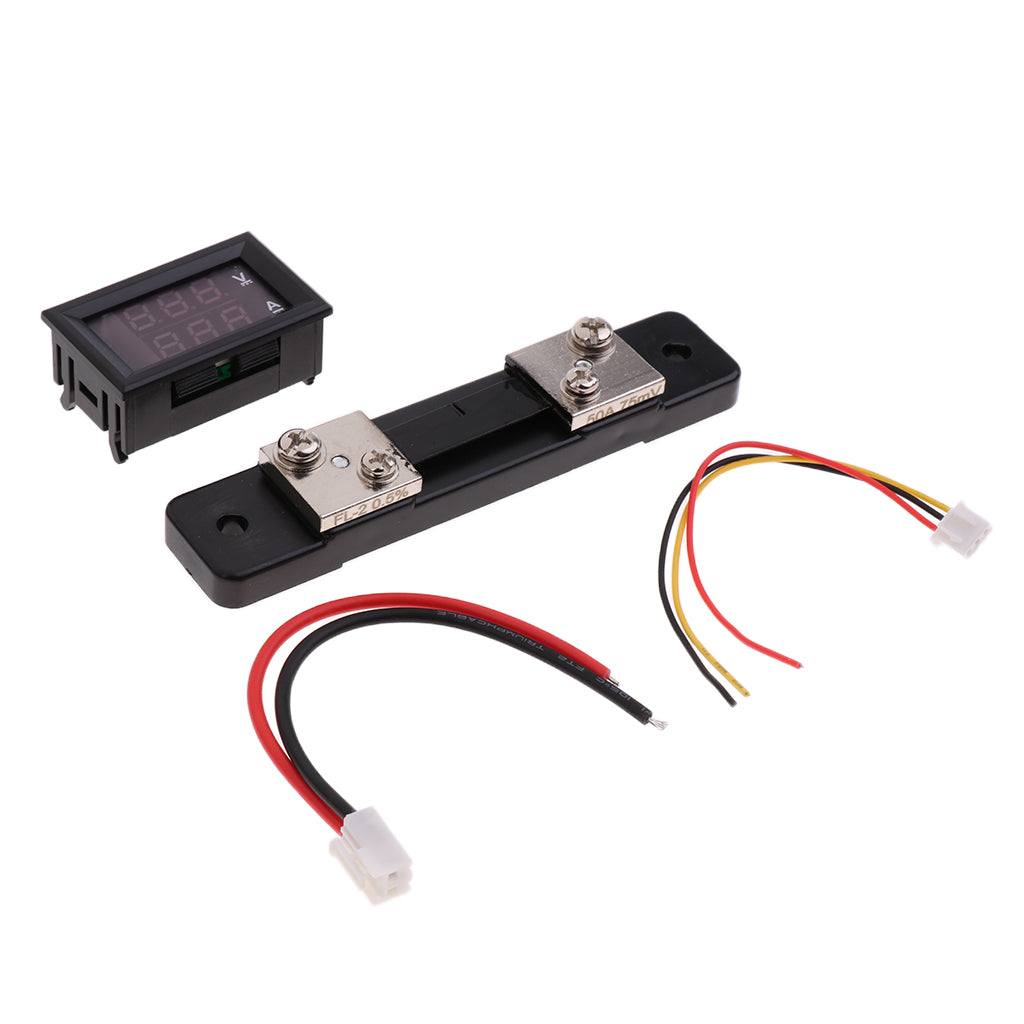

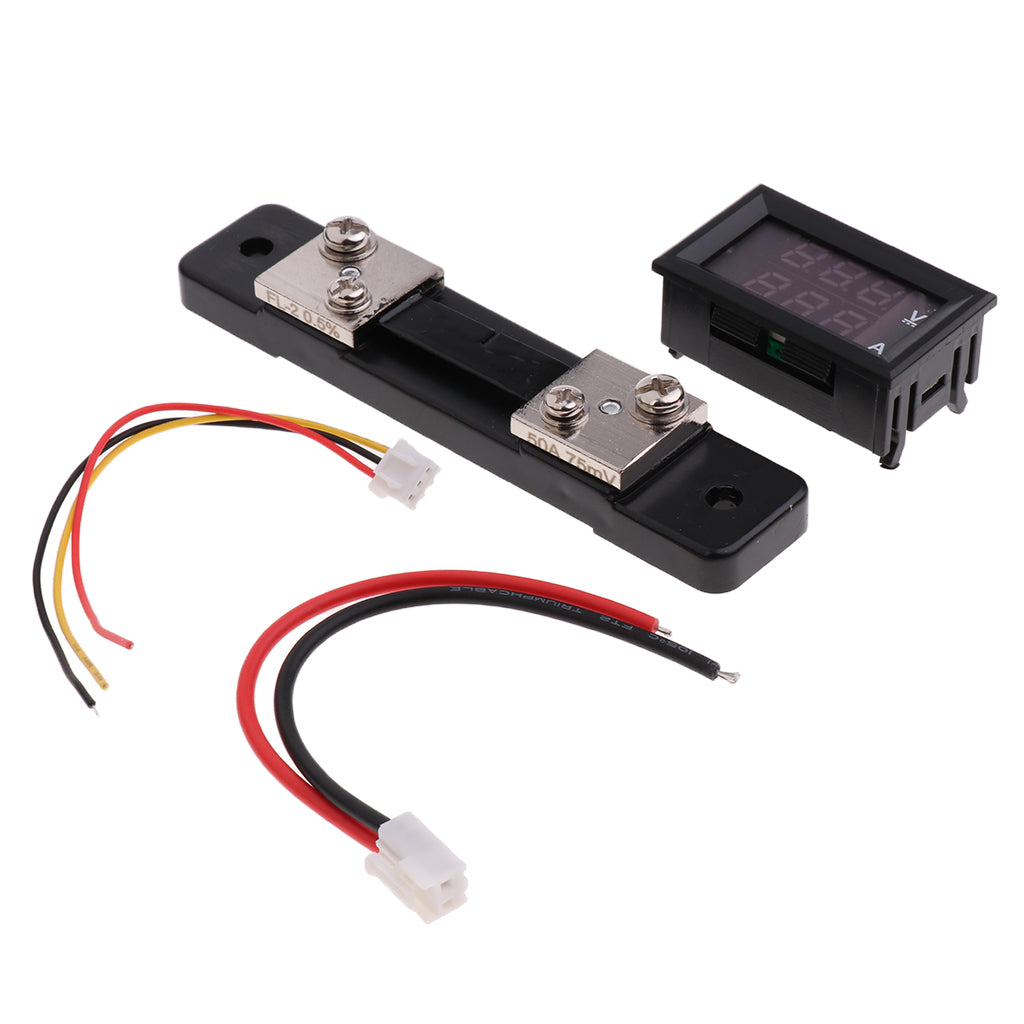

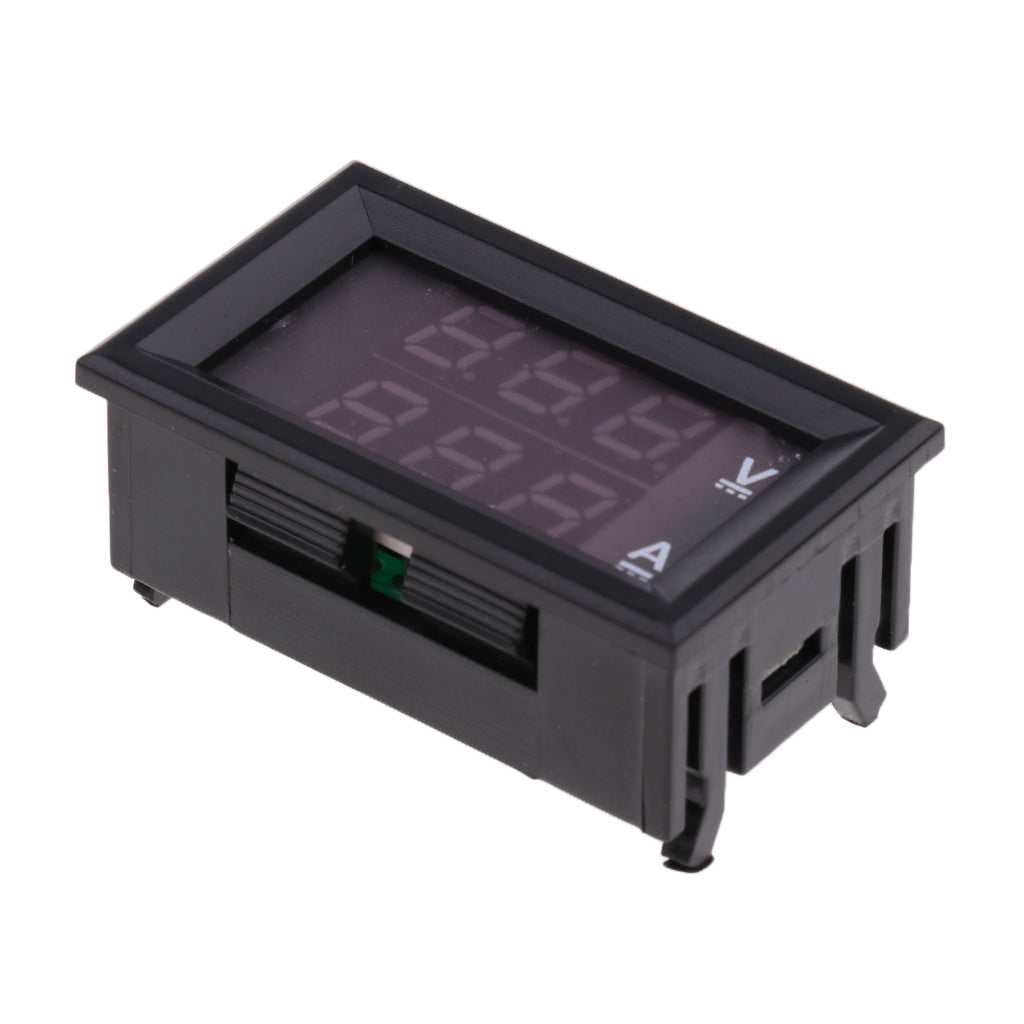

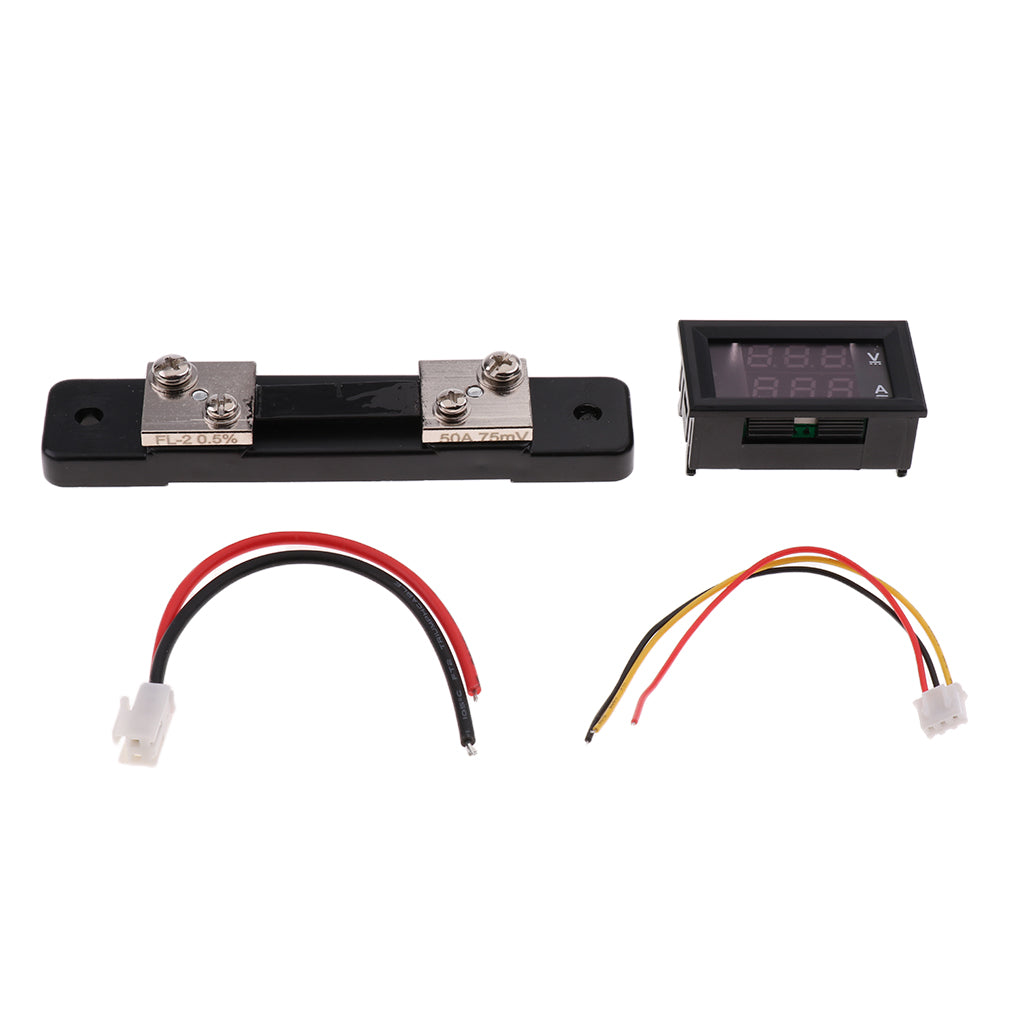

1 piece Digital Voltmeter Ammeter


Note:

The yellow & red line connects positive electrode of power
