Control Module for Arduino Dot Matrix Parts Microcontroller Display Module

Regular price
Rs. 310.46
Regular price
Sale price
Rs. 310.46
Earn 155 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60004372
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

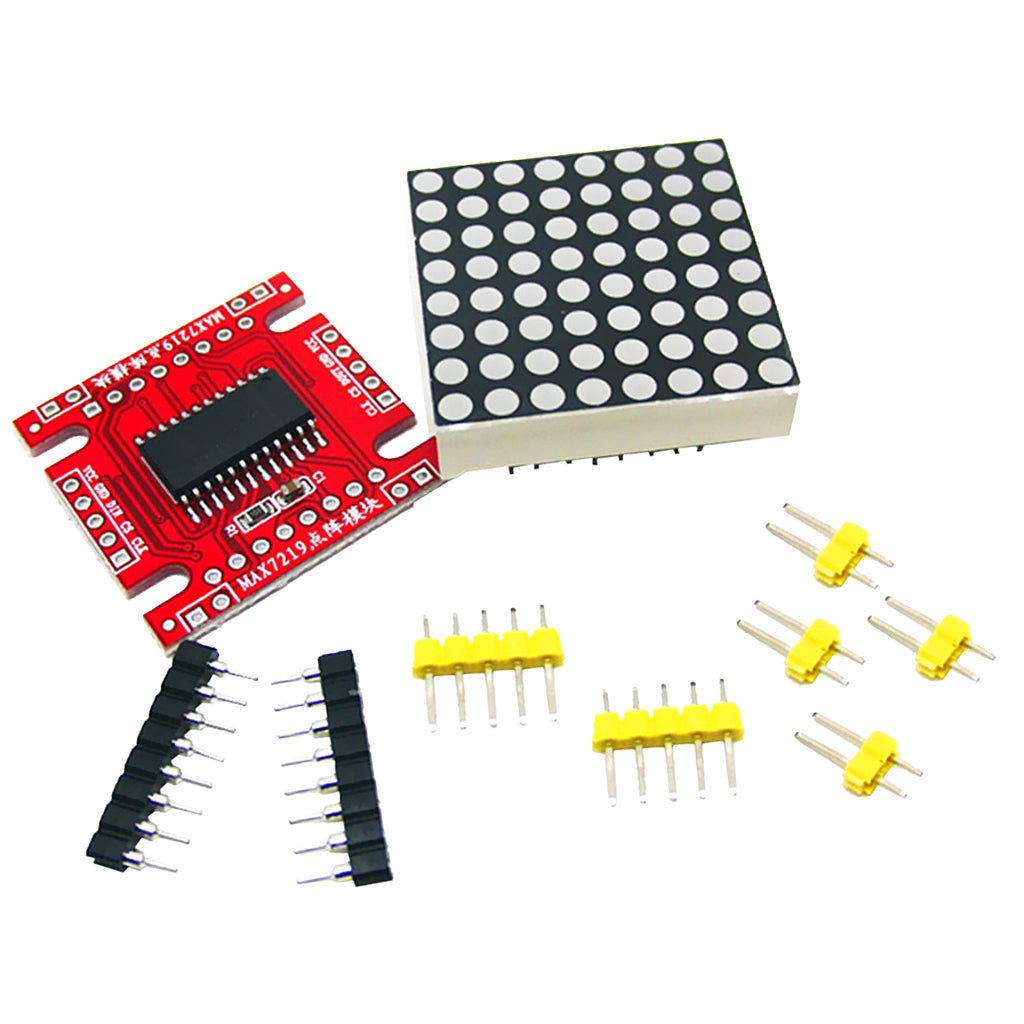

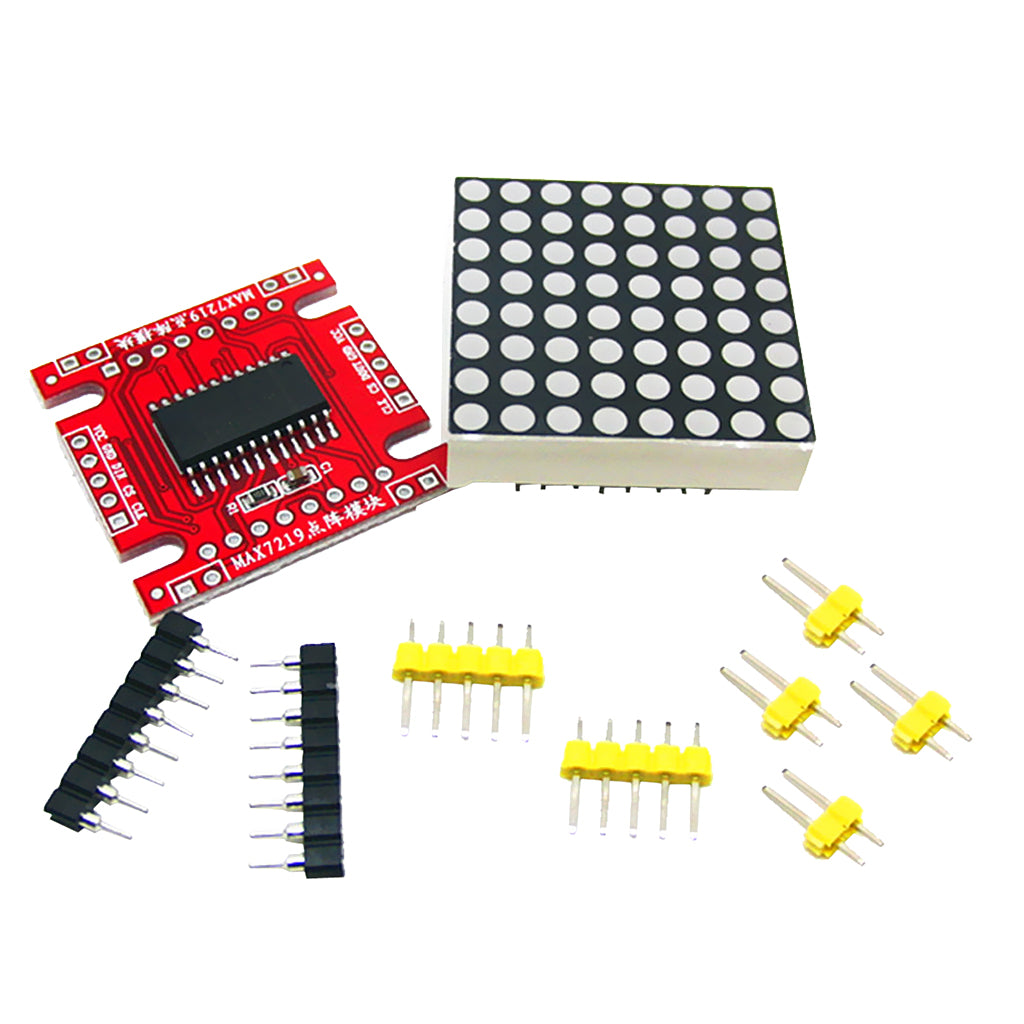

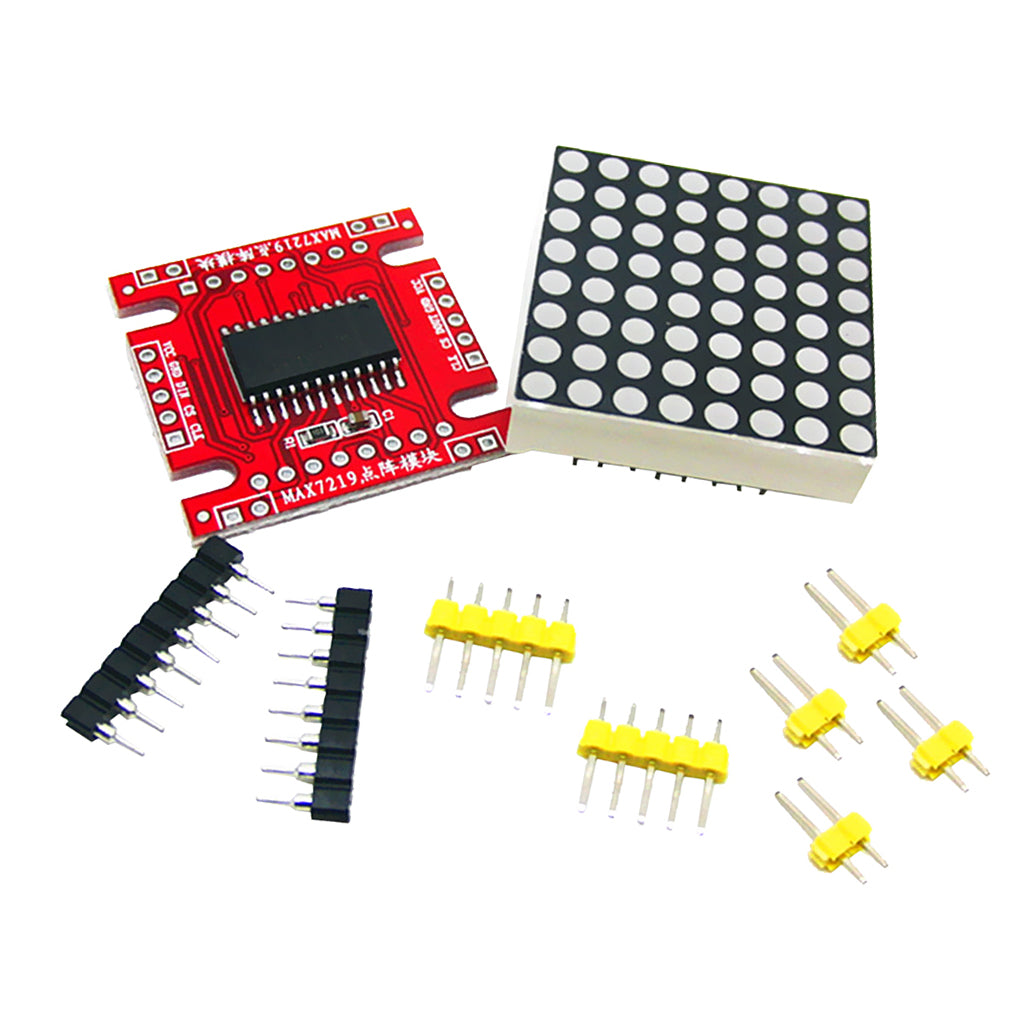

MAZ7219 Display module can display 8-digit number in the LED screen.

Integrated B-type BCD encoder, the multi-scan loop, the segment word driver and a 8 x 8 static RAM to storage each data.

One Single module can drive an 8 x 8 LED dot matrix module common cathode.

Support for cascading multiple modules.

Compatible with 5V / 3.3V Microcontroller.

The following:

VCC → 5V

GND → GND

DIN → P1.0

CS → P1.1

CLK → P1.2


Specification:

Material: Material

Size: 33 x 33 x 16.5 mm / 1.29 x 1.29 x 0.65 inch


Package Includes:

1 Piece DIY Kits

Note:

VCC and GND do not connect reversed, so as to avoid burn the chip.

The old 51 MCU P0 interface need to connect the resistance.
