Boost DC-DC Adjustable Step Up Voltage Converter XL6009 4A Power Supply Module 3.8V-35V to 4V-50V

Regular price
Rs. 388.41
Regular price
Sale price
Rs. 388.41
Earn 194 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73002852
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

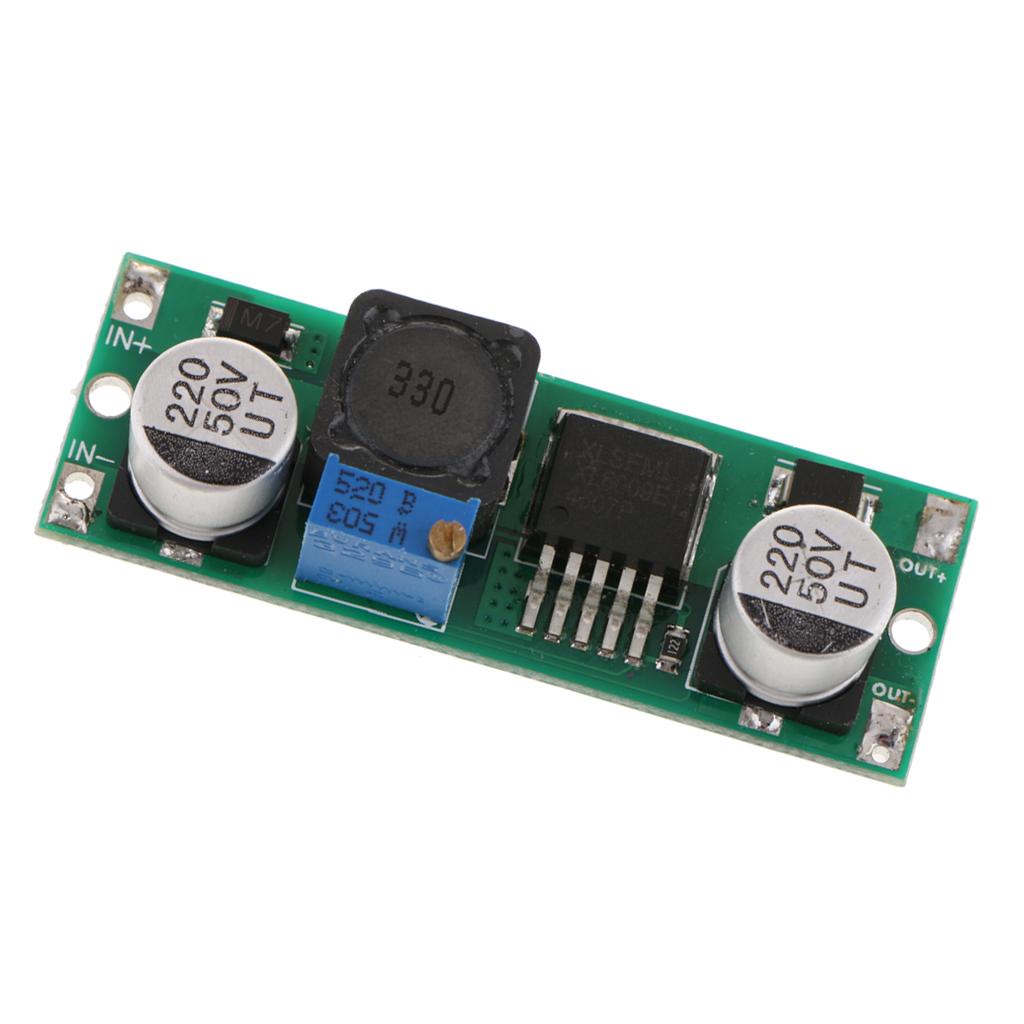

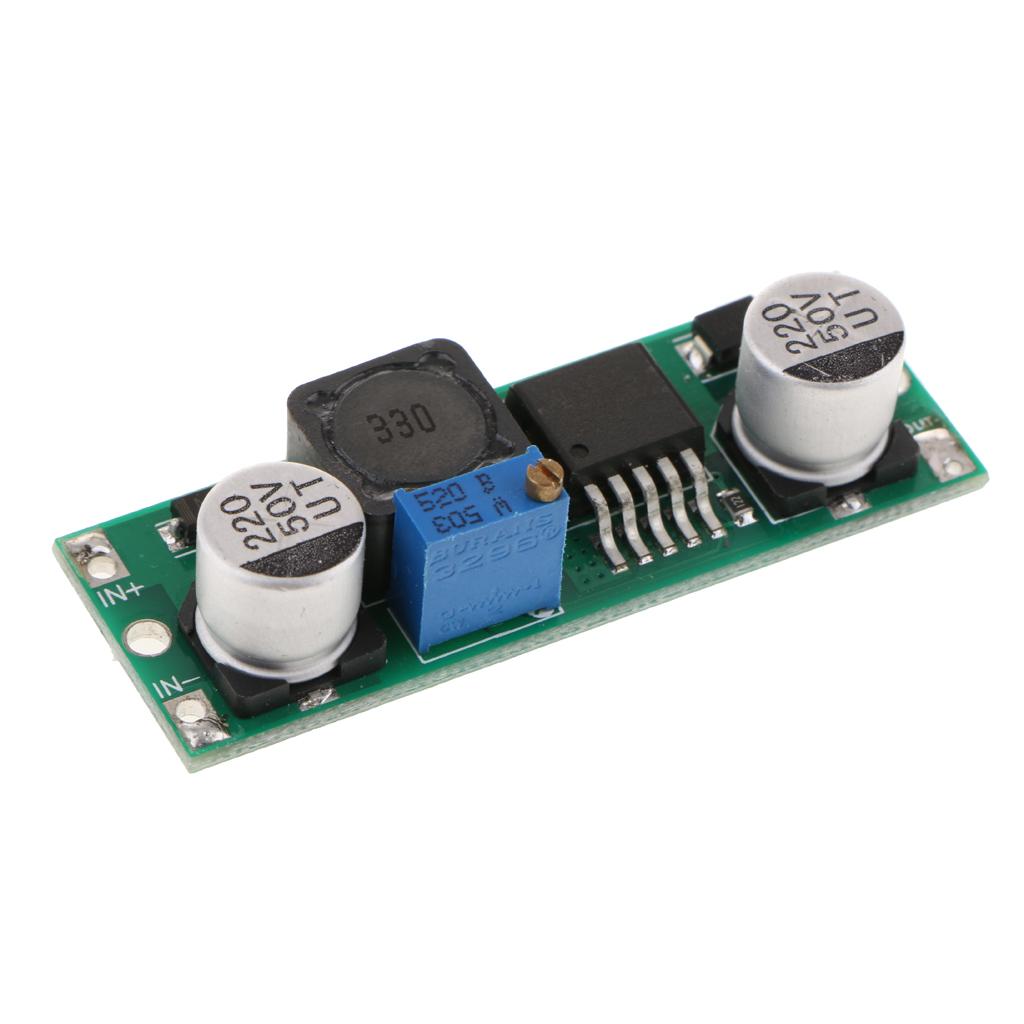

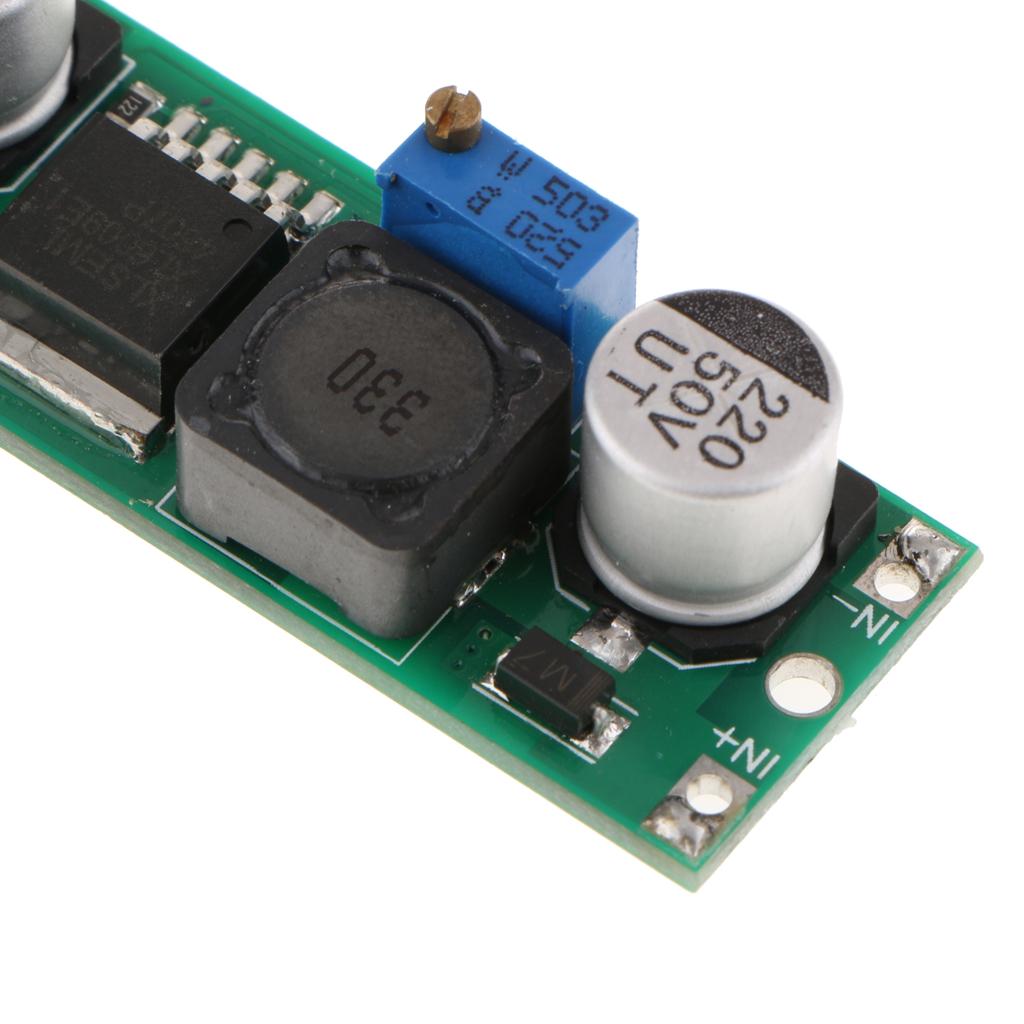

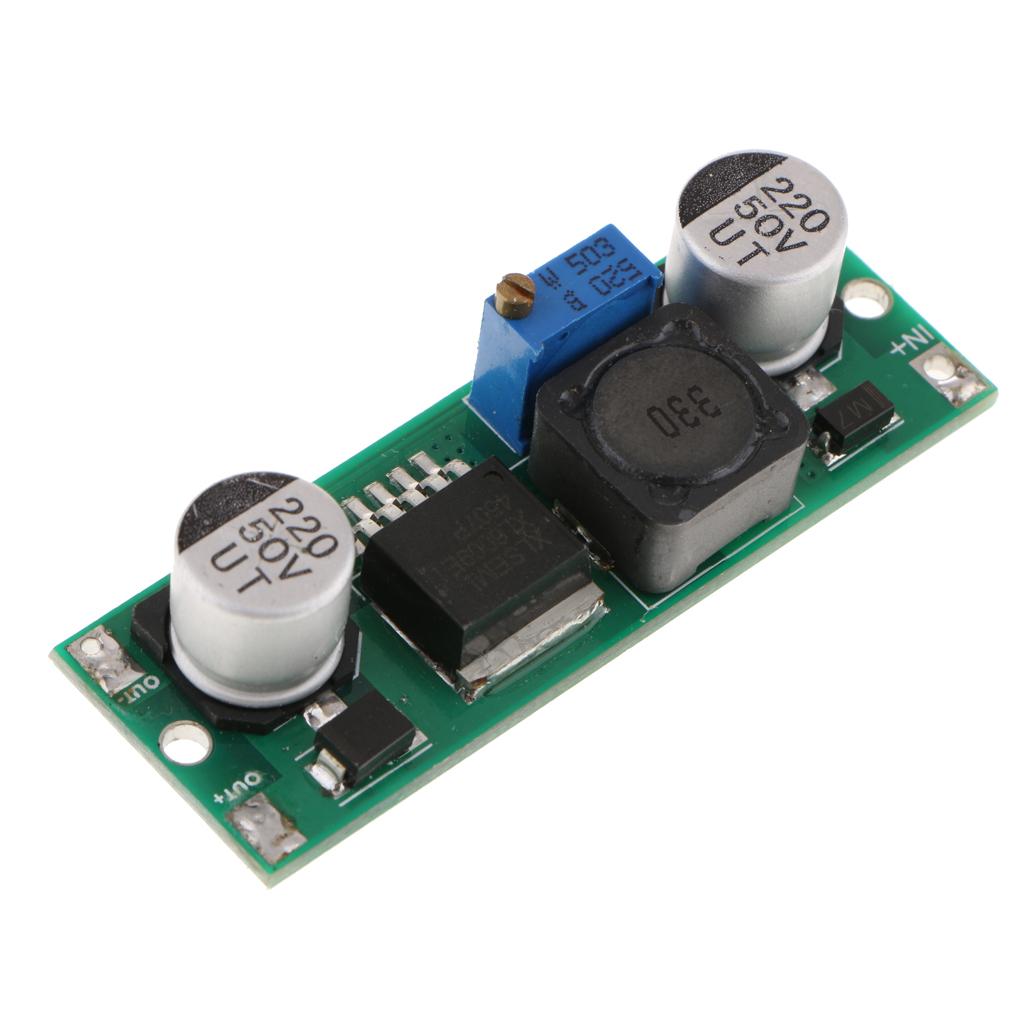

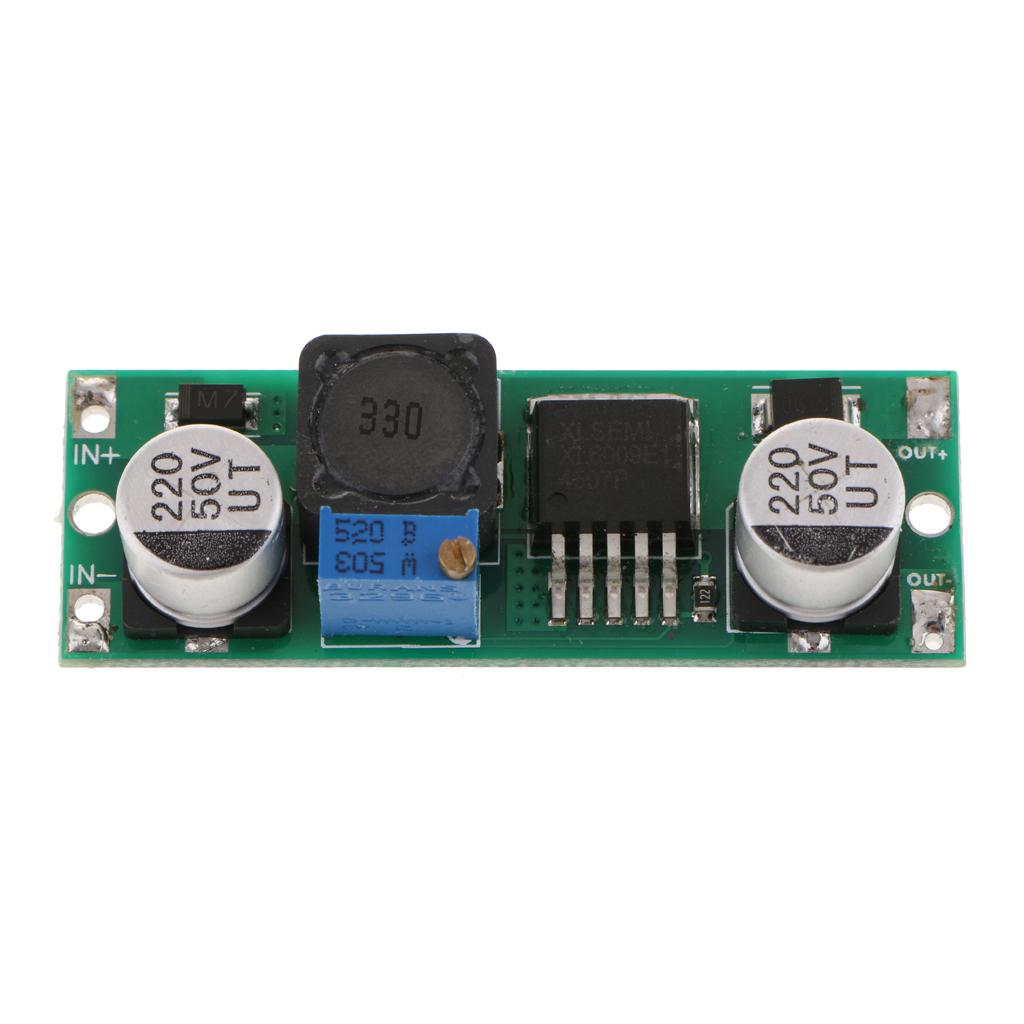

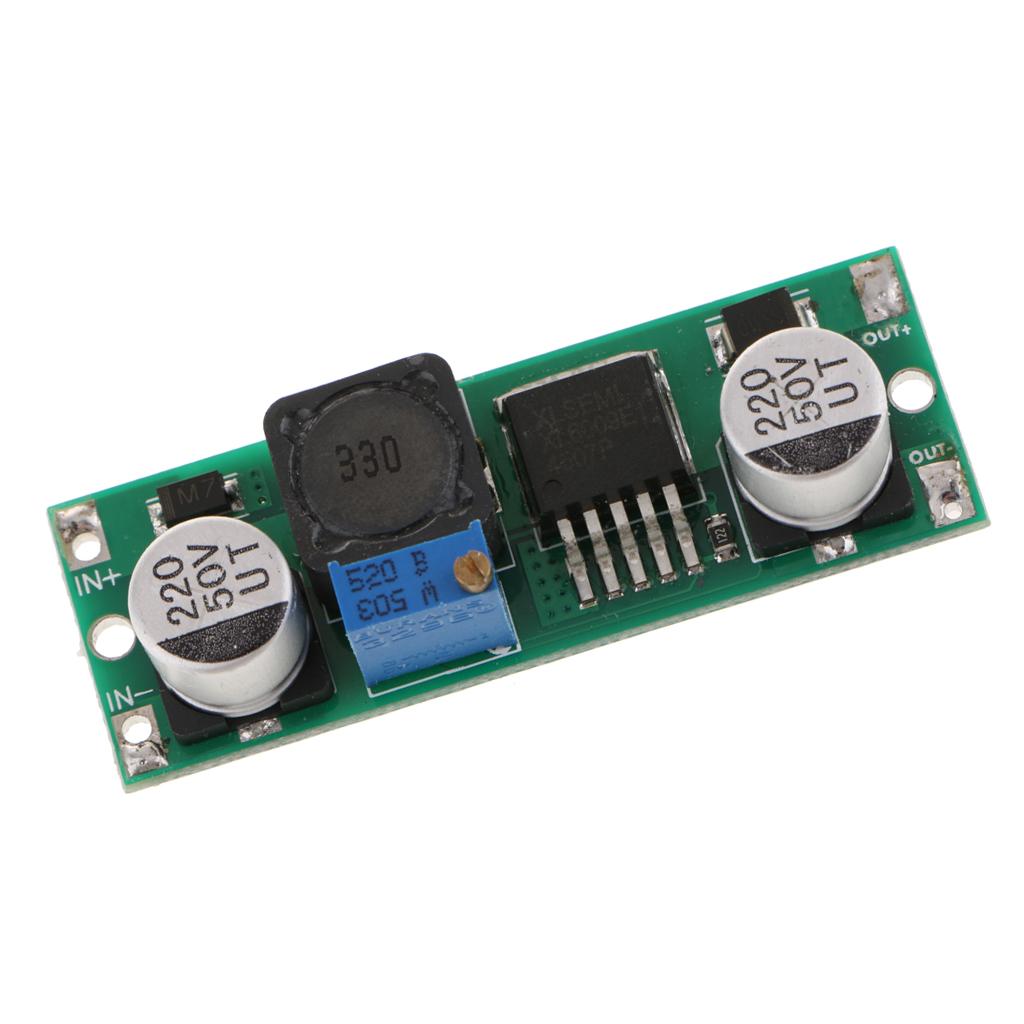

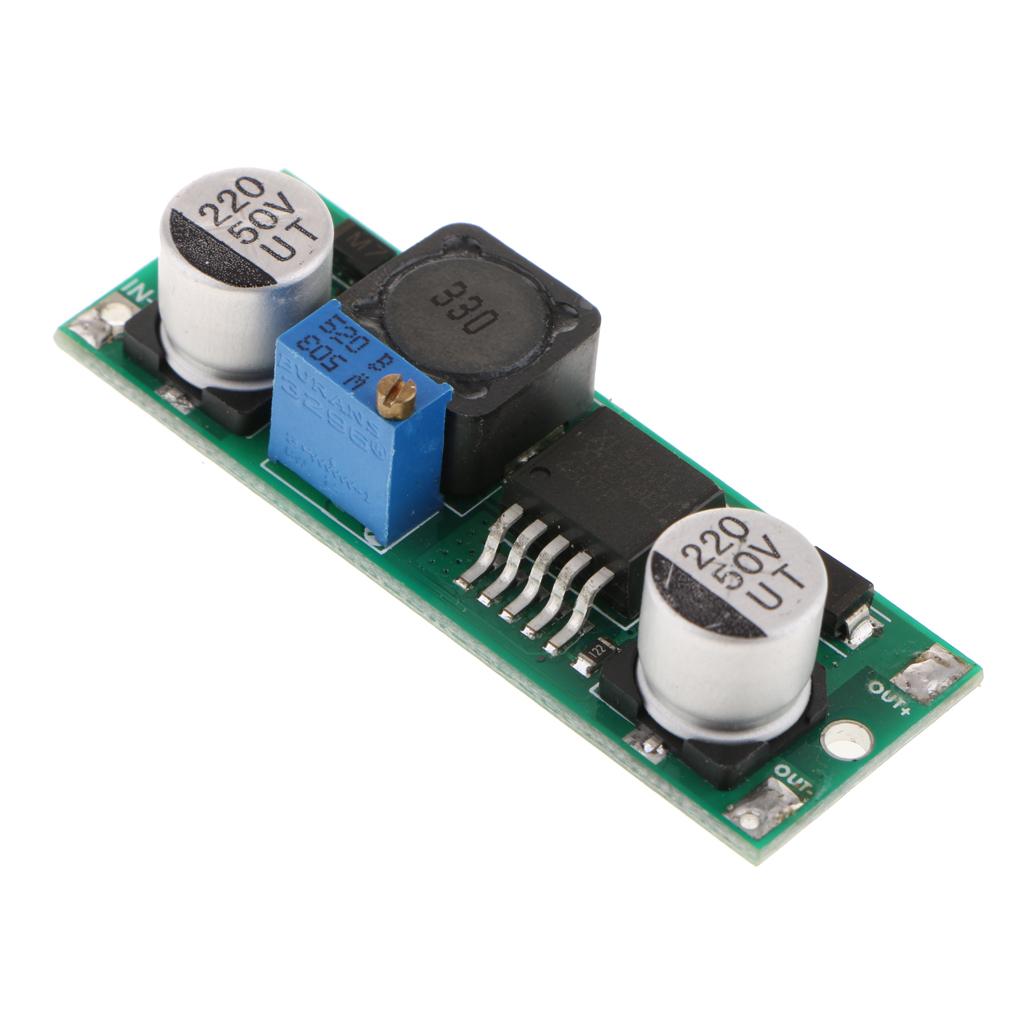

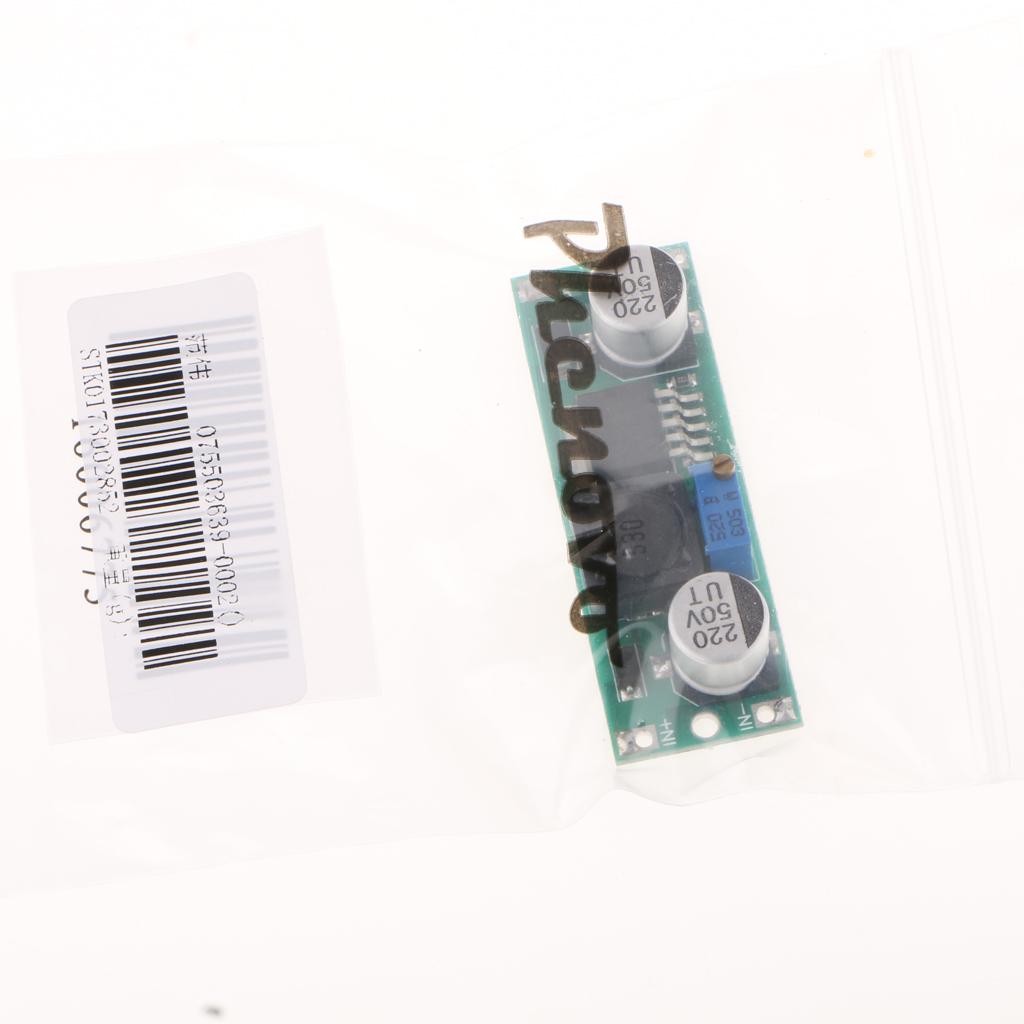

XL6009 DC-DC adjustable step-up power converter module, the step-up circuit board is a good efficiency non-isolated boost module.

Module Properties:Non- isolated boost (BOOST)
Ectifier system:Not synchronous rectifier
Input range: 3.8V~35 V
Output range: 4V ~ 50 V
Input current: 4A(maximum)
Transfer efficiency:94%(The highest) Normal efficiency for 85%
Switching frequency:400KHz
Output ripple:50mV
Load regulation:±0.5%
Voltage regulation:±0.5%
Working temperature: - 40 ℃ ~+ 85 ℃

Specification:

Material: electronic components
Size: Approx. 55.6 x 19.2mm/2.2x0.8inch

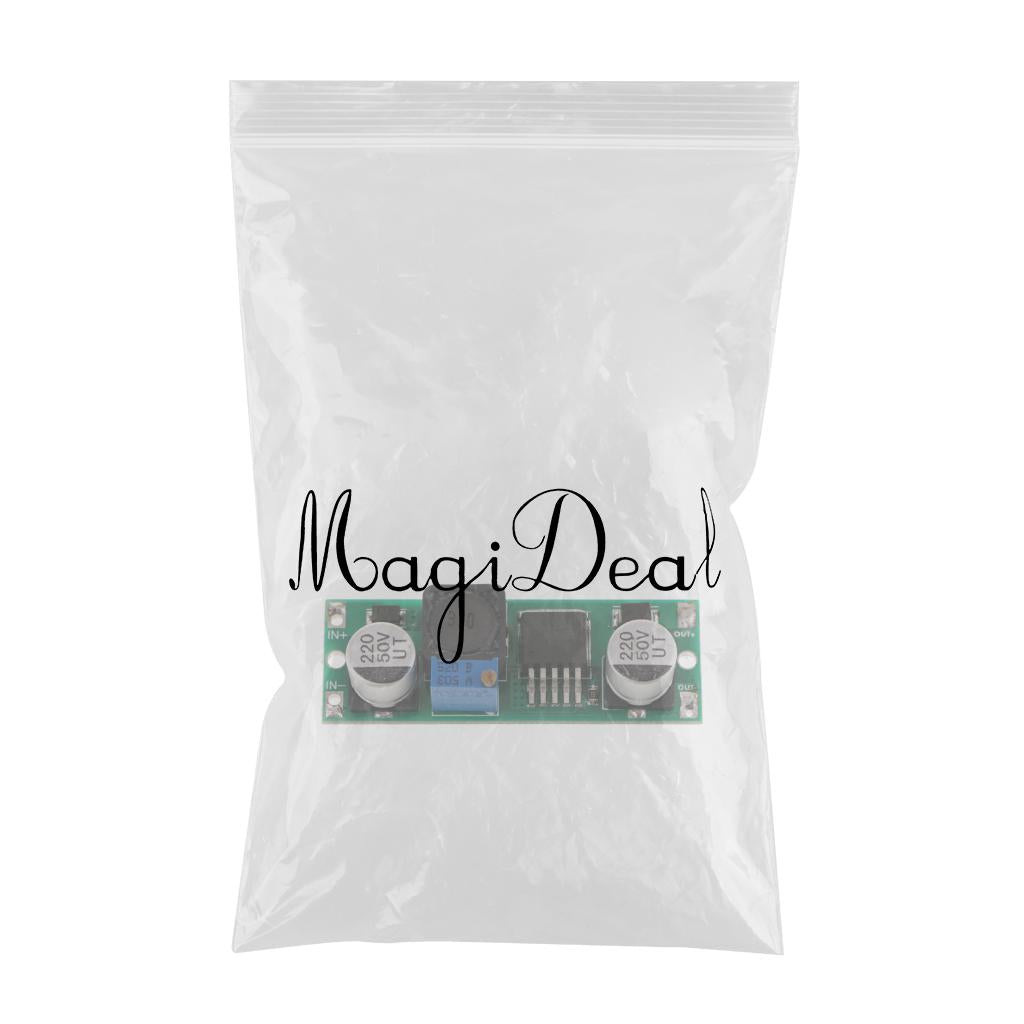

Package Includes:

1 Piece Step-up Module

Note:

Please watch out the input and output mark clearly when wiring. The potentiometer turns clockwise to increase the output voltage, and counterclockwise rotation, output voltage decreases.
This is a booster plate, the input voltage must be lower than the output voltage.
