Boost Converter Display, Boost Board DC 8.5-50V to DC 10-60V Adjustable FOR High Power LED Lights

Regular price
Rs. 1,079.86
Regular price
Sale price
Rs. 1,079.86
Earn 539 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73007316
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

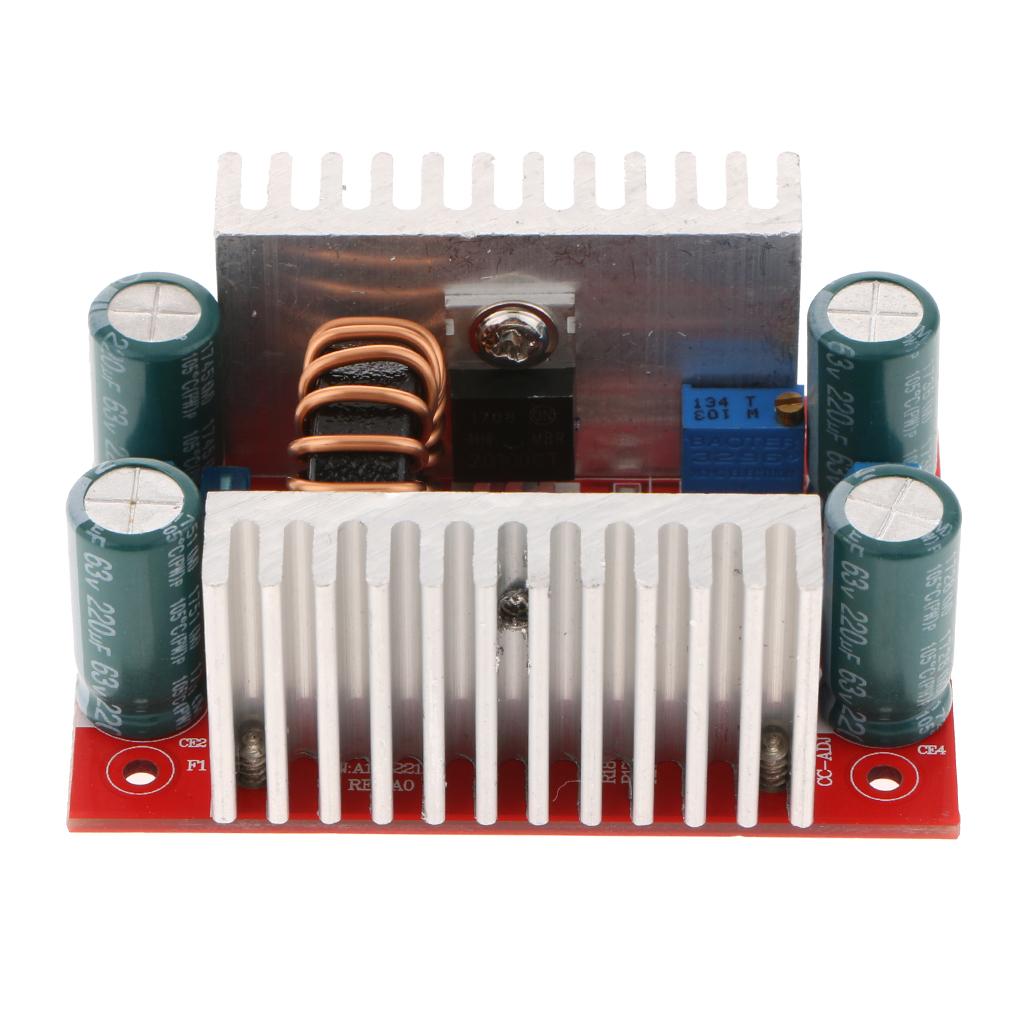

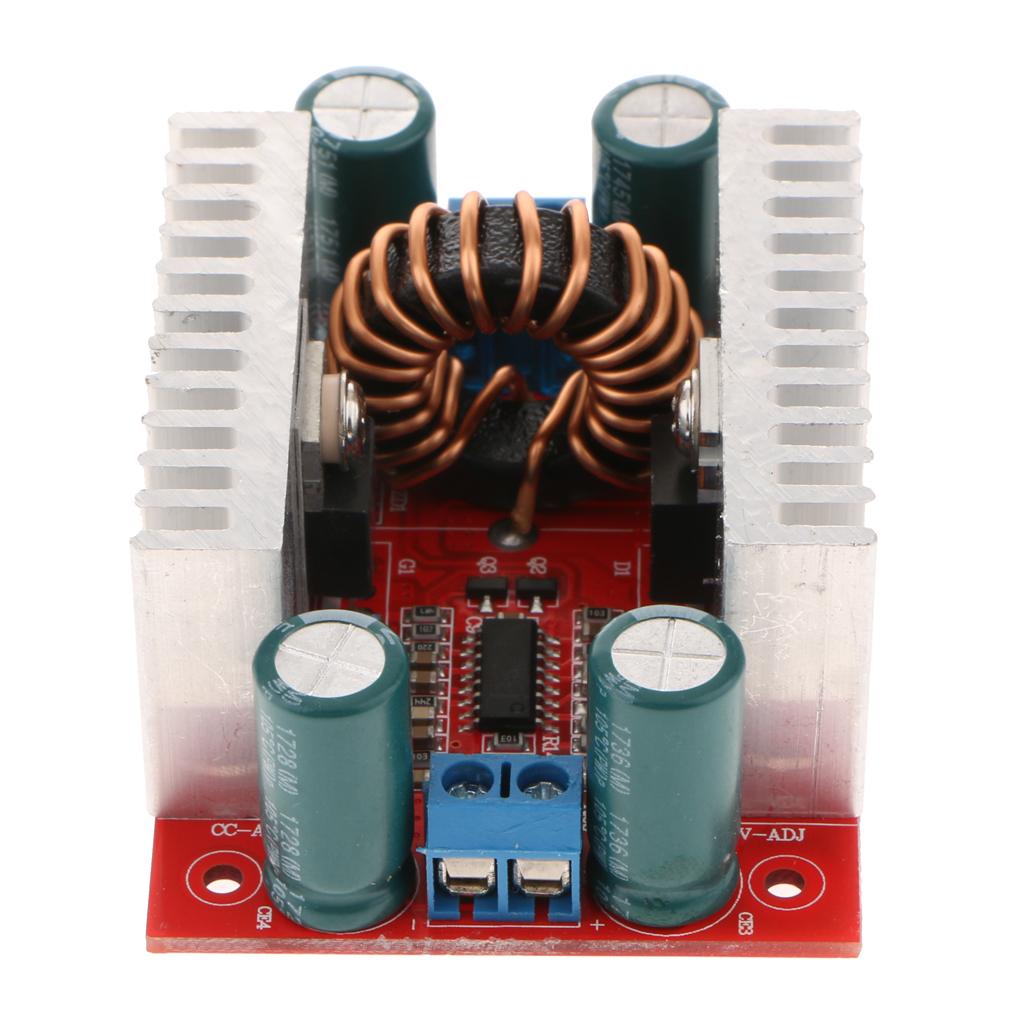

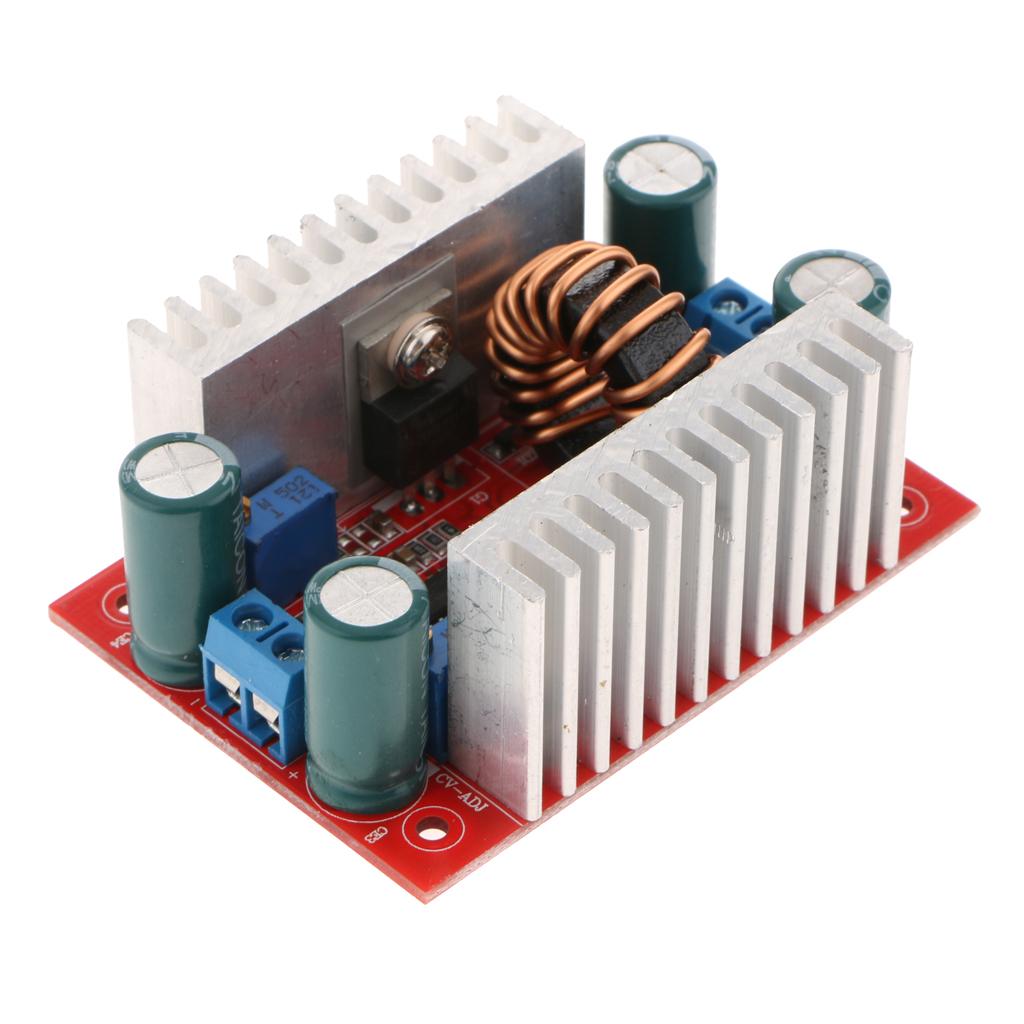

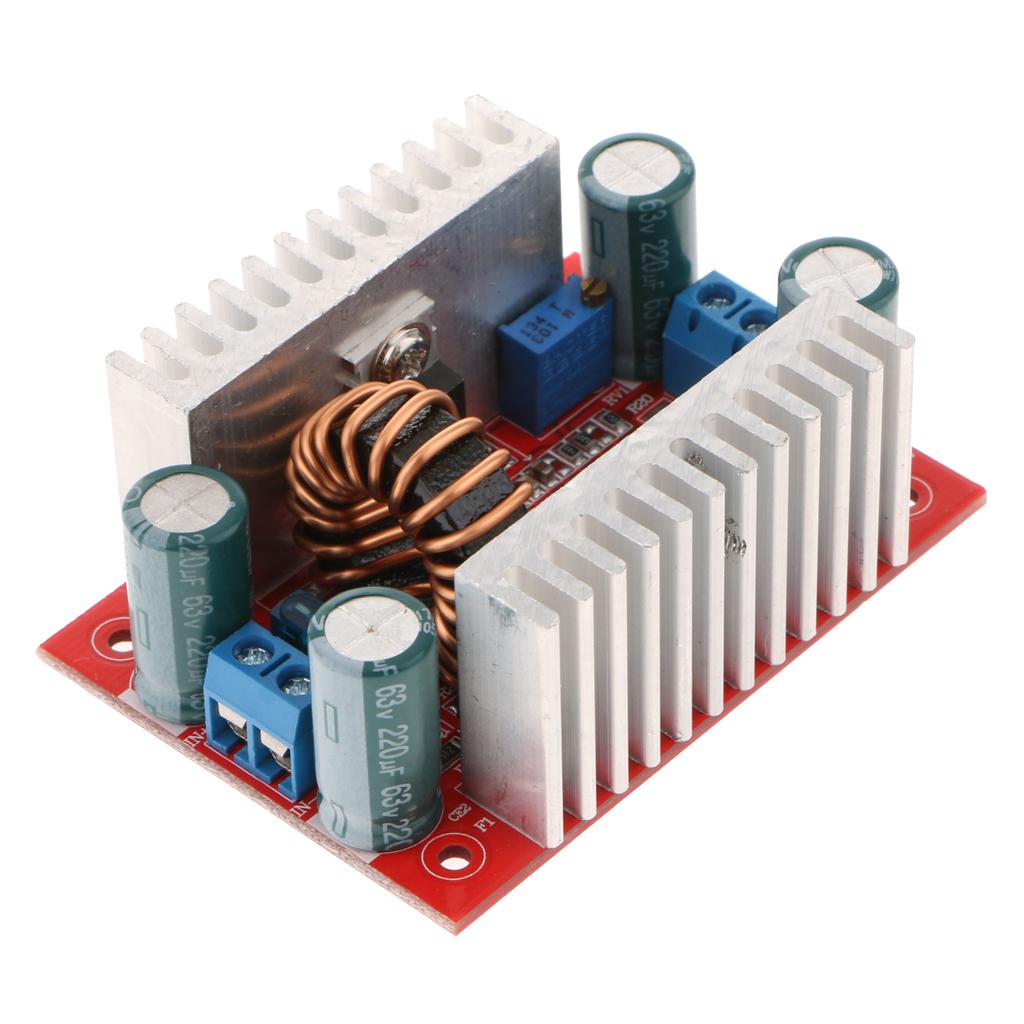

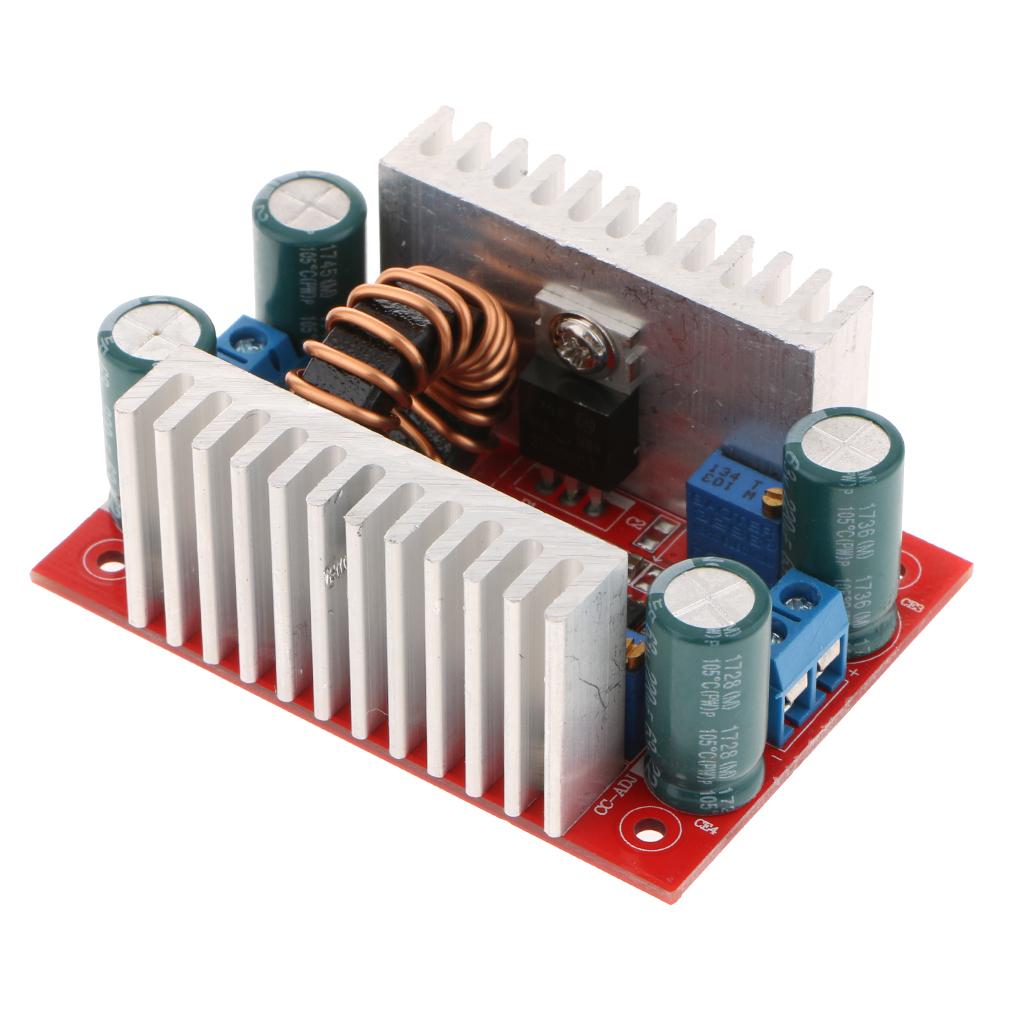

Module Name: 400W DC Step Up Boost Converter; Input Voltage: 8.5V-50V.
Output Voltage: 10V-60V continuously adjustable; Constant Output Current: 0.2A-12A.
Short-circuit protection, constant load protection, heat sink, industrial grade -40~85℃ work temperature, make sure your work be safe and stable.
Four high frequency low resistance electrolytic condensers lower the output ripple, which is more stable and reliable. The transfer efficiency is up to 96% max.
Used as a driver for high power LED lights or voltage regulator for solar panels.And also used as the vehicle power supply for your laptop, PDA or a variety of digital products supply.

Specification:

Module Name: 400W Constant Voltage Boost Module
Module Nature: Non-isolated Boost Module
Input Voltage: DC 8.5V-50V
Input Current(MAX): 15A (more than 8A Please strengthen the heat)
Static Operating Current: 10mA
Output Voltage: 10-60V (continuously adjustable)
Output Current(MAX): 12A (more than 7A Please strengthen the heat)
Constant Current Range: 0.2-12A
Output Power: 400W
Operating Temperature: -40℃~85℃(ambient temperature is too high, please strengthen the heat)
Operating Frequency: 150KHz
Conversion Efficiency: up to 96%
Over-current protection: OK(input more than 15A, automatically reduce the output voltage, a certain range of error.)
Input reverse polarity protection: None(if necessary,usually can be connected the diode to the input)

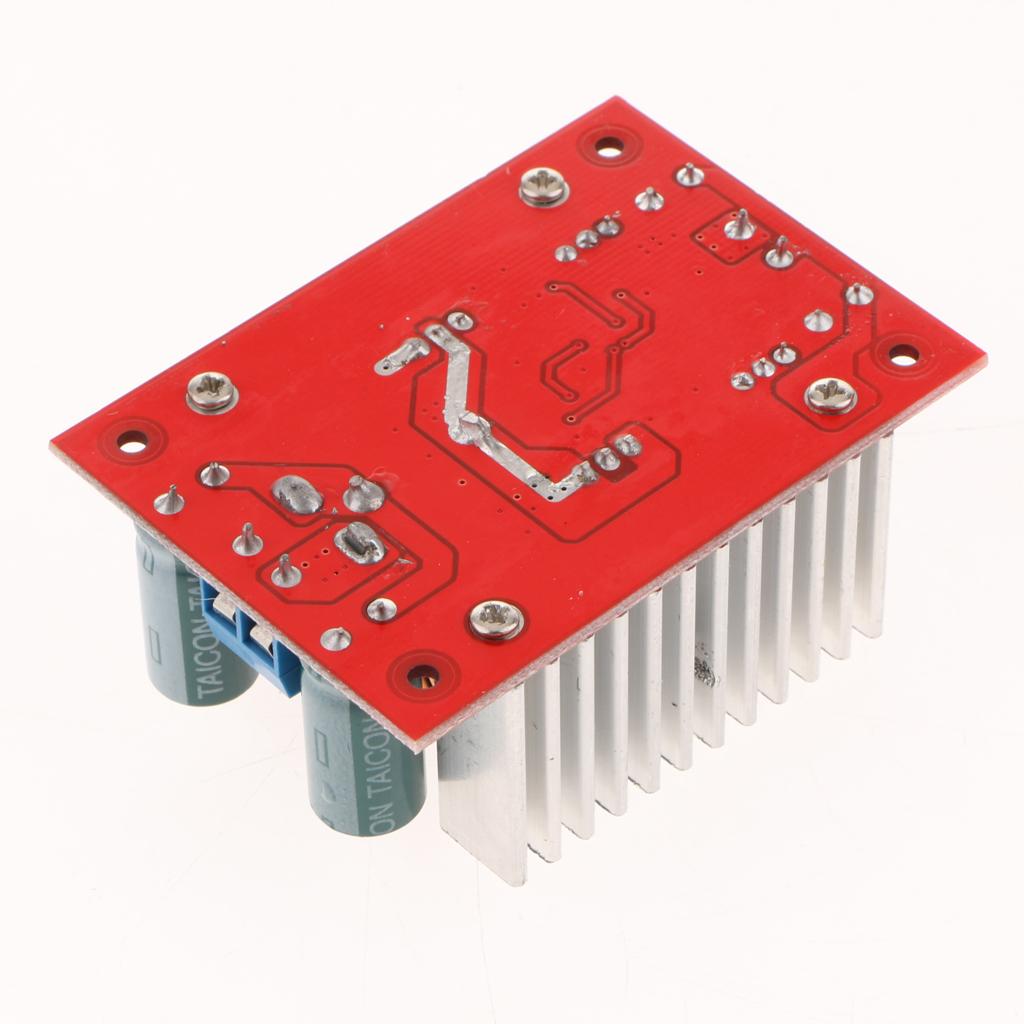

Installation: 4x 2.5mm screw holes
Wiring: Wiring output
Module Size: 67x48x28mm/2.64x1.89x1.1inch
Material: Plastic + Electronic Components
Module Weight: 60g

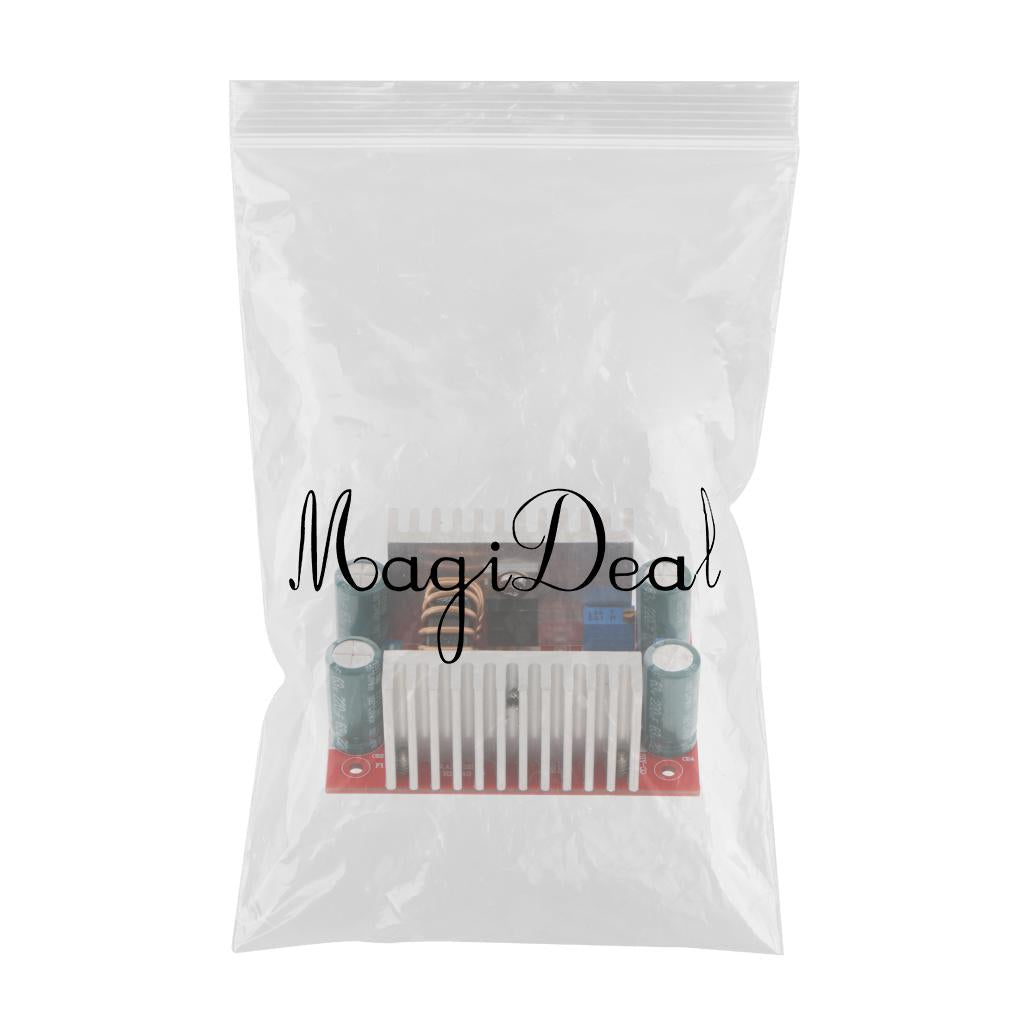

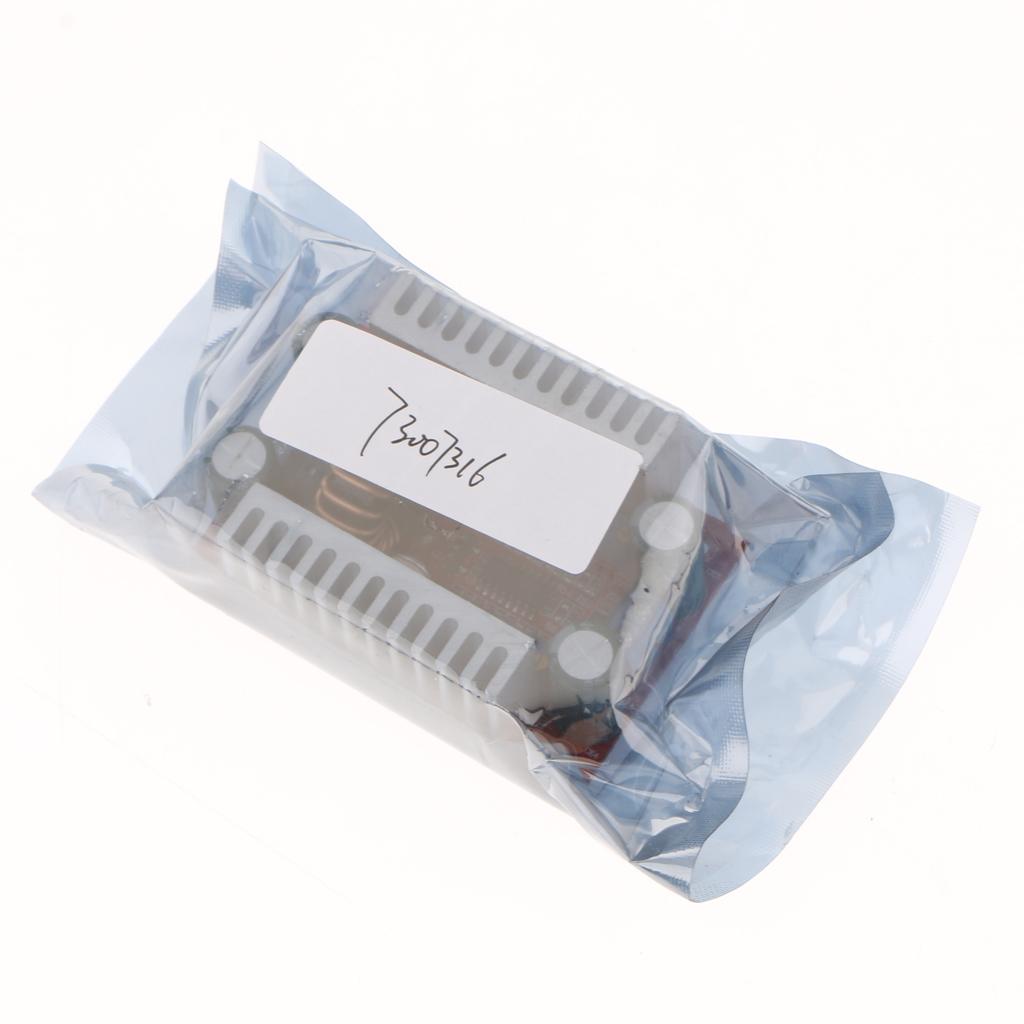

Package Includes:

1 Piece DC-DC Boost Constant Current Module

Note:

The default output of 19V shipment, for other voltages, please contact us !
