Automotive RV Boat 50 AMP Metal Auto-Reset Circuit Breaker 50A 12V

Regular price
Rs. 526.14
Regular price
Sale price
Rs. 526.14
Earn 263 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 67000588
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

100% brand new and high quality

Meterial: metal

Voltage: 12V, 50A

For use in electric brake set ups, auto , caravans and more

One copper post and one plated terminal

Battery side connects to the copper side and the plated side connects to your accessories generally take the place of a fuse but with the advantage of resetting itself,Ideal in applications where what is being connected could have a short circuit or a momentary short.

Specification:

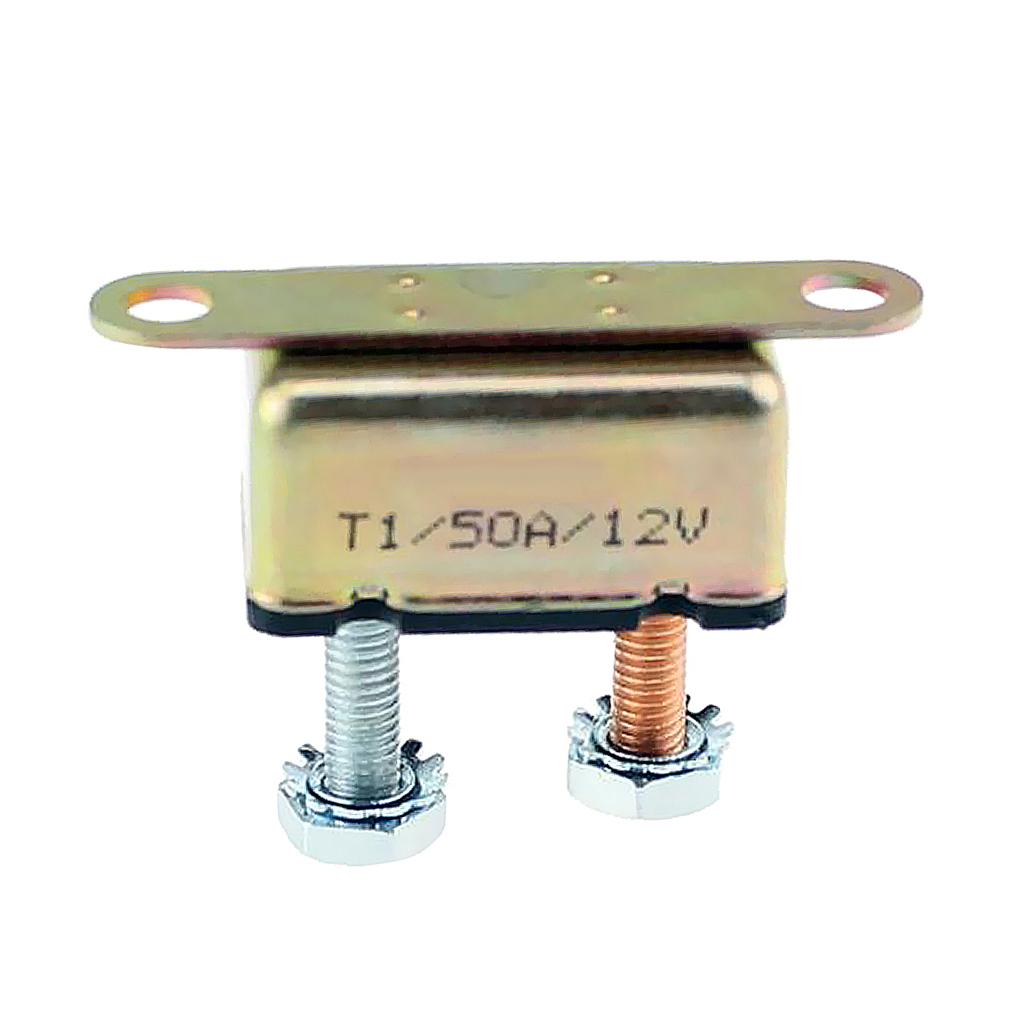

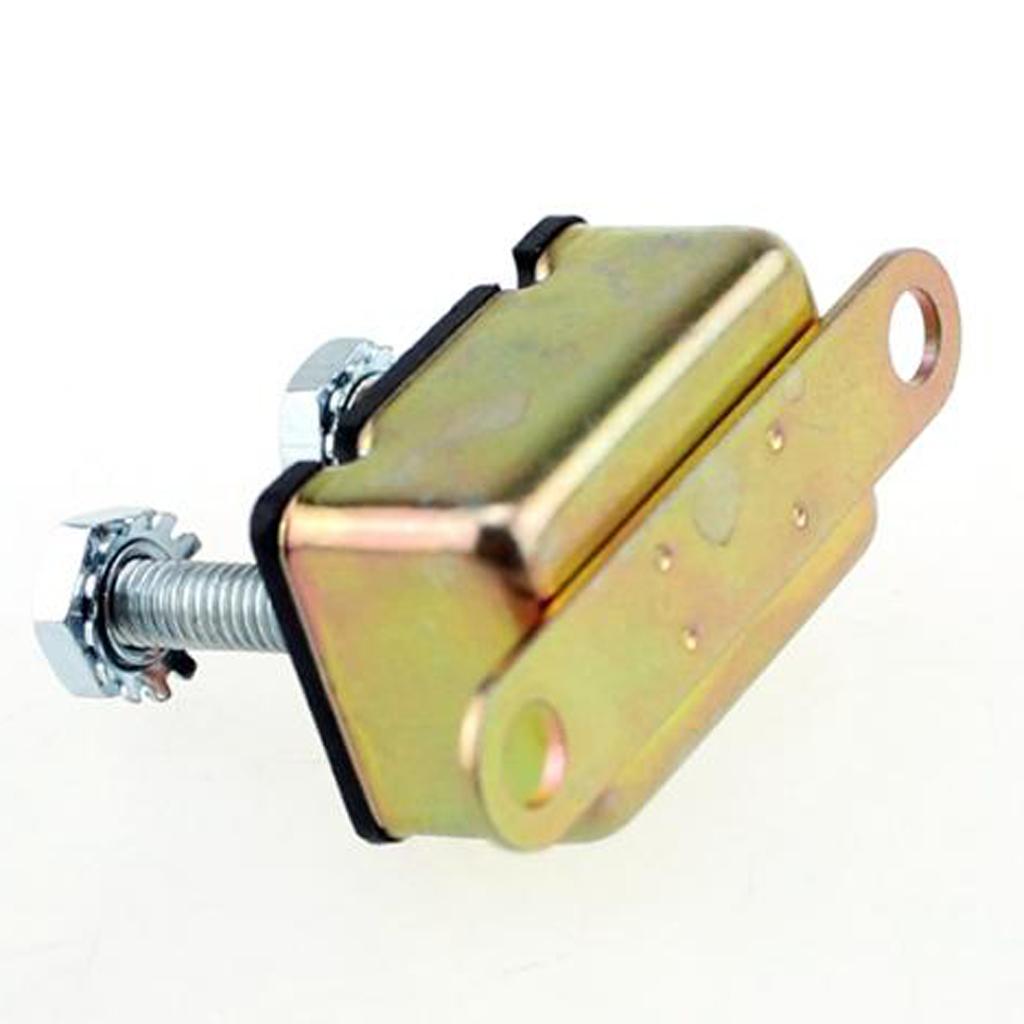

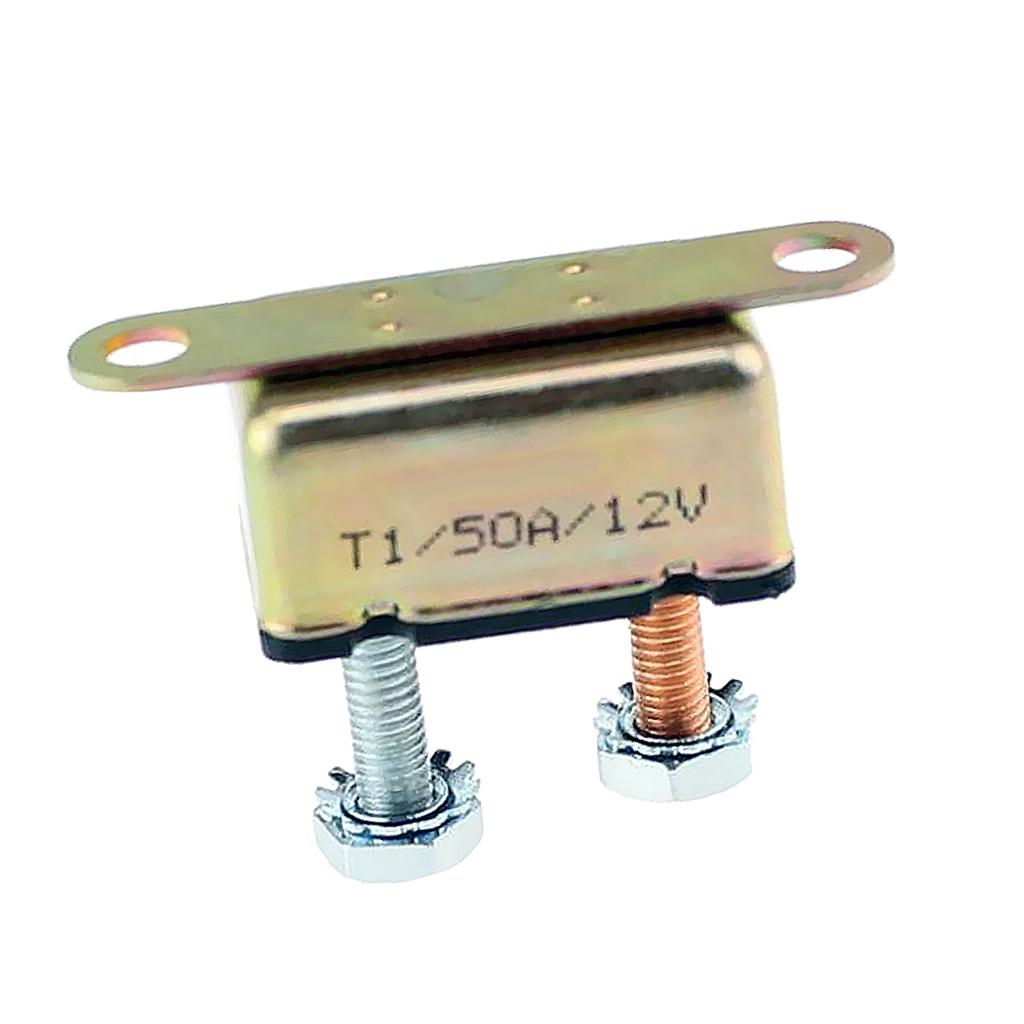

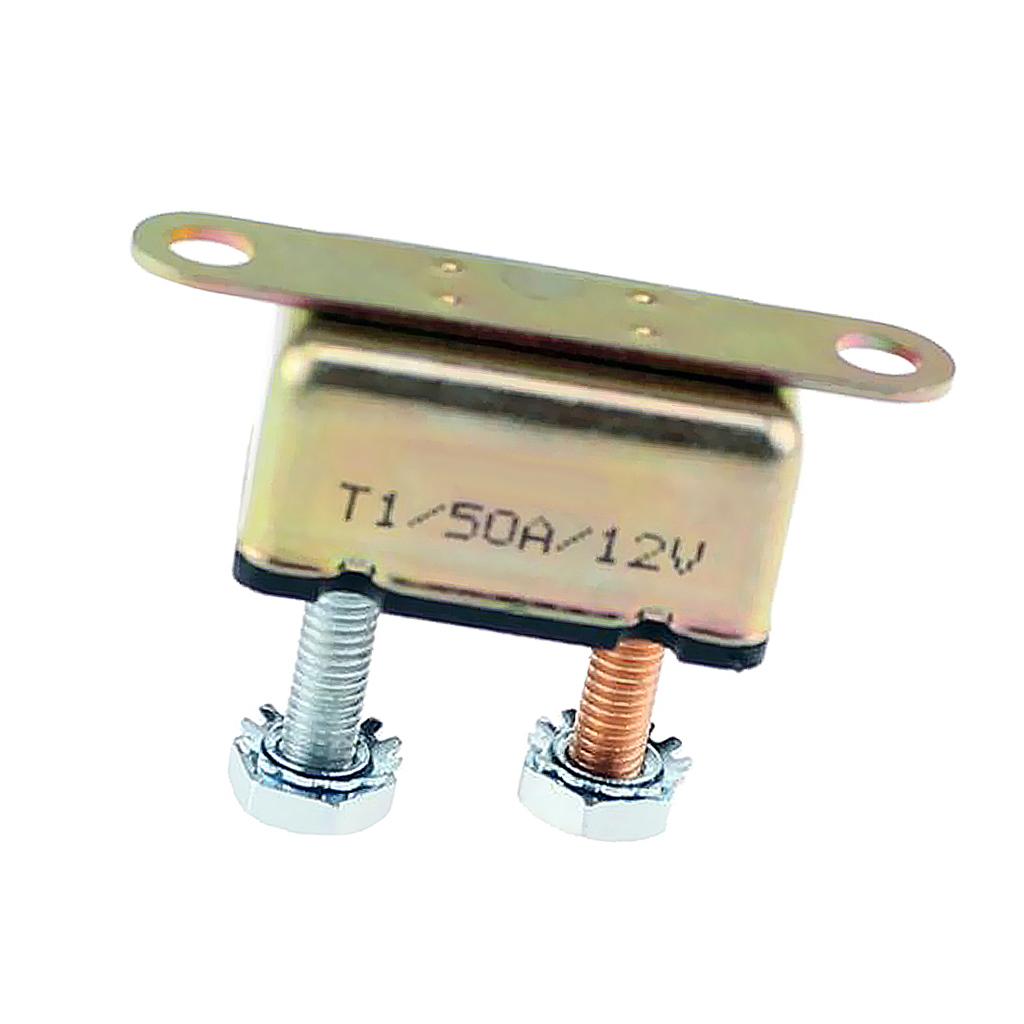

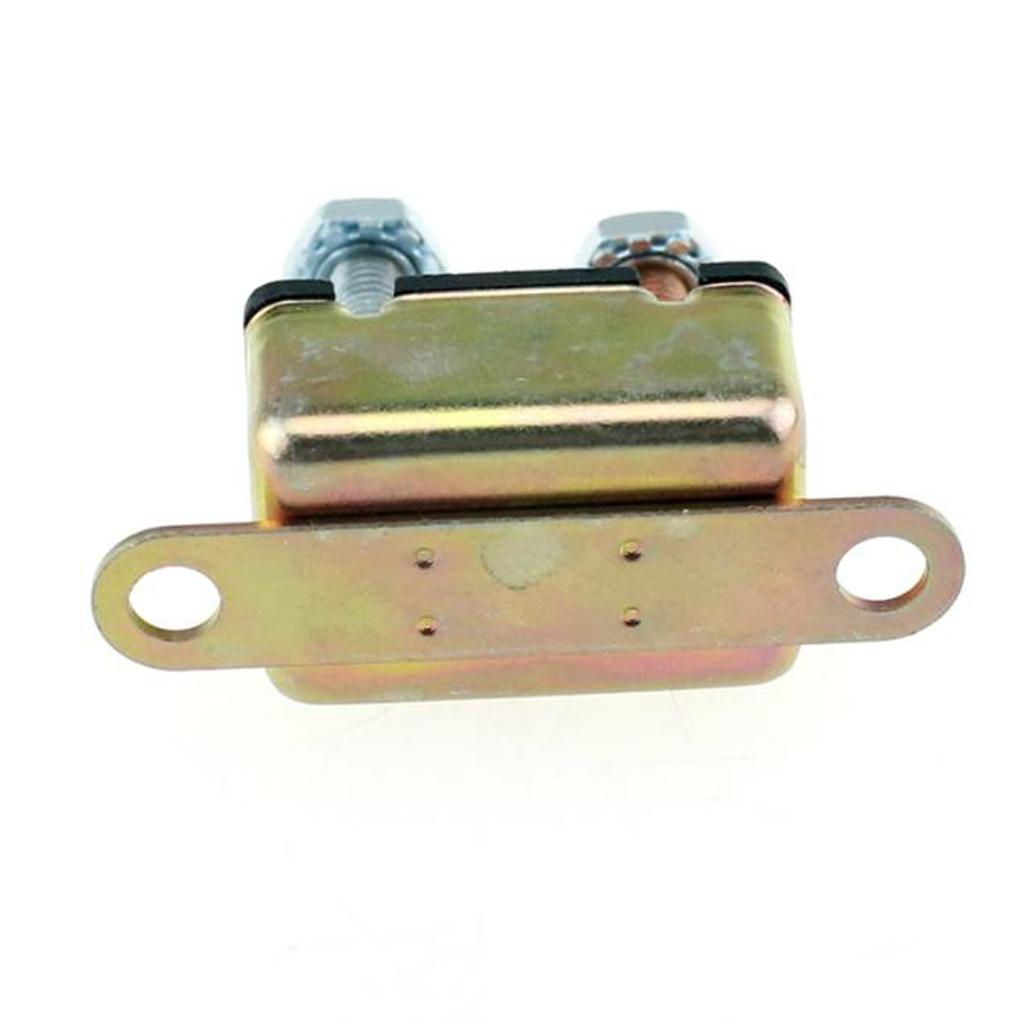

Stud Type Circuit Breaker

Battery chargers, trucks, buses, RVs, trolling motors, etc

SAE J553; SAE J1171; UL1500

Voltage 12-28Vdc

Rated Current 50A

Mounting Parallel (Lengthwise) Mounting Bracket

Reset Type T1, Auto Reset

Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)

Interrupt Capacity 2.5kA @ 12Vdc

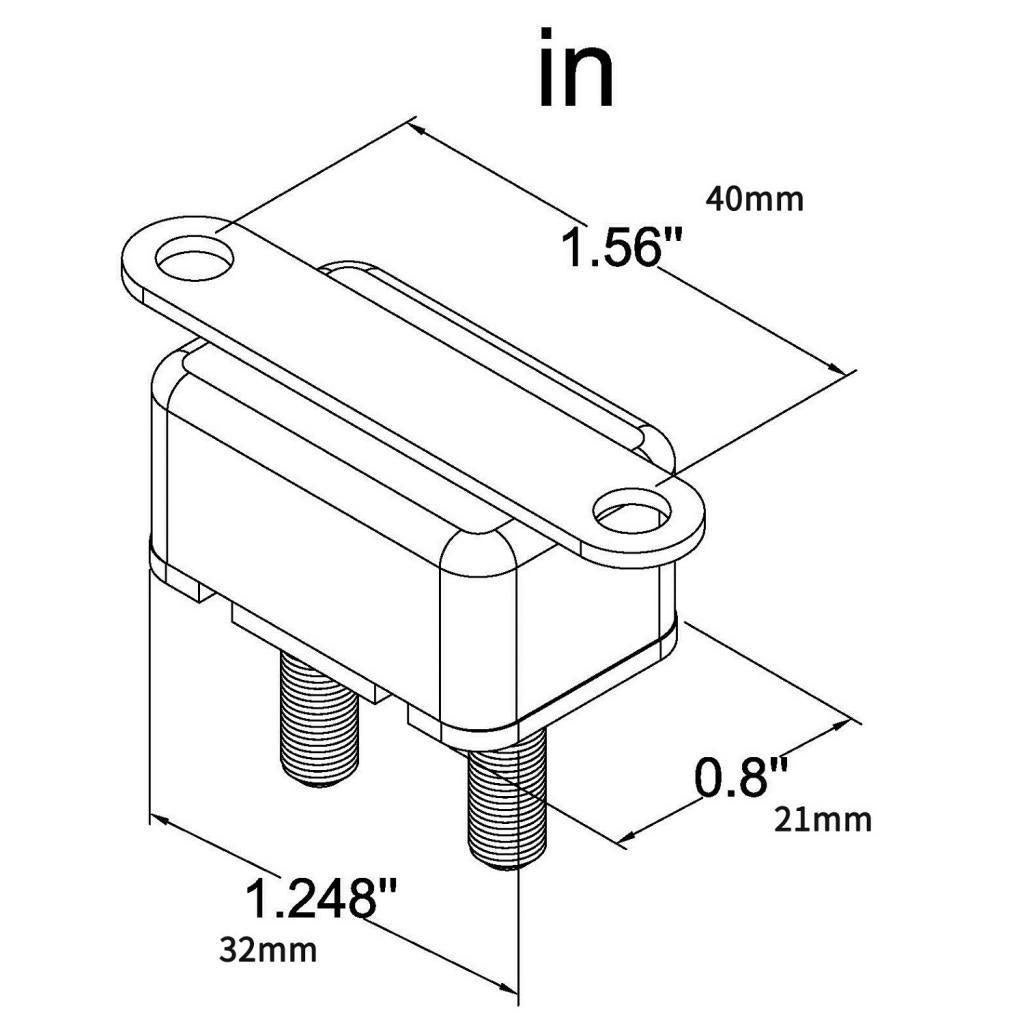

Dimension 1.248 x 0.693 x 0.8 inch

Regulatory Sepcification SAE J553; SAE J1171; UL1500

Termination #10-32 thread

Body Metal Cabinet

Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)

Package Includes:

1 Piece Circuit Breaker

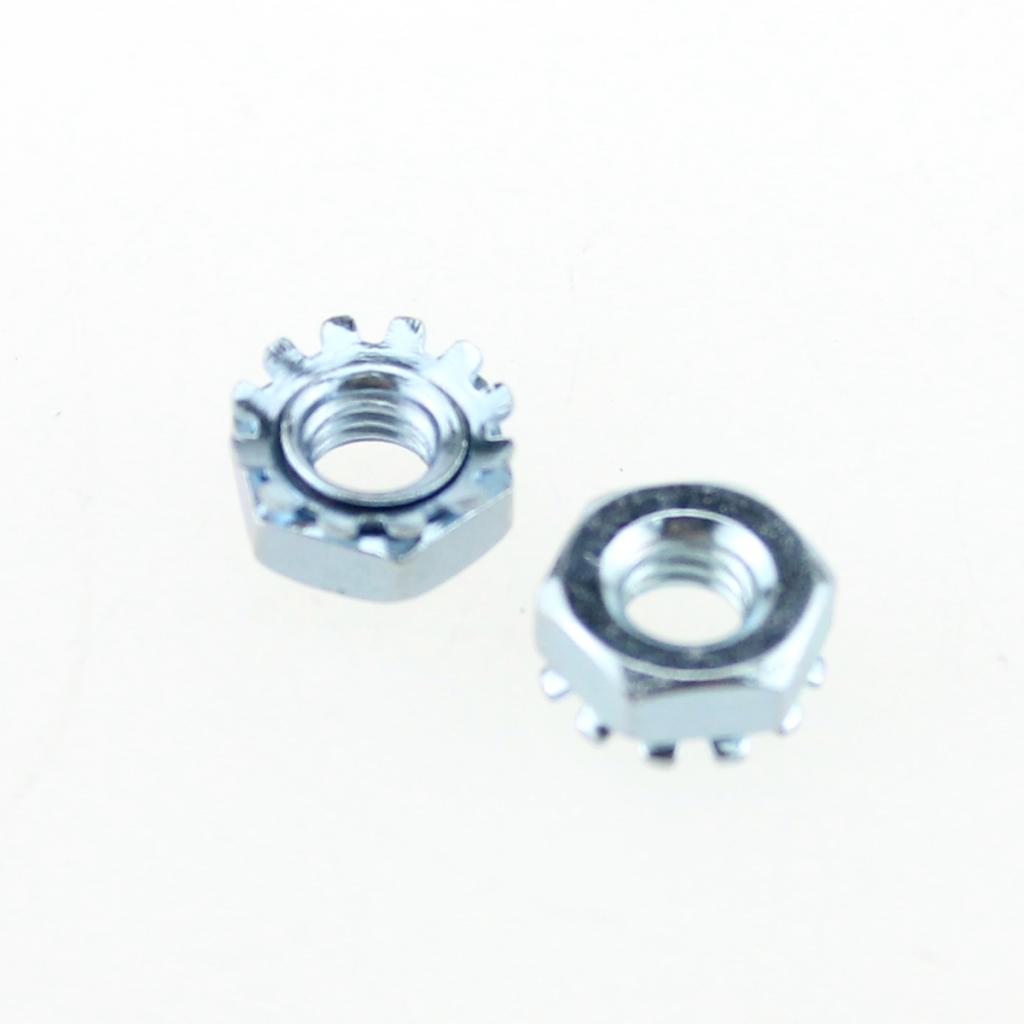

2 Pieces Screw Nuts
