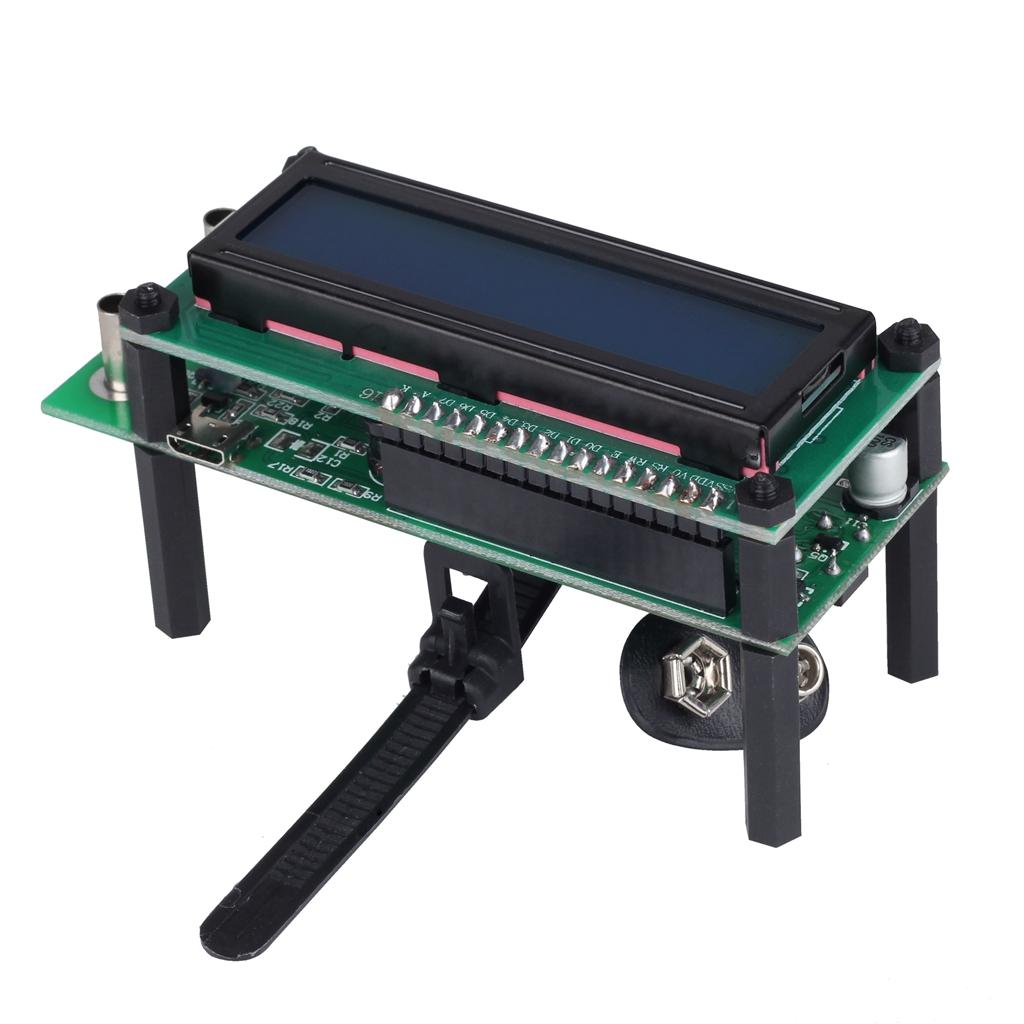

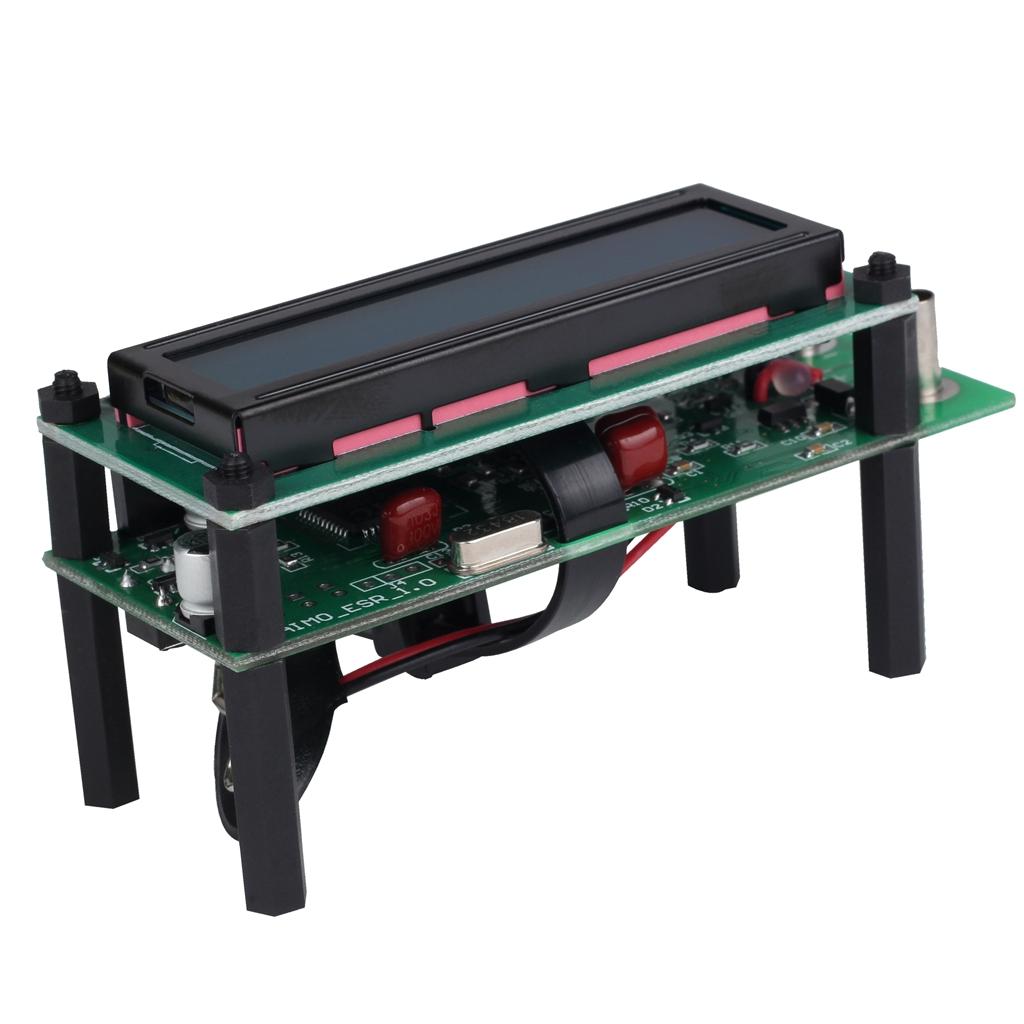

Auto Range Tester ESR01 ESR Tester Capacitance Equivalent Resistance Meter

Regular price
Rs. 1,535.48
Regular price
Sale price
Rs. 1,535.48
Earn 767 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60003849
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

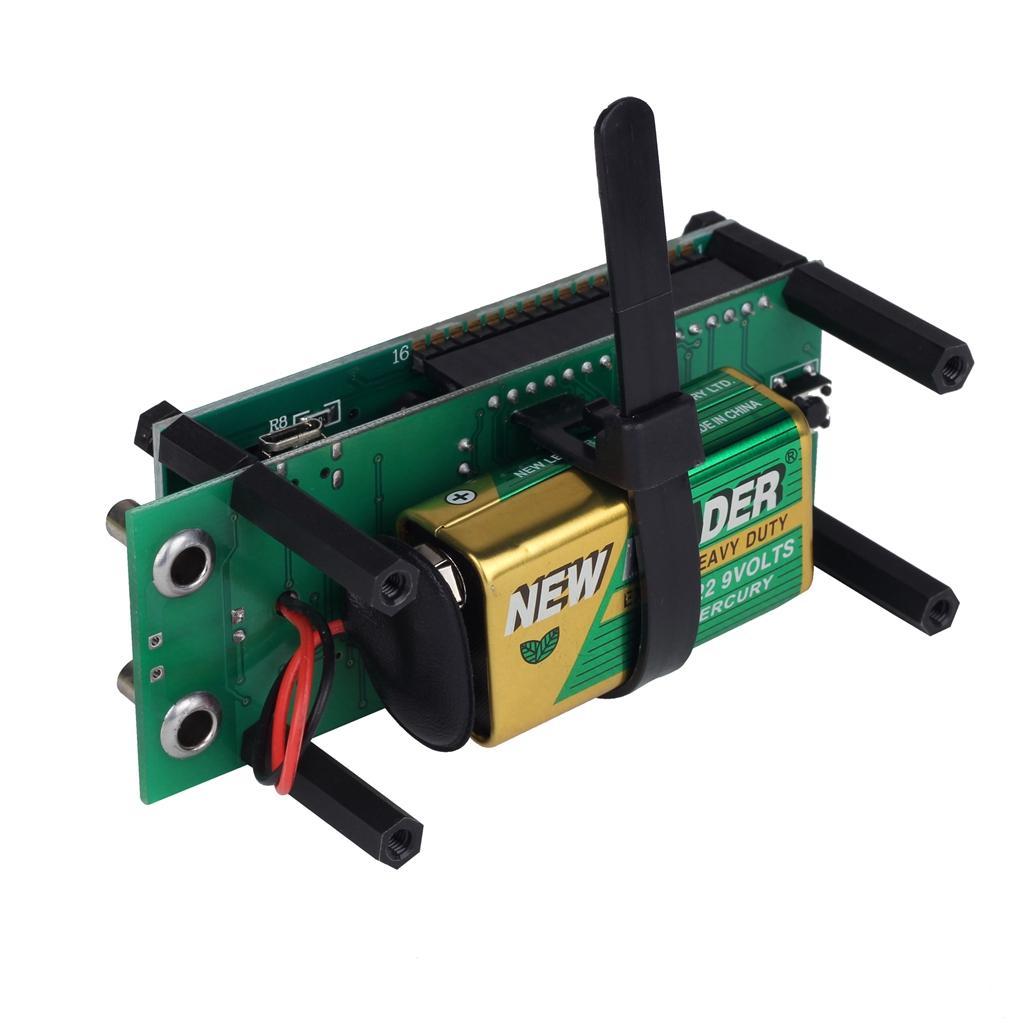

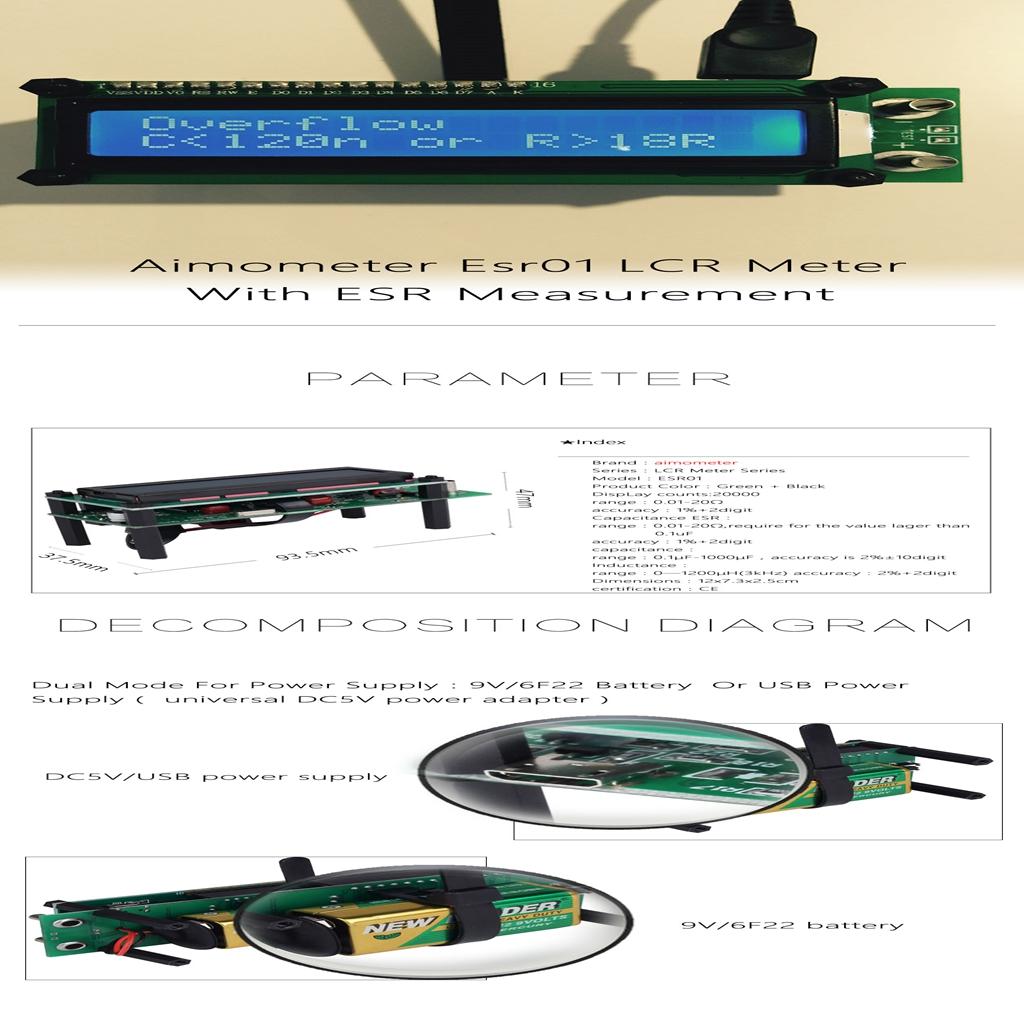

Dual mode for power supply:9V/6F22 battery or USB power supply( universal DC5V power adapter)

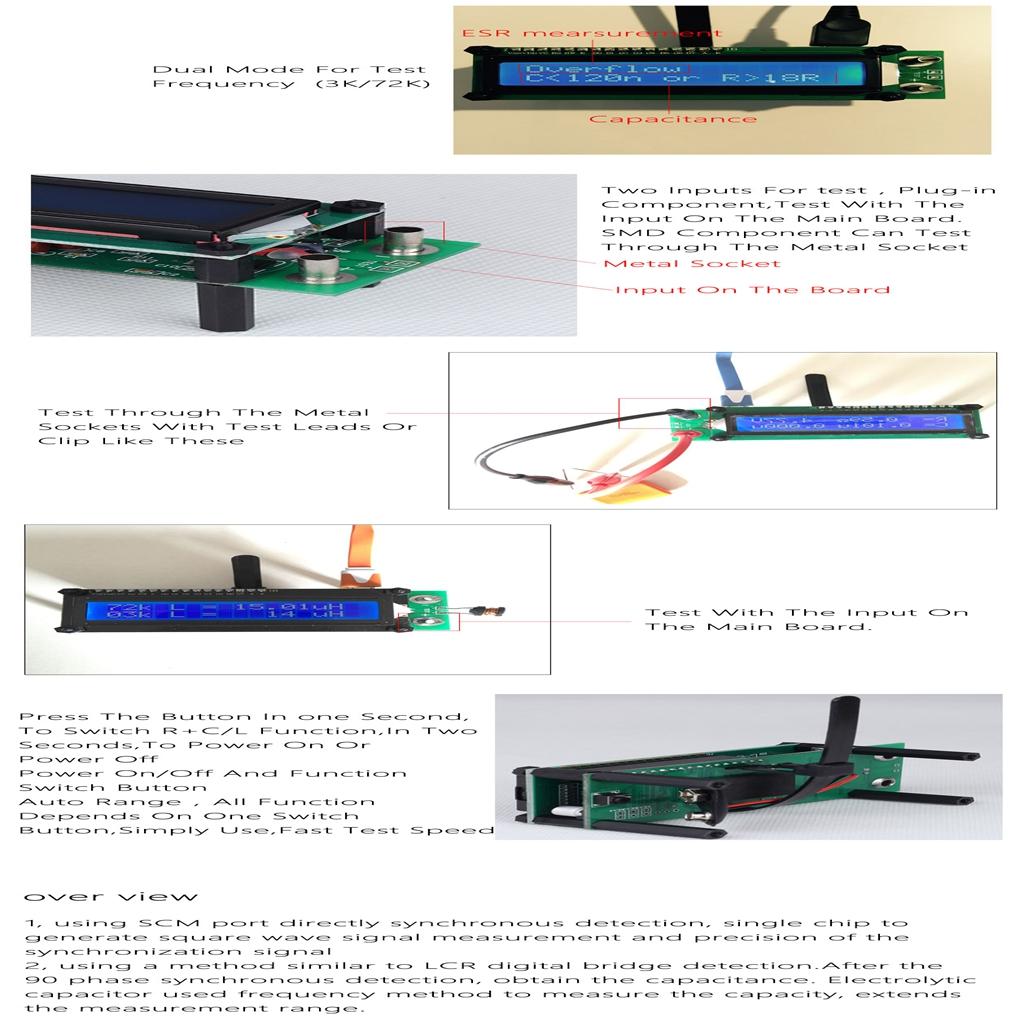

Dual mode for test frequency (3K/72K):Test the component parameters with 3K/72K Hz signal,at the same time.

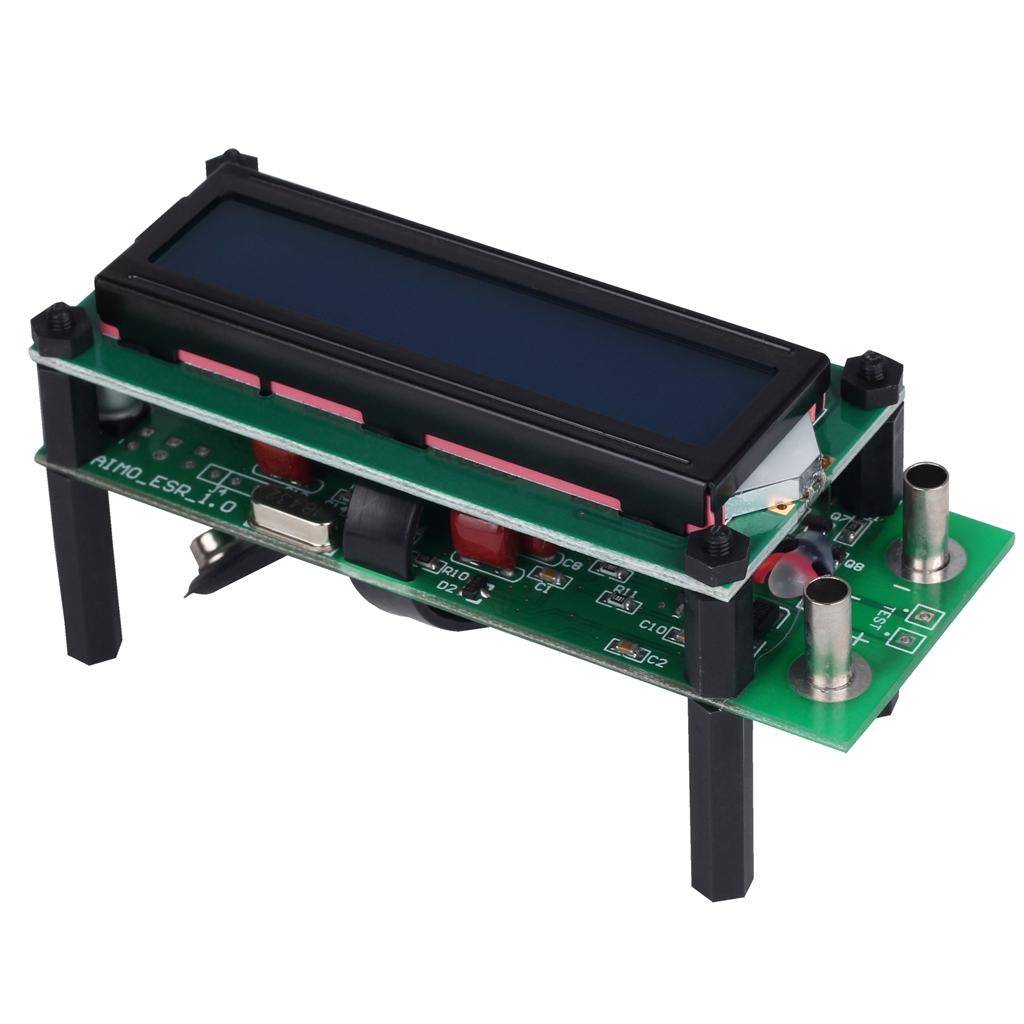

Two inputs for test, plug-in component, test with the input on the main board. SMD component can test through the metal
Auto range, all function depends on one switch button,simply use,fast test speed.
With automatic constant zero function, zero driftreduction decimal zero, ensure the long time stable.

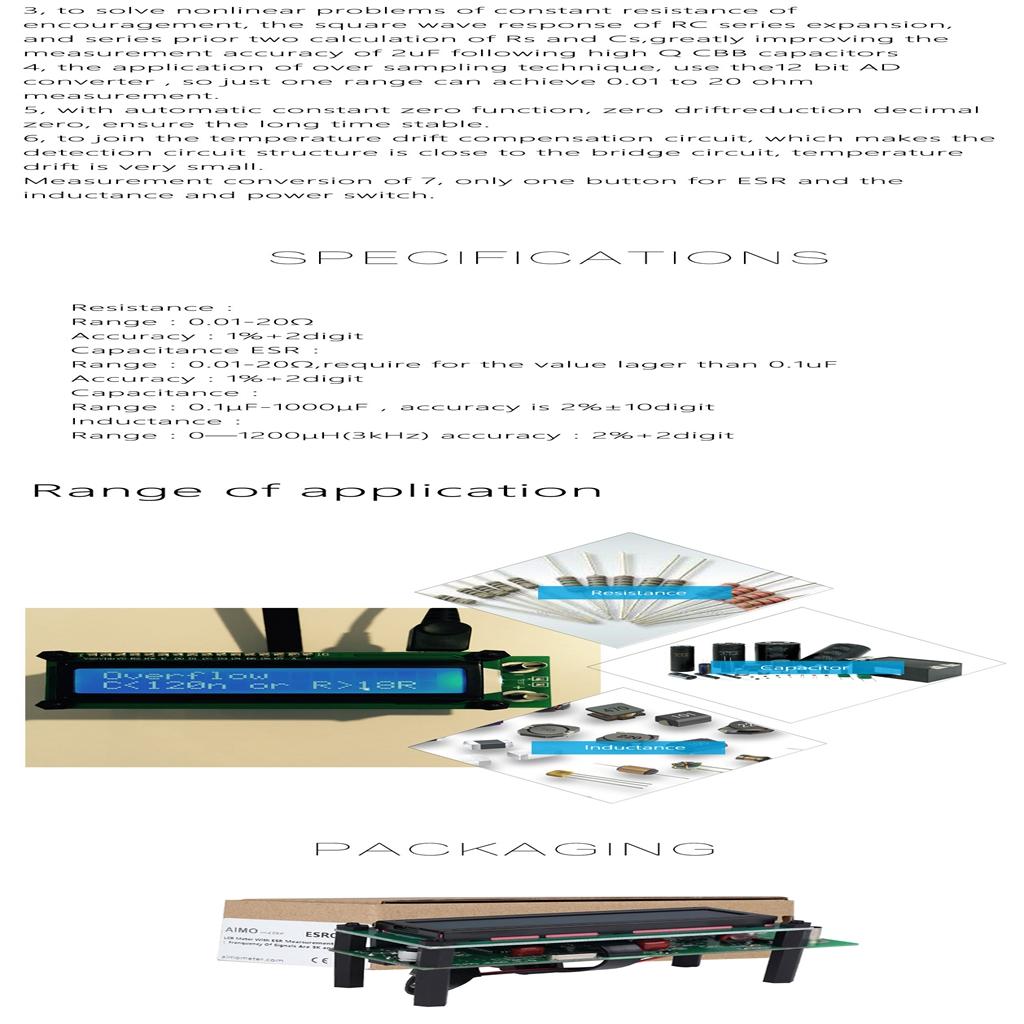

Specification:

Material: Plastic
Color: Multi-color
Size(LxWxH): Approx. 9.4x3.8x4.8cm/3.7x1.50x1.90inch
DispLay counts: 20000
Resistance: 0.01-20
Capacitance ESR: 0.01-20
Capacitance: 0.1uF-1000uF
Inductance: 0-60uH(72kHz), 0-1200uH(3kHz)
Test signal level: 0.3V RMS

Package Includes:

1 piece ESR01 LCR Meter

1 piece English Manual

Note:

Pls allow an error of 1-3mm due to the diffence of manual measurement.
