8 Channel I2C IIC Logic Level Converter Module Bi-Directional for Arduino

Regular price
Rs. 319.11
Regular price
Sale price
Rs. 319.11
Earn 159 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60002790
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time

Bi-directional logic level converter works with 2.8V and 1.8V devices

Set high/ low voltages, step up/down between them on same channel

The board needs to be powered from two high and low voltage sources

Each level converter can convert 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side

Specification:

Compatible with 5-3V system

VIN connected 5V system power supply

5A connected 5V system

5B connected 5V system

GND connected 5V system GND

3V3 connected 3V system power supply

3A connected 3V system

3B connected 3V system

GND connected 3V system GND

Module Board Size: Approx. 2.8x1.4x0.3cm / 1.1x0.55x0.12inch

Pin Header Size: Approx. 4.1x1.8cm/ 1.61x0.71inch

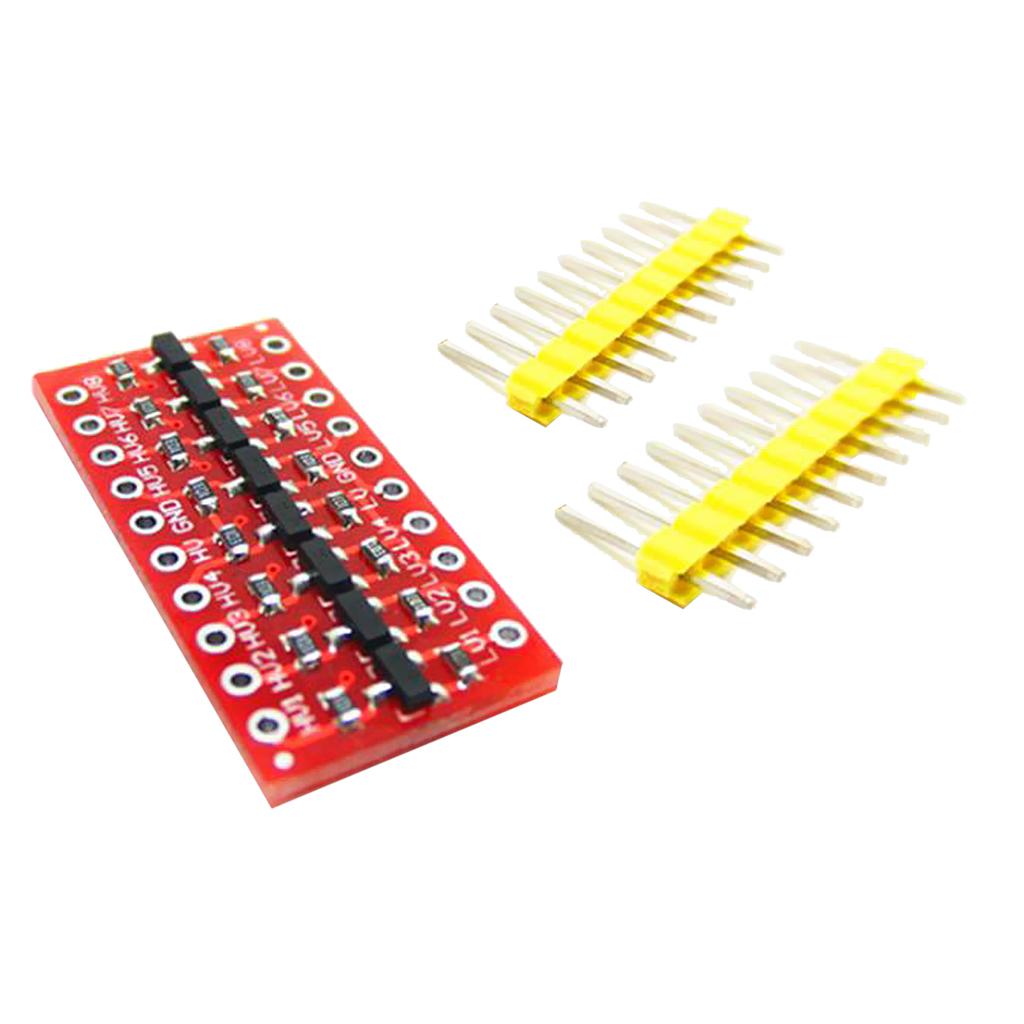

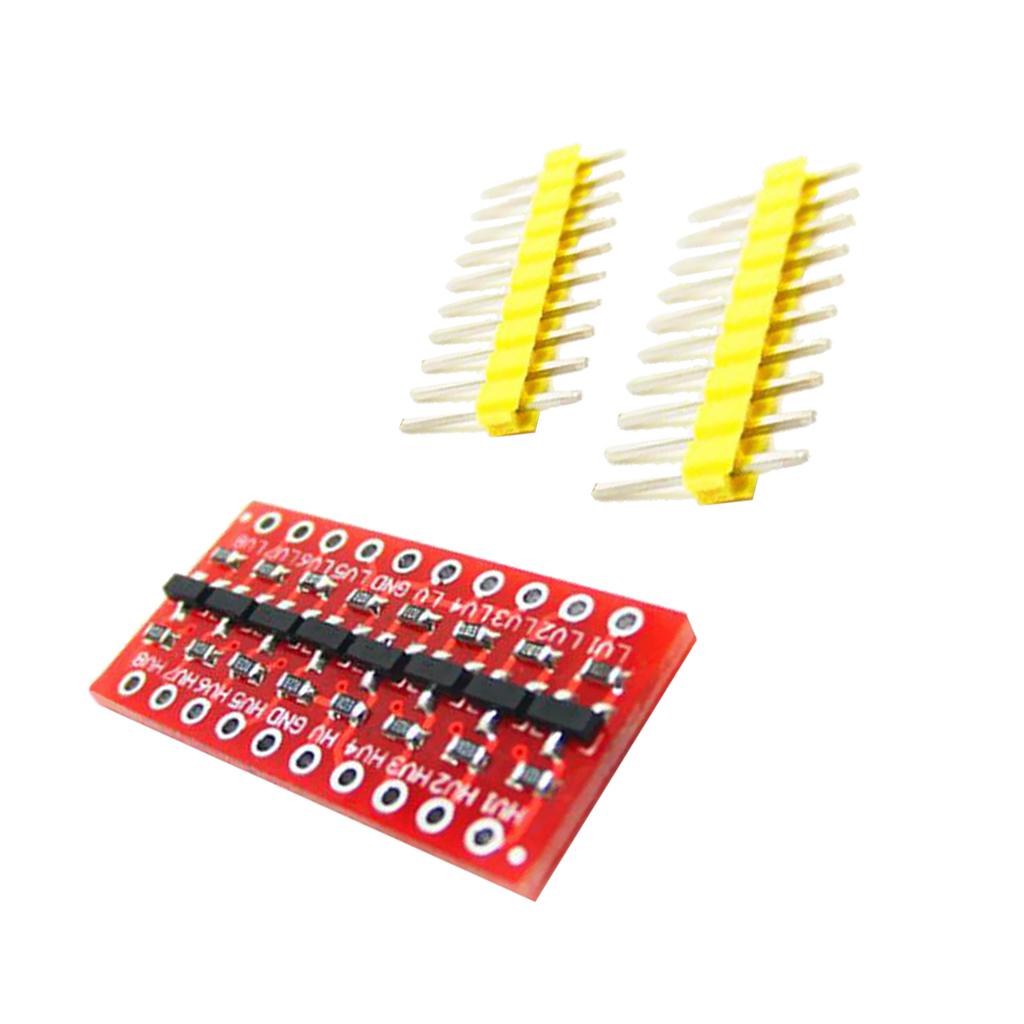

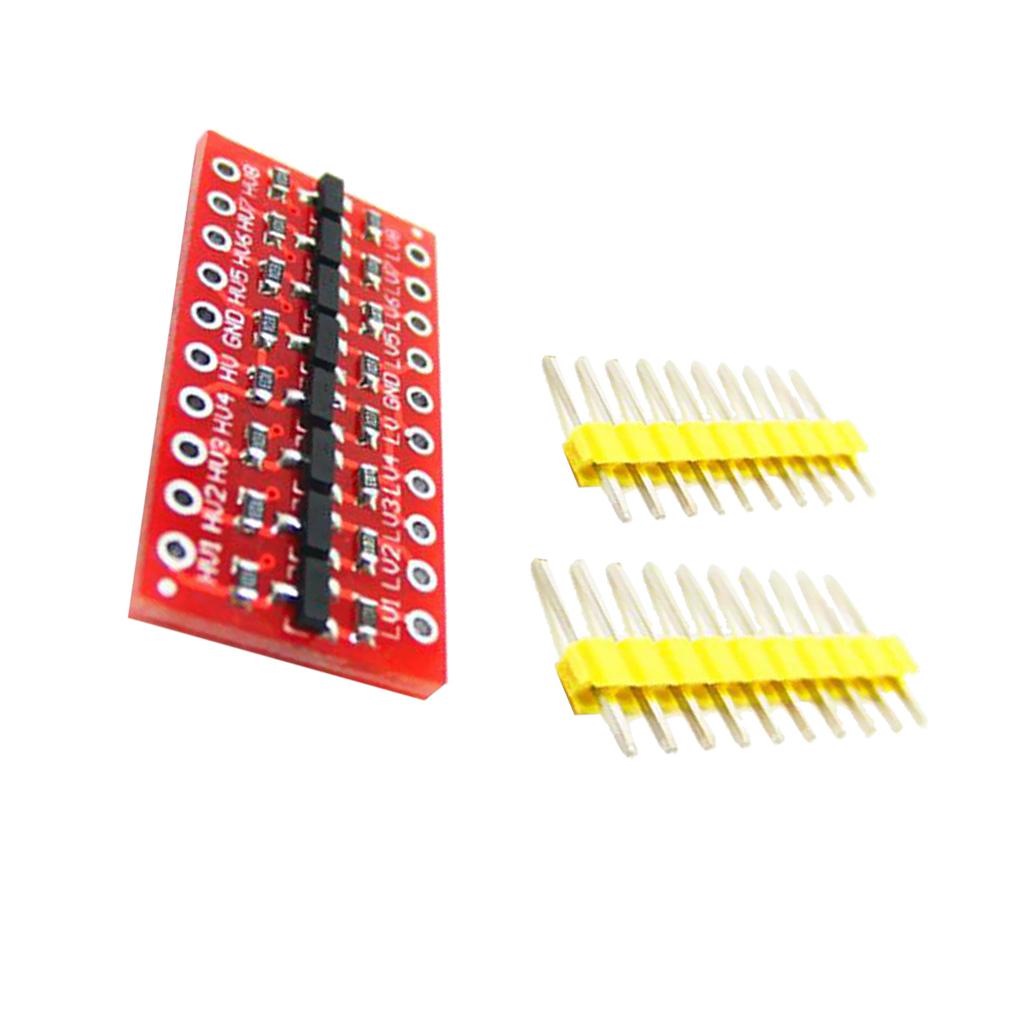

Package Includes:

1 piece Logic Level Converter Module

2 pieces Pin headers

Note:

Please allow 1-3mm differs due to manual measurement

Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
