70W DC12-24V 10 String 7 Light Adjustment Low-Pressure LED Lamp Power Supply

Regular price
Rs. 1,654.07
Regular price
Sale price
Rs. 1,654.07
Earn 827 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73007550
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

Suitable for lamps DC12-24V input 10 strings of 7 and 2100MA floodlight locomotive lighting ship lighting moving lighting
Easy to install, mount, and wire. Free of wiring, easy to install.
Wide range of adaptable voltages, can be used in solar/wind energy streetlights/locomotives/ships/portable floodlights, etc. where mobile lighting is required
Driver have amazing waterproof effect : The dual waterproof and heat dissipation technologies of the inner and outer shell make the power supply waterproof and heat dissipation more effective and suitable for outdoor use.
Most safety of the design philosophy : Short circuit / overload / over voltage / over temperature automatic protection.

Specification:

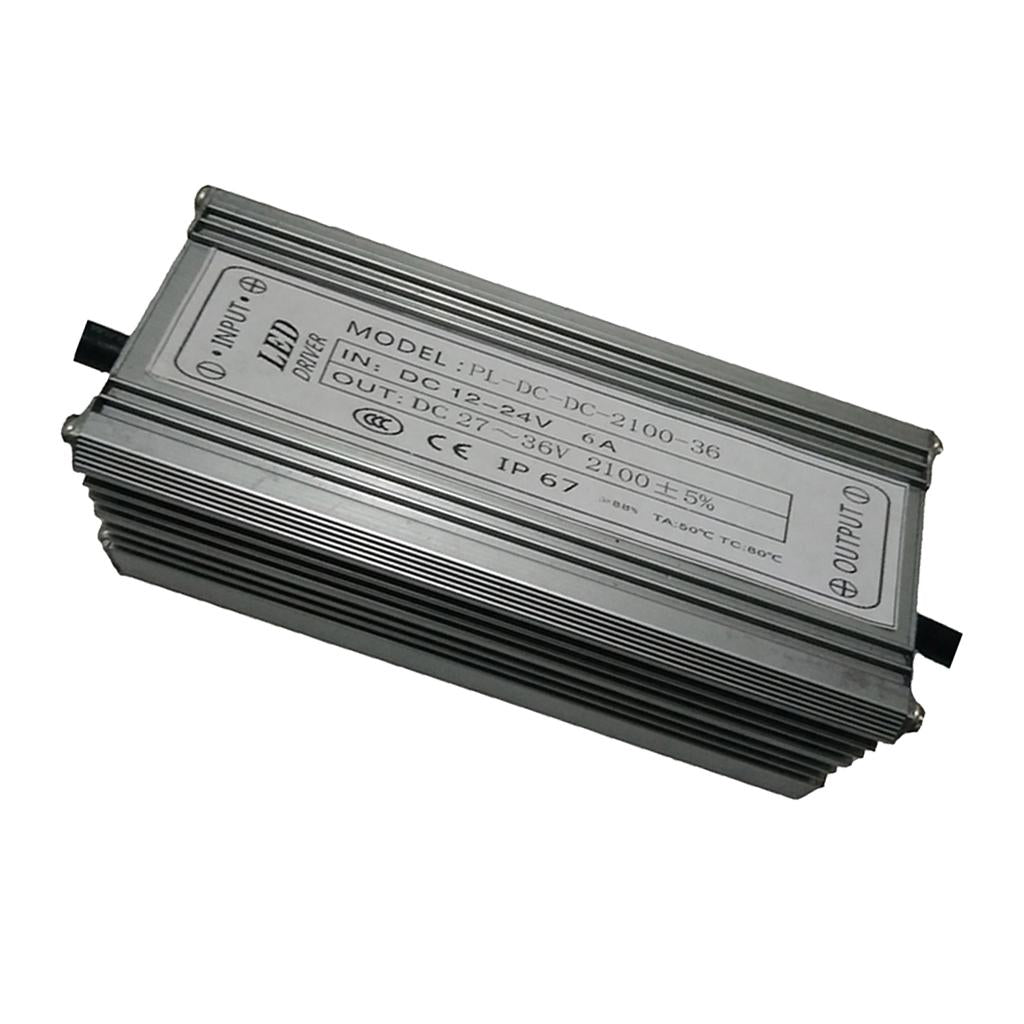

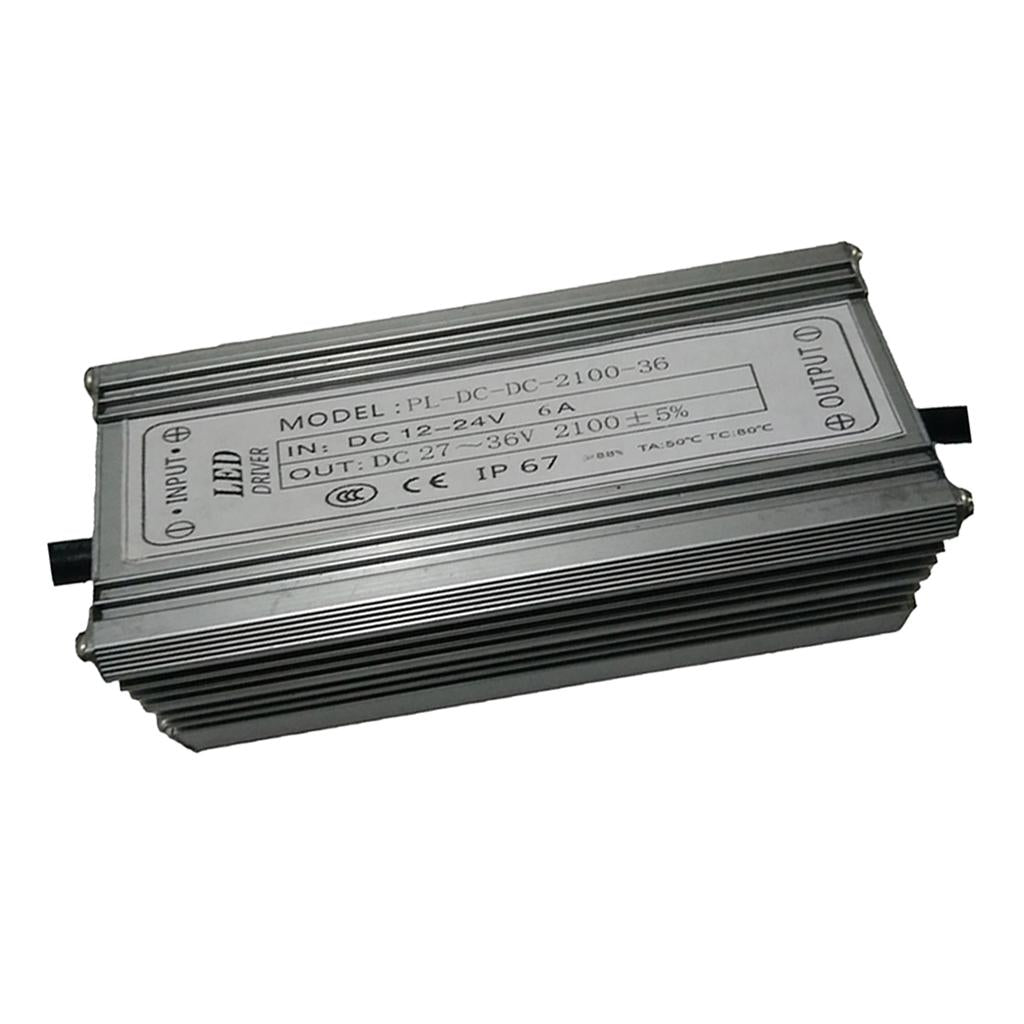

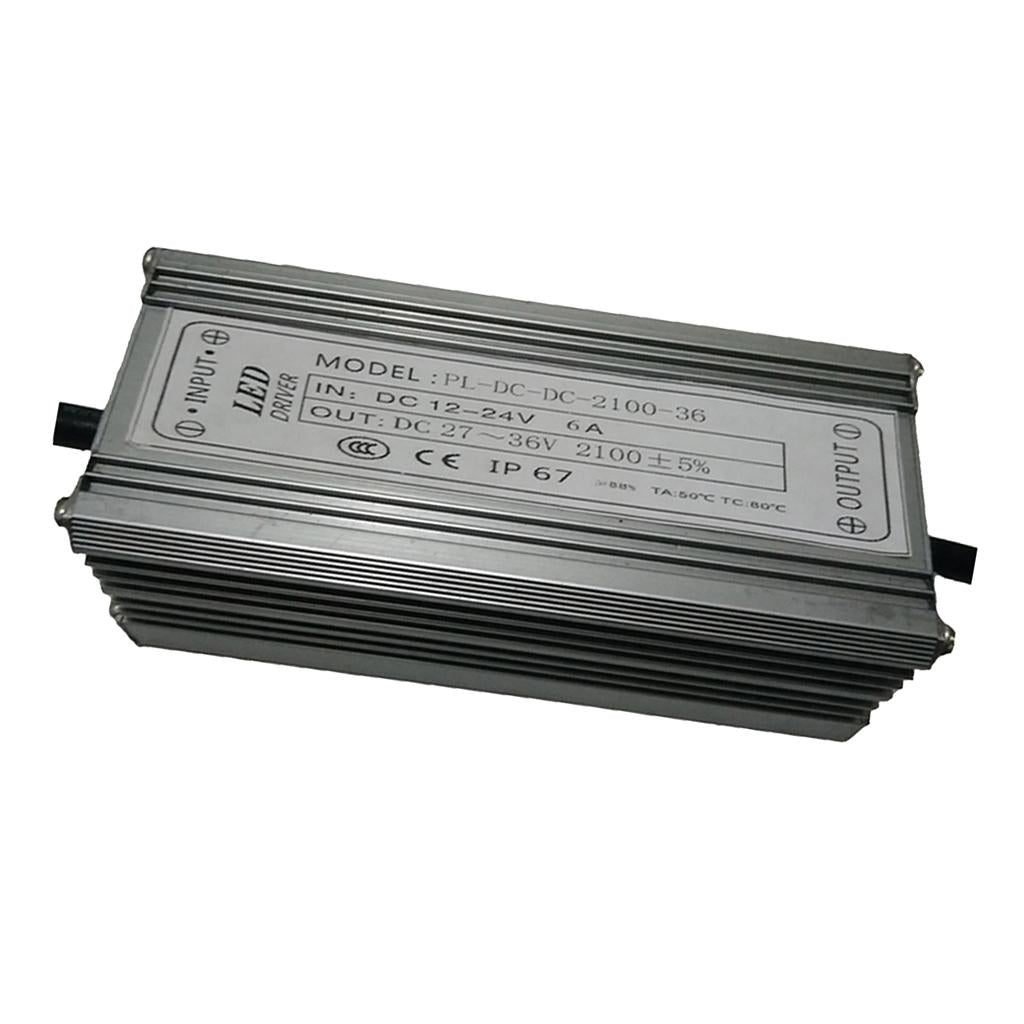

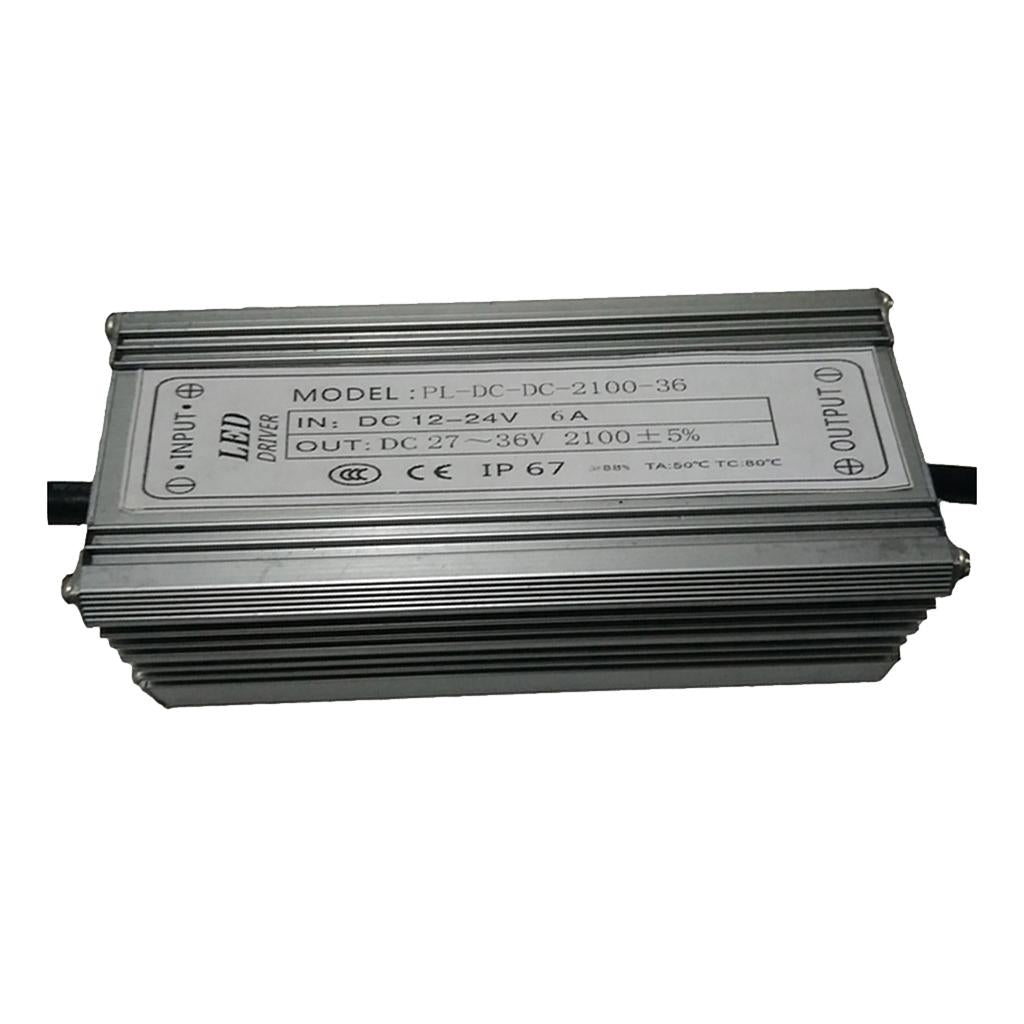

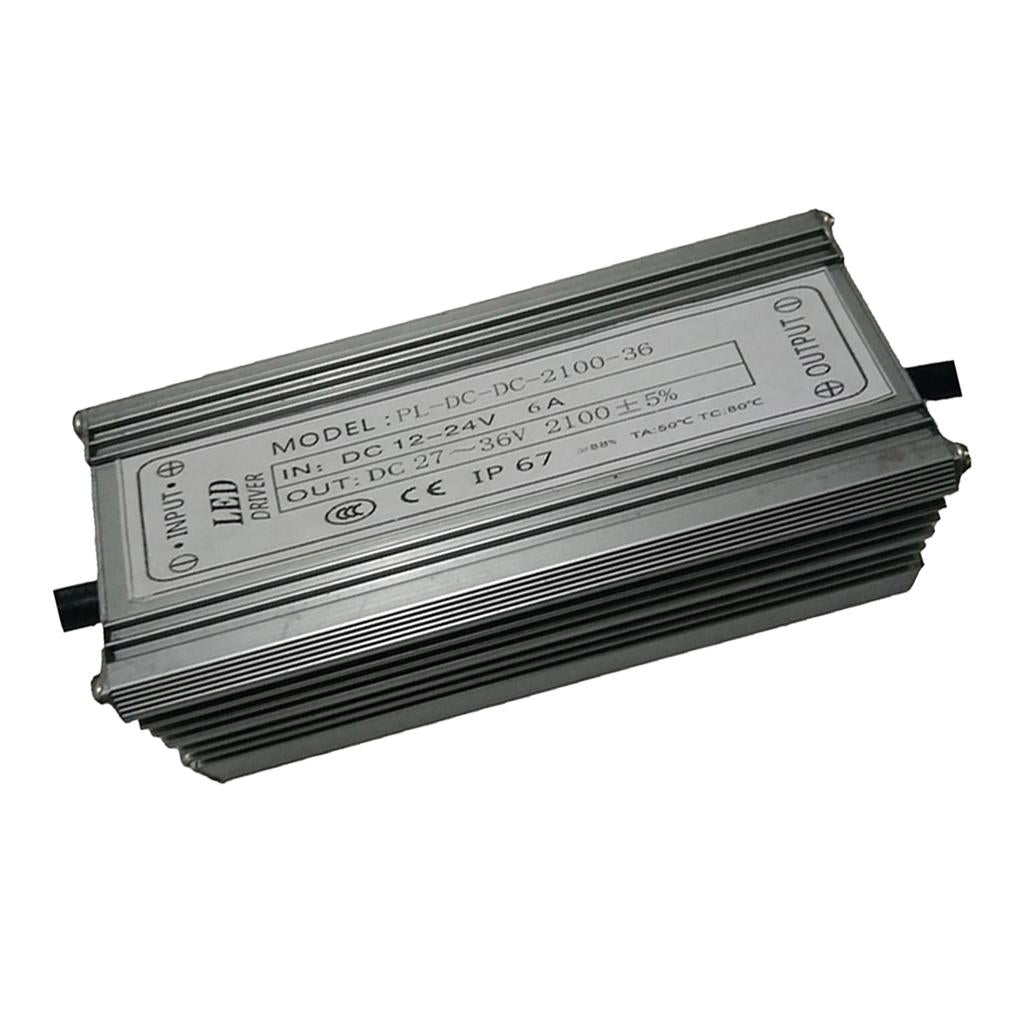

Model : PL-DC-DC-2100-36
Reference standard Basic on: IEC 61347
Rated voltage: DC12-24V
Working frequency: 50 ~ 60 Hz
Input power(load): ≤ 70W
Outcut output current(load): 2100MA
Output voltage(load): DC 27-36V
Output voltage(empty load) DC ≤ 55V
Short circuit protection: OK
Overloading: OK
Insulation Strength AC 1.5 KV/5 mA 1Min
Enter-Shell AC 1.5 KV/5 mA 1Min
Ripple ≤ 600 MVpp(120Hz)
Efficiency ≥ 85 %
Working Temperature -25 °C ~ +40 °C
Rising Size(mm): L * W * H = 148 * 54 * 40 mm

Package Includes:

1 piece 70W DC12-24V10 string 7 and boost dimming low voltage led flood light power supply
