5 Pieces Mini DC-DC 4-24V12V24V To 5V3A Step Down Power Module 97.5 For Car

Regular price
Rs. 905.77
Regular price
Sale price
Rs. 905.77
Earn 452 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 63018350
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

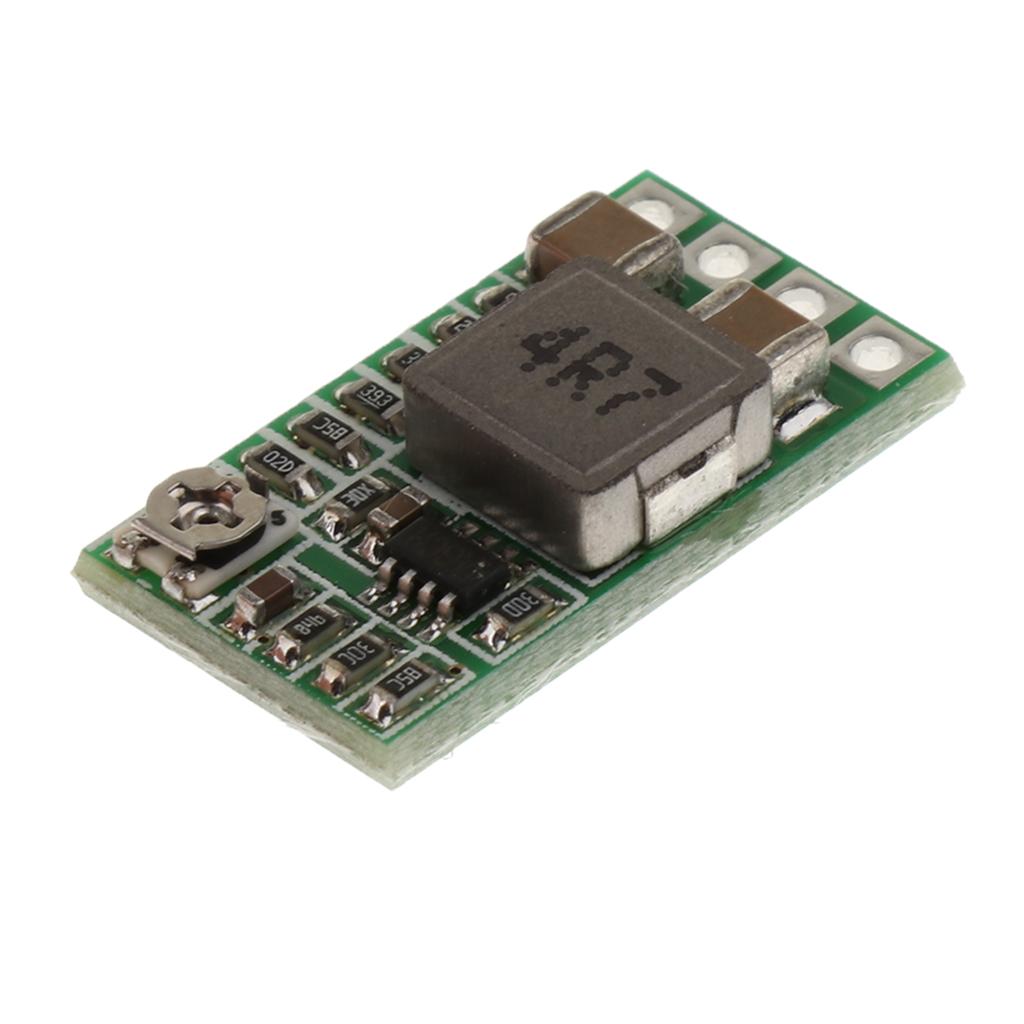

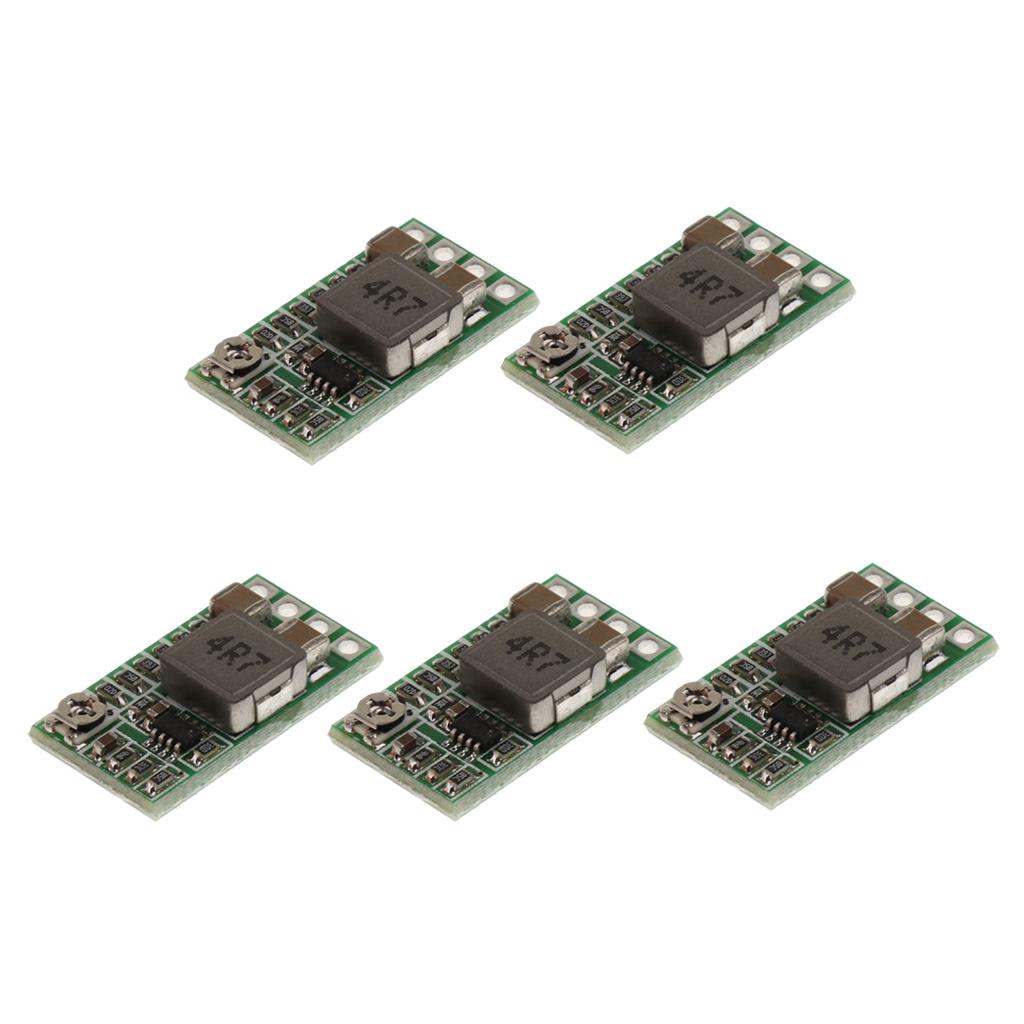

Item: DC-DC Step Down Converter

Input voltage: 4-24V

Output voltage: 5V

Output Current: 3A (MAX) actual testing input 12V output 1.5A

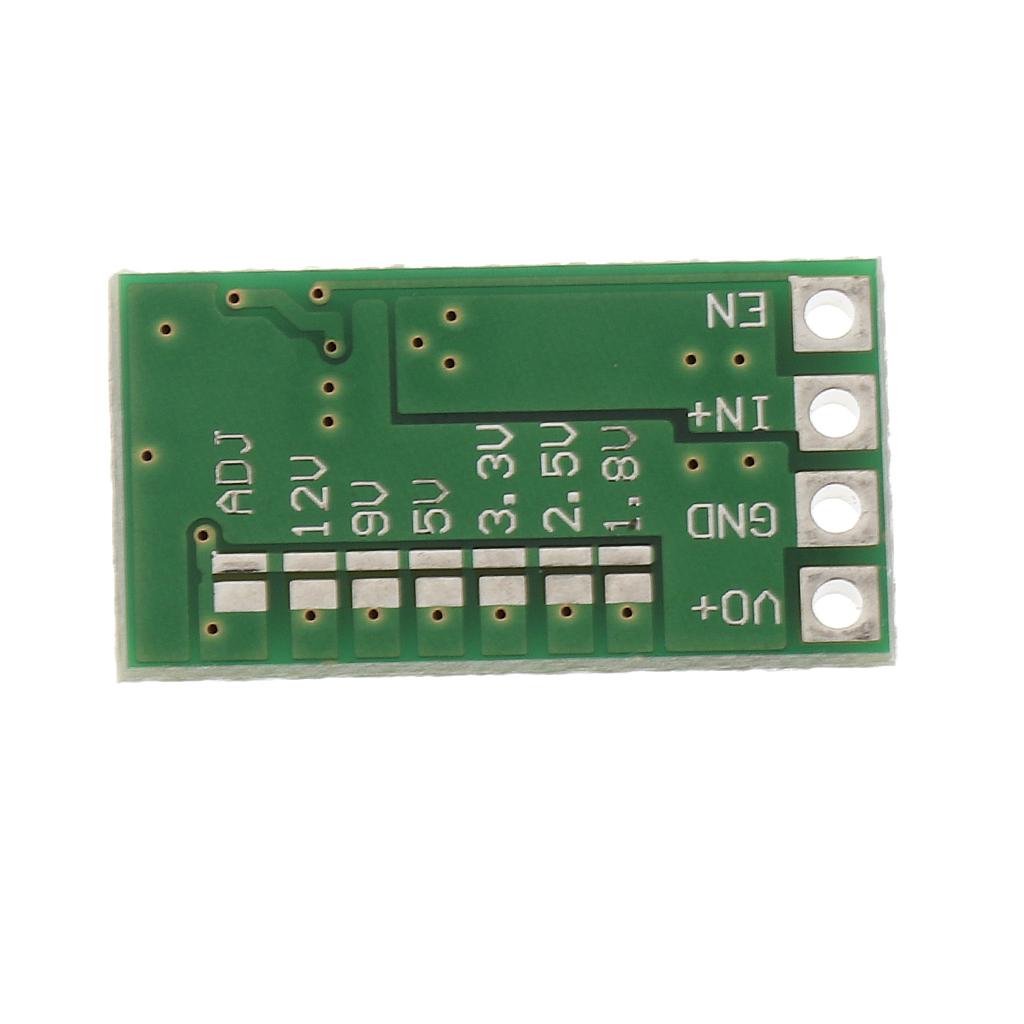

Output Voltage: integration adjustable and fixed output,back side can choose fiexd output voltage

Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)

Efficiency: Up to 97.5% (6.5 to 5V 0.7A)

Switching frequency: 500KHZ

Output ripple: 20mV (12V to 5V 3A),20M band width

Quiescent Current: 0.85MA

Load regulation: ± 1%

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output Overvoltage Protection: No

Output short circuit protection: Yes ( not for a long time )

Input Reverse Polarity Protection : No

Connecting Type: soldering

Input Way: soldering

Soldering Hole Space: 2.54mm

EN : enable port ; IN+ : Input positive ; GND : public negative ; VO+ : output positive

Size: approx. 20*10*1.5mm/0.79*0.39*0.06"

Package Includes:

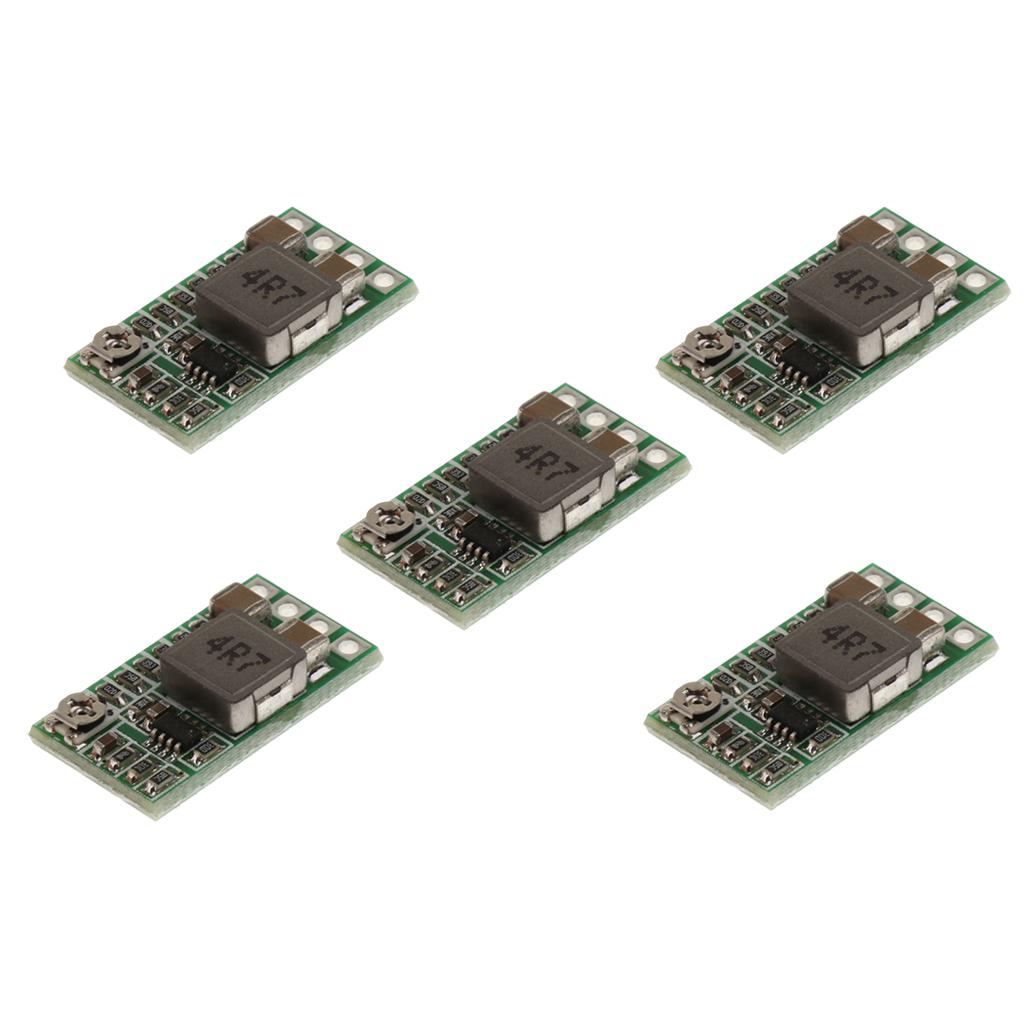

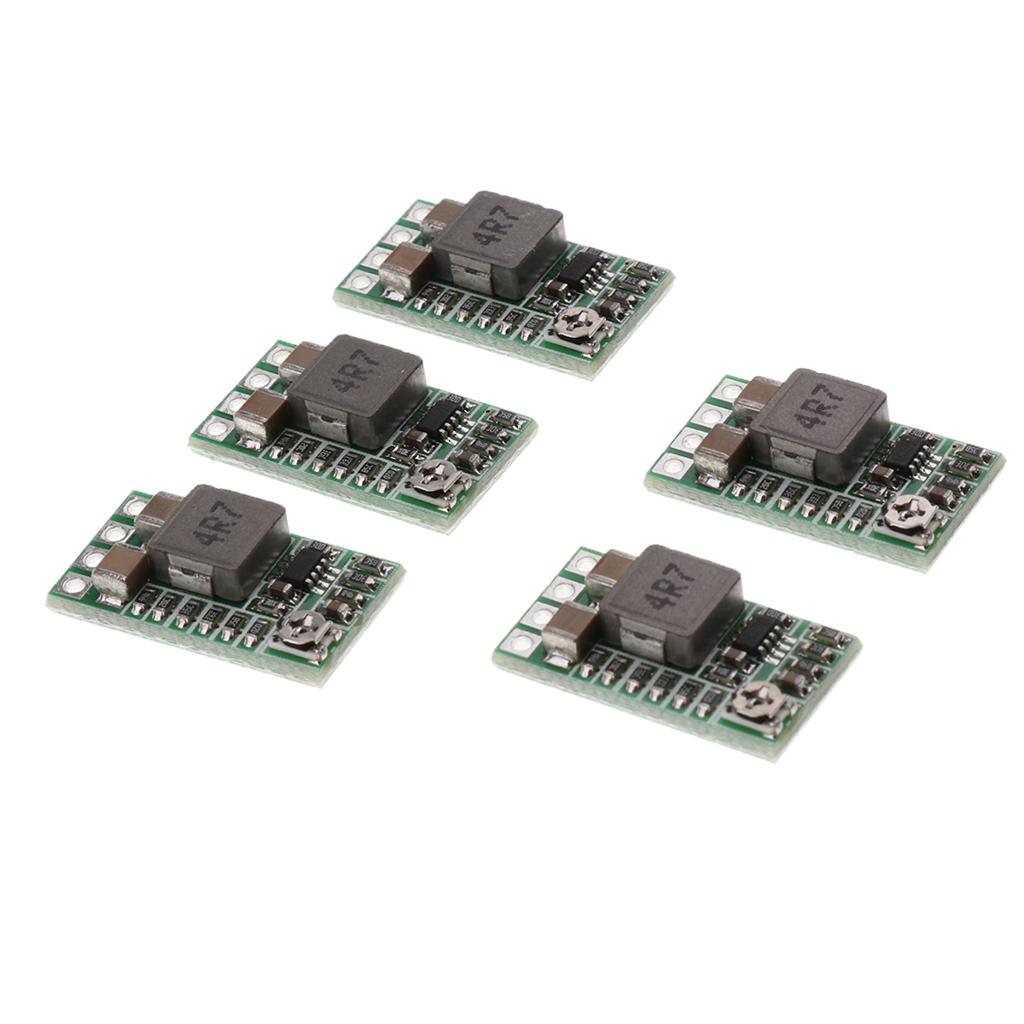

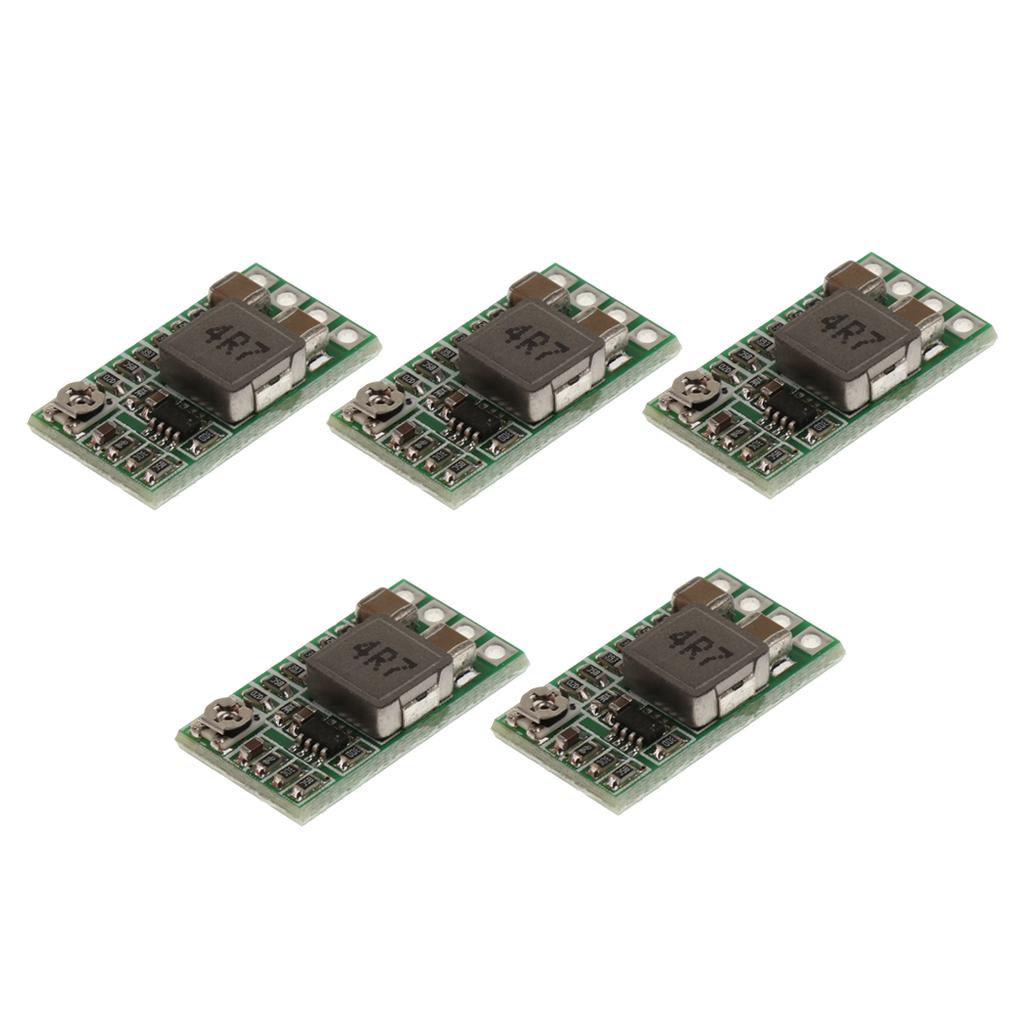

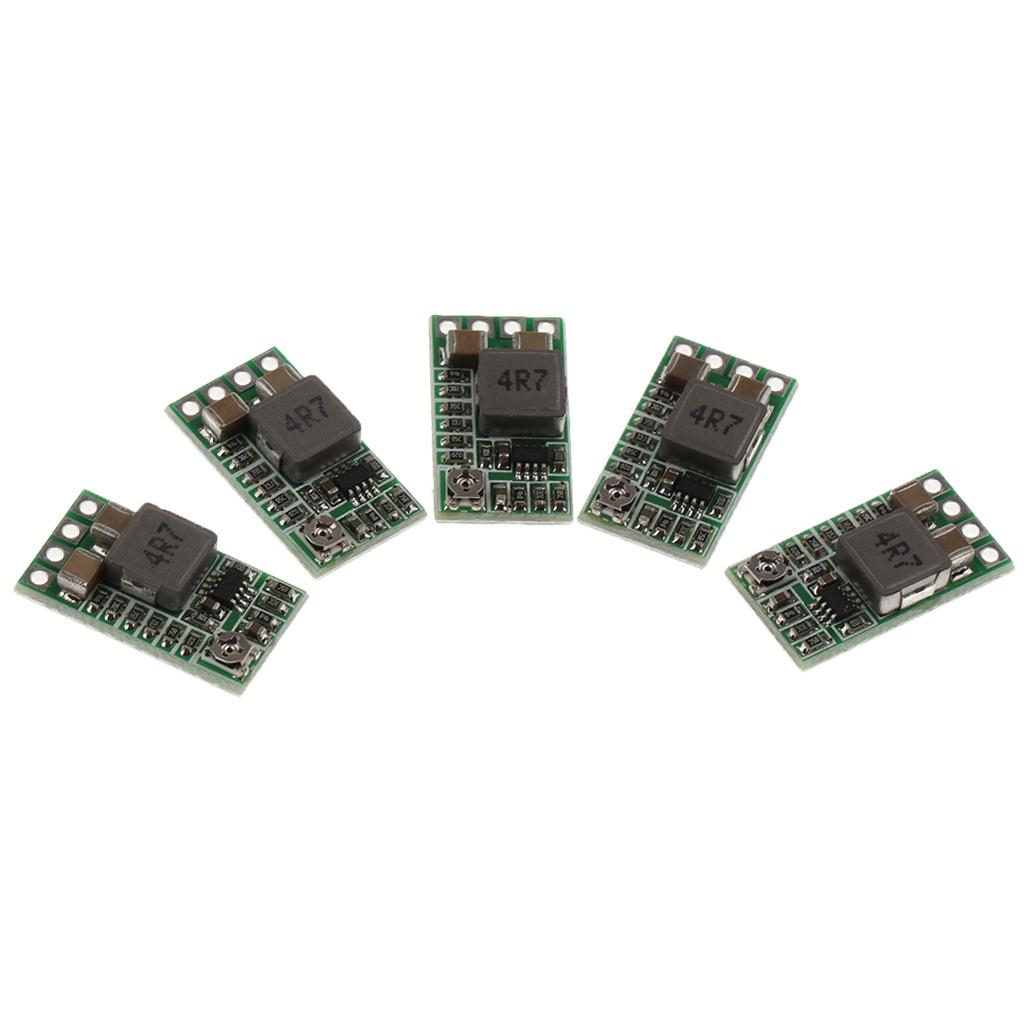

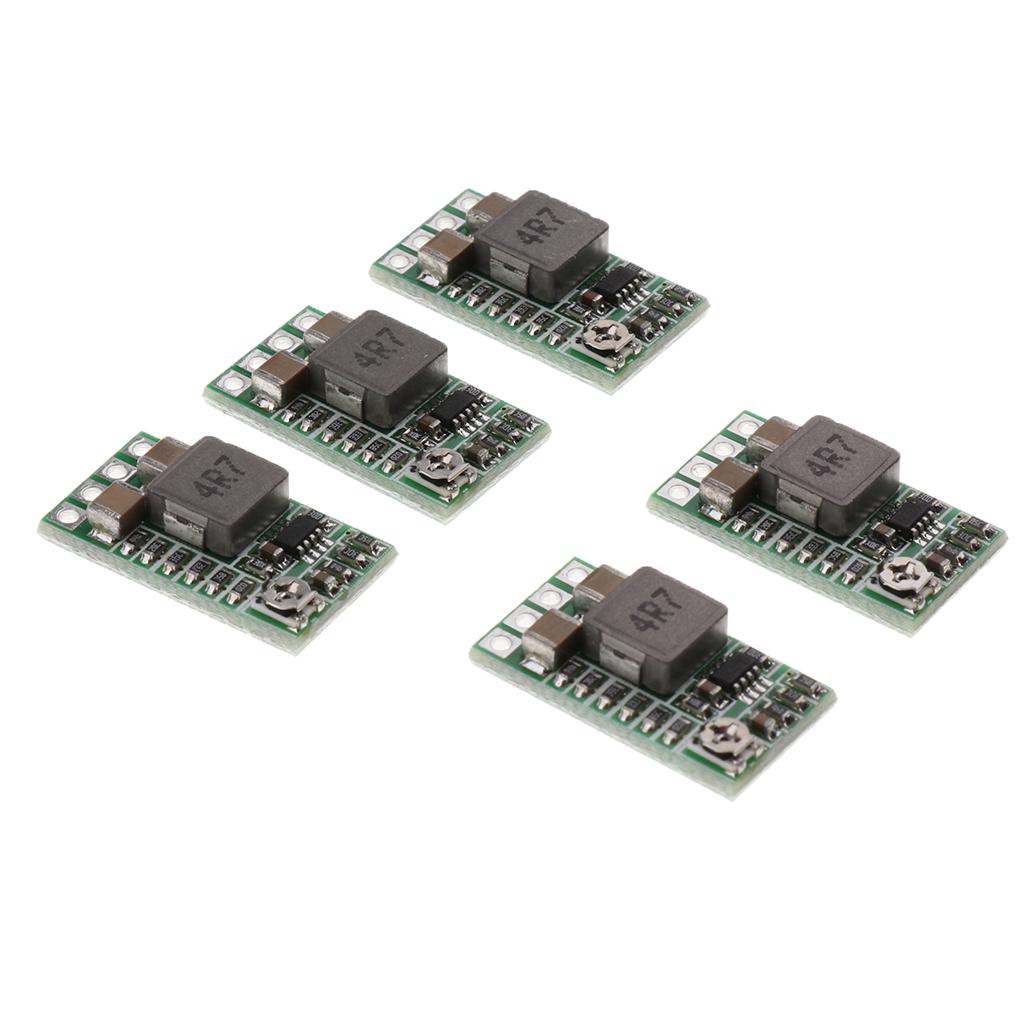

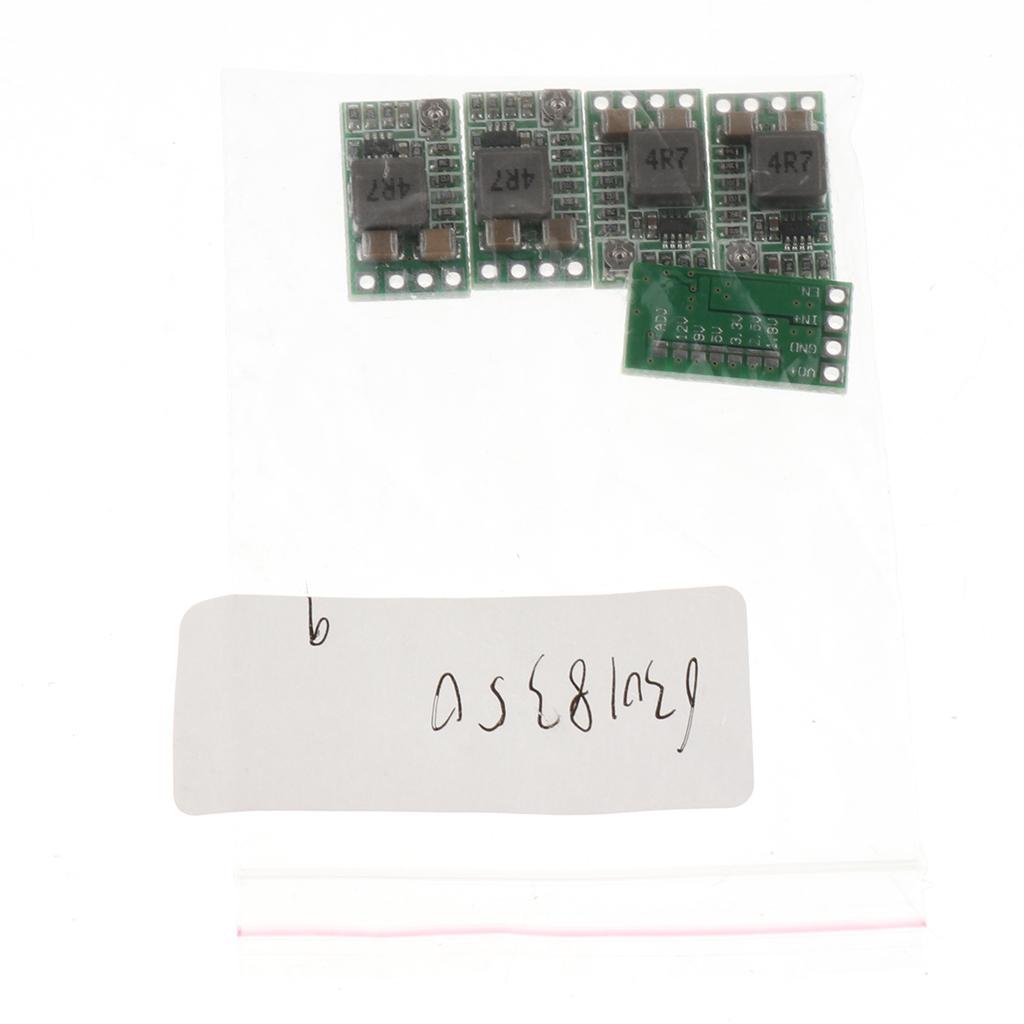

5 Pieces Step Down Power Module

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.
