4S 15A BMS Charger PCB Protection Board For 18650 Li-ion lithium Battery

Regular price
Rs. 400.92
Regular price
Sale price
Rs. 400.92
Earn 200 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 60009647
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: In Stock
Description

Description:

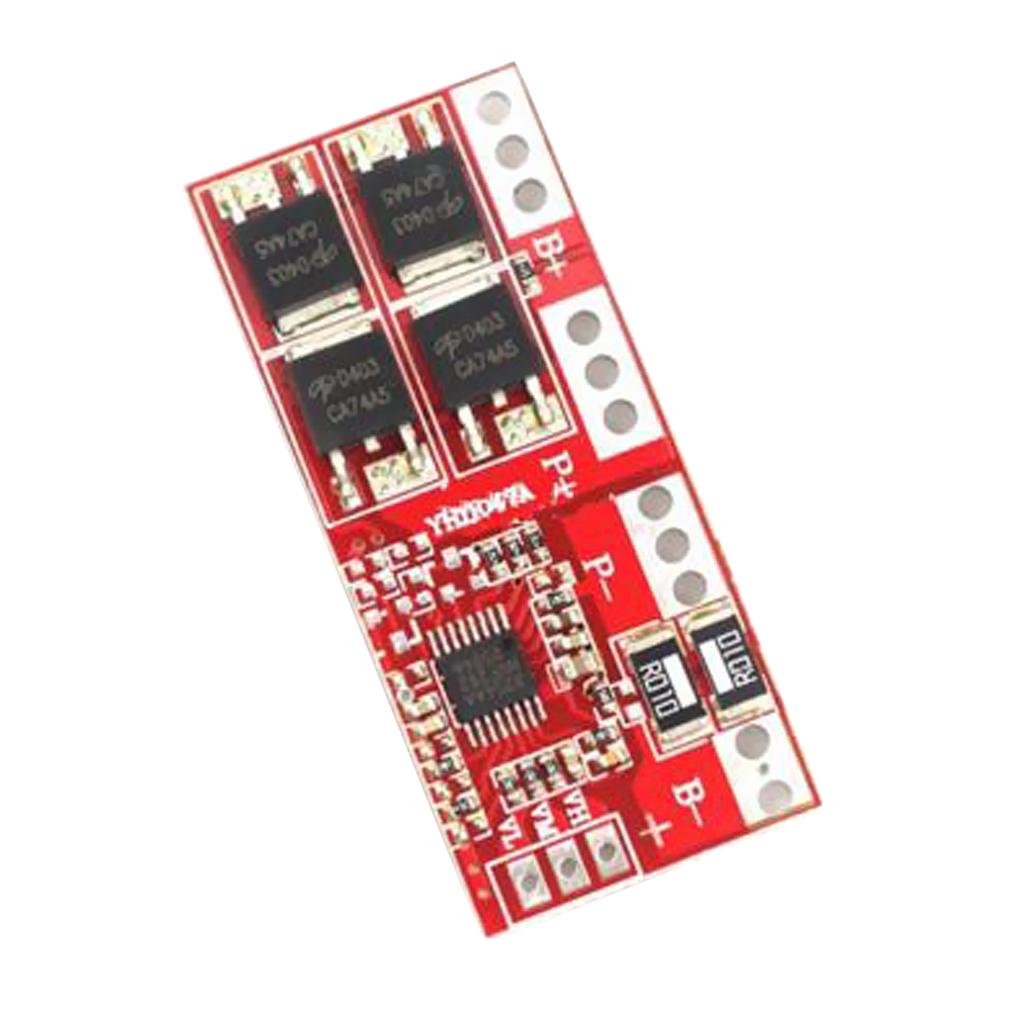

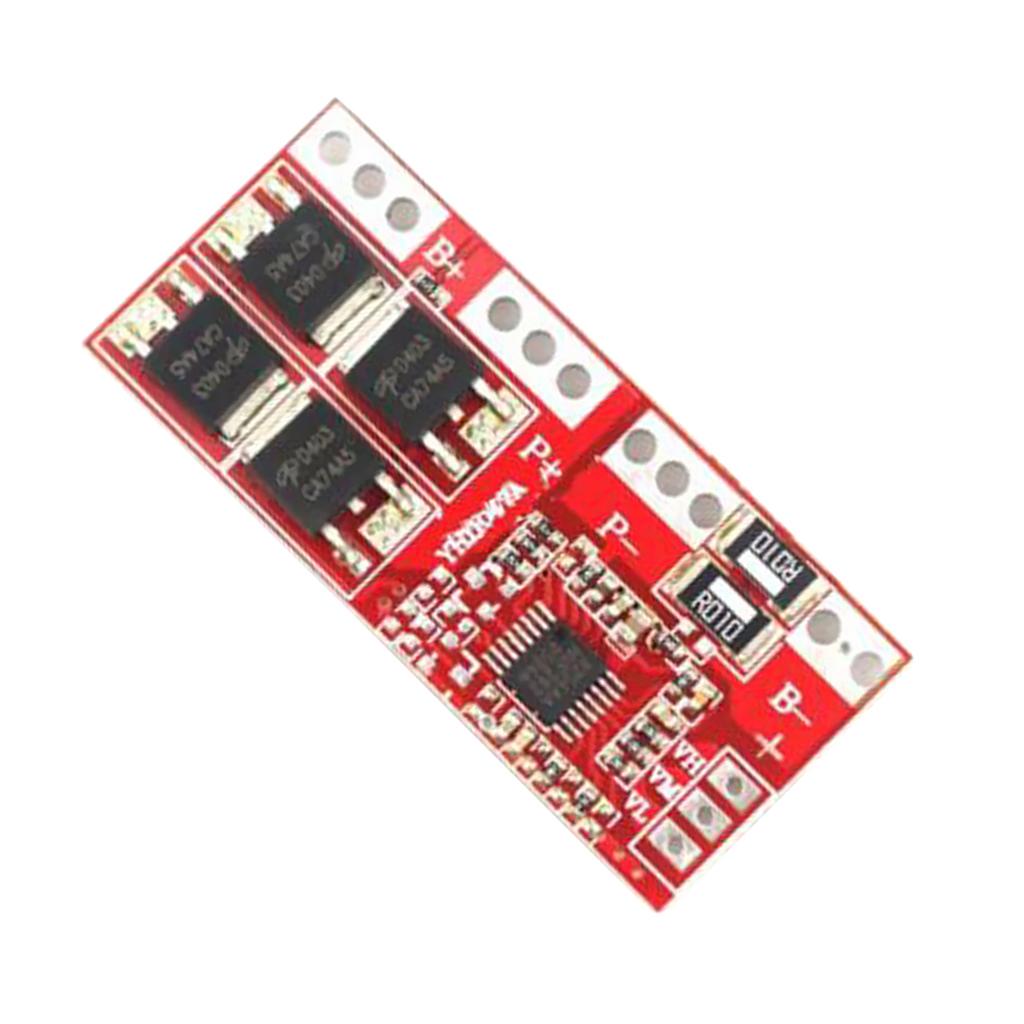

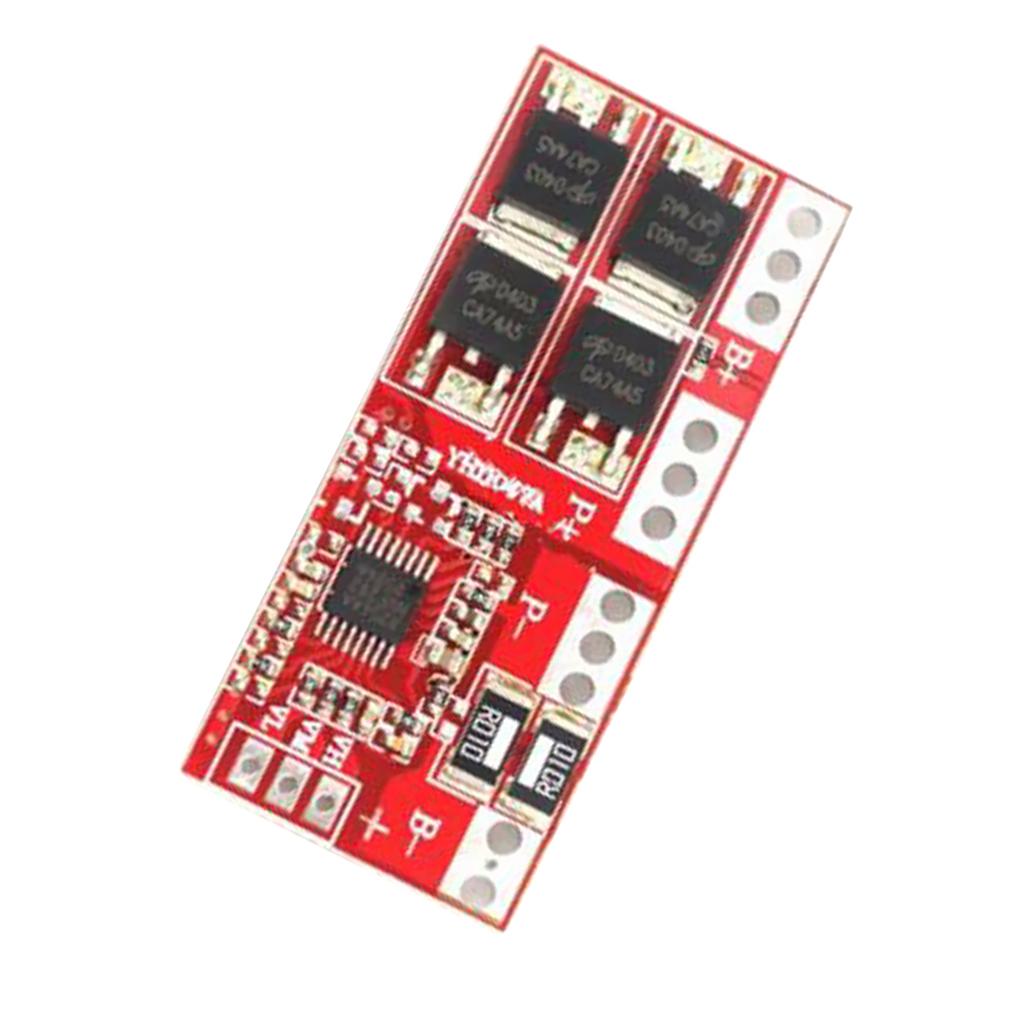

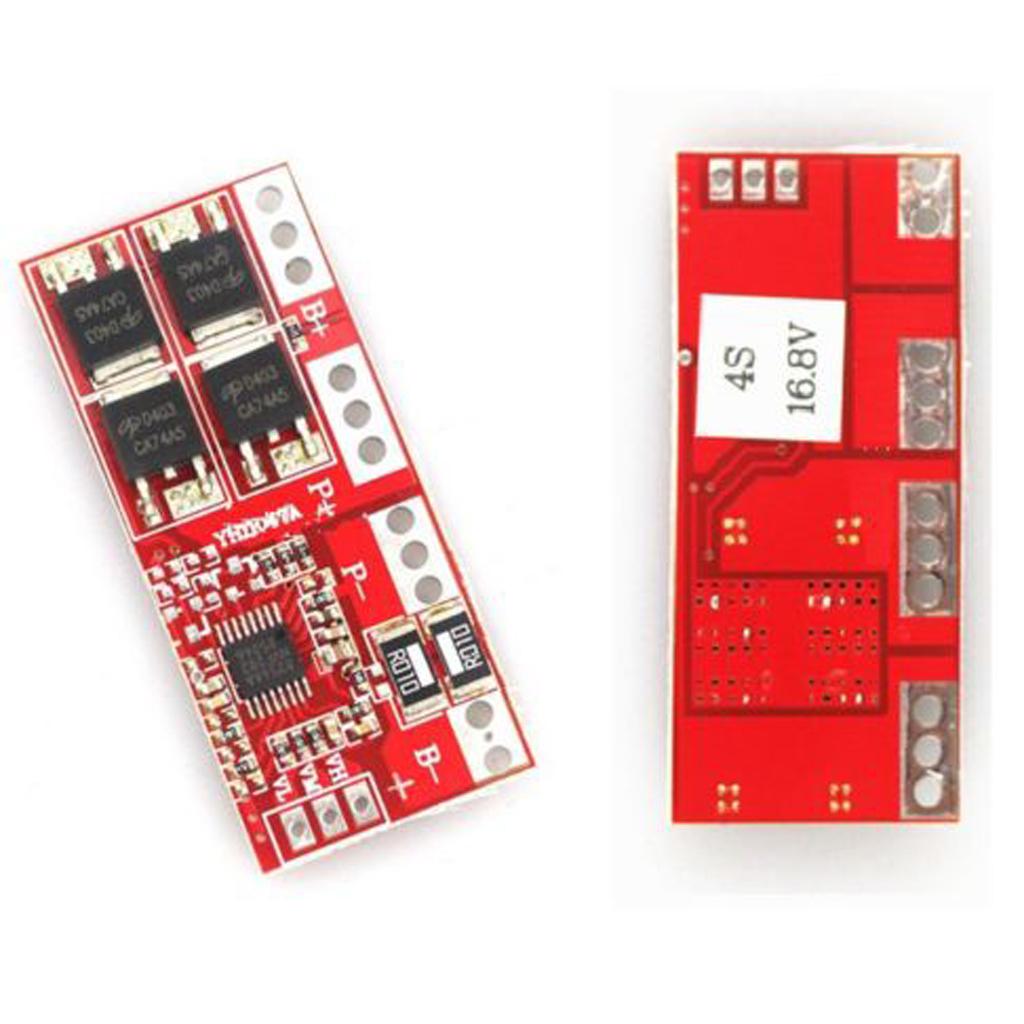

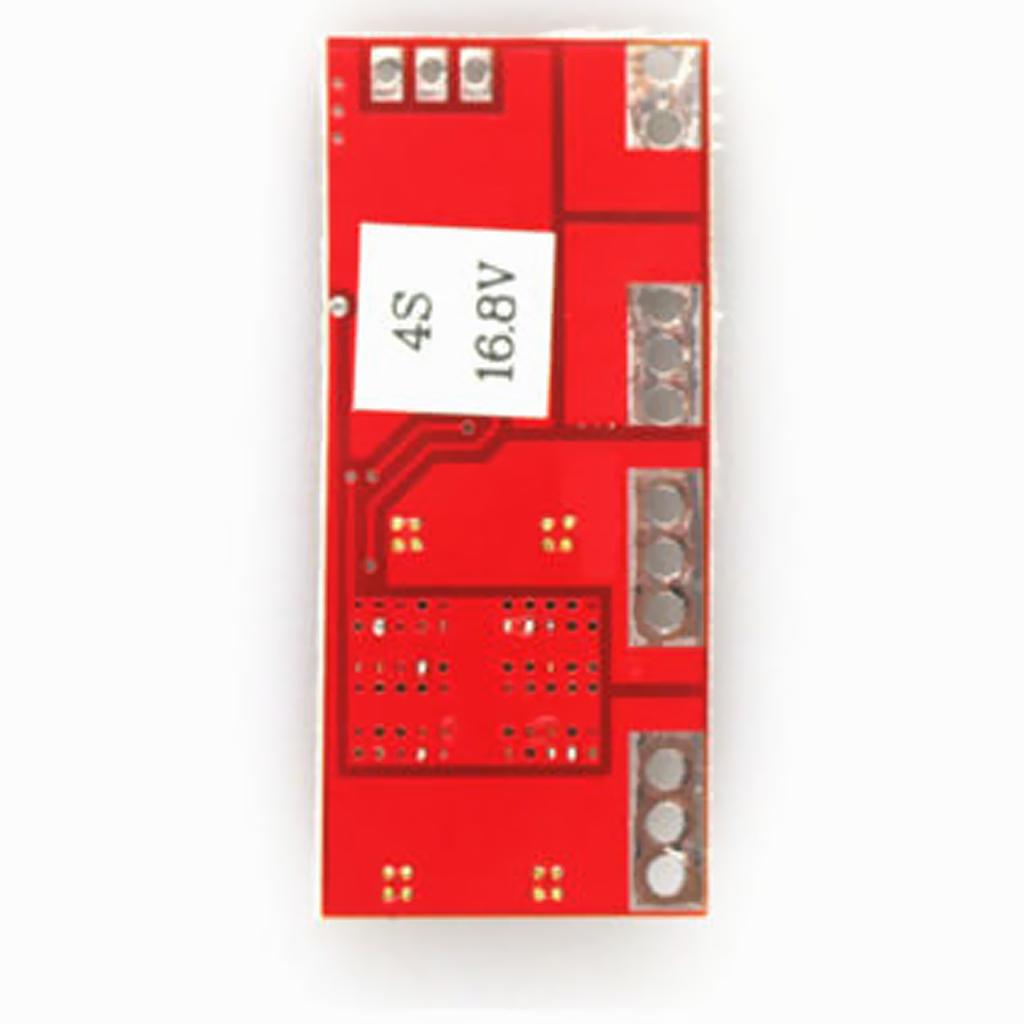

Module: 4S Li-ion Lithium Battery Protection Board

Overcharge detection voltage : 4.25±0.025V

Overcharge Lift the voltage: 4.15±0.05V

Over discharge detection voltage : 2.50±0.08V

Over discharge Lift the voltage: 3.00±0.1V

Overcurrent current: 20-30A

Working current: 15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A)

Remove protection condition automatic recovery, without activation

Protections: Short circuit protection; Overcharge protection; Over-discharge protection; Overcurrent protection

Operating temperature:-40-85℃

Material: PCB Board

Size: Approx. 50x 22x 4mm/ 1.97x 0.87x 0.16inch

Package Includes:

1 Piece lithium battery protection board

Note:

Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

Please allow slight dimension difference due to different manual measurement.
