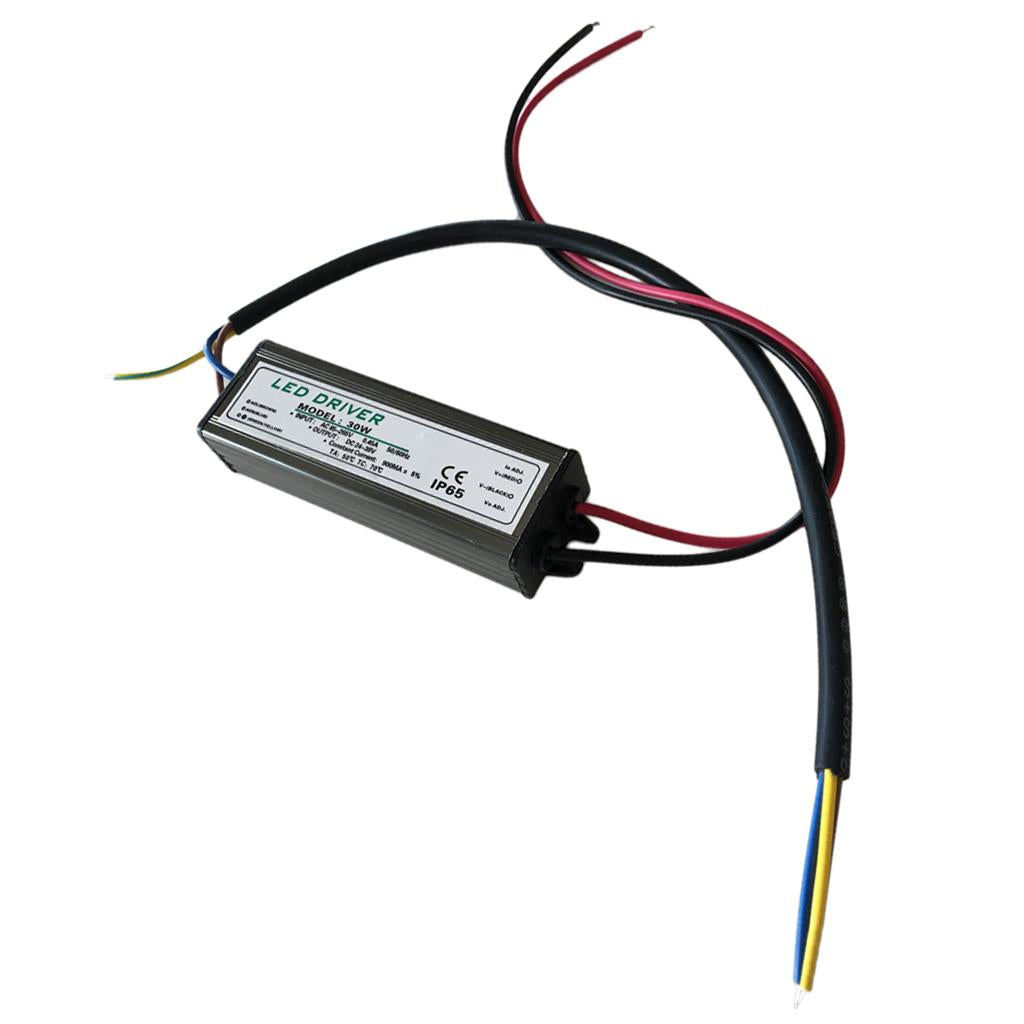

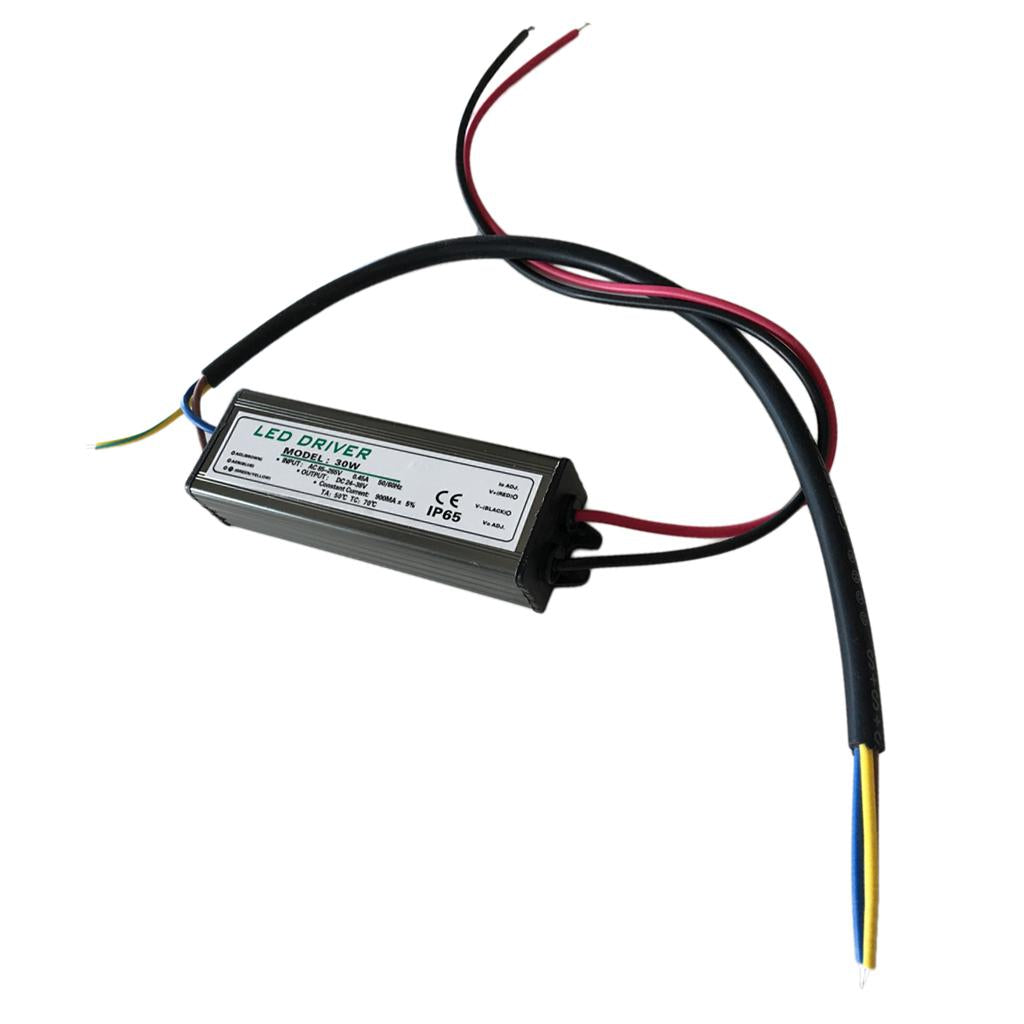

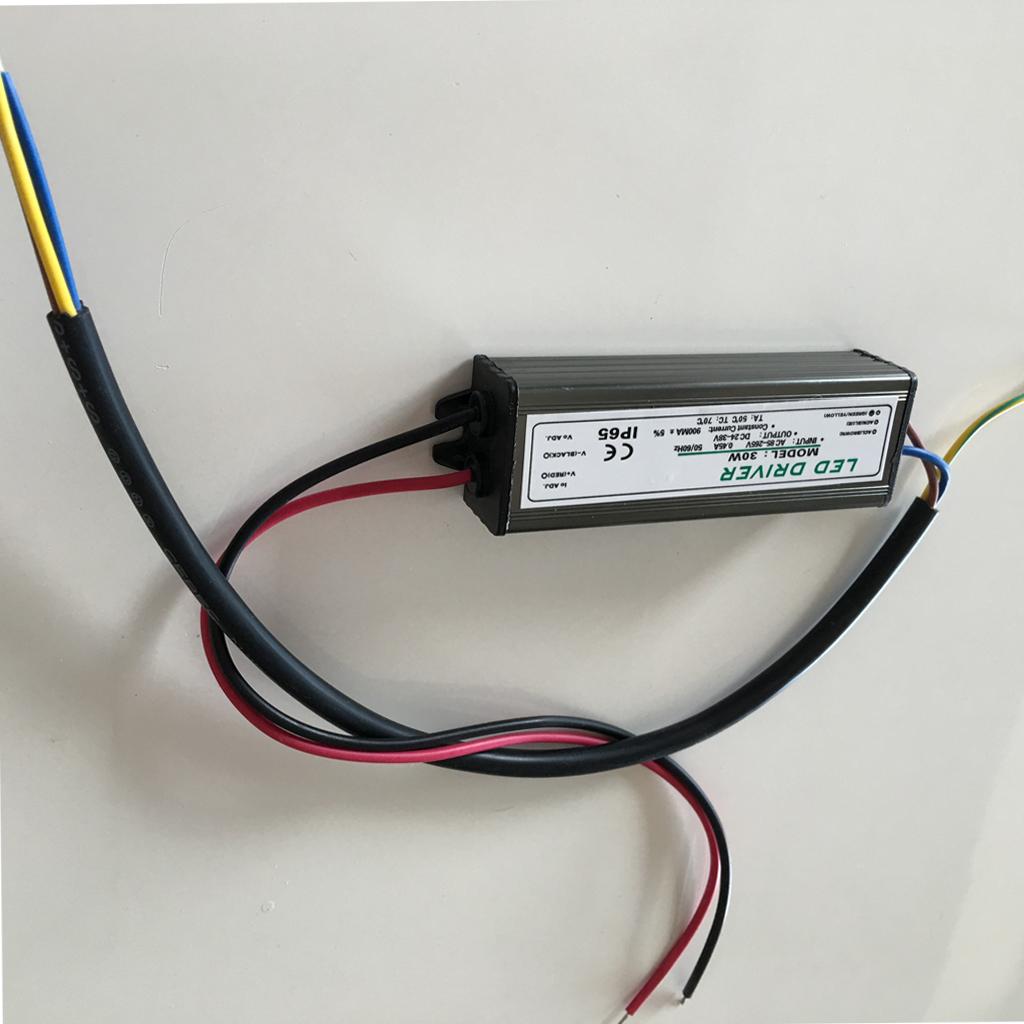

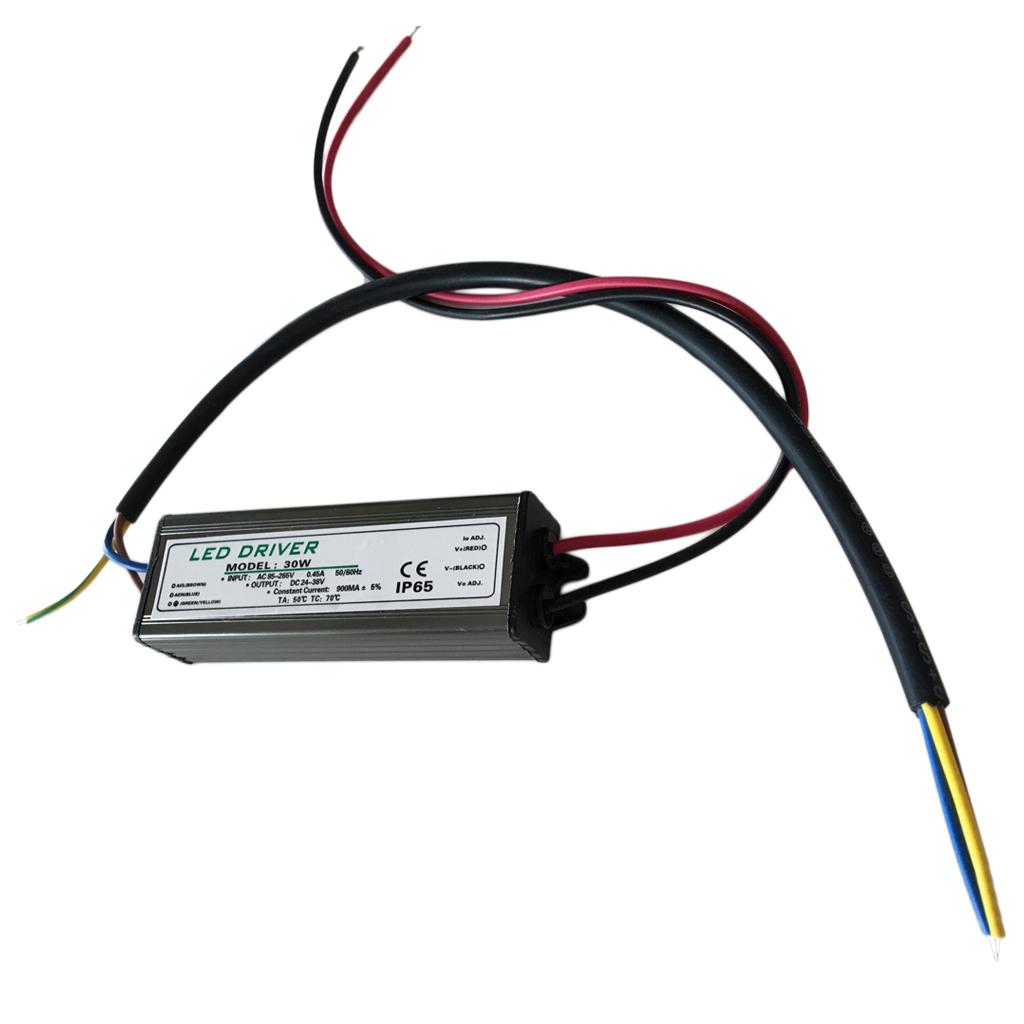

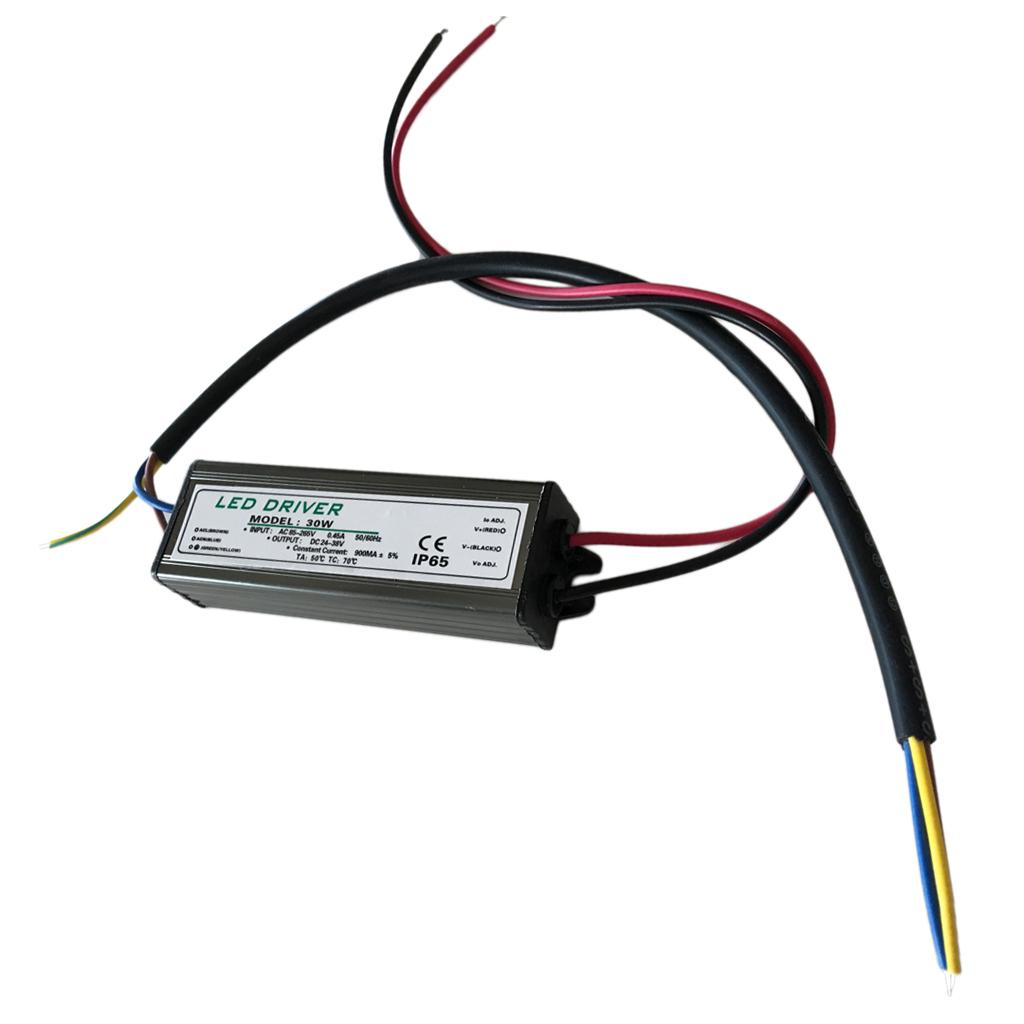

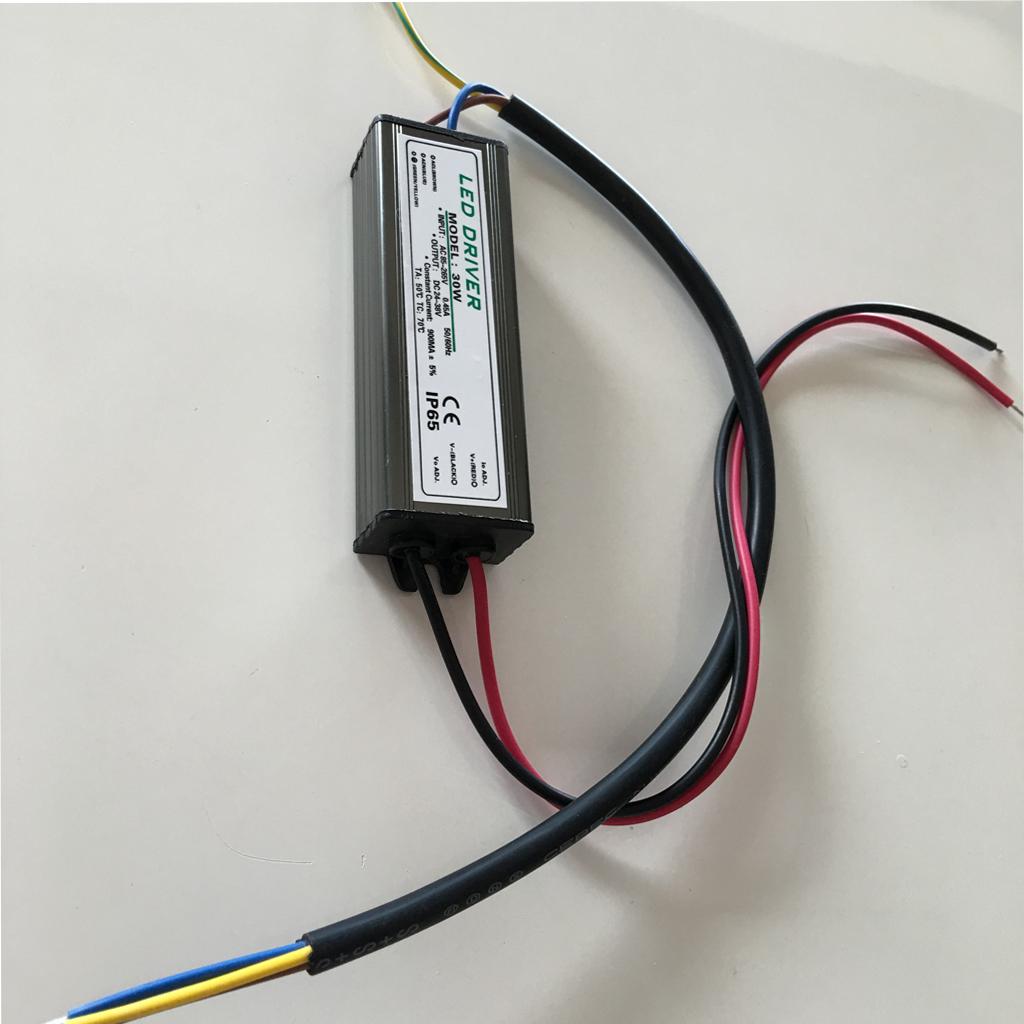

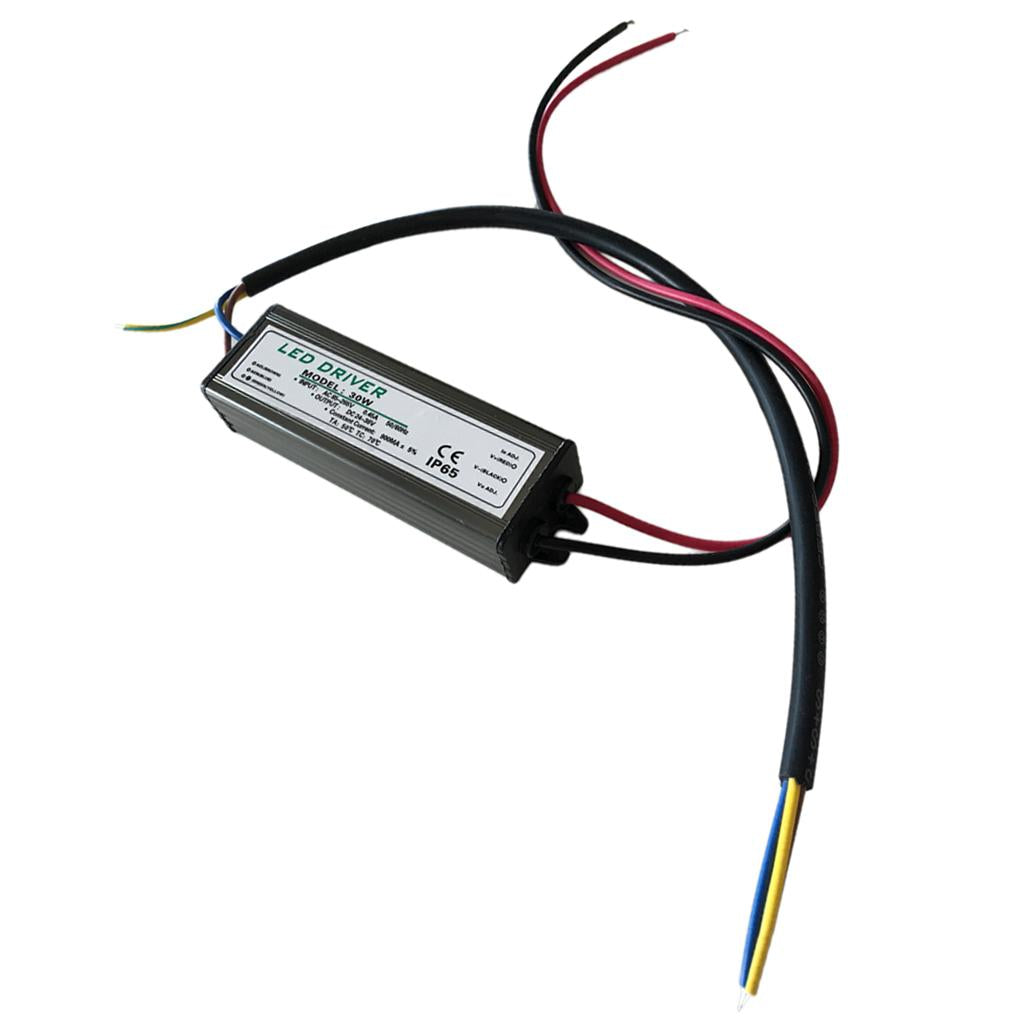

30Watt 900mA Constant Current Power Supply LED Dimmable Driver Transformer AC 85-265V

Regular price
Rs. 1,043.29
Regular price
Sale price
Rs. 1,043.29
Earn 521 Reward Points. Learn More...
Terms & conditions

Your order will be delivered in 15-20 days.

Details
  • SKU: 73008589
  • Brand: SFC
  • Type: Business & Industrial
  • Availability: Out stock
Description

Description:

30W IP65 DC85-265V(In) LED Driver For light power supply, 7 String 10.
Input Rating voltage: AC85-265V; Output Voltage(loading): DC 18 ~ 36V
Output Voltage(no loading): DC ≤ 55V; Output Current(loading): 900mA
Size(LxWxH): 88x30x20 mm/3.46x1.18x0.78 inch
Suitable for Input Voltage AC85-265V light 7 String 10 and 300mA project lamp, Trunk lamp, etc.

Specification:

Model: PL-WP-900-36N
Reference Standard Basics: IEC 61347
Working Frequency: 50 ~ 60 Hz
Input power(loading): ≤ 30W
Short Circuit Protection: Yes
Overloading Protection: Yes
Insulation Strength: AC 1.5 KV/5 mA 1Min
Ripple: ≤ 600 MVpp(120Hz)
Working Temperature: -25 °C ~ +40 °C
Efficiency: ≥ 85 %

Package Includes:

1 piece Power Supply LED Driver
